MAINSPRING RACEDAY Bedienungsanleitung
Vol.1.14_EN
INSTRUCTION
MANUAL
The watch winder is a device used to keep
automatic watches running when not being
worn. Not only does the device keep the
watch parts lubricated and moving, but it also
helps extend the overall life of the watches.
Once set up, your winder will repeat its wind
up settings without intervention.
RACEDAY
2 SLOT
WATCH WINDER
For more details on operating this watch winder
please refer to the enclosed booklet or visit :
im.mainspring.store
WHAT’S INSIDE
1. Watch winder with cushion and cover window display protector
2. AC/DC Adapter
3. Regional plug attachments
4. Bridge cable for multiple winder connections
USEU
UK
1
or
INSTRUCTIONS

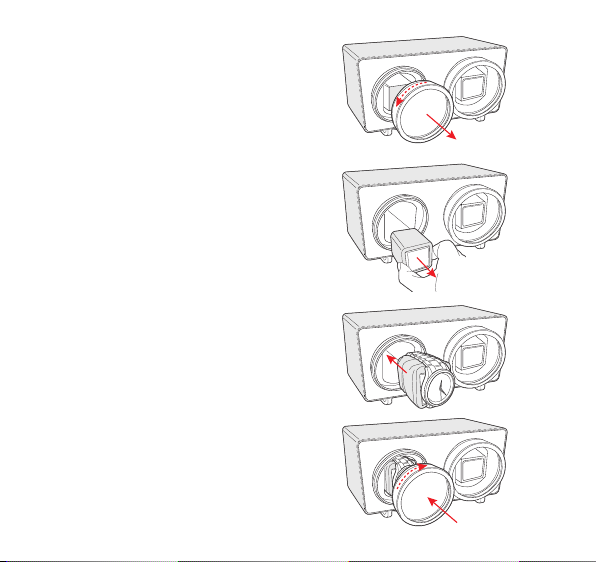

1. Unscrew the cover window
display protector by turning it
anti-clockwise.
2. Remove the sponge inside the
rotator slot and attach your
watch onto the cushion.
For better results – it is best to have
your watch wound up a little before
placing inside the winder.
3. Put the pillow back in the
winder slot, carefully ensuring
the watch will not shake or fall
from the winder once rotation
begins.
4. Screw back the cover window
display protector by turning it
clockwise.
2
650 900 1200 1500
650 900 1200 1500
650 900 1200 1500
650 900 1200 1500
3

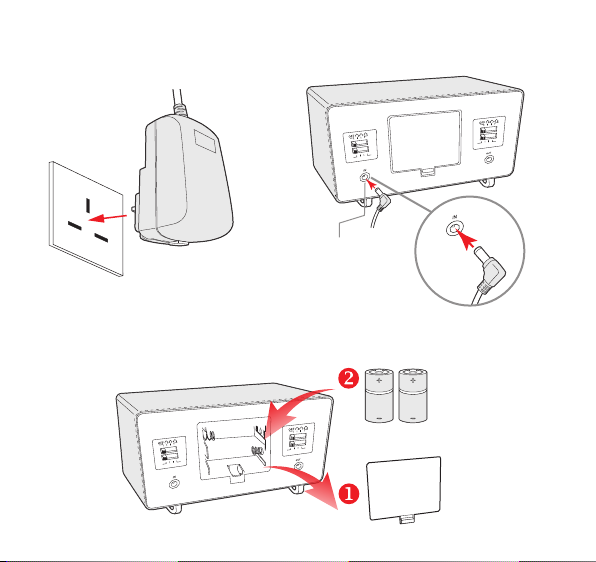

5. Use the adapter to connect the winder to a power socket or use
batteries to power the winder.
6. The winder uses 2 x C batteries (not included) that can be inserted
for cord-free usage of the winder.
AC/DC
adapter
UK
Power socket
Power socket
DC 5V / IN
4

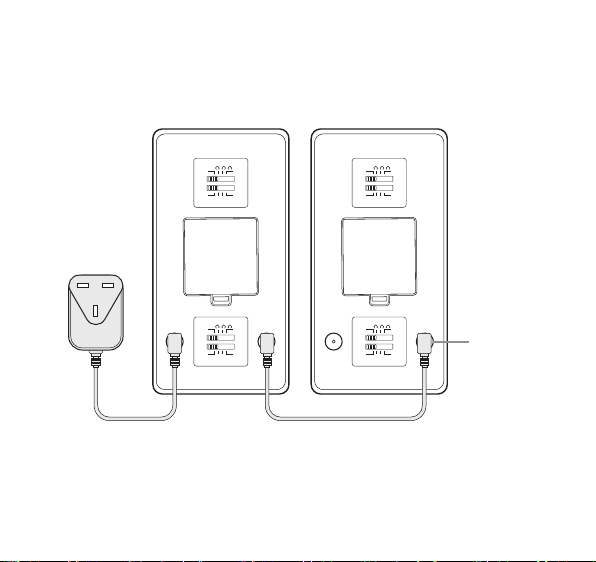

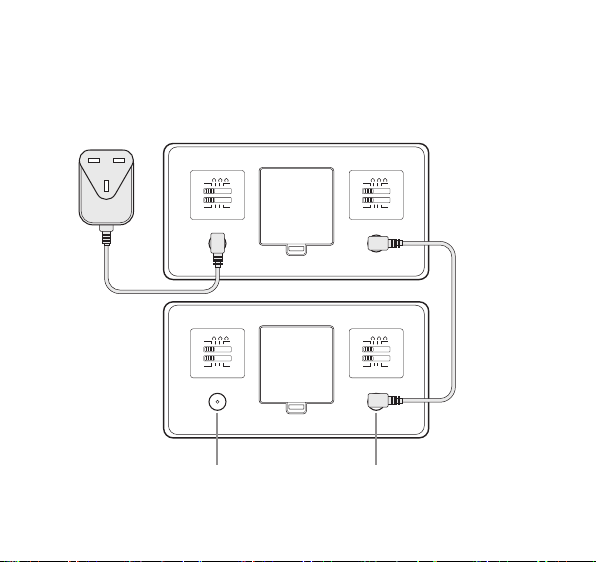

7. You can also use the included bridge cable to connect and operate
another unit with one adapter.
Bridge cable
Serial InterfacePower In
Unit 1
Unit 2
AC/DC
adapter
650 900 1200 1500
OFF
650 900 1200 1500
OFF
650 900 1200 1500
OFF
650 900 1200 1500
OFF
5
Bridge cable
Serial
Interface
Power In
Unit 1 Unit 2
AC/DC
adapter
650 900 1200 1500
OFF
650 900 1200 1500
OFF
650 900 1200 1500
OFF
650 900 1200 1500
OFF
6
8. Place the winder on a stable flat surface and avoid areas of heat,
dust and other oscillating objects (see care and maintenance).
Bridge cable
Unit 1
Unit 2
AC/DC
adapter
7
OFF
PROGRAMMING
Behind the winder are the setting switches to customize the frequency
and direction of the rotation of the winding mechanism.
Most watches are adequately wound with a setting of 650 to 900 Turns
Per Day (TPD).
The first switch controls the rotation direction
SWITCH
OFF Stop
Clockwise
Counterclockwise
Alternating
TIME
8
650 900 1200 1500
The second switch controls the Turns Per Day
SWITCH
I
TIME
II
III
IV
650 TPD, running time 3 minutes
28 seconds, rest time 56 minutes 32
seconds continue to cycle.
900 TPD, running time 4 minutes
48 seconds, rest time 55 minutes
and 12 seconds, continue to cycle.
1200 TPD, running time 6 minutes
and 28 seconds, rest time 53 minutes
32 seconds, continue to cycle.
1500 TPD, running time 8 minutes
and 08 seconds, rest time 51 minutes
and 52 seconds, continue to cycle.
