Majestic SLT241 Bedienungsanleitung
Model：SLT241
User 's manual

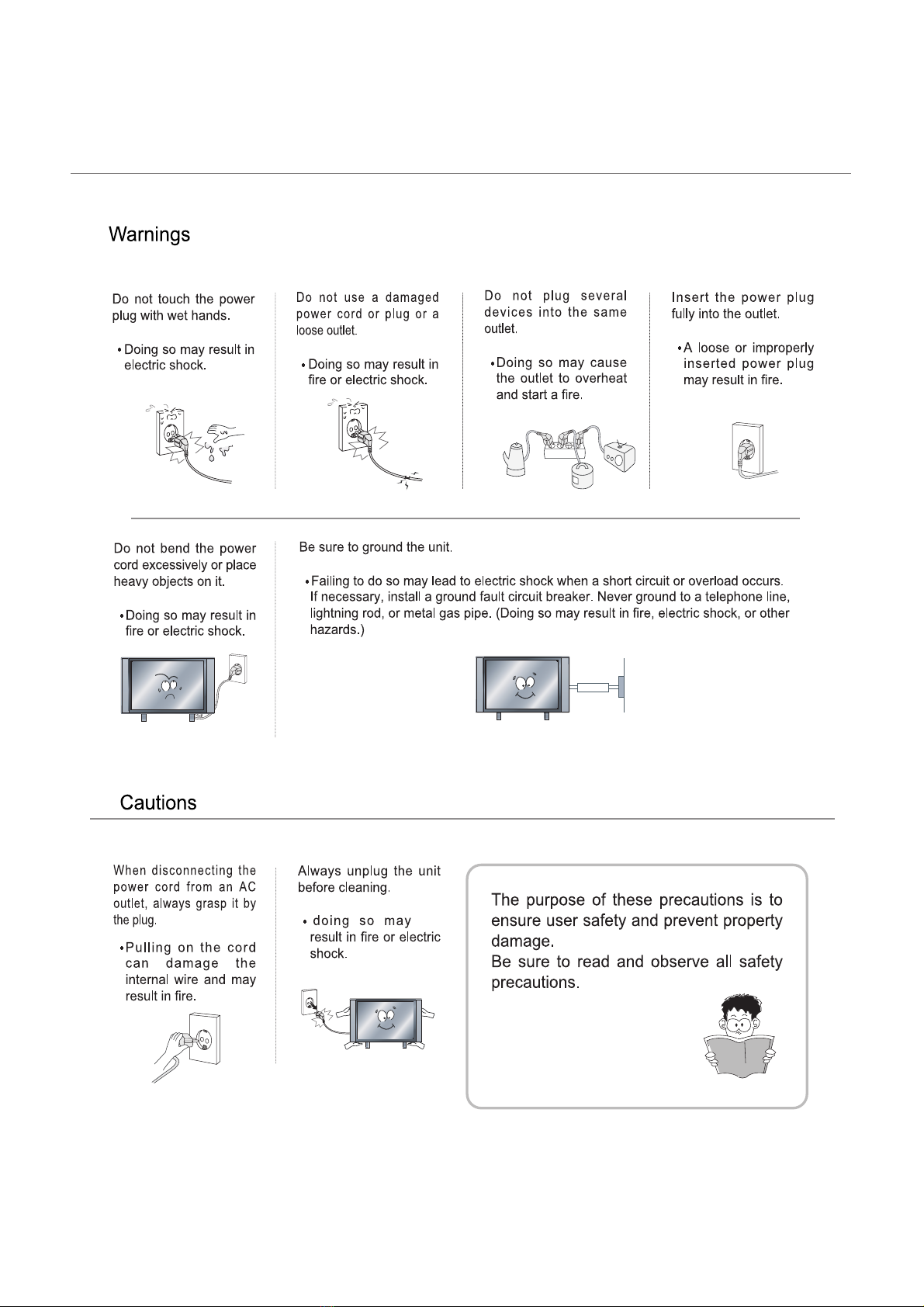

Use and Maintenance
02
03
04
Names of each part/Accessories
Remote control
First Time lnstallation 06
Select input source 07
TV MENU 07
Picture 09
Sound 10
Channel 11
Function 12
Time 13
Lock 13
Media Operation 15
Bluetooth 20
Android Operation 16
Home
Settings
Apps
Network
Software Update
Date&Time
Language
Keyboard
Storage
Reset
16
16
17
17
18
19
19
19
19
20
Names of each part
Back View
03
Position of input / output connections for guidance only.Models may vary.
ARC
HDMI1 DVB-S2 DVB-T2
5V 500mA
OPTICAL
OUT
DC IN: Connect to the power adaptor.
RJ45: Connect to Router or Internet.
CVBS OUT+LINE L/R OUT: Connect to the AV OUT ports.
HDMI: Connect to the HDMI of DVD or other equipment.
RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
OPTICAL: Connects to the Optical Audio in port of an audio device.
Common Interface: CI slot.
Mini AV: Connect it to the audio & video output terminal of DVD with the Converter cable.
：Connect to your headphone or other audio equipment
USB: Connect to USB device for multimedia and PVR.T

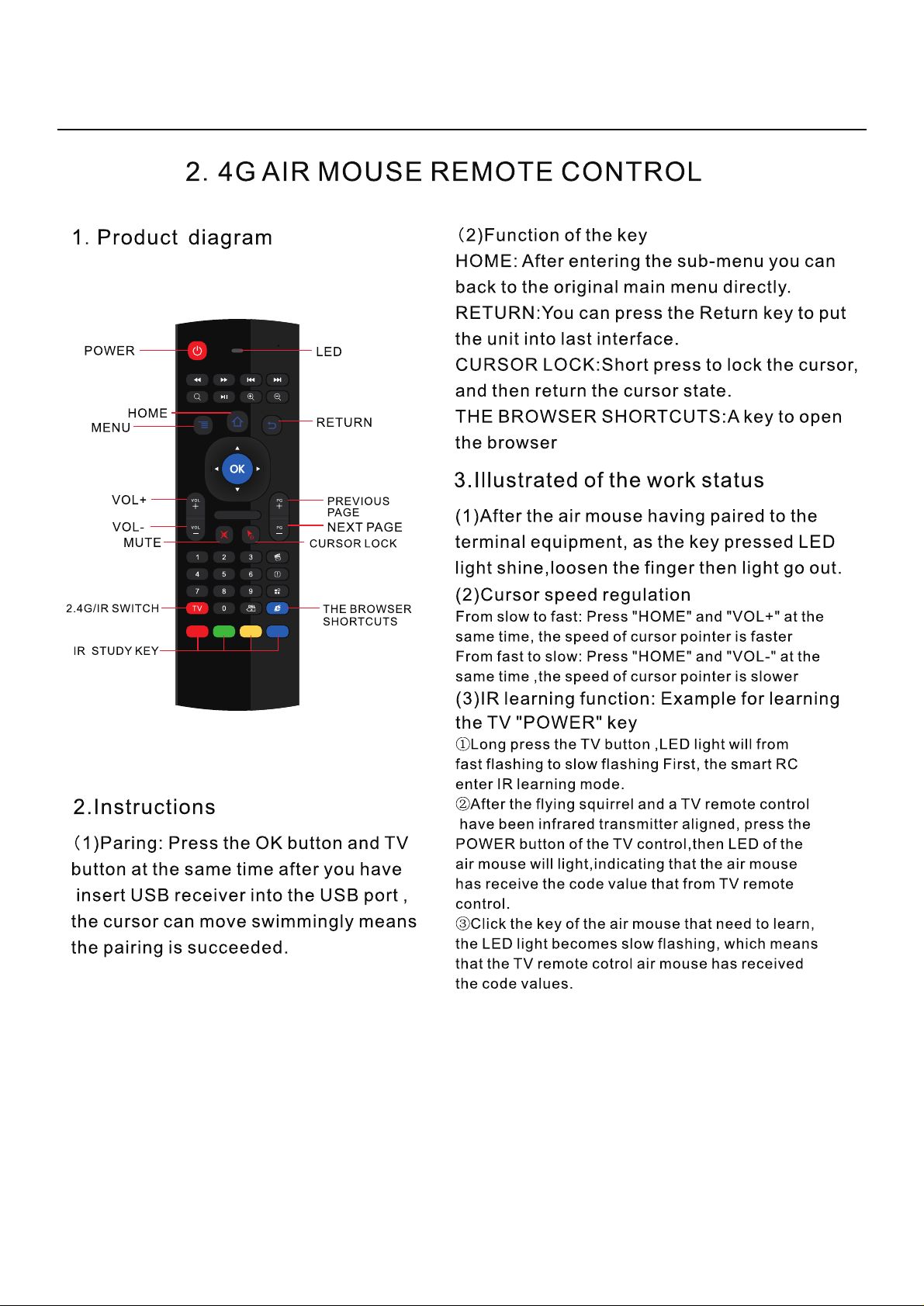

Remote Control
04
ENTE R
BAC KS PAC E
Remote Control
05
06

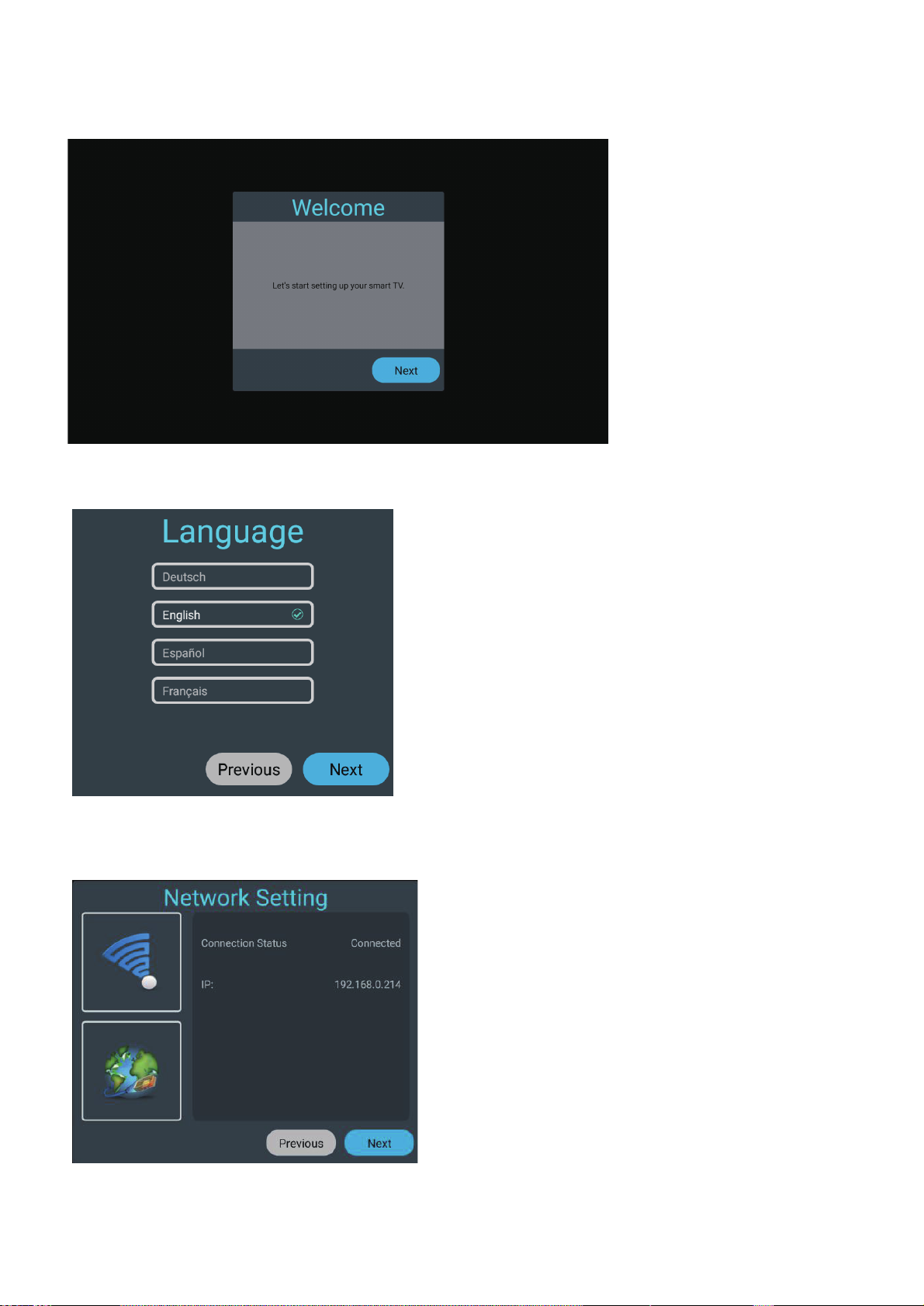

First Time Installation
The Startup Wizard menu contains language settings and network settings.
Language settings: you can set the TV operating language.
Network settings: you can set according to the connection, wireless network settings WIFI connection, wired
connection is to set the local area network.
07
Select Input Source
Press the “Source” button to display the input source menu, press the left or right button to select the corresponding
input source, and press the Enter button to enter the relevant source.
TV MENU
Press the “menu” button to display the menu, press the up and down keys to select the appropriate settings, press the
right button to enter the relevant settings.
08
Picture Mode: Use the menu button to call up the menu, then right click to select the "Image Mode" option, press
the left and right button to switch the image mode to Standard / Movie / Vivid / User.
Color temperature: Select the "Color Temperature" option according to the method mentioned above, and then use
the left and right keys to adjust the color temperature to cool / normal / warm.
Noise Reduction: Press up/down key to select "Noise Reduction" option. Press left/right key to select "Off", "Low",
"Medium", "High" and "Auto”to improve the picture sharpness.
Aspect Ratio: You can select ZOOM1, ZOOM2, 16:9 or 4:3 with left and right keys when the option of Aspect
Ratio is picked.The aspect ration will automatically change in auto mode.
HDMI Mode: Switch the image mode when play picture/video in HDMI mode.
09

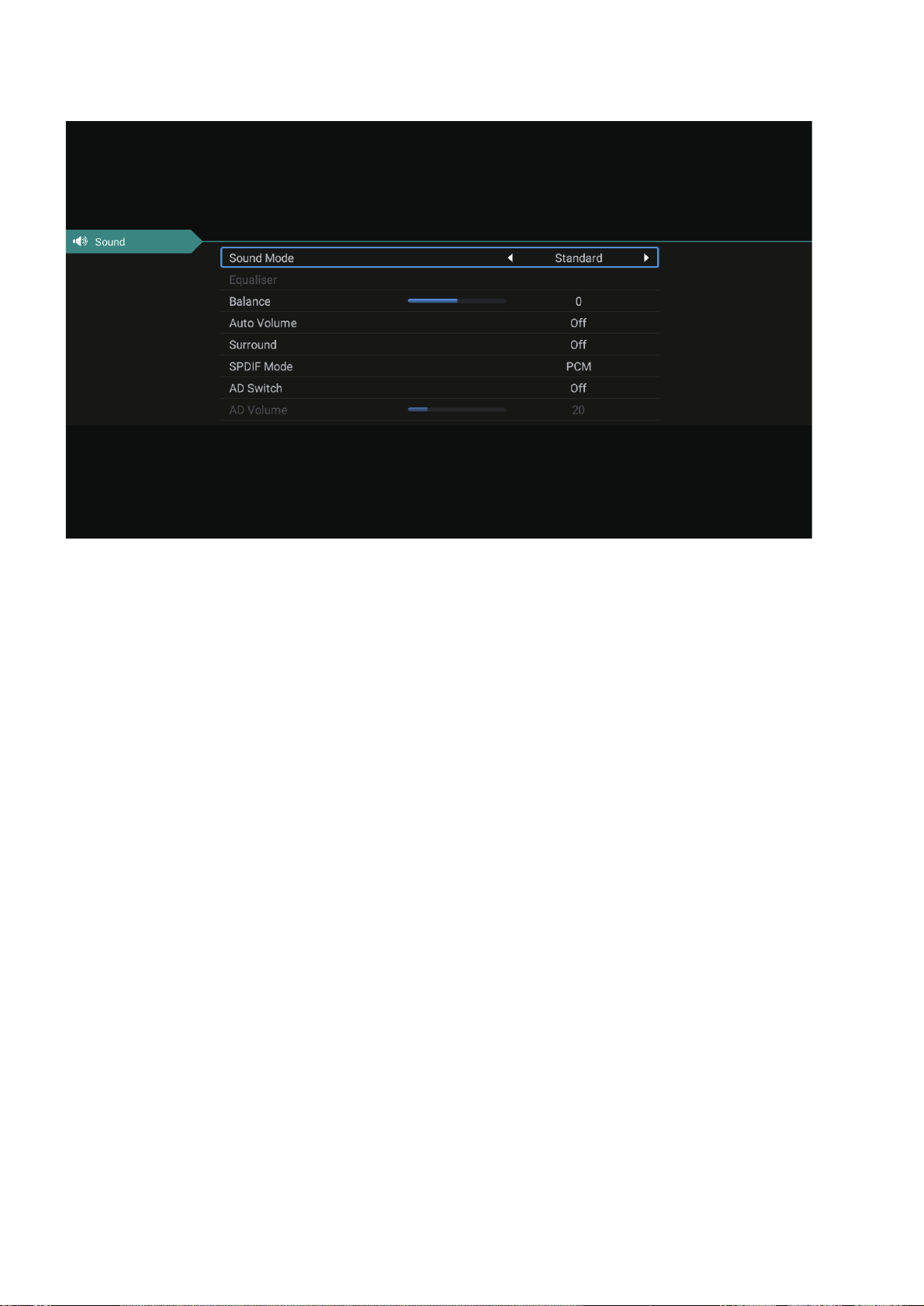

Sound
Sound mode: Use the up and down keys to select the sound menu, then press the right button to select the “Sound
Mode” option, press the left and right button to switch the sound mode to Standard/Sports/Music/Movie/User.
Equalizer: Through the up and down keys selected "equalizer" option, and then press the OK key system will
appear different bandwidth frequency level.
Balance: If the volumes of the left speaker and the right speaker are not the same, you can adjust the "Balance" to
suit your personal preference.
Auto Volume/Surround: Select the “Auto Volume”option, then turn the “Auto Volume” function on or off with the left
and right buttons. This method is also suitable for surround sound adjustment.
AD Switch: Select the “AD Switch” option, then turn the “AD Switch” function on or off with the left and right buttons
AD Volume: You can adjust the "AD Volume" to suit your personal preference.
SPDIF Mode: This is used to convert the digital audio output mode. There are Auto, PCM, RAW,OFF
