Foreword

Thank you for purchasing Makeblock Neuron.

The manual includes detailed descriptions for each block of the Neuron, and various examples of

combinations of blocks. Before reading this manual, we recommend that you get to know the Neuron by

firstly referring to the quick start guide, provided in the product package.

For more examples and multilingual user manuals, please visit:

󴇠󲡕󵠷󴰢󱾛󲡕󲓽󸑤󱡋󵫞󳧼󱯢󱘕󸮛󽘜󸒾󴍦󵸰󶫊󶓡󾗜

Voor meer voorbeelden en meertalige gebruikershandleidingen, bezoek:

Pour plus d'exemples et de manuel de l'utilisateur dans d'autres langues, veuillez vous rendre sur:

Weitere Beispiele und mehrsprachige Benutzerhandbücher finden Sie unter:

Per ulteriori esempi e manuali utente multilingue, visita:

󴇠󸸩󳿑󱾛󲡕󸌫󸑤󱾍󵐲󾗜

󻃃󾖴󻜽󼒯󻸛󻖯󼎯󾖴󻁓󺫜󼌣󾖴󻸛󼐘󼓿󾖴󻺓󻟴󻺋󻛫󾖴󻩣󻖓󻟣󾖴󻁓󼒻󼒳󾖴󽏄󼓧󽋣󾖴󼙫󻺧󼐃 

Para mais exemplos e manuais de utilizador em várias línguas, visite:

Чтобы получить дополнительные материалы и документы на нужном вам языке, пожалуйста,

посетите следующую web-страницу:

Para más ejemplos y manuales de usuario en más idiomas, por favor visita:

http://www.makeblock.com/steam-kits/neuron/

A. Supplies power to the other blocks.

Press the power button to turn on the smart power block. To turn it o, hold the

power button for around 3 seconds until all lights disappear.

How does it work?

Supplies power to other blocks. The built-in Bluetooth module

allows the Neuron to be connected to smart phones, tablets or

computers, where the blocks can be programmed.

Smart Power

If the smart power block is turned on but not connected to other blocks,

it will automatically turn o aer 16 seconds. Double click the power

button to cancel or restart the function.

When the smart power block is turned on, an initialization period of 1

second occurs. During this period, the power status indicator will be

remain solid green.

The energy and communication blocks provide power to the other blocks.

The communication blocks facilitate a variety of wireless communication. The blocks can communicate

wirelessly with smart phones, tablets, and computers. The communication blocks can also make two series of

blocks communicate with each other wirelessly.

Energy & Communication Blocks

Battery Indicator

Block battery level display.

Power Status Indicator

Power Button

Micro USB Connector

Tip: If the smart power block is not in regular use, charge it at least once every three months.

Charge it via the power adapter (not included) Charge it via a computer

Battery Capacity

Input Voltage

Bluetooth Transmission Distance

Frequency Band

Output Voltage

950mAh

DC 5V

Within 10 meters

2402 – 2480MHz

DC 5V

Charge the smart power block

We recommend you to charge your smart power block when the last indicator is blinking.

Specifications

Input Current

Storage Temperature

Bluetooth Specification

Output Power Class

Operating Temperature

󽘬1A

-10°C – 55°C

BT 4.0

≤ 4dBm

0°C – 45°C

B. Connect Neuron to a mobile phone or tablet via Bluetooth and use the Neuron app or

Swi Playgrounds to program the blocks.

C. Connect blocks to computer via a USB cable and use mBlock 5 to program the blocks.

The power status indicator will turn green when the Bluetooth connection is completed.

The power status indicator will turn green when the connection is completed.

Press the power button.

Turn the knob clockwise.

The buzzer will make sounds

varying in pitch.

Have a try!

The knob is an input block which is used to adjust values. When you connect the knob to output

blocks, you can adjust the output eects by turning the knob. It works the same way as adjusting the

volume on a speaker by turning the knob.

Knob

The input blocks receive information such as sound, light, images or motions, from the environment.

The information is converted into electrical signals and transmitted to the output blocks.

These signals instruct the output blocks how to respond. Input blocks exist abundantly in daily life,

like light switches and volume knobs.

Input Blocks

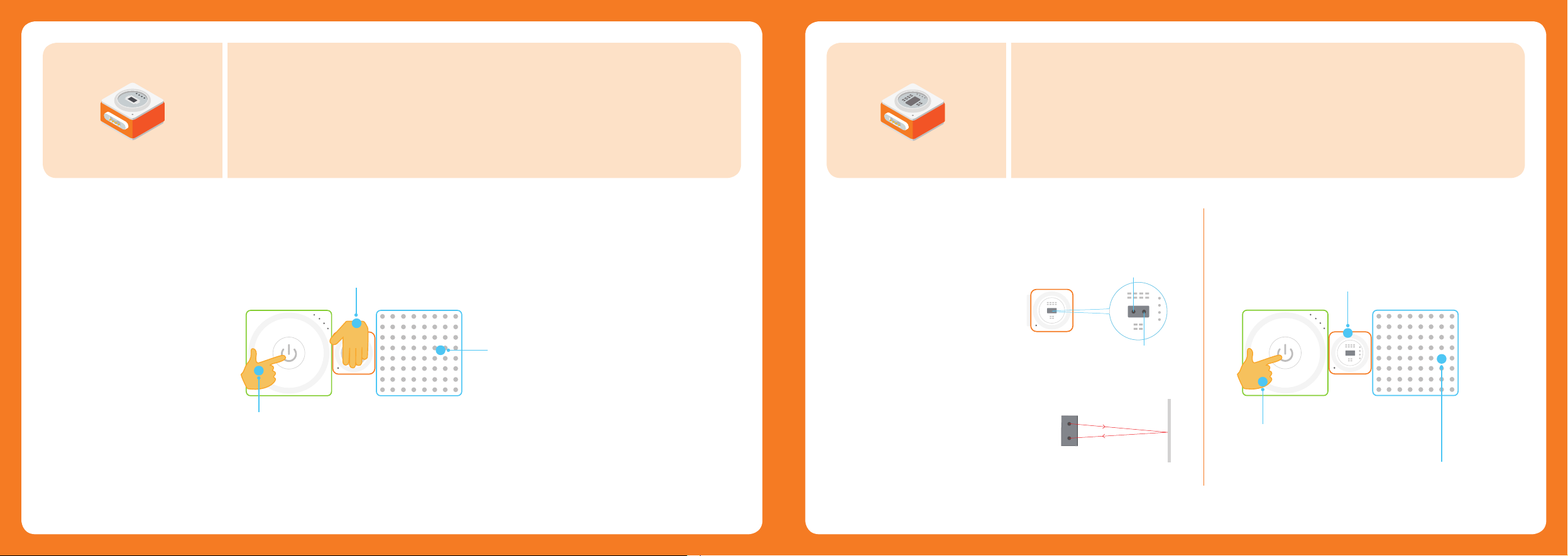

How does the ranging sensor measure distance?

The IR transmitter emits infrared light

which is reflected when it hits an

obstacle. The reflected infrared light

is detected by the IR receiver. The

distance between the obstacle and the

block can be calculated by the time lag

between transmission and reception.

Place your hand over the ranging sensor and gradually

increase the distance of your hand from the sensor.

More lights will light up on the

LED panel.

The ranging sensor is used to measure the distance between the sensor and an obstacle.

Measurement range: 2cm – 200cm

The ranging sensor includes an IR

transmitter and an IR receiver.

IR transmitter

IR receiver

Ranging Sensor

Science Tips Have a try!

Press the power button.

Class 1 Laser Product.

This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50,

dated June 24, 2007.

Have a try!

You will notice that the LED panel

becomes dark.

Press the power button.

Cover the light sensor with your hand.

The light sensor can detect the intensity of light in the surrounding environment. The stronger the

intensity of the light received by the block, the stronger the output signal will be. An example of this

in everyday life is the brightness of a mobile phone screen. The brightness will automatically change

in response to the ambient light condition, which is credited to a light sensor.

Light Sensor

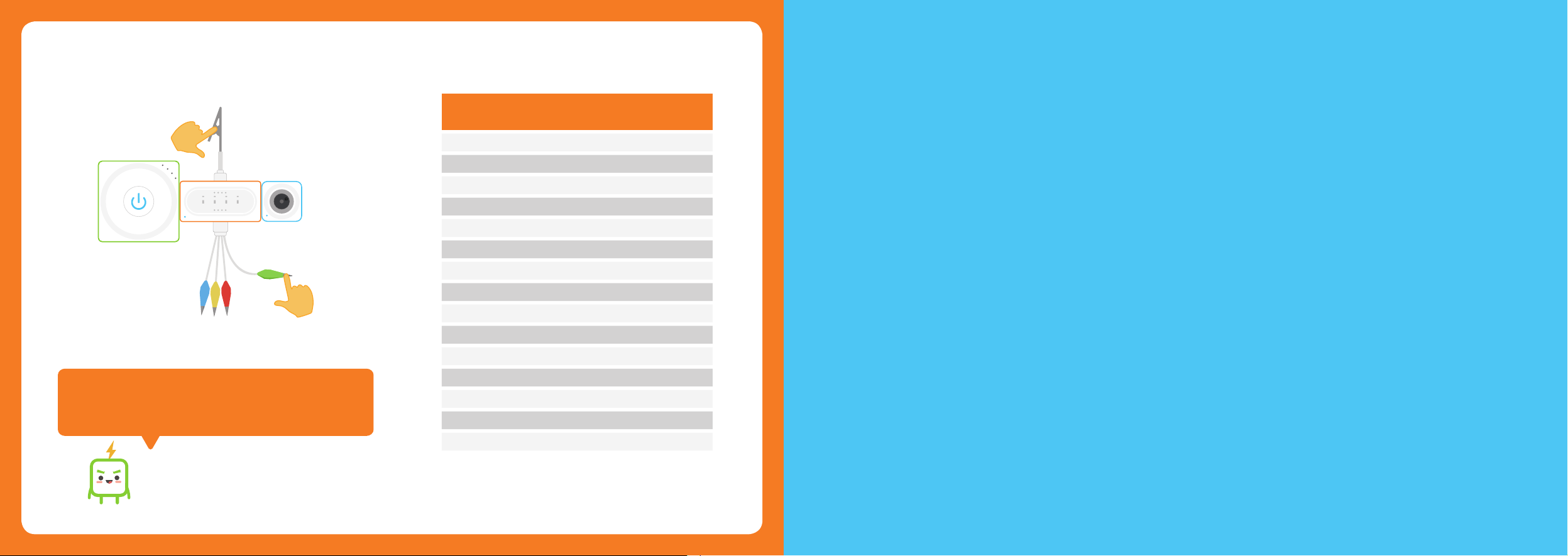

Connect the blocks and touch the metal part of

the Funny Switch with one hand and the metal

part of the GND wire clip with the other hand. The

series of block starts to work!

Use a Funny Switch to clip on a conductive object,

such as a banana. Touch the banana with one

hand and the metal part of the GND wire clip with

another hand. See what will happen!

Plug the Funny Switch into the slot 1 and plug the

GND wire into the slot 2.

Funny

Funny Touch

GND

Connecting the Funny Touch to conductive objects (such as bananas and water) will turn the objects

into touch switches. Check the conduction status between the Funny Switch and the GND wire to

achive simple and fun eects.

Funny Touch

How does it work?

LED

Temp

The RGB lights on the LED

strip will light up one by one.

Place the temperature sensor

probe in hot water.

Plug the temperature probe into the slot. The temperature sensor can detect temperatures ranging

from -55°C to 125°C.

Accuracy: ±0.5°C ( -10°C – 85°C)

Temperature Sensor

Press the power button.

Care should be taken if the measuring temperature exceeds 100°C, as this might damage the probe cable of the

temperature sensor.

Have a try!

Funny

GND

Funny Touch

Funny

GND

Funny Touch

Temp

Funny

Touch

Output blocks receive signals from input blocks and give corresponding responses,

such as making sounds or rotating motors. In everyday life, output blocks are everywhere.

Both neon lights and alarms are examples.

Output Blocks

Blue

Yellow

Green

Yellow, Red, Green

Red

Yellow, Green

Red, Green

Yellow, Red

Sol

Do+

Blue, Green

Blue, Yellow, Green

Blue, Yellow, Red

Blue, Red

Blue, Yellow

Blue, Red, Green

Blue, Yellow, Red, Green

Mi-

Fa-

Sol-

La-

Ti-

Re+

Mi+

When the Funny Touch is connected to the buzzer and one or several

dierent colored Funny Switches are touched, the buzzer makes

various sounds!

Musical

alphabet

Colors of the

Funny Switches

Sol-fa

syllables

Funny

GND

Funny Touch

Funny

GND

Funny Touch

Try touching one of the Funny Switches or

multiple Funny Switches at the same time.

Observe how the color changes on the LED

panel. Touch the dierently-colored Funny

Switches to create dierent colors.

The LED panel contains 64 RGB lights. With the Neuron app or Swi Playgrounds, you can program

the RGB lights to change the color.

LED Panel

Have a try!

Press the power button.

Why do the RGB lights have so many colors?

The RGB is an additive color model in which red, green and blue

lights are added together to reproduce nearly 16.78 million colors.

Green

Red Blue

󲺽󵉈󳊥󳱤󱳭󵉈󳊥󺀏󱶴󳱤󴜖󵉈󳊥󱹌󲀯 15 󱙂RGB 󵉈󸶲󸳣󶈀󶳲󱭬 app 󳦕󳡕󶴹

󶌱󲺧󴝘󲕭󶴹󶌱󱿔󱝥󳻷󱾮 RGB 󵉈󵵙󹲤󷐡 ,󱾥󵡂󴇠󲡕󱙺󸥑

Have a try!

LED

See what happens!

Turn the knob.

Insert the LED strip into the LED strip driver slot. The LED strip contains 15 RGB lights. With the

Neuron app or Swi Playgrounds, you can program the RGB lights to change the color.

LED Strip Driver + LED Strip

Science Tips

Press the power button.

LED

The DC (Direct Current) motor driver can drive two DC motors simultaneously.

Dual DC Motor Driver

Plug the motor into the dual DC motor driver’s slot. The DC motor includes an output sha. When

the motor driver receives an on signal, the output sha starts to rotate. The motor is compatible

with LEGO parts.

DC Motor

The DC (Direct Current) motor driver can drive two DC motors simultaneously.

Dual DC Motor Driver

Motor

Output sha

Cover the light sensor with your hand.

3The sound of the buzzer changes.

The buzzer will make a sound when it receives an on signal. Programming the buzzer with the Neuron

app or Swi Playgrounds can create dierent sound eects.

Buzzer

Have a try!

Press the power button.

Motor

Driver
