Mammoth MAM4X8LBF Bedienungsanleitung
MAMMOTH MODULAR DISPLAY
MAMMOTH 4FT DISPLAY (BACKLIT)
PRODUCT CODE: MAM4X8LBF
SET UP INSTRUCTIONS
1 1
2
2
2
2
3 3
Page 1 of 2
a. Slide the Split Connectors into the grooves
of the frame and tighten
b. Attach other extrusion onto the Split Connector. c. Tighten screws with included 5mm allen
wrench.
a. Insert the Corner Connector
locks into the ends of the frame.
a. Line up the holes on feet with holes
on the bottom horizontal frame piece.
b. Insert screws and washers into
hole to secure feet to frame.
1. Attach Split Connectors to Side Extrusions:
2. Attach Corner Connectors: 3. Install Feet:
b. Then attach side extrusion onto
the Corner Connector. Tighten screws
with included 5mm allen wrench.
MAMMOTH MODULAR DISPLAY
MAMMOTH 4FT DISPLAY (BACKLIT)
SET UP INSTRUCTIONS
Page 2 of 2

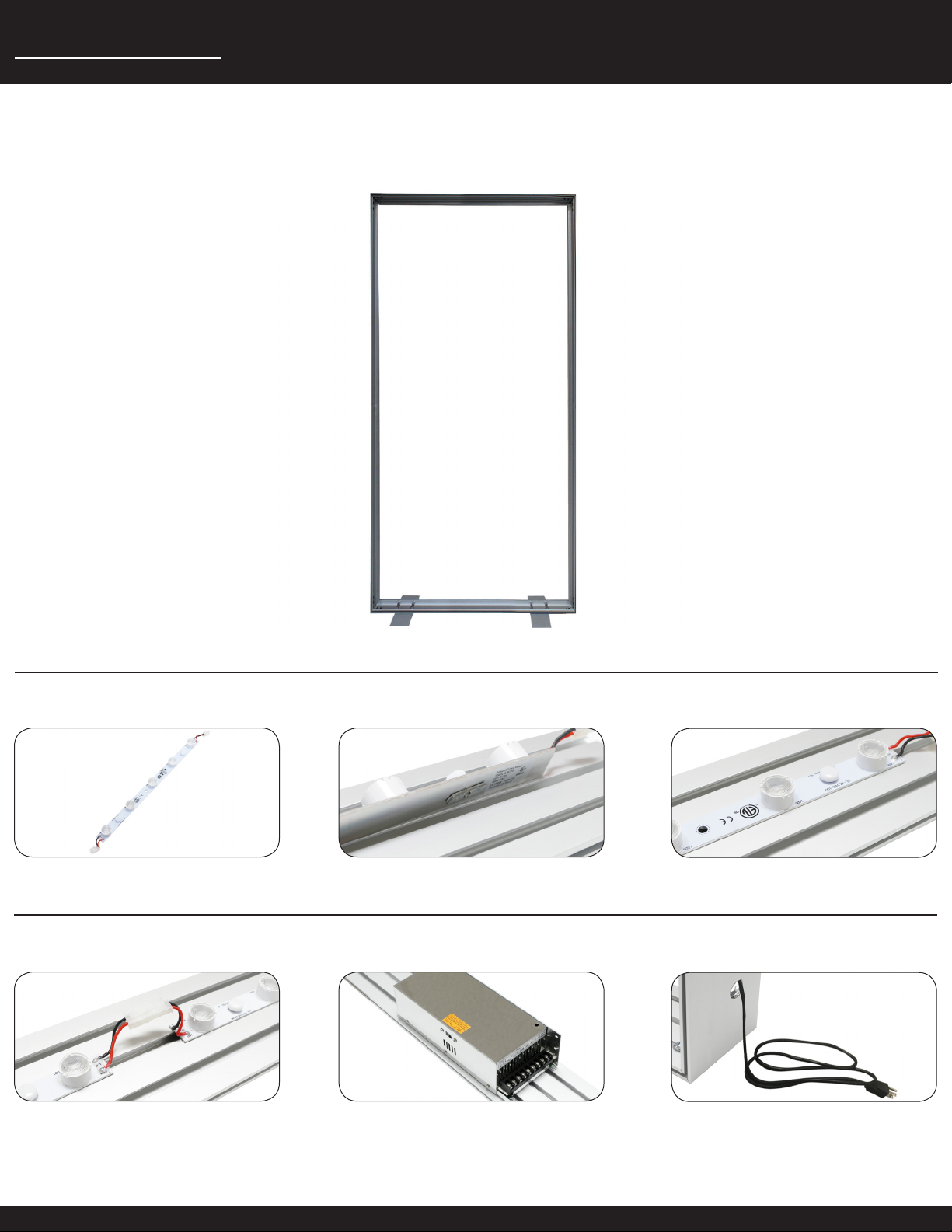

a. Install six edge lights (12 total) on each
side of the frame.
a. Now check light strip connections. Put
male and female connectors together. Then
connect edge lights to the transformer.
b. Position light strip into inside groove of frame.
b. Hook and Loop Transformer is located on
the bottom of the frame between the feet.
c. Then twist screw knobs clockwise to lock
edge lights into place.
c. Pull power cord through hole in the frame.
4. Install Edge Lights:
5. Connect Edge Lights and Transformers Together:
4
5
4
PRODUCT CODE: MAM4X8LBF
