Introduction

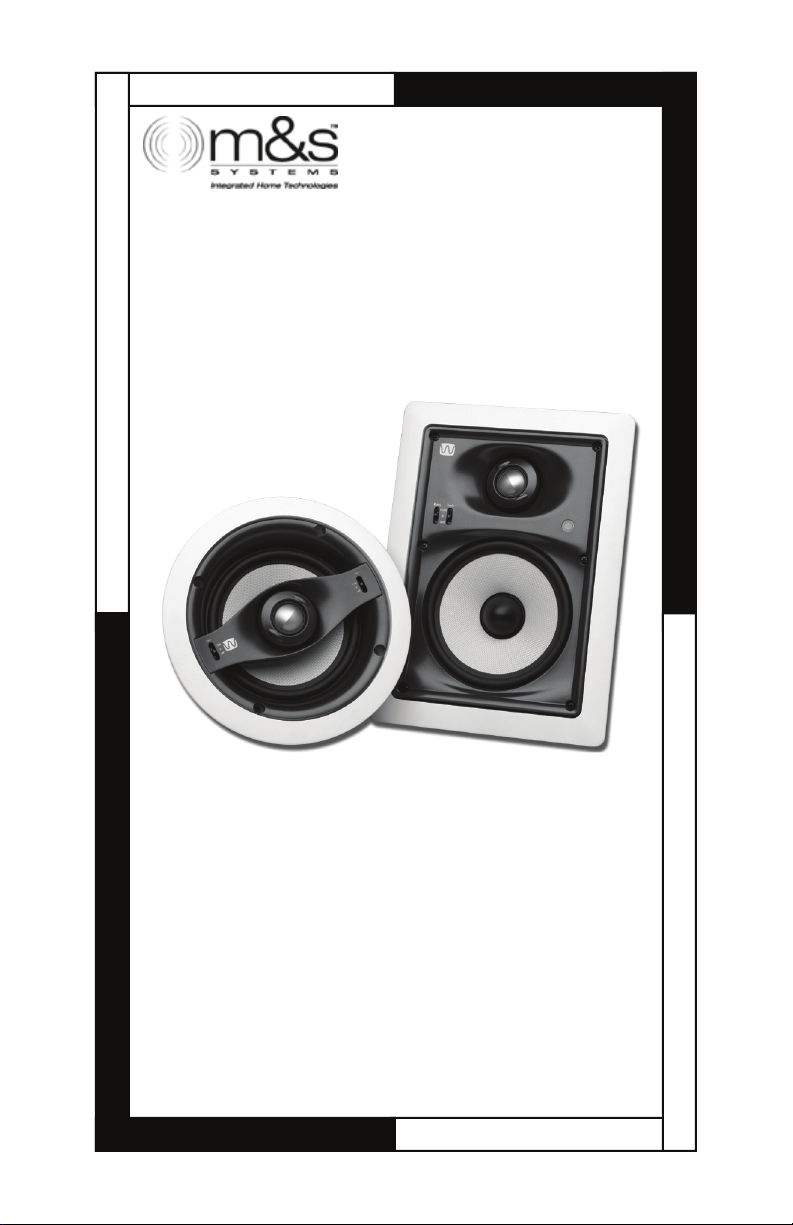

WG Series ceiling and in-wall speakers are designed

to provide clear, sharply-focused audio reproduction

while remaining unobtrusive in the background. These

speakers bring out the best in any home theater or

whole-house stereo system. These products also offer

many features, including:

• 1” Asymmetrical Aluminum Dome Tweeter

• Tweeter is mounted on swivel base that en-

ables positioning up to 15 degrees off axis at

a 180-degree rotation

• Slide switches for bass and treble control

(+/-3dB)

• Cam-lock mounting system with isolated

rubber pads to reduce vibration

• Kevlar cone for low distortion and smooth

response

• Molded in IR lens that allows installation of an

infra-red receiver through the speaker baffle

• Gasket around the baffle to provide an

acoustic seal

Description

Page 2

Frequency Response 50Hz to 20kHz (+/-3db)

Maximum Power Rating 100 Watts

Impedance Rating 8-Ohms

Overall Speaker Dimension 9” Diameter

Specifications 6” Kevlar cone woofer;

1” asymmetrical aluminum dome

tweeter

Mounting Dimension w/o

Mounting Ring

7 13/16” Diameter

Mounting Ring Dimension 8 3/16” Diameter

Grille Aluminum

Color White

115986D.pdf 2115986D.pdf 2 11/16/2005 10:54:34 AM11/16/2005 10:54:34 AM

Page 3

WG150C Ceiling Speakers (Sold in Pairs)

WG100W In-wall Speakers (Sold in Pairs)

Page 3

Frequency Response 35Hz to 20kHz (+/-3db)

Maximum Power Rating 150 Watts

Impedance Rating 8-Ohms

Overall Dimensions 10 7/8” Diameter

Specifications 8” Kevlar cone woofer;

1” asymmetrical aluminum dome

tweeter

Mounting Dimension w/o

Mounting Ring

9 5/8” Diameter

Mounting Ring Dimension 10 1/16” Diameter

Grille Aluminum

Color White

Frequency Response 50Hz to 20kHz (+/-3db)

Maximum Power Rating 100 Watts

Impedance Rating 8-Ohms

Overall Dimensions 9” W x 12 5/16” H

Specifications 6” Kevlar cone woofer;

1” asymmetrical aluminum dome

tweeter

Mounting Dimension w/o

Mounting Ring

7 1/2” W x 10 13/16” H

Mounting Ring Dimension 7 15/16” W x 11 3/16” H

Grille Aluminum

Color White

115986D.pdf 3115986D.pdf 3 11/16/2005 10:54:34 AM11/16/2005 10:54:34 AM

WG150W In-wall Speakers (Sold in Pairs)

Unpacking Your Speakers

Before you unpack your speakers, be extra

careful not to touch the cone and tweeter

materials. After carefully unpacking your

speakers, the carton and the packing material

should be saved for possible use later. If any

speaker appears to be damaged, do not attempt

to repair or to connect the unit to the amplifier.

Repack the speaker and notify your distributor or

M&S Systems for replacement or repair.

Speaker Location

Ceiling Installation

Careful consideration must be given to the

speaker location to realize the full frequency

range. Ceiling speakers should be spaced 6 to 8

feet (6 feet for 8-foot ceilings and 8 feet for 10-

Frequency Response 35Hz to 20kHz (+/-3db)

Maximum Power Rating 150 Watts

Impedance Rating 8-Ohms

Overall Dimensions 10 1/4” W x 14 15/16” H

Specifications 8” Kevlar cone woofer;

1” asymmetrical aluminum dome

tweeter

Mounting Dimensions w/o

ring

8 11/16” W x12 3/4” H

Mounting Ring Dimension 9 3/16” W x 13 3/16” H

Grille Aluminum

Color White

Page 4

115986D.pdf 4115986D.pdf 4 11/16/2005 10:54:34 AM11/16/2005 10:54:34 AM

foot ceilings and above) apart but no closer than

2 feet to any adjacent wall. Avoid placing

speakers in air return cavities. Some type of

protection will be required for the back of the

speaker if blown insulation is used. The following

is a partial list of ways to protect the speaker:

• Use an RE-16 speaker cover

• Use a piece of wood that will cover at least 3

feet on either side of the speaker opening.

The ends may be partially closed to keep the

blown insulation from reaching the speaker,

however, a minimum gap of 2 inches at each

end is better than a sealed box

• Use a piece of bat insulation at least 3 inches

thick over the back of the speaker. This

insulation should not have a backing or if it

does, the backing must be installed facing

away from the speaker.

• Use a fine mesh to cover the back of the

speaker to protect against bulk type insulation

materials. This will not work with insulation

containing fine powders.

Do not install speakers in joist cavities containing

120/240V appliances, within 18 inches of dimmer

light fixtures, security wiring and other control

wiring.

In-wall Installation

Careful consideration must be given to the

speaker location to realize the full frequency

range. In-wall speakers should be spaced 6 to 8

feet apart but no closer than 2 feet to any

adjacent wall or ceiling. Typical height from the

floor would be in the 4 to 6 foot range. Avoid

placing speakers in air return wall cavities,

outside walls or walls containing plumbing.

To reduce vibration into a room on the back side

Page 5

115986D.pdf 5115986D.pdf 5 11/16/2005 10:54:35 AM11/16/2005 10:54:35 AM

of the speaker, use a piece of bat insulation at

least 3 inches thick in the stud cavity. This

insulation should not have a backing or if it does,

the backing must be installed facing away from

the speaker. The insulation should extend about

2 ft. on either side of the speaker opening.

Do not install speakers in outside walls, stud

cavities containing 120/240V appliances, within

18 inches of dimmers, security wiring and other

control wiring.

Speaker Installation

for New Construction

Ceiling Speakers

Step 1. Speaker mounting rings are used in the

pre-construction phase of speaker installation

during construction of new homes and additions.

WG Series mounting rings are designed to pro-

vide drywall Installers

the correct cut-out

pattern for the speak-

ers. The mounting

rings have “flaps” that

are nailed/screwed/

stapled onto the joist.

See figure 1. Once

the wall board is in-

stalled, the opening is

cut out to mount the

speaker.

When installing the

mounting ring, note

that there are holes

molded into the mounting ring for speaker wire

tie-off.

Page 6

FIGURE 1

115986D.pdf 6115986D.pdf 6 11/16/2005 10:54:35 AM11/16/2005 10:54:35 AM

TIPS FOR NEW CONSTRUCTION

• If possible, run speaker wires after AC

wiring is in place to avoid additional noise

caused by close proximity of wiring.

• Secure the speaker wires against a joist with

insulated staples, being careful not to pierce

the wire insulation. Allow slack for building

material expansion.

• Horizontal wire runs should be routed through

holes drilled at equal heights in the joist.

• Do not install the actual speaker until the wall

board is in place. Until then leave several feet

of wire secured to the back of the mounting

ring. The excess wire can be removed during

final installation.

• During the drywall installation, make sure the

speaker cut-out hole does not extend farther

than 1/4 inch from the inside of the mounting

ring. The flat rough-in rings and flaps are thin

enough that they won’t interfere with wall

board installation.

Step 2. After you

have determined

the speaker

locations using the

guidelines above,

secure a 16 gauge

2-conductor

cable to the mount-

ing ring tabs (see

figure 2), such as

the M&S Systems

MS16X, for

attachment to the

speakers after the

dry wall has been

Page 7

FIGURE 2

115986D.pdf 7115986D.pdf 7 11/16/2005 10:54:35 AM11/16/2005 10:54:35 AM

installed. Leave at least 18 inches additional ca-

ble for the connection during final speaker instal-

lation. Run the other end of the speaker cable to

the audio source.

NOTE: Make a drawing of each speaker location.

This will assist you in locating the wires if they

have been covered after the wall board has been

installed.

Step 3. This is the finish-out stage. Prepare the

speaker wiring by stripping off approximately 3

inches of the outer jacket (care should be taken

so the insulation on the wires inside the jacket

are not damaged) also strip approximately 3/8

inch off the ends of the two inside conductors.

Twist the ends of the stranded cable so the wires

are tight.

Step 4. Follow the instructions included with the

volume control and amplifier.

Step 5. You are now ready to install the speaker.

Remove the paint mask from the baffle. Be

careful not to touch the speaker cones and

Page 8

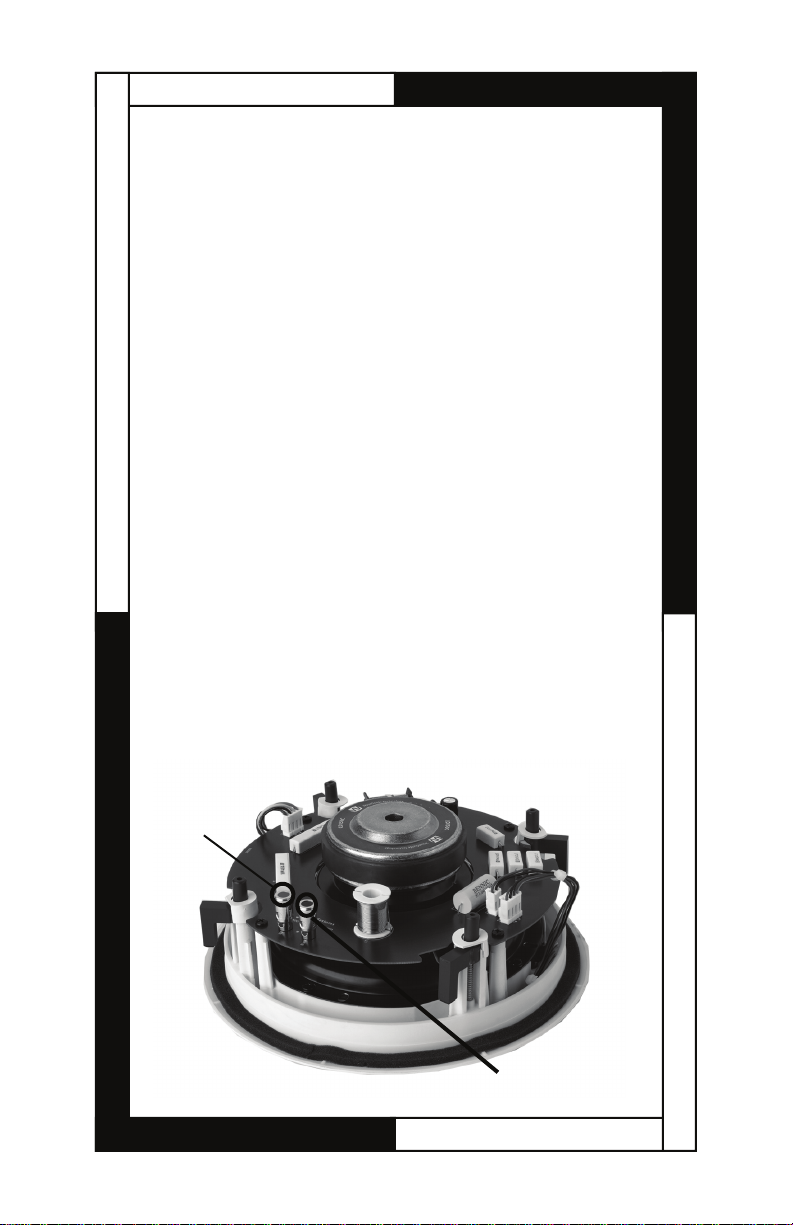

Negative (black)

Positive

(red)

FIGURE 3

115986D.pdf 8115986D.pdf 8 11/16/2005 10:54:35 AM11/16/2005 10:54:35 AM

tweeter when removing the paint mask in

order to prevent any damage. Attach the

speaker cable to the speaker by pressing down

on the red (+) or black (-) gold-plated push

terminals and inserting the red wire in the red

terminal and the black wire in the black terminal.

See Figure 3. Make sure that none of the strands

from the black and red wires are touching each

other. This can create a short circuit that can

damage your electronics. Index the mounting

tabs to make sure that all tabs will clear the

opening. Insert the speaker in the ceiling and

tighten the tabs with the screws on the front of

the grille. DO NOT OVERTIGHTEN THE

SCREWS, the screws should only be tight

enough to secure the speaker.

Step 6. After the speaker is mounted,

adjustments to the swivel tweeter (small speaker)

can be made by either directing the sound

visually or by using a musical source to

determine the best sound coverage for the

listening area. To position the tweeter, press at

the outside edge of the tweeter housing

(DO NOT

PRESS DI-

RECTLY ON

THE TWEETER

CONE ).

Note (see

figure 4) the

crease in the

asymmetrical

tweeter

provides the

Page 9

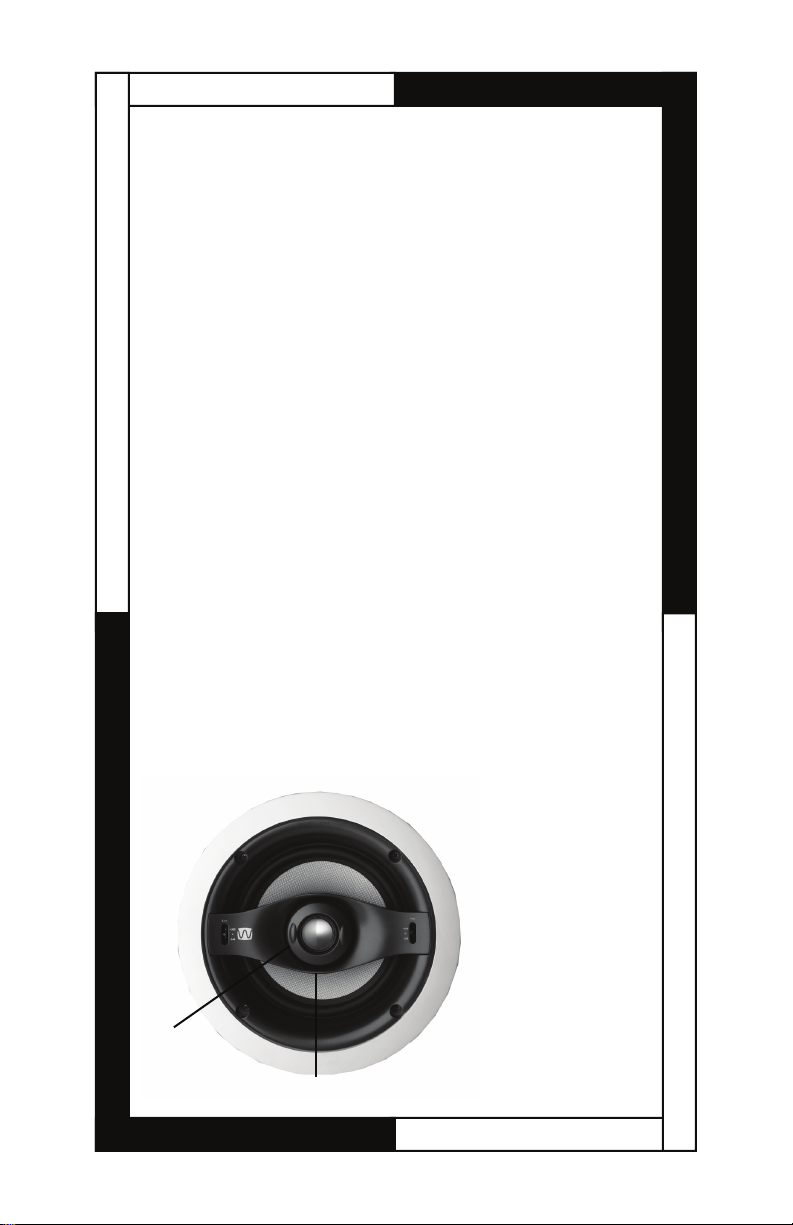

FIGURE 4

Crease position

tweeter

horn

115986D.pdf 9115986D.pdf 9 11/16/2005 10:54:35 AM11/16/2005 10:54:35 AM

highest

directional

response in this

direction.

See figure 5. If

you want to

disperse the

sound in a 360-

degree pattern

you must

position the line

in the tweeter in

a horizontal

position.

See figure 6. The

combination of switch

settings allow you to

boost and cut bass

and treble +/-3dB.

Adjust the speaker

level to accommodate

for room acoustics.

Step 7. Divide each

adhesive bead strip

in half. (Adhesive

bead strips are in the

clear self-closing

bag). Place strips on

the edge of the grille

as shown in figure 7.

Reinstall the grille on

the speaker.

Step 8. Adhere the WG Series logo to the grille

with the pressure sensitive tape.

Repeat the steps for the second speaker.

Page 10

FIGURE 6

FIGURE 5

FIGURE 7

crease position

tweeter

horn

115986D.pdf 10115986D.pdf 10 11/16/2005 10:54:35 AM11/16/2005 10:54:35 AM

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere M&S Systems Sprecher Handbücher

M&S Systems

M&S Systems S150W Bedienungsanleitung

M&S Systems

M&S Systems WaveGuide WG100C Bedienungsanleitung

M&S Systems

M&S Systems ROCK45G Bedienungsanleitung

M&S Systems

M&S Systems NR8M Bedienungsanleitung

M&S Systems

M&S Systems MNCX Bedienungsanleitung

M&S Systems

M&S Systems Speaker Bedienungsanleitung

M&S Systems

M&S Systems 8-Ohm Bedienungsanleitung

Beliebte Sprecher Handbücher anderer Marken

argon audio

argon audio IE20 Bedienungsanleitung

Denon

Denon SC-N7 Bedienungsanleitung

Gemline

Gemline Ace 3952 Bedienungsanleitung

Focal

Focal ON WALL 300 Bedienungsanleitung

HEADRUSH

HEADRUSH Maximus HRSP 5024 Bedienungsanleitung

SoundLogic

SoundLogic BCCS-6/6395 Bedienungsanleitung

Peavey

Peavey DTH 218 Bedienungsanleitung

Avantree

Avantree Pluto Air Bedienungsanleitung

Morel

Morel Integra Series INTEGRA OVATION 4 Bedienungsanleitung

Oppo

Oppo SONICA Bedienungsanleitung

Bose

Bose SoundLink Wireless Music System Bedienungsanleitung

Rocksteady

Rocksteady Stadium Bedienungsanleitung

Bowers & Wilkins

Bowers & Wilkins 4 Bedienungsanleitung

Sonance

Sonance SONOS OUTDOOR Series Bedienungsanleitung

Electro-Voice

Electro-Voice EVID FM4.2 Bedienungsanleitung

Pioneer

Pioneer XW-HTD630 Bedienungsanleitung

Onn

Onn BWA16AA002 Bedienungsanleitung

HP GL313AA - USB Speakers PC Multimedia Bedienungsanleitung
