MIR5000-M3P
Quick guide for installation and use
UM036EN01
UM036EN01 MIR5000-M3P. Quick guide for installation and use
i
TABLE OF CONTENTS
1INTRODUCTION .......................................................................................................... 1
2INSTALLATION OF MIR5000 RECEPTION SYSTEM ................................................................... 2
2.1 INSTALLATION DIAGRAM ......................................................................................... 2
2.2 RECEIVER –INTERFACE CABLE ASSEMBLY...................................................................... 3
3MSB PALANGRE AND MIR5000 DRIVERS INSTALLATION............................................................ 4
3.1 PC MINIMUM REQUIREMENTS.................................................................................... 4
3.2 SOFTWARE AND DRIVERS INSTALLATION...................................................................... 4
3.3 WINDOWS CONFIGURATION ..................................................................................... 5
4STARTING THE SYSTEM................................................................................................. 8
4.1 SWITCHING ON .................................................................................................... 8
4.1 DETECCIÓN DE PUERTOS EN MSB PALANGRE................................................................. 9
4.2 CHECKING SETTINGS PARAMETERS............................................................................ 11
5ENTERING BUOY DATA ................................................................................................ 12
AUTOMATIC BUOY IDENTIFICATION..................................................................... 145.1.1
HOW TO DELETE BUOYS .................................................................................. 175.1.2
6BUOY RECEPTION CHECK ............................................................................................. 19
UM036EN01 MIR5000-M3P. Quick guide for installation and use
ii
7LONGLINE CONFIGURATION .......................................................................................... 20
7.1 ACCESS AND CONFIGURATION ................................................................................. 20
7.2 LONGLINE DISPLAYED ON THE CHART........................................................................ 23
UM036EN01 MIR5000-M3P. Quick guide for installation and use
Page 1 / 23
1INTRODUCTION
This document aims at explaining the steps to follow to achieve a quick and effective installation of the
MIR5000 buoy reception system with M3P and M3P-T models.
The new longline location system designed by Marine Instruments includes transmitters (M3P and M3P-T
buoys) which will send positions of several points of the lines configured, the buoy reception system via
radio (MIR5000) and MSB Palangre software, which displays the data received by MIR5000.
In this document we will explain how the system is installed and how you can easily start receiving buoys
in order to manage the longlines deployed.
UM036EN01 MIR5000-M3P. Quick guide for installation and use
Page 2 / 23
2INSTALLATION OF MIR5000 RECEPTION SYSTEM

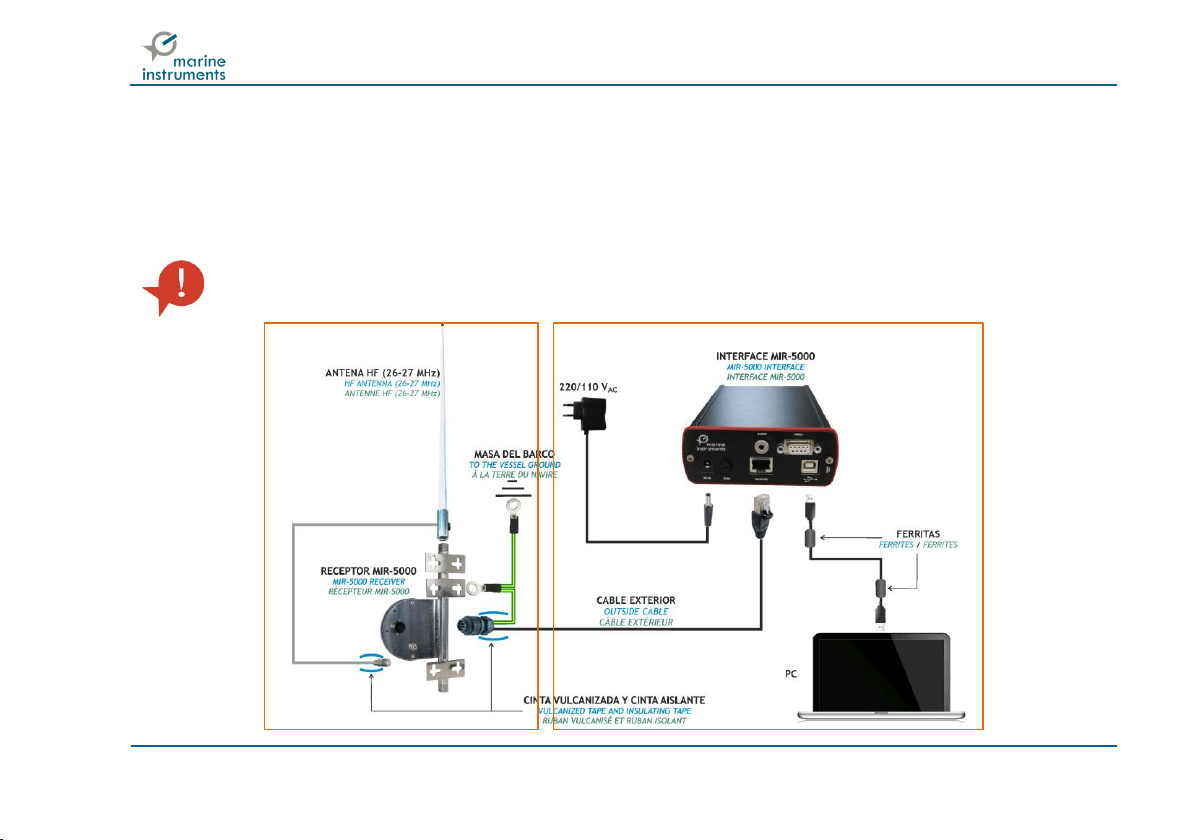

2.1 INSTALLATION DIAGRAM
WARNING: MIR5000 must be supplied with the 220VAC transformer provided with the device.
Supply at 24 VDC is not allowed.
OUTDOORS
INDOORS
UM036EN01 MIR5000-M3P. Quick guide for installation and use
Page 3 / 23

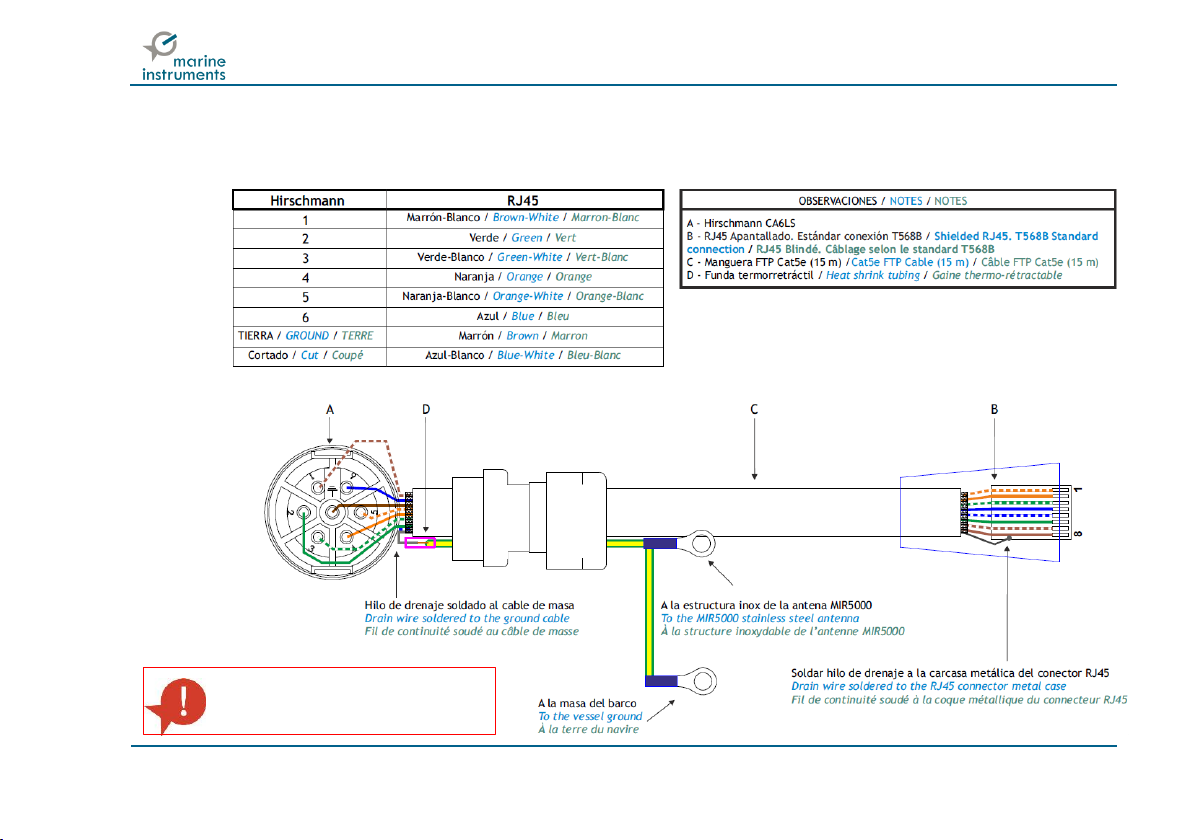

2.2 RECEIVER –INTERFACE CABLE ASSEMBLY
Connecting the device to the vessel
ground is necessary for a correct
system operation.
UM036EN01 MIR5000-M3P. Quick guide for installation and use
Page 4 / 23
3MSB PALANGRE AND MIR5000 DRIVERS INSTALLATION
3.1 PC MINIMUM REQUIREMENTS
Minimum requirements
Recommended
Operating System
XP SP3 or later
XP SP3 or later
Processor
1.5 GHz
2 GHz or later
Memory
1 GB RAM
2 GB RAM
Resolution
1024 x 768 minimum display resolution
3.2 SOFTWARE AND DRIVERS INSTALLATION
Install MSB Palangre following the instructions in chapter MSB Palangre Software Installation of the MSB
Palangre User’s Manual.
Next, install MIR5000 drivers following the instructions in chapter FTDI Drivers Installation of the MSB
Palangre User’s Manual (FTDI drivers can be downloaded at: www.ftdichip.com/FTDrivers.htm).
UM036EN01 MIR5000-M3P. Quick guide for installation and use
Page 5 / 23
3.3 WINDOWS CONFIGURATION

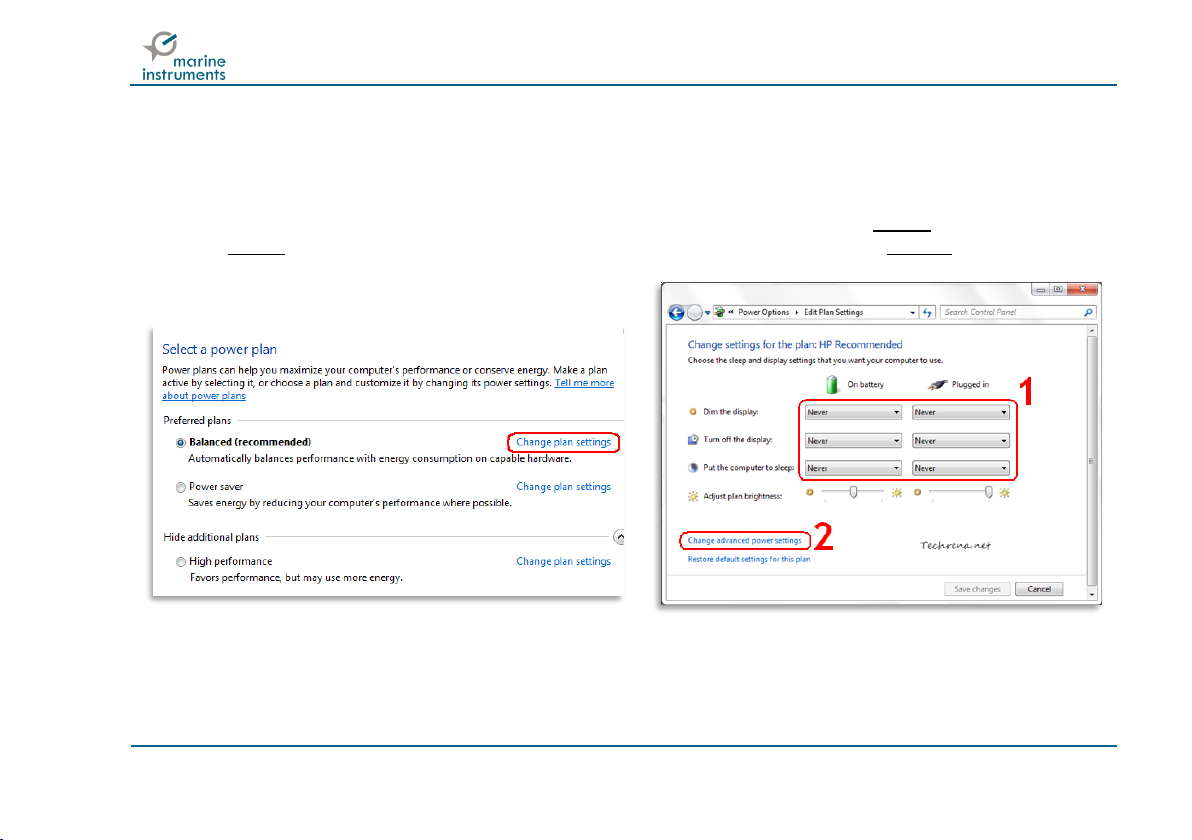

NEVER TURN OFF HARD DISKS NOR DISPLAY: Control Panel
All control panel items
Power Options
In your computer power plan, Change plan settings
(1) Turn off the Display: NEVER; Put the computer

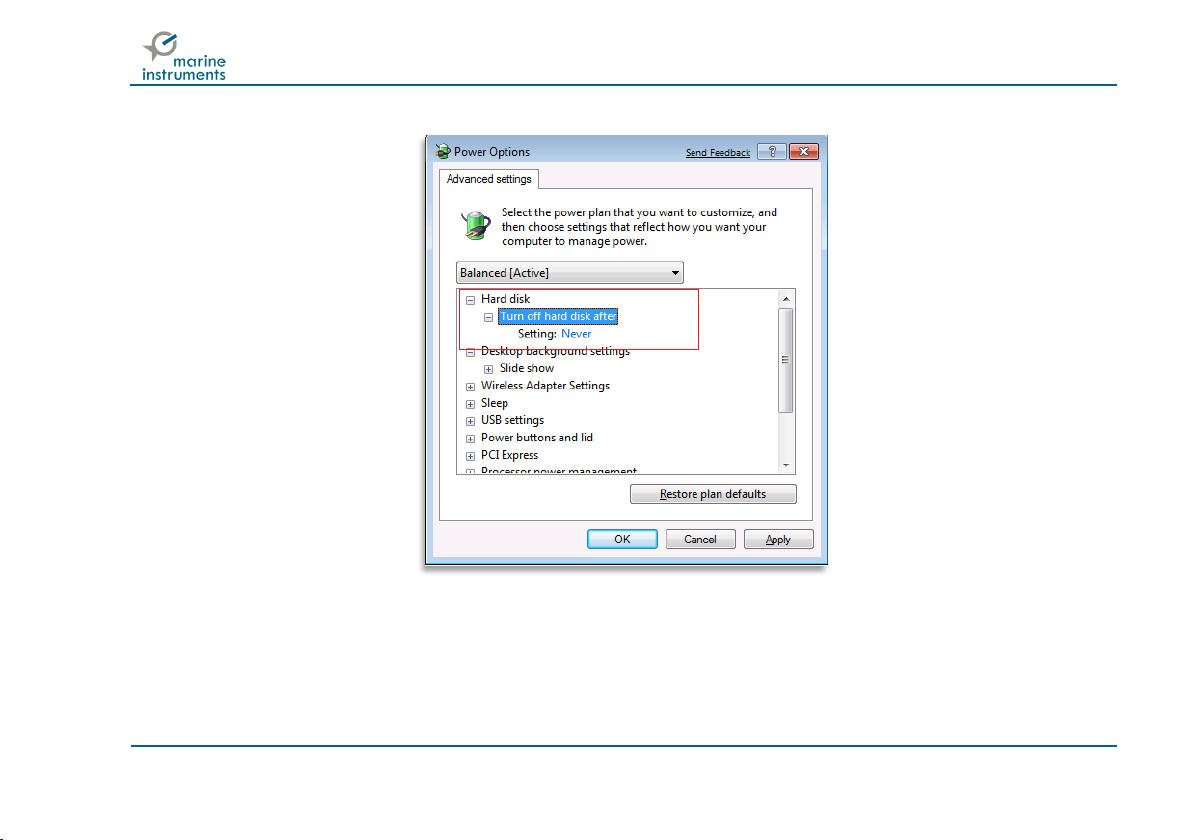

to sleep: NEVER; (2) Change advanced power settings
Turn off Hard Disk after: NEVER.
UM036EN01 MIR5000-M3P. Quick guide for installation and use
Page 6 / 23
UM036EN01 MIR5000-M3P. Quick guide for installation and use
Page 7 / 23

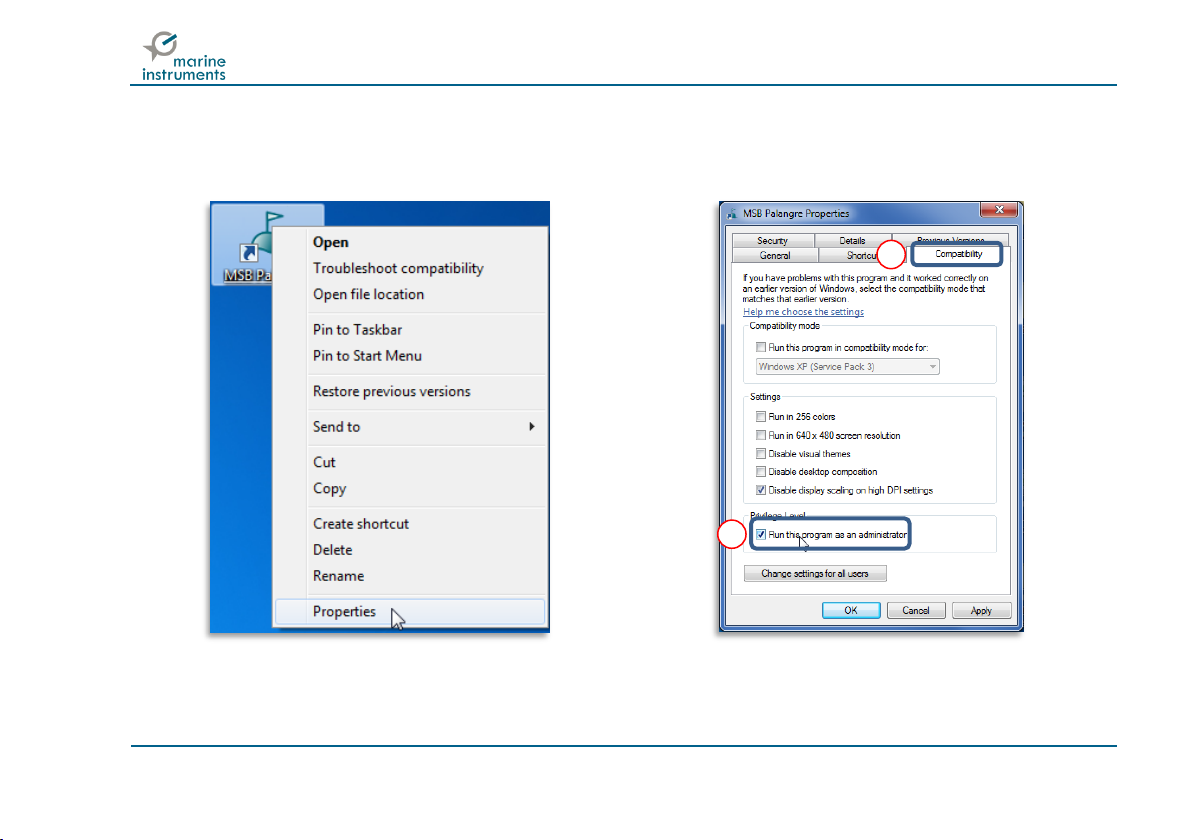

WHEN MSB-PALANGRE IS FINALLY INSTALLED: Right click on MSB-Palangre
Properties
(1)
Compatibility tab
(2) Run this program as an administrator.
1
2
