Marshall Electronics M-CT710 Bedienungsanleitung

Marshall

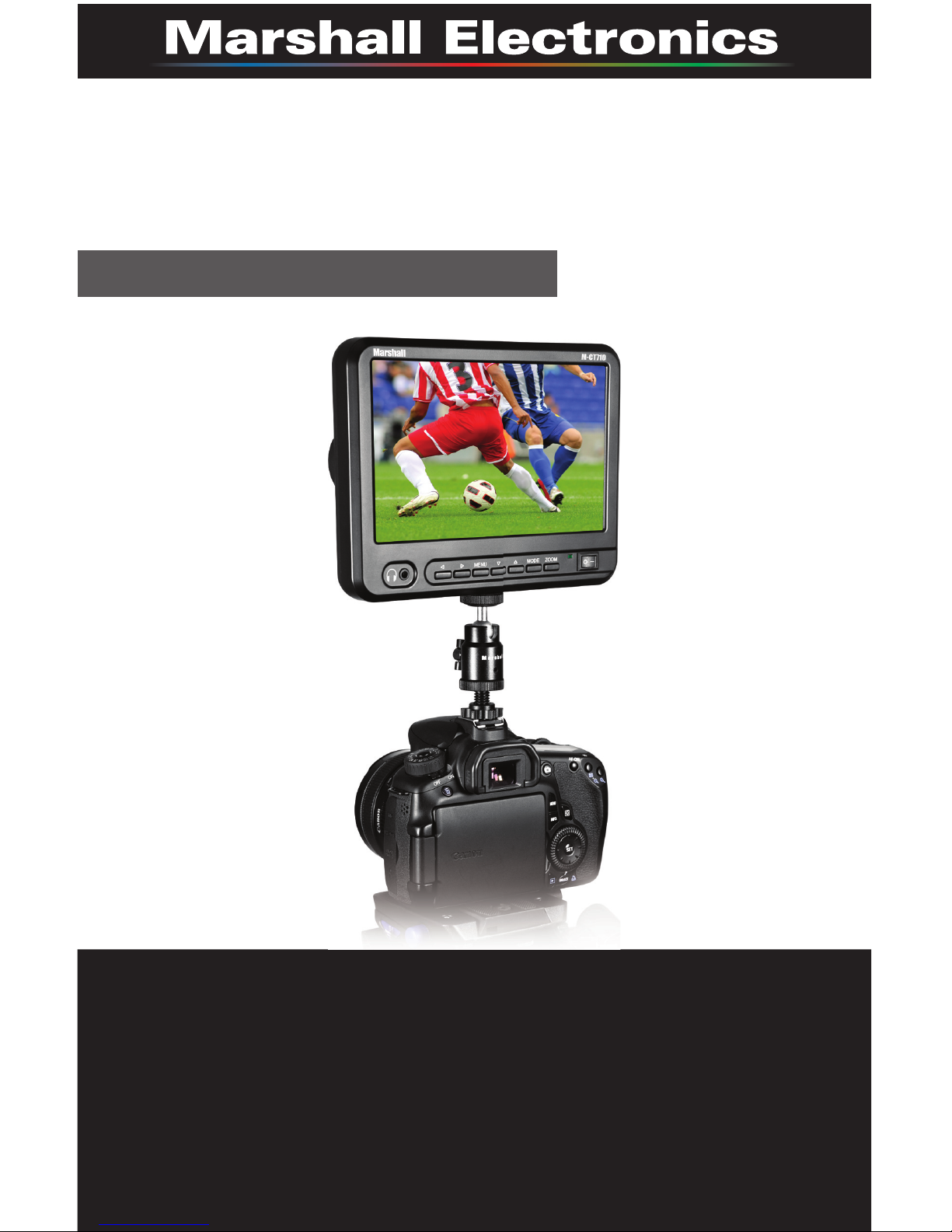

Owner’s Manual

M-CT710

Camera-Top Monitor

Marshall M-CT710 Camera-Top Monitor Owner’s Manual M-CT710 Camera-Top Monitor Owner’s Manual

2| |3

Marshall

To ensure the best use of this product, please read this manual carefully

beforehand.

CAUTION

1. Please use the adapter attached in the accessory or another qualied

adapter.

2. Please do NOT expose this product to direct sunlight, heat, or humid

conditions.

3. Please keep away from strong light while using this product to ensure

the image effect and long-term use.

4. Please avoid heavy impact or drop onto the ground.

5. Please do NOT use chemical solutions to clean this product. Please

wipe with a clean, soft cloth to maintain the brightness of the surface.

6. Please do not take apart or repair the unit by yourself to avoid damage

the product.

Dear users:

Thank you for purchasing Marshall’s M-CT710 HD LCD Monitor. This 7”

Pro HD LCD Monitor is designed to be used as an external video display,

allowing you to step back from the camera while still being able to frame

and capture the action without having to look through the camera’s built-in

viewnder. It employs advanced integrated circuits, high quality TFT LCD

modules, and low power consumption.

This monitor is designed to be small, easily operated, and portable, with

HDMI, Composite Video, Audio Input and HDMI Output. This monitor can

be powered by DSLR, Camcorder and AA batteries

Product Advanced Features:

• Zoom mode

• HDMI input and output. Video Input and Audio input

• Viewnder marked ranges:0%, 85%, 90%, 93%, 96%

• Cross the screen center mark

• 16:9 or 4:3 Aspect Ratio Setting

• Earphone stereo output.

• Speaker

• Brightness, Contrast, Hue, Saturation and Color Temperature Adjustment

• Field - Normal, Red, Green, Blue, Gray

• Supports , camcoder or AA batteries

• Removable Sunhood

• 2 Years warranty with registration (see registration form)

1. Product description........................................................ 4

Panel Instruction............................................................ 4

Back view ...................................................................... 5

Sunhood installation and removal ................................. 5

2. Power input.................................................................... 6

3. Operating instructions.................................................... 6

4. Parameters.................................................................... 9

5. Accessories ................................................................. 10

6. Trouble shooting.......................................................... 10

7. Menu List..................................................................... 11

8. Battery Compatibility.................................................... 11

CONTENTS

Marshall M-CT710 Camera-Top Monitor Owner’s Manual M-CT710 Camera-Top Monitor Owner’s Manual

4| |5

Marshall

Back view

11. HDMI input jack

12. HDMI output jack

13. Battery mount (see pg. )

14. Power source input jack

15. Video In

16. Audio In

17. Speaker

Battery installation

Suggestion: Remove the battery for long periods of inactivity.

Sunhood installation and Removal

Attach the self adhesive side of the Velcro® to the side of the monitor.

Panel Instruction

1. 3.5mm headphone jack

2. Volume down or to adjust the value setting function

3. Volume up or to adjust the value setting function

4. MENU: To activate OSD menu

5. Menu navigation key up

6. Menu navigation key down

7. HDMI/Video selector key

8. Zoom - mode

9. Indicator light

10. Power on/off

Product Description

82 5431 6 7 9 10

12 11

Marshall M-CT710 Camera-Top Monitor Owner’s Manual M-CT710 Camera-Top Monitor Owner’s Manual

6| |7

Marshall

Function

System

Sound

To adjust the volume left and right arrows buttons on the front of the

monitor. Default value is 0.

2. Power input

The monitor can be powered by the enclosed DSLR, Camcorder equivalent

12V power abater or AA batteries or equivalent battery or by a 12V power

adapter. Please note the input polarity is Positive with respect to --○-+,

otherwise will damage the monitor!

3. Operating instruction

3.1 Menu operating instructions

Before setting the menu functions, please make sure the device is

connected correctly. Power switch is to ON position. The monitor

enters into working state. Please dial to OFF position when closing the

unit.

After selecting the optionals, press “►”or “◄” on the unit to conrm, then

using “▲” or “▼” to select or adjust the value of Analog Data. After conrm

the needed adjust parameters, using “►” or “◄” to adjust. If you need to

exit OSD menu, repress “MENU” button.

Brightness

To adjust brightness 0-100. Default value is 50.

Contrast

To adjust contrast 0-100. Default value is 50.

Color

Saturation

To adjust Saturation 0-100. Default value is 50.

Hue

To adjust Hue 0-100. Default value is 50.

Sharpness

To adjust the Sharpness.

Color temperature

To adjust the color temperature.

Pre set 9300, 6500, or User

User-R 0-255 Default value is 128.

User-G 0-255 Default value is 128.

User-B 0-255 Default value is 128.

Marshall M-CT710 Camera-Top Monitor Owner’s Manual M-CT710 Camera-Top Monitor Owner’s Manual

8| |9

Marshall

4. Parameters

Display panel size TFT LCD 5.0inch 1152000 Pixels

Panel type TFT LCD

Resolution 800*480

Max resolution 1920×1440

Horizontal frequency range 30-60kHz

Field frequency range 60Hz ~ 75Hz

Distance 0.045(W) x 0.135 (H)

Display ratio 16:9

Brightness 350 cd/m2

Contrast 500:1

Response time 10ms

Viewing angle 70°/70°(L/R) 50°/70°(U/D)

Backlight LED

Input signal HDMI, VIDEO, AUDIO

Signal output HDMI(optional)

Supported format 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Video color system PAL-4.43; NTSC-3.58

Input power voltage range DC6-24V

Power consumption <7w

Standby current <50mA

Unit size(LWH)

With sunhood

146mm(L) *100mm(H) *46mm(W)

146mm(L) *100mm(H) *60.5mm(W)

Weight (no battery)

With sunhood

260g

340g

Working temperature -20~55°C

Storage temperature -30~65°C

5. Accessories

5.1. Standard

Mini HDMI to HDMI cable

HDMI to HDMI cable

Hot shoe mount

battery

Battery Charger

User manual

5.2. Optional

BNC to RCA adapter

DC 12V power adapter

BNC cable

Sunhood

6. Troubleshooting

6.1. Only black and white or monochrome picture. Please check saturation,

brightness & contrast adjustment.

6.2. No picture after turning on the power. Check signal cable connecting,

make sure use the standard adapter is connected the monitor. If power is

supplied by battery, please check if the battery is fully charged.

6.3. The image color distortion or abnormal, e.g. lack some color. Please

check signal cable whether connected correctly or not. If the cable is

damaged or loosened, it will cause poor transfer, causing this malfunction.

Check “color” function menu “color temperature” adjustment, whether

adjustment misconduct under the “user” state.

If you are still experiencing problems, contact Marshall Electronics

technical support at: (800) 800-6608 or +1 (310) 333-0606

Marshall M-CT710 Camera-Top Monitor Owner’s Manual M-CT710 Camera-Top Monitor Owner’s Manual

10| |11

Marshall

Menu Option Chart

Input Mode HDMI Video

Color Brightness X X

Contrast X X

Hue X X

Saturation X X

Color Temperature X NO

OSD Language X X

H Position X X

V Position X X

OSD Timeout X X

Zoom X NO

Transparent X X

Function Reset X X

Display Ratio X X

Screen Marker X X

Center Marker X X

X NO

Sound Volume X X

Battery Compatibility

This camera-top monitor is compatible with a variety of different and

camcorder batteries, depending upon which option is purchased:

Compatible Batteries Compatible Camcorder Batteries

Canon BP511

Canon E6

Nikon EL3

Nikon NEL15

Compatible AA Batteries

AA batteries Alkaline or

rechargeable

Canon BP-970G

JVC BN-V438U

Panasonic CGA-D54

Panasonic VW-VBG6

Sony NP-QM91

Sony NP-F970

Marshall M-CT710 Camera-Top Monitor Owner’s Manual

12|

Marshall Electronics

1910 E. Maple Avenue

El Segundo, CA 90245 USA

Phone: 310-333-0606 • 800-800-6608 • Fax: 310-333-0688

marshall-usa.com

Manual contents subject to change without notice.
