Marshall Electronics M-LCD7-HDMI Bedienungsanleitung

User Manual

Marshall Electronics

M-LCD7-HDMI

M-LCD7-HDMI-B-C511

M-LCD7-HDMI-B-CE6

M-LCD7-HDMI-B-NEL3

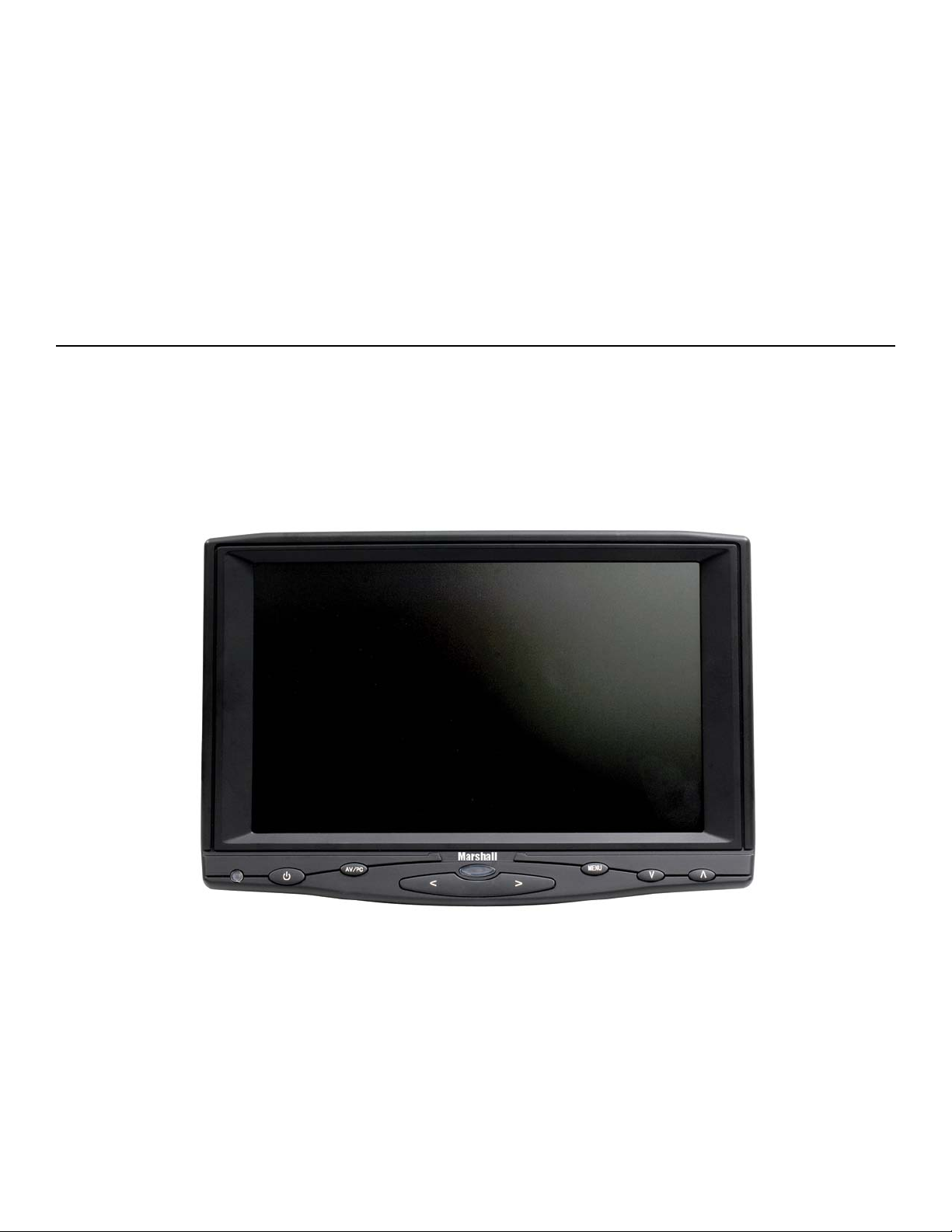

Portable 7’’ HDMI TFT LCD Monitor

2M-LCD7-HDMI Manual

Product Overview

The M-LCD7-HDMI is a 7” high-denition widescreen LCD monitor featuring our completely digital

TFT-MegaPixel active matrix LCD platform. This monitor is ideal as a light-weight high resolution

viewnder or focus-assist monitor. Our proprietary digital signal processing features, along with multi-

format compatibility, accommodate multiple video formats including NTSC and PAL. The HDMI input

also accepts VESA (VGA) standards allowing the display to be used as a computer monitor.

Features

■High-Resolution 7” Widescreen Monitor

The M-LCD7-HDMI features an all-digital TFT-MegaPixel active matrix LCD system with

1,152,000 pixels. The LCD panel features a brightness of 300 cd/m2 and a contrast ratio of

500:1, making the display ideal in a variety of environments and lighting conditions.

■Multi-Format Compatibility

The M-LCD7-HDMI accommodates multiple video standards with Composite Video, VGA,

NTS/PAL, and HDMI inputs.

■User-Interchangeable Battery Adapters

Several battery adapters are available to accommodate a wide variety of professional

camcorder and DSLR batteries.

Caution

1. Please use the attached adapter accessory.

2. Do not expose this product to direct sunlight, heat, or humidity.

3. For optimal image quality, avoid bright lights while using this product.

4. Avoid heavy impact or dropping product on the ground.

5. Do not use chemical solutions to clean this product. Simply wipe with a soft clean

cloth.

3M-LCD7-HDMI Manual

Carefully unpack the M-LCD7-HDMI monitor and verify that the following items are included:

■AC model (M-LCD7-HDMI) includes:

M-LCD7-HDMI Monitor

AC Power Supply

HDMI Cable

HDNI – MINI HDMI Cable

Car Cigarette Adapter

Table Stand

PC Cable [9-pin VGA Cable]

Multi-function input cable [SKS Cable]

Camera mount

Remote control

Operating Instructions

■DC model (M-LCD7-HDMI-B-XXX) includes the following additional items:

Battery (Canon B511, or Nikon EN-EL3E, or Canon LP-E6)

Battery mount

Mounting plate

Power DC cable

Hood

Battery charger

When storing the monitor for extended lengths of time, please remove the battery or unplug the

battery from the monitor.

Inspect the unit for any physical damage that may have occurred during shipping. If there is any

damage, immediately call Marshall Electronics Customer Service at (800) 800-6608. If you are not

located within the continental United States, call +1 (310) 333-0606.

Unpacking

4M-LCD7-HDMI Manual

Table of Contents

■Product Description ........................................................................................................... 4

Remote Control .......................................................................................................... 5

Matched Cable ............................................................................................................ 5

Connection ................................................................................................................. 6

■Operating Instructions ....................................................................................................... 7

■Specications ..................................................................................................................... 13

■Accessories ......................................................................................................................... 13

■Troubleshooting .................................................................................................................. 14

■Warranty .............................................................................................................................. 15

Product Description

■Description of Monitor

1. Indicator light

2. : Power on/off

3. AV/PC: AV/PC switch

4. : Volume down or to adjust the value setting function

5. Infrared receiver

6. : Volume up or to adjust the value of setting function

7. MENU: To activate OSD menu

8. : Selection key, to adjust phase directly

9. : Selection key, to adjust brightness directly

10. DC12V: DC12V input jack

11. HDMI: HDMI input jack

12. SKS: SKS input jack

5M-LCD7-HDMI Manual

■Remote Control

1. : Power on/off

2. : MUTE

3. : To activate OSD Menu

4. : Volume down, or to adjust the value of setting function

5. : Volume up, or to adjust the value of setting function

6. : Selection key, the brightness adjustment

7. : Selection key, the phase adjustment

8. : Aspect ratio switch, 4:3 or 16:9

9. : Up/Down Switch

10. : Right/Left Switch

11. : AV1/AV2/PC Switch

■Matched Cable

Picture 3 (AV cable)

Product Description

U/D

L/R

1. SKS input connector to be connected to SKS input

jack on monitor

2. Male 9-pin plug for VGA signal

3. DC12V power

4. Yellow RCA jack for video 1

5. White RCA jack for audio

6. Red RCA jack for video 2

6M-LCD7-HDMI Manual

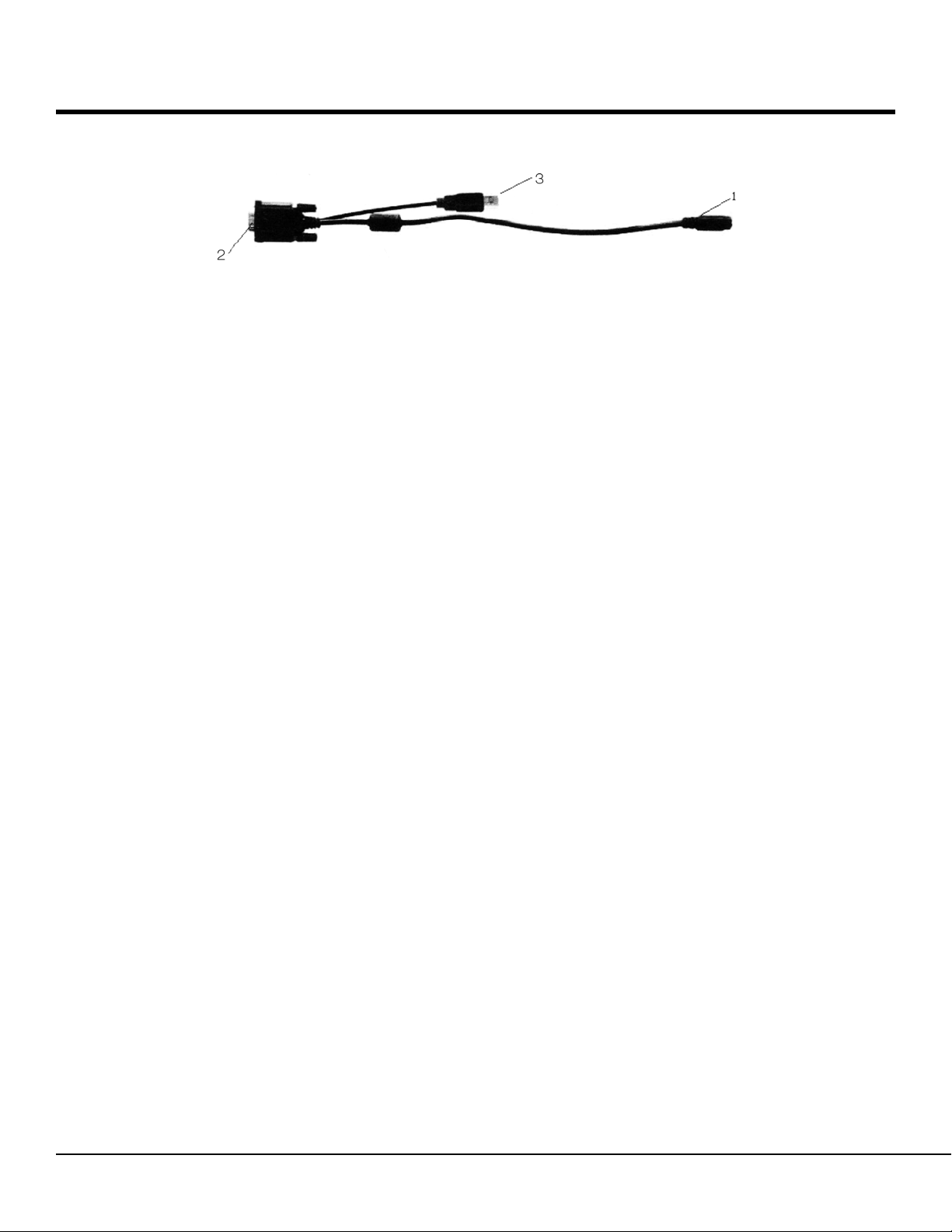

Picture 4 (VGA cable)

1. Female 9-pin jack connects to male 9-pin plug on picture 3

2. 15-pin VGA signal input end connects to computer VGA port

■Connection

1. Connect SKS input end of the AV cable (picture 3) into the AV input jack of the monitor.

The other jack of the AV cable should be connected as follows:

2. Male 9-pin plug of picture 3 is connected to female 9-pin jack of picture 4; the VGA

signal input end of picture 4 will be connected to the VGA port at the back of the

computer. Tighten the screws.

3. Black jack connects to DC12V power

4. Yellow RCA jack connects to video signal 1

5. White RCA jack connects to audio signal

6. Red RCA jack connects to video signal 2

Please use the included DC adapter. (Note that the power consumption should be less or equal to

10W.)

Product Description

7M-LCD7-HDMI Manual

Operation

After connecting to power, the unit will be in standby mode (red light). Press the power button on the

unit or on the remote control and the buttons of the unit will light up blue. Press the same button again

and the unit will return to standby mode. (Note the blue button will shut off 5 or 6 seconds after you

turn the unit off.) Push “PC/AV” on the unit or AC/PC on the remote control to switch between AV and

PC.

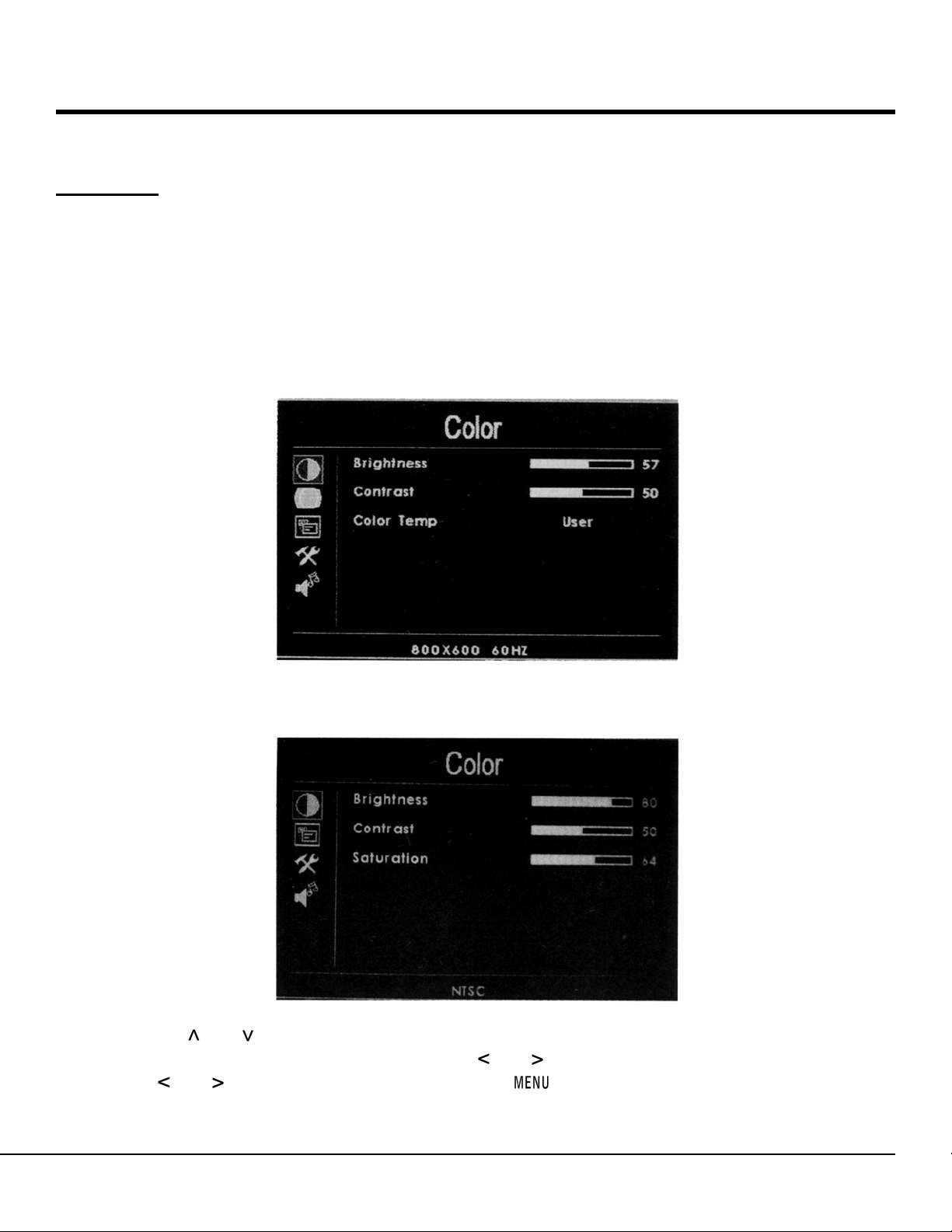

■OSD in PC Mode:

■OSD in AV Mode:

You can press “ ” or “ ” on the unit or on the remote control to select the items: (Color), (Adjust),

(Menu), (Edit), (Volume), and conrm by pressing “ ” or ” ” on the unit or on the remote control.

Then push “ ” or ” ” again to adjust the values. Push “ ” to exit the OSD after your adjustment.

Operating Instructions

8M-LCD7-HDMI Manual

■Description of OSD:

In PC mode:

(Color)

■In Color mode of OSD, use “ ” or ” ” to select and then push “ ” or ” ” to adjust.

Brightness: To adjust the brightness

Contrast: To adjust the contrast

Color Temp: To adjust the color temperature

The color temperature of OSD is adjustable. Press “</>” on the unit or on the remote control to select

“Color Temp,” then choose a color temperature such as 6500 Ks, 7500 Ks or 9300 Ks by pressing “ ”

or ” ”. You can also adjust color temperature by selecting “USER” and adjusting the RED, GREEN,

and BLUE by pushing “ ” or “ ” until desired color value is achieved.

Operating Instructions

9M-LCD7-HDMI Manual

Note: when you select “USER,” a mini box will appear on the bottom right corner of the OSD, as pic-

tured below:

■(Adjust):

Auto Cong: To automatically adjust to factory default setting

If the auto adjust is not satisfactory, use manual adjust.

H Position: To adjust the picture horizontally

V Position: To adjust the picture vertically

Phase: To adjust the phase

Clock: To adjust the clock for eld and line synchronization

■(OSD):

Operating Instructions

10 M-LCD7-HDMI Manual

■Language: language selection:

H Position: To adjust the picture in horizontal

V Position: To adjust the picture in vertical

OSD Time out: To adjust the clock

Transparent: To adjust the level of transparency

■(Function):

Reset: Back to the original factory setting

Display Ratio: To change the display ratio: 16:9, 4:3

LR Rotation: To change the picture left/right

UD Rotation: To change the picture up/down

■Sound

Volume: To adjust the volume.

Operating Instructions
