Marshalltown Bullet 213-SID Bedienungsanleitung

EZ SIDING SHEAR

13"| PART #213-SID | EDI #29808

104 S. 8th Ave. | Marshalltown, IA

Phone 800-888-0127 / 641-753-0127 | Fax 800-477-6341 / 641-753-6341

www.MARSHALLTOWN.com

WS2500

All manuals and user guides at all-guides.com

2 of 36 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com WS2500

INTRODUCTION

Thank you for purchasing the EZ Siding Shear. This versatile, economical, light-duty shear is manufactured in the

USA with the highest-grade materials and is designed with the siding professional in mind to cut HardiePlank®,

vinyl, and many other materials quickly, easily, and without dust.

Your new EZ Siding Shear includes features such as:

• Ability to cut inside without dust, noise, or electrical cords

• Metal jacketed bearing for long tool life

• Built-in ruler and movable fence for 45° (up to 8"/18" wide) and 90° cuts

• A blade that outlasts 20 saw blades

• Strong, lightweight aircraft grade aluminum construction

• Reduces airborne silica dust below OSHA minimum thresholds for PPE

And can cut materials up to 1" thick and 13" wide, including:

• Fiber cement board siding

• Pressboard lap

• Vinyl siding

• Wood siding

• OSB trim

• Fiber cement trim

• Vinyl trim

• PVC trim

• Tar & wood shingles

This owner’s manual provides the information needed to operate and maintain this EZ Siding Shear. Carefully

read and follow all safety and operating instructions in this manual. Ensure every operator of this shear reads

this manual before operating the unit. The replacement of any part on this shear with a component other than

a manufacturer authorized replacement part may adversely affect the performance, durability, or safety of the

product.

Be sure safety precautions are observed. Read and follow all safety and operating instructions in this operator’s

manual. The manufacturer reserves the right to make changes on or add improvements to its product at any

time without prior notice or obligation. The manufacturer reserves the right to decide, upon its sole discretion

and at any time, to discontinue this product or replacement parts thereof.

This manual covers the EZ Siding Shear. For technical questions or repair parts, please call MARSHALLTOWN

customer service at 1-800-888-0127 or visit www.MARSHALLTOWN.com.

All manuals and user guides at all-guides.com

3 of 36

104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.comWS2500

SAFETY PRECAUTIONS

DANGER!

• DANGER or

WARNING!

WARNING safety signs are located near specific hazards.

• General precautions are listed on CAUTION safety signs.

• This notation appears before warnings in the text. It means that the step that follows must be carried out to

avoid the possibility of personal injury or death. These warnings are intended to help the technician avoid any

potential hazards encountered in the normal service procedures. We strongly recommend that the reader

takes advantage of the information provided to prevent personal injury or injury to others.

THE FOLLOWING PRECAUTIONS ARE SUGGESTED TO HELP PREVENT ACCIDENTS. A CAREFUL OPERATOR

IS THE BEST OPERATOR. MOST ACCIDENTS CAN BE AVOIDED BY OBSERVING CERTAIN PRECAUTIONS.

READ AND TAKE THE FOLLOWING PRECAUTIONS BEFORE OPERATING THIS EQUIPMENT TO HELP

PREVENT ACCIDENTS. EQUIPMENT SHOULD BE OPERATED ONLY BY THOSE WHO ARE RESPONSIBLE AND

INSTRUCTED TO DO SO.

CALIFORNIA PROPOSITION 65 WARNING: This product can expose you to chemicals known to the

State of California to cause cancer, birth defects, or other reproductive harm.

• Read all operating and maintenance instructions before operating or servicing the shear.

• A shear is only as safe as its operator. Give complete and undivided attention to the operation of the shear.

• Know how to stop the shear instantly.

WARNING!

NEVER operate the shear if any shear components have been removed.

• Keep inexperienced and unauthorized people away from the shear at all times.

• Keep the shear in good operational condition. Loose or damaged parts are dangerous.

• Avoid loose clothing that could get caught in moving parts.

WARNING!

Keep hands and feet away from moving parts.

• Keep all warning, caution and safety instruction labels in good condition. Replace missing, damaged or illegible labels.

• Clear the work area around the shear to prevent tripping or falling onto the shear.

• Operate on level ground to prevent the shear from flipping over.

•

DO NOT OPERATE this shear under the influence of alcohol or while taking medication that impairs your reactions.

•

Use only factory authorized parts for replacement.

• Wear safety glasses when operating the shear.

• Always use caution when replacing the shear blade.

• Only operate the shear with the approved materials. If extreme force is required to cut a material, it may result in

personal injury and/or damage to the shear.

• Wear proper protective clothing while operating shear, including eye, ear, and clothing.

• Handle all solvents and cleaning agents with care and follow manufacturer’s instructions on safety and disposal.

TABLE OF CONTENTS

INTRODUCTION ...........................................................................................................................................................................2

SAFETY PRECAUTIONS .............................................................................................................................................................3

SAFETY DECALS .........................................................................................................................................................................4

WARRANTY ..................................................................................................................................................................................4

PRODUCT OPERATION...........................................................................................................................................................5-6

MAINTENANCE............................................................................................................................................................................7

PARTS BREAKDOWN (213-SID)............................................................................................................................................8-9

TROUBLESHOOTING.......................................................................................................................................................... 10-11

All manuals and user guides at all-guides.com

4 of 36 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com WS2500

SAFETY DECALS

If your safety decals are damaged, they can be replaced by contacting Customer Service.

Blade Warning Label

Handle Warning Label

WARRANTY

This product is warranted to the original purchaser only, to be free of defects in material and workmanship

under normal use, for one year from purchase date. MARSHALLTOWN shall without charge for parts and labor,

repair or replace such parts which are found to be defective. All transportation charges for replacement parts

must be borne by the purchaser.

For warranty service, the product must be delivered, with proof of purchase date, to MARSHALLTOWN. Contact

MARSHALLTOWN Customer Service to determine the best method of delivering the product that is under

warranty. The delivery of the product must be made no later than 30 days after the expiration of the warranty

period.

All implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one

year from date of purchase by the original retail customer and to the extent permitted by law any and all implied

warranties are excluded and disclaimed after the expiration of such period.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitations of

incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty

gives you specific legal rights, and you may also have other rights, which vary from state to state.

Exclusion from this warranty:

1. All consequential damages, including pickup and delivery of the unit, communication, mileage charges and/or

rental of a replacement unit during repairs are not covered under this warranty, or are any loss of income and/or

other loss resulting from the failure of the product to function due to a warranty defect.

2. This warranty will not apply when the product becomes inoperative due to misuse, normal wear, neglect,

improper maintenance, accident or freight damage; has not been operated and maintained in accordance with

the instructions furnished in the Operator’s Manual; or has been altered or modified without approval from the

factory Service Department.

3. No parts or products are to be returned to the factory without prior written approval from the factory.

All manuals and user guides at all-guides.com

5 of 36

104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.comWS2500

PRODUCT OPERATION

Caution! Wear hand and eye protection while operating the EZ Siding Shear

1 – While gently pushing handle down, pull Safety Lock

pin out, then lift handle.

3 – Push handle down until the material is cut

completely. Some effort may be required depending

of hardness of material.

Double Cutting – Simply make your first cut

/" to /" (3mm to 6mm) longer than your

mark and then make a second cut on your

mark. This is very useful to create a cleaner

cut on exposed ends or when you cannot over

the cut edge with molding or trim.

2 – Place product on table. Bring handle down

until blade touches material.

All manuals and user guides at all-guides.com

6 of 36 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com WS2500

ANGLED DEGREE CUTS

Firmly lift the friction-fit fence to remove it from the table and press back down in the appropriate 45-degree

position.

MAINTENANCE

Honing the Blade

Push the handle down until the blade ⁄" (3mm) above the tabletop. Place the provided Hone Stone against the

flat side of the blade. Slide the honing stone from one end of the blade to the other 3-4 times. This will remove

any burrs from your blade.

When you first get your shear, you should hone after your 5th cut, then hone your blade every 10th cut for the

first 100 cuts until your blade is broken in. From there, you only need to hone once per job. Use caution when

honing the blade. The blade is sharp and can easily cause injury. Cut-resistant gloves are recommended when

honing the blade.

For more information on honing

your blade, scan the QR code or visit

www.marshalltown.com/honing-your-blade

All manuals and user guides at all-guides.com

7 of 36

104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.comWS2500

MAINTENANCE

Sharpening the Blade

The blade can be sharpened to restore a one-sided, 21° – 22° knife edge. It is important to note that the blade

must be sharpened only on the beveled side, leaving the flat side flat. We recommend that power grinding only

be done professionally, as the blade must be fluid cooled during this process.

WARNING

USE EXTREME CAUTION! Blade is very sharp.

! !

CHANGING THE BLADE

NOTE: This image is for the SharpShooter 2.0.

Your shear may look slightly different.

. TURN THE SHEAR UPSIDE DOWN

Tip: put the shear on the edge of a sturdy table.

. LOOSEN THE BLADE

Using a Phillips screwdriver, remove the screws

. REMOVE BLADE

Hold blade by each end and carefully lift out of pocket.

. INSTALL BLADE

Hold blade by each end and carefully place into the

blade pocket in the head, with the flat side of the

blade facing the table. Be sure that it is firmly seated,

and the pocket is clear of debris.

. TIGHTEN THE BLADE

Using a Phillips screwdriver, replace & tighten the

screws, starting with the center screw.

All manuals and user guides at all-guides.com

8 of 36 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com WS2500

PARTS BREAKDOWN PART -SID  EDI 

All manuals and user guides at all-guides.com

9 of 36

104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.comWS2500

PARTS BREAKDOWN PART -SID  EDI 

REF # DESCRIPTION EDI PART# QTY

1 EZ  &  BASE R7101 CON-BSE-F213 1

2 EZ- CAM R7140 CON-CAM-F213 1

3  SID HEAD R7226 CON-HED-F213 1

4 PIN DESIGNED TO FIT BNG E R7236 CON-PIN-0201 2

5 F-BEAM -FLR TABLE R7322 CON-TBL-0113 1

6 EX SHEAR RAIL - TAPPING NOT REQUIRED R7269 CON-RAL-W021 2

7 EZ SHEAR BENT CAMLOCK PIN R7153 CON-CML-0100 1

8 EZ UPPPER HANDLE R7205 CON-HAN-U113 1

9 EZ- SAPA TAIL R7300 CON-TAL-0113 1

10 EZ- MOUNTING BRACKET R7080 CON-BRK-EZ20 4

" SIDING SHEAR BLADE

WX2591 RAW-BDE-213B 1

12 ." SQUARE X ." - LOWER HANDLE R7200 CON-HAN-L213 1

13 BOLT, M X  HEX, CLS ., ZINC WR1510 FAS-BLT-EZ80 2

14 HEX BOLT, M X MM, GR . FULL THD, ZP WR1500 FAS-BLT-0851 2

15 PIN, TENSION, M X  WR1508 FAS-PIN-EZ02 2

16 M X  BHSCS ZP WR1585 FAS-SCW-5612 9

17 SCREW, M X , SHCS, ZINC WR1581 FAS-SCW-5021 2

18  X " SMS WR1764 FAS-SCW-1430 4

19 SCREW, FHP, M X , ZP WR1604 FAS-SCW-8569 4

20  X  FHPSMS WR1556 FAS-SCW-0010 3

21 EZ END CAP, BLACK, FITS SQ TUBE ID OF . -

."

WL790 GEN-CAP-1075 1

22 GRIP, " X ", SQ TEXTURED RUBBER WK230 GEN-HAN-0100 1

23 BUTTON SPRING, HAIRPIN, , - WR1630 GEN-SPR-0847 1

24 FOOT CAP, " BLACK VINYL, FCR- WL793 GEN-CAP-5039 2

25 SPRING, COMPRESSION, . X .”, X ., 

COIL, C 

WL1635 GEN-SPR-4075 2

26 EZ SST NYLON CAM LOBE R7070 CON-BNG-E220 2

27  X -" FLAT HEAD - AL RIVET BX VINYL

CUTTER

WR1553 FAS-RVT-2513 2

28 RIVETED SHEAR FENCE .IN R7178 CON-FNC-1000 1

29 M X  PH TORX ZP WR1598 FAS-SCW-7625 4

All manuals and user guides at all-guides.com

10 of 36 104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com WS2500

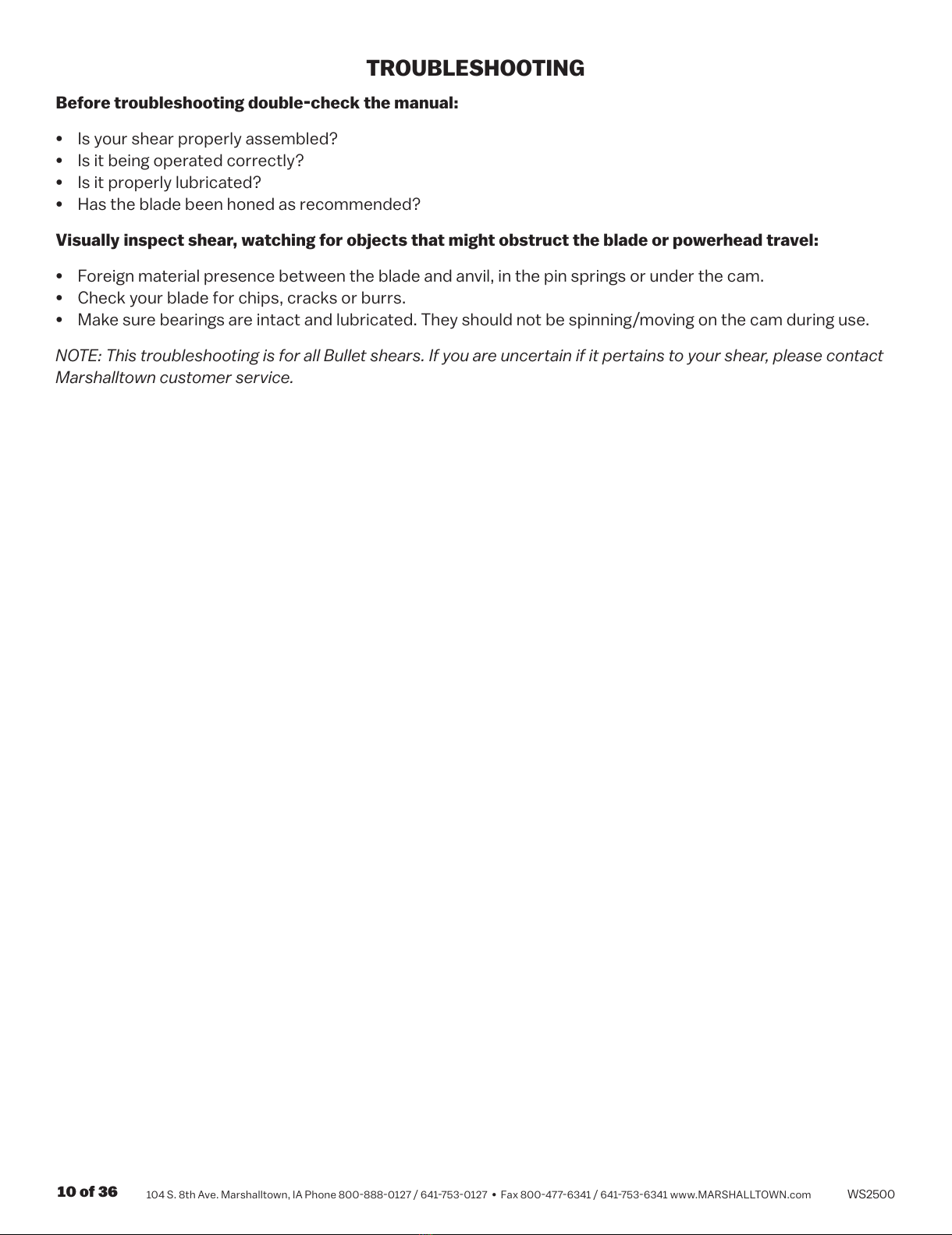

TROUBLESHOOTING

Before troubleshooting double-check the manual:

• Is your shear properly assembled?

• Is it being operated correctly?

• Is it properly lubricated?

• Has the blade been honed as recommended?

Visually inspect shear, watching for objects that might obstruct the blade or powerhead travel:

• Foreign material presence between the blade and anvil, in the pin springs or under the cam.

• Check your blade for chips, cracks or burrs.

• Make sure bearings are intact and lubricated. They should not be spinning/moving on the cam during use.

NOTE: This troubleshooting is for all Bullet shears. If you are uncertain if it pertains to your shear, please contact

Marshalltown customer service.

All manuals and user guides at all-guides.com

Inhaltsverzeichnis

Sprachen:

Andere Marshalltown Elektrowerkzeuge Handbücher

Marshalltown

Marshalltown BULLET MS90-1909 Bedienungsanleitung

Marshalltown

Marshalltown LWFS13 Bedienungsanleitung

Marshalltown

Marshalltown BULLET MS20-1613 Bedienungsanleitung

Marshalltown

Marshalltown FS213-L Bedienungsanleitung

Marshalltown

Marshalltown Bullet MARKSMAN Bedienungsanleitung

Marshalltown

Marshalltown BULET 213-SID Bedienungsanleitung

Marshalltown

Marshalltown BULLET MS90-1913 Bedienungsanleitung

Marshalltown

Marshalltown AT10MA Montageanleitung

Marshalltown

Marshalltown VP3800 Bedienungsanleitung

Marshalltown

Marshalltown SPEED STRIKER Bedienungsanleitung

Marshalltown

Marshalltown BULLET 620-SID Bedienungsanleitung

Marshalltown

Marshalltown Bullet EzSeries Bedienungsanleitung

Marshalltown

Marshalltown Bullet EZ SHEAR Bedienungsanleitung

Marshalltown

Marshalltown FS13 Bedienungsanleitung

Marshalltown

Marshalltown SPIN SCREED Bedienungsanleitung

Marshalltown

Marshalltown SPIN SCREED SPNRSSA18V Bedienungsanleitung

Beliebte Elektrowerkzeuge Handbücher anderer Marken

AEG

AEG OMNI-JS Bedienungsanleitung

SIP

SIP 01533 Bedienungsanleitung

Ribimex

Ribimex PRS499 Bedienungsanleitung

3M Fiber Optic Connector Crimp Tool Bedienungsanleitung

Ryobi

Ryobi P524 Bedienungsanleitung

ROJEK

ROJEK FSN 300A Bedienungsanleitung

Kemper

Kemper 1740PRO Bedienungsanleitung

WABCO

WABCO OptiTire Bedienungsanleitung

EINHELL

EINHELL TE-MS 18/210 Li Bedienungsanleitung

Orgapack

Orgapack OR-T 85 Kurzanleitung

TOUGHCUT

TOUGHCUT Diamond 400 Bedienungsanleitung

Yaros

Yaros PB-3603 Bedienungsanleitung

Fein

Fein BSS 2.0 E Einrichtungshandbuch

Baileigh Industrial

Baileigh Industrial SS-2725 Bedienungsanleitung

Milwaukee

Milwaukee 2674-20 Bedienungsanleitung

Fein

Fein BLs 1.6 Bedienungsanleitung

Princess

Princess Electric Multi Sharpener Bedienungsanleitung

FOREDOM

FOREDOM K.1050 Handbuch
