Marvel MLBV215 Bedienungsanleitung
GETTING STARTED
QUICK REFERENCE GUIDE
MARVEL UNDERCOUNTER REFRIGERATION
THE ORIGINAL REFRIGERATION EXPERTS SINCE 1892
MLBV215
MLBV124
MLBV224
MLRE215
MLRE024
MLRE124
MLRE224
MLDR224
MLKR224
MLWC124
MLWC224
MLWC324
MLWC215
2
NOTE
!CAUTION
Welcome to the Marvel Experience
Thank you for choosing our quality American-built product
to add to your home. We are thrilled to welcome you to
our growing community of Marvel owners, who trust in our
products and our support.
The information in this guide is intended to help you install
and maintain your new Marvel undercounter model to pro-
tect and prolong its lifetime. We encourage you to contact
our Technical Support team at (616) 754-5601 with any
questions.
Got a Marvelous Design?
We would love to see how your Marvel product looks in its
new home. Send us photos at marketing@marvelrefriger-
ation.com, and we might feature your Marvel home design
on our website and social media!
Thank you again for investing in Marvel for your home!
Important Safety Instructions
Warnings and safety instructions appearing in this guide
are not meant to cover all possible conditions and situa-
tions that may occur. Common sense, caution, and care
must be exercised when installing, maintaining, or operat-
ing this appliance.
Recognize Safety Symbols,
Words, and Labels.
CAUTION-Hazards or unsafe practices which could re-
sult in personal injury or property / product damage.
NOTE-Important information to help assure a problem
free installation and operation.
CONTENTS
!WARNING
WARNING - You can be killed or seriously injured
if you do not follow these instructions.
!WARNING
State of California Proposition 65 Warning:
This product contains one or more chemicals known
to the State of California to cause cancer.
!WARNING
State of California Proposition 65 Warning:
This product contains one or more chemicals known
to the State of California to cause birth defects or
other reproductive harm.
!WARNING
WARNING - This unit contains R600a (Isobutane)
which is a ammable hydrocarbon. It is safe for regular
use. Do not use sharp objects to expedite defrosting.
Do not damage refrigerant circuit.
Contents:
Safety information ...............................................................2
Unpacking Your Appliance ................................................. 3
Installing your appliance ......................................................4
Electrical..............................................................................5
Door Reversal .....................................................................6
Installing the anti-tip device ................................................9
Using your Electronic Control ...........................................10
Careandcleaning...............................................................11
Warranty ............................................................................12
3
NOTE
!CAUTION
!WARNING
WARNING - Help Prevent Tragedies
Child entrapment and suocation are not problems of
the past. Junked or abandoned refrigerators are still
dangerous - even if they sit out for "just a few hours".
If you are getting rid of your old refrigerator, please
follow the instructions below to help prevent accidents.
Before you throw away your old refrigerator or freezer:
• Take o the doors or remove the drawers.
• Leave the shelves in place so children may not
easily climb inside.
!WARNING
WARNING - Dispose of the plastic bags which can
be a suocation hazard.
!WARNING
EXCESSIVE WEIGHT HAZARD
Use two or more people to move product.
Failure to do so can result in personal injury.
Remove Interior Packaging
Your appliance has been packed for shipment with all parts
that could be damaged by movement securely fastened.
Remove internal packing materials and any tape holding in-
ternal components in place. The owners manual is shipped
inside the product in a plastic bag along with the warranty
registration card, and other accessory items.
Important
Keep your carton and packaging until your appliance has
been thoroughly inspected and found to be in good condi-
tion. If there is damage, the packaging will be needed as
proof of damage in transit. Afterwards please dispose of all
items responsibly.
Note to Customer
This merchandise was carefully packed and thoroughly
inspected before leaving our plant. Responsibility for its
safe delivery was assumed by the retailer upon acceptance
of the shipment. Claims for loss or damage sustained in
transit must be made to the retailer.
DO NOT RETURN DAMAGED MERCHANDISE TO THE
MANUFACTURER - FILE THE CLAIM WITH THE
RETAILER.
If the appliance was shipped, handled, or stored in other
than an upright position for any period of time, allow the ap-
pliance to sit upright for a period of at least 24 hours before
plugging in. This will assure oil returns to the compressor.
Plugging the appliance in immediately may cause damage
to internal parts.
It is important you send in your warranty registration card
immediately after taking delivery of your appliance or you
can register online at www.marvelrefrigeration.com.
The following information will
be required when registering
your appliance.
Service Number
Serial Number
Date of Purchase
Dealer’s name and address
The service number and serial number can be found on the
serial plate which is located inside the cabinet on the left
side near the top. See gure 1.
Warranty Registration
UNPACKING YOUR APPLIANCE
Online registra-
tion available at
www.marvelrefriger-
ation.com
XXXXXXXXXXXX
XXXXXXXXXXXX
MARVEL
g
Figure 1
R600A
4
!CAUTION
Select Location
The proper location will ensure peak performance of your
appliance. We recommend a location where the unit will
be out of direct sunlight and away from heat sources. To
ensure your product performs to specications, the recom-
mended installation location temperature range is from 55
to 100°F (13 to 38°C).
Cabinet Clearance
Ventilation is required from the bottom front of the appli-
ance. Keep this area open and clear of any obstructions.
Adjacent cabinets and counter top can be installed around
the appliance as long as the front grille remains unobstruct-
ed. All Marvel Professional models with articulated hinges
are intended for built-in applications only.
Front Grille
Do not obstruct the front grille. The openings within the
front grille allow air to ow through the condenser heat ex-
changer. Restrictions to this air ow will result in increased
energy usage and loss of cooling capacity. For this reason
it is important this area to not be obstructed and the grille
openings kept clean. Marvel does not recommend the use
of a custom made grille as air ow may be restricted.
INSTALLING YOUR APPLIANCE

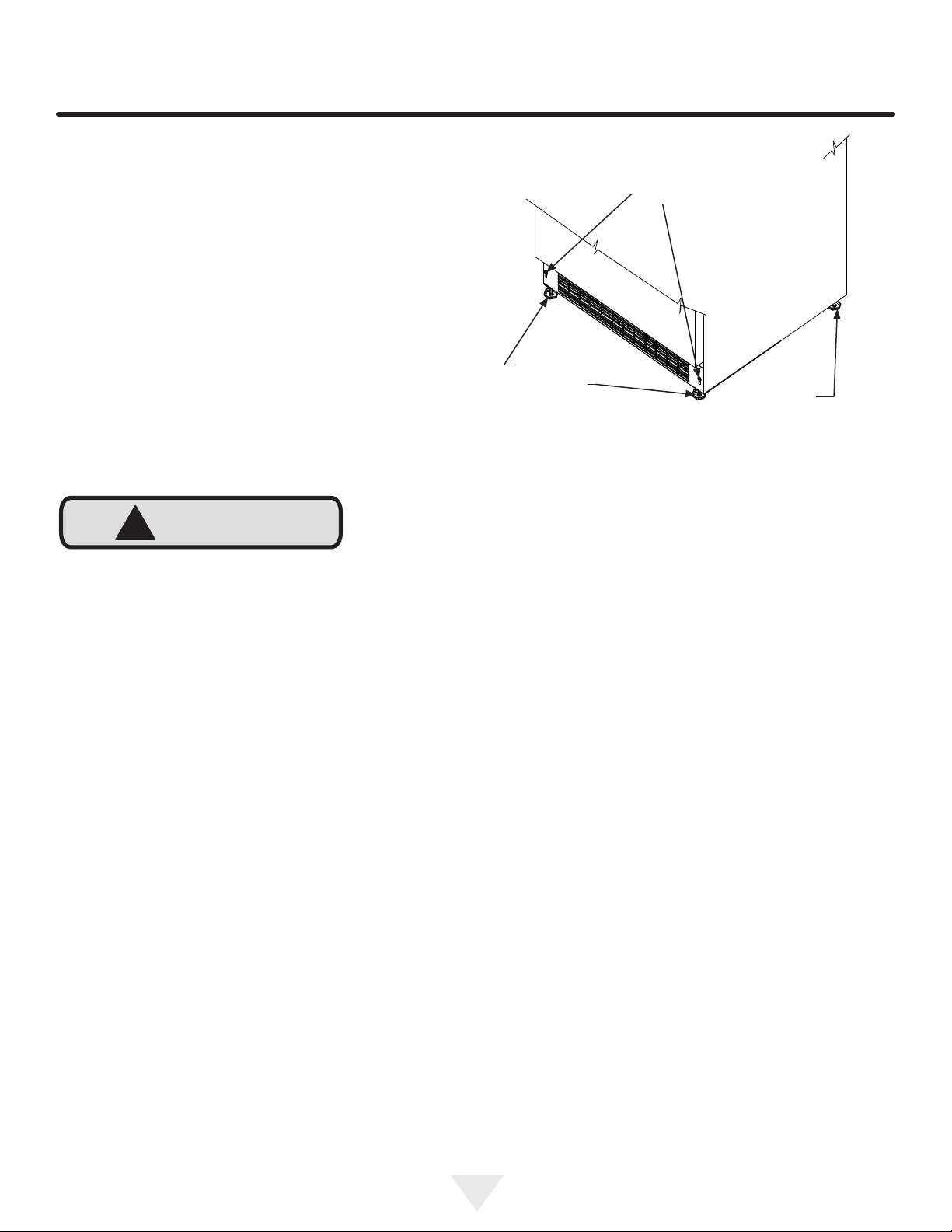

Figure 2
Front Leveling
Legs
Front grille
screws
Leveling Legs
Adjustable legs at the front and rear corners of the appli-
ance should be set so the unit is rmly positioned on the
oor and level from side to side and front to back. The over-
all height of your Marvel appliance may be adjusted higher
(by turning the leveling leg out, CCW) and lower (by turning
the leveling leg in, CW).
To adjust the leveling legs, place the appliance on a solid
surface and protect the oor beneath the legs to avoid
scratching the oor. With the assistance of another person,
lean the appliance back to access the front leveling legs.
Raise or lower the legs to the required dimension by turning
the legs. Repeat this process for the rear by tilting the appli-
ance forward using caution. On a level surface check the
appliance for levelness and adjust accordingly.
The front grille screws may be loosened and the grille ad-
justed to the desired height. When adjustment is complete
tighten the two front grille screws. (See Figure 2).
Rear
Leveling
Legs
5
NOTE
ELECTRICAL
Electrical Shock Hazard
• Do not use an extension cord with this appliance.
They can be hazardous and can degrade product
performance.
• This appliance should not, under any circumstanc-
es, be installed to an un-grounded electrical supply.
• Do not remove the grounding prong from the power
cord. (See Figure 3).
• Do not use an adapter. (See Figure 4).
• Do not splash or spray water from a hose on the
appliance. Doing so may cause an electrical shock,
which may result in severe injury or death.
!WARNING
Ground Fault Circuit Interrupters (GFCI) are prone to nui-
sance tripping which will cause the appliance to shut down.
GFCI’s are generally not used on circuits with power equip-
ment that must run unattended for long periods of time, un-
less required to meet local building codes and ordinances.
Electrical Connection
A grounded 115 volt, 15 amp dedicated circuit is required.
This product is factory equipped with a power supply
cord that has a three-pronged, grounded plug. It must be
plugged into a mating grounding type receptacle in accor-
dance with the National Electrical Code and applicable
local codes and ordinances (see Figure 6). If the circuit
does not have a grounding type receptacle, it is the respon-
sibility and obligation of the customer to provide the proper
power supply. The third ground prong should not, under
any circumstances, be cut or removed.
Figure 5
Figure 4
Figure 3
Do not remove
ground prong
6
Door Reversing Instructions
Tools Needed:
• 1/8” Hex Key
• 5/32” Hex Key
• Phillips Screwdriver
1. Open door and remove Hinge Pin from the Upper Hinge using a 1/8” Hex Key tool (Fig. 6), making sure to steady the
door Slowly remove the door from the Upper Hinge and lift to remove o the base Lower Hinge.
2. Using a Phillips Screwdriver, remove the 6 screws from both the Upper and Lower Hinges and save for later steps
3. Once the Hinges are removed from the unit, using a Phillips Screwdriver, remove the Bushing Screw and Hinge Pin
Screw and save for later steps (Fig. 6a).
4. On the Bottom Hinge, reattach the Bushing Screw and Hinge Pin Screw to the opposite side (Fig. 6b)
Figure 7a - Lower Hinge
Bracket (Before
Reversal)
Figure 7c - Upper Hinge
Bracket (After Reversal)
Figure 7b - Lower Hinge
Bracket (After Reversal)
5. Using a 5/32” Hex Key, remove the Upper and Lower Hinge Brackets from the door (Fig. 7), saving all components.
Remove black plugs from opposite side of door. ip the Upper Hinge Bracket and reattach the Hinge Bushing (Fig. 7) and
screw into place on the opposite side of the door (where plugs were removed). Remove the Cam Closer from the Lower-
Hinge Bracket (Fig. 7) and attach it to the opposite side (Fig. 7b).
DOOR REVERSAL
Hinge Pin
Figure 6 - Upper Right
Hinge Orientation
(Before Reversal)
Hinge Pin
Screw
Bushing
Screw
Figure 6a - Lower Right
Hinge Orientation
(Before Reversal)
Figure 6c - Upper Left
Hinge Orientation
(After Reversal)
Figure 6b - Upper Left
Hinge Orientation
(After Reversal)
Hinge
Bushing
Cam Closer
Figure 7 - Upper Hinge
Bracket
(Before Reversal)
7
6. Remove the Toe Kick from the door and attach it to the opposite side (Fig. 8).
DOOR REVERSAL
Figure 8 - Toe Kick
Reversal
7. Reattach the Upper and Lower Hinges, and Hinge Brackets to opposite sides. Then install the door.
Figure 9
8
NOTE
To insert rack in the cabinet:
1. Align the left and right rack channels with the tracks in
the cabinet. Ensure an even track engagement on both
sides by gently pushing the rack into the cabinet until
it stops.
2. Before reloading the rack, ensure proper movement
of the travel stops in the left and right track rails by
pulling the rack out gently until it stops.
DOOR REVERSAL
Reversing the Shelf Spacers
Wine Rack Installation
To remove rack from the cabinet:
1. Remove any bottles stored on the rack.
2. Grasp the end of the rack and gently slide it out until it
stops.
3. Press the left rack release lever down. At the same
time lift the matching right rack release lever up.
Pull the rack out until it is free of the tracks and the
cabinet.
Do not remove the track rails from the cabinet.
To reverse the shim pattern:
1. Remove the outer glides keeping track of the shims.
2. Once the outer glides are removed, reverse the shims.
Left now goes to the right, and right goes to the left.
3. Install the outer glides back in and install the wine racks.
Figure 10
Figure 11
9
INSTALLING THE ANTI TIP DEVICE
Front of cabinet
Figure
211⁄2"
(54.6 cm)
Anti-Tip
Bracket Leveling Leg
Bottom View of
Appliance
Floor Mount Installation
The anti-tip bracket is to be located on the oor in the left or
right rear corner of the appliance as shown in “Figure 12”.
!WARNING
• ALL APPLIANCES CAN TIP
RESULTING IN INJURY.
• INSTALL THE ANTI-TIP
BRACKET PACKED WITH
THE APPLIANCE.
• FOLLOW THE INSTRUC-
TIONS BELOW
!CAUTION
NOTE
Any nished ooring should be protected with appropriate
material to avoid damage when moving the unit.
If installing on a concrete oor, concrete fasteners are
required, (not included with the anti-tip kit).
Anti-Tip Device
!WARNING
If your appliance is not located under a counter top
(free standing), you must use an anti-tip device in-
stalled as per these instructions. If the unit is removed
from its location for any reason, make sure that the
device is properly engaged with the anti-tip bracket
when you push the appliance back into the original
location. If the device is not properly engaged, there is
a risk of the appliance tipping over, with the potential
for property damage or personal injury.
*** FOR FULL INSTALLATION INSTRUCTIONS, REFER TO THE PRODUCT OWNER’S GUIDE
ONLINE AT WWW.MARVELREFRIGERATION.COM
12
10
USING YOUR ELECTRONIC CONTROL
Figure 13
Electronic control
Control Function Guide
Function Command Notes
ON/OFF Press and hold for 5 seconds. Unit will immediately turn ON or OFF.
Leave Interior Light On Press and release to leave interior light on for
3 hours; press again to deactivate.
After 12 hours, factory default is restored; light will turn on when
door is open.
Adjust Temperature Press or and release.
When the display is ashing, press or to adjust the set
point temperature. Note: temperature displayed is the actual
temperature inside unit.
Toggle Between oF / oC Hold and for 5 seconds. The display will change units.
Enable Sabbath Mode Press and hold for 5 seconds and release.
The oF / oC symbol will ash briey after 5 seconds. Interior
light and display will go dark and remain so until user resets
mode - unit continues to operate.
Disable Sabbath Mode Press , hold for 5 seconds and release. Display and interior light return to normal operation.
Showroom Mode Hold and for 5 seconds.
Display will show for 2 seconds. Interior light and display
will function normally, but the compressor and fans will not be
energized. Repeat command to return to normal operation.
Display will show for 2 seconds.
NOTE
Temperature displayed reects actual temperature inside unit. If the
temperature displayed is dierent than selected, the unit is progressing
towards the selected temperature. Time to reach set point varies based
upon ambient temperature, temperature of product loaded, door openings,
etc. Marvel recommends allowing the unit to reach set points before
loading.
Andere Handbücher für MLBV215
1
Dieses Handbuch passt für folgende Modelle
12
Inhaltsverzeichnis
Andere Marvel Kühlschrank Handbücher
Marvel
Marvel 6BARM-BB-G Bedienungsanleitung
Marvel
Marvel MACL215 Bedienungsanleitung
Marvel
Marvel MPBD424-IG31A Bedienungsanleitung
Marvel
Marvel MOKR224-SSD1A Bedienungsanleitung
Marvel
Marvel MLNP115-IS01A Bedienungsanleitung
Marvel
Marvel MOCL215-SS01B Bedienungsanleitung
Marvel
Marvel MOFZ224 Bedienungsanleitung
Marvel
Marvel 6ADA-BB Leitfaden
Marvel
Marvel MLRF224-IS01A Bedienungsanleitung
Marvel
Marvel MLBV224-IG01A Bedienungsanleitung
Marvel
Marvel 3SBARE Handbuch
Marvel
Marvel MLBD224-SS01A Bedienungsanleitung
Marvel
Marvel 3SBAR-BD Bedienungsanleitung
Marvel
Marvel 6BARM Montage- und Bedienungsanleitung
Marvel
Marvel 8SBARE-BN Bedienungsanleitung
Marvel
Marvel AGA MP42SS2 Bedienungsanleitung
Marvel
Marvel MOKR124 Bedienungsanleitung
Marvel
Marvel MOCP215-SS01B Anwendungshandbuch
Marvel
Marvel MLCR215-IS01B Bedienungsanleitung
Marvel
Marvel 6ORGD-SS-F Bedienungsanleitung
Beliebte Kühlschrank Handbücher anderer Marken
Bonnet Neve
Bonnet Neve SKYVIEW PLUS Bedienungsanleitung
Zanussi Electrolux
Zanussi Electrolux ZERB 8441 Bedienungsanleitung
Sharp
Sharp SJ-BA31IEXW2-EU Bedienungsanleitung
CORBERO
CORBERO CC2300MCW Bedienungsanleitung
KitchenAid
KitchenAid 2205264 Bedienungsanleitung
Stengel
Stengel KU 1101 A++ Bedienungsanleitung
