OWNER’S GUIDE & SERVICE MANUAL

MARVEL UNDERCOUNTER REFRIGERATION

Model: MLRE124-IS21A

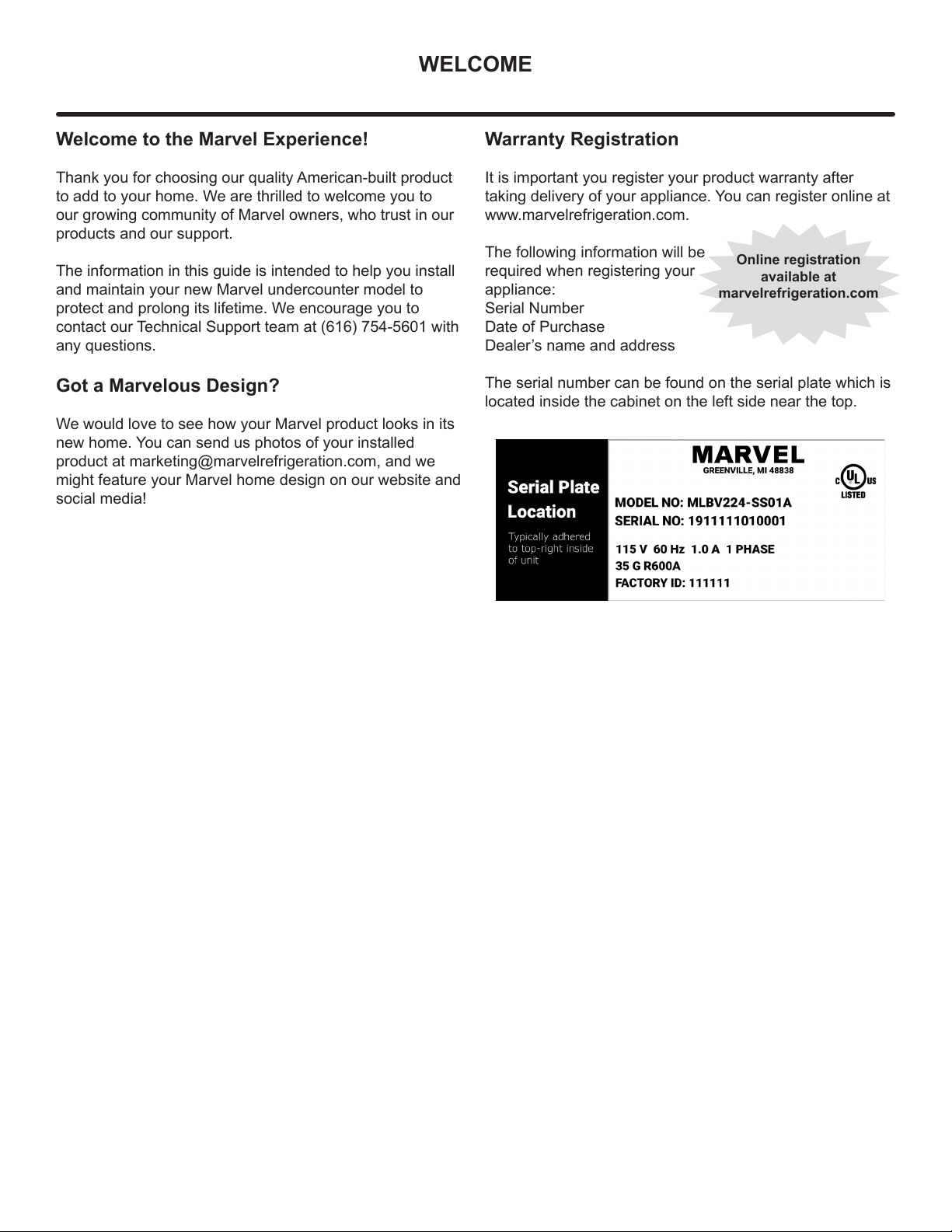

WELCOME

Welcome to the Marvel Experience!

Thank you for choosing our quality American-built product

to add to your home. We are thrilled to welcome you to

our growing community of Marvel owners, who trust in our

products and our support.

The information in this guide is intended to help you install

and maintain your new Marvel undercounter model to

protect and prolong its lifetime. We encourage you to

contact our Technical Support team at (616) 754-5601 with

any questions.

Got a Marvelous Design?

We would love to see how your Marvel product looks in its

new home. You can send us photos of your installed

product at [email protected], and we

might feature your Marvel home design on our website and

social media!

Online registration

available at

marvelrefrigeration.com

Warranty Registration

It is important you register your product warranty after

taking delivery of your appliance. You can register online at

www.marvelrefrigeration.com.

The following information will be

required when registering your

appliance:

Serial Number

Date of Purchase

Dealer’s name and address

The serial number can be found on the serial plate which is

located inside the cabinet on the left side near the top.

TABLE OF CONTENTS

Tip: Click on any section below to jump directly there

Safety

Important Safety Instructions

Installation

Unpacking Your Appliance

Electrical

Cutout & Product Dimensions

Installing Your Appliance

Side-by-Side & Stacking Installations

Integrated Panel Dimensions

Integrated Panel Installation

Maintenance

Care and Cleaning

Stainless Steel Maintenance

Extended Non-Use

Operating Instructions

Using Your Electronic Control

Interior Adjustments

Energy Savng Tips

Service

Obtaining Service

Troubleshooting

Wire Diagram

Product Liability

Warranty Claims

Ordering Replacement Parts

R600a Specifications

System Diagnosis Guide

Compressor Specifications

Troubleshooting Extended

Thermistor

Defrost

Remove Fan and Cover

Warranty

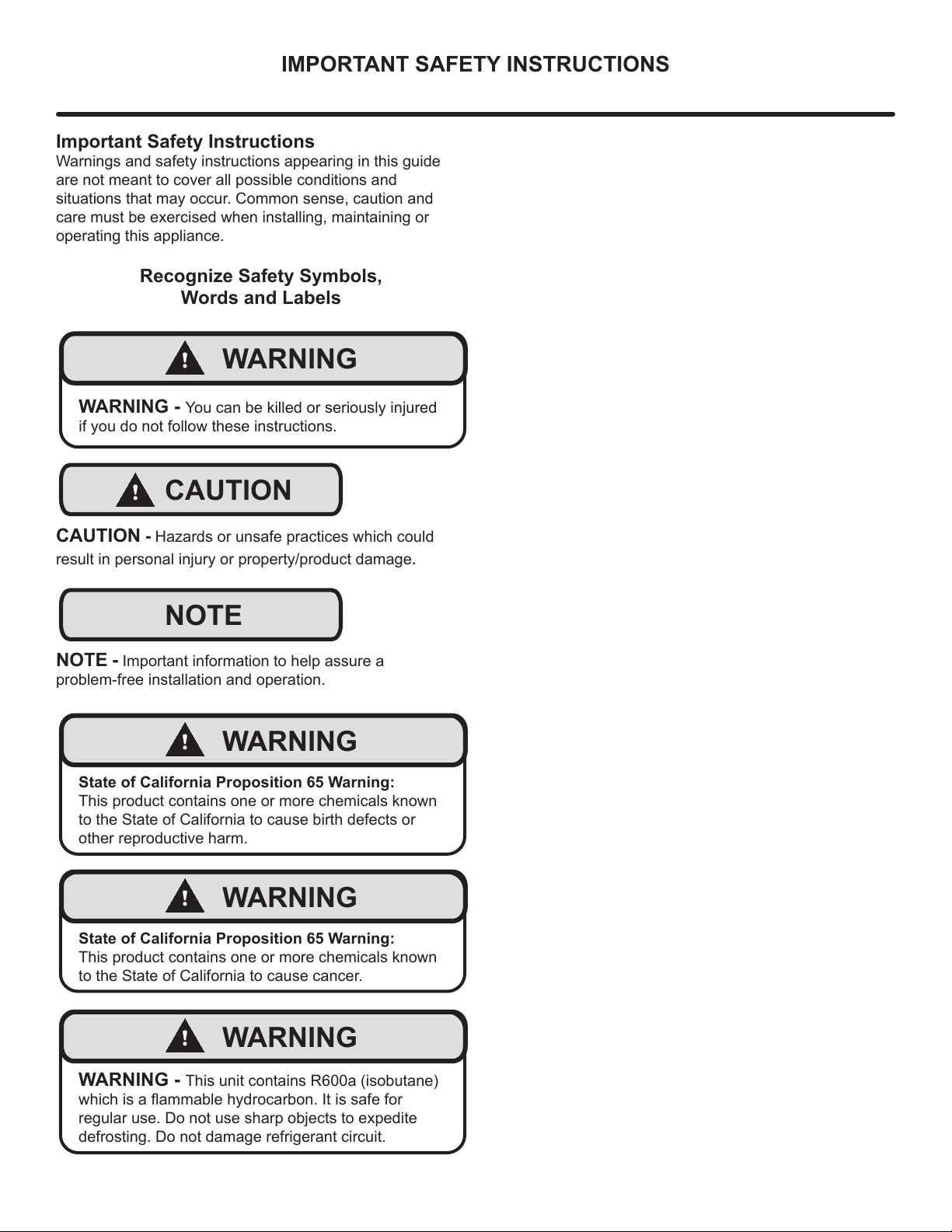

IMPORTANT SAFETY INSTRUCTIONS

Important Safety Instructions

Warnings and safety instructions appearing in this guide

are not meant to cover all possible conditions and

situations that may occur. Common sense, caution and

care must be exercised when installing, maintaining or

operating this appliance.

Recognize Safety Symbols,

Words and Labels

!WARNING

WARNING - You can be killed or seriously injured

if you do not follow these instructions.

!CAUTION

CAUTION -Hazards or unsafe practices which could

result in personal injury or property/product damage.

NOTE

NOTE -Important information to help assure a

problem-free installation and operation.

!WARNING

State of California Proposition 65 Warning:

This product contains one or more chemicals known

to the State of California to cause birth defects or

other reproductive harm.

!WARNING

State of California Proposition 65 Warning:

This product contains one or more chemicals known

to the State of California to cause cancer.

!WARNING

WARNING - This unit contains R600a (isobutane)

which is a ammable hydrocarbon. It is safe for

regular use. Do not use sharp objects to expedite

defrosting. Do not damage refrigerant circuit.

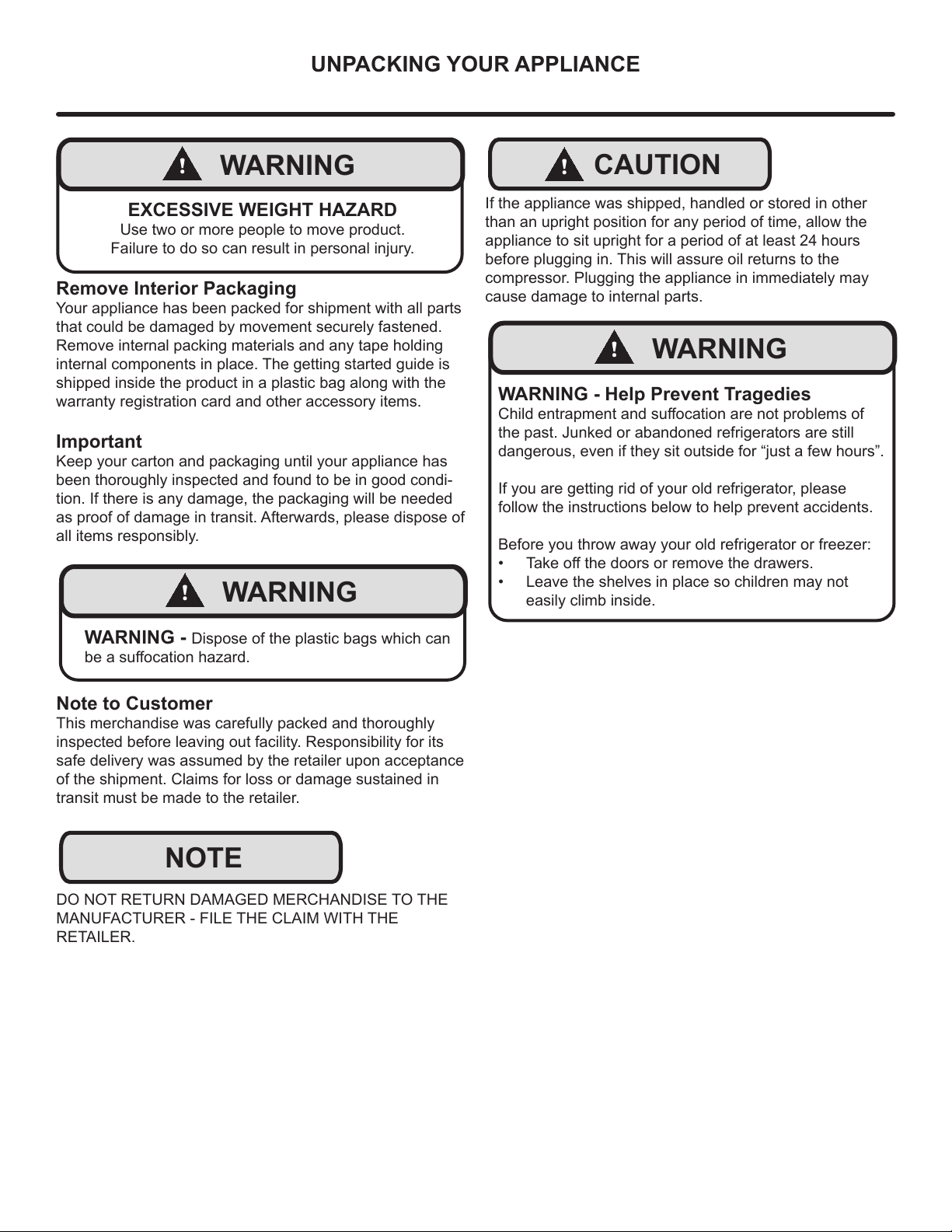

UNPACKING YOUR APPLIANCE

!WARNING

EXCESSIVE WEIGHT HAZARD

Use two or more people to move product.

Failure to do so can result in personal injury.

Remove Interior Packaging

Your appliance has been packed for shipment with all parts

that could be damaged by movement securely fastened.

Remove internal packing materials and any tape holding

internal components in place. The getting started guide is

shipped inside the product in a plastic bag along with the

warranty registration card and other accessory items.

Important

Keep your carton and packaging until your appliance has

been thoroughly inspected and found to be in good condi-

tion. If there is any damage, the packaging will be needed

as proof of damage in transit. Afterwards, please dispose of

all items responsibly.

!WARNING

WARNING - Dispose of the plastic bags which can

be a su󰀨ocation hazard.

Note to Customer

This merchandise was carefully packed and thoroughly

inspected before leaving out facility. Responsibility for its

safe delivery was assumed by the retailer upon acceptance

of the shipment. Claims for loss or damage sustained in

transit must be made to the retailer.

DO NOT RETURN DAMAGED MERCHANDISE TO THE

MANUFACTURER - FILE THE CLAIM WITH THE

RETAILER.

NOTE

!CAUTION

If the appliance was shipped, handled or stored in other

than an upright position for any period of time, allow the

appliance to sit upright for a period of at least 24 hours

before plugging in. This will assure oil returns to the

compressor. Plugging the appliance in immediately may

cause damage to internal parts.

!WARNING

WARNING - Help Prevent Tragedies

Child entrapment and su󰀨ocation are not problems of

the past. Junked or abandoned refrigerators are still

dangerous, even if they sit outside for “just a few hours”.

If you are getting rid of your old refrigerator, please

follow the instructions below to help prevent accidents.

Before you throw away your old refrigerator or freezer:

• Take o󰀨 the doors or remove the drawers.

• Leave the shelves in place so children may not

easily climb inside.

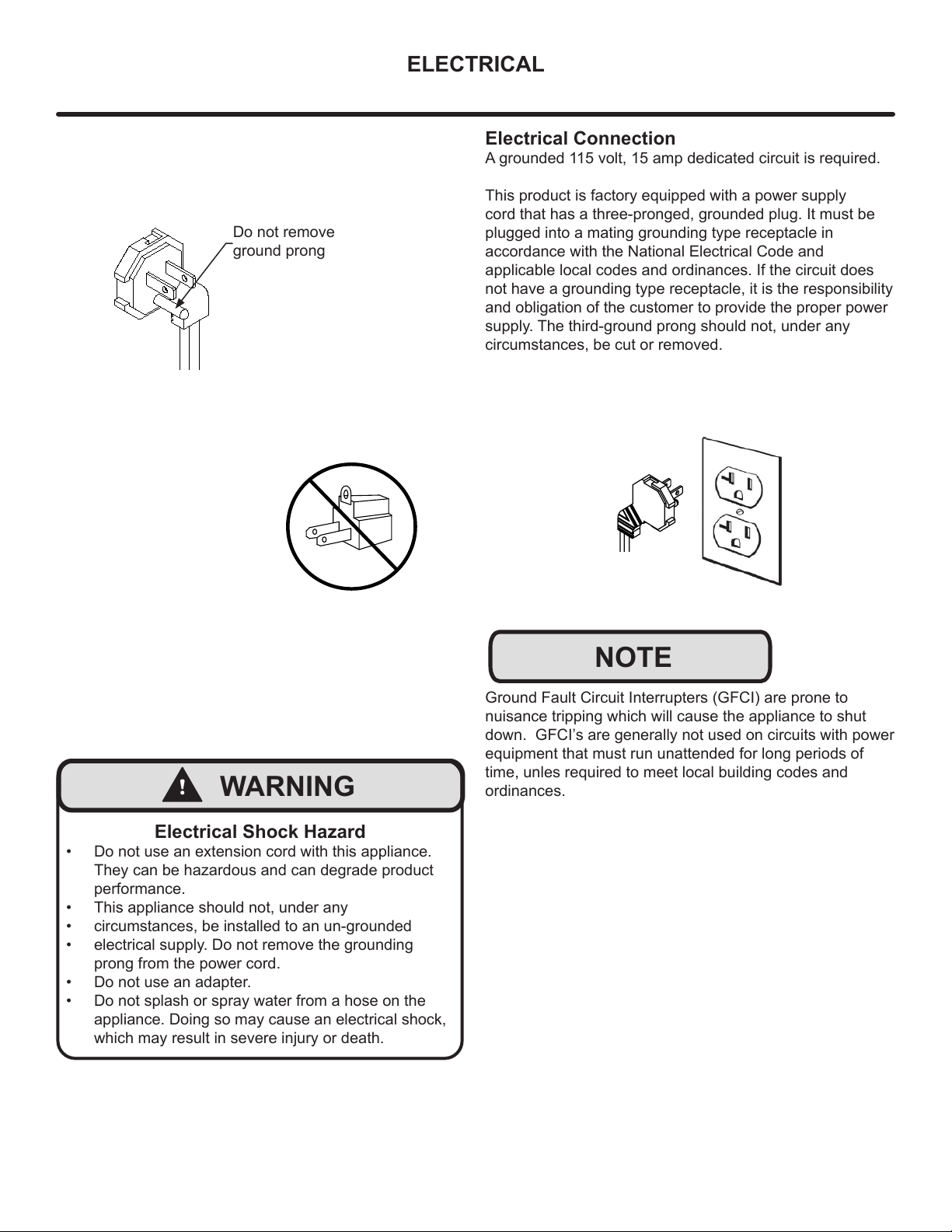

ELECTRICAL

Do not remove

ground prong

!WARNING

Electrical Shock Hazard

• Do not use an extension cord with this appliance.

They can be hazardous and can degrade product

performance.

• This appliance should not, under any

• circumstances, be installed to an un-grounded

• electrical supply. Do not remove the grounding

prong from the power cord.

• Do not use an adapter.

• Do not splash or spray water from a hose on the

appliance. Doing so may cause an electrical shock,

which may result in severe injury or death.

Electrical Connection

A grounded 115 volt, 15 amp dedicated circuit is required.

This product is factory equipped with a power supply

cord that has a three-pronged, grounded plug. It must be

plugged into a mating grounding type receptacle in

accordance with the National Electrical Code and

applicable local codes and ordinances. If the circuit does

not have a grounding type receptacle, it is the responsibility

and obligation of the customer to provide the proper power

supply. The third-ground prong should not, under any

circumstances, be cut or removed.

NOTE

Ground Fault Circuit Interrupters (GFCI) are prone to

nuisance tripping which will cause the appliance to shut

down. GFCI’s are generally not used on circuits with power

equipment that must run unattended for long periods of

time, unles required to meet local building codes and

ordinances.

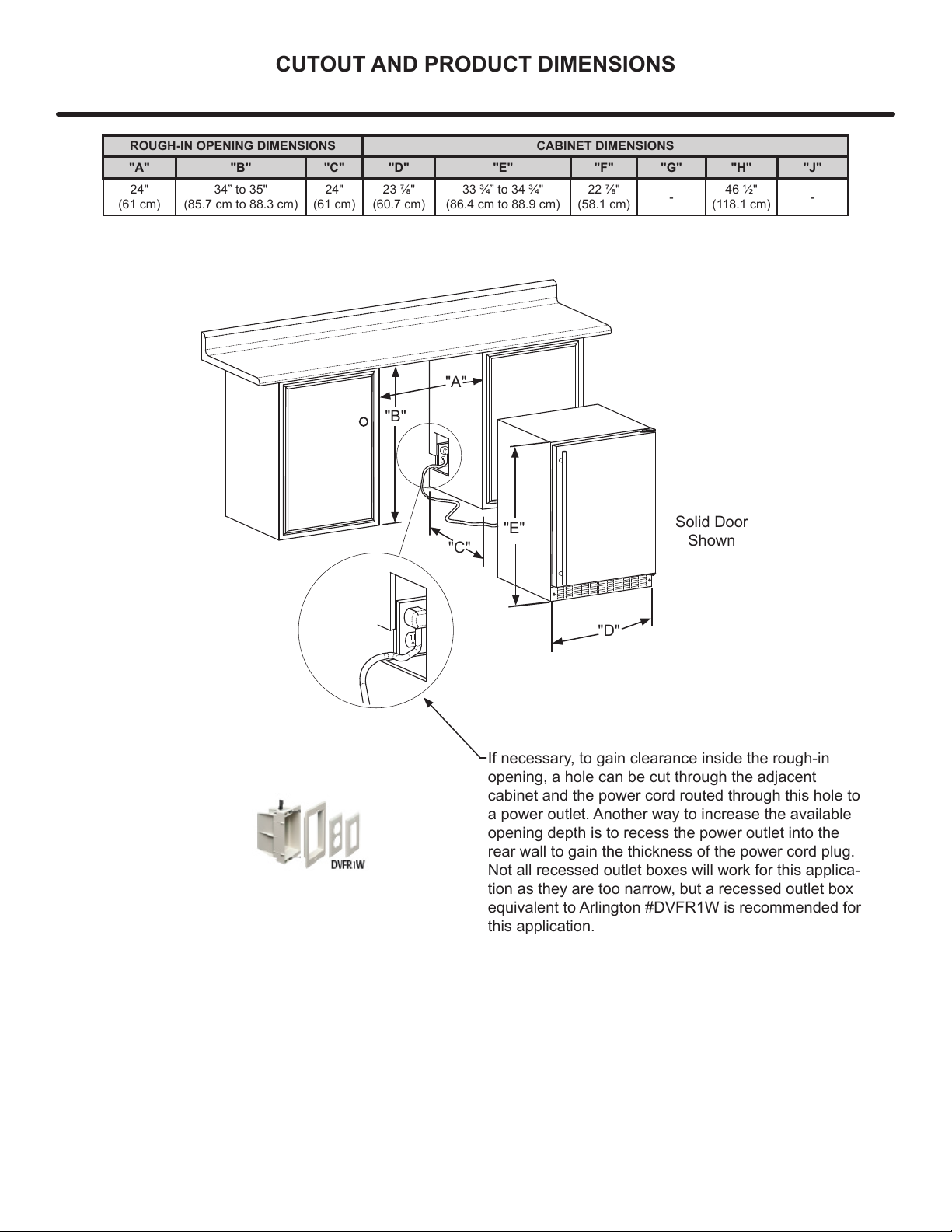

CUTOUT AND PRODUCT DIMENSIONS

"A"

"B"

"D"

"E" Solid Door

Shown

If necessary, to gain clearance inside the rough-in

opening, a hole can be cut through the adjacent

cabinet and the power cord routed through this hole to

a power outlet. Another way to increase the available

opening depth is to recess the power outlet into the

rear wall to gain the thickness of the power cord plug.

Not all recessed outlet boxes will work for this applica-

tion as they are too narrow, but a recessed outlet box

equivalent to Arlington #DVFR1W is recommended for

this application.

ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS

"A" "B" "C" "D" "E" "F" "G" "H" "J"

24"

(61 cm)

34” to 35"

(85.7 cm to 88.3 cm)

24"

(61 cm)



(60.7 cm)



(86.4 cm to 88.9 cm)



(58.1 cm) -

(118.1 cm) -

"C"

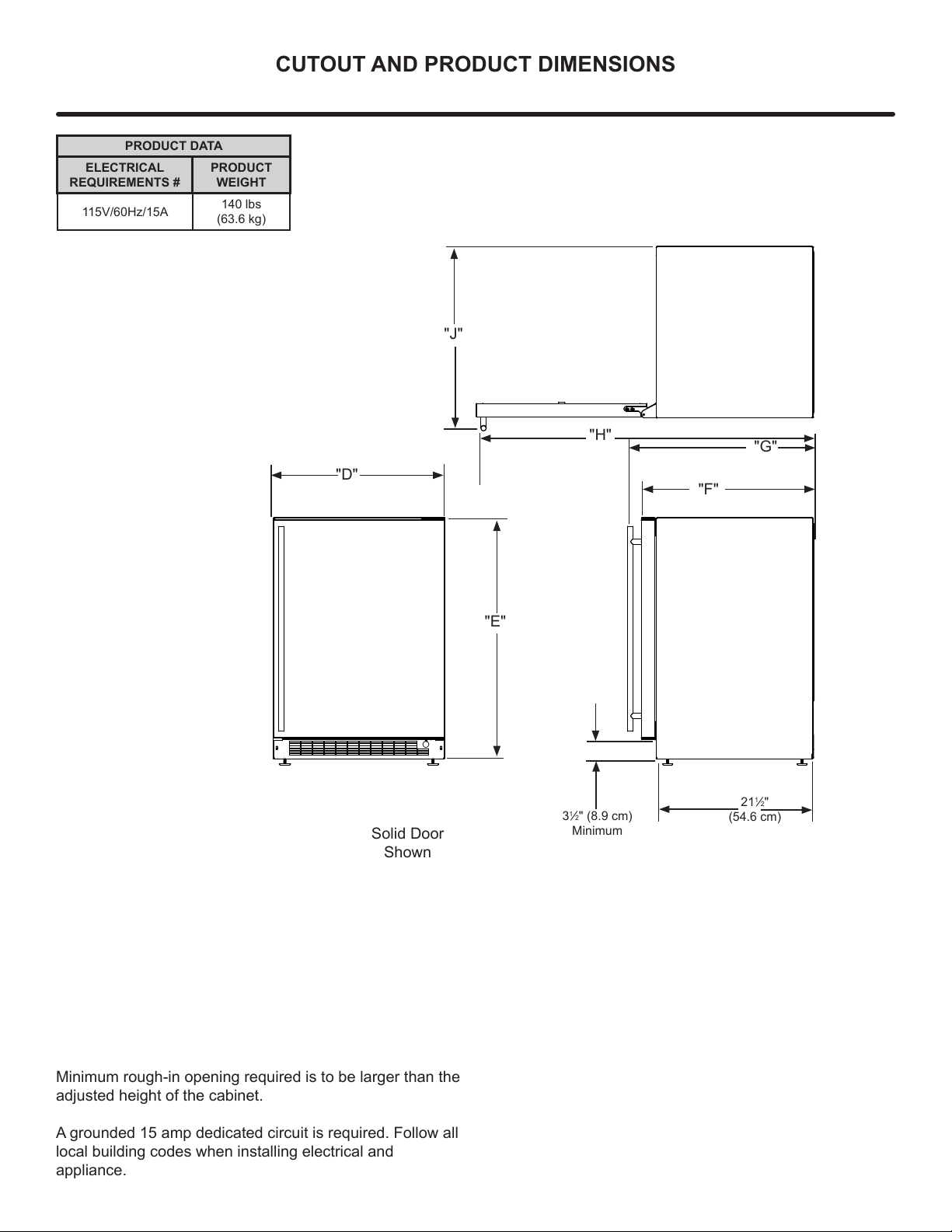

CUTOUT AND PRODUCT DIMENSIONS

312" (8.9 cm)

Minimum

"D"

"E"

"F"

"G"

"J"

Solid Door

Shown

2112"

(54.6 cm)

PRODUCT DATA

ELECTRICAL

REQUIREMENTS #

PRODUCT

WEIGHT

115V/60Hz/15A 140 lbs

(63.6 kg)

Minimum rough-in opening required is to be larger than the

adjusted height of the cabinet.

A grounded 15 amp dedicated circuit is required. Follow all

local building codes when installing electrical and

appliance.

"H"

Front grille

screws

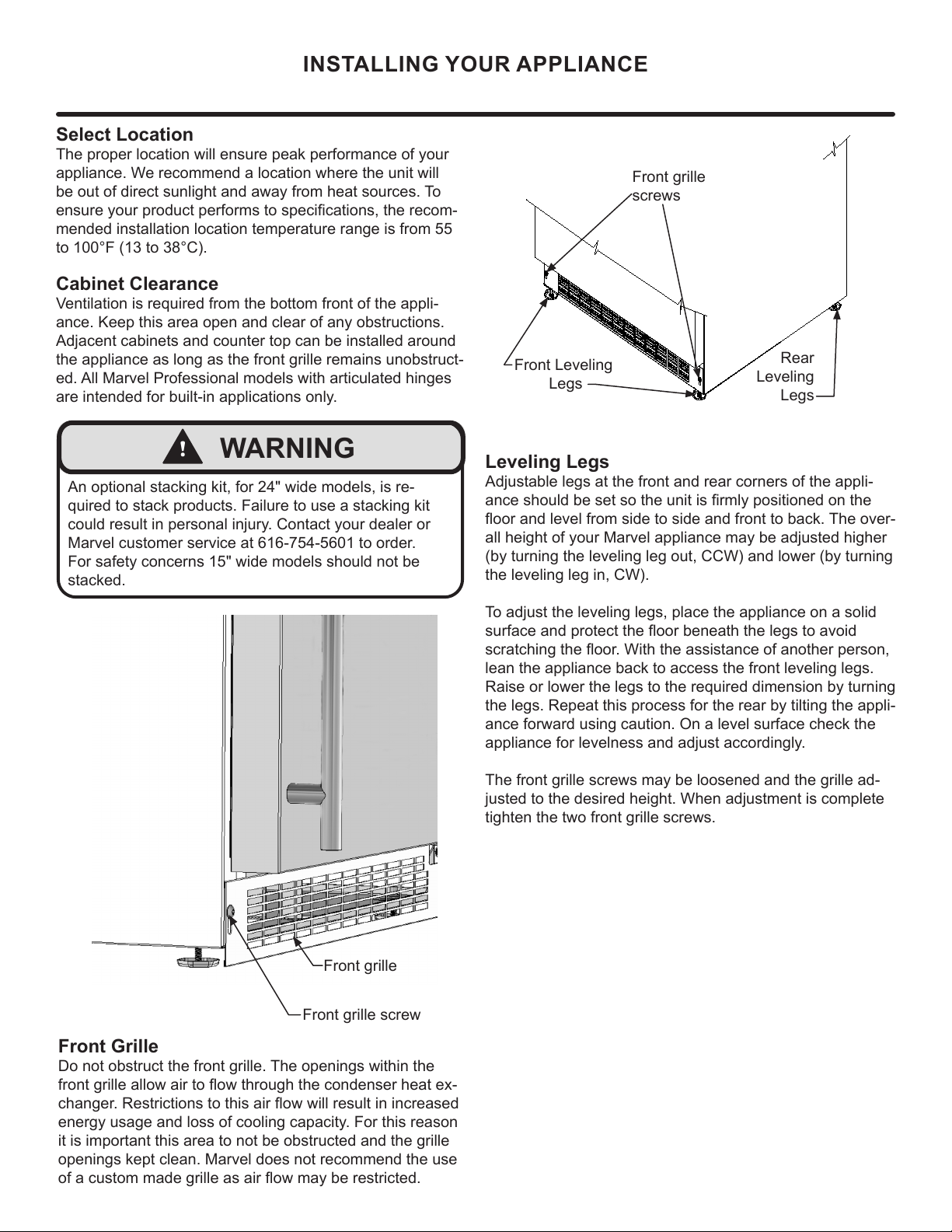

Select Location

The proper location will ensure peak performance of your

appliance. We recommend a location where the unit will

be out of direct sunlight and away from heat sources. To

ensure your product performs to specications, the recom-

mended installation location temperature range is from 55

to 100°F (13 to 38°C).

Cabinet Clearance

Ventilation is required from the bottom front of the appli-

ance. Keep this area open and clear of any obstructions.

Adjacent cabinets and counter top can be installed around

the appliance as long as the front grille remains unobstruct-

ed. All Marvel Professional models with articulated hinges

are intended for built-in applications only.

Front Grille

Do not obstruct the front grille. The openings within the

front grille allow air to ow through the condenser heat ex-

changer. Restrictions to this air ow will result in increased

energy usage and loss of cooling capacity. For this reason

it is important this area to not be obstructed and the grille

openings kept clean. Marvel does not recommend the use

of a custom made grille as air flow may be restricted.

INSTALLING YOUR APPLIANCE

!WARNING

An optional stacking kit, for 24" wide models, is re-

quired to stack products. Failure to use a stacking kit

could result in personal injury. Contact your dealer or

Marvel customer service at 616-754-5601 to order.

For safety concerns 15" wide models should not be

stacked.

Front Leveling

Legs

Leveling Legs

Adjustable legs at the front and rear corners of the appli-

ance should be set so the unit is rmly positioned on the

oor and level from side to side and front to back. The over-

all height of your Marvel appliance may be adjusted higher

(by turning the leveling leg out, CCW) and lower (by turning

the leveling leg in, CW).

To adjust the leveling legs, place the appliance on a solid

surface and protect the oor beneath the legs to avoid

scratching the oor. With the assistance of another person,

lean the appliance back to access the front leveling legs.

Raise or lower the legs to the required dimension by turning

the legs. Repeat this process for the rear by tilting the appli-

ance forward using caution. On a level surface check the

appliance for levelness and adjust accordingly.

The front grille screws may be loosened and the grille ad-

justed to the desired height. When adjustment is complete

tighten the two front grille screws.

Rear

Leveling

Legs

Front grille screw

Front grille

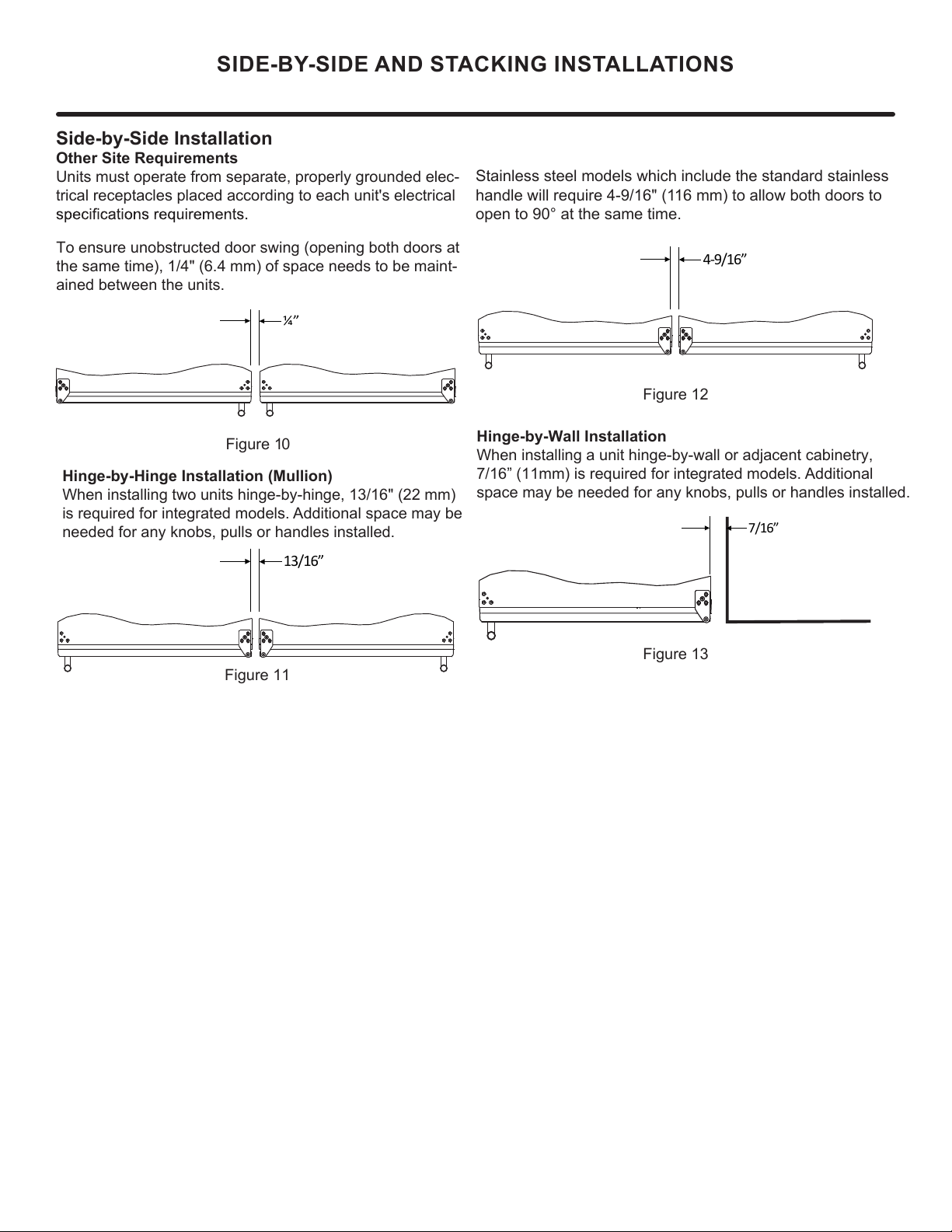

SIDE-BY-SIDE AND STACKING INSTALLATIONS

Side-by-Side Installation

Other Site Requirements

Units must operate from separate, properly grounded elec-

trical receptacles placed according to each unit's electrical

To ensure unobstructed door swing (opening both doors at

the same time), 1/4" (6.4 mm) of space needs to be maint-

ained between the units.

Hinge-by-Hinge Installation (Mullion)

When installing two units hinge-by-hinge, 13/16" (22 mm)

is required for integrated models. Additional space may be

needed for any knobs, pulls or handles installed.

Stainless steel models which include the standard stainless

handle will require 4-9/16" (116 mm) to allow both doors to

open to 90° at the same time.

Figure 10

Figure 11

Figure 12

Figure 13

Hinge-by-Wall Installation

When installing a unit hinge-by-wall or adjacent cabinetry,

7/16” (11mm) is required for integrated models. Additional

space may be needed for any knobs, pulls or handles installed.

¼”

13/16”

7/16”

4-9/16”

Inhaltsverzeichnis

Andere Marvel Kühlschrank Handbücher

Marvel

Marvel MLRI224-SS01A Bedienungsanleitung

Marvel

Marvel MORI224-SS31A Bedienungsanleitung

Marvel

Marvel MLBD224-SG01A Bedienungsanleitung

Marvel

Marvel MLRI224-IS01A Bedienungsanleitung

Marvel

Marvel 6SDZE-BD Bedienungsanleitung

Marvel

Marvel MLCP215-SG01A Bedienungsanleitung

Marvel

Marvel 61RF-BB Bedienungsanleitung

Marvel

Marvel MPWC415 Bedienungsanleitung

Marvel

Marvel MORE124 Bedienungsanleitung

Marvel

Marvel MLRE215-SG01A Bedienungsanleitung

Marvel

Marvel MLCR215 Bedienungsanleitung

Marvel

Marvel 80RF-BB Bedienungsanleitung

Marvel

Marvel MPWC415-SS31A Bedienungsanleitung

Marvel

Marvel MPBV415 Bedienungsanleitung

Marvel

Marvel MLBV024-SS01A Bedienungsanleitung

Marvel

Marvel MLCP215 Bedienungsanleitung

Marvel

Marvel MLBV224-IG01A Bedienungsanleitung

Marvel

Marvel MPRE424 Bedienungsanleitung

Marvel

Marvel MPRE424IS31A Bedienungsanleitung

Marvel

Marvel 66SWBE-BS-G Bedienungsanleitung

Marvel

Marvel MPWD424-IS31A Bedienungsanleitung

Marvel

Marvel MPBV424SS31A Bedienungsanleitung

Marvel

Marvel 3SBARE-BB-G Bedienungsanleitung

Marvel

Marvel MPBD424-IG31A Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
