Welcome to the Marvel Experience

Thank you for choosing our quality American-built product

to add to your home. We are thrilled to welcome you to

our growing community of Marvel owners, who trust in our

products and our support.

The information in this guide is intended to help you install

and maintain your new Marvel undercounter model to pro-

tect and prolong its lifetime. We encourage you to contact

our Technical Support team at (616) 754-5601 with any

questions.

Got a Marvelous Design?

We would love to see how your Marvel product looks in its

new home. Send us photos at marketing@marvelrefrigera-

tion.com, and we might feature your Marvel home design

on our website and social media!

Bonus Third-Year Warranty Free with Product

Registration

Your Marvel Professional product

qualies for a one-year extension

of the two-year warranty coverage

from your date of purchase, free of

charge. To take advantage of this

third-year warranty, be sure to reg-

ister your product with Marvel within

60 days from the date of purchase

at marvelrefrigeration.com and pro-

vide proof of purchase.

Thank you again for investing in Marvel for your home!

XXXXXXXXXXXX

MARVEL

Figure 1

R600A

WELCOME

It is important you send in your warranty registration card

immediately after taking delivery of your appliance or you

can register online at www.marvelrefrigeration.com.

The following information will

be required when registering

your appliance.

Service Number

Serial Number

Date of Purchase

Dealer’s name and address

The service number and serial number can be found on the

serial plate which is located inside the cabinet on the left

side near the top. See gure 1.

Warranty Registration

Online registra-

tion available at

www.marvelrefrig-

eration.com

TABLE OF CONTENTS

Tip: Click on any section below to jump directly there

Safety

Important Safety Instructions

Installation

Unpacking Your Appliance

Electrical

Cutout & Product Dimensions

Installing Your Appliance

Side-by-Side & Stacking Installations

Installing the anti-tip device

Door Reversal

Maintenance

Care and Cleaning

Stainless Steel Maintenance

Extended Non-Use

Operating Instructions

Using Your Electronic Control

Interior Adjustments

Energy Savng Tips

Service

Obtaining Service

Wire Diagram

Product Liability

Parts List

Ordering Replacement Parts

R600a Specifications

System Diagnosis Guide

Compressor Specifications

Troubleshooting Extended

Control Operation - Service

Thermistor

Warranty

NOTE

!CAUTION

Important Safety Instructions

Warnings and safety instructions appearing in this guide

are not meant to cover all possible conditions and situa-

tions that may occur. Common sense, caution, and care

must be exercised when installing, maintaining, or operat-

ing this appliance.

Recognize Safety Symbols,

Words, and Labels.

CAUTION-Hazards or unsafe practices which could re-

sult in personal injury or property / product damage.

NOTE-Important information to help assure a problem

free installation and operation.

!WARNING

WARNING - You can be killed or seriously injured

if you do not follow these instructions.

!WARNING

State of California Proposition 65 Warning:

This product contains one or more chemicals known

to the State of California to cause cancer.

!WARNING

State of California Proposition 65 Warning:

This product contains one or more chemicals known

to the State of California to cause birth defects or

other reproductive harm.

!WARNING

WARNING - This unit contains R600a (Isobutane)

which is a ammable hydrocarbon. It is safe for regular

use. Do not use sharp objects to expedite defrosting.

Do not damage refrigerant circuit.

IMPORTANT SAFETY INSTRUCTIONS

NOTE

!CAUTION

!WARNING

WARNING - Dispose of the plastic bags which can

be a su󰀨ocation hazard.

!WARNING

WARNING - Help Prevent Tragedies

Child entrapment and su󰀨ocation are not problems of

the past. Junked or abandoned refrigerators are still

dangerous - even if they sit out for "just a few hours".

If you are getting rid of your old refrigerator, please fol-

low the instructions below to help prevent accidents.

Before you throw away your old refrigerator or freezer:

•Take o󰀨 the doors or remove the drawers.

• Leave the shelves in place so children may not

easily climb inside.

!WARNING

EXCESSIVE WEIGHT HAZARD

Use two or more people to move product.

Failure to do so can result in personal injury.

Remove Interior Packaging

Your appliance has been packed for shipment with all parts

that could be damaged by movement securely fastened.

Remove internal packing materials and any tape holding in-

ternal components in place. The owners manual is shipped

inside the product in a plastic bag along with the warranty

registration card, and other accessory items.

Important

Keep your carton and packaging until your appliance has

been thoroughly inspected and found to be in good condi-

tion. If there is damage, the packaging will be needed as

proof of damage in transit. Afterwards please dispose of all

items responsibly.

Note to Customer

This merchandise was carefully packed and thoroughly

inspected before leaving our plant. Responsibility for its

safe delivery was assumed by the retailer upon acceptance

of the shipment. Claims for loss or damage sustained in

transit must be made to the retailer.

DO NOT RETURN DAMAGED MERCHANDISE TO THE

MANUFACTURER - FILE THE CLAIM WITH THE

RETAILER.

If the appliance was shipped, handled, or stored in other

than an upright position for any period of time, allow the ap-

pliance to sit upright for a period of at least 24 hours before

plugging in. This will assure oil returns to the compressor.

Plugging the appliance in immediately may cause damage

to internal parts.

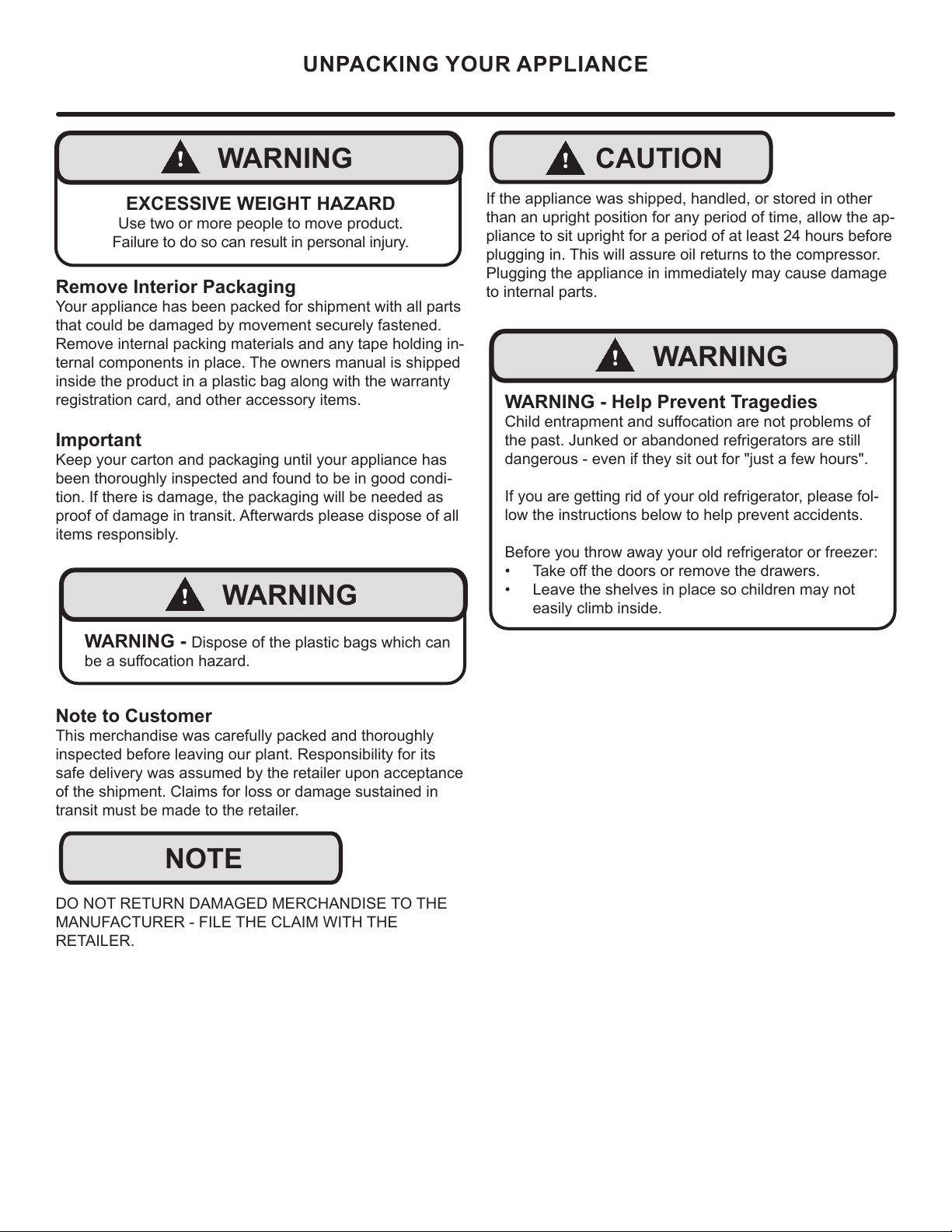

UNPACKING YOUR APPLIANCE

Electrical Connection

A grounded 115 volt, 15 amp dedicated circuit is required.

This product is factory equipped with a power supply

cord that has a three-pronged, grounded plug. It must be

plugged into a mating grounding type receptacle in accor-

dance with the National Electrical Code and applicable lo-

cal codes and ordinances (see Figure 4). If the circuit does

not have a grounding type receptacle, it is the responsibility

and obligation of the customer to provide the proper power

supply. The third ground prong should not, under any cir-

cumstances, be cut or removed.

Figure 4

NOTE

Ground Fault Circuit Interrupters (GFCI) are prone to nui-

sance tripping which will cause the appliance to shut down.

GFCI’s are generally not used on circuits with power equip-

ment that must run unattended for long periods of time, un-

less required to meet local building codes and ordinances.

ELECTRICAL

Figure 2

Do not remove

ground prong

Figure 3

Electrical Shock Hazard

• Do not use an extension cord with this appliance.

They can be hazardous and can degrade product

performance.

• This appliance should not, under any circumstanc-

es, be installed to an un-grounded electrical supply.

• Do not remove the grounding prong from the power

cord. (See Figure 2).

• Do not use an adapter. (See Figure 3).

• Do not splash or spray water from a hose on the

appliance. Doing so may cause an electrical shock,

which may result in severe injury or death.

!WARNING

"C"

PRODUCT DIMENSIONS

"A"

"B"

"D"

"E" Figure 11

(S) solid door

shown

Figure 11a

If necessary to gain clearance inside the rough-in

opening a hole can be cut through the adjacent cabi-

net and the power cord routed through this hole to a

power outlet. Another way to increase the available

opening depth is to recess the power outlet into the

rear wall to gain the thickness of the power cord plug.

Not all recessed outlet boxes will work for this applica-

tion as they are too narrow, but a recessed outlet box

equivalent to Arlington #DVFR1W is recommended for

this application, (see Figure 12).

Figure 12

ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS

"A" "B" "C" "D" "E" "F" "G" "H" "J"

24"

(61 cm)

341⁄4" - 351⁄4"

(87 to 89.5 cm)

24"

(61 cm)

237⁄8"

(60.7 cm)

34" to 35""

(86.4 to 88.9 cm)

2323⁄32"

(60.2 cm)

267⁄32"

(66.6 cm)

4613⁄32"

(117.9 cm)

267⁄16"

(67.2 cm)

"V" notches

in bracket

"D"

"E"

"F"

"G"

"H"

"J"

PRODUCT DIMENSIONS

PRODUCT DATA

ELECTRICAL

REQUIREMENTS #

PRODUCT

WEIGHT

115V/60Hz/15A 140 lbs

(63.6 kg)

* To install (F) models with the door face ush with adja-

cent cabinetry doors, custom decorative panel thickness

cannot exceed 3⁄4" (19 mm).

** Minimum rough-in opening required is to be larger than

the adjusted height of the cabinet.

# A grounded 15 amp dedicated circuit is required. Follow

all local building codes when installing electrical and appli-

ance.

31⁄2" (8.9 cm)

Minimum

Figure 13

(G) glass

door shown

211⁄2"

(54.6 cm)

!CAUTION

Front grille

screws

Select Location

The proper location will ensure peak performance of your

appliance. We recommend a location where the unit will

be out of direct sunlight and away from heat sources. To

ensure your product performs to specications, the recom-

mended installation location temperature range is from 55

to 100°F (13 to 38°C).

Cabinet Clearance

Ventilation is required from the bottom front of the appli-

ance. Keep this area open and clear of any obstructions.

Adjacent cabinets and counter top can be installed around

the appliance as long as the front grille remains unobstruct-

ed. All Marvel Professional models with articulated hinges

are intended for built-in applications only.

Front Grille

Do not obstruct the front grille. The openings within the

front grille allow air to ow through the condenser heat ex-

changer. Restrictions to this air ow will result in increased

energy usage and loss of cooling capacity. For this reason

it is important this area to not be obstructed and the grille

openings kept clean. Marvel does not recommend the use

of a custom made grille as air ow may be restricted. (See

Figure 8).

INSTALLING YOUR APPLIANCE

!WARNING

An optional stacking kit, for 24" wide models, is re-

quired to stack products. Failure to use a stacking kit

could result in personal injury. Contact your dealer or

Marvel customer service at 616-754-5601 to order.

For safety concerns 15" wide models should not be

stacked.

Figure 9

Front Leveling

Legs

Leveling Legs

Adjustable legs at the front and rear corners of the appli-

ance should be set so the unit is rmly positioned on the

oor and level from side to side and front to back. The over-

all height of your Marvel appliance may be adjusted higher

(by turning the leveling leg out, CCW) and lower (by turning

the leveling leg in, CW).

To adjust the leveling legs, place the appliance on a solid

surface and protect the oor beneath the legs to avoid

scratching the oor. With the assistance of another person,

lean the appliance back to access the front leveling legs.

Raise or lower the legs to the required dimension by turning

the legs. Repeat this process for the rear by tilting the appli-

ance forward using caution. On a level surface check the

appliance for levelness and adjust accordingly.

The front grille screws may be loosened and the grille ad-

justed to the desired height. When adjustment is complete

tighten the two front grille screws. (See Figure 9).

Rear

Leveling

Legs

Figure 8

Front grille, keep

this area open.

SIDE-BY-SIDE AND STACKING INSTALLATIONS

Side-by-Side Installation

Other Site Requirements

Units must operate from separate, properly grounded elec-

trical receptacles placed according to each unit's electrical

specications requirements.

Cutout width for a side-by-side installation is the total of the

widths listed under Cutout Dimensions in each unit's Instal-

lation Guide. Each door can be opened individually (one at

a time) without interference.

Figure 10

However, to ensure unobstructed door swing (opening both

doors at the same time), 1/4" (6.4 mm) of space needs to

be maintained between the units.

Hinge-by-Hinge Installation (Mullion)

When installing two units hinge-by-hinge, 13/16" (22 mm)

is required for integrated models. Additional space may be

needed for any knobs, pulls or handles installed.

Stainless steel models which include the standard stainless

handle will require 4-9/16" (116 mm) to allow both doors to

open to 90° at the same time.

Figure 11

Figure 12

Figure 13

Andere Handbücher für MPBV424

Inhaltsverzeichnis

Andere Marvel Kühlschrank Handbücher

Marvel

Marvel MORE124-SS31A Bedienungsanleitung

Marvel

Marvel MLRF224-IS01A Bedienungsanleitung

Marvel

Marvel 66SBWE-BS-G Bedienungsanleitung

Marvel

Marvel MLBV215-SG01A Bedienungsanleitung

Marvel

Marvel 80RDE Handbuch

Marvel

Marvel MLWC224 Bedienungsanleitung

Marvel

Marvel 8SBARE-BN Bedienungsanleitung

Marvel

Marvel MLFZ224IS01A Bedienungsanleitung

Marvel

Marvel 6OBAR-SS-F Bedienungsanleitung

Marvel

Marvel MOCL215-SS01B Bedienungsanleitung

Marvel

Marvel 6BAR-BB-G Bedienungsanleitung

Marvel

Marvel 80RD-BB-O Bedienungsanleitung

Marvel

Marvel MLBD224 Bedienungsanleitung

Marvel

Marvel MLCR215-IS01B Anwendungshandbuch

Marvel

Marvel 3BARM Montage- und Bedienungsanleitung

Marvel

Marvel Refrigerated Wine Cellar 3SWCE Handbuch

Marvel

Marvel MLRE024 Bedienungsanleitung

Marvel

Marvel 3SBARE Handbuch

Marvel

Marvel MLBV215-IG01A Bedienungsanleitung

Marvel

Marvel MLBD224-SG01A Bedienungsanleitung

Marvel

Marvel MORF224-SS31A Bedienungsanleitung

Marvel

Marvel MLWD224-IG01A Bedienungsanleitung

Marvel

Marvel 8SBARE-BB-G Bedienungsanleitung

Marvel

Marvel 30AR-BB-O Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
