OWNER’S MANUAL

MASTER SPAS LEGACY OWNER’S MANUAL

Welcome To Ultimate Relaxation!

Thank you for choosing your new spa built by Master Spas. Please read the

entire Owner’s Manual before installing and using your spa. The goal of this

manual is to provide you with safety and operational information plus some tips

that will help you enjoy your spa to its fullest.

At the time of print, this manual is accurate in its information. Master Spas

reserves the right to change or improve its product without prior notice.

To check on updates or for other information, please visit www.masterspas.com

and follow the links to the customer service section.

RECORD OF OWNERSHIP

Name ______________________________________________________________________

Address ____________________________________________________________________

City _____________________________________ State __________ Zip ______________

Date Purchased ______ /______ /_______

Model ______________________________ Serial #________________________________

Dealer Name________________________________________________________________

Phone # (______)________-__________

Service Tech Rep ____________________________________________________________

*SERIAL NUMBER LOCATION

The serial number for your spa is located in the filter area, on the spa system

pack, or on the listing plate on the skirting. It will start with "M" followed

by a 6-digit number. Ex. M904590

6927 Lincoln Parkway

Fort Wayne, Indiana 46804

800-860-7727 • www.masterspas.com

TABLE OF CONTENTS

Safety Instructions..................................................................................................3-10

Glossary of Spa Terminology ....................................................................................11

Electrical Installation Requirements ........................................................................12

Wiring Schematic ................................................................................................13

Site Preparation / General Guidelines ..........................................................14-15

Installation Instructions ......................................................................................16

Water Chemistry Terms You Should Know ........................................................17-18

Water Quality Maintenance Schedule......................................................................19

Spa Water Maintenance – Start-Up ....................................................................20-22

Water Maintenance Trouble-Shooting Guide..........................................................23

Why Chemicals are Important in a Spa....................................................................24

Maintenance Recommendations ..............................................................................25

Winterizing Your Spa ................................................................................................26

Legacy Spa

Specifications ......................................................................................................27

Controls ..........................................................................................................28-29

Diagnostic Messages......................................................................................30-31

Legacy Stereo System................................................................................................32

Spa Trouble-Shooting Guide................................................................................33-34

Regular Maintenance Procedures........................................................................35-36

Spa Care and Maintenance Record ....................................................................37-40

SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

Included with your new spa is a safety sign. The sign is for you and your guest’s

protection and is suitable for outdoor use in wet locations. The sign should be placed

in a location visible to all users of the spa.

Please take time to point out the physical location of the safety sign and the

importance of the safety precautions displayed on the safety sign to all of your

guests. Remember, your safety and the safety of anyone who enjoys the use of

your spa is our utmost concern.

The sign should be mounted with screws or another type of permanent fastener.

Additional or replacement signs can be obtained from your dealer or direct from

the factory.

INTRODUCTION

It’s time to relax! You now have your very own portable spa by Master Spas, Inc. By fully

understanding the operation of each of the features of your new Master Spa, you will be

assured of many years of hassle-free, hot water therapy and fun.

Your safety is of paramount importance to the MasterSpas family. We urge you to read and

become thoroughly familiar with all safety aspects addressed in this manual.

Through reading and totally understanding the important information in your owner’s

manual, you will realize that you now own THE ULTIMATE RELAXATION MACHINE!

SAFETY INSTRUCTIONS

IMPORTANT SAFETY

INSTRUCTIONS

When installing and using this electrical equipment, basic safety precautions should be

observed including the following:

READ AND FOLLOW ALL

INSTRUCTIONS

1. WARNING - To reduce the risk of injury, do not permit children to use this

product unless they are closely supervised at all times.

2. DANGER - RISK OF CHILD DROWNING. Extreme caution

must be exercised to prevent unauthorized access by children. To avoid accidents,

ensure that children cannot use this spa unless they are supervised at all times.

*NOTE: A wire connector is provided on this unit to connect of a minimum No. 6 AWG

solid copper conductor between this unit and any metal equipment, metal enclosures of

electrical equipment, metal water pipe, or conduit within 5 feet (1.5m) of the unit.

3. DANGER - RISK OF ELECTRIC SHOCK. Install spa at least

five (5) feet (1.5M) from all metal surfaces. A spa may be installed within five (5) feet

(1.5M) of metal surfaces if, in accordance with the National Electrical Code, each

metal surface is permanently connected by a minimum No. 6 AWG (8.4mm) solid

copper conductor attached to the wire connector on the terminal box. A grounding

lug is provided for this purpose.

4. DANGER - RISK OF INJURY. The suction fittings in this spa are

sized to match the specific water flow created by the pump. Should the need arise to

replace the suction fittings or the pump, be sure that the flow rates are compatible.

*NOTE: Never operate the spa if the suction fittings are broken or missing. Never replace

a suction fitting with one rated less than the flow rate marked on the original suction fitting.

5. DANGER - To reduce the risk of injury to persons, do not remove the suction

grate. Suction through drains and skimmers is powerful when the jets in the spa are

in use. Damaged covers can be hazardous to small children and adults with long hair.

Should any part of the body be drawn into these fittings, turn off the spa immediate-

ly. As a precaution, long hair should not be allowed to float in the spa.

SAFETY INSTRUCTIONS

IMPORTANT SAFETY

INSTRUCTIONS (CONT.)

6. WARNING. Install the spa so that water can be easily drained out of the

compartment containing electrical components so as not to damage equipment.

When installing the spa make sure to allow for an adequate drainage system to deal

with any overflow water. Please allow for at least 2 feet of clearance around the

perimeter of the spa to provide enough room to access for servicing. Contact your

local dealer for their specific requirements.

7. WARNING - TO REDUCE THE RISK OF INJURY:

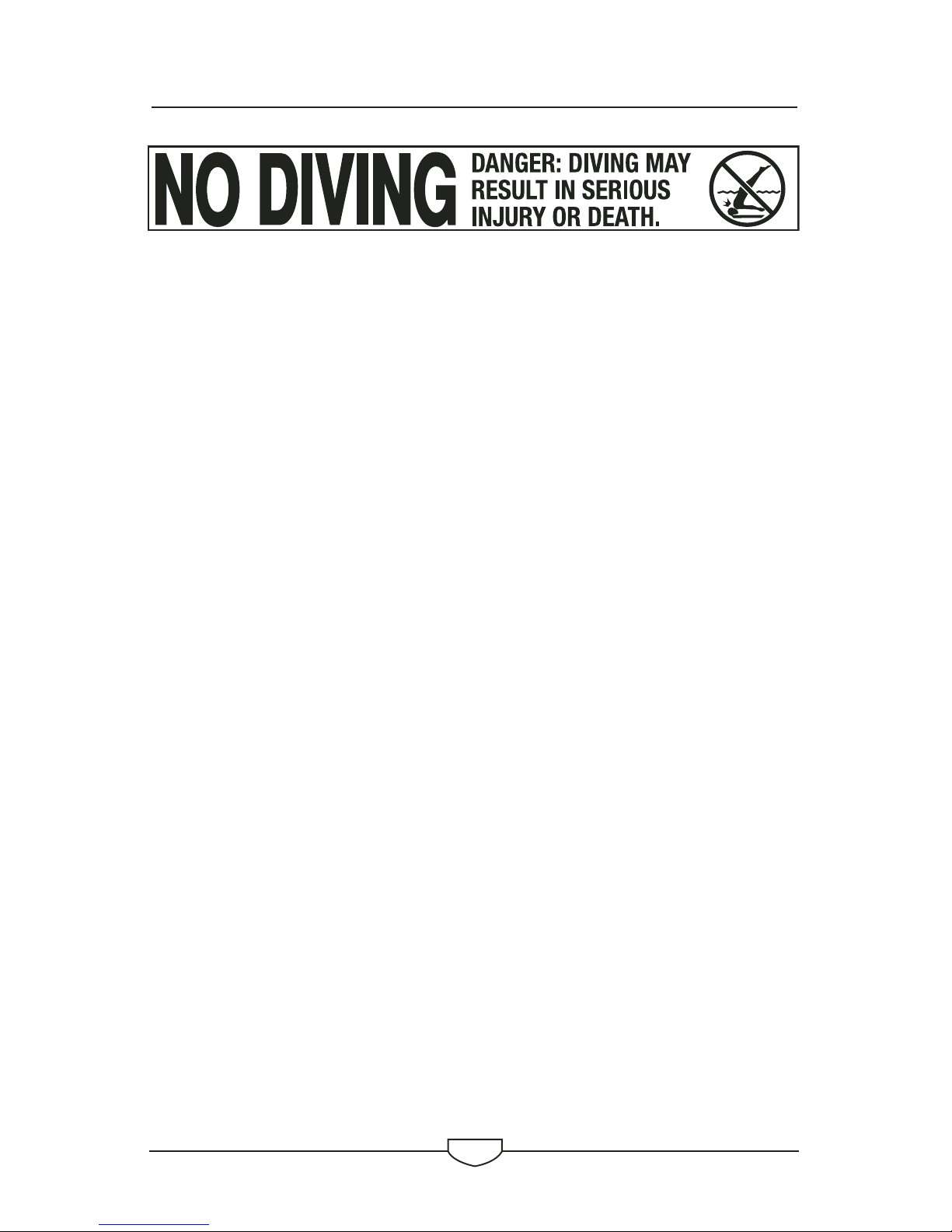

(A) Reminder - Never allow anyone to dive into a spa. Always enter feet first.

(B) Always enter and exit a spa slowly.

(D) Before entering the spa, always measure the water temperature with an accurate

thermometer. Tolerance of water temperature regulating devices can vary as much

as plus/minus 5° F (3° C).

(E) Persons suffering from obesity or with a medical history of heart disease,

diabetes, high or low blood pressure or circulatory system problems should

consult a physician before using the spa.

(F) Since excessive water temperatures have a high potential for causing fetal damage

during early months of pregnancy, pregnant or possibly pregnant women should

limit spa water temperatures to 100° F (38° C).

(G) Excessive water temperature can be dangerous. The water in the spa should

never exceed 104° F (40° C). Water temperatures between 100°F (38˚C) and

104°F (40˚C) are considered safe for a healthy adult. Lower water temperatures

are recommended for extended use (exceeding 10 minutes) and for young

children. Long exposures at higher temperatures can result in hyperthermia.

(H) The use of alcohol, drugs, or medication before or during spa use may lead to

unconsciousness with the possibility of drowning.

(I) Persons using medication should consult a physician before using a spa since some

medication may induce drowsiness while other medication may affect heart rate,

blood pressure and circulation.

(J) The spa should be covered with an approved locking cover when not in use,

to prevent unauthorized entry injuries.

SAFETY INSTRUCTIONS

IMPORTANT SAFETY

INSTRUCTIONS (CONT.)

HYPERTHERMIA

Hyperthermia occurs when the internal temperature of the body reaches a level several

degrees above the normal body temperature of 98.6° F.

THE SYMPTOMS OF HYPERTHERMIA INCLUDE:

Dizziness • Fainting • Drowsiness • Lethargy • Increase in Internal Body Temperature

THE EFFECTS OF HYPERTHERMIA INCLUDE:

Unawareness of Impending Hazard • Failure to Perceive Heat • Failure to Recognize the

Need to Exit Spa • Physical Inability to Exit Spa • Fetal Damage in Pregnant Women •

Unconsciousness Resulting in a Danger of Drowning

(I) Children’s body temperature can increase more rapidly than adults in the same

water with elevated temperatures (above 99° F). Children should spend less time

in water above body temperature than adults.

8. WARNING - The use of alcohol, drugs, or medication can greatly increase the

risk of hyperthermia.

(J) The use of alcohol, drugs, or medication before or during spa use may lead to

unconsciousness with the possibility of drowning.

(K) Persons using medication should consult a physician before using a spa since some

medication may induce drowsiness while other medication may affect heart rate,

blood pressure, and circulation.

9. Reminder: A safe temperature for swimming or aquatic exercise is around 80˚ F.

10. People with infections, sores or the like should not use the spa. Warm and hot water

temperatures may allow the growth of infectious bacteria if not properly disinfected.

SAFETY INSTRUCTIONS

IMPORTANT SAFETY

INSTRUCTIONS (CONT.)

11. DANGER - RISK OF ELECTRIC SHOCK.

Do not permit any

electric appliance, such as a light, telephone, radio or television, within five (5) feet

of the spa. Never operate any electrical appliances from inside the spa or while wet.

12. WARNING - RISK OF SUFFOCATION. If this spa is

equipped with a gas heater, it is intended for outdoor use only, unless proper venti-

lation can be provided for an indoor installation.

13. CAUTION - RISK OF ELECTRIC SHOCK.

Do not leave the CD compartment open.

CAUTION - RISK OF ELECTRIC SHOCK.

Replace components only with identical components.

The CD player controls are not to be operated while inside the spa.

WARNING - PREVENT ELECTROCUTION.

Do not connect any auxiliary components (for example, additional speakers,

headphones, additional audio/video components etc.) to the system. These

units are not provided with an outdoor antennae.

Do not service this product yourself as opening or removing covers may expose you

to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

If the power supply/supply cord(s) are damaged, water is entering the speaker, CD

compartment, or any other component in the electrical equipment compartment

area, the protective shield is showing signs of deterioration, or there are signs of

other potentially hazardous damage to the unit, turn off the circuit breaker from

the wall and refer servicing to a qualified service personnel.

The unit should be subjected to periodic routine maintenance once every quarter

to make sure that the unit is operating properly.

14. DANGER - RISK OF ELECTRIC SHOCK. Do not permit

any electric appliance, such as light, telephone, radio, or television, within 5 feet

(1.5m) of a spa.

SAFETY INSTRUCTIONS

IMPORTANT SAFETY

INSTRUCTIONS (CONT.)

15. A green coloured terminal or a terminal marked G, GR, Ground, Grounding or the

symbol shown in Figure 14.1 of UL1563 is located inside the supply terminal box or

compartment. To reduce the risk of electric shock, this terminal must be connected to

the grounding means provided in the electric supply service panel with a continuous

copper wire equivalent in size to the circuit conductors supplying this equipment.

16. At least two lugs marked “Bonding Lugs” are provided on the external surface or

on the inside of the supply terminal box or compartment. To reduce the risk of electric

shock, connect the local common bonding grid in the area of the spa to these terminals

with an insulated or bare copper conductor not smaller than No. 6 AWG.

17. All field-installed metal components such as rails, ladders, drains, or other similar

hardware within 3m of the spa shall be bonded to the equipment grounding bus

with copper conductors not smaller than No. 6 AWG.

SAVE THESE INSTRUCTIONS.

Inhaltsverzeichnis

Andere Master Spas Whirlpool Handbücher

Master Spas

Master Spas TS 240 Bedienungsanleitung

Master Spas

Master Spas 2014 H2x Bedienungsanleitung

Master Spas

Master Spas INT GS BAR HARBOR LE Bedienungsanleitung

Master Spas

Master Spas TS 6.1 Bedienungsanleitung

Master Spas

Master Spas Michael Phelps Chilly GOAT Valaris Fehlerbehebungshandbuch

Master Spas

Master Spas MICHAEL PHELPS CHILLY GOA COLD TUB VALARIS Bedienungsanleitung

Master Spas

Master Spas 2008 Bedienungsanleitung

Master Spas

Master Spas jet Away Bedienungsanleitung

Master Spas

Master Spas legacy whirlpool Bedienungsanleitung

Master Spas

Master Spas INT H2X CHALLENGER 19D Bedienungsanleitung

Master Spas

Master Spas Master Spas Series Bedienungsanleitung

Master Spas

Master Spas SEATTLE Bedienungsanleitung

Master Spas

Master Spas LEGEND LSX700 Bedienungsanleitung

Master Spas

Master Spas Michael Phelps Signature Swim Spas Bedienungsanleitung

Master Spas

Master Spas Trainer 12 Bedienungsanleitung

Master Spas

Master Spas INT EVO COMPACT Bedienungsanleitung

Master Spas

Master Spas MP Swim Spa Bedienungsanleitung

Master Spas

Master Spas LEGEND LSX700 Bedienungsanleitung

Master Spas

Master Spas LEGEND LSX700 Bedienungsanleitung

Master Spas

Master Spas MICHAEL PHELPS CHILLY GOAT COLD TUB Bedienungsanleitung

Master Spas

Master Spas legacy whirlpool Bedienungsanleitung

Master Spas

Master Spas LS 850 Bedienungsanleitung

Master Spas

Master Spas MP Force Bedienungsanleitung

Master Spas

Master Spas H2X Challenger Bedienungsanleitung

Beliebte Whirlpool Handbücher anderer Marken

Bestway

Bestway Lay-Z-Spa 54189 Bedienungsanleitung

Jacuzzi

Jacuzzi ARGA ARG101C0110 Stücklistenhandbuch

Morphy Richards

Morphy Richards Essentials PC4006 Bedienungsanleitung

Softub

Softub PRESTIGE Bedienungsanleitung

JNJ SPAS

JNJ SPAS SPA-318 Installationshandbuch

KIRAMI

KIRAMI Comfort Family Bedienungsanleitung

QCA Spa

QCA Spa VS501 PAK (VL260 TOPSIDE) Bedienungsanleitung

HoMedics

HoMedics FB-655HJ-GB Bedienungsanleitung

Everyday Hot Tubs

Everyday Hot Tubs 530 Bedienungsanleitung

anko

anko SS-601A Bedienungsanleitung

Jacuzzi

Jacuzzi Duetta 6042 Bedienungsanleitung

Pooli

Pooli OS030979B Bedienungsanleitung

Jacuzzi

Jacuzzi alimia Bedienungsanleitung

ab Solares Smart Spa Bedienungsanleitung

CalderaSpas

CalderaSpas CalderaSpas Utopia Series Bedienungsanleitung

Outsunny

Outsunny 848-047V70 Bedienungsanleitung

Aquatic

Aquatic INFINITY 1 Bedienungsanleitung

Asteria

Asteria 5630 Bedienungsanleitung
