Master Trimmers MT Tumbler Bedienungsanleitung
ÍNDICE
1. GENERAL GUIDELINES ...........................................19
OBJECTIVE OF THE MANUAL......................................19
WHERE TO KEEP THE MANUAL...................................19
2. WARRANTY............................................................19
3. INSIDE THE BOX .....................................................21
4. BASIC SAFETY GUIDELINES ....................................22
WHO CAN USE THE MASTERTRIMMER. ..................22
REPARING THE MASTERTRIMMER .........................22
HOW TO SWITCH OFF THE MASTERTRIMMER..........22
USER´S SAFETY. ......................................................23
5. DISCLAIMERS.........................................................23
6. TRANSPORT...........................................................24
7. ELECTRICAL CONNECTION.....................................24
8. CONDITIONS OF USE..............................................24
9. FUNCTION .............................................................24
10. ASSEMBLE THE MACHINE....................................25
ASSEMBLING THE MACHINE. ...................................25
ASSEMBLING THE VACUUM CLEANER........................25
QUICK ASSEMBLY OF THE MACHINE..........................26
CONTROLS TO BE CARRIED OUT BEFORE CONNECTING .27
CONNECT THE MACHINE.........................................27
PRODUCT CONDITIONS ..........................................27
PREPARATION OF THE PRODUCT ..............................28
HOW TO USE THE MACHINE....................................28
QUALITY CONTROL................................................28
11. MAINTENANCE....................................................29
ADJUST THE HEIGHT OF THE BLADES .........................29
CLEAN THE BLADE AND THE GRID .............................31
12. ELECTRICAL CIRCUIT............................................31
13. WASTE DISPOSAL.................................................31
14. RESIDUAL RISKS...................................................32
19
1. GENERAL GUIDELINES
Objective of the manual
This manual instructions manual allows the users to
familiarize their-selves with:
•How to work with the machine
•How to use the machine
•Security guidelines
•Maintenance
Where to keep the manual
Always keep the instructions manual by the machine. The
instructions must always be on hand.
2. WARRANTY
All the Master Product machines have 10 years warranty for
the all defective parts provided by the manufacturer.
The manufacturer is not responsible for misuse or bad
maintenance of the machine.
For the warranty it is necessary to show the invoice.
Contact: [email protected]
Security symbols
In this manual the following symbols are used to indicate
danger and important information.
Danger: This symbol signifies that there is an immediate
danger of health and/or mortality.
Ignoring these warnings could result in grave effects on
health, including serious injury leading to mortality.
DANGER
20
WARNING
TAKE CARE
IMPORTANT
INFORMATION
Warning: This symbol signifies that there is a possible
immediate danger to health and life.
Ignoring these warnings could result in grave effects on
health, including serious injury leading to mortality.
Take care: This symbol signifies the existence of a
possibly dangerous situation.
Ignoring these warnings could result in grave effects on
health, including serious injury leading to mortality.
Important: This symbol gives important guidelines for the
correct use of the machine.
Ignoring these warnings could result in grave effects on
health, including serious injury leading to mortality.
Information: Under this symbol suggestions and practical
information is found.
Ignoring these warnings could result in grave effects on
health, including serious injury leading to mortality.
21
3. INSIDE THE BOX
1 Block MT Tumbler
Vacuum
MasterTrimmer
Power cable
Cleaning Kit
2,5 meters of tube
22
4. BASIC SAFETY GUIDELINES
The MASTERTRIMMER machines can only be used by
individuals that have read and understood the respective
instructions and maintenance manual.
The MASTERTRIMMER machines are built for a safe use in
accordance with the level of technology.
However, if used in an incorrect manner it can result in various
risks.
Who can use the MASTERTRIMMER.
The MASTERTRIMMER machine can only be used by an
adult who has read and understood the instructions manual.
The unit will have to be switched off for any unusual operation
and that might affect the electrical installation, including;
moving the machines, transporting the machine and
maintenance (such as cleaning the machine).
In any case the machine has to be disconnected from the
electrical power to ensure that it cannot switch on.
Reparing the MASTERTRIMMER
Only a qualified MASTERTRIMMER worker can disassemble,
repair and install new parts, in the case of the machine´s
warranty period, only a MASTERTRIMMER employee can
work on the machine without losing the warranty.
.
How to switch off the MASTERTRIMMER
MASTERTRIMMER machines are switched off under any
circumstances every time you press the switch on / off.
The detector of the grid has unique function of security, and
CAN NOT be used to switch off the machine.
Before performing any maintenance on the machine you have
to disconnect it from the main electricity supply.
23
User´s safety.
•The material that is fed to the grid of the machine can
only be either wet herbaceous and / or semi-woody
plants. Otherwise the movement can cause damage
to the machine and injury the user.
ALWAYS WEAR GLOVES AND SECURITY GOGGLES
WHEN USING THE MACHINE AND AVOID LOOSE
CLOTHING.
•Keep hands and hard objects away from the blade.
•Do not look directly at the holes of the grids while the
machine is working, as there are fragments that can
shoot up and enter the eyes (always wear protective
goggles).
•Only use the machine if it is in perfect condition,
otherwise possible risks of injury to user can occur.
•Safety devices (switches, grid, racks ...) cannot be
dismantled under any circumstances
5. DISCLAIMERS
Modifications of the MASTERTRIMMER machines without the
permission of the producer are not allowed. The manufacturer
disclaims any liability for canceling the warranty for any
modified machines and disclaims any liability for failures and
accidents that may result.
During the warranty period MASTERTRIMMER machines may
only be disassembled and repaired by the manufacturer
mechanics or its representatives.
The operator who uses the machine must ensure that the
crushed material is removed regularly, failing to do so involves
a total loss of warranty.
24
6. TRANSPORT
The machine is transported in the boxes used by the
manufacturer, in the position provided by the manufacturer.
Box 100x80x90cm. Weight: 90Kg
7. ELECTRICAL CONNECTION
The electrical connection of the MASTER TRIMMER machine
must be carried out by a 230V power supply.
8. CONDITIONS OF USE
MASTERTRIMMER machines are only suitable to use indoors
and under no circumstances to be exposed to moisture or
water. Particularly, the electrical system must always be dry.
9. FUNCTION
MASTERTRIMMER machines can be used with all types of
herbaceous and / or semi-woody plants. All materials that are
not of this nature cannot be processed.
MASTER TRIMMER distributes a cutting mechanism that
cannot be altered by the consumer. If the grid is changed or
cleaned, it is essential to comply the safety regulations that
are provided. Section 4
25
10. ASSEMBLE THE MACHINE
Assembling the machine.
•Remove the machine of the pallet and place it in a
flat surface.
•Mount the vacuum cleaner equipment (Manual at
your disposal)
•Connect the vacuum cleaner equipment to the
machine.
•Place the entrance hopper.
•Connect the machine and the vacuum cleaner to a
power source. Now you can start working.
Assembling the vacuum cleaner. (Consult the
manual of the vacuum cleaner)
26

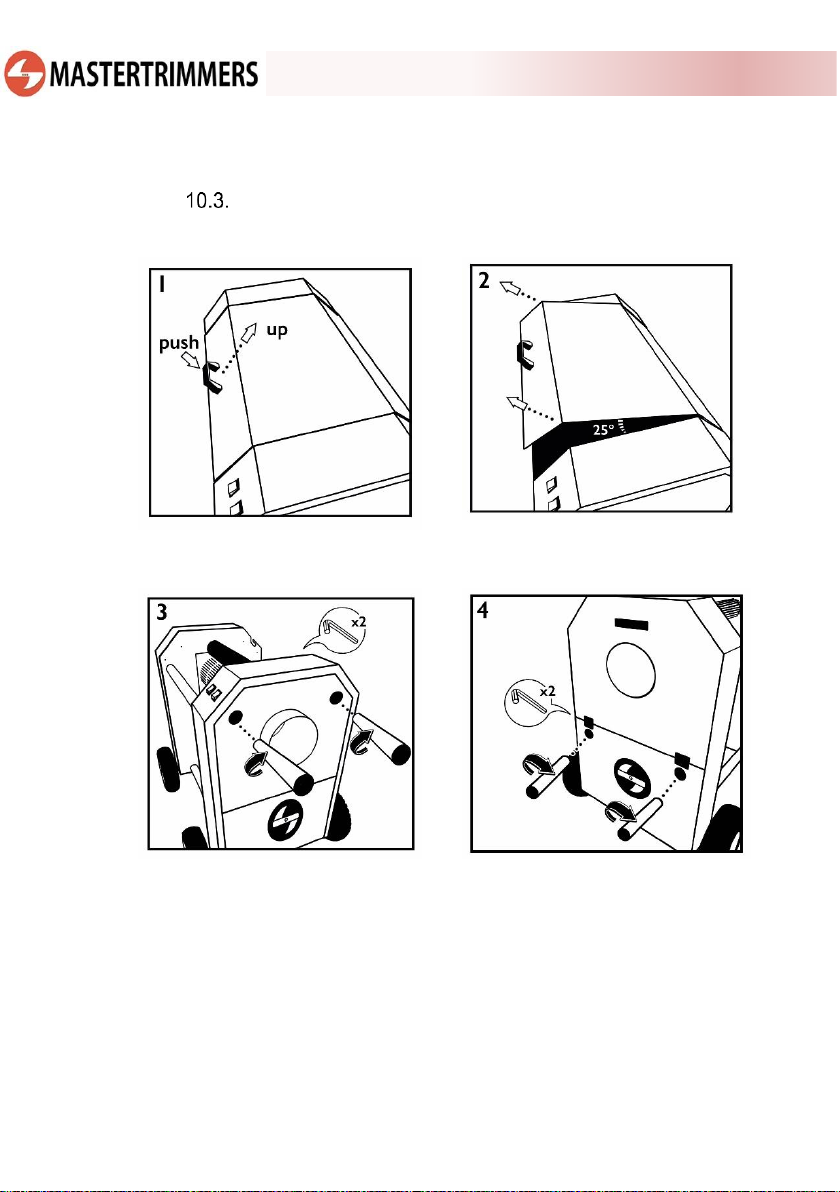

Quick assembly of the machine.
1.To open the lid, press and pull up.
2. To remove the lid, keep it tilted as
the drawing indicates and pull it.
3. Place the long handles in the
upper holes and collar the Allen
screws
4. Place the short handles on the
lower part and collar the Allen screws.
27

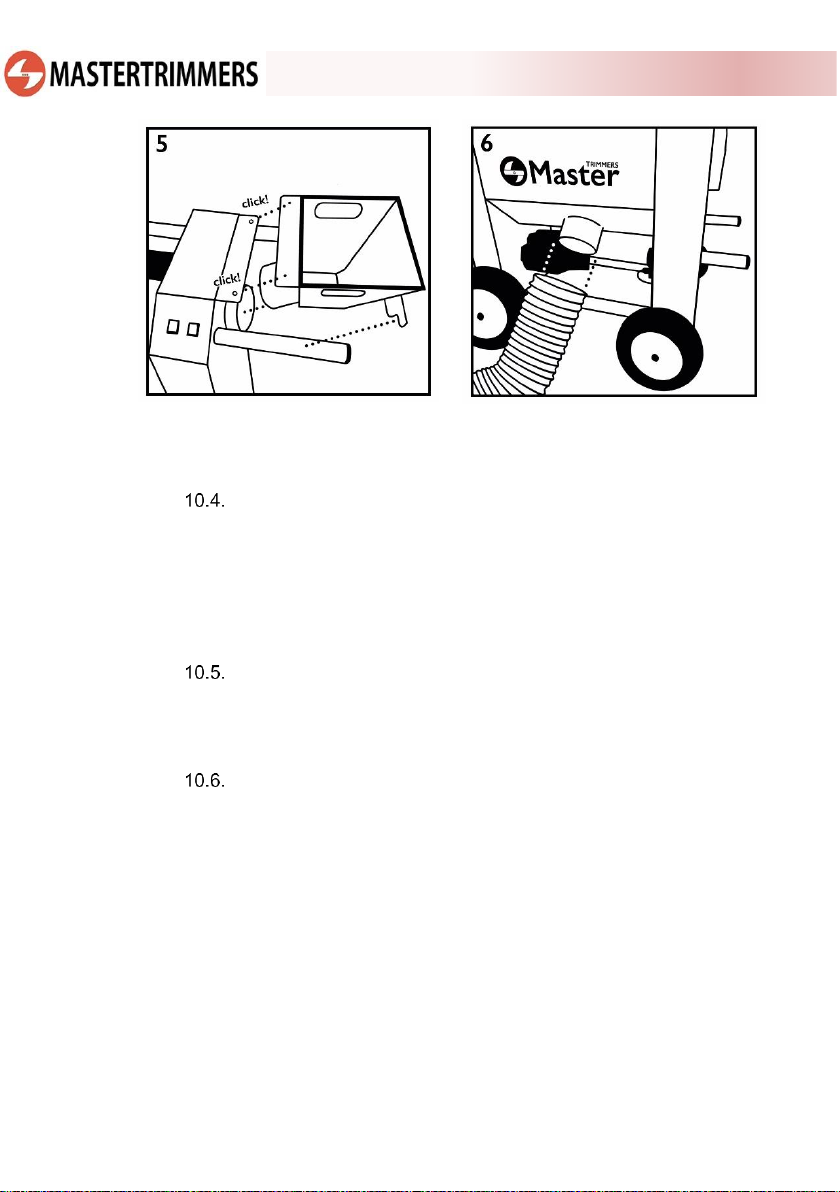

5. Place the entrance hopper with the
positioners and supporting the
Hopper on the handles.
6. Place the vacuum cleaner tube in
the machine as indicated in the
drawing.
Controls to be carried out before connecting
•Make sure that the top and side covers are securely
closed.
•Make sure the vacuum tube is correctly placed..
•Make sure that the drum is correctly placed and the
blades are tight.
Connect the machine
•Connect the machine to a power source
•Press the “ON” switch
Product Conditions
The conditions of the material to work are very important.
The MT Tumble has been designed to work the most
varieties and it is capable of processing large quantities.
Even thought, we must pay attention to the way of use of the
machine and the conditions of the product.
The MT Tumbler has been designed to work with wet and
dry flowers (11-15% moisture content). The included drum is
for working with wet flowers. Ask us if you want to dry peel.
