Master MH-40-GFA Handbuch
Model Numbers
MH-40-GFA / MH-60V-GFA-A / MH-125V-GFA-A / MH-150V-GFA-
A
© 2014 Pinnacle Products International, Inc.
668 Stony Hill Road #302 Yardley, PA 19067 USA • Toll Free (800)-641-6996
User’s Manual & Operating Instructions
CONSUMER: READ AND SAVE THESE INSTRUCTIONS
221000152-14
GENERAL HAZARD WARNING:
FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH
THIS HEATER, CAN RESULT IN DEATH, SERIOUS BODILY INJURY AND PROPERTY LOSS
OR DAMAGE FROM HAZARDS OF FIRE, EXPLOSION, BURN. ASPHYXIATION, CARBON
MONOXIDE POISONING AND / OR ELECTRIC SHOCK.
ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE INSTRUCTIONS SHOULD USE
OR SERVICE THIS HEATER.
IF YOU NEED ASSISTANCE OR HEATER INFORMATION SUCH AS AN INSTRUCTIONS
MANUAL, LABEL, ETC. CONTACT THE MANUFACTURER.
DANGER
FIRE, BURN, INHALATION, AND EXPLOSION HAZARD. KEEP SOLID
COMBUSTIBLES, SUCH AS BUILDING MATERIALS, PAPER OR
CARDBOARD, A SAFE DISTANCE AWAY FROM THE HEATER AS RECOMMENDED BY
THESE INSTRUCTIONS. NEVER USE THE HEATER IN SPACES WHICH DO OR MAY
CONTAIN VOLATILE OR AIRBORNE COMBUSTIBLES, OR PRODUCTS SUCH AS GASOLINE,
SOLVENTS, PAINT THINNERS, DUST PARTICLES OR UNKNOWN CHEMICALS.
WARNING
NEVER LEAVE HEATER UNATTENDED WHILE BURNING,
CONNECTED TO A POWER SOURCE, OR WHILE
CONNECTED TO A FUEL SOURCE
© 2014, Pinnacle Products International, Inc. Propane Forced Air Heater User’s Manual
Table Of Contents
Safety Information.............................................1-3
Specications and Features..
..............................
4
Operation..........................................................5-7
Ventilation..........................................................
..8
Maintenance.........................................................8
Wiring Diagrams...................................................9
Troubleshooting Guide.......................................10
Exploded View
..............................................
...
.
.11
Parts List............................................................12
Warranty.............................................................13
Safety Information
NOT FOR HOME OR RECREATIONAL VEHICLE USE.
WARNING
This is an unvented portable heater. It uses air (oxygen) from the area in which
it is used. Adequate combustion and ventilation air must be provided. Refer to
VENTILATION on Page 8.
WARNING
1
Carbon Monoxide Hazard This heater produces carbon monoxide, which has no
odor. Burning the heater in an enclosed space can kill you. Never use the heater
in enclosed spaces such as a tent, a camper, any vehicle or recreational vehicle (RV), enclosed
shelter, or any other enclosed areas.
DANGER
Not for use in residential living areas or in non-adequately ventilated enclosed
spaces. Never bring or store a propane cylinder indoors.
DANGER
This heater is designed and approved for use as a construction heater in accordance with Standard
ANSI Z83.7-2011/CSA 2.14-2011. CHECK WITH YOUR LOCAL FIRE SAFETY AUTHORITY IF YOU
HAVE ANY QUESTIONS ABOUT APPLICATIONS. Other standards govern the use of fuel gasses
and heating products for specic uses. Your local authority can advise you about these.
If the information in this manual is not followed exactly, a fire or explosion may
result causing property damage, personal injury or loss of life.
DANGER
DO NOT OPERATE THIS HEATER UNTIL YOU HAVE READ AND THOROUGHLY
UNDERSTAND THESE SAFETY AND OPERATING INSTRUCTIONS.
Failure to comply with the precautions and instructions provided with this heater can result in
death, serious bodily injury, property loss or damage from the hazards of fire, explosions, burns,
asphyxiation or carbon monoxide poisoning. Only persons who can read and understand these
instructions should use or service this heater.
WARNING
CALIFORNIA RESIDENTS: This product contains chemicals, including lead,
known to the State of California to cause birth defects or other reproductive harm.
Wash hands after handling.
WARNING
NEVER LEAVE HEATER UNATTENDED WHILE BURNING,
CONNECTED TO A POWER SOURCE, OR WHILE
CONNECTED TO A FUEL SOURCE
© 2014, Pinnacle Products International, Inc. Propane Forced Air Heater User’s Manual
Safety Information
2
The products described in this manual are
propane direct-red, forced air heaters. Propane
forced air heaters are primarily intended for
use for temporary heating of buildings under
construction, alteration or repair. Direct-red
means that all of the combustion products of the
heater enter the heated space. This appliance
is rated at 98% combustion efciency, but does
produce small amounts of carbon monoxide.
Carbon monoxide is toxic. Humans can tolerate
only small amounts of carbon monoxide and so
precautions should be taken to provide proper
ventilation. Failure to provide proper ventilation
in accordance with the instructions in this manual
can result in death.
People with breathing problems should consult a
physician before using this heater.
Early signs of carbon monoxide poisoning
resemble the u. Symptoms of improper
ventilation / carbon monoxide poisoning are:
Headache • Dizziness • Nausea • Dry Mouth
Sore Throat • Burning of Nose and Eyes
If you experience any of these symptoms:
GET FRESH AIR AT ONCE! Have your heater
serviced and check for proper ventilation. Some
people are more affected by carbon monoxide
than others. These include: pregnant women,
those with heart or lung problems, anemia or those
under the influence of alcohol or at high altitudes.
FOR OUTDOOR USE. INDOOR USE
PERMITTED ONLY FOR: The temporary
heating of adequately ventilated buildings or
structures under construction, alteration or
repair! Provide at least a three square foot
(2,800 sq cm) opening of outside air for
every 100,000 Btu / Hr heater rating. Refer to
“Ventilation” on page 8 for further instructions.
WHAT TO DO IF THE SMELL OF GAS IS PRESENT:
–DO NOT attempt to light the heater.
–Extinguish any open ame.
–Shut off gas to heater.
–If odor continues, contact your local gas
supplier or re department.
–DO NOT touch or use any electric switch or
any electric device that can cause a spark.
–Immediately call your gas supplier from a
neighbors phone. Follow the gas suppliers
instructions.
–If you can not reach your gas supplier, call
the re department.
–Service must be done by a qualied
service agency.
NEVER store or use gasoline or other ammable
vapors and liquids in the vicinity of this heater.
NEVER store
a propane (LP) cylinder not
connected to this heater in the vicinity of this heater.
NEVER
connect heater to an unregulated gas supply.
NEVER
obstruct the flow of combustion and
ventilation air. (The front and rear of heater).
NEVER use duct work in front or rear of heater.
NEVER modify this heater or operate a heater that
has been modified.
NEVER service, move or handle heater while still
hot or operating
Keep all combustible materials away from this heater.
Minimum Clearance From Combustibles
Sides Top Front Rear
24 in. 36 in. 72 in. 24 in.
RISK OF INDOOR AIR
POLLUTION!
WARNING
CARBON MONOXIDE POISONING
MAY LEAD TO DEATH!
DANGER
RISK OF BURNS, FIRE AND
EXPLOSION!
WARNING
PROPANE IS AN
EXPLOSIVE GAS.
DANGER
CAUTION! HOT WHILE IN
OPERATION. DO NOT TOUCH.
KEEP CHILDREN, ANIMALS, CLOTHING AND
COMBUSTIBLES AWAY FROM HEATER.
WARNING
NEVER LEAVE HEATER UNATTENDED WHILE BURNING,
CONNECTED TO A POWER SOURCE, OR WHILE
CONNECTED TO A FUEL SOURCE
© 2014, Pinnacle Products International, Inc. Propane Forced Air Heater User’s Manual
ALWAYS use the electrical power (voltage and
frequency) specified on the model plate of the heater.
ALWAYS use only 14 AWG or better extension cord.
ALWAYS unplug the heater when not in use.
ALWAYS install the heater so that it is not directly
exposed to water spray, rain, dripping water, or wind.
– Use heater in accordance with all local codes.
In the absence of local codes, refer to The
National Fuel Code, ANSI Z223.1.
–This heater is shipped from the factory
for use with propane (LP) gas only. Do not
convert to any other gas. Installation must
conform to local codes, or in their absence,
with the standard for the Storage and
Handling of Liquefied Petroleum Gases ANSI/
NFPA 58 and the Natural Gas and Propane
Installation Code CSA B149.1.
– Gas supply connections should be checked
by using a 50/50 soap and water solution.
Never use a ame to check for gas leaks.
– Locate LP cylinder at least 6 feet (10 ft. in
Canada) from the heater, and do not direct
heater discharge towards the LP cylinder
unless it is at least 20 feet from the heater.
– Use only the regulator and hose assembly
provided with this heater. Inspect the
regulator/hose assembly prior to each use of
the heater. If there is excessive abrasion or
wear, or if the hose is cut, replace it with the
proper assembly shown in the parts list, prior
to using the heater.
Minimum and Maximum Inlet Pressure
MH-40 MH-60V
MH-125V MH-150V
Min. 5 PSI
Max. Bottle Pressure
Safety Information
The hose assembly shall be
pro tected from traffic, building
material and contact with hot surfaces both
during use and while in storage.
WARNING
1. Remove all packing items applied to heater for
shipment. Keep plastic cover caps attached to
inlet connector and hose / regulator assembly
for storage.
2. Remove all items from carton
3. Check all items for shipping damage. If the
heater is damaged, promptly inform dealer
where you purchased the heater.
The Propane (LP) gas
pressure regulator and hose
assembly supplied with the heater must be
used without alteration.
CAUTION
Unpacking
3
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X

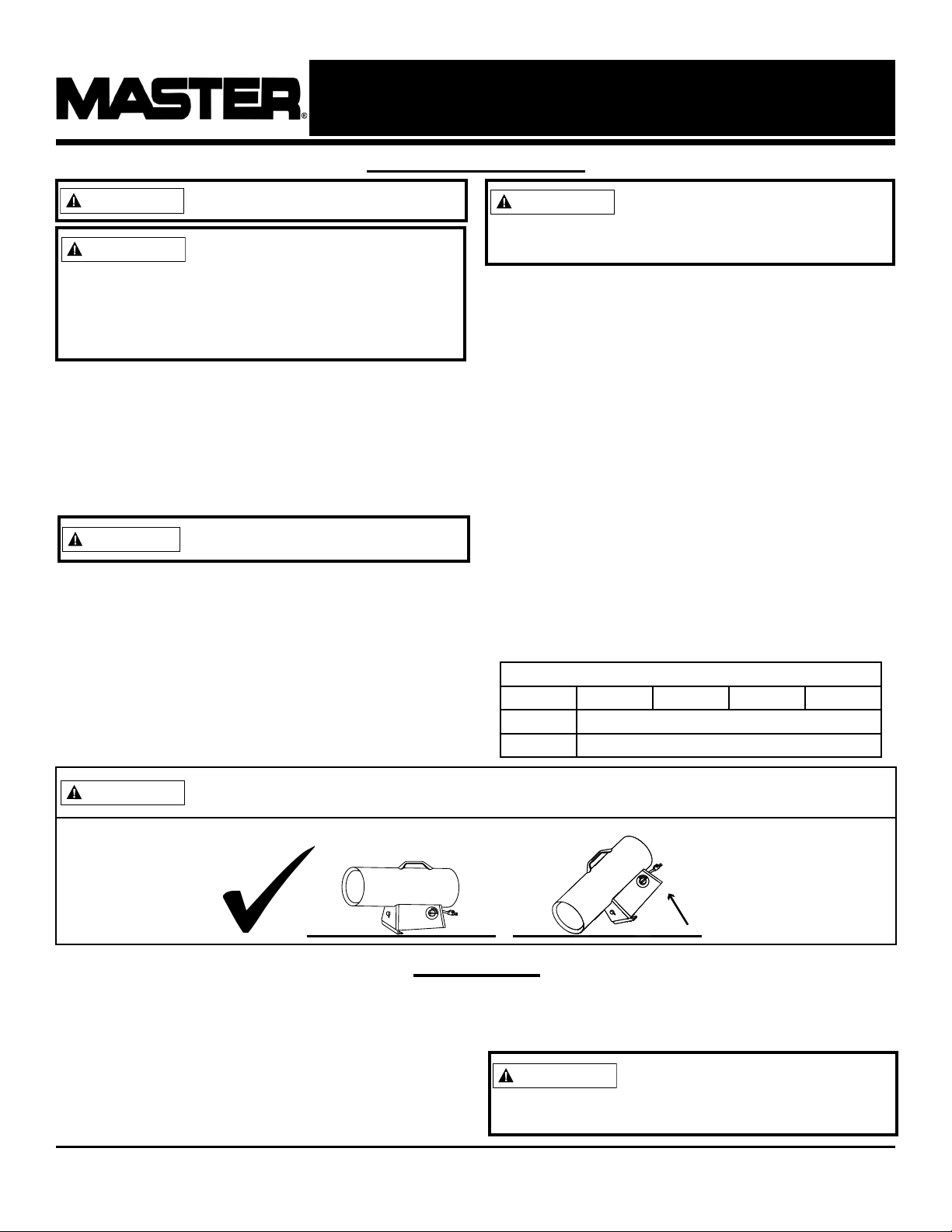

RISK OF FIRE! DO NOT POSITION HEATER IN A DOWNWARD ANGLE.
ALWAYS LOCATE HEATER ON A STABLE AND LEVEL SURFACE!
WARNING
RISK OF ELECTRIC SHOCK!

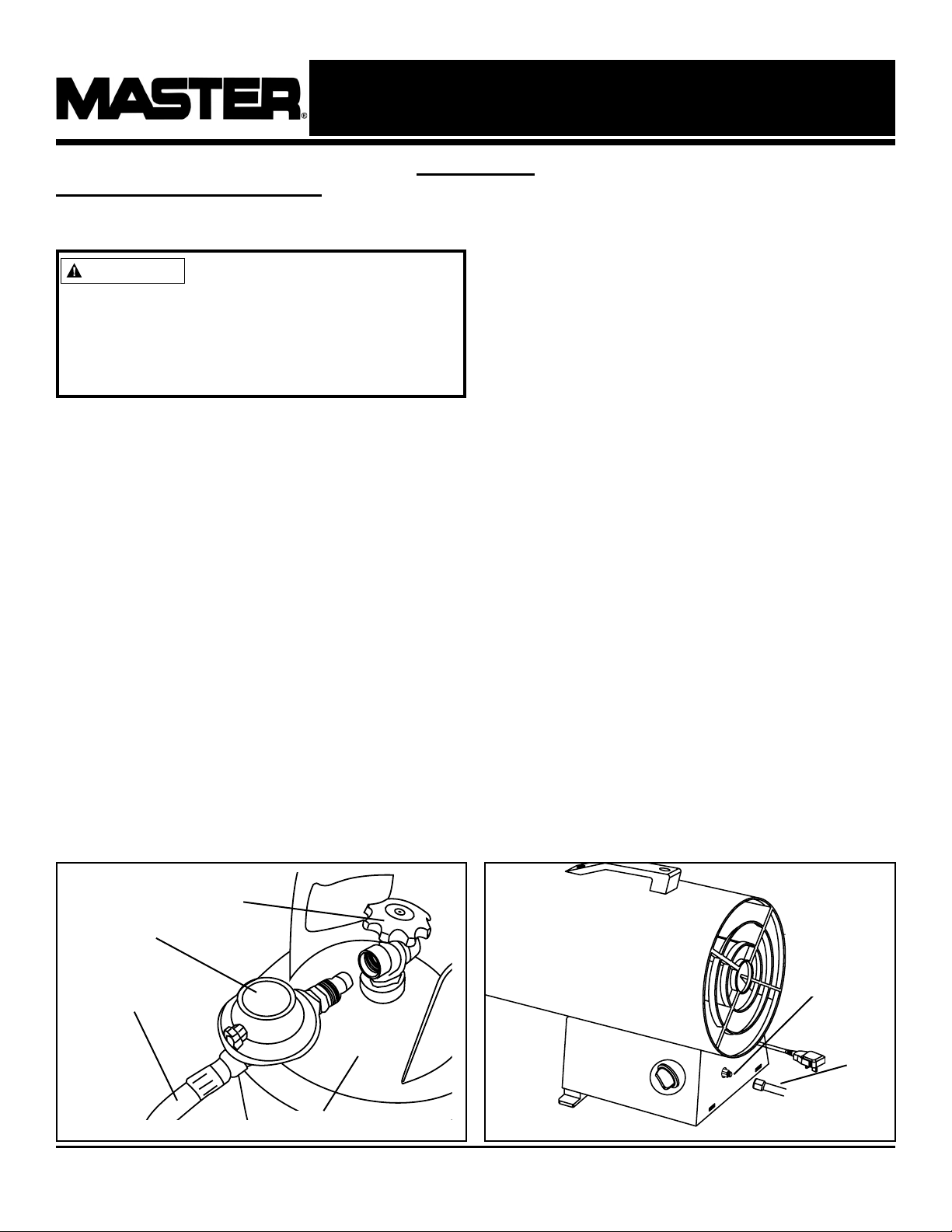

Figure 1
For use with propane (LP)
gas only.
WARNING
Electrical Grounding
Instructions: This appliance
is equipped with a three-prong (grounding)
plug for your protection against shock
hazard and should be plugged directly into a
properly grounded three-prong receptacle.
WARNING
WARNING
NEVER LEAVE HEATER UNATTENDED WHILE BURNING,
CONNECTED TO A POWER SOURCE, OR WHILE
CONNECTED TO A FUEL SOURCE
© 2014, Pinnacle Products International, Inc. Propane Forced Air Heater User’s Manual

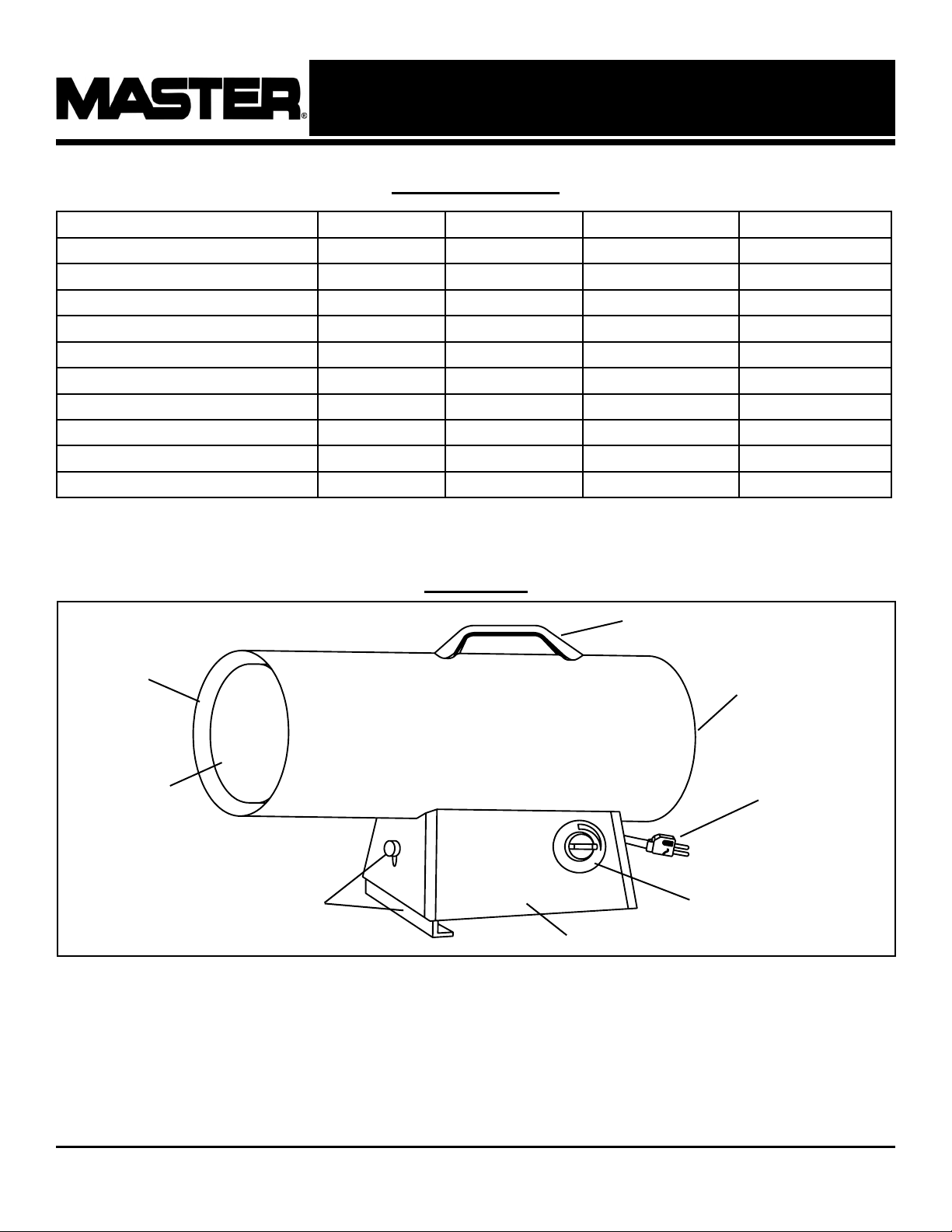

Features
Handle
Base
Height Controller Gas Valve Knob
Outer Shell
Inner Shell
Guard
Power Cord
Figure 2
Specications
Model # MH-40-GFA
MH-60V-GFA-A
MH-125V-GFA-A MH-150V-GFA-A
BTU 40,000 40/50/60,000 95/110/125,000 120/135/150,000
Fuel Consumption (Lbs./hr) 1.9 1.9 / 2.3 / 2.8 4.4 / 5.1 / 5.8 5.5 / 6.2 / 6.9
Maximum Operating Hours 11 10.5 22.7 18
Required Cylinder Lbs. 20 20 100 100
Fuel Type Propane Propane Propane Propane
Heating Area (Ft.2)1,000 1,500 3,125 3,800
Air Flow (CFM) 300 300 400 400
Max Outlet Temp (ºF) 477 491 500 622
Volts: AC/Hz 120V / 60Hz 120V / 60Hz 120V / 60Hz 120V / 60Hz
Amps 0.6 A 0.6 A 0.8 A 0.8 A
Specications subject to change without notice.
4
Missing Parts? Please Call 800-641-6996 For Assistance
NEVER LEAVE HEATER UNATTENDED WHILE BURNING,
CONNECTED TO A POWER SOURCE, OR WHILE
CONNECTED TO A FUEL SOURCE
© 2014, Pinnacle Products International, Inc. Propane Forced Air Heater User’s Manual
Operation
Propane Supply / Information:
Propane (LP)
This heater is not supplied with a propane cylinder.
Use only an approved propane cylinder.
LP Characteristics
– Flammable, explosive under pressure, heavier
than air and pools in low areas.
– In its natural state, propane has no odor, but
for your safety an odor that smells like rotten
cabbage has been added.
– Contact of propane (LP) gas with the skin can
cause freeze burns.
– Heater is manufactured for use with propane
gas only. DO NOT attempt to convert to any
other gas. Such modications are dangerous
and will void the warranty.
– When heater is not in use, LP Cylinder must be
turned OFF.
– Be sure that the LP Cylinder is located on a
level and stable surface.
– DO NOT use this heater in a basement or
below ground level. Propane is heavier than
air and will always seek the lowest level. If you
suspect a leak, shut off the valve at the LP
Cylinder immediately.
The Propane (LP) cylinder must also be
equipped with the following
– A collar to protect the gas valve.
– A shut-off valve terminating a LP cylinder valve
outlet as specied in the American National
Standard for Compressed Gas Cylinder Valve
Outlets and Inlets Connections.
– A safety relief valve having direct
communications with the vapor space of the LP
cylinder.
– The heater must operate on vapor withdrawal
from the operating cylinder.
The amount of Propane (LP) used with this
heater varies. Both factors are
– The amount of gas in the cylinder of LP.
– The temperature of the LP tank and its
surroundings.
– Always keep LP cylinder fastened and upright.
– Avoid tipping the LP cylinder on its side when
connected to a regulator, since this may
cause damage to diaphragm in the regulator.
– Handle valves with care.
– Never connect an unregulated LP cylinder to
a construction heater.
– DO NOT subject LP cylinder to excessive heat.
– Tightly close the gas shutoff valve on the LP
cylinder after each use.
– All ttings must be protected when
disconnected from the LP cylinder.
– Never store an LP cylinder inside a building or
in the vicinity of an gas burning appliances.
Average
Temp
(ºF)
40-GFA
20 / 100
lb. cylinder
60V-GFA-A
20 / 100
lb. cylinder
125V-GFA-A
20 / 100
lb. cylinder
150V-GFA-A
20 / 100
lb. cylinder
32º 1 1 2 2
20º 1 1 2 2
10º 1 1 3 3
0º 1 1 3 3
-10º 2 2
Use Larger
Tank
Use Larger
Tank
-20º 2 2
Use Larger
Tank
Use Larger
Tank
The table above shows the minimum number of 100 lb. LP
cylinders required in cold weather. Your local LP dealer will
help you select the proper LP supply System
Propane is safe to use when
properly handled. Careless
handling of the LP cylinder could result in a
fire and or an explosion.
CAUTION
The disconnected tank must
never be stored in a building,
garage or any other enclosed area.
CAUTION
5
NEVER LEAVE HEATER UNATTENDED WHILE BURNING,
CONNECTED TO A POWER SOURCE, OR WHILE
CONNECTED TO A FUEL SOURCE
© 2014, Pinnacle Products International, Inc. Propane Forced Air Heater User’s Manual
Operation
Pre-Lighting Instructions:
Connecting the LP Cylinder
ALL NEW LP CYLINDERS MUST BE PURGED
BEFORE THE FIRST FILLING.
– Turn heater gas valve knob and LP cylinder
valve to OFF position.
– LP cylinder valve equipped with old style
tting has LEFT HANDED THREADS. Turn
tting CLOCKWISE to loosen. Protect this
tting when disconnected from LP cylinder.
– Have your LP cylinder lled by your local
propane gas supplier.
– Some LP cylinders have a bleed-OFF valve.
This valve should be inspected for leaks after
each lling of the LP cylinder. Turn the valve
clockwise to close.
– Fasten full propane tank and connect
proper tting to LP cylinder valve by turning
COUNTER-CLOCKWISE.
– With heater gas valve knob still in OFF
position turn ON the LP cylinder valve and
check for leaks with soap solution.
Checking For Leaks
– To check for leaks, make up a 50/50 solution
of dish soap and water. Apply this solution
to all gas connections. If bubbles appear,
there is a leak. If a leak is found, turn off
the gas supply, and re-connect the leaking
connection. If the leak persists after several
tries, contact Pinnacle Customer Service at
(800)-641-6996.
– The installation of this heater must meet all
local codes and/or gas utility requirements. In
the absence of local codes, the National Fuel
Code ANSI Z223.1 should be followed.
– The minimum clearances to any combustible
construction materials must be maintained at
all times (See Page 2).
– Inspect the heater before each use, and at
least annually by a qualied service person.
Purging and filling of the
LP cylinders must be
performed by personnel who have been
thoroughly trained in accepted LP gas
industry procedures. Failure to follow these
instructions may result in explosion, fire,
severe personal injury or death.
WARNING
Supply Valve
Regulator
Hose
Propane Tank
Figure 3
6
Figure 4
Hose
Inlet
Connector
NEVER LEAVE HEATER UNATTENDED WHILE BURNING,
CONNECTED TO A POWER SOURCE, OR WHILE
CONNECTED TO A FUEL SOURCE
© 2014, Pinnacle Products International, Inc. Propane Forced Air Heater User’s Manual

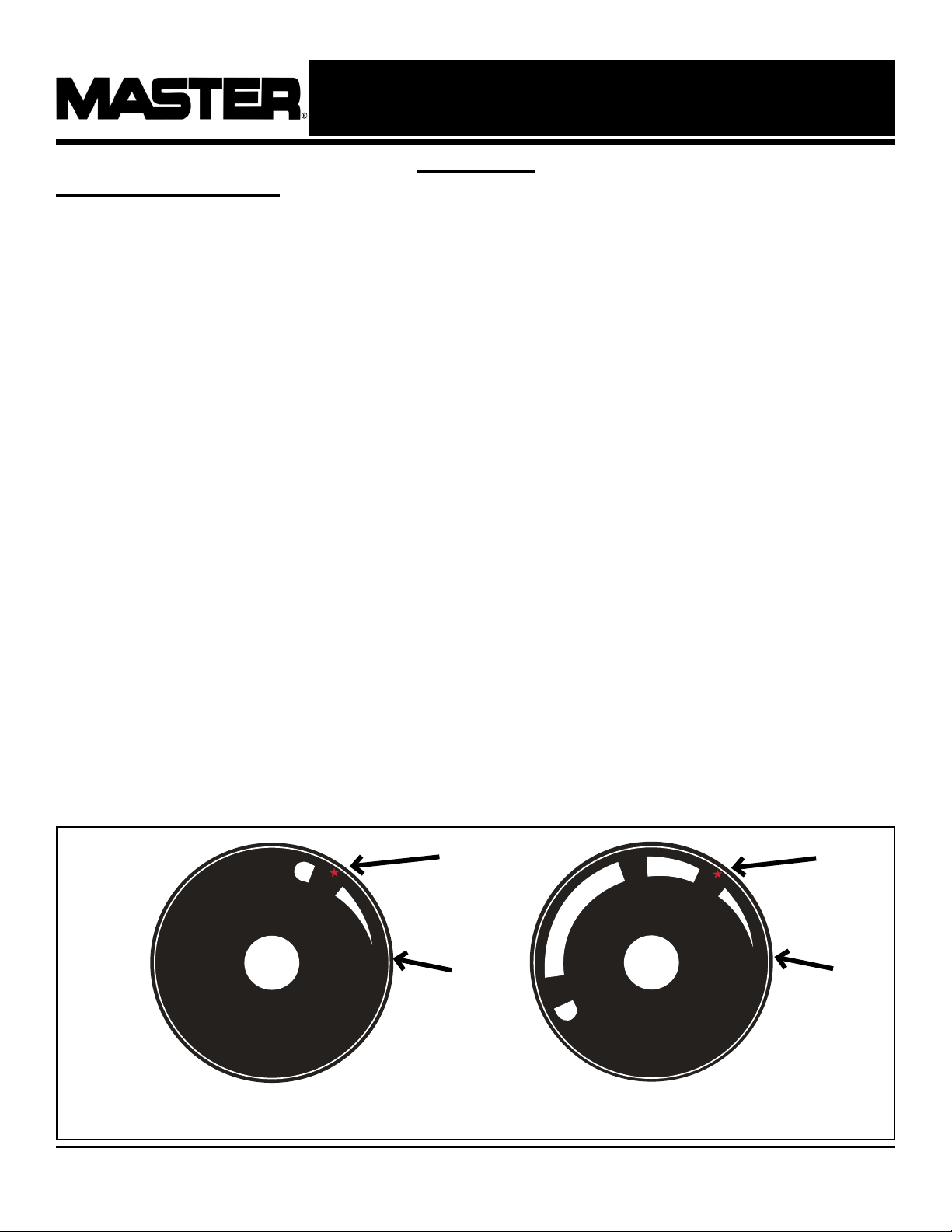

Operation
Lighting Instructions:
Starting the Heater (Ignition)
1. Connect the heater to a three prong (grounded)
power source. You must use a three prong
(grounded) extension cord that is at least 6 feet
long is a minimum of 14 AWG rating.
2. Connect heater to a proper LP cylinder.
3. Turn gas valve CLOCKWISE to off position.
4. Wait ve (5) minutes for any glass to clear.
Smell for gas, if you do not smell gas, go to
step 5.
5. Push in and turn gas control knob
COUNTERCLOCKWISE to 1 position. This
will light the burner. If needed, keep pressing
control knob until the burner lights and keep
pressing and turning from “O” (OFF) to 1 on
Piezo electric spark models
(1 on Model 40-GFA).
(See Figure 5)
6. Keep the valve knob depressed for at least
30 seconds after lighting the burner. After 30
seconds, release the valve knob.
7. If the burner does not stay lit, repeat the
lighting procedures.
8. When burner stays lit, turn gas valve knob
COUNTERCLOCKWISE to desired setting
(All models except 40-GFA).
Shutdown Instructions
To Shut Off the Heater:
1. Turn gas valve knob CLOCKWISE to
“O” (OFF) position. (See Figure 5)
2. Turn gas supply OFF by turning the LP
cylinder valve CLOCKWISE to close.
3. Disconnect the power cord.
Test Firing the Heater
Test fire your construction heater following the
lighting instructions applicable to the gas control
system employed.
Leak test all gas connections with 50/50 soap
and water solution prior to start-up. Soap bubbles
indicate a gas leak. DO NOT use a match or
flame to test for gas leaks.
NOTE: Heater surface temperature must be
cold before initiating service, cleaning or
storage.
1
O
1
3
2
O
40-GFA
Valve Knob
60V-GFA-A / 125V-GFA-A / 150V-GFA-A
Valve Knob
OFF OFF
Ignition Ignition
Figure 5
7
NEVER LEAVE HEATER UNATTENDED WHILE BURNING,
CONNECTED TO A POWER SOURCE, OR WHILE
CONNECTED TO A FUEL SOURCE
© 2014, Pinnacle Products International, Inc. Propane Forced Air Heater User’s Manual
Ventilation
–Risk of indoor air pollution and Carbon
Monoxide Poisoning. Use heater only in
well ventilated areas.
–Refer to Safety Information on pages 1-2
for information about Carbon Monoxide
Poisoning.
–ALWAYS provide a fresh air opening in the
heated space of at least three square feet
(2,800 sq. cm) for each 100,000 BTU / Hr.
of heater output. Provide a larger opening if
more heaters are being used.
Minimum Ventilation Opening Needed
40-GFA 60V-GFA-A
125V-GFA-A 150V-GFA-A
1.2 ft.21.8 ft.23.8 ft.24.5 ft.2
1110 cm21670 cm23530 cm24180 cm2
CARBON MONOXIDE POISONING MAY LEAD TO DEATH!
DANGER
Not for use in residential
living areas or in
non-adequately ventilated enclosed spaces.
DANGER
Storage / Maintenance
Always disconnect the heater from the LP
cylinder before putting the heater into storage. If
for any reason the heater is to be stored indoors,
the tank MUST be disconnected from the LP
cylinder, and the cylinder stored outdoors in a
well-ventilated area, out of the reach of children,
and in accordance with the Standard for Storage
and Handling of Petroleum Gases, ANSI/NFPA
58 - latest edition and Natural Gas and Propane
Installation Code, CSA B149.1. The plastic valve
plug or valve cover supplied with the cylinder
must be re-installed on the valve to protect the
fitting from damage.
NOTE: Installation and repair of this heater
should be done by a qualified service person.
ALWAYS be sure to follow proper maintenance
procedures. This should include cleaning the
inside of the heater once a month and checking
the spark gap at least once a heating season.
Re-gap the terminals to 0.160” (4mm)
8
Never store an LP cylinder
inside of a building or near
any other gas or oil burning appliances.
DANGER
NEVER LEAVE HEATER UNATTENDED WHILE BURNING,
CONNECTED TO A POWER SOURCE, OR WHILE
CONNECTED TO A FUEL SOURCE
© 2014, Pinnacle Products International, Inc. Propane Forced Air Heater User’s Manual

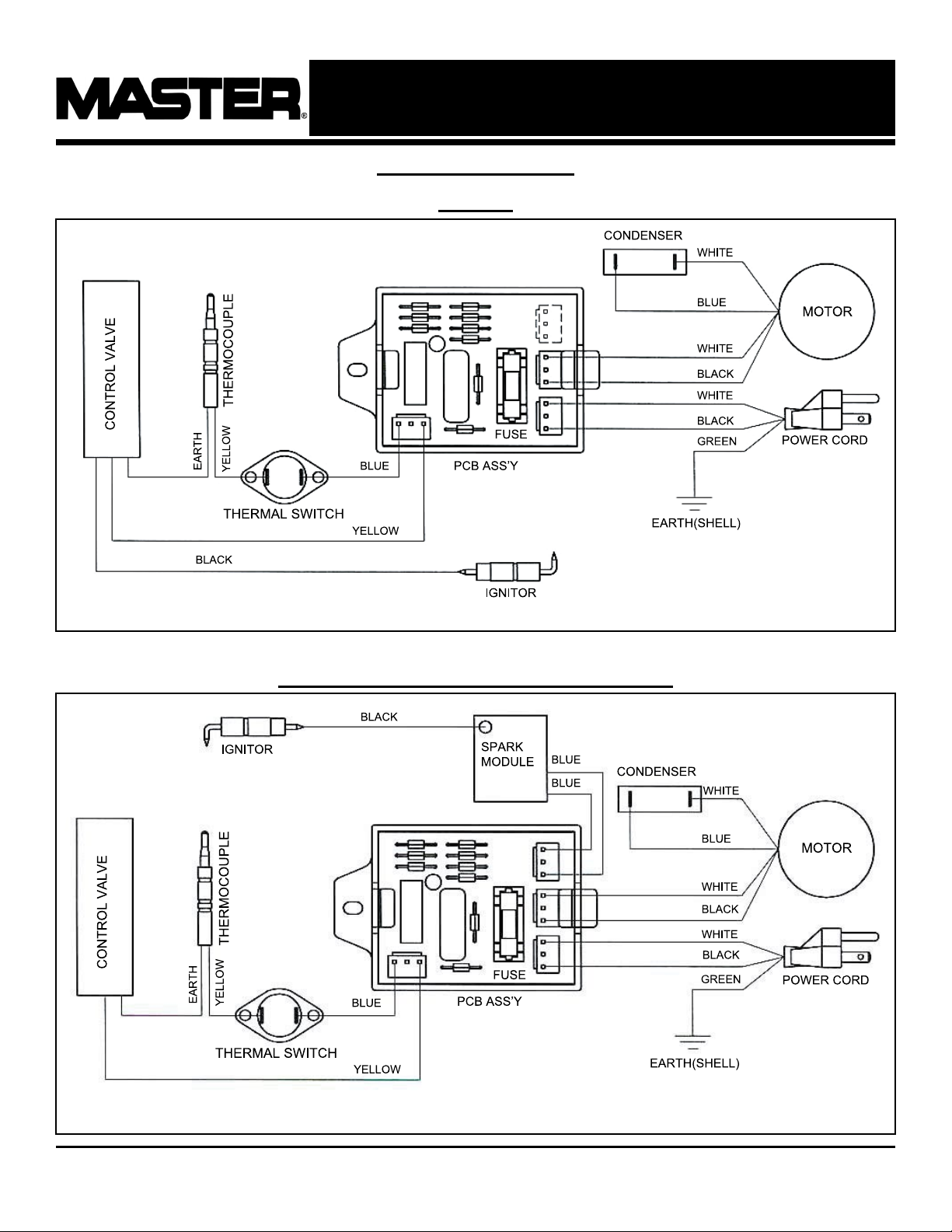

Wiring Diagrams
40-GFA
60V-GFA-A / 125V-GFA-A / 150V-GFA-A
Figure 6
Figure 7
9
Andere Handbücher für MH-40-GFA
3
Dieses Handbuch passt für folgende Modelle
3
Inhaltsverzeichnis
Andere Master Lufterhitzer Handbücher
