Master B30 Bedienungsanleitung

G 011

Models: B30, B70, B100, B150

IMPORTANT

Read and understand this manual before assembling, starting or servicing

heater. Improper use of heater can cause serious injury. Keep this manual

for future reference.

150 SIDE PV 004

100 SIDE PV 002

PORTABLE

FORCED

AIR HEATERS

OWNER’S MANUAL

100743

Safety Information.........................................................................3

Product Identiﬁcation .................................................................... 4

Unpacking......................................................................................5

Assembly .......................................................................................5

Theory of Operation ...................................................................... 6

Fuels ..............................................................................................6

Ventilation .....................................................................................7

Operation .......................................................................................7

Storage ........................................................................................... 8

Preventative Maintenance Schedule..............................................8

Troubleshooting.............................................................................9

Service Procedures ........................................................................10

Upper Shell Removal ..............................................................10

Fuel Filter (30/70,000 BTU/Hr Models)................................. 10

Fuel Filter (90,000 BTU/Hr Model) .......................................11

Fuel Filter (150,000 BTU/Hr Model) .....................................11

Spark Plug (30,000 BTU/Hr Model).......................................12

Spark Plug (70/90/150,000 BTU/Hr Models)......................... 13

Air Output, Air Intake, and Lint Filters .................................. 14

Pump Pressure Adjustment .....................................................14

Nozzle (30,000 BTU/Hr Model).............................................15

Nozzle (70/90,000 BTU/Hr Models) ...................................... 16

Nozzle (150,000 BTU/Hr Model)...........................................17

Pump Rotor ............................................................................. 18

Fan........................................................................................... 19

Speciﬁcations................................................................................. 19

Wiring Diagrams ........................................................................... 20

Accessories ....................................................................................22

Spare Parts .....................................................................................22

Illustrated Parts Breakdown and Parts List....................................23

Wheels and Handles (90/150,000 BTU/Hr Models)...............23

30,000 BTU/Hr Model............................................................ 24

70,000 BTU/Hr Model............................................................ 26

90,000 BTU/Hr Model............................................................ 28

150,000 BTU/Hr Model.......................................................... 30

Warranty and Repair Service......................................................... Back Cover

CONTENTS SECTION PAGE

100743

SAFETY

INFORMATION

WARNINGS

IMPORTANT: Read this owner’s manual carefully and completely

before trying to assemble, operate, or service this heater. Improper

use of this heater can cause serious injury or death from burns, ﬁre,

explosion, electrical shock, and carbon monoxide poisoning.

DANGER

Carbon monoxide poisoning may lead to death!

Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning

resembletheﬂu,with headaches, dizziness, or nausea. If youhavethesesigns,the

heater may not be working properly. Getfresh air atonce!Have heater serviced.

Some people are more affected by carbon monoxide than others. These include

pregnant women, persons with heart or lung disease or anemia, those under the

influence of alcohol, and those at high altitudes.

Make certain you read and understand all warnings. Keep this manual for

reference. It is your guide to safe and proper operation of this heater.

•Use only kerosene or paraffin to avoid risk of ﬁre or explosion. Never use

petrol, naphtha, paint thinners, alcohol, or other highly ﬂammable fuels.

•Never use heater where petrol, paint thinner, or other highly ﬂammable

vapors are present.

•Follow all local ordinances and codes when using heater.

•Use only in well-vented areas. Provide at least a three-square foot (2800

square cm) opening of fresh, outside air for each 100,000 BTU/Hr of rating.

•Use only in places free of ﬂammable vapors or high dust content.

•Use only with the electrical voltage and frequency speciﬁed on model plate.

•Use only a three-prong, grounded (earthed) extension cord.

•Minimum heater clearances from combustibles:

Outlet: 8 Ft. (250 cm) Sides, Top, and Rear: 4 Ft. (125 cm)

•Locate heater on a stable and level surface while hot or running or a ﬁre may

occur.

•When moving or storing heater, keep heater in a level position or fuel

spillage may occur.

•Keep children and animals away from heater.

•Unplug heater when not in use.

•When used with thermostat, heater may start anytime.

•Never use heater in living or sleeping areas.

•Never block air inlet (rear) or air outlet (front) of heater.

•Never move, handle, refuel, or service a hot, operating, or plugged-in heater.

•Never attach duct work to front or rear of heater.

•Before starting any maintenance, ensure heater is isolated from the electrical

supply.

100743

Fuel Cap

Lower

Shell

Power Cord

Upper Shell

Figure 3 - 150,000 BTU/Hr Model

Handle

Fuel Cap

Lower Shell

Side Cover

Fuel Tank

Figure 1 - 30/70,000 BTU/Hr Models

Side Cover

Fuel Tank

Lower

Shell

Fuel Cap

Fan Guard

Power Cord

Upper Shell

PRODUCT

IDENTIFICATION Upper Shell

Hot Air Outlet

Hot Air

Outlet

Hot Air

Outlet

Air Filter

End Cover

Fan Guard

Power Cord

Flame-Out

Control Reset

Button

(Optional Extra)

Figure 2 - 90,000 BTU/Hr Model

Fuel

Tank

Fan Guard

Air Filter

End Cover

Flame-Out

Control Reset Button

(Optional Extra)

Flame-Out Control

Reset Button

(Optional Extra)

100743

UNPACKING 1. Remove all packing items applied to heater for shipment.

2. Remove all items from carton.

3. Check items for any shipping damage. If heater is damaged, promptly inform

dealer where you bought heater.

ASSEMBLY

(For 90,000 and 150,000

BTU/Hr Models Only)

These models are furnished with wheels and handles. Wheels, handles, and the

mounting hardware are found in the shipping carton.

Tools Needed

•Medium Phillips Screwdriver

•3/8" Open or Adjustable Wrench

•Hammer

1. Slide axle through wheel support frame. Install wheels on axle.

IMPORTANT:

When installing wheels, point extended hub of wheels toward

wheel support frame (see Figure 4).

2. Place cap nuts on axle ends. Gently tap with hammer to secure.

3. Place heater on wheel support frame. Make sure air inlet end (rear) of heater is

over wheels. Line up holes on fuel tank ﬂange with holes on wheel support

frame.

4. Place front handle and rear handle on top of fuel tank ﬂange. Insert screws

through handles, fuel tank ﬂange, and wheel support frame. Attach nut ﬁnger

tight after each screw is inserted.

5. After all screws are inserted, tighten nuts ﬁrmly.

ASSEMBLY, EURO PFA/PV 018A

Figure 4 - Wheel and Handle Assembly, 90/150,000 BTU/Hr Models Only

Screw

Fuel

Tank

Flange

Wheel

Support

Frame

Wheel

Cap Nut

Nut

Axle Extended

Hub

Air

Inlet

Rear

Handle

Front

Handle

Hot Air

Outlet

100743

THEORY OF

OPERATION The Fuel System: The air pump forces air through the air line. The air is then

pushed through the burner head nozzle. This air causes fuel to lift from the tank. A

ﬁne mist of fuel is sprayed into the combustion chamber.

The Air System: The motor turns the fan. The fan pushes air into and around

the combustion chamber. This air is heated and provides a stream of clean, hot air.

The Ignition System: The electronic ignitor sends voltage to the spark plug.

The spark plug ignites the fuel and air mixture.

The Flame-Out Control System (Optional Extra): This system causes the

heater to shut down if the ﬂame goes out.

THEORY CUTAWAY PFA/OV 003

Fan

Fuel

Filter

Air For Fuel

System Air For Combustion

And Heating Fuel

Spark

Plug

Combustion

Chamber Intake

Air

Filter

Motor Air Pump

Air line

To Burner Electronic

Ignitor

Burner

Head

Clean

Heated

Air Out

Cool

Air

Output

Air

Filter

Nozzle

Fuel

Tank

Figure 5 - Cross Section Operational View

FUELS

Do not use heavy fuels such as diesel. Using heavy fuels will result in:

•clogged fuel ﬁlter and nozzle

•carbon build up on spark plug

•use of non-toxic anti-icer in fuel during very cold weather

IMPORTANT:

Use a KEROSENE or PARAFFIN container. Be sure storage

container is clean. Foreign matter such as rust, dirt, or water will cause the flame-

out control to shut down heater (optional extra). Foreign matter may also require

you to clean fuel system often.

WARNING

Use only kerosene or paraffin to avoid risk of ﬁre or explo-

sion. Never use petrol, naphtha, paint thinners, alcohol or

other highly ﬂammable fuels.

100743

VENTILATION

WARNING

Follow the minimum fresh, outside air ventilation

requirements. If proper fresh, outside air ventilation is not

provided, carbon monoxide poisoning can occur. Provide

proper fresh, outside air ventilation before running heater.

Provide a fresh air opening of at least three square feet (2800 square cm) for each

100,000 BTU/Hr rating. Provide extra fresh air if more heaters are being used.

Example:

A 150,000 BTU/Hr heater requires one of the following:

•a two-car garage door raised six inches (15.24 cm)

•a single-car garage door raised nine inches (22.86 cm)

•two, thirty-inch (76.20 cm) windows raised twelve inches (30.48 cm)

Figure 6 - Flame-Out Control Reset

Button, 30/70,000 BTU/Hr

(optional extra)

Figure 7 - Flame-Out Control Reset

Button, 90,000 BTU/Hr

(optional extra)

Flame-Out

Control

Reset

Button

Continued

To Start Heater

1. Follow all ventilation and safety information.

2. Fill fuel tank with kerosene or paraffin.

3. Attach fuel cap.

4. Plug power cord of heater into standard 240 volt/50 hertz, grounded (earthed)

outlet. Use an extension cord if needed. Use only a three-prong, grounded

(earthed) extension cord.

Extension Cord Wire Size Requirements

Up to 100 feet (30.5 meters) long, use 16 AWG (1.0 mm2) conductor

101 to 200 feet (30.6 to 61 meters) long, use 14 AWG (1.5 mm2) conductor

Heater will start when power cord is plugged into outlet. If not, push in flame-

out control reset button (optional extra; see Figures 6 through 8).

OPERATION

WARNING

Review and understand the warnings in the Safety

Information Section. They are needed to safely operate this

heater. Follow all local codes when using this heater.

ELECTRICITY

SUPPLY

This heater is designed to run off 240 volts/50 hertz. The power cord should be

wired into a 13-amp plug using the following color code.

Green and Yellow - Earth Brown - Live Blue - Neutral

Flame-Out

Control

Reset

Button

100743

OPERATION

Continued

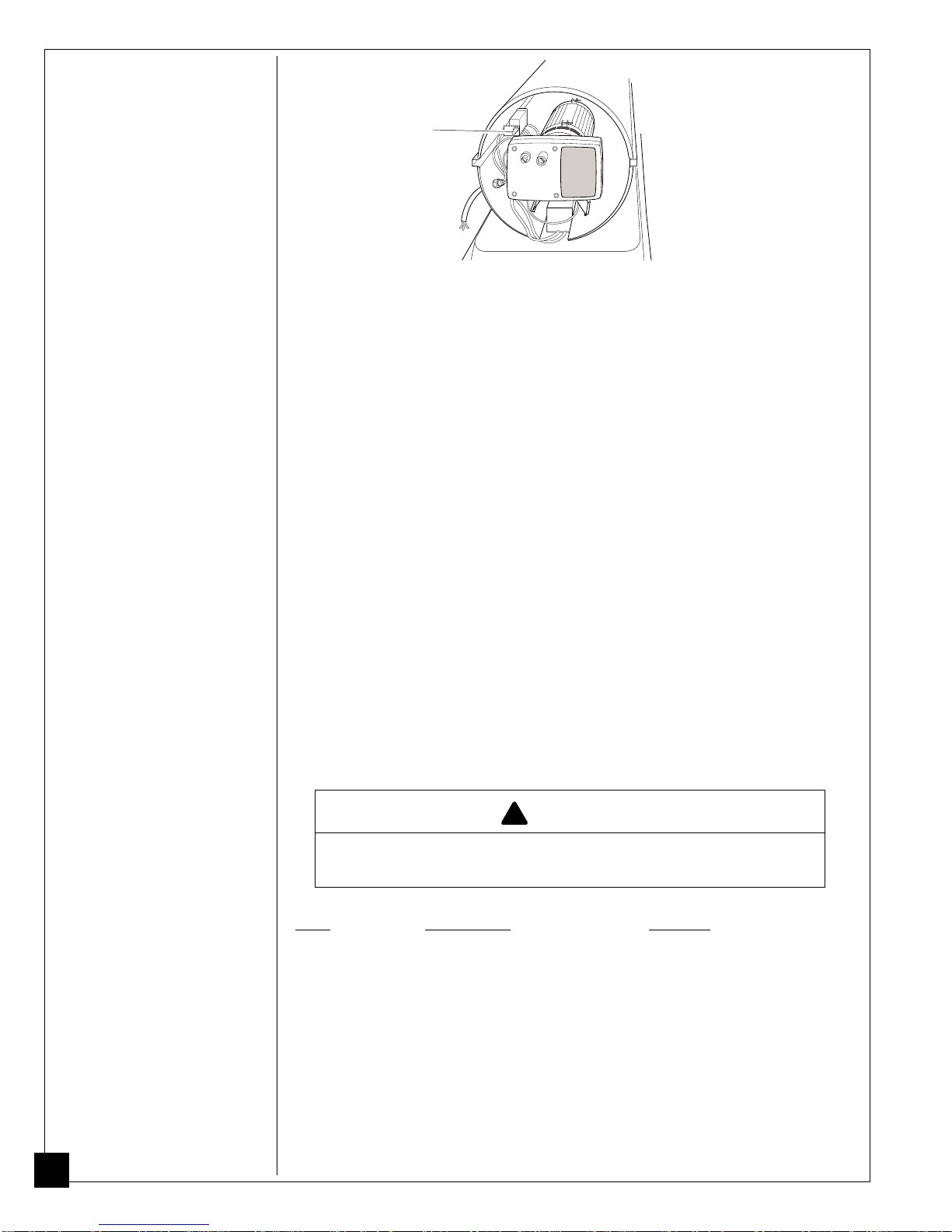

Figure 8 - Flame-Out Control Reset Button, 150,000 BTU/Hr (Optional Extra)

Continued

PREVENTATIVE

MAINTENANCE

SCHEDULE

Item How Often How To

Fuel tank Flush every 150-200 hours See Storage above.

of operation or as needed.

Air output and Replace every 500 hours of See Air Output, Air Intake,

lint ﬁlters operation or once a year. and Lint Filters, page 14.

Air intake Wash and dry with soap and See Air Output, Air Intake,

ﬁlter water every 500 hours of and Lint Filters, page 14.

operation or as needed.

Fuel ﬁlter Clean twice a heating season See Fuel Filter, pages 10

or as needed. and 11.

To Stop Heater

1. Unplug power cord from outlet.

To Restart Heater

1. Wait 2 minutes after stopping heater.

2. Repeat steps under To Start Heater, page 7.

WARNING

Never service heater while it is plugged in, operating, or

hot. Severe burns and electrical shock can occur.

STORAGE 1. Drain fuel tank.

Note:

Some models have drain plug on underside of fuel tank. If so, remove

drain plug to drain all fuel. If heater does not have drain plug, drain fuel

through fuel cap opening. Be sure all fuel is removed.

2. Replace drain plug if used.

3. Add one gallon (4 liters) of clean kerosene or paraffin to fuel tank.

4. Attach fuel cap.

5. Move heater forwards and backwards to stir fuel.

6. Remove fuel cap or drain plug and drain fuel tank. Be sure all fuel is removed.

7. Replace fuel cap or drain plug. Properly dispose of old and dirty fuel.

8. Store heater in dry place. Make sure storage place is free of dust and corrosive

fumes.

IMPORTANT:

Do not store kerosene or paraffin over summer months for use

during next heating season. Using old fuel could damage heater.

Flame-Out

Control

Reset Button

(Fan Guard

Removed)

100743

Continued

Item How Often How To

Spark plug Clean and regap every 600 See Spark Plug, pages 12 and 13.

hours operation or replace

as needed.

Fan blades Clean every season or as needed. See Fan, page 19.

Motor Not required/permanently lubricated

TROUBLE-

SHOOTING

OBSERVED FAULT POSSIBLE CAUSE REMEDY

Wrong pump pressure

Dirty air output, air intake,

and lint ﬁlters

Dirty fuel ﬁlter

Dirt in nozzle

Dirty photocell lens

Bad flame-out control

Heater ignites, but

flame-out control

shuts off heater after

a short period of

time.

See Pump Pressure

Adjustment, page 14.

See Air Output, Air Intake

and Lint Filters, page 14.

See Fuel Filter, pages 10

and 11.

See Nozzle, pages 15

through 17.

Clean photocell lens.

Replace flame-out control.

WARNING

Never service heater while it is plugged in, operating, or hot.

Severe burns and electrical shock can occur.

Heater will not

ignite, but motor runs

for a short period of

time.

Wrong pump pressure

Carbon deposits on spark

plug and/or improper gap

Dirty fuel ﬁlter

Dirt in nozzle

Water in fuel tank

Electronic ignitor not

grounded (earthed)

Faulty electronic ignitor

See Pump Pressure

Adjustment, page 14.

See Spark Plug, pages 12

and 13.

See Fuel Filter, pages 10

and 11.

See Nozzle, pages 15

through 17.

Drain and ﬂush fuel tank

with clean kerosene. See

Storage, page 8.

Ensure electronic ignitor

mounting is tight.

Replace electronic

ignitor.

Motor does not start

when heater is

plugged in, fan

rotates slowly or

does not turn.

Flame-out control not reset

Binding pump rotor

Reset flame-out control

button, see Figures 6

through 8, pages 7 and 8.

If fan is hard to turn, see

Pump Rotor, page 18.

WARNING: High voltage!

100743

150 SHELL REMOVAL EA/EB Euro PV 020

Upper

Shell

Fan

Guard

Figure 12 - Fuel Filter Removal, 30/70,000 BTU/Hr Models

Figure 11 - Upper Shell Removal, 150,000 BTU/Hr Model

Figure 9 - Upper Shell Removal,

30/70,000 BTU/Hr Models Figure 10 - Upper Shell Removal,

90,000 BTU/Hr Model

Side Cover

Fuel Filter

(30/70,000 BTU/Hr Models)

1. Remove side cover screws

using 5/16" nut-driver.

2. Remove side cover.

3. Pull rubber fuel line off

fuel ﬁlter neck.

4. Carefully pry bushing and

fuel ﬁlter out of fuel tank.

5. Wash fuel ﬁlter with clean

fuel and replace in tank.

6. Attach rubber fuel line to

fuel ﬁlter neck.

7. Replace side cover.

Fan Guard

Upper

Shell

SERVICE

PROCEDURES

WARNING

Never service heater while it is plugged in, operating, or

hot. Severe burns and electrical shock can occur.

Upper Shell Removal

1. Remove screws along each

side of heater using 5/16"

nut-driver. These screws

attach upper and lower

shells together.

2. Lift upper shell off.

3. Remove fan guard.

Fuel Filter

Fuel Line

Upper

Shell

Fan

Guard

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Master Heizung Handbücher

Master

Master B35CED Bedienungsanleitung

Master

Master SSR-822R-IHR Schulungshandbuch

Master

Master BLP 11 Handbuch

Master

Master BLP 100 kW E Bedienungsanleitung

Master

Master B30LP Bedienungsanleitung

Master

Master MH-375T-GFA-A Schulungshandbuch

Master

Master MH-150T-DFV Handbuch

Master

Master B 65 CEL Bedienungsanleitung

Master

Master BLP 100 E Bedienungsanleitung

Master

Master B 3 EPB W 110 Handbuch

Master

Master BV 110 E Bedienungsanleitung

Master

Master BY100CEB Bedienungsanleitung

Master

Master BV 110 E Bedienungsanleitung

Master

Master B 2 EPB Handbuch

Master

Master B 5 ECA Bedienungsanleitung

Master

Master B 9 ECA Bedienungsanleitung

Master

Master B100A Installationsanleitung

Master

Master B-155E Einrichtungshandbuch

Master

Master B100ECA Bedienungsanleitung

Master

Master WA 41 A Bedienungsanleitung

Master

Master MH-410TCF-120 Schulungshandbuch

Master

Master BV Series Handbuch

Master

Master B 18 EPR Bedienungsanleitung

Master

Master B 2 EPA Bedienungsanleitung

Beliebte Heizung Handbücher anderer Marken

oventrop

oventrop Regucor Series Bedienungsanleitung

Blaze King

Blaze King CLARITY CL2118.IPI.1 Bedienungsanleitung

ELMEKO

ELMEKO ML 150 Bedienungsanleitung

BN Thermic

BN Thermic 830T Bedienungsanleitung

KING

KING K Series Leitfaden

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Kurzanleitung

Well Straler

Well Straler RC-16B Bedienungsanleitung

EUROM

EUROM 333299 Bedienungsanleitung

Heylo

Heylo K 170 Bedienungsanleitung

Eterna

Eterna TR70W Bedienungsanleitung

Clarke

Clarke GRH15 Bedienungsanleitung

IRSAP

IRSAP The Radiator Company Ovali Bedienungsanleitung

Empire Heating Systems

Empire Heating Systems WCC65 Bedienungsanleitung

Wetekom

Wetekom 92 86 43 Bedienungsanleitung

Desa

Desa SPC170-F Bedienungsanleitung

Watlow

Watlow Watrod Electric Tubular Heaters Bedienungsanleitung

Haverland

Haverland ECO-DRY GPS Series Stücklistenhandbuch

Stelpro

Stelpro ASILVC2060 Series Bedienungsanleitung
