IMPORTANT

Read and understand this manual before assembling, starting or servicing

heater. Improper use of heater can cause serious injury. Keep this manual

for future reference.

PORTABLE

FORCED

AIR HEATER

OWNER’S MANUAL

Model BH150CE

Heater Size: 44 kW (150,000 BTU/Hr)

101487

Safety Information.........................................................................3

Product Identiﬁcation .................................................................... 4

Unpacking......................................................................................4

Assembly .......................................................................................5

Theory of Operation ......................................................................6

Fuels ..............................................................................................6

Ventilation .....................................................................................7

Operation .......................................................................................7

Storage ........................................................................................... 8

Preventative Maintenance Schedule..............................................8

Troubleshooting.............................................................................9

Service Procedures ........................................................................10

Upper Shell Removal ..............................................................10

Fuel Filter ................................................................................ 10

Spark Plug ............................................................................... 11

Air Output, Air Intake, and Lint Filters .................................. 11

Pump Pressure Adjustment .....................................................12

Nozzle .....................................................................................12

Pump Rotor ............................................................................. 13

Fan........................................................................................... 14

Speciﬁcations................................................................................. 15

Wiring Diagram.............................................................................15

Illustrated Parts Breakdown and Parts List....................................16, 17

Wheels and Handles................................................................ 18

Accessories ....................................................................................18

Warranty and Repair Service......................................................... Back Cover

CONTENTS SECTION PAGE

101487

SAFETY

INFORMATION WARNINGS

IMPORTANT: Read this owner’s manual carefully and completely

before trying to assemble, operate, or service this heater. Improper

use of this heater can cause serious injury or death from burns, ﬁre,

explosion, electrical shock, and carbon monoxide poisoning.

Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning

resembletheﬂu,with headaches, dizziness, or nausea. If youhavethesesigns,the

heater may not be working properly. Getfresh air atonce!Have heater serviced.

Some people are more affected by carbon monoxide than others. These include

pregnant women, persons with heart or lung disease or anemia, those under the

influence of alcohol, and those at high altitudes.

Make certain you read and understand all warnings. Keep this manual for

reference. It is your guide to safe and proper operation of this heater.

• Use only kerosene or No. 1 fuel oil to avoid risk of ﬁre or explosion. Never

use gasoline, naphtha, paint thinners, alcohol, or other highly ﬂammable

fuels.

• Never use heater where gasoline, paint thinner, or other highly ﬂammable

vapors are present.

• Follow all local ordinances and codes when using heater.

• Use only in well-vented areas. Provide at least a 2800 square cm (3-square-

foot) opening of fresh, outside air for each 29.3 kW (100,000 BTU/Hr) of

rating.

• Use only in places free of ﬂammable vapors or high dust content.

• Use only with the electrical voltage and frequency speciﬁed on model plate.

• Use only a three-prong, grounded (earthed) extension cord.

• Minimum heater clearances from combustibles:

Outlet: 250 cm (8 Ft.) Sides, Top, and Rear: 125 cm (4 Ft.)

• Locate heater on a stable and level surface while hot or running or a ﬁre may

occur.

• When moving or storing heater, keep heater in a level position or fuel

spillage may occur.

• Keep children and animals away from heater.

• Unplug heater when not in use.

• When used with thermostat, heater may start anytime.

• Never use heater in living or sleeping areas.

• Never block air inlet (rear) or air outlet (front) of heater.

• Never move, handle, refuel, or service a hot, operating, or plugged-in heater.

• Never attach duct work to front or rear of heater. Using duct work could

reduce the necessary air flow of heater. Heater would produce excessive

carbon monoxide.

DANGER

Carbon monoxide poisoning may lead to death!

101487

PRODUCT

IDENTIFICATION

Fuel Cap

Lower

Shell

Power Cord

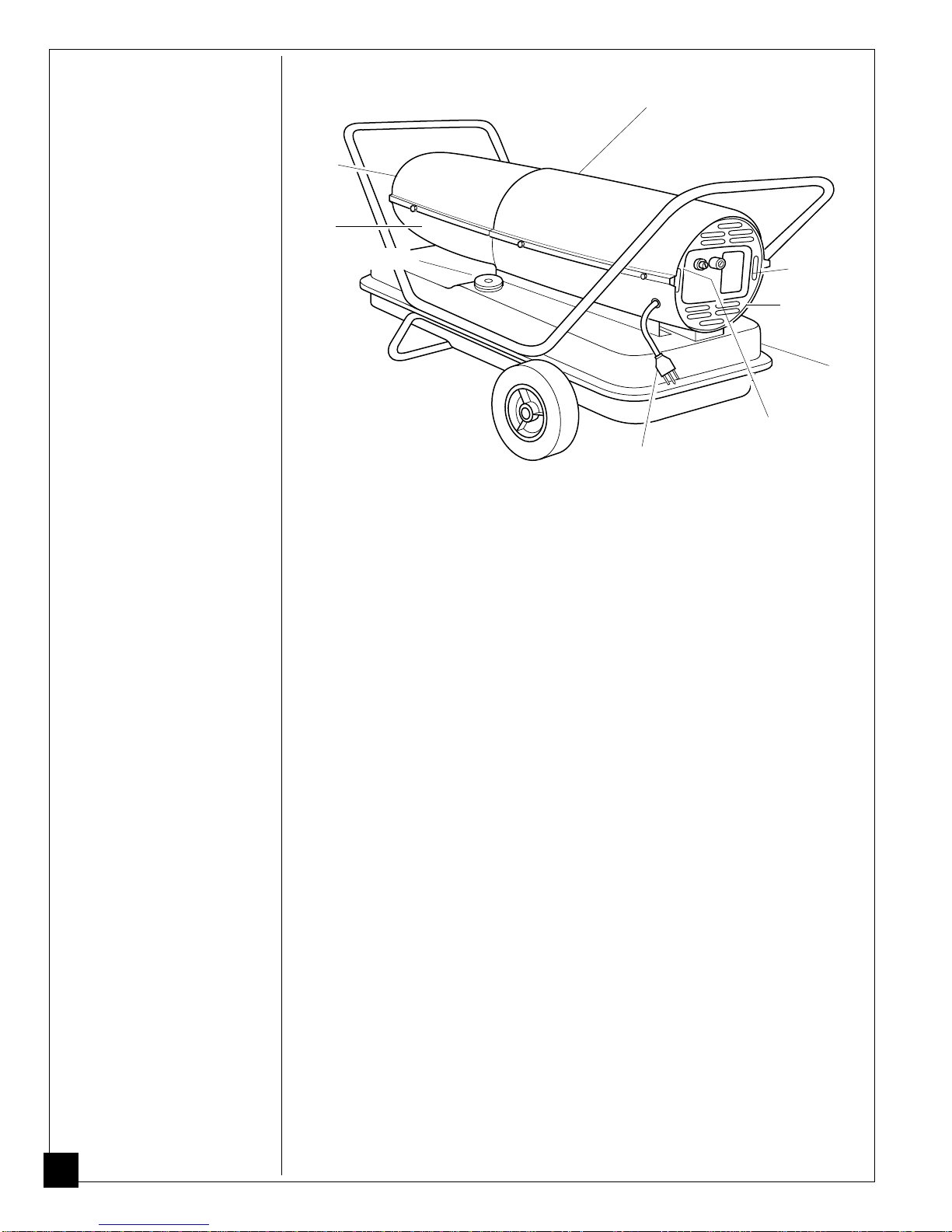

Figure 1 - 44 kW (150,000 BTU/Hr) Model

Hot Air

Outlet

Fuel

Tank

Fan Guard

Air Filter

End Cover

Flame-Out Control

Reset Button

Upper Shell

UNPACKING 1. Remove all packing items applied to heater for shipment.

2. Remove all items from carton.

3. Check items for any shipping damage. If heater is damaged, promptly inform

dealer where you bought heater.

101487

ASSEMBLY These models are furnished with wheels and handles. Wheels, handles, and the

mounting hardware are found in the shipping carton.

Tools Needed

• Medium Phillips Screwdriver

• 3/8" Open or Adjustable Wrench

• Hammer

1. Slide axle through wheel support frame. Install wheels on axle.

IMPORTANT:

When installing wheels, point extended hub of wheels toward

wheel support frame (see Figure 2).

2. Place cap nuts on axle ends. Gently tap with hammer to secure.

3. Placeheateronwheelsupportframe.Makesureairinletend(rear)ofheaterisover

wheels. Line up holes on fuel tank ﬂange with holes on wheel support frame.

4. Place front handle and rear handle on top of fuel tank ﬂange. Insert screws

through handles, fuel tank ﬂange, and wheel support frame. Attach nut ﬁnger

tight after each screw is inserted.

5. After all screws are inserted, tighten nuts ﬁrmly.

Screw

Fuel

Tank

Flange

Wheel

Support

Frame

Wheel

Cap Nut

Nut

Extended

Hub

Air

Inlet

Rear

Handle

Hot Air

Outlet

Axle

Front Handle

Figure 2 - Wheel and Handle Assembly

101487

THEORY OF

OPERATION The Fuel System: The air pump forces air through the air line. The air is then

pushed through the burner head nozzle. This air causes fuel to lift from the tank. A

ﬁne mist of fuel is sprayed into the combustion chamber.

The Air System: The motor turns the fan. The fan pushes air into and around

the combustion chamber. This air is heated and provides a stream of clean, hot air.

The Ignition System: The electronic ignitor sends voltage to the spark plug.

The spark plug ignites the fuel and air mixture.

The Flame-Out Control System: This system causes the heater to shut down

if the ﬂame goes out.

Fan

Fuel

Filter

Air For Fuel

System Air For Combustion

And Heating Fuel

Spark

Plug

Combustion

Chamber Intake

Air

Filter

Motor Air Pump

Air line

To Burner Electronic

Ignitor

Burner

Head

Clean

Heated

Air Out

Cool

Air

Output

Air

Filter

Nozzle

Fuel

Tank

Figure 3 - Cross Section Operational View

FUELS

Do not use heavy fuels such as No. 2 fuel oil or No. 2 Diesel. Using heavy fuels

will result in:

• clogged fuel ﬁlter and nozzle

• carbon build up on spark plug

• use of non-toxic anti-icer in fuel during very cold weather

IMPORTANT:

Use a KEROSENE ONLY container. Be sure storage container is

clean. Foreign matter such as rust, dirt, or water will cause the flame-out control to

shut down heater. Foreign matter may also require you to clean fuel system often.

WARNING

Use only kerosene or No. 1 fuel oil to avoid risk of ﬁre or

explosion. Never use gasoline, naphtha, paint thinners,

alcohol or other highly ﬂammable fuels.

101487

VENTILATION

Continued

Provide a fresh air opening of at least 2800 square cm (3 square feet) for each 29.3

kW (100,000 BTU/Hr) rating. Provide extra fresh air if more heaters are being

used.

Example:

A 44 kW (150,000 BTU/Hr) heater requires one of the following:

• a 4.88 m (16 foot) wide two-car garage door raised 8.59 cm (3.38 inches)

• a 2.75 m (9 foot) wide single-car garage door raised 15.24 cm (6 inches)

• two, 76.20 cm (30 inch) wide windows raised 28 cm (11 inches)

WARNING

Follow the minimum fresh, outside air ventilation

requirements. If proper fresh, outside air ventilation is not

provided, carbon monoxide poisoning can occur. Provide

proper fresh, outside air ventilation before running heater.

OPERATION WARNING

Review and understand the warnings in the

Safety

Information Section.

They are needed to safely operate this

heater. Follow all local codes when using this heater.

To Start Heater

1. Follow all ventilation and safety information.

2. Fill fuel tank with kerosene or No. 1 fuel oil.

3. Attach fuel cap.

4. Plug power cord of heater into standard 230 volt/50 hertz, grounded (earthed)

outlet. Use an extension cord if needed. Use only a three-prong, grounded

(earthed) extension cord.

Extension Cord Wire Size Requirements

Up to 30.5 meters (100 feet) long, use 1.0 mm2(16 AWG) conductor

30.6 to 61 meters (101 to 200 feet) long, use 1.5 mm2(14 AWG) conductor

Heater will start when power cord is plugged into outlet. If not, push in flame-

out control reset button (see Figure 4).

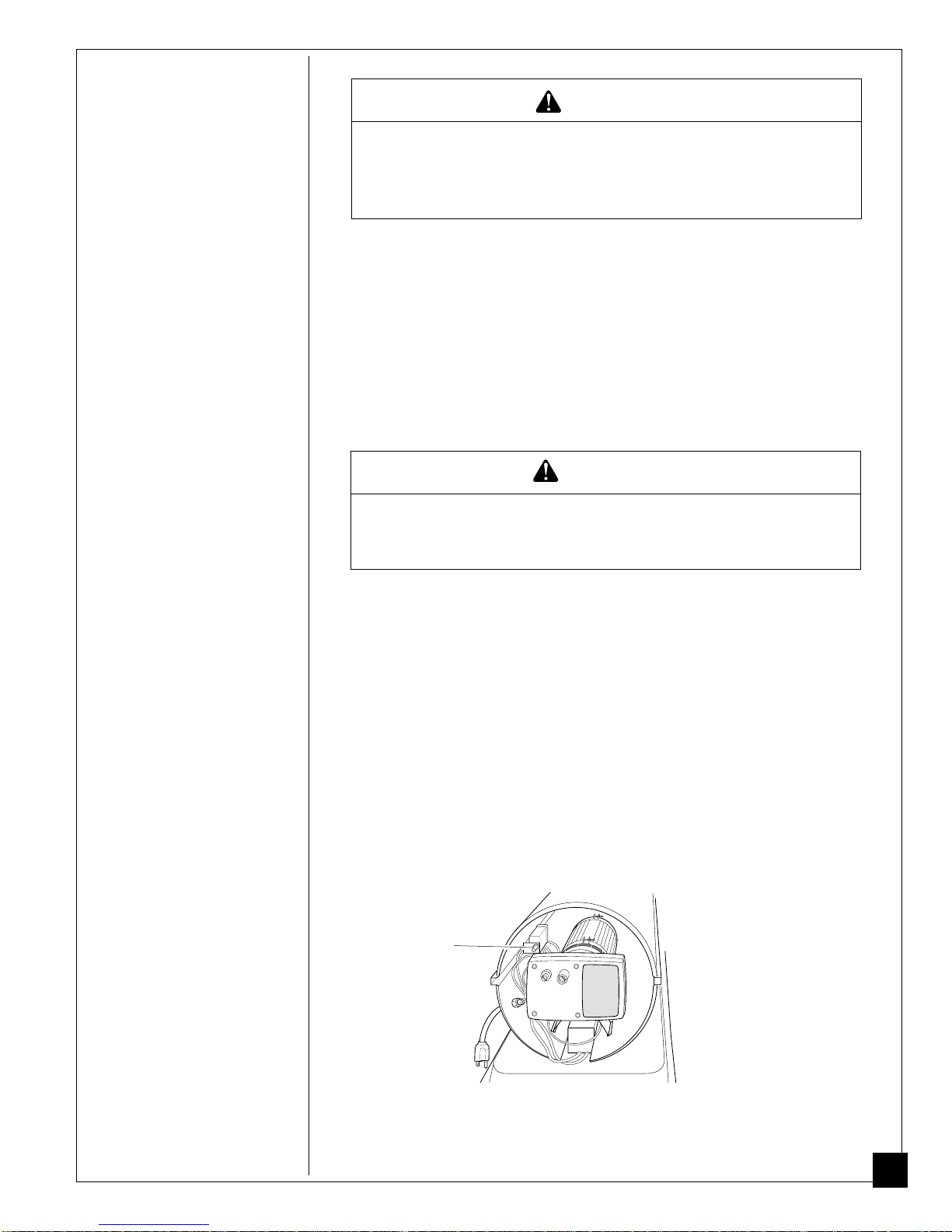

Figure 4 - Flame-Out Control Reset Button

Flame-Out

Control

Reset Button

(Fan Guard

Removed)

101487

OPERATION

Continued

To Stop Heater

1. Unplug power cord from outlet.

To Restart Heater

1. Wait 2 minutes after stopping heater.

2. Repeat steps under To Start Heater, page 7.

PREVENTATIVE

MAINTENANCE

SCHEDULE

Item How Often How To

Fuel tank Flush every 150-200 hours See Storage above.

of operation or as needed.

Air output and Replace every 500 hours of See Air Output, Air Intake,

lint ﬁlters operation or once a year. and Lint Filters, page 11.

Air intake Wash and dry with soap and See Air Output, Air Intake,

ﬁlter water every 500 hours of and Lint Filters, page 11.

operation or as needed.

Fuel ﬁlter Clean twice a heating season See Fuel Filter, page 10.

or as needed.

Spark plug Clean and regap every 600 See Spark Plug, page 11.

hours operation or replace

as needed.

Fan blades Clean every season or as needed. See Fan, page 14.

Motor Not required/permanently lubricated

WARNING

Never service heater while it is plugged in, operating, or

hot. Severe burns and electrical shock can occur.

STORAGE 1. Drain fuel tank.

Note:

Some models have drain plug on underside of fuel tank. If so, remove

drain plug to drain all fuel. If heater does not have drain plug, drain fuel

through fuel cap opening. Be sure all fuel is removed.

2. Replace drain plug if used.

3. Add 4 liters (one gallon) of clean kerosene to fuel tank.

4. Attach fuel cap.

5. Move heater forwards and backwards to stir fuel.

6. Remove fuel cap or drain plug and drain fuel tank. Be sure all fuel is removed.

7. Replace fuel cap or drain plug. Properly dispose of old and dirty fuel.

8. Store heater in dry place. Make sure storage place is free of dust and corrosive

fumes.

IMPORTANT:

Do not store kerosene over summer months for use during next

heating season. Using old fuel could damage heater.

101487

TROUBLE-

SHOOTING WARNING

Never service heater while it is plugged in, operating, or hot.

Severe burns and electrical shock can occur.

OBSERVED FAULT POSSIBLE CAUSE REMEDY

Wrong pump pressure

Dirty air output, air intake,

and lint ﬁlters

Dirty fuel ﬁlter

Dirt in nozzle

Dirty photocell lens

Bad flame-out control

Heater ignites, but

flame-out control

shuts off heater after

a short period of

time.

See Pump Pressure

Adjustment, page 12.

See Air Output, Air Intake

and Lint Filters, page 11.

See Fuel Filter, page 10.

See Nozzle, page 12.

Clean photocell lens.

Replace flame-out control.

Heater will not

ignite, but motor runs

for a short period of

time.

Wrong pump pressure

Carbon deposits on spark

plug and/or improper gap

Dirty fuel ﬁlter

Dirt in nozzle

Water in fuel tank

Electronic ignitor not

grounded (earthed)

Bad electronic ignitor

See Pump Pressure

Adjustment, page 12.

See Spark Plug, page 11.

See Fuel Filter, page 10.

See Nozzle, page 12.

Drain and ﬂush fuel tank

with clean kerosene. See

Storage, page 8.

Make sure electronic

ignitor mounting is tight.

Replace electronic

ignitor.

Reset flame-out control

button, see Figure 4,

page 7.

If fan is hard to turn, see

Pump Rotor, page 13.

WARNING: High voltage!

Flame-out control not reset

Binding pump rotor

Motor does not start

when heater is

plugged in, fan

rotates slowly or

does not turn.

101487

SERVICE

PROCEDURES

Upper Shell Removal

1. Remove screws along each

side of heater using 5/16"

nut-driver. These screws

attach upper and lower

shells together.

2. Lift upper shell off.

3. Remove fan guard.

WARNING

Never service heater while it is plugged in, operating, or

hot. Severe burns and electrical shock can occur.

Fuel Filter

1. Remove upper shell (see

page 10).

2. Remove fan (see page 14).

3. Loosen ﬂare nut using 3/4"

open-end wrench. Push fuel

tube down, away from

burner head. Fuel ﬁlter is

located inside of fuel tube.

4. Lift out fuel ﬁlter.

5. Wash fuel ﬁlter with clean

fuel and replace in fuel

tube.

6. Connect fuel tube to burner

head. Attach ﬂare nut until

nut seats against fuel tube

and ﬁtting. Tighten 1/4 turn

more using 3/4" open-end

wrench (11.3-14.7 n-m/

100-130 inch-pounds).

7. Replace fan (see page 14).

8. Replace fan guard and

upper shell.

Upper

Shell

Fan Guard

Figure 5 - Upper Shell Removal

Burner

Head

Combustion

Chamber

Fuel Filter

Fuel Tube

Flare Nut

Figure 6 - Fuel Filter Removal

Inhaltsverzeichnis

Andere Master Heizung Handbücher

Master

Master B 2 PTC Handbuch

Master

Master 140TMHD-KFA Schulungshandbuch

Master

Master B 1,8 ECA Bedienungsanleitung

Master

Master BV125EDI Bedienungsanleitung

Master

Master MH-60V-GFA-A Schulungshandbuch

Master

Master BJA70B Bedienungsanleitung

Master

Master BY35CEA Bedienungsanleitung

Master

Master B100 Bedienungsanleitung

Master

Master MH-18-PCH-A Bedienungsanleitung

Master

Master B 3 EPB W 110 Handbuch

Master

Master BLP 33 kW Bedienungsanleitung

Master

Master B350CE Bedienungsanleitung

Master

Master XL 61 Handbuch

Master

Master BV 110 E Bedienungsanleitung

Master

Master B100A Installationsanleitung

Master

Master MH-515-120 Schulungshandbuch

Master

Master WA 41 A Bedienungsanleitung

Master

Master BV 100E Bedienungsanleitung

Master

Master MH-40-GFA Schulungshandbuch

Master

Master TENTEvent125 TB116A Bedienungsanleitung

Master

Master WA 29 A Handbuch

Master

Master BY100CE Bedienungsanleitung

Master

Master BV 77E Bedienungsanleitung

Master

Master TS 3 AI Bedienungsanleitung

Beliebte Heizung Handbücher anderer Marken

oventrop

oventrop Regucor Series Bedienungsanleitung

Blaze King

Blaze King CLARITY CL2118.IPI.1 Bedienungsanleitung

ELMEKO

ELMEKO ML 150 Bedienungsanleitung

BN Thermic

BN Thermic 830T Bedienungsanleitung

KING

KING K Series Leitfaden

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Kurzanleitung

Well Straler

Well Straler RC-16B Bedienungsanleitung

EUROM

EUROM 333299 Bedienungsanleitung

Heylo

Heylo K 170 Bedienungsanleitung

Eterna

Eterna TR70W Bedienungsanleitung

Clarke

Clarke GRH15 Bedienungsanleitung

IRSAP

IRSAP The Radiator Company Ovali Bedienungsanleitung

Empire Heating Systems

Empire Heating Systems WCC65 Bedienungsanleitung

Wetekom

Wetekom 92 86 43 Bedienungsanleitung

Desa

Desa SPC170-F Bedienungsanleitung

Watlow

Watlow Watrod Electric Tubular Heaters Bedienungsanleitung

Haverland

Haverland ECO-DRY GPS Series Stücklistenhandbuch

Stelpro

Stelpro ASILVC2060 Series Bedienungsanleitung
