TECHNICAL HANDBOOK

Matrix L33-ER

Ed 06.01.4001 Electronic board SPWR

I.SO Italia S.p.A.

INDUSTRIA SOLARIUM

Via G. Di Vittorio n° 30

30029-S. Stino di Livenza (VE)

Tel. +39 0421-311700

Fax +39 0421-311702

www. Isoitalia.com

E-mail [email protected]

Read all precautions and

instructions in this manual

before using this equipment.

ONLY FOR INFORMATION

www.isoitalia.us

ONLY FOR INFORMATION

www.isoitalia.us

ONLY FOR INFORMATION

www.isoitalia.us

ONLY FOR INFORMATION

www.isoitalia.us

TERMINAL BOARD OF THE ELECTRIC BOARD

N° Description

PE Ground

1 General Neutral

2 Supply phase of the auxiliary circuit

3 Supply Neutral of the auxiliary circuit

Face Start

4 Phase L1 – supply of the face lamp 1/2/7

5 Neutral o second supply phase of the face lamp 1/2/7

6 Supply Neutral of the face lamp 1/2/7 (for 400 V 3F+ N)

7 Supply Phase L2 of the face lamp 1/2/7 (for 230V 3F)

8 Supply Phase L2 of the face lamp 8/13/14

9 Neutral o second supply phase of the face lamps 8/13/14

10 Supply Neutral of the face lamp 8/13/14 (for 400 V 3F+ N)

11 Supply Phase L3 of the face lamp 8/13/14 (for 230V 3F)

First Body Start

12 Supply Phase L1 of the lamps 3/19/20/21 - upfor body

13 Neutral or second supply phase of the lamp 3/19/20/21- upfor body

14 Supply Neutral of the lamps 3/19/20/21 - upfor body (for 400 V 3F+ N)

15 Supply Phase L2 of the lamps3/19/20/21 - upfor body (for 230V 3F)

16 Supply Phase of the L2 lamps 9/24/25/26 - upfor body

17 Neutral or second supply phase of the lamps 9/24/25/26 - upfor body

18 Supply Neutral of the lamps 9/24/25/26 - upfor body (for 400 V 3F+ N)

19 Supply Phase L3 of the lamps 9/24/25/26 - upfor body (for 230V 3F)

20 Supply Phase L3 of the lamps 15/29/30/31 - upfor body

21 Neutral or second supply phase of the lamps 15/29/30/31 - upfor body

22 Supply Neutral of the lamps 15/29/30/31 - upfor body (for 400 V 3F+ N)

23 Supply Phase L1 of the lamps 15/29/30/31 - upfor body (for 230V 3F)

Second Body Start

24 Supply Phase L1 of the lamps 4/5/6/22/23 - upfor body

25 Neutral or second supply phase of the lamps 4/5/6/22/23 - upfor body

26 Supply Neutral of the lamps 4/5/6/22/23 - upfor body (for 400 V 3F+ N)

27 Supply Phase L2 of the lamps 4/5/6/22/23 - upfor body (for 230V 3F)

28 Supply Phase L2 of the lamps 10/11/12/27/28 - upfor body

29 Neutral or second supply phase of the lamps 10/11/12/27/28 - upfor body

30 Supply Neutral of the lamps10/11/12/27/28 - upfor body (for 400 V 3F+ N)

31 Supply Phase L3 of the lamps 10/11/12/27/28 - upfor body (for 230V 3F)

32 Supply Phase L3 of the lamps 16/17/18/32/33 - upfor body

33 Neutral or second supply phase of the lamps 16/17/18/32/33 - upfor body

34 Supply Neutral of the lamps 16/17/18/32/33 - upfor body (for 400 V 3F+ N)

35 Supply Phase L1 of the lamps 16/17/18/32/33 - upfor body (for 230V 3F)

36 External Start (coin box)

37 External Start (coin box)

38 contact NO teleruptor

39 contact NO teleruptor

40 nc

41 nc

42 emergency botton

43 emergency botton

ONLY FOR INFORMATION

www.isoitalia.us

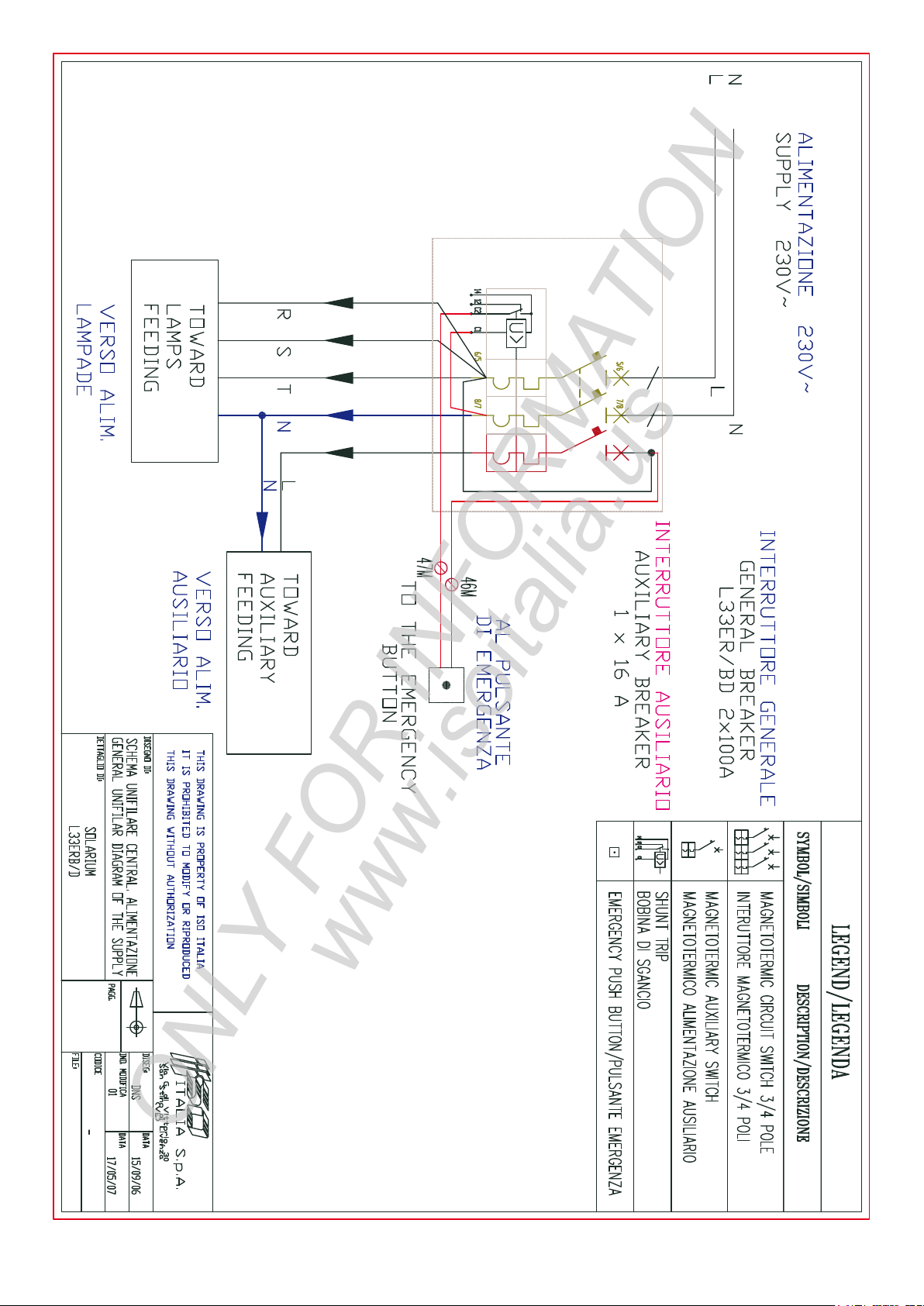

WIRING DIAGRAM

Protective covering - ballasts box 1

Connector n°1

1 Ballast outputput of the lamp n° 1

2 Ballast inputput of the lamp n° 1

3 Ballast outputput of the lamp n° 2

4 Ballast inputput of the lamp n° 2

5 Ballast outputput of the lamp n° 3

6 Ballast inputput of the lamp n° 3

7 Ballast outputput of the lamp n° 4

8 Ballast inputput of the lamp n° 4

9 Ballast outputput of the lamp n° 5

10 Ballast inputput of the lamp n° 5

11 Ballast outputput of the lamp n° 6

12 Ballast inputput of the lamp n° 6

13 Ballast outputput of the lamp n° 7

14 Ballast inputput of the lamp n° 7

15 Ballast outputput of the lamp n° 8

16 Ballast inputput of the lamp n° 8

17 Ballast outputput of the lamp n° 9

18 Ballast inputput of the lamp n° 9

19 Ballast outputput of the lamp n° 10

20 Ballast inputput of the lamp n° 10

21:24 N.c.

Ground

Protective covering - ballasts box 2

Connector n°2

1 Ballast outputput of the lamp n° 11

2 Ballast inputput of the lamp n° 11

3 Ballast outputput of the lamp n° 12

4 Ballast inputput of the lamp n° 12

5 Ballast outputput of the lamp n° 13

6 Ballast inputput of the lamp n° 13

7 Ballast outputput of the lamp n° 14

8 Ballast inputput of the lamp n° 14

9 Ballast outputput of the lamp n° 15

10 Ballast inputput of the lamp n° 15

11 Ballast outputput of the lamp n° 16

12 Ballast inputput of the lamp n° 16

13 Ballast outputput of the lamp n° 17

14 Ballast inputput of the lamp n° 17

15 Ballast outputput of the lamp n° 18

16 Ballast inputput of the lamp n° 18

17 Ballast outputput of the lamp n° 19

18 Ballast inputput of the lamp n° 19

19 Ballast outputput of the lamp n° 20

20 Ballast inputput of the lamp n° 20

21 Ballast outputput of the lamp n° 21

22 Ballast inputput of the lamp n° 21

23:24 N.c.

Ground

Protective covering - lamps

Connector n°5

1 Ballast outputput of the lamp n° 13

2 Neutral or second phase-lamp n°13

3 Ballast outputput of the lamp n° 14

4 Neutral or second phase-lamp n°14

5 Ballast outputput of the lamp n° 15

6 Neutral or second phase-lamp n°15

7 Ballast outputput of the lamp n° 16

8 Neutral or second phase-lamp n°16

9 Ballast outputput of the lamp n° 17

10 Neutral or second phase-lamp n°17

11 Ballast outputput of the lamp n° 18

12 Neutral or second phase-lamp n°18

13 Channel 1 for lter Pan A and B

14 Channel 1 for lter Pan A and B

15 Channel 2 for lter Pan C

16 Channel 2 for lter Pan C

Ground

Protective covering - lamps

Connector n°6

1 Ballast outputput of the lamp n° 19

2 Neutral or second phase-lamp n°19

3 Ballast outputput of the lamp n° 20

4 Neutral or second phase-lamp n°20

5 Ballast outputput of the lamp n° 21

6 Neutral or second phase-lamp n°21

7 Ballast outputput of the lamp n° 22

8 Neutral or second phase-lamp n°22

9 Ballast outputput of the lamp n° 23

10 Neutral or second phase-lamp n°23

11 Ballast outputput of the lamp n° 24

12 Neutral or second phase-lamp n°24

13 Ballast outputput of the lamp n° 25

14 Neutral or second phase-lamp n°25

15 Ballast outputput of the lamp n° 26

16 Neutral or second phase-lamp n°26

17 Ballast outputput of the lamp n° 27

18 Neutral or second phase-lamp n°27

19 Ballast outputput of the lamp n° 28

20 Neutral or second phase-lamp n°28

21 Ballast outputput of the lamp n° 29

22 Neutral or second phase-lamp n°29

23 Ballast outputput of the lamp n° 30

24 Neutral or second phase-lamp n°30

Ground

Protective covering - ballasts box 3

Connector n°3

1 Output of the lamp n° 22 ballast

2 Input of the lamp n° 22 ballast

3 Output of the lamp n° 23 ballast

4 Ballast inputput of the lamp n° 23

5 Ballast outputput of the lamp n° 24

6 Ballast inputput of the lamp n° 24

7 Ballast outputput of the lamp n° 25

8 Ballast inputput of the lamp n° 25

9 Ballast outputput of the lamp n° 26

10 Ballast inputput of the lamp n° 26

11 Ballast outputput of the lamp n° 27

12 Ballast inputput of the lamp n° 27

13 Ballast outputput of the lamp n° 28

14 Ballast inputput of the lamp n° 28

15 Ballast outputput of the lamp n° 29

16 Ballast inputput of the lamp n° 29

17 Ballast outputput of the lamp n° 30

18 Ballast inputput of the lamp n° 30

19 Ballast outputput of the lamp n° 31

20 Ballast inputput of the lamp n° 31

21 Ballast outputput of the lamp n° 32

22 Ballast inputput of the lamp n° 32

23 Ballast outputput of the lamp n° 33

24 Ballast inputput of the lamp n° 33

Ground

Protective covering - lamps

Connector n°4

1 Ballast outputput of the lamp n° 1

2 Neutral or second phase-lamp n°1

3 Ballast outputput of the lamp n° 2

4 Neutral or second phase-lamp n°2

5 Ballast outputput of the lamp n° 3

6 Neutral or second phase-lamp n°3

7 Ballast outputput of the lamp n° 4

8 Neutral or second phase-lamp n°4

9 Ballast outputput of the lamp n° 5

10 Neutral or second phase-lamp n° 5

11 Ballast outputput of the lamp n° 6

12 Neutral or second phase-lamp n° 6

13 Ballast outputput of the lamp n° 7

14 Neutral or second phase-lamp n° 7

15 Ballast outputput of the lamp n° 8

16 Neutral or second phase-lamp n° 8

17 Ballast outputput of the lamp n° 9

18 Neutral or second phase-lamp n° 9

19 Ballast outputput of the lamp n° 10

20 Neutral or second phase-lamp n°10

21 Ballast outputput of the lamp n° 11

22 Neutral or second phase-lamp n°11

23 Ballast outputput of the lamp n° 12

24 Neutral or second phase-lamp n°12

Ground

ONLY FOR INFORMATION

www.isoitalia.us

Protective covering–lamps and other

Connector n°7

1 Ballast outputput of the lamp n° 31

2 Neutral or second phase-lamp n°31

3 Ballast outputput of the lamp n° 32

4 Neutral or second phase-lamp n°32

5 Ballast outputput of the lamp n° 33

6 Neutral or second phase-lamp n°33

7 Supply neutral of the extractors

8 Supply phase of the extractors

9 Supply of the header engine

10 Supply of the header engine

11 Supply of the panel engine B and E

12 Supply of the panel engine B and E

13 Supply mark lamp

14 Supply mark lamp

15 Led test

16 Led test

Ground

Protective covering - auxiliary service

Connector n°8

1 Supply neutral of the lamp ventilation

2 Supply phase of the lamp ventilation

3 Supply neutr.of the adjust ventilation

4 Supply phase of the adjust ventilation

5 Emergency button contact

6 Emergency button contact

7 Electromecc. Key contact

8 Electromecc. Key contact

9 Positive of the radio supply

10 Negative of the radio supply

11 positive left radio

12 negative left radio

13 positive right radio

14 negative right radio

15 positive left sintesiss

16 negative left right sintesiss

17 positive rigt sintesiss

18 termal probe

19 termal probe

20 Channel 3 for lter Pan D

21 Channel 3 for lter Pan D

22 Channel 4 for lter Pan E and F

23 Channel 4 for lter Pan E and F

24 N.C.

Ground

Panel PA

Connector n°9

1 Ballast outputput of the lamp n° 1

2 Neutral or second phase-lamp n° 1

3 Ballast outputput of the lamp n° 2

4 Neutral or second phase-lamp n° 2

5 Ground

6 N.C.

Connector n°10

1 Ballast outputput of the lamp n° 3

2 Neutral or second phase-lamp n° 3

3 Ballast outputput of the lamp n° 4

4 Neutral or second phase-lamp n° 4

5 Ballast outputput of the lamp n° 5

6 Neutral or second phase-lamp n° 5

7 Ballast outputput of the lamp n° 6

8 Neutral or second phase-lamp n° 6

9 Supply of the panel engine PB

10 Supply of the panel engine PB

11 Supply neutral of the adjusted ventil.

12 Supply phase of the adjusted ventil.

13 board control lters contact

14 board control lters contact

15 N.C.

Connector n°21

1 Supply of the panel engine PB

2 Supply of the panel engine PB

3 Supply neutral of the adjusted ventil.

4 Supply phase of the adjusted ventil.

5 Contact of the thermal probe

6 Contact of the thermal probe

7:9 N.C.

Connector n°28

1 Contact of the thermal probe

2 Contact of the thermal probe

3 contact protective part in tension

4 contact protective part in tension

Panel PB

Connector n°11

1 Ballast outputput of the lamp n° 7

2 Neutral or second phase-lamp n° 7

3 Ballast outputput of the lamp n° 8

4 Neutral or second phase-lamp n° 8

5 Ground

6 N.C.

Connector n°12

1 Ballast outputput of the lamp n° 9

2 Neutral or second phase-lamp n° 9

3 Ballast outputput of the lamp n° 10

4 Neutral or second phase-lamp n°10

5 Ballast outputput of the lamp n° 11

6 Neutral or second phase-lamp n°11

7 Ballast outputput of the lamp n° 12

8 Neutral or second phase-lamp n°12

9 board control lters contact

10 board control lters contact

11 contact protective part in tension

12 contact protective part in tension

Panel PC

Connector n°13

1 Ballast outputput of the lamp n° 13

2 Neutral or second phase-lamp n°13

3 Ballast outputput of the lamp n° 14

4 Neutral or second phase-lamp n°14

5 Ground

6 N.C.

Connector n°14

1 Ballast outputput of the lamp n° 15

2 Neutral or second phase-lamp n°15

3 Ballast outputput of the lamp n° 16

4 Neutral or second phase-lamp n°16

5 Ballast outputput of the lamp n° 17

6 Neutral or second phase-lamp n°17

7 Ballast outputput of the lamp n° 18

8 Neutral or second phase-lamp n°18

9 board control lters contact

10 board control lters contact

11 contact protective part in tension

12 contact protective part in tension

ONLY FOR INFORMATION

www.isoitalia.us

Panel PD

Connector n°15

1 Ballast outputput of the lamp n° 19

2 Neutral or second phase-lamp n°19

3 Ballast outputput of the lamp n° 20

4 Neutral or second phase-lamp n°20

5 Ground

6 N.C.

Connector n°16

1 Ballast outputput of the lamp n° 21

2 Neutral or second phase-lamp n°21

3 Ballast outputput of the lamp n° 22

4 Neutral or second phase-lamp n°22

5 Ballast outputput of the lamp n° 23

6 Neutral or second phase-lamp n°23

7 Supply neutral of the extractors

8 Supply phase of the extractors

9 Supply of the header engine

10 Supply of the header engine

11 Filters micro-switch contact

12 Filters micro-switch contact

13 contact protective part in tension

14 contact protective part in tension

15 N.C.

Connector n°20

1 Emergency button contact

2 Emergency button contact

3 Electromecc. Key contact

4 Electromecc. Key contact

5 Led test

6 Led test

Connector n°23

1 Supply neutral extractors

2 Supply phase extractors

Ground

Connector n°24

1 Supply of the header engine

2 Supply of the header engine

Connector N°27

1 Positive supply radio

2 Negative supply radio

3 left positive radio (sintesis)

4 Output left negative radio (sintesis)

5 Output right positive radio (sintesis)

6 Output right negativeradio (sintesis)

7 Output left positive sintesis

8 Output com. left-right negative sintesis

9 Output right positive sintesis

10 Output left positive headphone

11 Output com.left-right negative headpho-

12 Output right positive headphone

Panel PE

Connector n°17

1 Ballast outputput of the lamp n° 24

2 Neutral or second phase-lamp n° 24

3 Ballast outputput of the lamp n° 25

4 Neutral or second phase-lamp n° 25

5 Ballast outputput of the lamp n° 26

6 Neutral or second phase-lamp n° 26

7 Ballast outputput of the lamp n° 27

8 Neutral or second phase-lamp n° 27

9 Ballast outputput of the lamp n° 28

10 Neutral or second phase-lamp n° 28

11 board control lters contact

12 board control lters contact

13 contact protective part in tension

14 contact protective part in tension

15 Ground

Panel PF

Connector n°18

1 Ballast outputput of the lamp n° 29

2 Neutral or second phase-lamp n° 29

3 Ballast outputput of the lamp n° 30

4 Neutral or second phase-lamp n° 30

5 Ground

6 N.C.

Connector n°19

1 Ballast outputput of the lamp n° 31

2 Neutral or second phase-lamp n° 31

3 Ballast outputput of the lamp n° 32

4 Neutral or second phase-lamp n° 32

5 Ballast outputput of the lamp n° 33

6 Neutral or second phase-lamp n° 33

7 Supply of the panel engine PE

8 Supply of the panel engine PE

9 Supply of the mark lamp

10 Supply of the mark lamp

11 board control lters contact

12 board control lters contact

13 thermal probe

14 thermal probe

15 N.C.

Connector n°33

1 contact protective part in tension

2 contact protective part in tension

Connector n°26

1 Supply of the panel engine PE

2 Supply of the panel engine PE

3 Supply of the mark lamp

4 Supply of the mark lamp

5 Contact of the thermal probe

6 Contact of the thermal probe

7:9 N.C.

ONLY FOR INFORMATION

www.isoitalia.us

ONLY FOR INFORMATION

www.isoitalia.us

ONLY FOR INFORMATION

www.isoitalia.us

Andere Handbücher für L33-ER

Inhaltsverzeichnis

Andere Matrix Whirlpool Handbücher

Matrix

Matrix L33-ER Bedienungsanleitung

Beliebte Whirlpool Handbücher anderer Marken

Bestway

Bestway Lay-Z-Spa 54189 Bedienungsanleitung

Jacuzzi

Jacuzzi ARGA ARG101C0110 Stücklistenhandbuch

Morphy Richards

Morphy Richards Essentials PC4006 Bedienungsanleitung

Softub

Softub PRESTIGE Bedienungsanleitung

JNJ SPAS

JNJ SPAS SPA-318 Installationshandbuch

KIRAMI

KIRAMI Comfort Family Bedienungsanleitung

QCA Spa

QCA Spa VS501 PAK (VL260 TOPSIDE) Bedienungsanleitung

HoMedics

HoMedics FB-655HJ-GB Bedienungsanleitung

Everyday Hot Tubs

Everyday Hot Tubs 530 Bedienungsanleitung

anko

anko SS-601A Bedienungsanleitung

Jacuzzi

Jacuzzi Duetta 6042 Bedienungsanleitung

Pooli

Pooli OS030979B Bedienungsanleitung

Jacuzzi

Jacuzzi alimia Bedienungsanleitung

ab Solares Smart Spa Bedienungsanleitung

CalderaSpas

CalderaSpas CalderaSpas Utopia Series Bedienungsanleitung

Outsunny

Outsunny 848-047V70 Bedienungsanleitung

Aquatic

Aquatic INFINITY 1 Bedienungsanleitung

Master Spas

Master Spas MP Force Bedienungsanleitung
