MATSONIC MS8157E Bedienungsanleitung

Mainboard User’s Manual

This publication, including all photographs, illustrations and

software, is protected under international copyright laws, with all

rights reserved. Neither this manual, nor any of the material

contained herein, may be reproduced without the express written

consent of the manufacturer.

The information in this document is subject to change without

notice. The manufacturer makes no representations or warranties

with respect to the contents hereof and specifically disclaims any

implied warranties of merchantability or fitness for any particular

purpose. Further, the manufacturer reserves the right to revise this

publication and to make changes from time to time in the content

hereof without obligation of the manufacturer to notify any person

of such revision or changes.

Trademarks

IBM, VGA, and PS/2 are registered trademarks of International

Business Machines.

AMD, Duron and Athlon are registered trademarks of Advanced

Micro Devices Inc.

Microsoft, MS-DOS and Windows 98/ME/NT/2000/XP are

registered trademarks of Microsoft Corporation.

PC-cillin is a registered trademark of Trend Micro Inc.

AMI is a registered trademark of American Megatrends Inc.

A3D is a registered trademark of Aureal Inc.

MediaRing Talk is a registered trademark of MediaRing Inc.

3Deep is a registered trademark of E-Color Inc.

Other names used in this publication may be trademarks and are

acknowledged.

MS8157E Series, V1.0

KM266/January 2003

Mainboard User’s Manual

Notice:

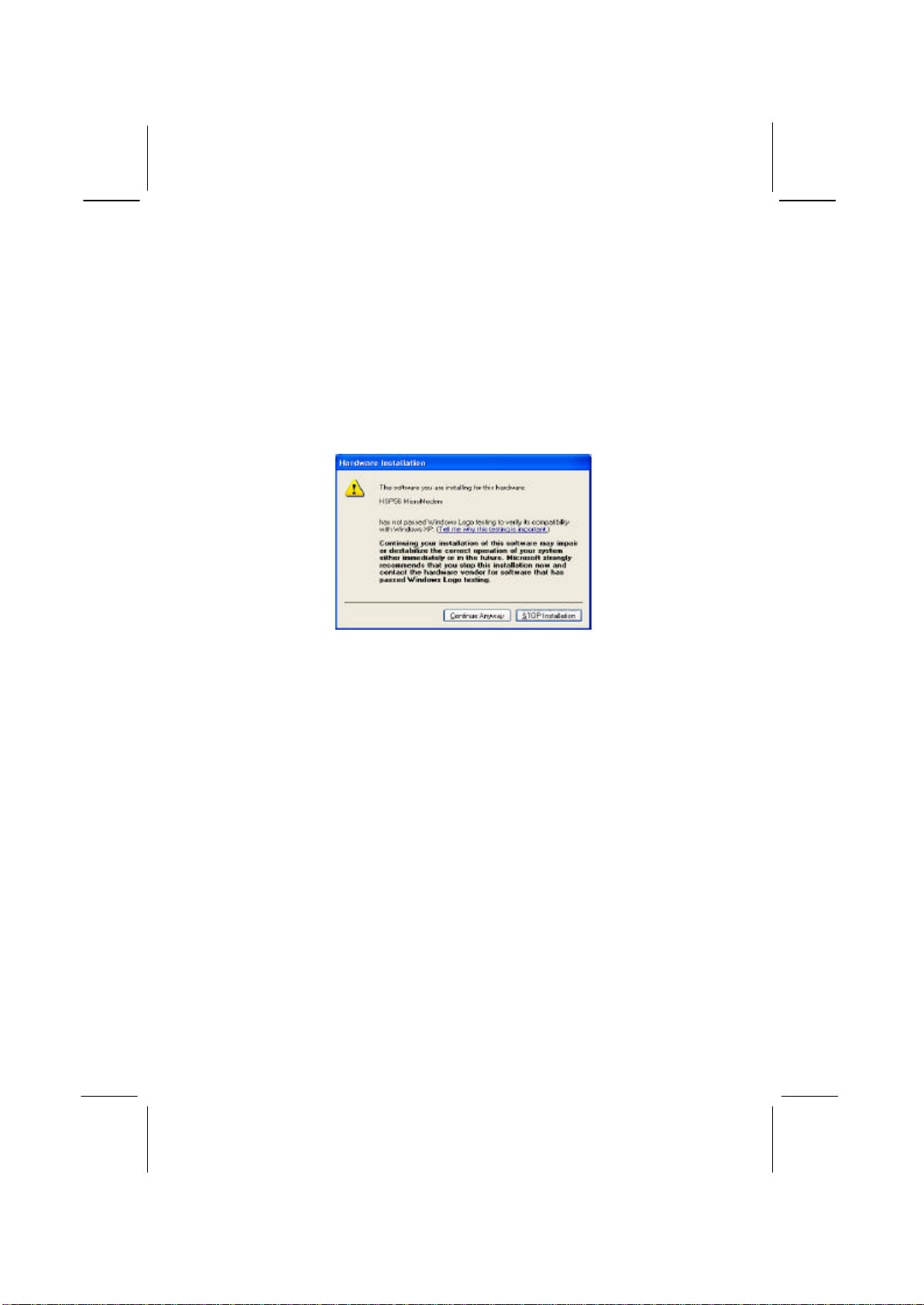

1. Owing to Microsoft’s certifying schedule is various to every

supplier, we might have some drivers not certified yet by

Microsoft. Therefore, it might happen under Windows XP that a

dialogue box (shown as below) pop out warning you this

software has not passed Windows Logo testing to verify its

compatibility with Windows XP. Please rest assured that our RD

department has already tested and verified these drivers. Click

the “Continue Anyway” button and go ahead the installation.

2. USB 2.0 Driver Limitations:

2-1 The USB 2.0 driver only supports Windows XP and

Windows 2000.

2-2 If you connect a USB 2.0 hub to the root hub, plugging USB

devices into this hub, the system might not successfully

execute certain USB devices’connection because it could not

recognize these devices.

Mainboard User’s Manual

III

Table of Contents

Trademarks........................................................................ I

Chapter 1: Introduction..............................................................1

Key Features......................................................................2

Package Contents...............................................................6

Static Electricity Precautions ...............................................7

Pre-Installation Inspection...................................................7

Chapter 2: Mainboard Installation...............................................9

Mainboard Components....................................................10

I/O Ports..........................................................................11

Install A CPU...................................................................12

Install Memory.................................................................14

Setting Jumper Switches...................................................16

Install the Mainboard........................................................17

Optional Extension Brackets.............................................18

Install Other Devices........................................................19

Expansion Slots................................................................22

Chapter 3: BIOS Setup Utility..................................................25

Introduction.....................................................................25

Running the Setup Utility..................................................26

Standard CMOS Setup Page.............................................. 27

Advanced Setup Page.......................................................28

Power Management Setup Page.........................................30

PCI / Plug and Play Setup Page .........................................32

Load Optimal Settings ...................................................... 33

Load Best Performance Settings ........................................33

Features Setup Page..........................................................34

CPU PnP Setup Page ........................................................36

Hardware Monitor Page....................................................37

Change Password.............................................................37

Exit .................................................................................38

Chapter 4: Software & Applications..........................................39

About the software CD-ROM............................................39

Utility software reference..................................................40

Mainboard User’s Manual

1: Introduction

Chapter 1

Introduction

This mainboard has a Socket-A support for the AMD K7

processors. The Socket-A processor’s front-side bus speed is

200/266MHz.

This mainboard has a KM266 chipset that supports a4X AGP slot

for highly graphics display, 100/133 MHz DDR/SDR, and Ultra

DMA ATA100/133 function to provide outstanding high system

performance under all types of system operations. The mainboard

has the built-in AC97 Codec, aCNR (Communications and

Networking Riser) slot and a built-in 10BaseT/100BaseTX

Network Interface. This mainboard has the 128-bit 2D/3D AGP

Graphics Acceleratorwith 32MB frame buffer, supporting AGP

4X 266MHz mode up to 1GB/s bandwidth, which provides a direct

connection between the graphics sub-system and memory so that

the graphics do not have to compete for processor time with other

devices on the PCI bus. There is a full set of I/O ports including

two PS/2 ports for mouse and keyboard, one serial port, one VGA

port, one parallel port and six USB ports (USB2.0)–four back-

panel ports and onboard USB header USB3 providing two extra

ports by connecting the Extended USB Module to the mainboard.

This mainboard has all the features you need to develop a powerful

multimedia workstation that is network ready. The board is ATX

size and has power connectors for an ATX power supply.

Mainboard User’s Manual

Key Features

The key features of this mainboard include:

Socket-A Processor Support

♦Supports AMD Athlon XP/Athlon/Duron processors

♦Supports 200/266 MHz Front-Side Bus

Chipset

There are VIA KM266 Northbridge and VT8235 Southbridge in

this chipsetin accordance with an innovative and scalable

architecture with proven reliability and performance. A few of the

chipset’s advanced features are:

♦An advanced V-Link memory controller architecture that

provides the bandwidth up to 266 MB/s and performance

necessary for even the most demanding Internet and

2D/3D graphics

♦Support for an 4xAGP interface providing vivid 2D/3D

graphics and video performance

Memory Support

♦Two 168-pin DIMM slots for SDRAM memory modules

♦Two 184-pin DIMM slots for DDR memory modules

♦Support for 100/133 MHz memory bus

♦Maximum installed memory is 2GB

Notice: You can NOT use SDRAM and DDR simultaneously.

Expansion Slots

♦One CNR slot

♦One 4X AGP slot for AGP 2.0-compliant interface

♦Five 32-bit PCI slots for PCI 2.2-compliant bus interface

1: Introduction

Onboard IDE channels

♦Primary and Secondary PCI IDE channels

♦Support for PIO (programmable input/output) modes

♦Support for Multiword DMA modes

♦Support for Bus Mastering and Ultra DMA ATA 100

66/100/133 modes

Power Supply and Power Management

♦ATX power supply connector

♦ACPI and previous PMU support, suspend switch,

keyboard power on/off

♦Supports Wake on LAN

VGA

♦Single cycle 128-bit 3D architecture

♦128-bit 2D graphic engine

♦8/16/32 MB frame buffer using system memory

♦Supports AGP 4X 266 MHz mode up to 1GB/s bandwidth

♦Supports 250MHz RAMDAC

♦2D/3D resolutions up to 1920x1440

♦Supports AGP Rev. 2.0 Spec. Compliant

AC97 Codec

♦Compliant with AC’97 2.1 specification

♦16-bit stereo full-duplex CODEC with fixed 48KHz

sampling rate

♦3 analog line-level stereo inputs with 5-bit volume control:

LINE-IN, CD-IN, AUX-IN

♦Three Audio Jacks–Line-Out, Line-In and Microphone-In

♦Sound Blaster, Sound Blaster Pro Compatible

♦Advanced power management support

Mainboard User’s Manual

Onboard I/O Ports

The mainboard has a full set of I/O ports and connectors:

♦Two PS/2 ports for mouse and keyboard

♦One serial port

♦One VGA port

♦One parallel port

♦Six USB ports (four back-panel ports, onboard USB

headers providing two extra ports)—USB2.0

♦Audio jacks for microphone, line-in and line-out

Built-in Ethernet LAN (Optional)

♦10Base-TX/100Base-T Physical Layer Solution

♦Dual Speed –100/10 Mbps

♦MII Interface to Ethernet Controller/Configuration & Status

♦Auto Negotiation: 10/100, Full/Half Duplex

♦Meet All Applicable IEEE802.3, 10Base-T and 100Base-

TX Standards

USB 2.0

♦Compliant with Universal Serial Bus Specification

Revision 2.0

♦Compliant with Intel’s Enhanced Host Controller

Interface Specification Revision 0.95

♦Compliant with Universal Host Controller Interface

Specification Revision 1.1

♦PCI multi-function device consists of two UHCI Host

Controllercores for full-/low-speed signaling and one

EHCI Host Controllercore for high-speed signaling

♦Root hub consists 4 downstream facing ports with

integrated physical layer transceivers shared by UHCI and

EHCIHost Controller

♦Support PCI-Bus Power Management Interface

Specification release 1.1

♦Legacy support for all downstream facing ports

Hardware Monitoring

♦Built-in hardware monitoring for CPU & System

temperatures, fan speeds and mainboard voltages

1: Introduction

Onboard Flash ROM

♦Supports Plug and Play configuration of peripheral devices

and expansion cards

Bundled Software

♦PC-Cillin2002 provides automatic virus protection under

Windows 98/ME/NT/2000/XP

♦MediaRing Talk provides PC to PC or PC to Phone

internet phone communication

♦Super Voiceis data, fax and voice communication software.

♦PageABC is the software to help you create your own

home page.

Dimensions

♦ATX form factor (30.5cm x 22cm)

Note: Hardware specifications and software

items are subject to change without notification.

Mainboard User’s Manual

Package Contents

Your mainboard package ships with the following items:

qThe mainboard

qThis User’s Manual

q1 UDMA66/100 IDE cable

q1 Floppy disk drive cable

qSupport software on CD-ROM disk

Optional Accessories

You can purchase the following optional accessories for this

mainboard.

qExtended USB module

Inhaltsverzeichnis

Andere MATSONIC Hauptplatine Handbücher

MATSONIC

MATSONIC MS9138D Series Bedienungsanleitung

MATSONIC

MATSONIC MS8318E Series Bedienungsanleitung

MATSONIC

MATSONIC MS7381SGM Bedienungsanleitung

MATSONIC

MATSONIC MS9147C Series Bedienungsanleitung

MATSONIC

MATSONIC MS7177CT Bedienungsanleitung

MATSONIC

MATSONIC MS9357E Series Bedienungsanleitung

MATSONIC

MATSONIC MS9158 Series Bedienungsanleitung

MATSONIC

MATSONIC MS-7090S Bedienungsanleitung

MATSONIC

MATSONIC MS9147C Series Bedienungsanleitung

MATSONIC

MATSONIC MS7177C Bedienungsanleitung

MATSONIC

MATSONIC MS9327E Series Bedienungsanleitung

MATSONIC

MATSONIC MS7192S Bedienungsanleitung

MATSONIC

MATSONIC EM-5900V Bedienungsanleitung

MATSONIC

MATSONIC MS7057C Bedienungsanleitung

MATSONIC

MATSONIC MS7188DSeries Bedienungsanleitung

MATSONIC

MATSONIC MS7057CT Bedienungsanleitung

MATSONIC

MATSONIC MS6391E Bedienungsanleitung

MATSONIC

MATSONIC MS6380SG Bedienungsanleitung

MATSONIC

MATSONIC MS9118E Series Bedienungsanleitung

MATSONIC

MATSONIC MS9107C Bedienungsanleitung

MATSONIC

MATSONIC MS7117C Bedienungsanleitung

MATSONIC

MATSONIC MS9118E Series Bedienungsanleitung

MATSONIC

MATSONIC MS8328E Series Bedienungsanleitung

MATSONIC

MATSONIC MS6383E Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
