Maxtor SERIAL ATA HARD DRIVE Bedienungsanleitung

SERIAL ATA HARD DRIVE

Installation Guide

English, Français, Deutsch

P/N: 20257700

FCC Declaration of Conformance

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference,

and (2) this device must accept any interference received including interference that may cause undesired operation.

Déclaration de conformité FCC

Ce périphérique est conforme à l'article 15 de la norme FCC. L'exploitation est soumise aux deux conditions suivantes : (1) ce périphérique ne doit pas causer

d'interférence nuisible et (2) ce périphérique doit accepter toutes les interférences reçues, y compris les interférences responsables de comportements indésirés.

Konformitätserklärung mit den Bestimmungen des FCC

Dieses Gerät erfüllt Abschnitt 15 der FCC-Bestimmungen. Der Betrieb des Geräts unterliegt folgenden zwei Beschränkungen: 1.) Das Gerät darf keine gesund-

heitsschädliche Strahlung abgeben. 2.) Dieses Gerät muss Strahlung ausgesetzt werden können, die möglicherweise Betriebsstörungen hervorrufen.

English

Contents

Warranty Registration Information

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Introduction

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Included in this Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Required Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

About Serial ATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Back Up Your Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Installing the Drive in a Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Remove System Cover

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Mount the Hard Drive

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Attach Serial ATA and Power Cables

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Check BIOS Message

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Format the Hard Drive

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Set the Boot Sequence

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Getting Help

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

1Warranty Registration Information

English

Warranty Registration Information

Before installing the hard drive, please write down the 8 character serial number and the 14 digit part number information. If

you ever need to contact Maxtor Support, you must provide this information about your hard drive prior to assistance.

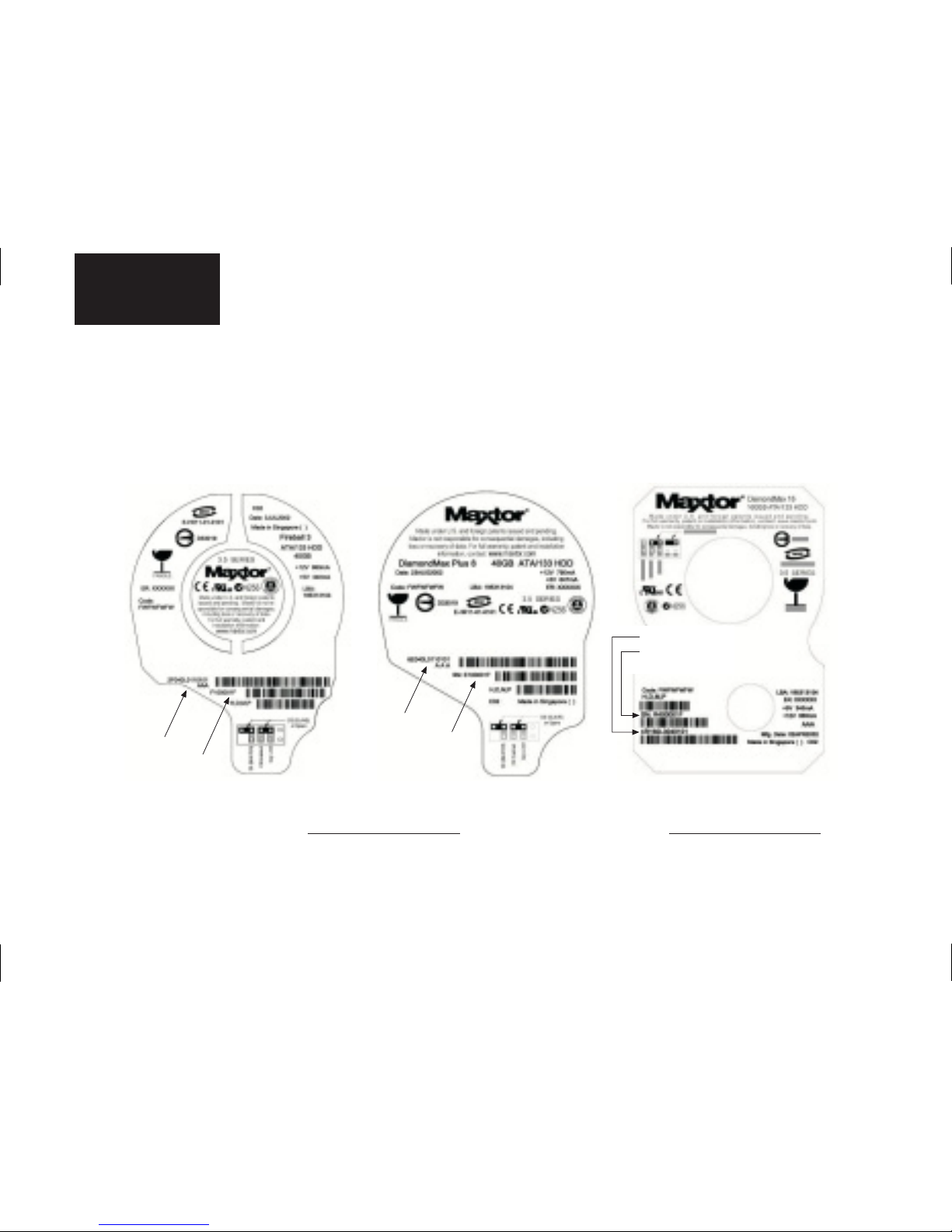

Several hard drive models are illustrated below to help you identify where these numbers are located. Use the drawing that

looks like your hard drive, then locate the part and serial numbers from your hard drive and write these numbers in the space

provided.

Part Number (P/N): Serial Number (S/N):

Part Number

Serial Number

Part Number

Serial Number

Part Number

Serial Number

Introduction 2

English

Introduction

Thank you for selecting a Maxtor hard drive product. This guide will lead you

through the installation of your new drive.

If you encounter any difficulties with installation, please visit us online at

www.maxtor.com

and click on Worldwide Support.

The Maxtor SATA Hard Drive Kit includes the components shown in Figure 1.

Your computer may need some or all of these parts to complete the installation.

You will also need the tools shown in Figure 2 on page 3 to install the hard drive

in your computer.

Precautions

Drive should be at room temperature before installing.

Do not touch circuit board on drive.

Unplug system from electrical outlet before connecting

cables to drive or motherboard.

Do not drop, bump, or jar drive.

SATA Interface

Cable

This Installation

Guide

MaxBlast®CD Mounting Screws

Max•Blast™

Maxtor Serial ATA

(SATA) Hard Drive

Figure 1

Included in this Kit

3Introduction

English

About Serial ATA

Serial ATA (SATA) technology offers you the following benefits:

• World’s fastest ATA interface

• Ideal for high-performance RAID

• Thin, easy-plug cables for improved airflow

• Simple, no-jumper installation

Unlike standard ATA drives, Serial ATA drives do not require the use of jumpers

to configure the drive.

Visit

www.maxtor.com

and click on Worldwide Support for the latest SATA

information and software updates.

Back Up Your Data

Protect your data by backing up existing hard drives before installing your new

Maxtor hard drive.

Installing the Drive in a Macintosh

For detailed information on mounting an internal drive in your Macintosh, go to

www.apple.com/support. Once you have mounted the drive, you can format

(initialize) and partition the drive using the Apple's Drive Setup utility (for Mac

OS 8.6 or higher) or Disk Utility (for Mac OS X). Note that on all beige Power

Mac G3 systems (Desktop, Minitower, All-In-One), Mac OS X can only be

installed in a partition that is within the ﬁrst 8 GB of the drive.

System Manual

System User Manual

Operating System

CD and Boot Disk

Philips Screwdriver

Small Needle-Nose Pliers

Figure 2

Required Tools

Remove System Cover 4

English

Remove System Cover

Turn your computer off.

Unplug your system from the electrical outlet.

Remove the cover from your system case. See Figure 3.

Attach a grounding strap or touch a metal portion of your computer case. This will

ground you to minimize the risk of exposing the hard drive to electrostatic discharge.

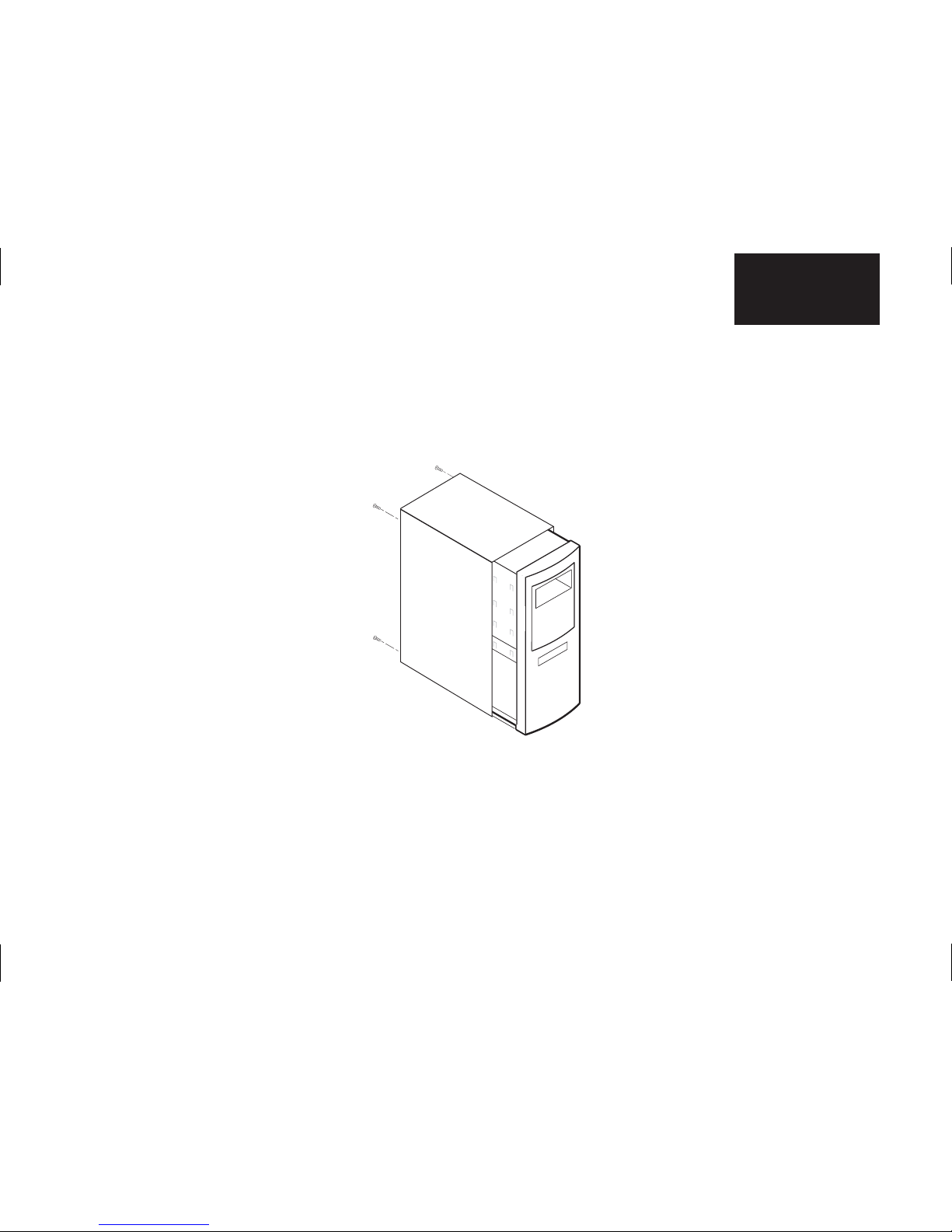

Figure 3

Removing the System Cover

Refer to your system user

manual for instructions on

removing the cover, or obtain

the services of a qualiﬁed

installation technician.

5Mount the Hard Drive

English

Mount the Hard Drive

Before mounting the hard drive in your system, determine whether you are installing the hard drive in a 3.5-inch or 5.25-inch

device bay. If you are unable to locate an available device bay, consult your system manual or system manufacturer.

3.5-inch Device Bay Installation

Many systems have an available 3.5-inch bay located adjacent to the floppy drive.

• Mount the hard drive in the 3.5-inch bay using the screws provided. See Figure 4.

Mounting

Screws

Some systems may not have

enough room to plug in the cables

after the hard drive is mounted.

You may need to attach the SATA

and power supply cables ﬁrst.

Figure 4

Typical 3.5-inch Device Bay Installation

Mount the Hard Drive 6

English

5.25-inch Device Bay Installation

When installing the hard drive in a 5.25-inch bay (such as where CD-ROM drives are typically installed), you first need to attach

mounting brackets (not included) to the hard drive. Mounting brackets are available from your local computer hardware store.

Attach the mounting brackets to the hard drive using the screws included with this kit. See Figure 5 for details.

Mount the hard drive in the 5.25-inch bay using the screws provided with the mounting brackets. Position the hard drive as

close to the bottom of the device bay as possible with the label facing up.

Figure 5

Mounting the Brackets on the Hard Drive

7Attach Serial ATA and Power Cables

English

Attach Serial ATA and Power Cables

Locate an available Serial ATA (SATA) port on your motherboard or on a SATA PCI card and plug in one end of the SATA

interface cable.

Locate the SATA port on the rear of the hard drive and plug in the SATA interface cable as shown.

Your Serial ATA drive may be equipped with two power connectors. You can use either the 15 pin SATA or the 4-pin legacy

power connector. These connectors cannot be used at the same time; powering both connectors simultaneously will

damage the drive.

SATA

DoNot

Remove

SATA Interface

Cable

4-pin Legacy

Power Connector 4-pin Legacy

Power Connector

15-pin SATA

Power Connector

Figure 6a

Attaching the Cables to the Hard Drive
