Maxx Ice MIMCB15C Bedienungsanleitung

Compact Crescent Ice maker

INSTRUCTION MANUAL

Free Standing / Built-in

ForAUTHORIZED PARTS or TECHNICAL SERVICE, please contact:

1-877-368-2797 or visit Service@MaxxHelp.com

3355 Enterprise Avenue, Suite 160, Fort Lauderdale, FL 33331 USA

101222b

IMPORTANT SAFETY INSTRUCTIONS

WARNING

California Proposition 65

Certain components in this product and its related accessories contain chemicals known to

the state of California to cause cancer, birth defects or other reproductive harm.

DANGER –Risk Of Fire Or Explosion. FLAMMABLE REFRIGERANT Used.

Do Not Use Mechanical Devices To Defrost Refrigerator. Do Not Puncture Refrigerant

Tubing. DANGER –Risk Of Fire Or Explosion. FLAMMABLE REFRIGERANT Used.

To Be Repaired Only By Trained Service Personnel. Do Not Puncture Refrigerant Tubing.

CAUTION –Risk Of Fire Or Explosion. FLAMMABLE REFRIGERANT Used.

Consult Repair

Manual/Owner’s Guide Before Attempting To Service This Product. All Safety Precautions Must be Followed.

CAUTION –Risk Of Fire Or Explosion. Dispose Of Properly In Accordance With The Applicable Federal

Or Local Regulations. FLAMMABLE REFRIGERANT Used.

CAUTION –Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing; Follow Handling

Instructions Carefully. FLAMMABLE REFRIGERANT Used.

–WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear

of obstruction.

–WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other

than those recommended by the manufacturer.

–WARNING: Do not damage the refrigerant circuit.

–WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless

they are of the type recommended by the manufacturer.

POWER CORD PRECAUTIONS

•Do not use the appliance if the power cord is damaged. If the power cord is damaged, have a qualified

electrician replace the power cord.

•Never lift, carry or drag the appliance by the power cord.

•Do not connect or disconnect the electric plug when your hands are wet.

•Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull straight out from

the outlet.

MOVING PRECAUTIONS

•When moving the appliance, do not turn it upside-down and do not unlevel it more than 45 degrees.

•Do not move the appliance without emptying it and securing the door in the closed position.

INSTALLING PRECAUTION

•Connect to potable water supply only.

OTHER PRECAUTIONS

•To ensure proper ventilation for the appliance, keep obstructions away from the front of the unit.

•Keep fingers out of the “pinch point” areas. Clearance between the door and cabinet are necessarily small. Be careful

closing the door when children are in the area.

•Do not touch the evaporator with your hand when the appliance is operating.

•Do not attempt to repair or replace any part of your appliance unless this manual specifically recommends it. Have a

qualified technician perform all other service on the unit.

•Children 8 years of age and older and people with reduced physical, sensory or mental capabilities or lack of

experience and knowledge can use this appliance if they have been given supervision or instruction concerning use

of the appliance in a safe way and they understand the hazards involved.

•Never allow children to operate, play with or crawl inside the appliance.

•Never allow children to clean and maintain the machine without supervision.

•Do not use the appliance other than for its intended purpose.

•Do not touch the condenser surfaces. They are sharp and can be easily damaged.

CLEANINGAND MAINTENANCE PRECAUTIONS

•Never clean the appliance parts with flammable fluids. Do not store or use gasoline or other flammable vapors and

liquids in the vicinity of this appliance or any other appliances. The fumes can create a fire hazard or explosion.

•Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may transmit taste to the ice

cubes, or damage or discolor the interior.

•If the appliance will not be used for a long time, thoroughly clean it before the next use. Carefully follow any

instructions provided for cleaning or the use of sanitizing solution. Do not leave any solution inside the appliance

after cleaning.

DISPOSAL

the appliance cannot be treated as normal domestic trash, but must be handed in at a collection point for recycling

electric and electronic appliances. Your contribution to the correct disposal of this product protects the environment.

Further information about the recycling of this product can be obtained from your local municipal authority.

This appliance is intended to be used in household and similar applications such as

–staff kitchen areas in shops, offices and other working environments;

–farm houses and by clients in hotels, motels and other residential type environments;

–bed and breakfast type environments;

–catering and similar non-retail applications.

THE MANUFACTURER DISCLAIMS ANY RESPONSIBILITY IF THE ABOVE

INSTRUCTIONS ARE NOT FOLLOWED.

TABLE OF CONTENTS
Product Overview and Specs...........................................................................1 - 2
Installation
Before Using Your Ice Maker.....................................................................................................3
Installing the Handle ..................................................................................................................3
Installation the Ice Maker...........................................................................................................4
Reversing the Door Swing .........................................................................................................5
Electrical Connection................................................................................................................. 5
Extension Cord............................................................................................................................6
Connecting the Water Supply......................................................................................................6
Operating
Initial Start-Up Operation............................................................................................................7
Maintenance
Cleaning Your Ice Maker.............................................................................................................7
Power Failure..............................................................................................................................8
Vacation Time/Storage ................................................................................................................8
Moving Your Ice Maker .............................................................................................................. 8
Energy-Saving Tips..................................................................................................................... 8
Troubleshooting..................................................................................................9 - 10

Product Overview and Specs

Model

MIMCB15C

MIMC15C

MIMC15CO

Voltage/Frequency

AC 115V 60Hz

Rated Ice making current

1.2A

Rated Ice harvest current

1.5A

Refrigerant

R600A, 1.69Oz.

Indoor/Outdoor

Indoor

Indoor or Outdoor*

IP Rating

IPX4

Installation Type

Free standing/Built-in

Unit Dimension (W×D×H)

14-7/8'' × 18-1/2'' × 24-7/8''

14-7/8'' × 18-1/2'' × 24-1/2''

Working temperature

50 F - 100 F

50 F -100

Working water pressure

20～80 Psi

Ice Storage Capacity

12 lbs. maximum

Ice-making Capability at 50°F

15 lbs./day**

Ice Shape

Crescent

Ice Cube Dimensions

(Approximate)

7/8'' × 7/8'' × 2-3/8''

* Within limited outdoor environment: the unit must be under the awning or the canopy and shall

not be exposed directly to rain.

**The actual quantity of ice produced per day will vary with ambient room and water conditions.

Note: Technical data and performance information are provided for reference only and subject to

change.

Front View

Ice Module

Ice Bucket

Power Switch

Back View

*outdoor model and indoor model has minor differences on vents.

Accessories

Ice

Scoop

Ice

Bucket

Quick

Fitting

Hole

Plug

Internal thread 7/16"-24UNS

INSTALLATION

BEFOREUSINGYOUR ICE MAKER

•REMOVE THE EXTERIOR AND INTERIOR PACKAGING MATERIAL.

•CHECK TO BE SURE YOU HAVE ALLOF THE FOLLOWING PARTS:

•1 ICE BUCKET

•1 ICE SCOOP

•2 HOLE PLUGS

•1 QUICK FITTING [for connecting water supply]

•1 INSTRUCTION MANUAL

•BEFORE CONNECTING THE ICE MAKER TO THE POWER SOURCE, LET IT STAND UPRIGHT FOR

APPROXIMATELY 4 HOURS. THIS WILL REDUCE THE POSSIBILITY OF A MALFUNCTION IN THE

COOLING SYSTEM FROM HANDLING DURING TRANSPORTATION.

•CLEAN THE INTERIOR SURFACE WITH LUKEWARM WATER USINGA SOFT CLOTH.

INSTALLINGTHE HANDLE

This appliance includes a stainless steel handle. To install the handle please follow the below

instructions:

1. Lift up the door gasket, take off the two mounting hole plugs, no tools are necessary.

2. Align the handle with the screws installed. Tighten the screws using a Phillips head screwdriver

until the handle sets both flush and secured tightly against the door frame.(DO NOT over-tighten as

this will cause damage to the handle assembly).

3. Re-install the two plugs back into the mounting hole behind the door gasket.

4. If you choose not to use the handle supplied, simply follow step 1 to access the installation screws

and remove them and then place the two decorative plugs into the two holes separately.

INSTALLATION THE ICE MAKER

•THE APPLICANCE SHALL NOT EXPOSED TO RAIN EVEN FOR THE MODELWITH IPX4.

•THISAPPLIANCE IS DESIGNED TO VENT HOT AIR THROUGH THE FRONT VENT. THISALLOWS FOR

INSTALLATION IN A RECESSED OR BUILT-IN APPLICATION, IF DESIRED.

•PLACE YOUR ICE MAKER ON A LEVEL SURFACE THAT IS

STRONG ENOUGH TO SUPPORT THE ICE MAKER WHEN IT IS

FULLY LOADED. REMEMBER THAT THE UNIT WILL BE

SIGNIFICANTLY HEAVIER ONCE IT IS OPERATIONAL AND

FULLY LOADED. LEVELYOUR ICE MAKER BYADJUSTING THE

LEGS AT THE FRONT OF THE ICE MAKER.

•LOCATE THE ICE MAKER AWAY FROM DIRECT SUNLIGHT

AND SOURCES OF HEAT (STOVE, HEATER, RADIATOR, ETC.).

DIRECT SUNLIGHT MAY AFFECT THE FINISH AND HEAT

SOURCES MAY INCREASE ELECTRICAL CONSUMPTION. EXTREME COLD AMBIENT TEMPERATURES

MAY ALSO CAUSE THE ICE MAKER MALFUNCTION. THIS ICE MAKER IS DESIGNED FOR

INSTALLATION INDOORS IN “ROOM TEMPERATURE” AMBIENT CONDITIONS OR OUTDOORS IN

COVERED AREAS NOT EXPOSED TO DIRECT SUNLIGHT

OR RAIN (OUTDOOR MODEL ONLY).

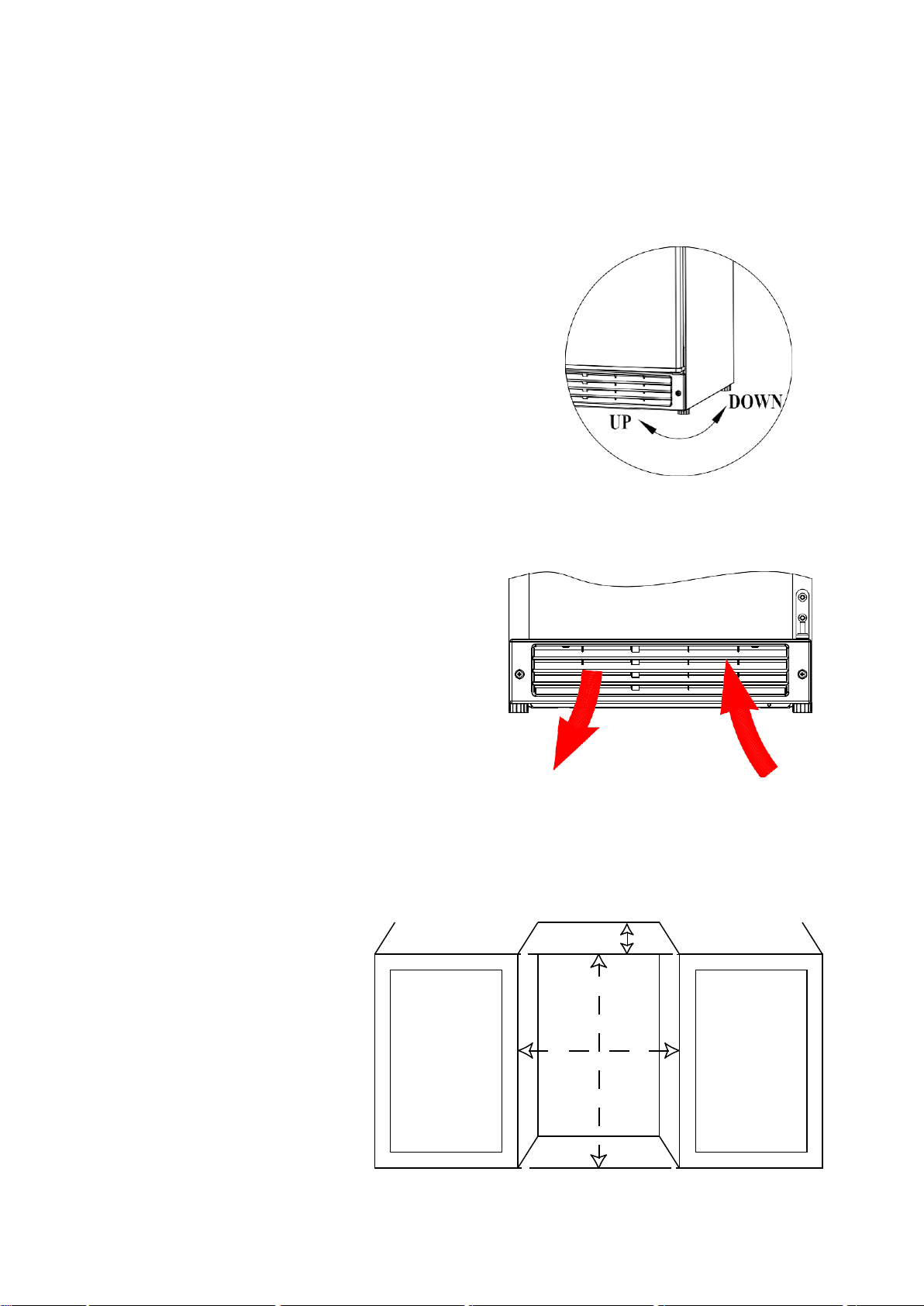

•POSITION UNIT TOALLOW FREEAIRFLOW THROUGH

THE FRONT GRILLE , AVOID LOCATING THE ICE

MAKER IN MOIST/HUMID AREAS. TOO MUCH

MOISTURE IN THE AIR WILL CAUSE FROST TO FORM

QUICKLY ON THE EVAPORATOR REQUIRING

FREQUENT DEFROSTING.

•PLUGTHE ICE MAKER INTOAN EXCLUSIVE PROPERLY INSTALLED GROUNDED WALL OUTLET. DO

NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE THIRD (GROUND) PRONG FROM THE

POWER CORD. ANY QUESTIONS CONCERNING POWER AND/OR GROUNDING SHOULD BE DIRECTED

TOWARD A CERTIFIED ELECTRICIAN.

•The product is designed and

manufactured for seamless integration

in the specified cutout opening shown,

which requires precise measurements.

The opening must be square and

plumb front to back. Although not

required, you may choose to increase

the overall cutout width for ease of

installation.

We recommend to leave at least 2" for back, ¼"for top and sides.

REVERSINGTHE DOOR SWING

THIS APPLIANCE HAS THE CAPABILITY OF THE DOOR OPENING FROM EITHER THE LEFT OR RIGHT

SIDE. THE UNIT IS DELIVERED TO YOU WITH THE DOOR OPENING FROM THE LEFT SIDE (HINGED ON

THE RIGHT).

Tools needed: flathead screwdriver, Phillips screwdriver

IMPORTANT: Before you begin, make sure the ice maker is unplugged.

Open the screw cap on the top hinge and unscrew 3 bolts to take away the top hinge and then lift out the

door.

Peel off the door gasket, located the door handle mounting screw behind the gasket and unscrew to take

out the door handle, use the spare plugs in the accessories to cover the mounting hole.

Take away the 2 plugs in the front of the door, install the door handle on the opposite position, then push

to insert the door gasket back. finish the door handle reverse.

Unscrew to take away the bottom hinge, and then remove the caps in the left of the cabinet and install the

bottom hinge at the left.

Install the door on the bottom hinge, and then install the top hinge on the left. Tighten firmly.

Done.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Maxx Ice Eiswürfelbereiter Handbücher

Maxx Ice

Maxx Ice MIM265H Bedienungsanleitung

Maxx Ice

Maxx Ice MIM50V Bedienungsanleitung

Maxx Ice

Maxx Ice MIM50-0 Bedienungsanleitung

Maxx Ice

Maxx Ice MIM452 Bedienungsanleitung

Maxx Ice

Maxx Ice MIM360N Bedienungsanleitung

Maxx Ice

Maxx Ice MIM50-O Bedienungsanleitung

Maxx Ice

Maxx Ice MIM50P Bedienungsanleitung

Maxx Ice

Maxx Ice MIM-50 Bedienungsanleitung

Maxx Ice

Maxx Ice MIM250 Bedienungsanleitung

Maxx Ice

Maxx Ice MIM600 Bedienungsanleitung

Maxx Ice

Maxx Ice MIM50P Bedienungsanleitung

Maxx Ice

Maxx Ice MIM25CO Bedienungsanleitung

Maxx Ice

Maxx Ice MIM75 Bedienungsanleitung

Maxx Ice

Maxx Ice MIM250 Bedienungsanleitung

Maxx Ice

Maxx Ice MIM450 Bedienungsanleitung

Maxx Ice

Maxx Ice MIM-50 Bedienungsanleitung

Maxx Ice

Maxx Ice MIM150N Bedienungsanleitung

Maxx Ice

Maxx Ice MIM75 Bedienungsanleitung

Maxx Ice

Maxx Ice MIM250 Bedienungsanleitung

Beliebte Eiswürfelbereiter Handbücher anderer Marken

Hoshizaki

Hoshizaki KMD-460MWJ Bedienungsanleitung

Sub-Zero

Sub-Zero 315I Gebrauchsanweisung

Unold

Unold 48945 Bedienungsanleitung

Kenmore

Kenmore 2217402A Bedienungsanleitung

Cornelius

Cornelius WM600 Betriebsanleitung

GE XPIO43SCSS Bedienungsanleitung

Hoshizaki

Hoshizaki KMD-901MAH Bedienungsanleitung

Whynter

Whynter FIM-450HA Bedienungsanleitung

U-Line

U-Line UMCR014-SC01A Installationshandbuch

Andrew James

Andrew James AJ000522 Bedienungsanleitung

Scotsman

Scotsman CME1356 Bedienungsanleitung

Scotsman

Scotsman ACM 25 Bedienungsanleitung

Kärcher

Kärcher IP 120 Bedienungsanleitung

U-Line

U-Line SS1095 Bedienungsanleitung

Maytag

Maytag MIM1554WRS - Ice Maker Bedienungsanleitung

Hoshizaki

Hoshizaki KM-630MAH Bedienungsanleitung

Princess

Princess Yonanas Bedienungsanleitung

Unold

Unold 48946 Bedienungsanleitung
