Maxxima M20487 Bedienungsanleitung
Page 4 of 4 Page 1 of 4
CAUTION
• Prior to drilling holes into the vehicle for installation, ascertain that no internal
components of the vehicle will obstruct the placement or mounting of the LED minibar.
For all wire passage holes, apply caulk or install grommets.
• Avoid installing the minibar or routing any cables in the vicinity of the vehicle's airbags.
Any interference could hinder the proper deployment of the airbags, thereby
compromising their intended effectiveness.
• Carefully select the mounting location for the minibar, avoiding areas that may impair
visibility or distract the vehicle's operator. Improper placement could obstruct the
operator's view or divert their attention, potentially leading to serious accidents.
• For cleaning the outer lens of the minibar, only use a mixture of soap and water.
Utilizing other chemicals may lead to premature cracking or discoloration of the lens.
Damaged lenses can significantly impede the minibar's functionality.
Regularly inspect and operate the minibar to ensure it is working optimally.
• Refrain from looking directly into the minibar while it is operational. The high-intensity
LEDs used in this device can cause temporary blindness or even permanent eye damage.
WIRING/ELECTRICAL
Operation using the cigarette plug (M20487):
• Connect the minibar cigarette adapter to the cigarette lighter outlet.
• Press the first switch to power the lightbar. The red LED should illuminate.
• Cycle through the patterns by pressing the other switch for 1 second at a time.
• Revert to pattern 1 by pressing the pattern selector for 5 seconds.
NOTE: When the lightbar is turned off and powered on again, the previously set lightbar
pattern will illuminate on the lightbar.
Operation without using the cigarette plug (M20488):
BLACK - Ground ------------------
RED - Main Power ----------------
YELLOW - Trigger Wire ---------
Extend to the vehicle ground.
Extend to a switch and then to the POSITIVE battery
terminal. Fuse appropriately.
To cycle to the next pattern, tap to +VDC for 1 second.
Yellow
Red
Black
Wire color

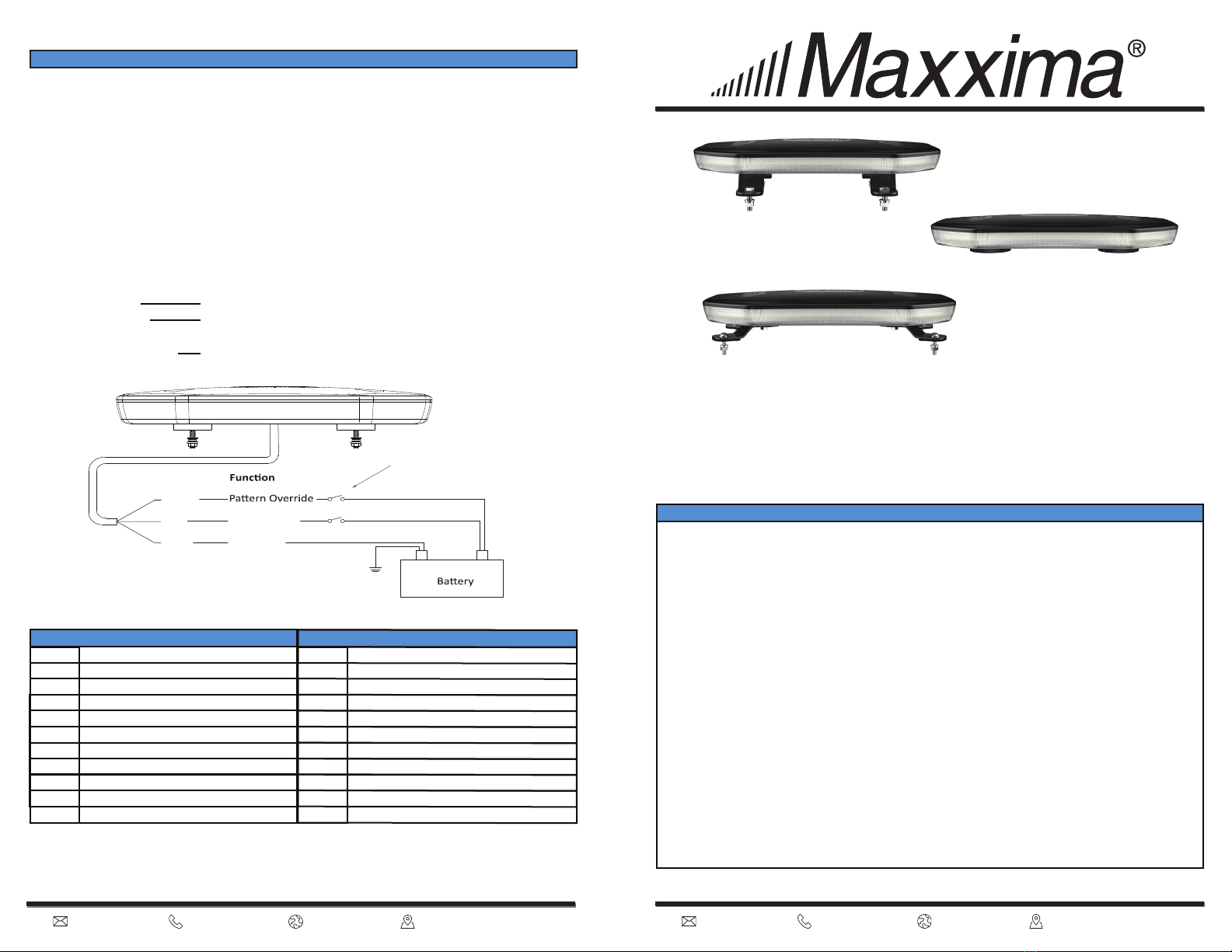

Wiring Diagram
12/24VDC (+)
Ground (-)
(-) (+)
FLASH PATTERNS
Pattern
1
2
3
4
5
6
7
8
9
10
Flash Pattern Description
Single [125FPM] (Class 1)
Single [75FPM] (CA13, Class 1)
Double (Class 1)
Triple
Clockwise Rotation
Symmetrical Rotation
Counterclockwise Rotation
Pattern7 x 4cycle + 3 Single Flash
Single (Split Left & Right) Split
Triple (Middle + Two Ends + Full)
LED MINIBAR INSTRUCTION MANUAL
M20487/M20488
FLASH PATTERNS
Pattern
11
12
13
14
15
16
17
18
Flash Pattern Description
Go and Back “C” shape running
Progressive (Left + Right)
Quad (Left & Right) Split
Double (Left & Right) Split
Quint (Left & Right) Split
Strobe (Left & Right) Split
Fast & Slow Double (Left & Right) Split
Fast & Slow Quad (Left& Right) Split
Momentary switch (optional)
Page 2 of 4 Page 3 of 4
[email protected] 866-MAXXIMA (629-9462) www.maxxima.com 125 Cabot Court Hauppauge, NY 11788 [email protected] 866-MAXXIMA (629-9462) www.maxxima.com 125 Cabot Court Hauppauge, NY 11788
PERMANENT/BRACKET MOUNTING
NOTE: Before beginning the minibar installation, ensure that the mounting location is clear
of all obstructions. Possible obstructions include but are not limited to: roof support
members, wire harnesses, airbags, vehicle trim components. It is recommended that the
vehicle’s headliner is removed before drilling. If the headliner remains in place, the
drill bit may puncture the headliner and cause damage.
Tools needed for installation include a drill bit with a diameter of 1/4”or an 8mm
(5/16“) for the side bracket. A socket or wrench is required as well.
Before securing the minibar, the wire harness will need to be routed. This hole must be about
1/4” in diameter for the wire to pass through. It is recommended that an appropriately
sized grommet be placed into the hole before the wire is passed through. With the wire in
place, seal the grommet and wire combination with silicone for waterproofing. The grommet
will prevent premature damage to the minibar’s wire.
Choose one of the three mounting bracket styles and attach the bracket to the minibar using
the provided round gasket pad and bolt. To position the minibar, place it in a suitable location
and mark the four minibar mounting holes. Then remove the minibar and drill the appropriate
holes. Now, insert the 4 bolts through the bracket. Place the gasket between the
minibar’s bracket and the vehicle’s surface. Feed the bolt through the mounting holes and
secure the minibar using the provided washers and nut. Refer to the drawing below for
guidance. Finally, tighten the nuts with the socket or wrench until the minibar is firmly
secured to the vehicle.
MAGNET MOUNTING
NOTE: We advise against using any magnetically mounted warning device, including this
minibar, on the exterior of a vehicle moving at high speeds (over 30 mph). This practice is
not recommended and any resulting damage or safety issues are solely the responsibility of
the user. It is advised to remove the minibar from the vehicle's exterior before setting the
vehicle in high speed motion.
Before mounting the lightbar using the magnetic hardware, ensure the mounting surface is
thoroughly clean. For optimal adhesion, clean the surface with a solution composed of
isopropyl alcohol and water, then dry the surface completely. Once prepared, position
the lightbar in its designated location, making certain that all the magnets are making full
contact with the vehicle’s surface. Proceed to route the wire as necessary and plug it into the
vehicle’s cigarette lighter socket for power.
SPECIFICATIONS
LED Color
Voltage
Max Power
Flash Pa�erns
Amber or Amber/White
12V - 24V
55W
18
398
217
Bolt MountingSide Bracket Mounting
Bracket Mounting
24.7 47
M8
17.5 47
M6
47
400
M6
322
132
206
189.9
206
72
400
400
Magnet Mounting
SAE
Material
Mount
J845 Class 1A
PC
M20487: Magnet
M20488: Bracket (2x), or Bolt
All dimensions are in millimeter (mm)
PATTERN ON/OFF
Bolt Mounting Pill Pack
Side Bracket Pill Pack
Bracket Pill Pack
Minibar
Spring Washer
Plas�c Washer
Flat Washer
Magnet Disk
(Ø66*8.5, M6)
47
4600
9.6
