Connect the Ground wire (Green/Bare Copper) from the wall box
(or earth screw) to the GREEN wire of the timer using a wire nut.
Connect the Neutral wires (White) from the wall box to the WHITE
wire of the timer using a wire nut.
Connect the Hot wire (Black) from the wall box (from breaker) to the
BLACK wire of the timer.
Traveler 1: Connect Traveler 1 (from the timer) and load’s hot wire to
the COMMON terminal (usually black or copper colored) of the 3-way
switch.
Traveler 2: Connect Traveler 2 (fromt the timer) and loads’s hot wire to
the COMMON terminal (usually black or copper colored) of the 3-way
switch.
Travelers:
Traveler 1: Connect Traveler 1 (from load side) to the RED wire of the
timer.
Traveler 2: Connect Traveler 2 (from load side) to the BLUE wire of the
timer.
Turn DST on or off with one simple push.
The manual override button allows you to turn the timer on and off at
any time.
Easy-to read large LCD screen with display clock.
Up to 18 ON events and 18 OFF events daily.
Random security setting allows to respectively postpone ON and OFF
times by 0-30 minutes to create a “lived-in” look.
18 ON/OFF per day
With ON/OFF/Timing shift function
With Ni-MH recharging battery
Min. Setting time: 1 minute
Max. Setting time: 7 days
Supply voltage: 125V, 60Hz
Contact rating: 15A/1875W Resistive
10A/1250W Tungsten, 10A/1250W Ballest, 1/2HP, TV-5
Operating temperature: 5°F - 122°F
Storage tempuerature: -4°F - 140°F
Insulation class: II
Protection class: IP20
Important: inductive (starting load) should always be calculated especially
when controlling lighting (because of variable inductive loads).
If this load exceeds 8 Amps then it is imperative that an electrician be used.
Connect the Ground wire (Green/Bare Copper) from the wall box
(or earth screw) to the GREEN wire of the timer using a wire nut.
Connect the Neutral wires (WHITE) from the wall box (from breaker)
to the WHITE wire of the timer. The load’s neutral should also be
connected using a wire nut.
Connect the Lights Hot wire (Black) from the wall box to the RED
wire of the timer.
MEW-DT1875
When replacing an existing switch, please make sure that the
neutral wire is available in the box.
Before wiring, please cut OFF the power at the breaker.
HOT wire: Connect the Hot wire from the wall box (from breaker) to
Traveler 1 (from the timer) and the jumper, then connect
jumper to COMMON terminal (usually black or copper colored)
of the 3-way switch.
Traveler 2: Connect Traveler 2 (from the timer) to either terminal (usually
brass colored) of the 3-way switch.
STEP 5: TURN THE POWER ON.
STEP 4: INSTALL THE TIMER AND THEN MOUNT THE WALL PLATE
MEW-DT1875
User Instru ns
Connect the Ground wire (typically Green/Bare Copper) from the wall box
(or earth screw) to the GREEN wire of the timer using a wire nut.
Connect the Neutral wires (WHITE) from the wall box to the WHITE
wire of thetimer using a wire nut.
Connect the Hot wire (BLACK) from the wall box (from the breaker) to the
BLACK wire of the timer using a wire nut.
Connect the Load wire (Black or red) from the wall box (from the light) to the
RED wire of the timer using a wire nut.
Use a wire nut to cap off the blue wire.
When replacing an existing switch, please make sure that the neutral wire is
available in the box.
Before wiring, please cut OFF the power at the breaker.
When replacing an existing switch, please make sure that the neutral wire is
available in the box.
Before wiring, please cut OFF the power at the breaker.
MEW-DT1875

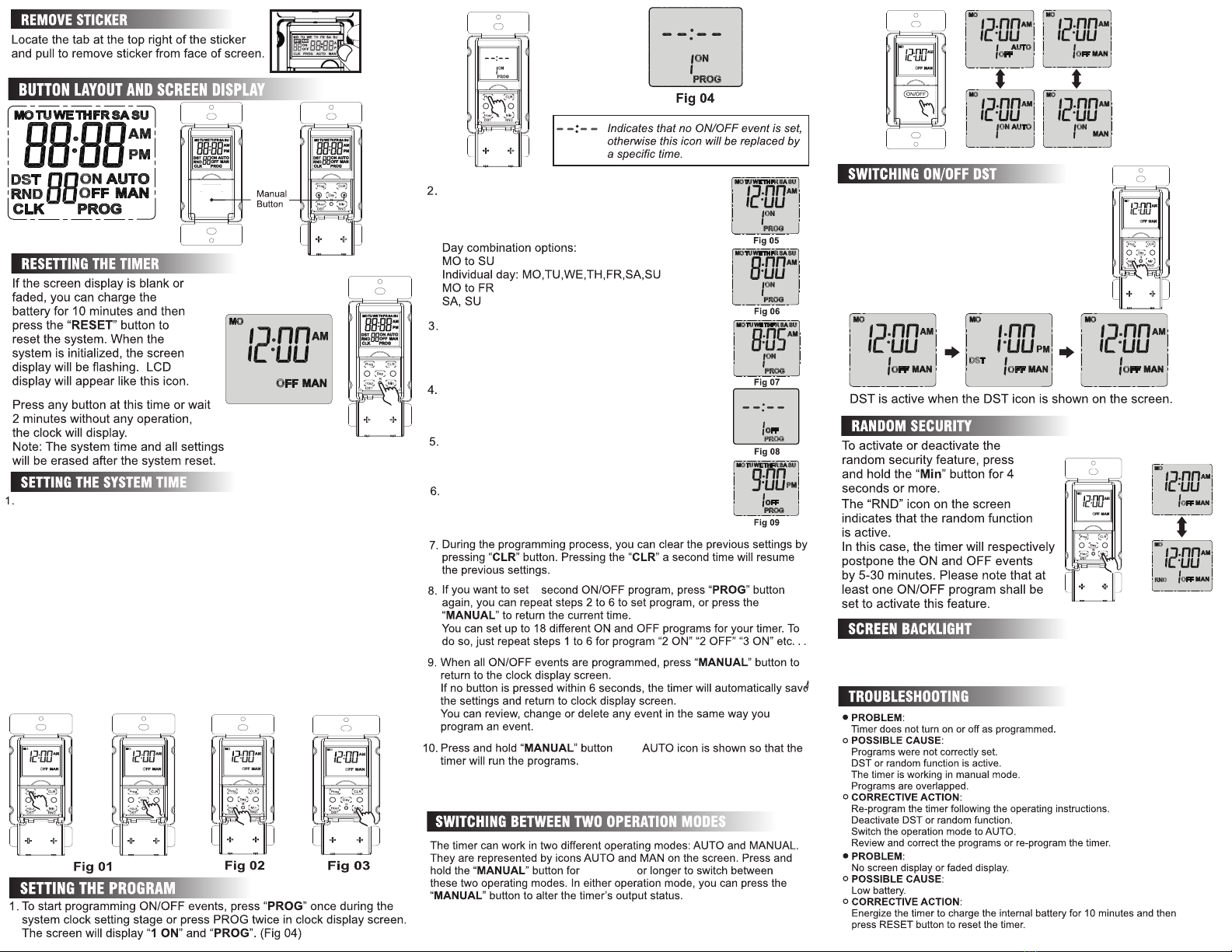

Press the “DAY” button until you reach the current day of the week. (Fig 01)
Example: If the day is Tuesday, Continue to press the “PROG” button until
“TU” shows at the top of the screen.
Then press and hold the “HOUR” button until the screen displays
the current hour. (Fig 02)
Example: If the time is 02:47 PM, hold the hour button until 02 appears and
PM is shown to the right of the screen.
Note: Please pay attention to AM/PM.
Then press and hold the “MIN” button until the current time is displayed
the screen. (Fig 03)
Example: If the time is 02:47 PM, hold the “MIN” button until 47 is
displayed to the right of the screen between the hours and the AM/PM.
Note: When the current time is correctly set, press any ”MANUAL” button
(manual button located in button layout section) to save and quit to clock
display screen; or press “PROG” to start to set the programs.
If no button is pressed within 6 seconds. the timer will automatically save
the current time and return to clock display screen.
Press the “PROG” button to enter Programming mode. Here you will set the
clocks and events. Enter programming (CLK will be displayed), then:
A.
B.
C.
Press the “MIN” button to change the desired
minute is displayed on the screen.Fig 07
shows a time of 8:05 AM being set to turn ON.
Press the “PROG” button once to set the
“1 OFF” time. Fig 08 shows the screen with
“1 OFF” displaed.
Reapeat steps 2 to 4 to set the program
“1 OFF” time. Fig 09 shows an off time of
9 PM.
Press and hold the “HOUR” button for 4
seconds or more to switch DST on or off.
Press the “DAY” button to to start cycling
through the days of the week until you
reach the desired day. Fig 05 displays
the screen when “DAY” is pressed.
Press the “HOUR” button until the desired
hour is displayed on the screen.
NOTE: Fig 06 shows a time of 8:00 AM
being set. Please pay attention to AM/PM.
a
until
Press any button to turn on the backlight. In clock display screen, the
backlight will go out for 5 seconds without any button operation.
When you are setting the system time or programs, the backlight will go
out after 90 seconds without any button operation.
4 seconds
