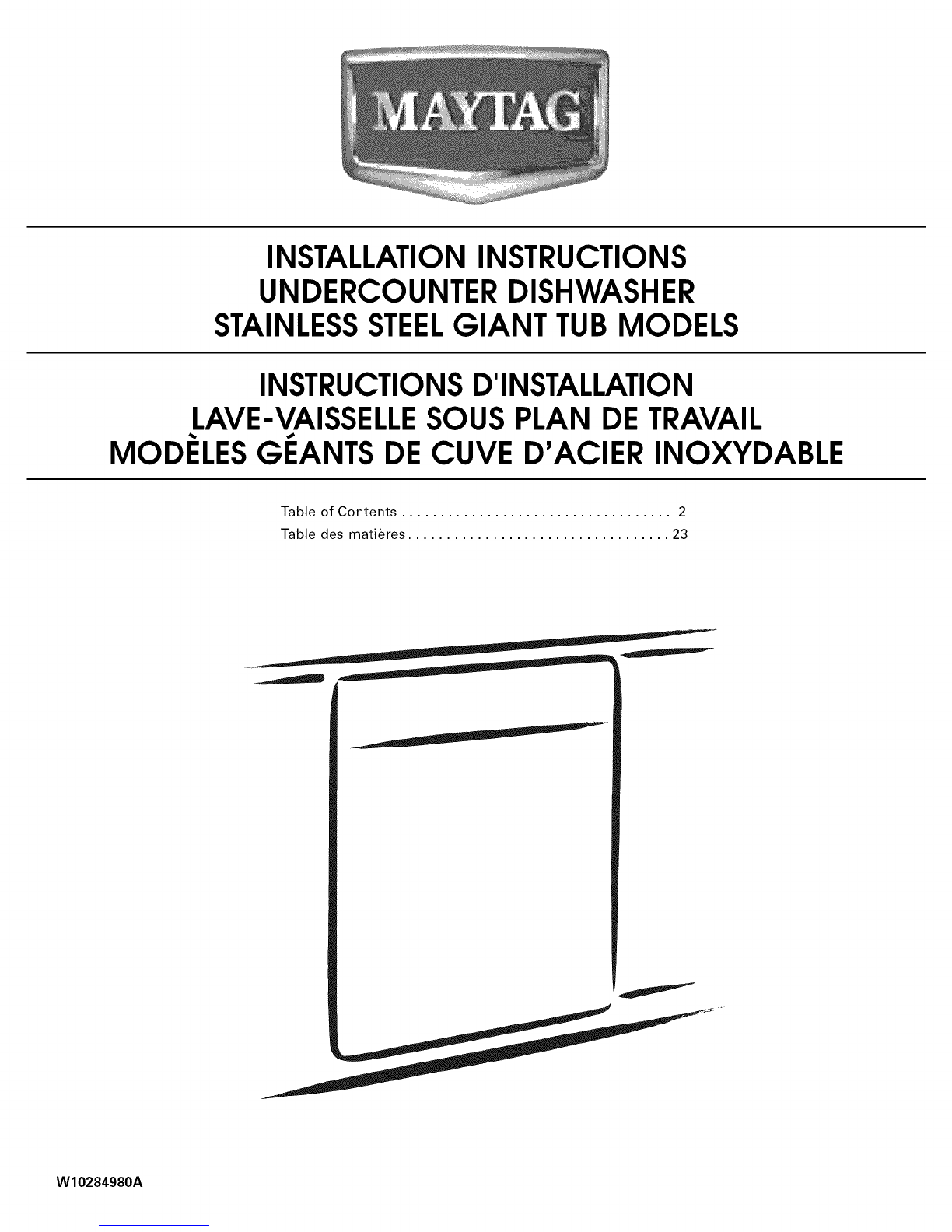

Maytag MDB7759AWB3 Bedienungsanleitung

INSTALLATIONINSTRUCTIONS

UNDERCOUNTER DISHWASHER

STAINLESSSTEELGIANT TUBMODELS

INSTRUCTIONSD'INSTALLATION

LAVE-VAISSELLESOUS PLAN DE TRAVAIL

MODELES GEANTS DE CUVE D'ACIER INOXYDABLE

Table of Contents ................................... 2

Table des matieres .................................. 23

W10284980A

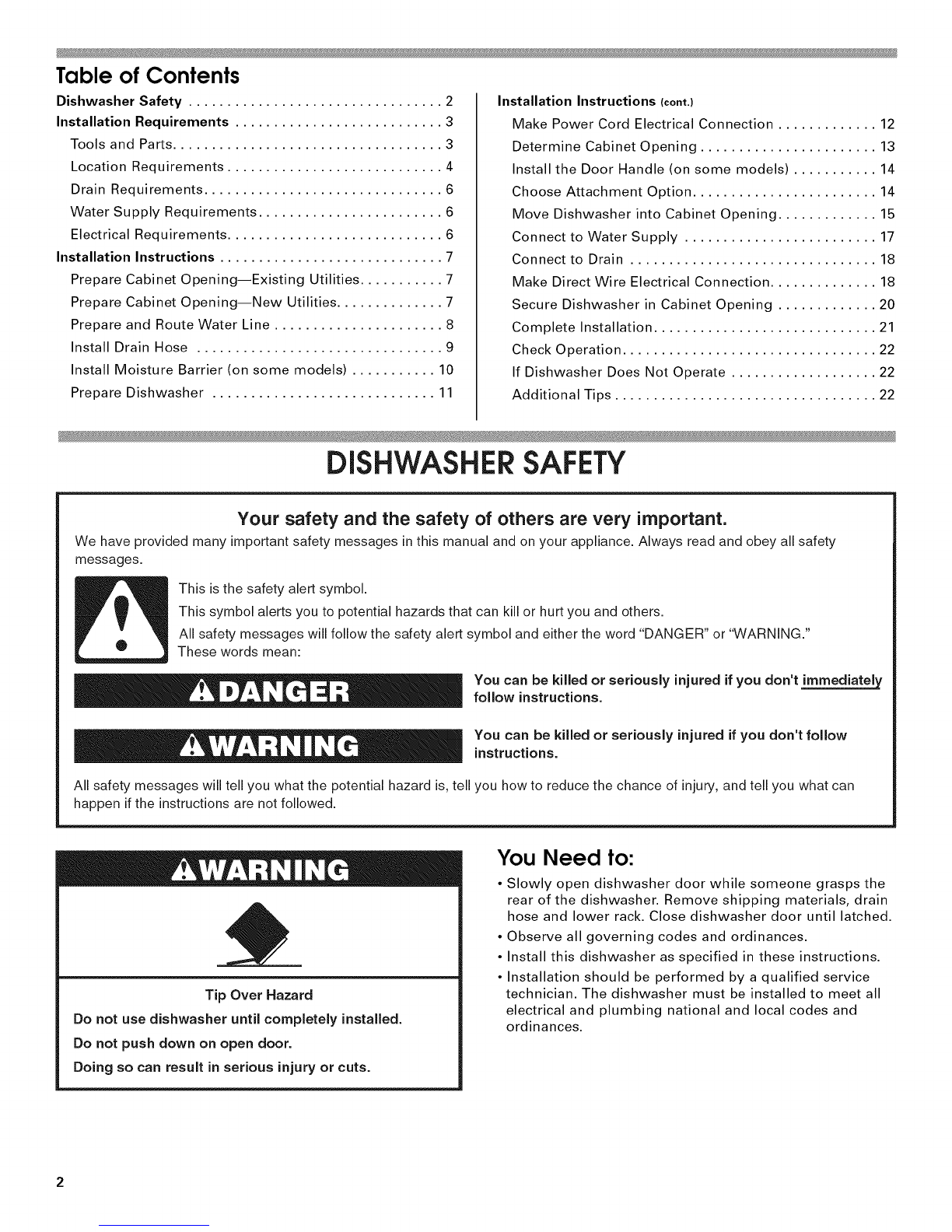

Table of Contents

Dishwasher Safety ................................. 2

Installation Requirements ........................... 3

Tools and Parts ................................... 3

Location Requirements ............................ 4

Drain Requirements ............................... 6

Water Supply Requirements ........................ 6

Electrical Requirements ............................ 6

Installation Instructions ............................. 7

Prepare Cabinet Opening--Existing Utilities ........... 7

Prepare Cabinet Opening--New Utilities .............. 7

Prepare and Route Water Line ...................... 8

Install Drain Hose ................................ 9

Install Moisture Barrier (on some models) ........... 10

Prepare Dishwasher ............................. 11

Installation Instructions (cont.)

Make Power Cord Electrical Connection ............. 12

Determine Cabinet Opening ....................... 13

Install the Door Handle (on some models) ........... 14

Choose Attachment Option ........................ 14

Move Dishwasher into Cabinet Opening ............. 15

Connect to Water Supply ......................... 17

Connect to Drain ................................ 18

Make Direct Wire Electrical Connection .............. 18

Secure Dishwasher in Cabinet Opening ............. 20

Complete Installation ............................. 21

Check Operation ................................. 22

If Dishwasher Does Not Operate ................... 22

Additional Tips .................................. 22

DISHWASHERSAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

You can be killed or seriously injured if you don't immediately

follow instructions.

You can be killed or seriously injured if you don't follow

instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Doing so can result in serious injury or cuts.

You Need to:

• Slowly open dishwasher door while someone grasps the

rear of the dishwasher. Remove shipping materials, drain

hose and lower rack. Close dishwasher door until latched.

• Observe all governing codes and ordinances.

• Install this dishwasher as specified in these instructions.

• Installation should be performed by a qualified service

technician. The dishwasher must be installed to meet all

electrical and plumbing national and local codes and

ordinances.

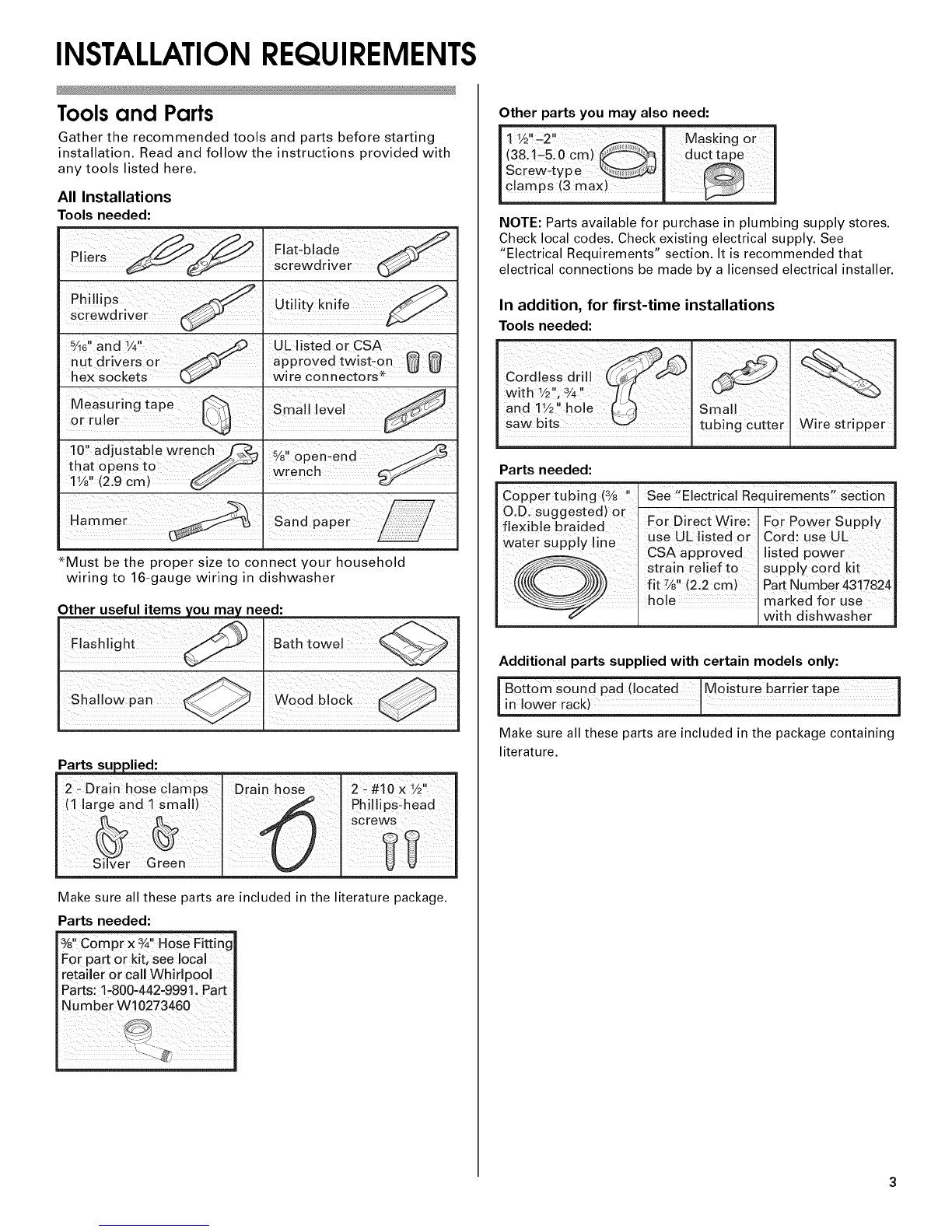

INSTALLATIONREQUIREMENTS

Tools and Parts

Gather the recommended tools and parts before starting

installation. Read and follow the instructions provided with

any tools listed here.

All Installations

Tools needed:

Pi ors Fiat-blade _._

screwdriver

Phillips

screwdriver i

sAs"and 1/4" _) UL listed or CSA

nut drivers or _ approved twist-on _

hex sockets _ wire connectors* _

Small level

10" adjustable wrench _ Y8 open-end

that opens to _//'_ wrench _/_

11/8"(2.9 cm)

_Must be the proper size to connect your household

wiring to 16-gauge wiring in dishwasher

OtFh::_ is_::l items _nee_at h rowe

Parts su )lied:

2-Drain hose clamps

(1 large and ! sma!l)

ar Green

Make sure all these parts are included in the literature package.

Parts needed:

--_ ====

%,'Compr x¾, Hose Fitting

Fo[ part or kit; see local

retailer or call Whirlpool

Parts: 1,800,442,9991, Part

Other parts you may also need:

1V2'!--2" _ I Masking

,3811 s.0ore) ,

Sc[ew_type

clamps!3max)j

NOTE: Parts available for purchase in plumbing supply stores.

Check local codes. Check existing electrical supply. See

"Electrical Requirements" section. It is recommended that

electrical connections be made by a licensed electrical installer.

In addition, for first-time installations

Tools needed:

Parts needed:

_Coppe[ tubing (3/8" see"Electrical Requirements,, Section

O.D suggested) 0r , z i

flexible braide,4 t-or Direct Wire: For Power Supply

: at'erSu_"-I ;'ine I use UL listed or Cord: useUL

vv _p y ICSA approved hsted power

Istrain relief to supplyc0rd kit

[_t_.,_ _j_j)_) Ifit %(2.2 cm) Part Number4317824

\_ hole marked for use

With dishwaSher

Additional parts supplied with certain models only:

[ BottOm SOund pad doeated IMoisture barrier tape

[in lower rack) [ J

Make sure all these parts are included in the package containing

literature.

Location Requirements

Grounded electrical supply required.

Do not run drain lines, water lines or electrical wiring where

they can interfere with or contact dishwasher motor or legs.

The location where the dishwasher will be installed must

provide clearance between motor and flooring. Motor

should not touch the floor.

Do not install dishwasher over carpeted flooring.

Avoid damage from freezing to the dishwasher and water

lines leading to the dishwasher. Damage from freezing is

not covered by the warranty.

A side panel kit is available from your dealer for installing

your dishwasher at the end of your cabinetry.

A moisture barrier accessory (Part Number 4396277) is

available from your dealer for installing underneath the

countertop. Call 1-8OO-688-99OO to order.

Check location where dishwasher will be installed. The

location must provide:

• easy access to water, electricity and drain.

• convenient access for loading and unloading dishes.

Corner locations require a 2" (5.1 cm) minimum

clearance between the side of the dishwasher door

and the wall or cabinet.

• square opening for proper operation and appearance.

• cabinet front perpendicular to floor.

• level floor. (If floor at front of opening is not level with

floor at rear of opening, shims may be needed to level

dishwasher.)

Helpful "13p:Be sure to accurately measure dimensions

and ensure dishwasher is level if the floor in the

dishwasher opening is uneven (example: Flooring

extends only partway into opening).

NOTE: To avoid shifting during dishwasher operation,

shims must be securely attached to the floor.

If dishwasher will be left unused for a period of time or in a

location where it may be subject to freezing, have it

winterized by authorized service personnel.

Make sure pipes, wires and drain hose are within the

shaded area shown in the "Product and Cabinet

Opening Dimensions" section.

Product and Cabinet Opening Dimensions

_lnsulation may be compressed

(not used on all models)

NOTE: Shaded areas of cabinet walls show where

utility connections may be installed.

*Measured from the lowest point on the

underside of countertop. May be reduced to

33% (86 cm) by removing wheels from

dishwasher.

Check that all surfaces have no protrusions

[hat would prohibit dishwasher installation.

1,6

**Minimum, measured from narrowest point of /"

opening.

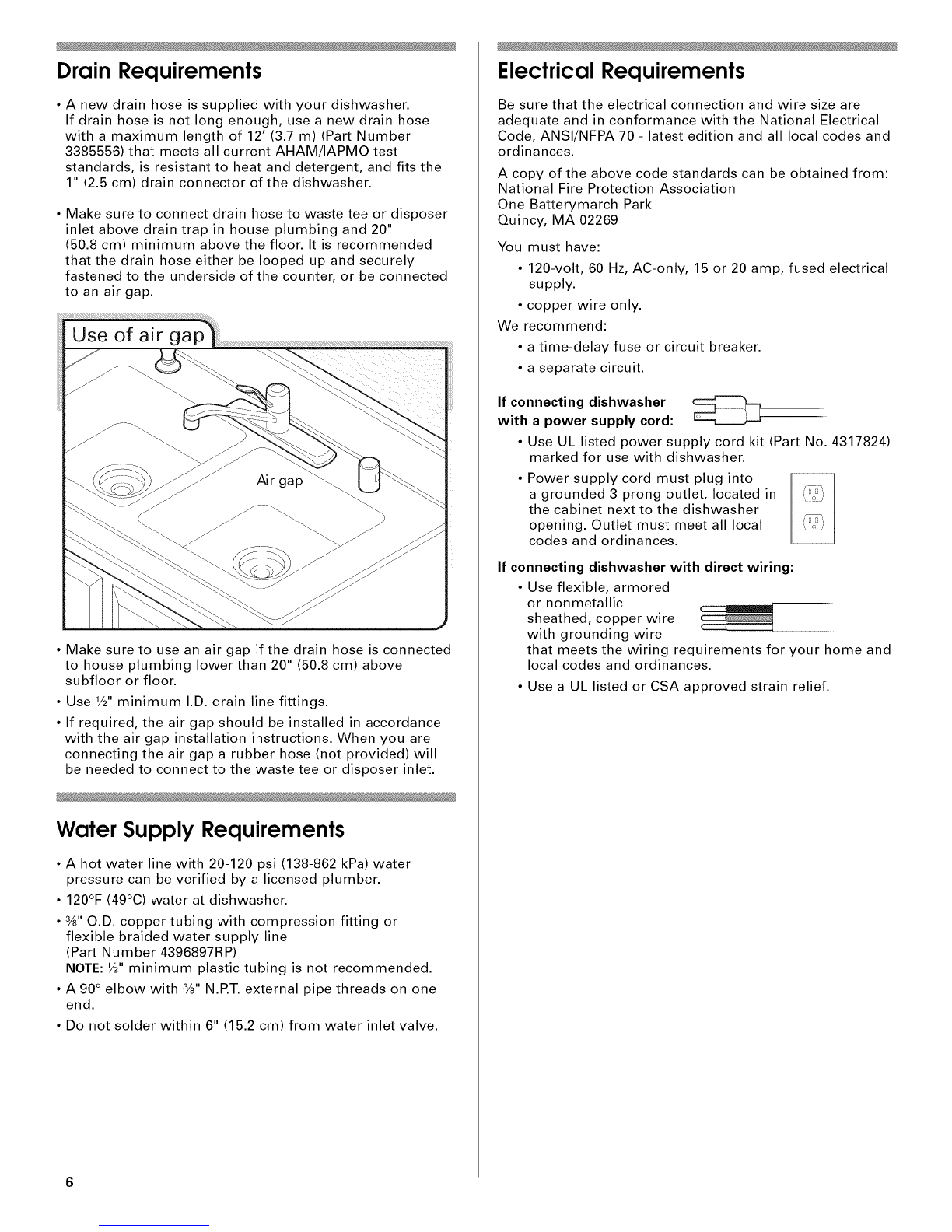

Drain Requirements

• A new drain hose is supplied with your dishwasher.

If drain hose is not long enough, use a new drain hose

with a maximum length of 12' (3.7 m) (Part Number

3385556) that meets all current AHAM/IAPMO test

standards, is resistant to heat and detergent, and fits the

1" (2.5 cm) drain connector of the dishwasher.

• Make sure to connect drain hose to waste tee or disposer

inlet above drain trap in house plumbing and 20"

(50.8 cm) minimum above the floor. It is recommended

that the drain hose either be looped up and securely

fastened to the underside of the counter, or be connected

to an air gap.

• Make sure to use an air gap if the drain hose is connected

to house plumbing lower than 20" (50.8 cm) above

subfloor or floor.

• Use 1/2"minimum I.D. drain line fittings.

• If required, the air gap should be installed in accordance

with the air gap installation instructions. When you are

connecting the air gap a rubber hose (not provided) will

be needed to connect to the waste tee or disposer inlet.

Water Supply Requirements

• A hot water line with 20-120 psi (138-862 kPa) water

pressure can be verified by a licensed plumber.

• 120°F (49°C) water at dishwasher.

• 3/8"O.D. copper tubing with compression fitting or

flexible braided water supply line

(Part Number 4396897RP)

NOTE:1/2"minimum plastic tubing is not recommended.

• A 90° elbow with 3/8"N.RT. external pipe threads on one

end.

• Do not solder within 6" (15.2 cm) from water inlet valve.

Electrical Requirements

Be sure that the electrical connection and wire size are

adequate and in conformance with the National Electrical

Code, ANSI/NFPA 70 - latest edition and all local codes and

ordinances.

A copy of the above code standards can be obtained from:

National Fire Protection Association

One Batterymarch Park

Quincy, MA 02269

You must have:

• 120-volt, 60 Hz, AC-only, 15 or 20 amp, fused electrical

supply.

• copper wire only.

We recommend:

• a time-delay fuse or circuit breaker.

• a separate circuit.

If connecting dishwasher

with a power supply cord:

• Use UL listed power supply cord kit (Part No. 4317824)

marked for use with dishwasher.

• Power supply cord must plug into

a grounded 3 prong outlet, located in

the cabinet next to the dishwasher

opening. Outlet must meet all local

codes and ordinances.

If connecting dishwasher with direct wiring:

• Use flexible, armored

or nonmetallic

sheathed, copper wire

with grounding wire

that meets the wiring requirements for your home and

local codes and ordinances.

• Use a UL listed or CSA approved strain relief.

INSTALLATIONINSTRUCTIONS

"a,

Electrical Shock Hazard

Disconnect electrical power at the fuse box or circuit

breaker box before installing dishwasher.

Failure to do so can result in death or electrical shock.

i__; __;;;;;;;_; ;_t ¸__;;;_ _:_:;:__;j___;;;_;_;_;_;j____;j; _ ; _ j;__;;f_:;::::;;__;;;;;;;;;;;;__ :_;_ _;;;;;;;;;;;.

1l_!J Disco n nect p owe r

I Disc0nne_t electrical power at the fuSe box or circuit i

! breaker box before installing dishwasher, J

Yes _F0!low instructions in the '!Prepare Cabinet

Opening_Existing Utilities!' secti0nl

NO _F011ow instruCti0ns in the i,Prepare Cabinet ....

Opening_New Utilities" secti0ni

Prepare Cabinet Opening--Existing

Utilities

If the water line and the cable extend to the locations

shown, proceed to the "Install Drain Hose" section. If they

do not reach far enough, follow the instructions in the

"Prepare Cabinet Opening--New Utilities" section.

Prepare Cabinet Opening--New

Utilities

Prepare and route the electrical supply

Option A, Power Supply Cord:

NOTE: A grounded 3 prong outlet is required inside a

cabinet next to the dishwasher cabinet opening.

Drill a 11/2"(3.8 cm) hole in cabinet side or rear.

See product and cabinet opening dimensions. 7

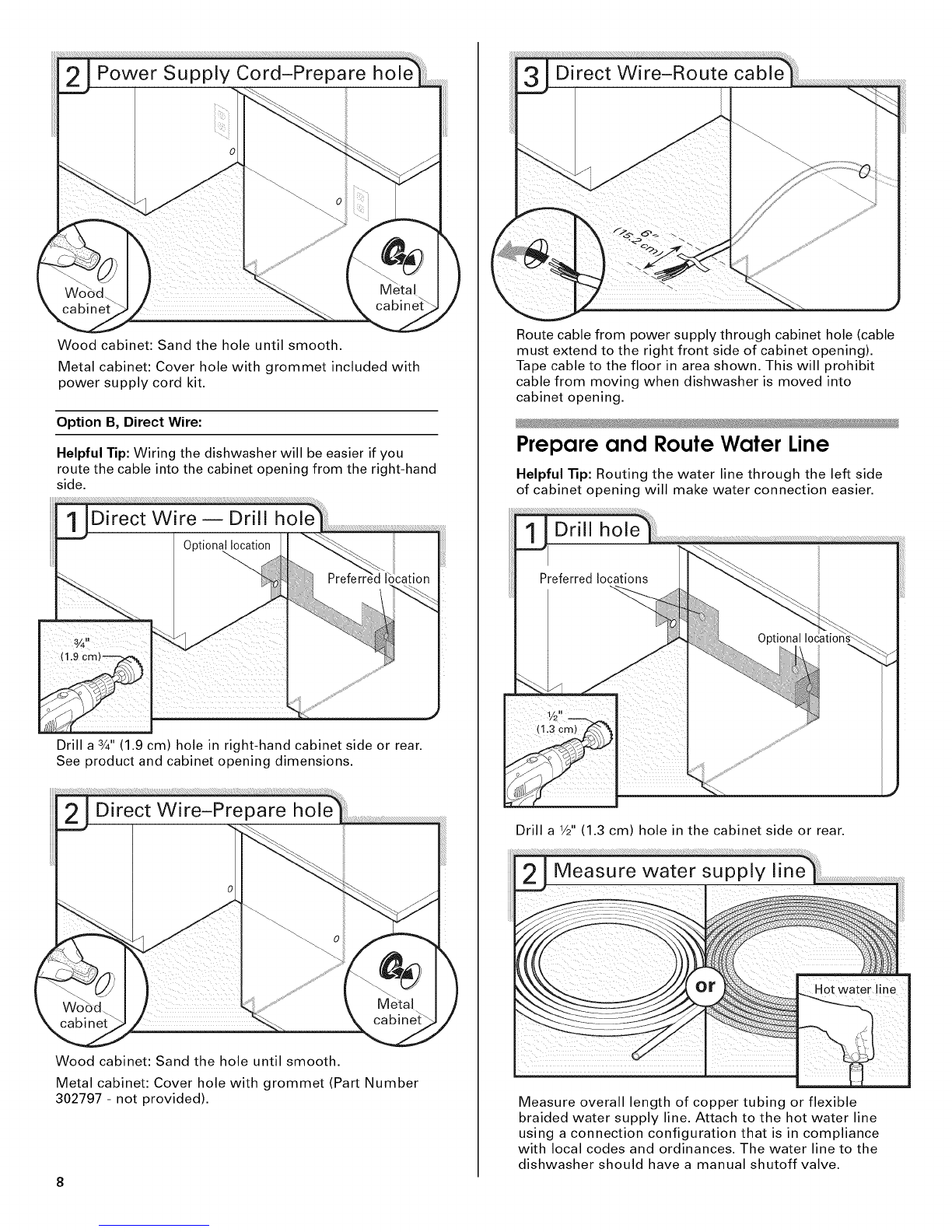

Woodcabinet:Sandtheholeuntilsmooth.

Metalcabinet:Coverholewithgrommetincludedwith

powersupplycordkit.

Option B, Direct Wire:

Helpful Tip: Wiring the dishwasher will be easier if you

route the cable into the cabinet opening from the right-hand

side.

Direct Wire -- Drill hole

Optionallocation

Drill a 3/4"(1.9 cm) hole in right-hand cabinet side or rear.

See product and cabinet opening dimensions.

Wood cabinet: Sand the hole until smooth.

Metal cabinet: Cover hole with grommet (Part Number

302797 - not provided).

Route cable from power supply through cabinet hole (cable

must extend to the right front side of cabinet opening).

Tape cable to the floor in area shown. This will prohibit

cable from moving when dishwasher is moved into

cabinet opening.

Prepare and Route Water Line

Helpful Tip: Routing the water line through the left side

of cabinet opening will make water connection easier.

Drill hole

Preferred locations

Drill a V2"(1.3 cm) hole in the cabinet side or rear.

Measure overall length of copper tubing or flexible

braided water supply line. Attach to the hot water line

using a connection configuration that is in compliance

with local codes and ordinances. The water line to the

dishwasher should have a manual shutoff valve.

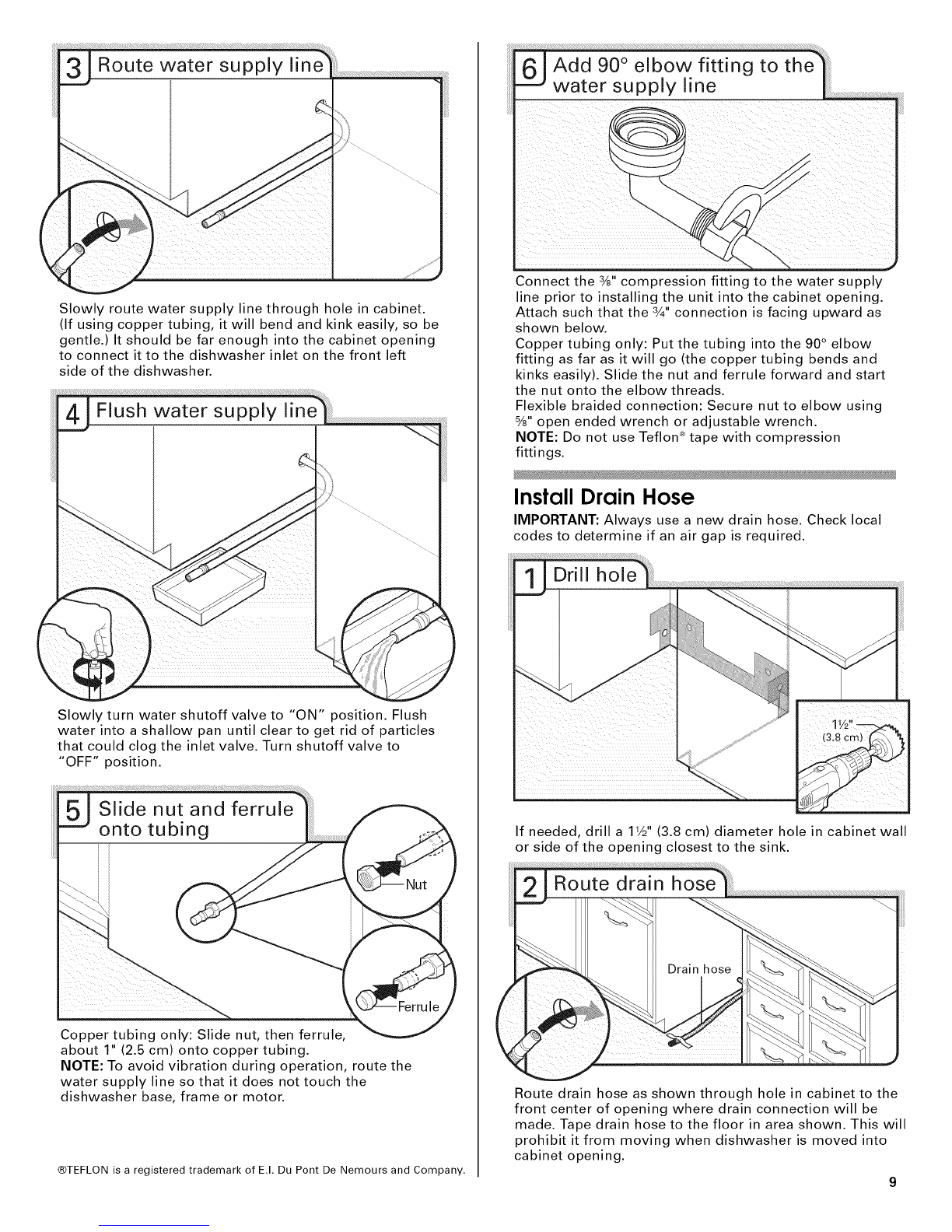

Slowlyroutewatersupplylinethroughholeincabinet.

(Ifusingcoppertubing,itwillbendandkinkeasily,sobe

gentle.)Itshouldbefarenoughintothecabinetopening

toconnectittothedishwasherinletonthefrontleft

sideofthedishwasher.

Slowlyturnwatershutoffvalveto "ON"position.Flush

waterintoashallowpanuntilcleartogetridofparticles

thatcouldclogtheinletvalve.Turnshutoffvalveto

"OFF")osition.

Coppertubingonly:Slidenut,thenferrule,

about1"(2.5cm)ontocoppertubing.

NOTE:Toavoidvibrationduringoperation,routethe

watersupplylinesothatitdoesnottouchthe

dishwasherbase,frameormotor.

®TEFLON is a registered trademark of E.I. Du Pont De Nemours and Company.

-:J water supply line L

Connect the 3/8"compression fitting to the water supply

line prior to installing the unit into the cabinet opening.

Attach such that the 3/4"connection is facing upward as

shown below.

Copper tubing only: Put the tubing into the 90° elbow

fitting as far as it will go (the copper tubing bends and

kinks easily). Slide the nut and ferrule forward and start

the nut onto the elbow threads.

Flexible braided connection: Secure nut to elbow using

%" open ended wrench or adjustable wrench.

NOTE: Do not use Teflon _tape with compression

fittings.

Install Drain Hose

IMPORTANT: Always use a new drain hose. Check local

codes to determine if an air gap is required.

If needed, drill a 11/2'' (3.8 cm) diameter hole in cabinet wall

or side of the opening closest to the sink.

Route drain hose as shown through hole in cabinet to the

front center of opening where drain connection will be

made. Tape drain hose to the floor in area shown. This will

prohibit it from moving when dishwasher is moved into

cabinet opening.

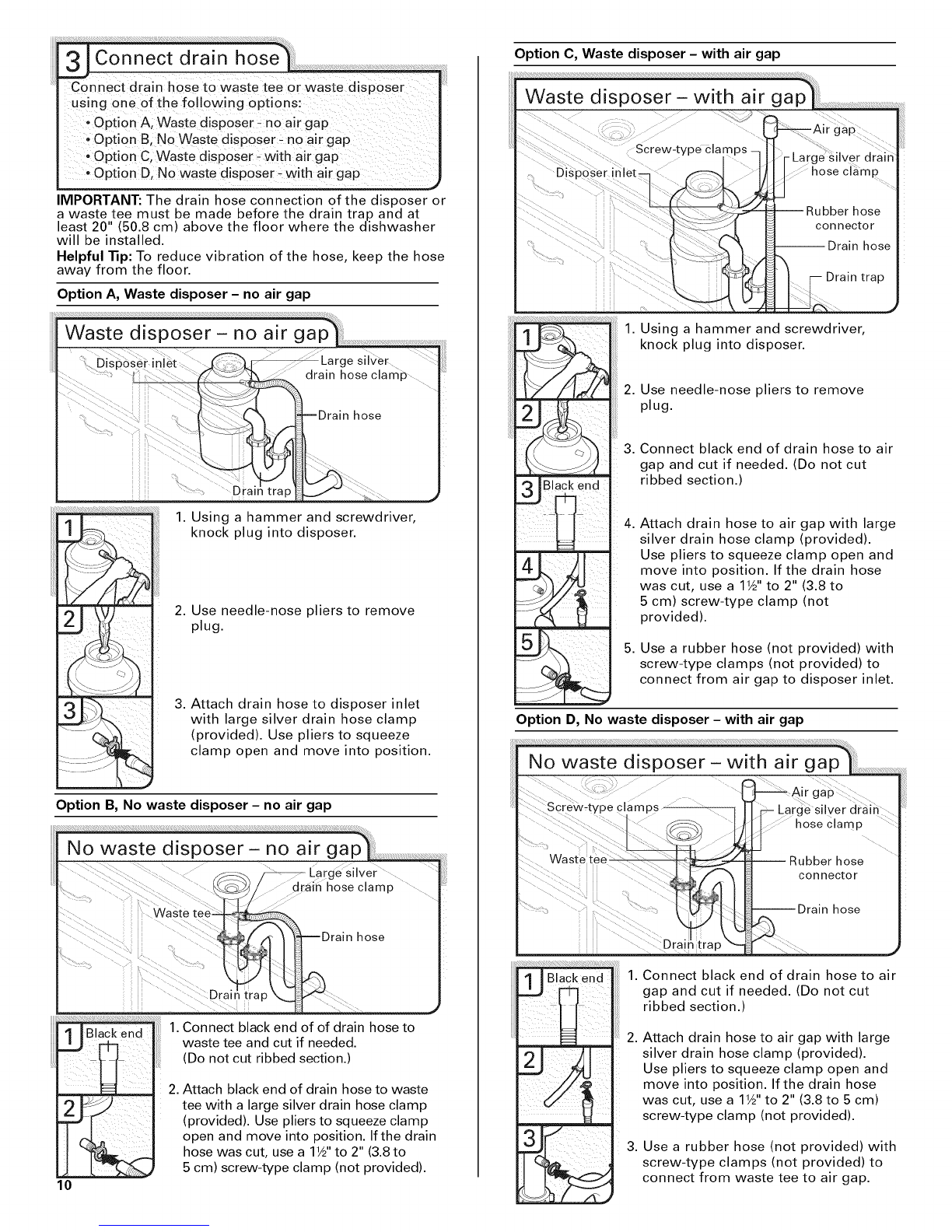

Option C, Waste disposer - with air gap

using one of the f0!!owing options:

, Qpti0n A; Waste disposer-n0 air gap

' Option B, No Waste disposer- no air gap

'Option C,Waste disposer with air gap

,Option D, No waste disposer ; with air gap

IMPORTANT: The drain hose connection of the disposer or

a waste tee must be made before the drain trap and at

least 20" (50.8 cm) above the floor where the dishwasher

will be installed.

Helpful "lip: To reduce vibration of the hose, keep the hose

away from the floor.

Option A, Waste disposer -no air gap

Dial

1. Using a hammer and screwdriver,

knock plug into disposer.

2. Use needle-nose pliers to remove

plug.

3. Attach drain hose to disposer inlet

with large silver drain hose clamp

(provided). Use pliers to squeeze

clamp open and move into position.

Option B, No waste disposer -no air gap

1.Connect black end of of drain hose to

waste tee and cut if needed.

(Do not cut ribbed section.)

2. Attach black end of drain hose to waste

tee with a large silver drain hose clamp

(provided). Use pliers to squeeze clamp

open and move into position. Ifthe drain

hose was cut, use a 1W' to 2" (3.8 to

5 cm) screw-type clamp (not provided).

Drain trap

1. Using a hammer and screwdriver,

knock plug into disposer.

2. Use needle-nose pliers to remove

plug.

3. Connect black end of drain hose to air

gap and cut if needed. (Do not cut

ribbed section.)

Attach drain hose to air gap with large

silver drain hose clamp (provided).

Use pliers to squeeze clamp open and

move into position. If the drain hose

was cut, use a 1W' to 2" (3.8 to

5 cm) screw-type clamp (not

provided).

Use a rubber hose (not provided) with

screw-type clamps (not provided) to

connect from air gap to disposer inlet.

Option D, No waste disposer -with air gap

1_ Black end

Connect black end of drain hose to air

gap and cut if needed. (Do not cut

ribbed section.)

Attach drain hose to air gap with large

silver drain hose clamp (provided).

Use pliers to squeeze clamp open and

move into position. If the drain hose

was cut, use a 1_ '' to 2" (3.8 to 5 cm)

screw-type clamp (not provided).

Use a rubber hose (not provided) with

screw-type clamps (not provided) to

connect from waste tee to air gap.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Maytag Spülmaschine Handbücher

Maytag

Maytag MDB-5 Bedienungsanleitung

Maytag

Maytag BUILT-IN DISHWASHER Bedienungsanleitung

Maytag

Maytag MDB5100 Bedienungsanleitung

Maytag

Maytag MDB3601BWB1 Bedienungsanleitung

Maytag

Maytag Performa PDB1100 Bedienungsanleitung

Maytag

Maytag MDC4650AWB - Jet Clean II 24" Portable... Bedienungsanleitung

Maytag

Maytag MDB6769AWB3 Bedienungsanleitung

Maytag

Maytag W10282479 Bedienungsanleitung

Maytag

Maytag 860S Bedienungsanleitung

Maytag

Maytag DWU5902AAB Bedienungsanleitung

Maytag

Maytag MDB9601AWS - Jetclean III Dishwasher Bedienungsanleitung

Maytag

Maytag MDB8951AWB - Jetclean II Series Fully Integrated... Bedienungsanleitung

Maytag

Maytag DWC8240AAW Bedienungsanleitung

Maytag

Maytag JET CLEAN II JDB1100AW Bedienungsanleitung

Maytag

Maytag MDB6759AWQ - 24 Inch Fully Integrated... Bedienungsanleitung

Maytag

Maytag Jetclean II MDC4650AWW Bedienungsanleitung

Maytag

Maytag W10667788A Bedienungsanleitung

Maytag

Maytag W10300218B Bedienungsanleitung

Maytag

Maytag MDB8951AWB - Jetclean II Series Fully Integrated... Handbuch

Maytag

Maytag MDB5601AWQ - Jetclean II Undercounter... Bedienungsanleitung

Maytag

Maytag MDBH945AWW Handbuch

Maytag

Maytag Jetclean MDB9100 Bedienungsanleitung

Maytag

Maytag MDB4709PAQ Bedienungsanleitung

Maytag

Maytag MDC4809PAW0 Bedienungsanleitung

Beliebte Spülmaschine Handbücher anderer Marken

Electrolux

Electrolux ESI5211LOX Bedienungsanleitung

KitchenAid

KitchenAid KUDB230B Bedienungsanleitung

Brandt

Brandt BDJ424DB Bedienungsanleitung

Asko

Asko DSD767UXXL.AU Bedienungsanleitung

Beko

Beko DFN26210W Bedienungsanleitung

NEFF

NEFF S153ITX00E Technisches Datenblatt

Midea

Midea SV 4.45 wi Bedienungsanleitung

LG LDF7932 Bedienungsanleitung

Gorenje

Gorenje GV63214 Bedienungsanleitung

Hotpoint

Hotpoint HDA1100ZWH Service-Handbuch

Blomberg

Blomberg LDFN2240W Bedienungsanleitung

AEG

AEG FFB83836PM Bedienungsanleitung

Cylinda

Cylinda DM3220RFD Bedienungsanleitung

Atag

Atag DW8214MB Bedienungsanleitung

GE GLD8000 Series Bedienungsanleitung

Siemens

Siemens SN23HI02KE Technisches Datenblatt

Omega

Omega ODW717X Bedienungsanleitung

BORETTI

BORETTI BVW-683 Bedienungsanleitung
