M AY TA G ®COMMERCIAL

SUPER-CAPACITY DRYER

CLP558

FOR YOUR CUSTOMERS:

• Easy-To-Operate Dial Controls

• Convenient Top-Opening Door

• Extra-Large Door Opening

FOR YOUR OPERATION:

• Reversible Door

• Large-Capacity Lint Filter

• Front Access For Easy Service

BUILT-TO-LAST™FEATURES:

• Premium Porcelain-Enamel Top

• Tri-Coat™Cabinet Protection

• DuraCushion™Dryer Drum

• Cushioned Drum Suspension

• Permanently Lubricated Bearings

• The Best Warranty In The Business

QUICK, EFFICIENT,

RELIABLE DRYING

Maytag®super-capacity dryers are the

perfect match for our washers, delivering

powerful 220-cfm diagonal airflow with a

choice of fabric care cycles.

MECHANICAL CONTROLS

Manual dryer controls make it easy for

anyone to select the appropriate drying

cycle and set the desired amount of time.

MDE/MDG16MN

SIMPLE

OPERATION

FOR OUTSTANDING

RESULTS.

36"**

(91.4 cm)

"**

(106 cm)

27"

(68.6 cm)

(34.3 cm)

(19 cm)

"**

(9.8 cm)

(72.4 cm)

"**

(7.1 cm)

(8.6 cm)

Door open 90º

(128.3 cm)

Gas

connection

* Includes

3/4

" (1.9 cm) for hinge on back of dryer.

** Dimensions will vary according to adjustment of

leveling legs; add

1/2

" (1.3 cm) minimum.

MAXIMUM EXHAUST DUCT LENGTH

PER NUMBER OF TURNS

Number Of

90° Turns

4"-diameter rigid metal duct

0 65 ft. (19.8 m ) 59 ft. (18 m )

1 54 ft. (16.5 m ) 48 ft. (14.6 m )

2 44 ft. (13.4 m ) 38 ft. (11.6 m )

3 36 ft. (11 m ) 30 ft. (9.1 m )

4 28 ft. (8.5 m ) 22 ft. (6.7 m)

4"-diameter flexible stiff-walled metal duct

0 36 ft. (11 m ) 28 ft. (8.5 m )

1 32 ft. (9.8 m ) 24 ft. (7.3 m )

2 28 ft. (8.5 m ) 20 ft. (6.1 m )

3 25 ft. (7.6 m ) 17 ft. (5.2 m )

4 23 ft. (7 m ) 15 ft. ( 4.6 m)

21/2"

(6.4 cm)

(10.2 cm)

21/2"

(6.4 cm)

(10.2 cm)

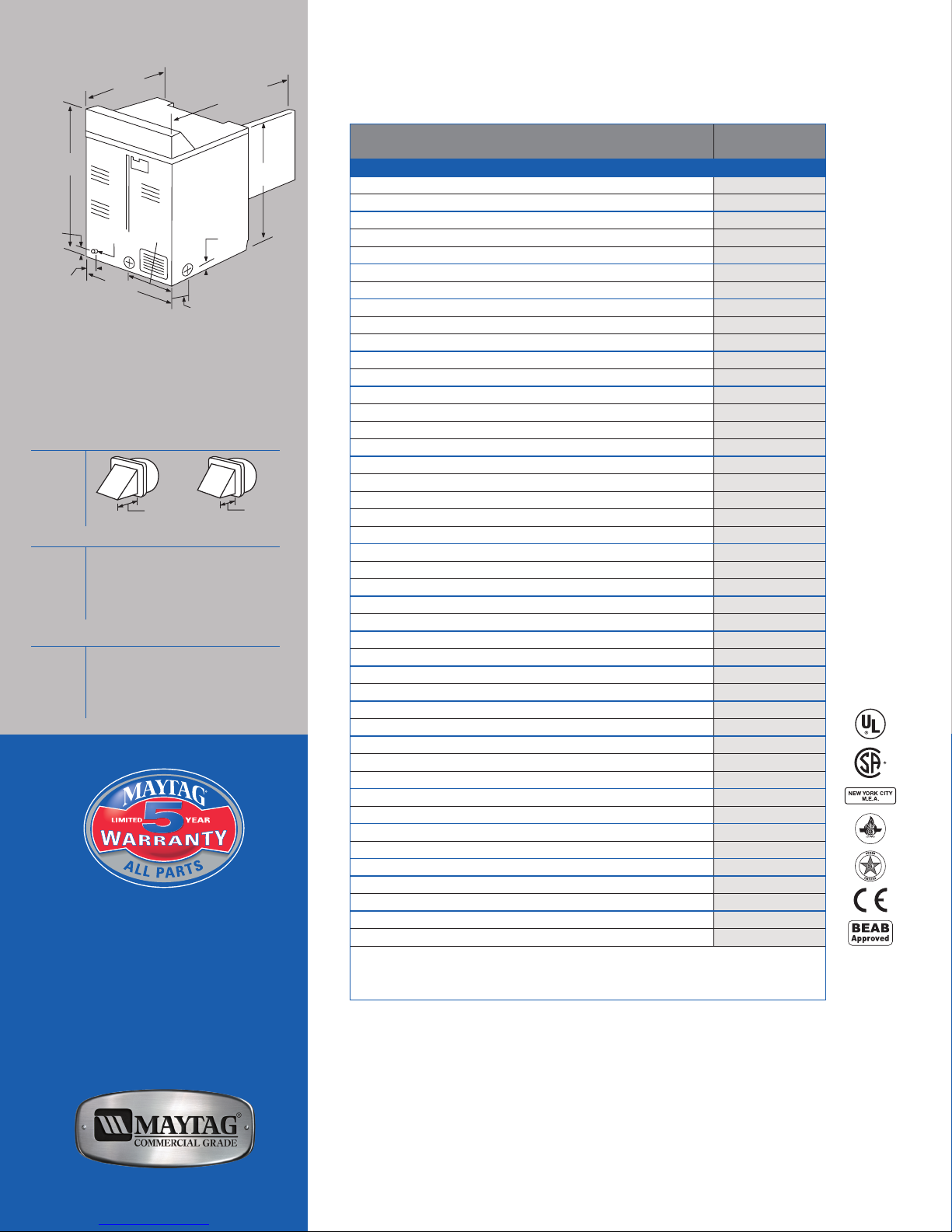

Maytag®Super-Capacity Dryer

MECHANICAL CONTROLS

Super-Capacity

Dryer

DRYER SPECIFICATIONS

MODEL MDE/MDG16MN

MOTOR

Single-phase, thermoprotected against overload, auto-reset

•

HP (kw)

1⁄4(.19)

CAPACITY

Cu. ft. (cu. m)

6 (.17)

AIRFLOW

Domestic models — cfm (cmm)

220 (6.2)

Export models — cfm (cmm)

180 (5)

TUMBLE SPEED

RPM

50 ± 1.5

ELECTRICAL REQUIREMENTS

MDE model — volts (Hz)

240 (60)

MDG model — volts (Hz)

120 (60)

Export models — volts (Hz)

220 – 240 (50)

BREAKER/FUSE REQUIREMENTS

MDE model — amps

MDG model — amps

MDE export model — amps

MDG export model — amps

APPROXIMATE OVERALL DRAW

Domestic models — watts

5,900

Export models — watts

4,800

EXHAUST DUCT DIAMETER

In. (cm)

4 (10.2)*

NICHROME HELIX COIL HEATING ELEMENT

MDE model

•

SINGLE-PORT BURNER

MDG model

•

AUTOMATIC ELECTRIC BURNER IGNITION

MDG model

•

GAS RATING

MDG model — BTU/hr. (kcal/hr.)

24,000 (6,048)

MDG export model — BTU/hr. (kcal/hr.)

20,000 (5,040)

GAS INLET

MDG model — in. (cm)

1⁄2(1.3)

AUTOMATIC PRESSURE REGULATOR

MDG models

•

ADJUSTABLE LEVELING LEGS

•

COLOR

White

•

APPROXIMATE WEIGHT

Crated — lbs. (kg)

163 (74)

Uncrated — lbs. (kg)

144 (65)

*Use a minimum of 4

”

(10.2 cm) -diameter rigid aluminum or rigid galvanized-steel duct. Never use plastic, nonmetal or

combustible duct.

See specific instructions for proper installation. Because of continuous product improvement, Maytag reserves the right

to change specifications without notice.

5 YEARS — ALL PARTS

For a period from the date of original purchase

through the time listed above, the designated

parts that fail in normal commercial use will be

repaired or replaced free of charge for the part

itself, with the owner paying all other costs,

including labor, transportation and customs duty.

Chemical damage is excluded from all warranty

coverage. See complete warranty for details.

www.maytagcommerciallaundry.com

1/06
