Maytag MED5900TW0 Bedienungsanleitung

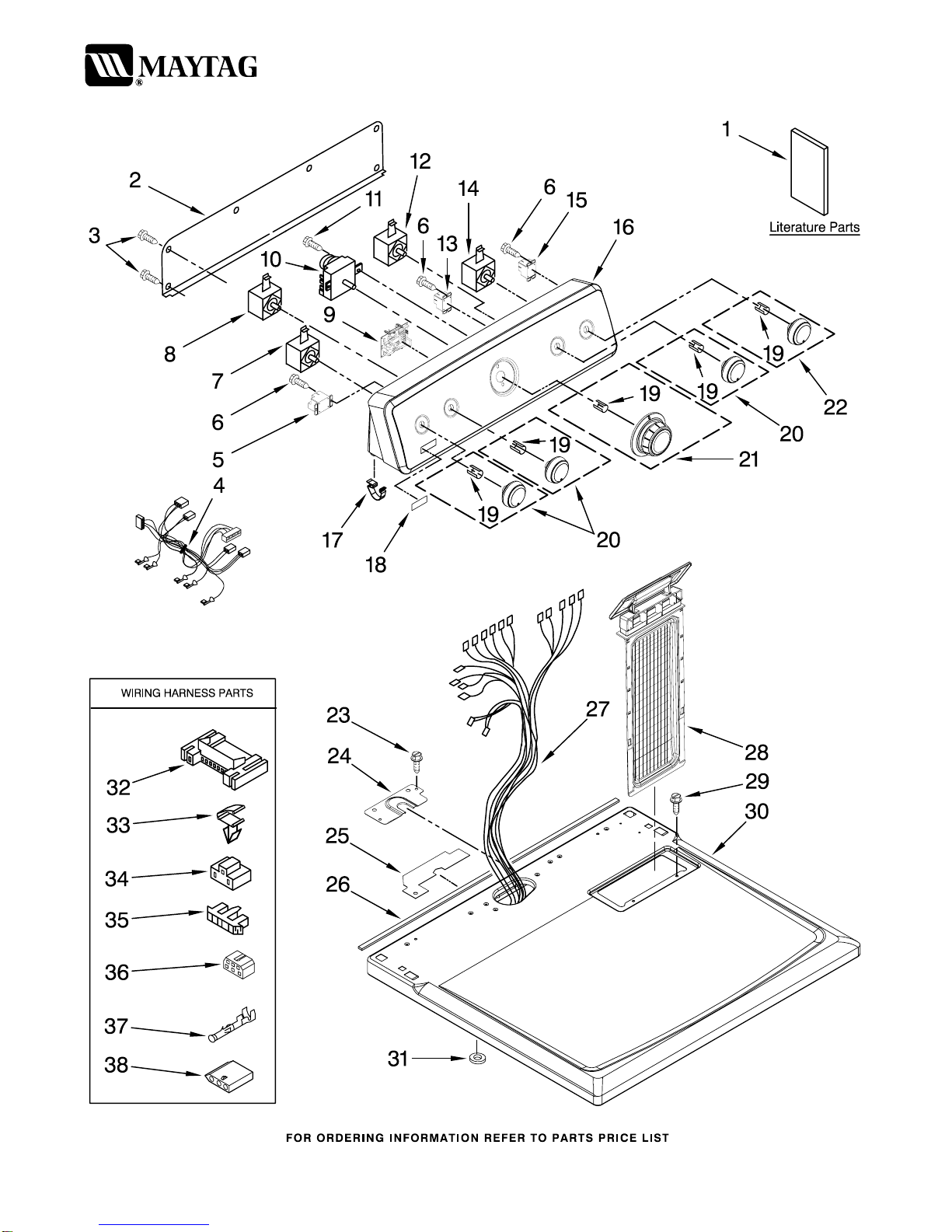

TOP AND CONSOLE PARTS

For Model: MED5900TW0

(White)

29" ELECTRIC DRYER

9−07 Litho in U.S.A. (drd) Part No. W10117335 Rev. B

TOP AND CONSOLE PARTS

For Model: MED5900TW0

(White)

W10117335

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10088770

Use & Care Guide

W10089172

Dryer Cycle Sheet

W10112987

Tech Sheet

W10112576

Panel, Console

Rear

3 693995 Screw, 8−18 x 3/8

W10108400

Harness, Wiring

Center Control

5 3405281 Relay, Motor

6 3388228 Screw,8−18 x 11/32

7 3405151 Switch,

End Of Cycle

8 3405152 Switch,

Wrinkle Guard

W10111812

Control Assembly

10 8299771 Timer, 60 Hz.

11 8533971 Screw, 8−18 x 5/16

12 8299970 Switch,

Temperature

13 8566493 Relay, Heater

W10156101

Switch,

Push−To−Start

15 3405281 Relay, Heater

16 8579712 Console & Shell

Assembly (Includes

Items 17 & 18)

17 8312709 Clip, Console

W10112569

Badge Assembly

19 8536939 Clip, Spring

W10110035

Knob, Control (3)

W10110036

Knob, Timer

W10110037

Knob,

Push−To−Start

23 337686 Screw, 8−18 x 1/2

24 8565981 Bracket, Harness

W10118608

Seal, Harness

W10112267

Seal, Foam

Console Bracket

W10108380

Harness, Wiring

28 8565972 Screen, Lint

29 688983 Screw, 8−18 x 5/8

W10112599

Top

31 237446 Washer (Top/Chute)

32 3395683 Connector (Motor)

33 3394427 Clip, Harness

34 3401144 Connector

(PTS Relay)

35 3397269 Connector (Timer)

36 3347243 Connector,

6−Circuit

37 94614 Terminal

38 3936144 Connector

CABINET PARTS

For Model: MED5900TW0

(White)

W10117335

CABINET PARTS

For Model: MED5900TW0

(White)

W10117335

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8530603 Cabinet

(Includes Item 4)

2 343641 Screw, 10−16 x 1/2

3 693995 Screw, 8/18 x 3/8

4 8541400 Bracket, Cabinet

5 3396795 Cover,

Terminal Block

6 3392100 Foot, Dryer

279810 Foot, Optional

Extended Length

(Package Of 2)

(Not Included)

7 3396805 Panel, Rear

8 3394083 Clip,

Front Panel

9 98669 Locator, Top (2)

10 3406107 Door Switch

Assembly

11 697773 Screw, 6−20 x 7/8

12 18776 Lock,

Front Top (2)

13 3403444 Panel, Front

14 98234 Clip, Ground

15 685203 Clip, Felt Pad (3)

16 3406129 Seal & Bearing

Assembly

17 3404413 Plug, Hole

18 3403431 Strike, Door

19 3403630 Plug, Strike

20 342055 Screw, 8−18 x 1/2

21 3405514 Hinge, Door (2)

22 3389441 Catch,

Door Assembly

23 3405246 Seal, Door

24 3402341 Door Rear

25 3402335 Door, Front

26 8565970 Handle, Door

27 3397659 Block, Terminal

28 3393008 Screw, 10−16 x 1/2

29 279393 Terminal Block

Kit (For

Terminal Block)

30 279318 Terminal, Tinned

& Brass (3)

(Includes Item 29)

31 8066217 Hinge, Top (2)

32 18849 Pad, Top Hinge (2)

33 697776 Screw, 10−32 x 5/8

34 3404162 Clamp, Motor

(W/Shield)

35 660658 Clamp, Motor

36 8066206 Motor Assembly,

60 Hz.

37 8066184 Pulley, 60 Hz.

W10131364

Belt, Drive

39 3400500 Bolt,

5/16−18 x 3/4

40 348780 Base, Motor

41 691366 Idler & Pulley

Assembly

BULKHEAD PARTS

For Model: MED5900TW0

(White)

W10117335

BULKHEAD PARTS

For Model: MED5900TW0

(White)

W10117335

Illus. Part

No. No. DESCRIPTION

1 348368 Lint Chute

Assembly

2 487909 Screw, 8−15 x 1/2

3 3388703 Washer−Support

4 347139 Seal, Lint

Chute

5 90767 Screw, 8−18 x 3/8

6 696302 Shield, Exhaust

7 3976479 Pad−Sensor

8 8577274 Thermister

9 3977393 Thermal, Cut−Off

(Includes

Illus. 15)

10 694089 Wheel, Blower

11 8577231 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 8541818 Box, Heater

15 3404153 Thermostat,

140 F

16 3977373 Bracket, Drum

Light

17 3401338 Element, Heater

18 8066086 Drum Hole

Plug

19 279457 Wire Kit, Terminal

(For Heater

Element Wiring

Harness Repair)

20 489463 Screw, 8−18 x 5/8

21 3390647 Screw, 8−18 x 1/2

22 3406126 Bulb

23 3402841 Lens, Drum Light

24 690997 Ring, Tri

25 3399506 Shaft, L.H.

26 3399507 Shaft, R.H.

27 3397590 Roller, Support

28 348197 Washer, Support

29 3359452 Nut, 3/8−16

30 3403413 Bulkhead

W10136369

Socket Assembly

32 692526 Ring, Bearing (2)

W10109200

Screw, 11−16 x 3/4

34 3406130 Seal, Rear Drum

35 695587 Drum Assembly

36 692490 Baffle, Drum (2)

37 3976434 Bracket, Support

38 90296 Clip

39 3403636 Baffle, Drum (1)

40 339956 Seal

41 3390719 Thermal−Fuse

(91C)

OPTIONAL PARTS (NOT INCLUDED)

For Model: MED5900TW0

(White)

W10117335

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

279948 Kit,

Dryer Repair

3406839 Dry Rack

8522199 Kit, Dryer

Vent Testing

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)
