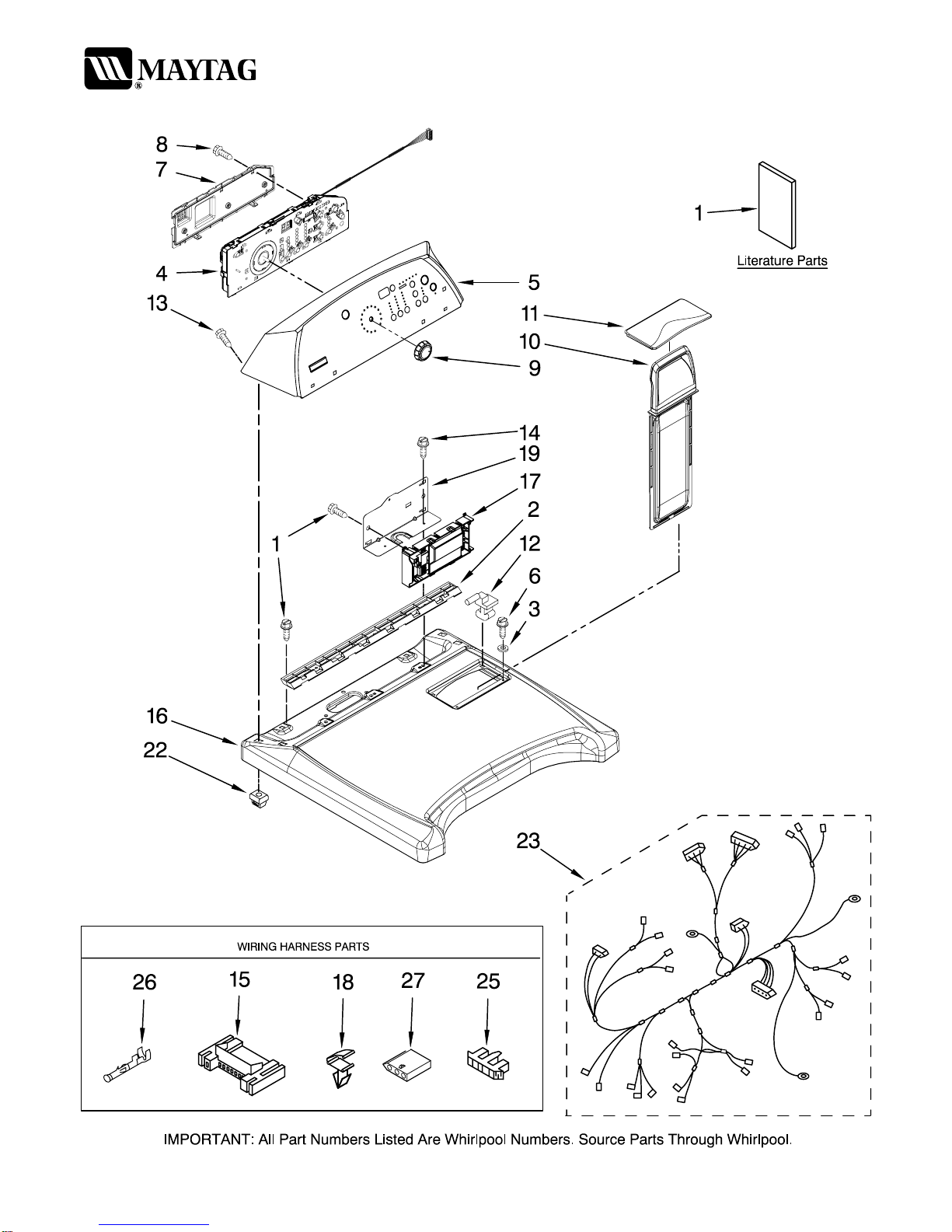

TOP AND CONSOLE PARTS

For Model: MED6300TQ0

(White)

11−07 Litho in U.S.A. (LT.) Part No. W10131662 Rev.A.

29"ELECTRIC DRYER

TOP AND CONSOLE PARTS

For Model: MED6300TQ0

(White)

W10131662

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10114194

Tech Sheet

W10114206

Guide,

Quick Start

W10088777

Use & Care Guide

2 8558863 Bracket, Console

3 237446 Washer (Top/Chute)

W10051096

User Interface

W10120084

Panel, Console

6 3196537 Screw, 8−18 x 5/8

7 8564265 Cover, Rear

W10003770

Screw, 6−19 x 3/64

W10110196

Knob, Assembly

10 8572270 Assembly,

Lint Screen

W10044320

Cover, Lint

Screen

W10044470

Hinge, R.H.

W10044480

Hinge, L.H.

W10001580

Screw

14 337686 Screw, 8−18 x 3/4

15 3395683 Connector

(Motor)

16 8565025 Top

W10111609

Control,

Electronic

18 3394427 Clip−Harness

19 8563853 Bracket,

Machine Controller

22 8558853 Grommet

W10111428

Harness Wiring

25 3936144 Connector

26 94614 Terminal

27 3397269 Connector, Timer

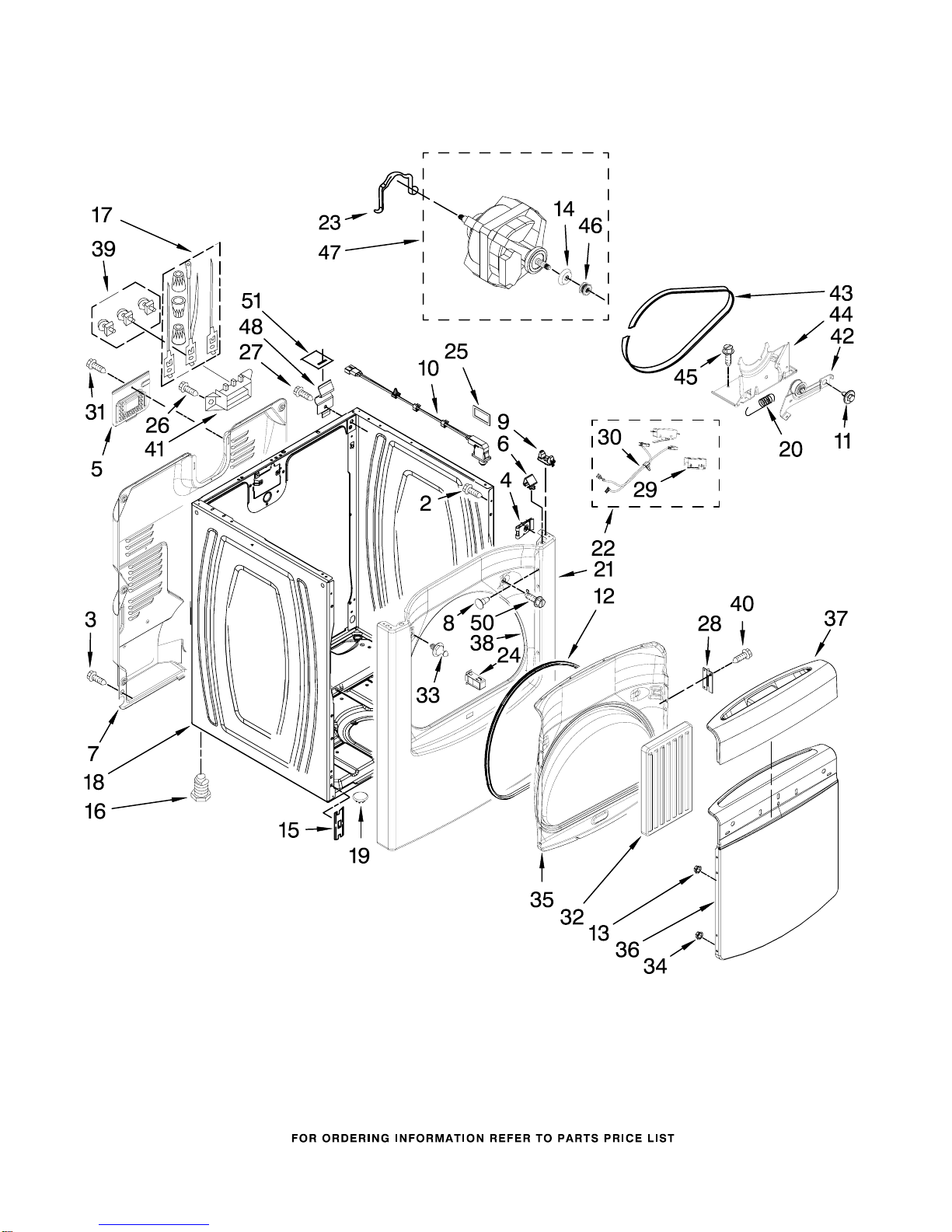

CABINET PARTS

For Model: MED6300TQ0

(White)

W10131662

CABINET PARTS

For Model: MED6300TQ0

(White)

W10131662

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 343641 Screw, 10−16 x 1/2

3 693995 Screw, 8−18 x 3/8

W10007520

Clip, Ground (2)

W10110241

Cover, Block

6 8576625 Lock−Top Front (2)

7 8558830 Panel, Rear

8 3404413 Plug−Hole

9 8568303 Locator,

Snap Down

10 3978977 Door Switch

Assembly

11 3389420 Retainer, Idler

12 8575027 Seal, Door

13 342055 Pal Nut (4)

14 8578538 Restrainer, Belt

15 3394083 Clip, Front

Panel (2)

16 3392100 Foot, Dryer

279810 Foot−Optional

(Extended Length

Package of 2)

(Not Included)

17 279318 Terminal, Tinned

& Brass (3)

(Includes Illus. 39)

18 8557569 Cabinet

19 8578560 Hole Plug

20 3387374 Spring, Idler

21 8565029 Panel, Front

22 8566208 Switch Assembly

23 660658 Clamp, Motor

24 8572982 Catch, Door

Assembly

W10118614

Seal, Door Switch

26 3393008 Screw, 10−16 x 1/2

27 3390631 Screw, 8−18 x 1/2

28 8565018 Hinge, Assembly

29 8564011 Bracket, Switch

30 8539897 Belt−Switch

Jumper

31 8533974 Screw Ground

W10050060

Filler−Door

33 8572983 Strike, Door

34 308499 Palnut (10)

35 8565020 Door Inner

W10116924

Door, Outer

W10111244

Door Handle

W10044490

Seal, Front Panel

39 279393 Terminal Block

Kit (For

Terminal Block)

40 342055 Screw, 10−32 x 5/8

41 3397659 Block, Terminal

42 8547174 Pulley Assembly

43 8547168 Belt, Drive

44 8547166 Base, Motor

W10002600

Bolt,

6−20 x 1 1/4

46 8578565 Pulley, 60 HZ

47 8566152 Motor Assembly

60 HZ.

48 238088 Hinge, Top (2)

W10100830

Screw,

10−16 x 3/64

51 18849 Pad−Top Hinge

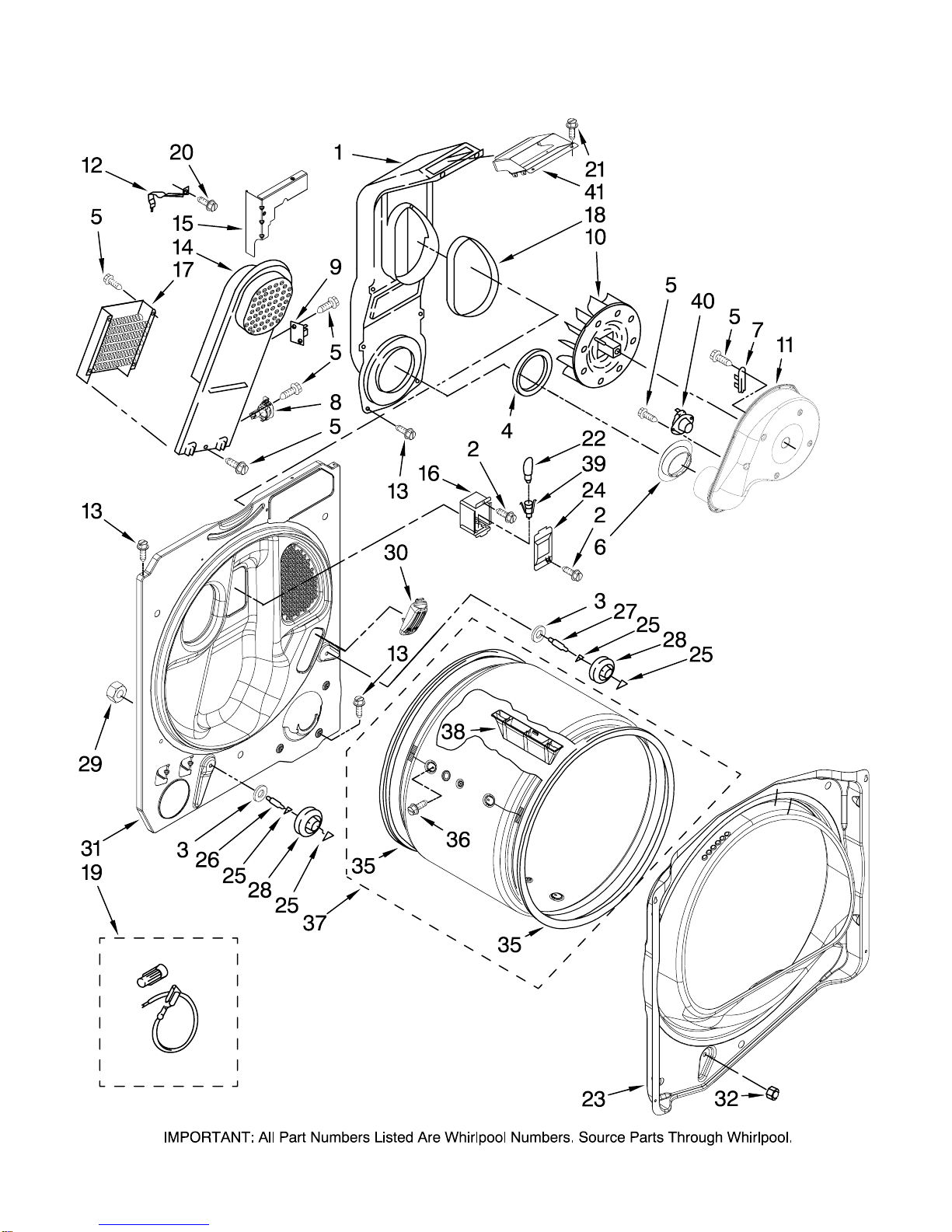

BULKHEAD PARTS

For Model: MED6300TQ0

(White)

W10131662

BULKHEAD PARTS

For Model: MED6300TQ0

(White)

W10131662

Illus. Part

No. No. DESCRIPTION

1 8544805 Lint Chute

Assembly

2 487909 Screw, 8−15 x 1/2

3 3387459 Washer−Support

4 347139 Seal, Lint

Chute

5 90767 Screw, 8−18 x 3/8

6 8573836 Shield, Exhaust

7 3392519 Thermal−Fuse (91C)

8 8566498 Thermostat,

HI−Limit

W10169881

Kit,

Thermal Cut−Off

(Includes

Illus. 8)

10 694089 Wheel, Blower

11 8577230 Housing, Blower

12 8546149 Clip−Heater Box

13 343641 Screw, 10−16 x 1/2

14 8544801 Box, Heater

W10053480

Bracket,

Lint Chute

16 3977373 Bracket, Drum

Light

17 8573069 Element, Heater

18 8544813 Seal

19 279457 Wire Kit, Terminal

(For Heater

Element Wiring

Harness Repair)

20 489463 Screw, 8−18 x 5/8

21 3196537 Screw

22 3406126 Bulb

23 8558890 Bulkhead, Front

24 3402841 Lens, Drum Light

25 690997 Ring Tri

26 8575325 Shaft, (L.H.)

27 8575324 Shaft, (R.H.)

28 8536973 Roller, Support

W10001120

Nut, 3/8−16

30 8576468 Assembly, Sensor

31 8557242 Bulkhead, Rear

32 3934666 Nut 3/8−16 (R.H.)

35 8557277 Seal Drum (2)

W10109200

Screw, 11−16 x 3/4

37 8557270 Drum, Assembly

38 8565688 Baffle, Drum (3)

39 3403634 Socket Assembly

40 8577274 Thermistor

41 8544810 Collar, Lint Chute

OPTIONAL PARTS (NOT INCLUDED)

For Model: MED6300TQ0

(White)

W10131662

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

279948 Kit,

Dryer Repair

W10071550

Dry Rack

8522199 Kit, Dryer

Vent Testing

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

72032 Black

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Black

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)
