TOP AND CONSOLE PARTS

For Models: MGD6300TQ0

(White)

3−07 Litho in U.S.A. (LT) Part No. W10131677 Rev.A.

29"GAS DRYER

TOP AND CONSOLE PARTS

For Models: MGD6300TQ0

(White)

W10131677

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10114206

Guide,

Quick Start

W10088778

Use & Care Guide

W10114195

Wiring Diagram

W10051096

Assembly,

User Interface

W10120084

Panel, Console

W10003770

Screw, 6−19 x 3/64

5 717252 Plug, 2 Way

Terminal

6 8564265 Cover, Rear

UI−Assembly

W10110196

Knob, Assembly

8 337686 Screw, 8−18 x 1/2

9 94614 Terminal, Female

10 8572270 Assembly,

Lint Screen

W10044320

Cover, Lint Screen

W10044470

Hinge, R.H.

W10044480

Hinge, L.H.

13 3196537 Screw, 8−18 x 5/8

14 3936144 Connector

15 3395683 Connector

(Motor)

16 8565025 Top

17 343641 Screw, 10−16 x 1/2

18 8558863 Bracket, Console

19 3394427 Clip−Harness

20 94613 Terminal

21 8563853 Bracket,

Machine Controller

W10111610

Control,

Electronic

23 3347243 Connector

6−Circuit

24 353424 Connector Sensor

25 3401144 Connector,

(PTS Relay)

26 3403499 Connector,

2−Position

(Gas Valve)

27 3403498 Connector,

3−Position

(Gas Valve)

W10111432

Harness, Wiring

29 8558853 Screw, Grommet (2)

30 237446 Washer (Top/Chute)

CABINET PARTS

For Models: MGD6300TQ0

(White)

W10131677

CABINET PARTS

For Models: MGD6300TQ0

(White)

W10131677

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8533974 Screw, Ground

2 3390631 Screw, 10−16 x 1/2

3 693995 Screw, Hex Head

4 3387374 Spring, Idler

5 8558833 Cover,

Terminal Block

6 8566208 Assembly, Switch

7 8558830 Panel, Rear

8 8568303 Locator,

Snap Down

9 8572983 Door Strike

10 3978977 Door Switch

Assembly

11 3389420 Retainer−Idler

1/4−20 x 1/16

W10050060

Filler−Door

13 8578538 Belt Restrainer

14 8578560 Hole−Plug

15 8565018 Assembly,

Hinge & Pin

16 3392100 Foot, Dryer

279810 Foot−Optional

(Extended Length)

(Package of 2)

(Not Included.)

17 342055 Screw, 8−18 3/64

18 8557569 Cabinet

W10007520

Clip, Ground (2)

20 8576625 Lock, Front Top (2)

21 8565029 Panel, Front

22 8564011 Bracket, Switch

23 3404413 Plug−Hole

24 8572982 Assembly, Door

Catch

25 8575027 Seal, Door

26 308499 Pal Nut (4)

27 8539897 Jumper,

(Belt Switch)

W10100830

Screw,

10−16 x 3/64

29 8539897 Screw

30 8565020 Door Inner

W10116924

Door Outer

W10111244

Handle, Door

W10044490

Seal, Front Panel

34 8564457 Plug,

Front Panel

35 344020 Power Cord

36 3394083 Clip, Front Panel

37 238088 Hinge, Top (2)

38 8547174 Idler & Pulley

Assembly

39 8547168 Belt, Drive

40 8547166 Base Motor

W10002600

Screw

42 8578565 Pulley, 60 HZ

43 8566152 Motor, Assembly

60 HZ

44 660658 Clamp, Motor

45 8557890 Burner, Assembly

60 HZ

(See Pages 7 &

For Further

Burner Breakdown )

W10118614

Seal−Door Switch

48 18849 Pad, Top Hinge

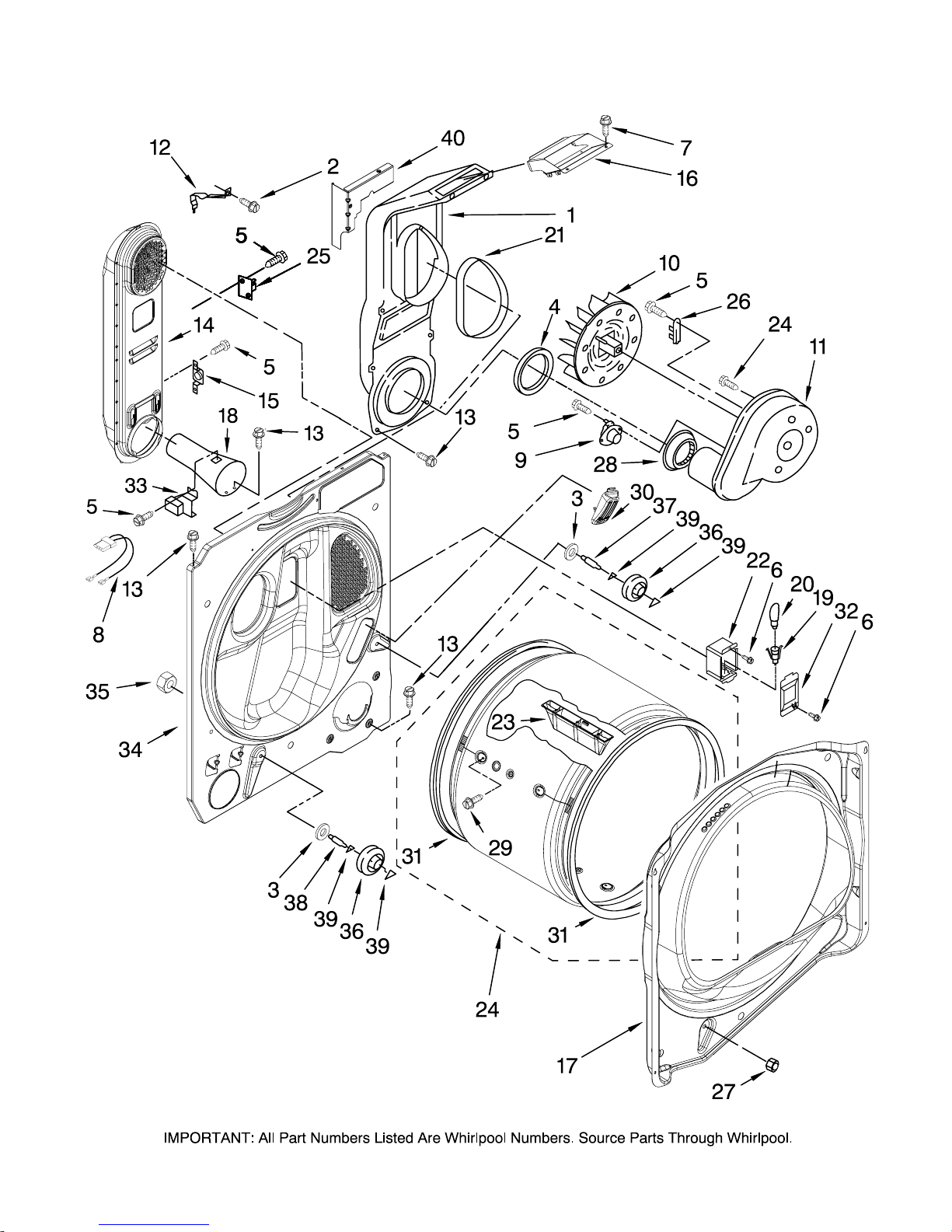

BULKHEAD PARTS

For Models: MGD6300TQ0

(White)

W10131677

BULKHEAD PARTS

For Models: MGD6300TQ0

(White)

W10131677

Illus. Part

No. No. DESCRIPTION

1 8544805 Lint Chute

Assembly

2 489463 Screw, 8−18 x 5/8

3 3387459 Washer−Support

4 347139 Seal, Lint

Chute

5 90767 Screw, 8−18 x 3/8

6 487909 Screw, 8−15 x 1/2

7 3196537 Screw

8 8539889 Harness,

Flame Switch

9 8577274 Thermister,

Internal−Bias

10 694089 Wheel, Blower

11 8577230 Housing, Blower

12 8546149 Clip−Heater Box

13 343641 Screw, 10−16 x 1/2

14 8544803 Box, Heater

15 3403140 Thermostat, 205 F

(96 C)

16 8544810 Collar, Lint Chute

17 8558890 Bulkhead, Front

18 8066049 Funnel, Burner

19 3403634 Socket Assembly

20 3406126 Bulb

21 8544813 Seal, Lint Chute

22 3977373 Bracket, Drum

Light

23 8565688 Baffle, Drum (3)

24 8557270 Drum, Assembly

25 280010 Kit,

Thermal Cut−Off

(Includes

Illus. 15)

26 3392519 Thermal−Fuse (91C)

27 3934666 Nut, 3/8−16 (R.H.)

28 8573836 Shield, Exhaust

W10109200

Screw, 11−16 x 3/4

30 8576468 Pad, Sensor

31 8557277 Seal, Drum

32 3402841 Lens, Drum Light

33 338906 Sensor, Radiant

34 8557242 Bulkhead

W10001120

Nut, 3/8−16

36 8536973 Roller Support

37 8575324 Shaft (R.H.)

38 8575325 Shaft (L.H.)

39 690997 Ring, Tri

W10053480

Bracket,

Lint Chute

BA−155

USE WITH TYPE 1 − NATURAL

AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES

8557890 BURNER ASSEMBLY

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8557890 Burner Assembly

60 Hz.

(Type 1)

(White Rodgers)

2 688617 Tube, Burner

3 694298 Bracket, Ignitor

4 686590 Ignitor

5 3393909 Screw & Washer

(8−32 x 7/8)

6 3390631 Screw, 10−16 x 3/8

7 8544751 Base, Burner

8 3387057 Screw,

8−18 x 3/8

9 Orifice, Burner

234826 Type 1

229742 Type 4 (Butane)

234868 Type 4 (Propane)

10 8281924 Valve, Gas

60 Hz. (Complete)

(Includes Pipe &

Illus. #7).

11 694421 Screw,

8−32 x 1/2 (2)

12 8182790 Bracket, Coil

13 694540 Coil, 60 Hz.

(2 Terminal)

(Main)

14 694539 Coil, 60 Hz.

(Split)

(3 Terminal)

(Pilot Position)

15 694424 Leak, Limiter

16 694423 Screw, Regulator

Adjustment

17 694422 Spring, Regulator

Following Parts Not Illustrated

49572 Conversion Kit

(Type (1)

to Type (4) LPG).

For Models: MGD6300TQ0

(White)

W10131677

OPTIONAL PARTS (NOT INCLUDED)

For Models: MGD6300TQ0

(White)

W10131677

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

279948 Kit,

Dryer Repair

346764 Kit, Hold−Down

(Gas Dryer Mobile

Home Installation)

W10071550

Dry Rack

8522199 Kit, Dryer

Vent Testing

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

72032 Black

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Black

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)
