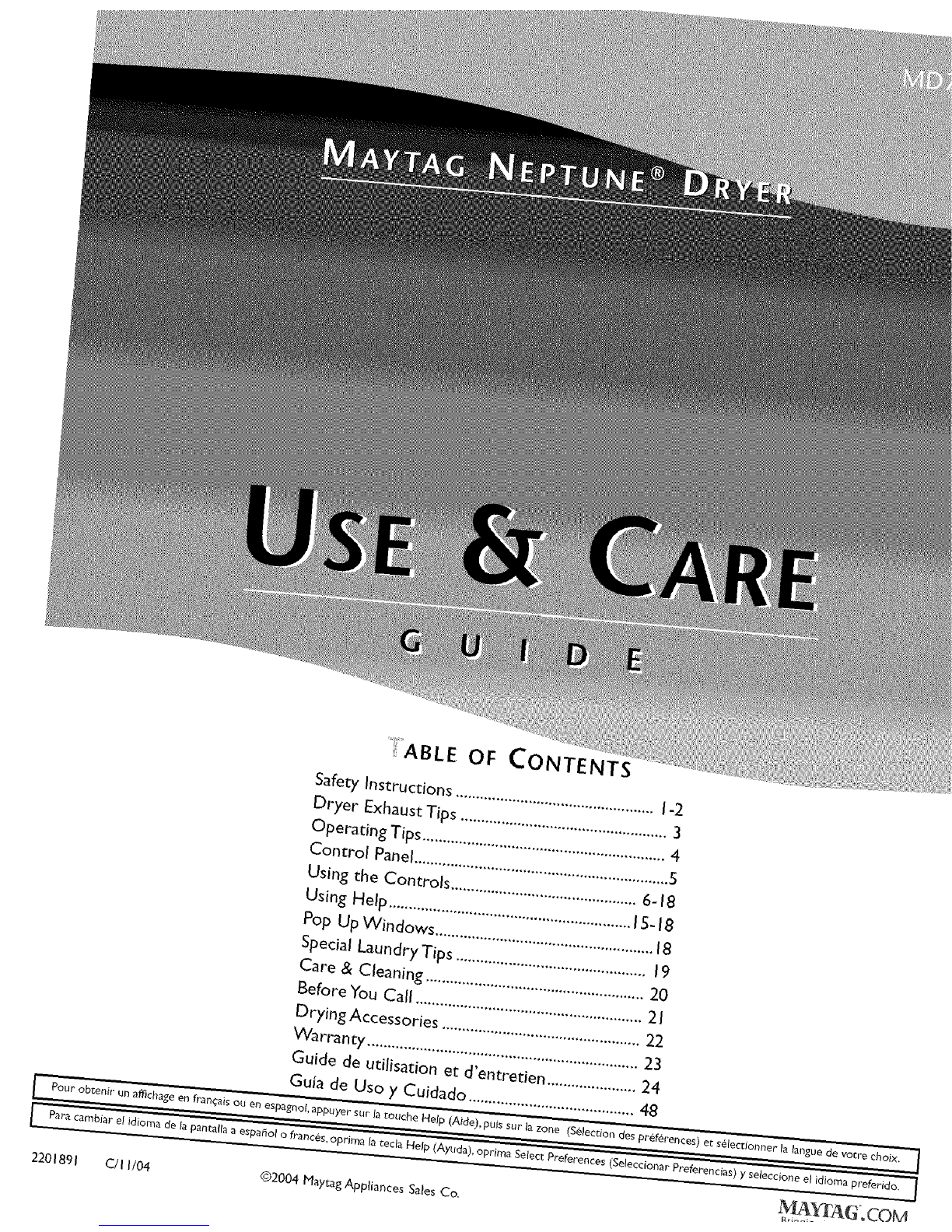

Maytag Neptune MDE7500 Bedienungsanleitung

[ABLE OF CONTENTS

Safety Instructions ................................................. I-2

Dryer Exhaust Tips ................................................... 3

Operating Tips ............................................................ 4

Control Panel ............................................................... 5

Using the Controls .............................................. 6-18

Using Help ............................................................ 15-18

Pop Up Windows ...................................................... 18

Special LaundryTips ............................................... 19

Care &Cleaning ...................................................... 20

Before You Call ........................................................ 2 I

Drying Accessories ................................................. 22

Warranty ................................................................... 23

Guide de utilisation et d'entretien ...................... 24

Guia de Uso y Cuidado ......................................... 48

I our obtenir un _ff_chage en fr_nqais ou en espa_:nol,_ppuyer sur I_touche Help (Aide), puis sur la zone (S61ection des pr_fO_nces} et s_lectionner la langue de v

I_ra cambiar e_ idioma de _a pantalla a espaSol o franc_s, optima la tecla HeJp (Ayuda), optima Select Preferences (Seleccionar Preferencias) y seleccione el idioma

M.+_¥[A,

Welcome

Welcome and congratulations on your

purchase of a Maytag Neptune _>dryer!

Your complete satisfaction is very impor-

tant to us. For best results, we suggest

reading this material to help acquaint you

with proper operating and maintenance

procedures.

Should you need assistance in the future,

it is helpful to:

I)Have complete model and serial

number identification of your dryer.

This is located on a data plate in the

lower center of the door opening.

Date of Purchase

Model Number

Serial Number

2) IMPORTANT: Keep this guide and

the sales receipt in asafe place for

future reference. Proof of original

purchase date is needed for war-

ranty service.

If you have questions, write us (include

your model, serial number and phone

number) or call:

Haytag ServicessM

1-800-688-9900 USA

1-800-688-2002 CANADA

1-800-688-2080 USA TTY

(for deaf, hearing impaired or speech

impaired)

(Mon.-Fri., 8am-Spm Eastern Time)

http://www.m aytag, co m

For service and warranty informa-

tion, see page 23.

NOTE: In our continuing effort to

improve the quality of our appliances, it

may be necessary to make changes to

the appliance without revising this

guide.

iMPORTANT SAFETY INSTRUCTIONS

read before operating your dryer

What you need to know about safety instructions

Warning and important SafetyInstructions appearing inthis manual are not meant

to cover all possible conditionsand situationsthat may occur.Common sense,cau-

tion,and caremust be exercised when installing,maintaining or operatingappliance.

Always contact your manufacturer about problems or conditions you do not

understand.

WARNING -Hazards or unsafe practices which COULD result in severe

personal injury or death.

CAUTION - Hazards or unsafe practices which COULD result in minor

personal injury.

Do not store or use gasoline or other flammable vapors and liq-

uids in the vicinity of this or any other appliance.

WHATTO DO IFYOU SHELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch.

• Do not use any phone in your building.

• Clear the room, building or area of all occupants.

• Immediately call your gas supplier from a neighbor's phone.

Follow the gas supplier's instructions.

• If you cannot reach your gassupplier, call the fire department.

Installation and service must be performed by a qualified installer, ser-

vice agency or the gas supplier.

Read all instructions before using the appliance.

liiii

To avoid the possibility of fire or explosion:

• Do not dry items that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-

cleaning solvents, other flammable or explosive substances as they give off vapors that could ignite or explode.

Any material on which you have used a cleaning solvent, or which is saturated with flammable liquids or solids,

should not be placed in the dryer, until all traces of these flammable

liquids or solids and their fumes have been removed. There are many highly flammable items used in homes,

such as: acetone, denatured alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers,

turpentine, waxes and wax removers.

• Items containing foam rubber (may be labeled latex foam) or similarly textured rubber-like materials must not

be dried on a heat setting. Foam rubber materials when heated, can under certain circumstances produce fire

by spontaneous combustion.

Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appli-

ance is used near children.

Before the appliance is removed from service or discarded, remove the door to the drying compartment.

Do not reach into the appliance if the drum is moving.

Do not install or store this appliance where it will be exposed to the weather.

Do not tamper with controls.

Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in

published user-repair instructions that you understand and have the skills to carry out.

Do not use fabric softeners or products to eliminate static unless recommended for dryer use by the manufac-

turer of the fabric softener or product.

Clean the lint screen before or after each load.

Keep the area around the exhaust opening and surrounding areas free from lint accumulation, dust and dirt.

The interior of the dryer and exhaust duct should be cleaned periodically by qualified service personnel.

This appliance must be properly grounded. Never plug the appliance cord into a receptacle which is not grounded

adequately and in accordance with local and national codes. See installation instructions for grounding this appliance.

Do not sit on top of the clothes dryer.

SAVE THESE INSTRUCTIONS

RYER EXHAUST TIPS

DO DON'T

Read the installation instructions

and the user guide.

Let your dryer exhaust the

air easily.

DON'T

Restrictyour dryer with

poor exhaustsystem.

DON'T

Use plastic,thinfoil,or non-metalflex-

ibleduct.

Keep duct runs as straight as possible.

F I _

fill_

DON'T

Use longerthan necessaryduct

runs with many elbows.

Clean all old ducts

before installing your new dryer. Be sure

vent flap opens and closes freely. Inspect

and clean the exhaust system annually.

DON'T

Allow crushed or clogged ducts

and vent.

PERATING TIPS

CLEAN THE LINT FILTER

After each load.

To shorten drying time.

To operate more energy efficiently.

By placing only one wash load in the dryer at a time.

Avoid very small loads or mixing heavyweight and lightweight clothes.

When only one or two articles need drying, add a few similar items to

improve tumbling and drying efficiency.

When drying large, bulky items such as a blanket or comforter, it may

be necessary to reposition the load during the cycle to ensure even

drying.

After loading the dryer.

To control static cling.

Before the load becomes warm. This helps prevent greasy-looldng

softener stains.

And remove any used softener sheets from the dryer to prevent

greasy-looldng softener stains.

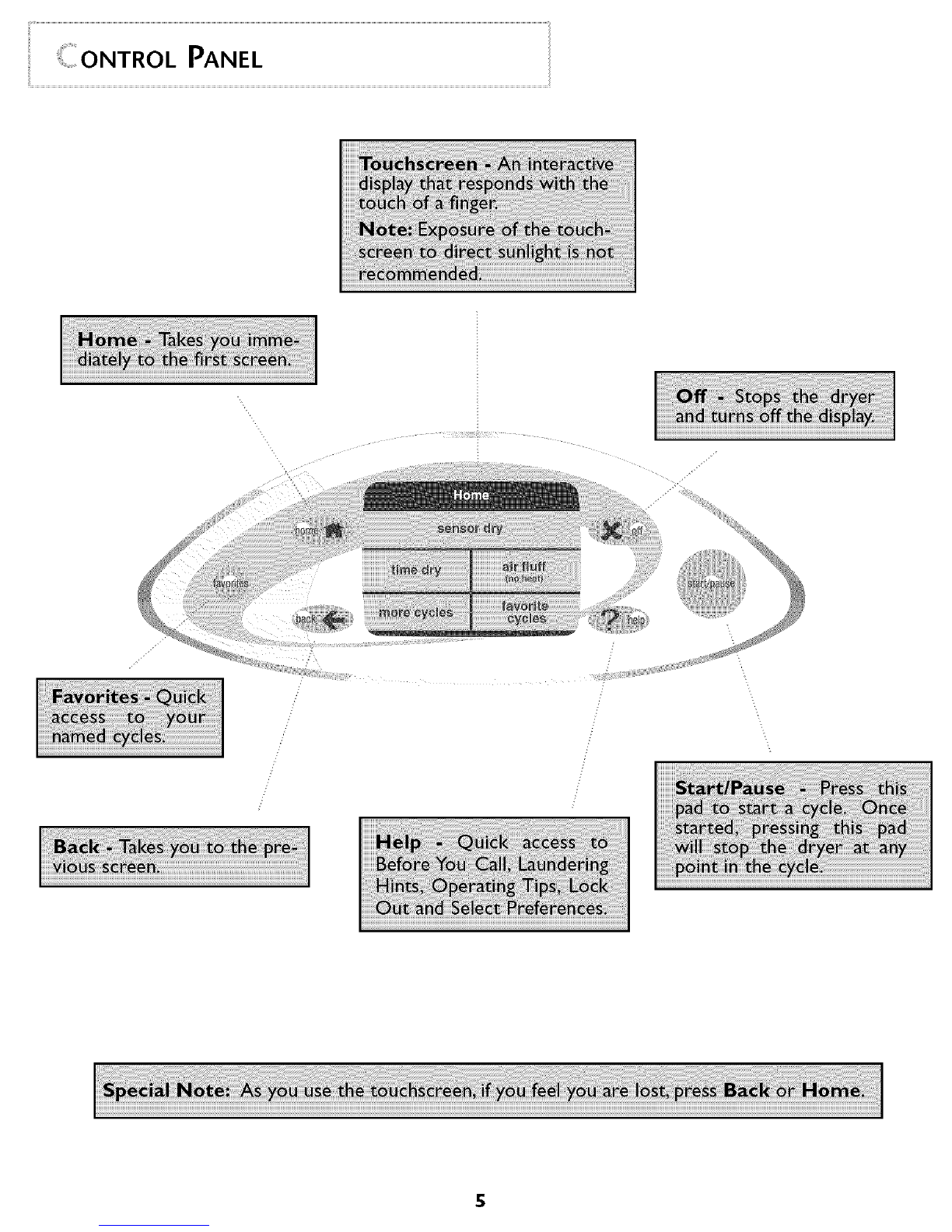

ONTROL PANEL

: SING THE CONTROLS

s............

If there are no words on the touchscreen, open the door, touch any pad (except off), or touch the screen to "wake" the controls.

Sensor Dry - automatically senses the moisture in the load and shuts the dryer offwhen the selected dryness level (very dry to damp

dry) is reached.This cycle is recommended for the majority of loads including delJcates, wrinkle free and cotton/sturdy items like towels,

bedding and jeans.

Step

Select "Sensor Dry". The next screen will be the Review

Screen. If the selections are correct, press Start/Pause. If

changesneed to be made, follow the next steps.

Step

Select dryness level. The dryness level ranges

from very dry to damp dry. Select the level

appropriate for the load. The "Normal Dry"

level will be used for most loads.

very dry - used to completely dry sturdy or bulky items

including towels and jeans.

more dry - uses slightly less time to dry than very dry with

similar results. Hay find some blue jean seams slightly damp.

normal - used for drying the majority of loads.

less dry - still provides the benefit of the load being slightly

damp_but items wi[[ dry faster once they are [aid fiat or hung

to dry.

damp dry - designed to partially dry items. Used for items

that lay flat or hang to dry.

regular - for sturdy cottons or those labeled "Tumble Dry."

medium -for permanent press, synthetics, lightweight cot-

tons or items labeled "Tumble Dry Nedium."

delicate - for heat sensitive items labeled "Tumble Dry

Low" or "Tumble DryWarm."

extra low -Provides the lowest heated dry temperature pos-

sible."Extra LowTemperature" is lower than "Delicate."

Step

Select appropriate temperature; "Regular",

Medium ,Delicate or "Extra Low". 6

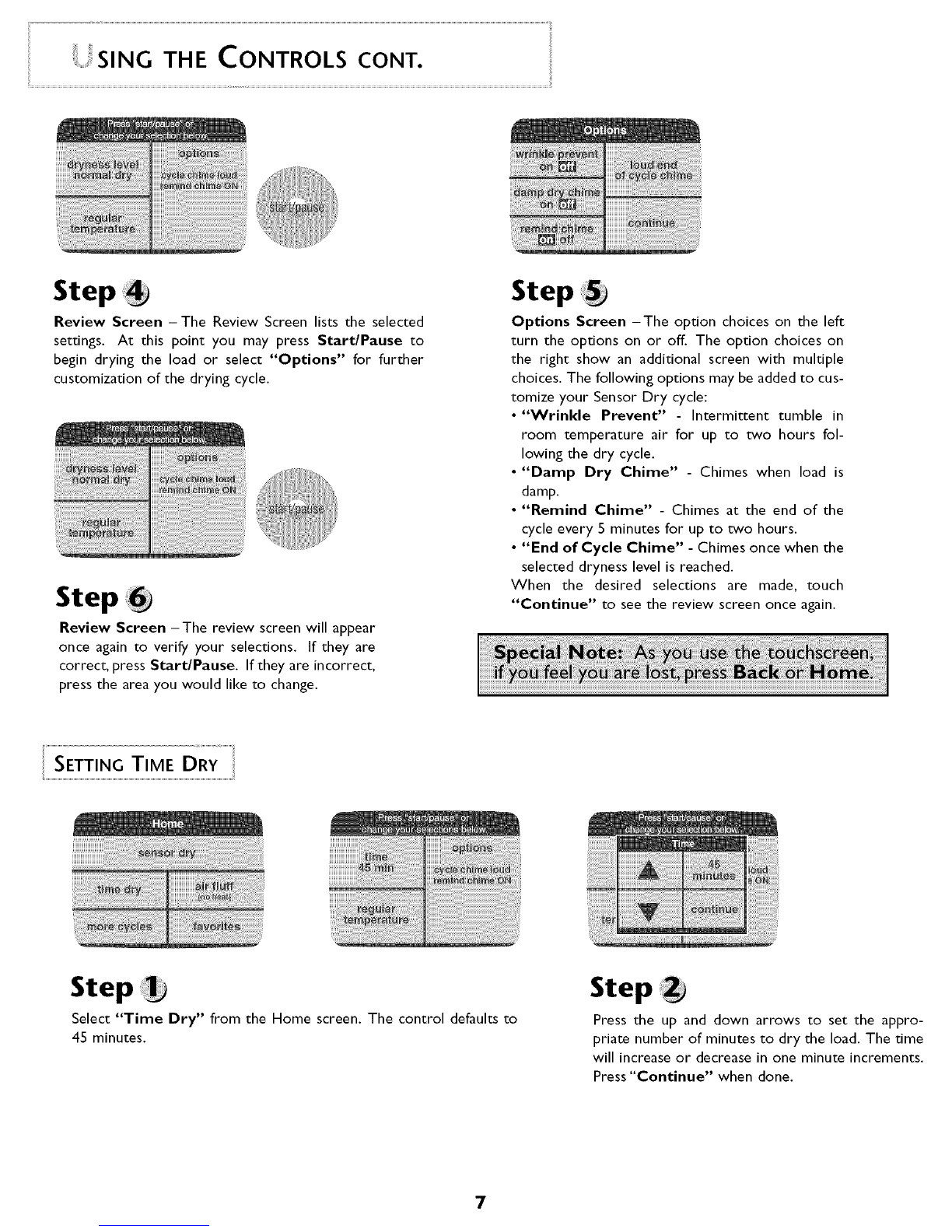

: SING THE CONTROLS CONT.

Step

Review Screen -The Review Screen lists the selected

settings. At this point you may press Start/Pause to

begin drying the load or select "Options" for further

customization of the drying cycle.

Step

Review Screen -The review screen will appear

once again to verify your selections. If they are

correct, press Start/Pause. If they are incorrect,

press the area you would like to change.

Step

Options Screen -The option choices on the left

turn the options on or off. The option choices on

the right show an additional screen with multiple

choices. The following options may be added to cus-

tomize your Sensor Dry cycle:

•"Wrinlde Prevent" - Intermittent tumble in

room temperature air for up to two hours fol-

lowing the dry cycle.

• "Damp Dry Chime" - Chimes when load is

damp.

• "Remind Chime" - Chimes at the end of the

cycle every 5 minutes for up to two hours.

• "End of Cycle Chime" - Chimes once when the

selected dryness level is reached.

When the desired selections are made, touch

"Continue" to see the review screen once again.

Step

Select "Time Dry" from the Home screen. The control defaults to

45 minutes.

Step

Press the up and down arrows to set the appro-

priate number of minutes to dry the load. The time

will increase or decrease in one minute increments.

Press "Continue" when done.

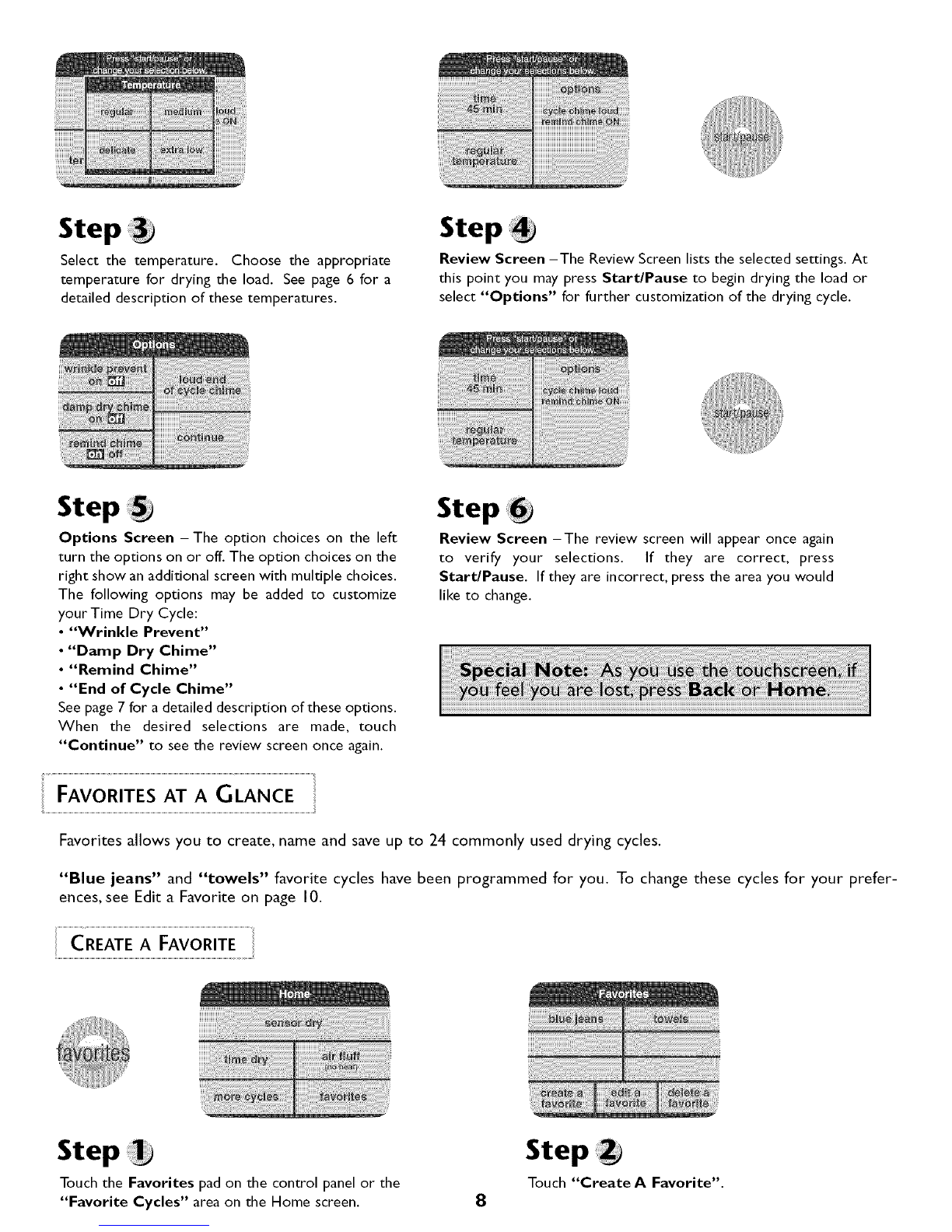

Step

Select the temperature. Choose the appropriate

temperature for drying the load. See page 6 for a

detailed description of these temperatures.

Step

Review Screen -The Review Screen lists the selected settings. At

this point you may press Start/Pause to begin drying the load or

select "Options" for further customization of the drying cycle.

Step

Options Screen -The option choices on the left

turn the options on or off. The option choices on the

right show an additional screen with multiple choices.

The following options may be added to customize

yourTime Dry Cycle:

•"Wrinkle Prevent"

• "Damp Dry Chime"

• "Remind Chime"

• "End of Cycle Chime"

See page 7 for a detailed description of these options.

When the desired selections are made, touch

"Continue" to see the review screen once again.

Step

Review Screen -The review screen will appear once again

to verify your selections. If they are correct, press

Start/Pause. If they are incorrect, press the area you would

like to change.

FAVORITES AT A GLANCE

Favorites allows you to create, name and save up to 24 commonly used drying cycles.

"Blue jeans" and "towels" favorite cycles have been programmed for you. To change these cycles for your prefer-

ences, see Edit a Favorite on page I0.

Step

Touch the Favorites pad on the control panel or the

"Favorite Cycles" area on the Home screen.

Step

Touch "Create A Favorite".

: SING THE CONTROLS CONT.

Step

Select the appropriate settings

for the favorite you would like to

create.

Step

Press "Continue" to name your

favorite cycle.

Step

Review Screen - This screen

reviews your cycle choices, and allows

you to choose Options to further cus-

tomize your cycle. Press "Options"

if desired, or press "Continue".

Step

Name A Favorite Cycle -Touch the

corresponding letter and space combina-

tion to spell out your favorite cycle name,

up to 12 characters. Use the arrow at the

top of the screen to backspace. Press

"Save" to save your new cycle. "Clear"

will erase the name you typed in. "Space"

will leave aspace between characters.

Step

Options Screen -The option choices on the left

turn the options on or off. The option choices on

the right show an addidonal screen with multiple

choices. The following options may be added to

customize your Favorite Cycle:

•"Wrinl(le Prevent"

• "Damp Dry Chime"

• "Remind Chime"

• "End of Cycle Chime"

See page 7 for a detailed description of these

options. When the desired selections are

made, touch "Continue" to see the review

screen once again.

Step

Your new Favorite Cycle will now be

displayed on the Favorites page.

Inhaltsverzeichnis

Sprachen:

Andere Maytag Trockner Handbücher

Maytag

Maytag MEDE300VW - Performance Series 27 Inch Electric... Bedienungsanleitung

Maytag

Maytag BRAVOS W10201176C Bedienungsanleitung

Maytag

Maytag BRAVOS Bedienungsanleitung

Maytag

Maytag MLG31PCB Bedienungsanleitung

Maytag

Maytag Epic MGD9800T Bedienungsanleitung

Maytag

Maytag NEPTUNE MD68 Bedienungsanleitung

Maytag

Maytag PYE4557AYW Bedienungsanleitung

Maytag

Maytag MLG34 Administratorhandbuch

Maytag

Maytag MDG25PN Bedienungsanleitung

Maytag

Maytag W10057351A Bedienungsanleitung

Maytag

Maytag MDG9206AWW Handbuch

Maytag

Maytag W10057349A Bedienungsanleitung

Maytag

Maytag YMEDB725CG0 Bedienungsanleitung

Maytag

Maytag NEPTUNE MD68 Bedienungsanleitung

Maytag

Maytag Bravos W10201175A Bedienungsanleitung

Maytag

Maytag MEDE300VF0 Bedienungsanleitung

Maytag

Maytag MGD6000X Bedienungsanleitung

Maytag

Maytag MED6000AW0 Bedienungsanleitung

Maytag

Maytag LDG7304AAM Bedienungsanleitung

Maytag

Maytag MGDX5SPAW Bedienungsanleitung

Maytag

Maytag EPIC Z MGD9800TK0 Bedienungsanleitung

Maytag

Maytag W10562334A Bedienungsanleitung

Maytag

Maytag MDE9700A Bedienungsanleitung

Maytag

Maytag Performance MGDE300 Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
