CABINET PARTS

For Models: MFD2562KEB10, MFD2562KES10, MFD2562KEW10

(Black) (Stainless) (White)

8−07 Litho In U.S.A. (pl) Part No. W10154772 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: MFD2562KEB10, MFD2562KES10, MFD2562KEW10

(Black) (Stainless) (White)

W10154772

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

67006616 Tech Sheet

12828147 Owners Manual

W10142269

Tag, Energy

W10137519

Elbow, Fill Tube

3 67003405 Block, Pivot

4 B5759649 Gasket

5 67005127 Roller

6 A3076901 Plug, Button

7 67006118 Roller Assy. (2)

8 67006287 Screw

9 67006521 Screw

10 12456801 Bracket, Roller

11 67006380 Screw (6)

12 67006611 Bolt, Adjusting

(Front)

13 Cover, Left Hinge

12684201W

White

12684201B

Black

14 67006303 Screw (6)

15 Hinge, Center (RT)

67006379 White

67006443 Black

16 67004092 Block, Filter (2)

17 Cover, Corner

67003484 White

67003485 Black

12566605ED

Hinge, Top Left

19 67007174 Bracket, Foot (2)

20 67006564 Screw

21 12579702 Shim, Hinge

22 Grille, Toe

67006377 White

67006375 Black

23 M1205302 Pin

24 Hinge, Center (LT)

67006277 White

67006275 Black

25 67006425 Screw (10)

26 67003331 Cover, Water Line

27 67004098 Cover, Water Valve

28 67006669 Screw (2)

29 67004101 Sweep, Dual Tube

30 67006101 Cover, Unit

31 M0286708 Nut, Speed

32 67006506 Cord, Power

33 67003796 Insulation, Sound

34 67003868 Foot Brake

35 Cover, Right Hinge

12684202W

White

12684202B

Black

36 M0104106 Clip (2)

37 67001066 Tube, Drain

38 67001067 Clip, Drain Tube

39 M0108105 Clamp, Tube

40 Cabinet (Not a

Servicable Part)

12566604ED

Hinge, Top Right

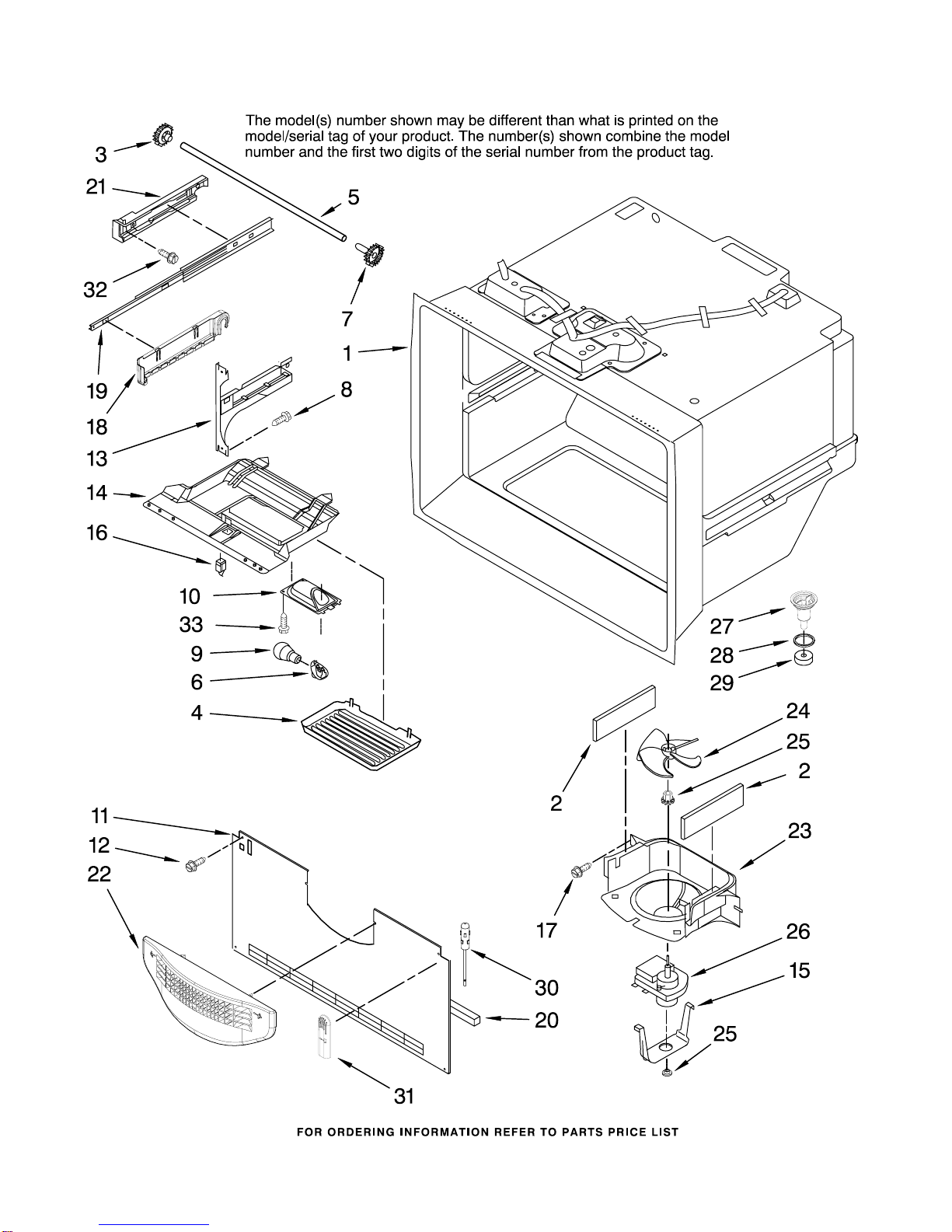

FREEZER LINER PARTS

For Models: MFD2562KEB10, MFD2562KES10, MFD2562KEW10

(Black) (Stainless) (White)

W10154772

FREEZER LINER PARTS

For Models: MFD2562KEB10, MFD2562KES10, MFD2562KEW10

(Black) (Stainless) (White)

W10154772

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam

3 12002497 Gear (Left)

(Includes Item 7)

4 67003905 Cover, Light

5 67004017 Shaft

Y12570701

Socket, Light

7 12002497 Gear (Right)

(Includes Item 3)

8 67006473 Screw (8)

9 A0282812 Bulb, Light

10 67001035 Housing, Light

11 67005873 Cover, Evaporator

12 67006425 Screw (4)

13 Bracket, Door

67004012 Left

67004013 Right

14 67003906 Housing, Lighting

15 67005633 Clip, Evap Motor

16 67005653 Switch, Light

17 67006287 Screw (2)

18 Cradle, Basket

67004014 Left

67004015 Right

19 67006607 Slide, Drawer (2)

20 67002492 Gasket, Bottom

21 Adapter, Slide

67004864 Left

67004865 Right

22 13024802 Grille, Fz Air

23 67002777 Shroud, Evap Fan

24 12217201 Blade, Fan

(Evaporator)

25 67002780 Grommet (2)

26 67003636 Motor, Evaporator

27 D7753903 Funnel, Drain

28 M0500703 Seal

29 B8381501 Gasket

30 12002355 Thermistor

31 67003924 Cover, Thermistor

32 67006406 Screw (6)

33 67006530 Screw

Following Parts Not Illustrated

67006094 Harness, Fz Module

REFRIGERATOR LINER PARTS

For Models: MFD2562KEB10, MFD2562KES10, MFD2562KEW10

(Black) (Stainless) (White)

W10154772

REFRIGERATOR LINER PARTS

Illus. Part

No. No. DESCRIPTION

For Models: MFD2562KEB10, MFD2562KES10, MFD2562KEW10

(Black) (Stainless) (White)

W10154772

1 Liner (Not A

Serviceable Part)

2 67004078 Bracket, Control

and Lights

Y67005640

Keyboard

4 67005444 Housing, Control

5 67005397 Board, Control

6 C3680310 Switch, Light (2)

7 67003897 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light (2)

Y12570701

Socket, Light (2)

11 67003900 Insert,

Damper Cover

12 67006602 Screw (2)

13 67003899 Cover, Damper

14 67006604 Insulation

15 67006116 Control, Damper

16 12002355 Thermistor

17 67001668 Plate

18 67006524 Head, Filter

UKF8001AXX

Filter, Water

20 12568001 Cover, Filter

21 67006287 Screw (2)

22 B8390302 Clip, Facade (2)

W10158503

Facade, Dispenser

24 67002742 Plate, Switch

25 12575501 Switch, Limit

26 67003728 Guide, Waterline

27 67002816 Clip, Waterline

28 67005674 Facade (Top)

29 67004091 Tank, Water

30 61006182 Union

31 67003146 Plug, Bypass

32 67006400 Screw (2)

W10117358

Insulation, Tank

W10130483

Gasket

Following Parts Not Illustrated

67005417 Harness, Control

(Refrigerator)

REFRIGERATOR DOOR PARTS

For Models: MFD2562KEB10, MFD2562KES10, MFD2562KEW10

(Black) (Stainless) (White)

W10154772

REFRIGERATOR DOOR PARTS

Illus. Part

No. No. DESCRIPTION

1 Door, Left

13024022W

White

13024022B

Black

W10131746

Stainless Steel

2 Door, Right

13024021W

White

13024021B

Black

W10131751

Stainless Steel

3 67003637 Door, Dairy

4 67001279 Tray, Dairy

5 67004040 Bin, Shelf (3)

(Medium)

6 67006786 Screw

7 67002935 Screw

8 Gasket, Door (2)

W10137006

White

12723206B

Black

9 Door Handle

67006114 White

67006115 Black

67006391 Stainless

10 67006113 Mount, Handle

11 Bushing, Door

(Bottom−Right)

67002732 White

67002731 Black

12 67004641 Bin, Shelf (2)

(Gallon)

13 Bushing, Door

(Bottom−Left)

67002722 White

67002721 Black

14 Mullion, Door

67003263 White

67003264 Black

15 67215−2 Tray, Egg

16 Closure, Door

67003638 White

67003639 Black

17 Stop, Door

12968202W

White

67007011 Black

18 Plug, Button

10712401 White

67004838 Black

19 Bushing, Door

(Upper Left)

12395501W

White

12395501B

Black

20 Bushing, Door

(Upper Right)

67004977 White

67004978 Black

21 67006287 Screw

22 67006439 Nameplate

W10154772

For Models: MFD2562KEB10, MFD2562KES10, MFD2562KEW10

(Black) (Stainless) (White)

UNIT PARTS

For Models: MFD2562KEB10, MFD2562KES10, MFD2562KEW10

(Black) (Stainless) (White)

W10154772

UNIT PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models: MFD2562KEB10, MFD2562KES10, MFD2562KEW10

(Black) (Stainless) (White)

W10154772

1 67006433 Screw

2 67004952 Blade, Fan

3 67005889 Basepan

4 67006425 Screw (2)

5 67004954 Screw (3)

6 12002634 Compressor

(Incudes items

11,12,17,27, &

30)

7 67005574 Harness, Evap

Heater

8 67007175 Pan, Drain

9 61004743 Grommet (3)

10 67002493 Heater, Defrost

11 67005562 Capacitor

12 67005560 Relay Assy.

(Inc. Capacitor)

13 61003810 Gasket

14 67003426 Thermostat, Def.

15 67005680 Grommet (6)

W10158508

Shroud

17 67007052 Clip, Capacitor

18 67006131 Condenser

19 67004700 Tube, Discharge

20 67002490 Tray, Drip

21 10623002 Clip, Evaporator

22 12002041 Evaporator Kit

(Inc. Evap., Heat

Shield, & Instr.

Sheet)

23 Dam

67001084 Right Side

67001083 Left Side

24 67004432 Motor, Fan

25 10428101 Clip, Heater

26 67005435 Harness, MC

27 B2150504 Drier (Service)

28 10547003 Clip, Drier

29 67004953 Bracket, Fan Motor

30 67003493 Grommet (4)

31 67006432 Screw (3)

32 67006573 Screw (4)

33 67005421 Cover, HV Box

34 12782025 Board, HV Control

(Inc. Inst. Sheet)

35 67005418 Spacer, HV Box

36 67004969 Box, HV

37 67006550 Screw (2)

38 67005419 Harness, HV

39 67006615 Screw, Cover

40 67005149 Roller (2)

41 67006434 Axle (2)

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.0 Ozs.

(R−134A)
