Maytag MSD2542VES - 25.0 cu. Ft. Refrigerator Bedienungsanleitung

CABINET PARTS

For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00

(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)

3−12 Litho In U.S.A. (wam)(bay) Part No. W10197413 Rev. D

REFRIGERATOR

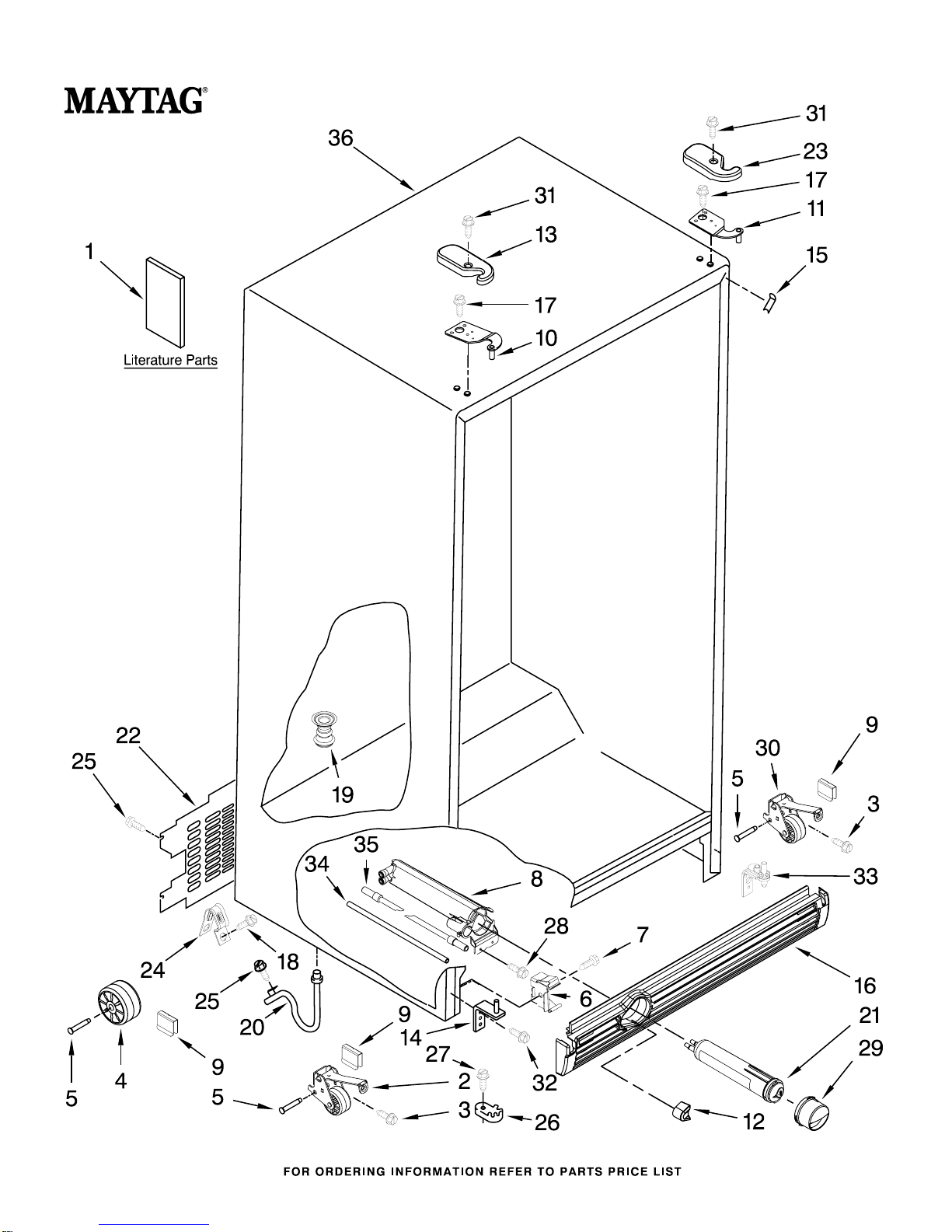

CABINET PARTS

For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00

(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)

W10197413

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10321474

Use & Care Guide

W10158909

Service & Wiring

Sheet

W10153841

Energy Guide

628370 Modular Icemaker

Service Sheet

W10154390

Instruction Sheet,

Door Removal

W10304660

Front Roller,

Left

3 2152958 Screw

4 2150304 Roller, Rear

5 2262072 Axle, Roller

6 2155013 Clip, Grille

7 489478 Screw

W10121138

Housing, Water

Filter

9 2174706 Clip, Axle

W10287685

Hinge Top, FC

W10287684

Hinge Top, RC

12 Button, Water

Filter

2260503W White

2260503B Black

13 Hinge Cover, FC

2203407W White

2203407B Black

W10251408

Hinge Bottom FC

15 Filler, Wrapper

W10283959

White

W10283960

Black

16 Grille

W10283951

White

W10283949

Black

17 489497 Screw

18 489464 Screw

19 2304888 Drain Fitting

W10153550

Extension Tube

21 4396841 Water Filter

22 2188735 Cover, Unit

23 Hinge Cover, RC

2203408W White

2203408B Black

24 549193 Clamp, Service

Cord

25 489084 Screw

26 2155311 Door Closer,

Lower Cam (2)

27 489483 Screw

28 489500 Screw

29 Cap, Water

Filter

2260502W White

2260502B Black

W10304659

Front Roller,

Right

31 8281227 Screw

32 3400113 Screw (4)

W10400807

Hinge Bottom RC

34 2255012 Tube, Filter

Outlet

W10281289

Tube, Filter

Inlet

36 Cabinet (Not A

Serviceable Part)

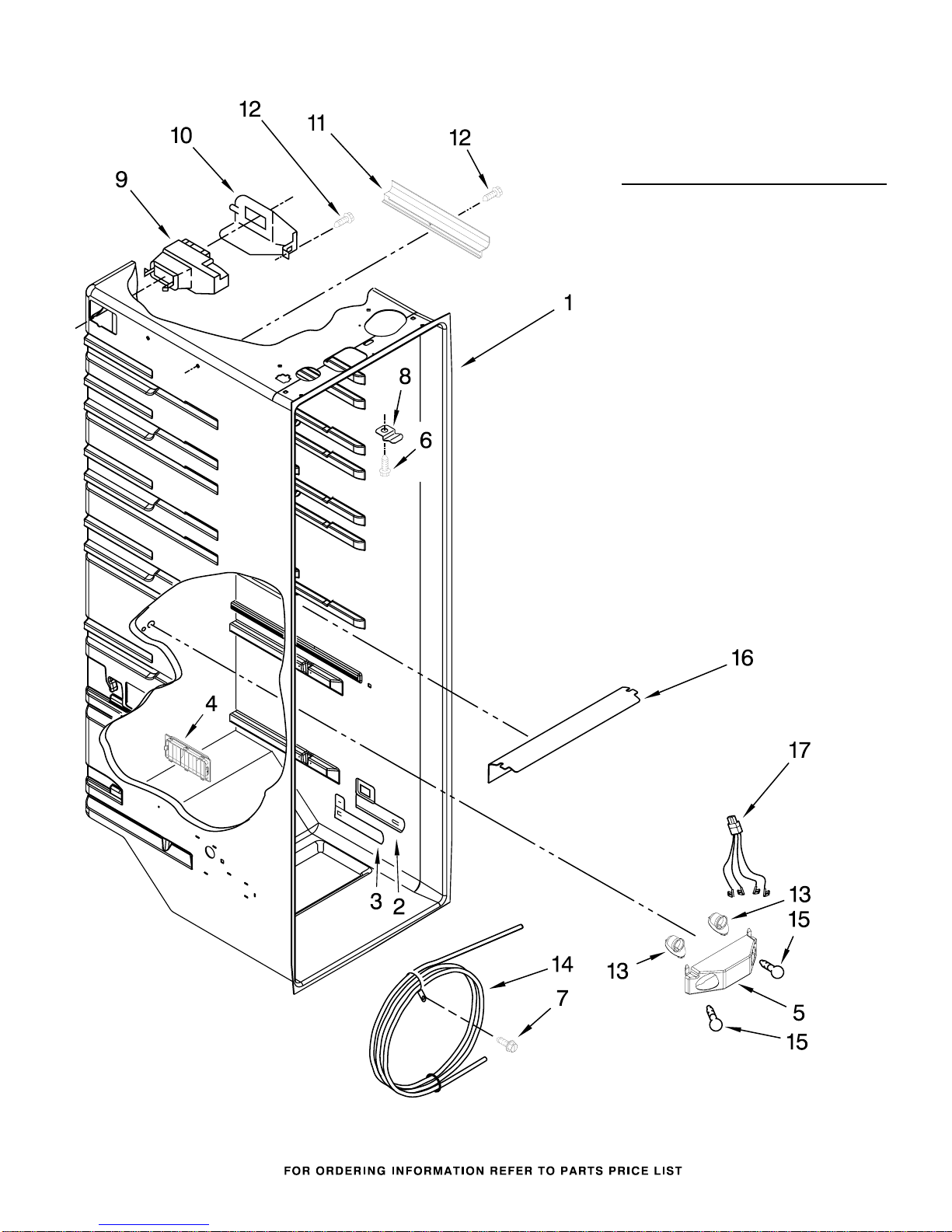

REFRIGERATOR LINER PARTS

For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00

(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)

W10197413

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

W10175967

Escutcheon, Meat

Pan Control

3 2182757 Slide Meat

Pan Control

4 2257741 Louver

5 2256035 Bracket, Dual

Crisper Light

6 489084 Screw (2)

7 488280 Screw

8 2311612 Clip, Control

Box (2)

9 2209753 Air Diffuser

Assembly

10 2152019 Air Diffuser

Cover

W10252495

Cover, Conduit

12 486298 Screw

13 2162085 Socket

W10276792

Reservoir

15 527949 Light Bulb

16 2209769 Light Lens

17 2311637 Wire Harness,

Crisper Light

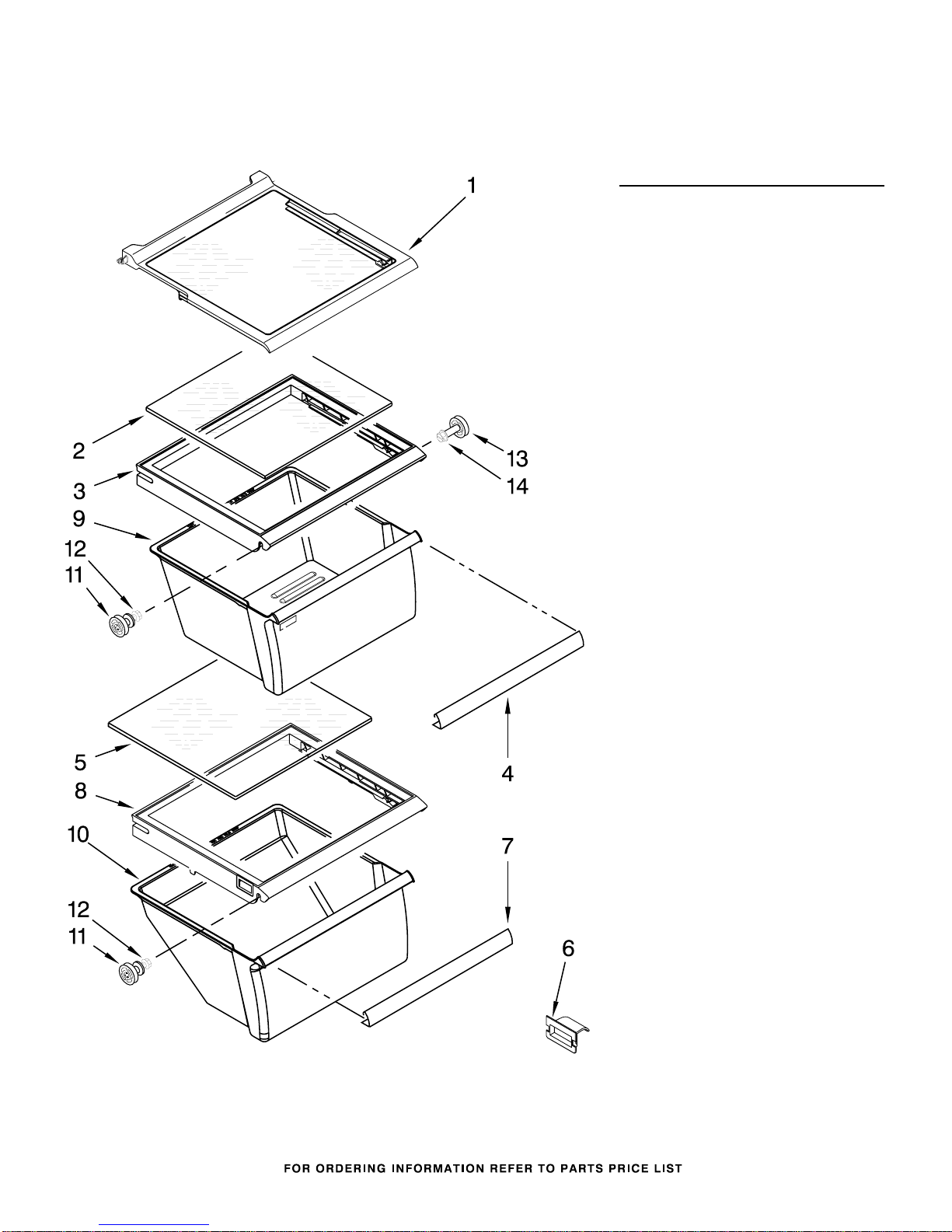

REFRIGERATOR SHELF PARTS

For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00

(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)

W10197413

Illus. Part

No. No. DESCRIPTION

W10276348

Shelf Assembly,

Spillguard

2 2179259 Glass Cover

3 2209698 Cover, Crisper

4 2179234 Trim, Pan

5 2179259 Glass, Cover

6 2179350 Deflector

7 2255592 Trim, Meat Pan

8 2311726 Cover, Meat Pan

9 2188653 Crisper Pan

10 2188654 Meat Pan

W10173126

Stud Assembly

W10191954

Screw

W10173127

Stud Assembly

W10191952

Screw

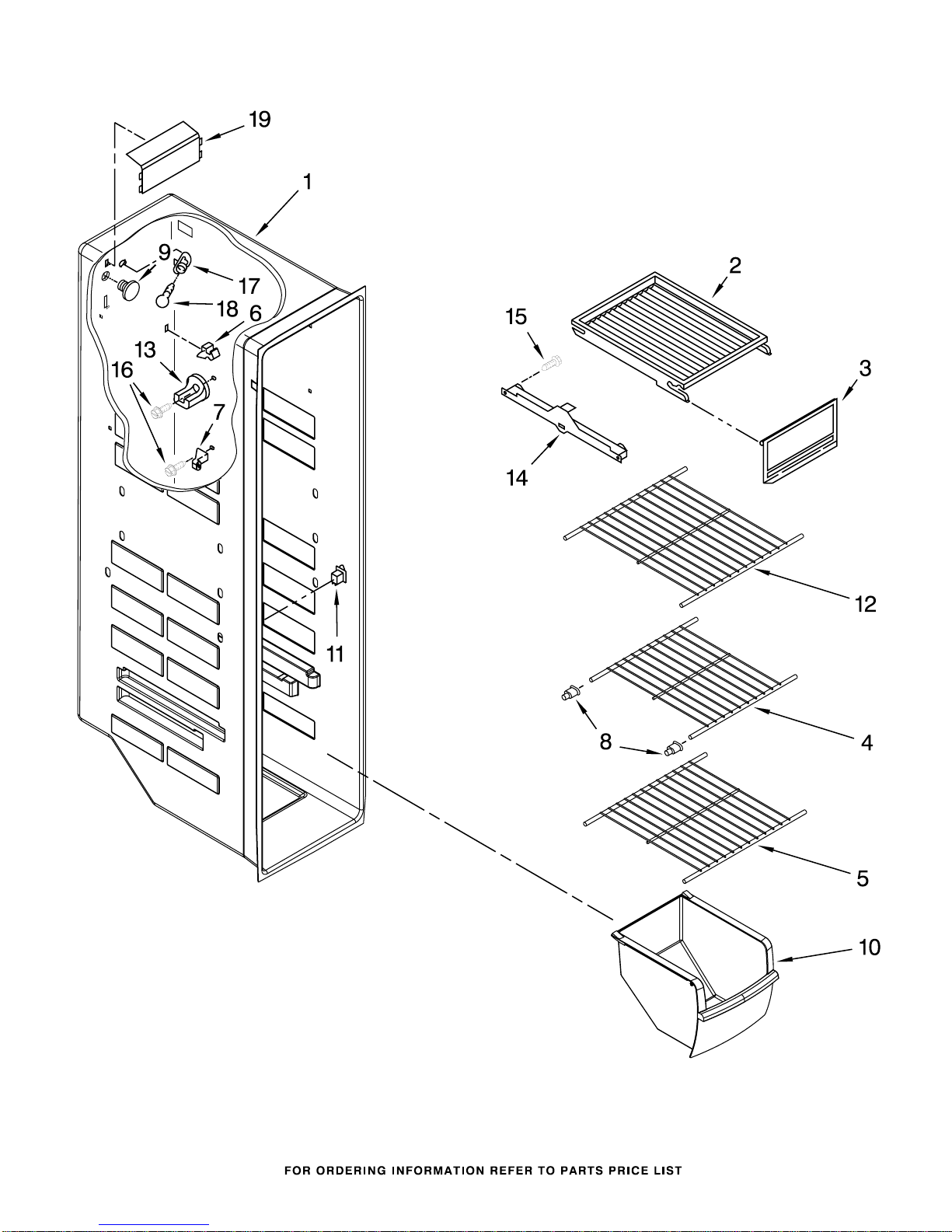

FREEZER LINER PARTS

For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00

(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)

W10197413

FREEZER LINER PARTS

For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00

(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)

W10197413

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 2171714 Shelf, Top

Compartment

3 2171713 Door, Ice

Compartment

W10318946

Shelf, Wire

W10318947

Shelf, Wire

6 2315163 Clip, Air Duct

7 2196206 Support, Stud

W10130299

Cup, Shelf

Mounting

9 940014 Hole Plug

10 2309757 Freezer Bin

11 1115373 Switch, Rocker Arm

W10318948

Shelf, Wire

13 2196206 Stud, Rear

14 Slide, Container

1119237 Left Side

1119293 Right Side

15 489100 Screw (4)

16 3400893 Screw

17 2162085 Socket, Light

18 527949 Light Bulb

19 2171705 Light Lens

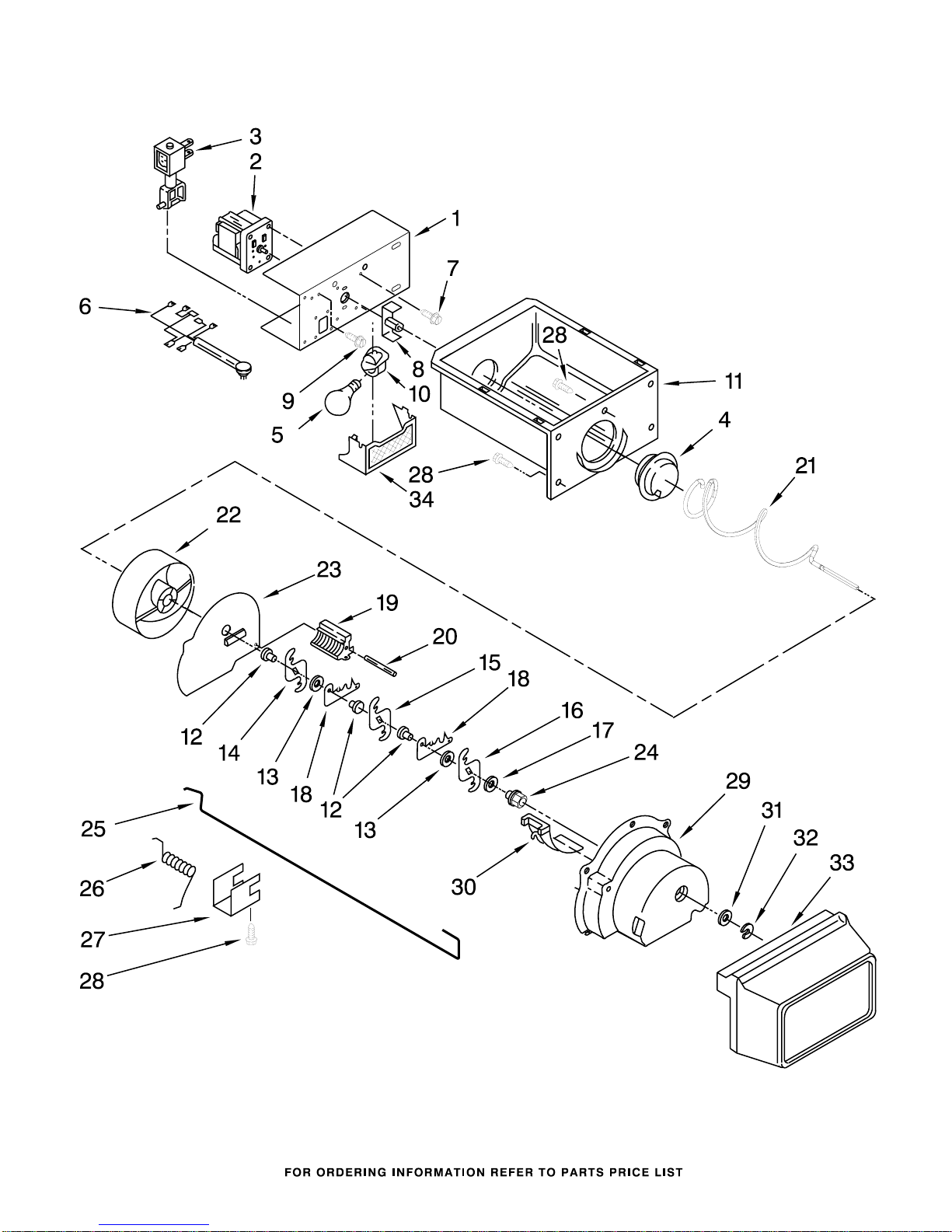

MOTOR AND ICE CONTAINER PARTS

For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00

(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)

W10197413

MOTOR AND ICE CONTAINER PARTS

For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00

(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)

W10197413

Illus. Part

No. No. DESCRIPTION

W10304376

Bracket, Motor

W10317991

Motor, Dispenser

3 2152713 Solenoid Assembly

4 983668 Coupling, Auger

5 527949 Light Bulb

W10281336

Wiring Assembly

Ice Dispenser

7 489399 Screw (6)

W10169511

Coupling, Motor

9 489478 Screw

10 2162085 Socket, Light

11 2196091 Ice Container

12 1119005 Spacer, Step (3)

13 1119007 Spacer, Flat (2)

W10278731

Blade, Rotary

W10278732

Blade, Rotary

W10278733

Blade, Rotary

17 489235 Washer, Plain

W10278727

Blade, Fixed

19 2157405 Block, Blade

20 489229 Roll Pin

W10295082

Auger

22 2305377 Drum

23 2171682 Floating Baffle

24 1119018 Nut, Bearing

25 2155231 Control Arm

26 1119020 Spring, Return

27 1119021 Retainer Clip, Rod

28 488886 Screw

29 2180348 Housing, Crusher

30 1119017 Deflector, Ice

31 489234 Washer, Plain

32 489236 Retainer Ring

33 2204321 Front Cover

Ice Container

34 2171706 Light Lens,

Dispenser

100

W10312300

Ice Container

(Complete)

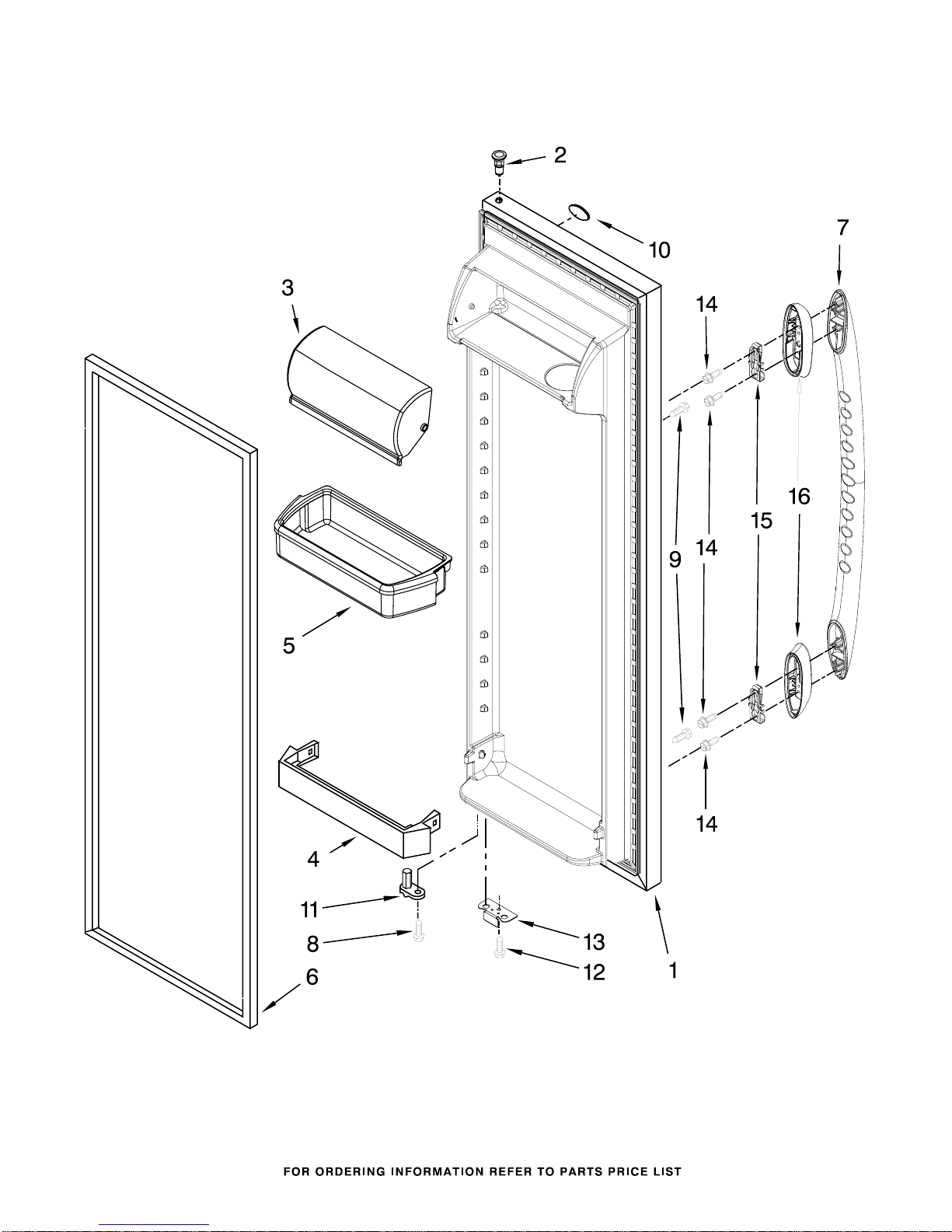

REFRIGERATOR DOOR PARTS

For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00

(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)

W10197413

REFRIGERATOR DOOR PARTS

For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00

(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)

W10197413

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes Item #6)

W10153847

White

W10159873

Black

W10170583

Stainless−VCM

W10170585

Stainless Steel

2 2308091 Thimble, Top

3 2256101 Door, Compartment

4 2309941 Trivet, Shelf

5 2187172 Door Bin (3)

6 Door Gasket,

Magnetic

2309528 Mist Beige

2309529 Black

7 Handle

12743701W

White

12743701B

Black

8 3400012 Screw

9 2326016 Stud, Handle

W10170766

Nameplate

11 2182178 Door Closer,

Upper Cam

12 489420 Screw

13 Bracket, Door Stop

W10219811

White

W10219812

Black

14 12990203 Screw

15 13067101 Clip

16 End Cap

12834803W

White

12834803B

Black
