Maytag MHWE300VF00 Bedienungsanleitung

TOP AND CABINET PARTS

For Models: MHWE300VW00, MHWE300VF00

(White) (Red Metallic)

3−10 Printed in U.S.A. (drd) (psw) Part No. W10208574 Rev. A

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Models: MHWE300VW00, MHWE300VF00

(White) (Red Metallic)

W10208574

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10157503

Use & Care Guide

W10177425

Tech Sheet

W10157501

Energy Guide

2 Top

W10003900

White

W10176926

Red

3 Cabinet

W10171708

White

W10176849

Red

4 Panel, Front

W10157475

White

W10176905

Red

5 Toe Panel

W10003640

White

W10176919

Red

6 Ring, Trim

W10182998

White

W10190645

Red

7 Hose, Water Inlet

8571377 Blue Coupler

8571378 Red Coupler

8 16123 Washer, Water

Inlet Hose (4)

W10112671

Clip, Trim−Metal

W10029650

Clip, Trim

W10064810

Foot, Leveling

12 Bolt, Shipping

W10003340

Upper

W10003350

Lower

W10003040

Brace, Transport

W10003030

Panel, Rear

15 3976348 Absorber, Sound

W10110677

Brace, Rear

17 8540479 Screw, Grounding

W10192665

Harness, Wiring

(Lower Main)

(Includes Items

19 & 20)

W10216383

Channel, Harness

(Side)

W10168549

Channel, Harness

(Bottom)

W10004260

Hose, Pressure

Switch

W10008890

Bracket, Spring

23 8540210 Microswitch (2)

24 356138 Clamp, Hose

W10003260

Connector,

Drain Hose

W10003280

Hose, Drain

(Outer)

W10110676

Strain Relief

W10110674

Cord, Power

W10022290

Clip, Outer

Hose Holder

30 8540021 U−Bend,

Drain Hose

31 8540728 Sleeve,

Cord Support (2)

32 8540727 Screw, 3 x 8 mm

33 8540268 Cover, Transport

W10003270

Clip, Outer

Hose Holder

W10015090

Screw, 8−18 x 5/8

W10163982

Switch, Pressure

37 8540230 Filter

Interference

38 3347868 Cable Tie

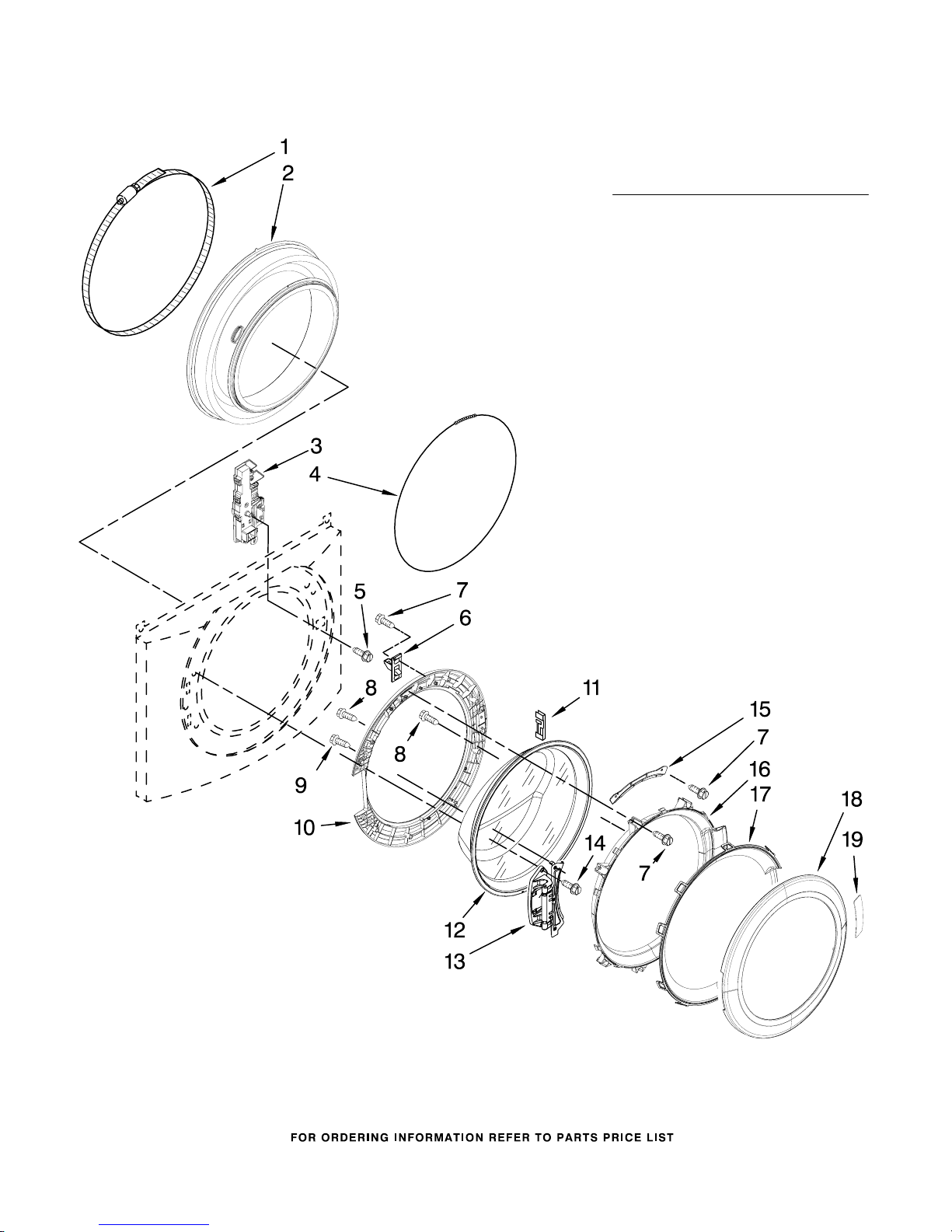

DOOR AND LATCH PARTS

For Models: MHWE300VW00, MHWE300VF00

(White) (Red Metallic)

W10208574

Illus. Part

No. No. DESCRIPTION

1 8182210 Clamp, Bellow

To Tub

W10003800

Bellow

3 8540772 Lock, Door

W10003490

Clamp, Bellow

To Front Panel

5 8540725 Screw

W10003390

Hook, Door

7 8540513 Screw

8 8540282 Screw

9 8540284 Screw

W10003370

Frame, Door

Back Support

W10003430

Clamp, Glass

Support

W10135912

Glass, Door

W10200695

Hinge, Door

W10015090

Screw

W10003440

Clamp, Glass (2)

W10005220

Frame, Door

Front Support

W10153278

Screen, Door

W10193430

Trim Ring,

Outer Door

(Includes Item 19)

W10153281

Pad, Door Handle

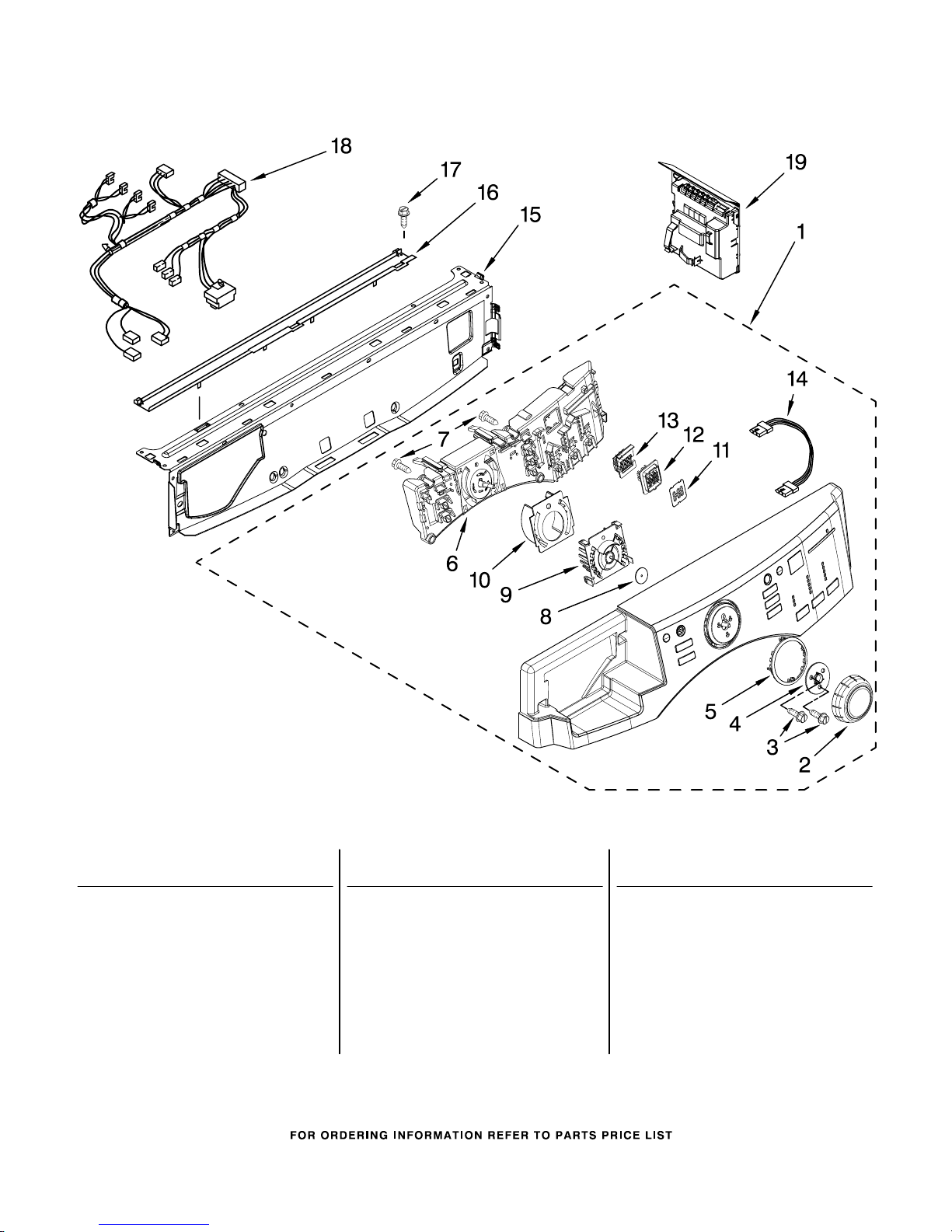

CONTROL PANEL PARTS

For Models: MHWE300VW00, MHWE300VF00

(White) (Red Metallic)

W10208574

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Panel, Control

W10176626

White

W10176641

Red

W10164576

Knob, Control

3 8540513 Screw

W10172298

Bushing, Knob

W10164567

Light Guide, Cycle

W10164540

User Interface,

7 8540282 Screw

8 8572039 Seal,

User Interface

W10170293

Light Guide −

Cycle, Internal

W10170295

Frame, Light Guide

W10171504

Foil − Display

W10164578

Light Guide −

3 Digit Display

W10171502

Frame − Light

Guide Display

W10067000

Harness, Wiring

(User Interface)

W10059240

Brace, Front Top

W10003700

Channel, Water

W10015090

Screw

W10159723

Harness, Wiring

(Upper Main)

W10157481

Microcomputer,

Machine Control

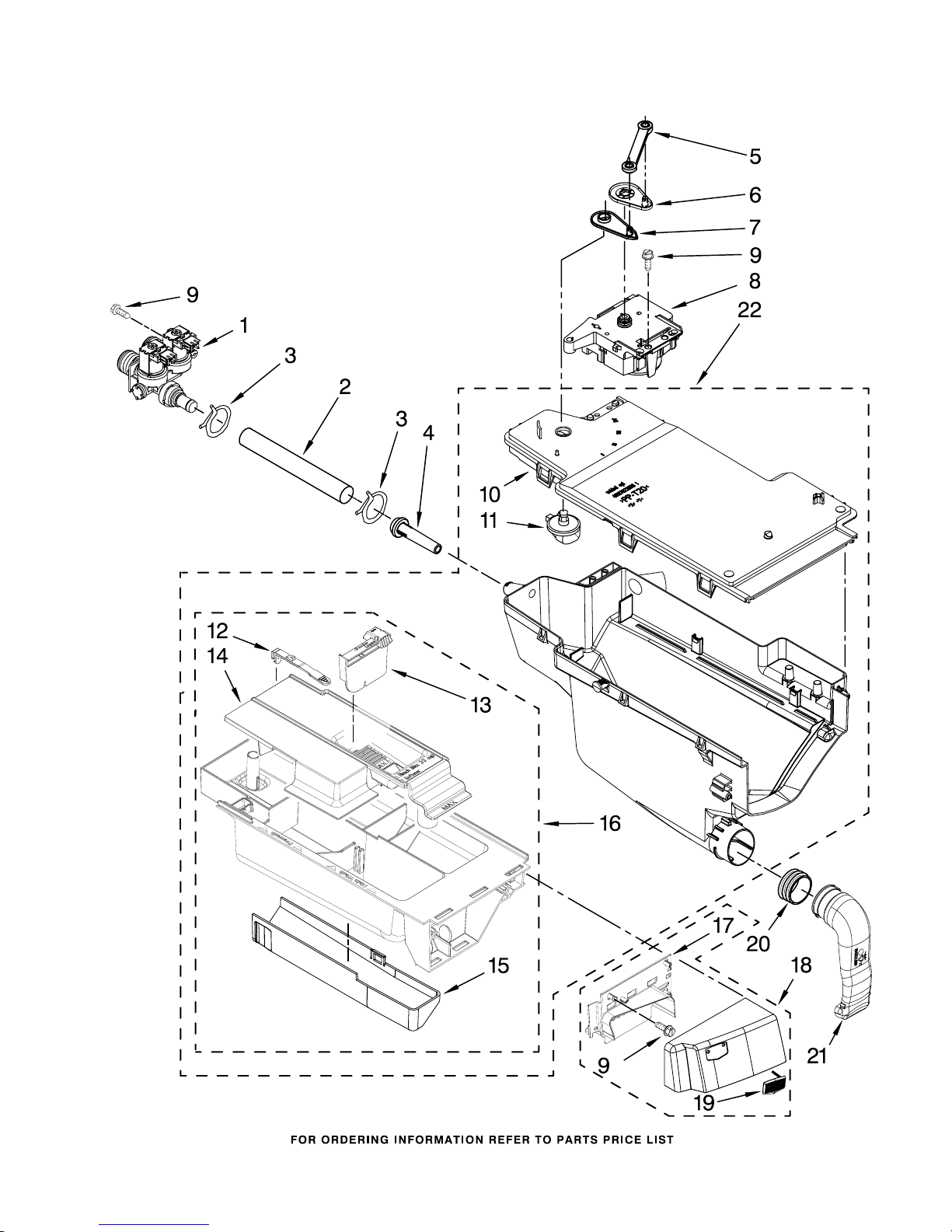

DISPENSER PARTS

For Models: MHWE300VW00, MHWE300VF00

(White) (Red Metallic)

W10208574

DISPENSER PARTS

For Models: MHWE300VW00, MHWE300VF00

(White) (Red Metallic)

W10208574

Illus. Part

No. No. DESCRIPTION

1 8540751 Valve, Inlet

2 8540065 Hose − Valve/

Dispenser

3 370450 Clamp

4 8540042 Nozzle, Inlet

W10003830

Lever, Connection

W10003190

Cam, Actuator

W10003180

Lever, Water

Distribution

W10163975

Actuator

9 8540282 Screw

W10005080

Plate,

Distribution

W10003110

Nozzle,

Distribution

W10003170

Hook, Drawer

W10015200

Separator, With

Selection Slider

W10003150

Siphon,

Bleach/Softener

W10003140

Cover,

Detergent Drawer

W10015190

Drawer, Detergent

(Complete)

17 Bracket, Handle

Fixation

W10153277

White

W10190550

Red

18 Handle, Drawer

W10189238

White

W10189239

Red

W10177245

Medallion

W10003360

Seal

W10005300

Tube, Dispenser

To Bellow

W10074160

Dispenser,

Complete

(Includes Item 7)

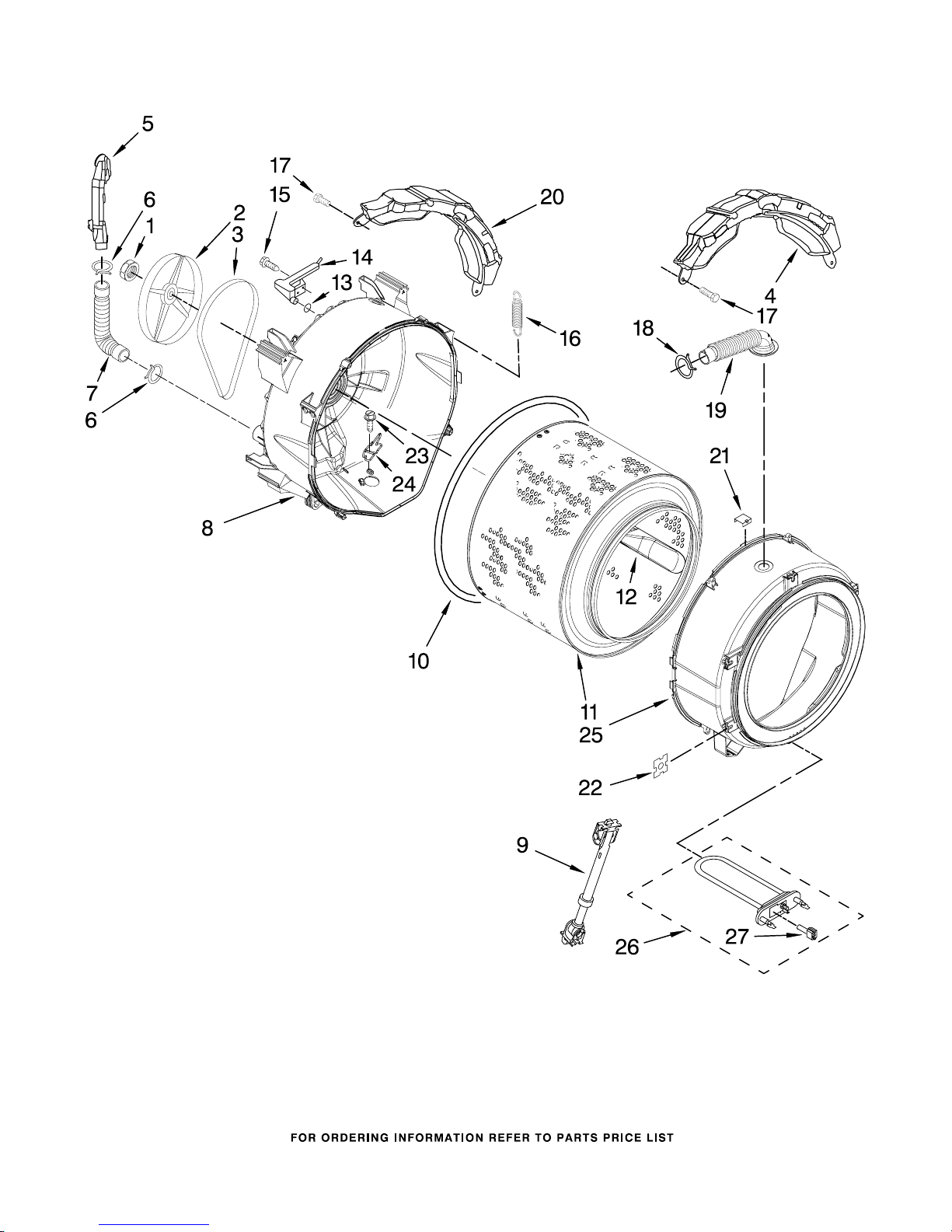

TUB AND BASKET PARTS

For Models: MHWE300VW00, MHWE300VF00

(White) (Red Metallic)

W10208574

TUB AND BASKET PARTS

For Models: MHWE300VW00, MHWE300VF00

(White) (Red Metallic)

W10208574

Illus. Part

No. No. DESCRIPTION

1 8533999 Nut, Pulley

W10003730

Pulley

W10116215

Belt

W10008880

Counterweight

Front (2)

W10003500

Pipe, Ventilation

6 8540010 Clamp

W10004330

Hose, Exhaust

W10004170

Tub, Rear

(Includes Items

10, 22, 23 & 24)

W10015830

Shock Absorber (4)

W10036350

Gasket, Tub

W10040480

Basket

W10002770

Baffle, Tub

W10004270

O−Ring

W10003600

Airtrap

15 8540513 Screw

W10127411

Spring,

Suspension

(Set Of 2)

W10094780

Bolt,

Counterweight Mtg.

18 3363365 Clamp, Hose

19 8540015 Hose, Exhaust

W10008870

Counterweight,

Rear

21 8540092 Clamp, Tub

22 8540072 Nut, Push−In

23 8540880 Screw

W10015240

Clamp,

Heating Element

W10004180

Tub, Front

(Includes Items

10 & 22)

W10155115

Element, Heating

27 8540226 NTC

PUMP AND MOTOR PARTS

For Models: MHWE300VW00, MHWE300VF00

(White) (Red Metallic)

W10208574

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10015480

Motor Control Unit

W10003330

Ball

3 8540008 Clamp

W10003240

Hose,

Tub to Pump

5 370448 Clamp

6 356138 Clamp

W10117829

Pump (Complete)

W10034820

Foot, Rubber

(Slider)

W10034830

Foot, Rubber

(Lock)

10 8540025 Seal, Filter Cap

11 8540996 Cap, Filter

12 8540134 Bolt, Motor

W10140583

Motor

W10004420

Harness, Motor

W10003290

Retainer,

Drain Hose

W10003250

Drain Hose

(Inner)

17 8540033 Cap, Lock Foot

18 8533964 Screw,

10−16 x 1.25 (2)

OPTIONAL PARTS (NOT INCLUDED)

For Models: MHWE300VW00, MHWE300VF00

(White) (Red Metallic)

W10208574

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

W10218247

Red

ACCESSORY PARTS

285863 Drain Extension

4396899 Rear Guard

38005 Stack Kit

W10135699

Affresh

Odor Remover
