TOP AND CABINET PARTS
1
For Model: MHWE300VW12
(White)
4−09 Printed in U.S.A. (drd)(bay) Part No. W10270384 Rev. A
AUTOMATIC
WASHER
TOP AND CABINET PARTS
2
For Model: MHWE300VW12
(White)
W10270384
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10248061
Use & Care Guide
W10250503
Tech Sheet
8183017 Quick Start Guide
W10248060
Energy Guide
2 8181799 Top
3
W10250656
Cabinet
4
W10248114
Panel, Front
5 8181643 Toe Panel
6
W10248115
Ring, Trim
7 8183210 Clip, Trim
8 8183019 Filter,
Interference
9
W10157885
Screw, 4.2 x 14
10 8183189 Harness, Wiring
(Lower Main)
(Includes Items
18, 19 & 23)
11 8181636 Foot, Leveling
12 Bolt, Shipping
8182797 Upper
8182798 Lower
13 8182661 Brace, Transport
14
W10242507
Panel, Rear
15 8181635 Pan, Bottom
16
W10250578
Brace, Rear
17 8181756 Screw
18
W10121609
Channel, Harness
(Side)
19
W10121610
Channel, Harness
(Bottom)
20
W10271610
Switch, Pressure
21 8181739 Hose, Pressure
Switch
22 8181763 Bracket, Spring
23
W10189678
Microswitch (2)
24 8181752 Clamp, Hose
25 8181738 Connector,
Drain Hose
26 8181737 Hose, Drain
(Outer)
27 8181690 Strain Relief
28 8183009 Cord, Power
29 8182702 Clip, Outer
Hose Holder
30 8181768 Storage, Hose
31 8182699 Sleeve,
Cord Support (2)
32 8182201 Screw, 3 x 8 mm
33 8182700 Cover, Transport
34 8182701 Clip, Outer
Hose Holder
35 8181828 Screw
36 Hose, Water Inlet
8182795 Blue Coupler
8182792 Red Coupler
DOOR AND LATCH PARTS
3
For Model: MHWE300VW12
(White)
W10270384
Illus. Part
No. No. DESCRIPTION
1 8182210 Clamp, Bellow
To Tub
2 8182119 Bellow
3 8183270 Lock, Door
4 8182211 Clamp, Bellow
To Front Panel
5 8181760 Screw
6 8183198 Hook, Door
7 8181758 Screw
8 8181661 Screw
9 8181660 Screw
10 8183195 Frame, Door
Back Support
11 8181659 Clamp, Glass
Support
12 8181655 Glass, Door
13 8183202 Hinge, Door
14 8183199 Clamp, Glass (2)
15 8183256 Frame, Door
Front Support
16
W10248071
Screen, Door
17
W10248123
Trim Ring,
Outer Door
(Includes Item 18)
18
W10121607
Pad, Door Handle
CONTROL PANEL PARTS
4
For Model: MHWE300VW12
(White)
W10270384
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1
W10248112
Panel−Control
2
W10248116
Knob, Control
(Includes Item 5)
3 8181758 Screw
4
W10248117
Bushing, Knob
5
W10248122
Light Guide, Cycle
6
W10271608
User Interface
7 8181661 Screw
8
W10248120
Seal,
User Interface
9
W10248121
Light Guide−
Cycle, Internal
10
W10248118
Foil−Display
11
W10248119
Light Guide−
Display
12
W10168511
Harness, Wiring
(User Interface)
13
W10271604
Microcomputer,
Machine Control
14 8183203 Brace, Front Top
15 8183204 Channel, Water
16 8181756 Screw
17
W10271602
Harness, Wiring
(Upper Main)

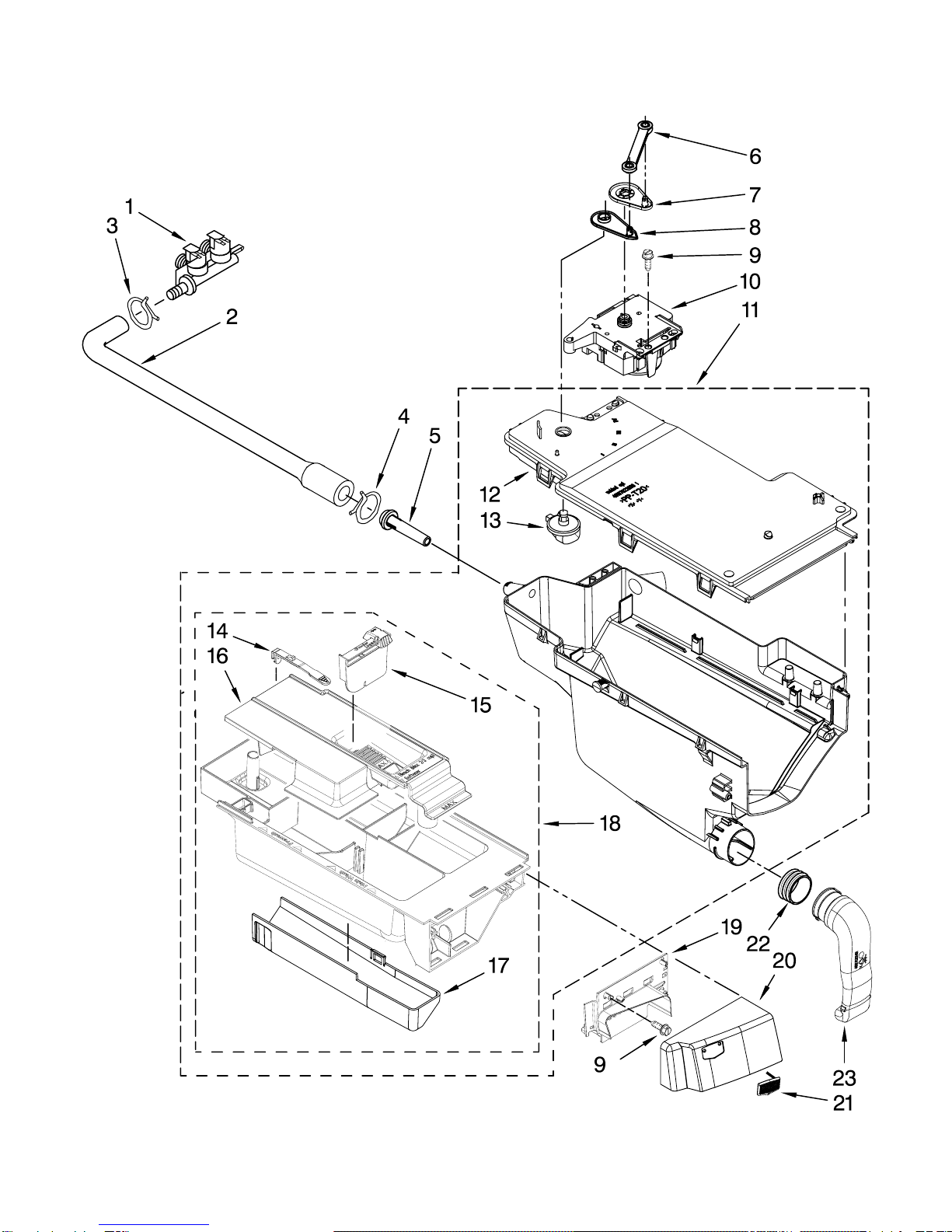

DISPENSER PARTS
5
For Model: MHWE300VW12
(White)
W10270384
DISPENSER PARTS
6
For Model: MHWE300VW12
(White)
W10270384
Illus. Part
No. No. DESCRIPTION
1 8182862 Valve, Inlet
2
W10168480
Hose, Inlet Valve
To Dispenser
3 8181754 Clamp, Hose
4 8181751 Clamp, Hose
5 8183181 Nozzle, Inlet
6 8183183 Lever, Water
Distribution
7 8183184 Cam, Actuator
8
W10161052
Lever, Connection
9 8181661 Screw
10 8183186 Actuator
11
W10157886
Dispenser,
Complete
(Includes Item 8)
12
W10164400
Plate,
Distribution
13 8181712 Nozzle,
Distribution
14 8181721 Hook, Drawer
15
W10121596
Separator, With
Selection Slider
16
W10121598
Syphon,
Bleach/Softener
17 8183179 Cover,
Detergent Drawer
18 8183173 Drawer, Detergent
(Complete)
19
W10248111
Bracket, Handle
Fixation
20
W10248109
Handle, Drawer
(Includes Items
19 & 21)
21
W10248108
Medallion
22 8181747 Seal
23 8181718 Tube, Dispenser
To Bellow
TUB AND BASKET PARTS
7
For Model: MHWE300VW12
(White)
W10270384
TUB AND BASKET PARTS
8
For Model: MHWE300VW12
(White)
W10270384
Illus. Part
No. No. DESCRIPTION
1 8182132 Nut, Pulley
2 8182650 Pulley
3
W10248068
Belt
4 8181645 Counterweight,
Front (2)
5
W10253670
Pipe, Ventilation
6
W10208156
Clamp
7 8181743 Hose, Exhaust
8
W10253855
Tub, Rear
(Includes Items
10, 22, 23 & 24)
9 8181913 Counterweight,
Rear
10 8181673 Gasket, Tub
11
W10250573
Basket
12
W10250572
Baffle, Tub
13
W10250553
O−Ring
14 8181731 Airtrap
15 8181785 Screw
16 8182814 Spring,
Suspension
17 8181647 Bolt
18 8181742 Clamp, Hose
19 8183187 Hose, Exhaust
20 8181667 Clamp, Tub
21 8182312 Tub, Front
(Includes Items
10 & 22)
22 8182512 Nut, Push−In
23 8182214 Screw
24
W10250572
Bracket,
Heater Support
25 8182666 Element, Heating
26 8181705 NTC
27 8182812 Shock Absorber (4)
PUMP AND MOTOR PARTS
9
For Model: MHWE300VW12
(White)
W10270384
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8183196 Motor Control Unit
2
W10121657
Ball
3 8181734 Clamp
4 8181732 Hose,
Tub to Pump
5 8181753 Clamp
6 8181752 Clamp
7 8182821 Pump (Complete)
8 8182820 Grommet, Damper
(Rear)
9 8182816 Grommet, Damper
(Front)
10 8181736 Seal, Filter Cap
11 8183027 Cap, Filter
(Includes Item 10)
12
W10128585
Bolt, Motor
13 8182793 Motor
14
W10189680
Harness, Motor
(Includes Item
23 On Page 1)
15 8182209 Retainer,
Drain Hose
16 8181740 Drain Hose
(Inner)
OPTIONAL PARTS (NOT INCLUDED)
10
For Model: MHWE300VW12
(White)
W10270384
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
PAINT, PRESSURIZED SPRAY
(12 oz.)
350938 Primer, Gray
350930 White
PAINT, BULK (1 qt.)
799344 White (Uncut)
ACCESSORY PARTS
285863 Drain Extension
4396899 Rear Guard
38005 Stack Kit
W10135699
Affresh
Odor Remover
