TOP AND CABINET PARTS

For Models: MHWZ400TQ01, MHWZ400TB01

(White) (Black)

4−08 Printed in U.S.A. (drd)(bay) Part No. W10205312 Rev. A

AUTOMATIC

WASHER

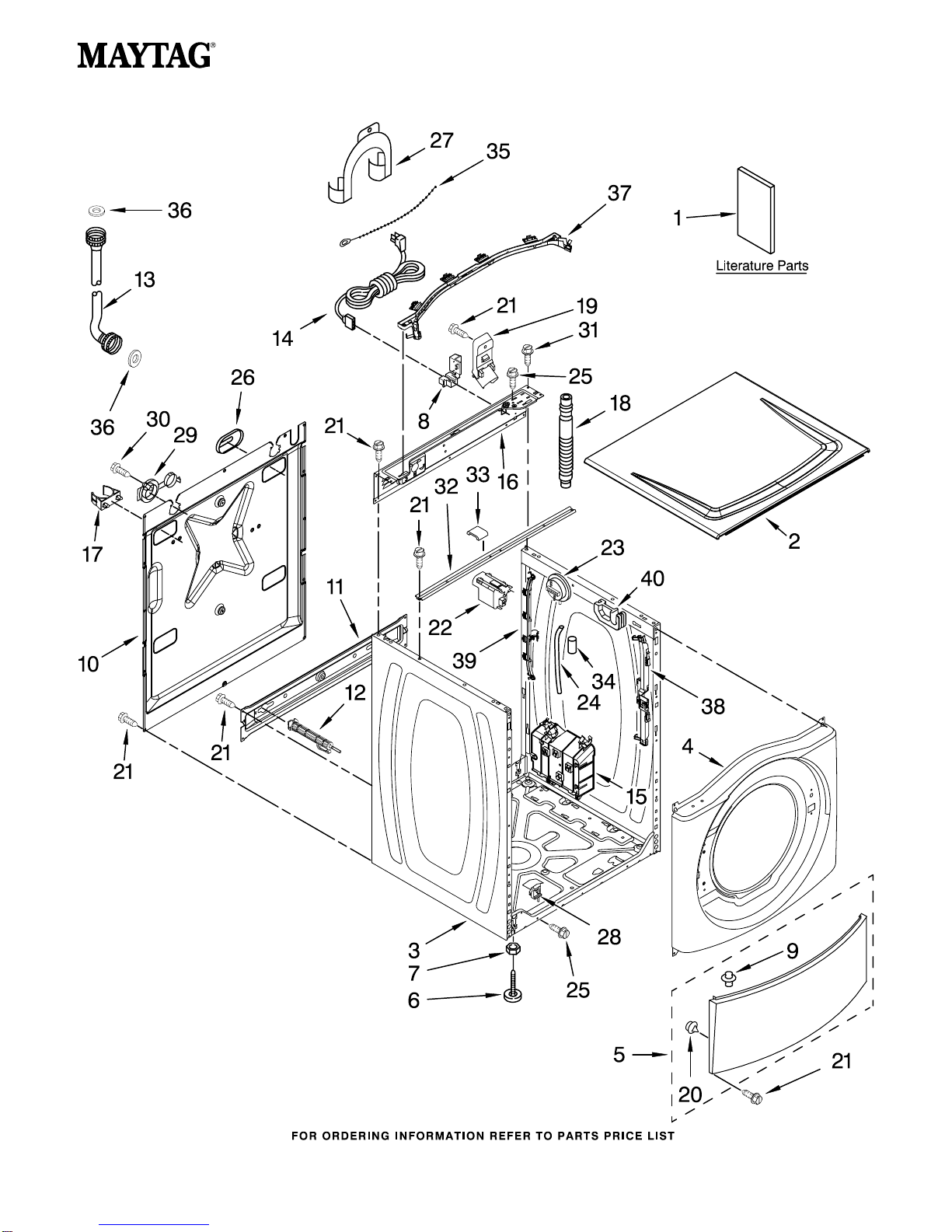

TOP AND CABINET PARTS

For Models: MHWZ400TQ01, MHWZ400TB01

(White) (Black)

W10205312

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10117443

Use & Care Guide

W10118956

Tech Sheet

W10171151

Energy Guide

W10112913

Quick Start Guide

2 Top

8540716 White

W10128645

Black

3 Cabinet

W10184997

White

W10185445

Black

4 Panel, Front

W10112948

White

W10117457

Black

5 Toe Panel

8540813 White

W10112981

Black

W10121677

Foot, Leveling (4)

7 3359452 Nut, Lock (4)

W10110676

Strain Relief,

Power Cord

9 8518891 Rivet

10 8540580 Panel, Rear

W10189657

Brace, Transport

12 8540199 Bolt, Shipping (4)

13 Hose, Water Inlet

8571377 Blue Coupler

8571378 Red Coupler

W10029820

Cord, Power

W10163007

Motor Control Unit

W10161694

Brace, Rear

17 8540093 Clamp, Tube

Transportation

W10114608

Hose, Drain

19 8540607 Retainer,

Hose Outlet

20 238614 Bumper (2)

W10015090

Screw, 8−18 x 5/8

22 8540230 Filter,

Interference

W10163980

Switch, Pressure

24 8540294 Hose, Pressure

Switch

25 8540479 Screw, Grounding

26 8540268 Cover, Transport

27 8540021 U−Bend,

Drain Hose

W10085220

Microswitch (2)

29 8540728 Sleeve,

Cord Support (2)

30 8540727 Screw, 3 x 8 mm

31 8540329 Screw

32 8540720 Brace, Top

(Includes Item 33)

33 8283273 Damper, Brace

34 2161302 Sleeve, Pressure

Switch Hose

35 3347868 Cable Tie

36 16123 Washer, Water

Inlet Hose (4)

1−1/16 x 5/8

W10168548

Harness Channel,

Top Rear

W10168546

Harness Channel,

Side Front

W10168547

Harness Channel,

Side Rear

40 8540644 Bracket, Spring

DOOR AND LATCH PARTS

For Models: MHWZ400TQ01, MHWZ400TB01

(White) (Black)

W10205312

Illus. Part

No. No. DESCRIPTION

1 8540952 Bellow

2 8540108 Clamp, Bellow

To Tub

3 8540772 Lock, Door

4 8540725 Screw

5 8540221 Hook, Door

W10117475

Handle, Door

7 Trim Ring,

Outer Door

W10112914

White

W10112915

Chrome

8 8540107 Clamp, Bellow

To Front Panel

9 8540115 Clamp, Support

10 8540114 Clamp, Glass (2)

11 8540513 Screw

W10119007

Frame, Door

Front Assembly

W10112078

Glass, Door

W10138523

Frame, Door

Back Support

W10118967

Hinge, Door

16 8540284 Screw

17 8540282 Screw

W10015090

Screw

W10112927

Pad, Door Handle

CONTROL PANEL PARTS

For Models: MHWZ400TQ01, MHWZ400TB01

(White) (Black)

W10205312

Illus. Part

No. No. DESCRIPTION

1 Panel, Control

W10117405

White

W10119011

Black

2 Knob, Control

W10112899

Elephant/Chrome

W10119050

Chrome

W10117418

User Interface

W10161692

Brace, Top Front

5 8540722 Channel, Water

W10160259

Microcomputer,

Machine Control

W10015090

Screw, 8−18 X 5/8

W10184855

Harness, Wiring

(Main)

DISPENSER PARTS

For Models: MHWZ400TQ01, MHWZ400TB01

(White) (Black)

W10205312

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8540751 Valve, Inlet

2 8540065 Hose, Valve

To Dispenser

3 370450 Clamp, Hose

4 8540282 Screw

5 8540042 Nozzle, Inlet

6 8540393 Cam, Actuator

7 8540394 Lever, Water

Distribution

W10143587

Actuator

9 8540429 Siphon,

Bleach/Softener

10 8281276 Clamp, Hose

11 8540395 Connection, Lever

12 8540058 Dispenser

13 8540053 Nozzle,

Distribution

14 8540063 Hose, Dispenser

To Tub

15 Handle, Drawer

W10118955

White

W10118961

Black

W10112569

Badge Assembly

17 8540399 Cover,

Detergent Drawer

18 8540402 Drawer,

Detergent

19 8540400 Hook, Drawer

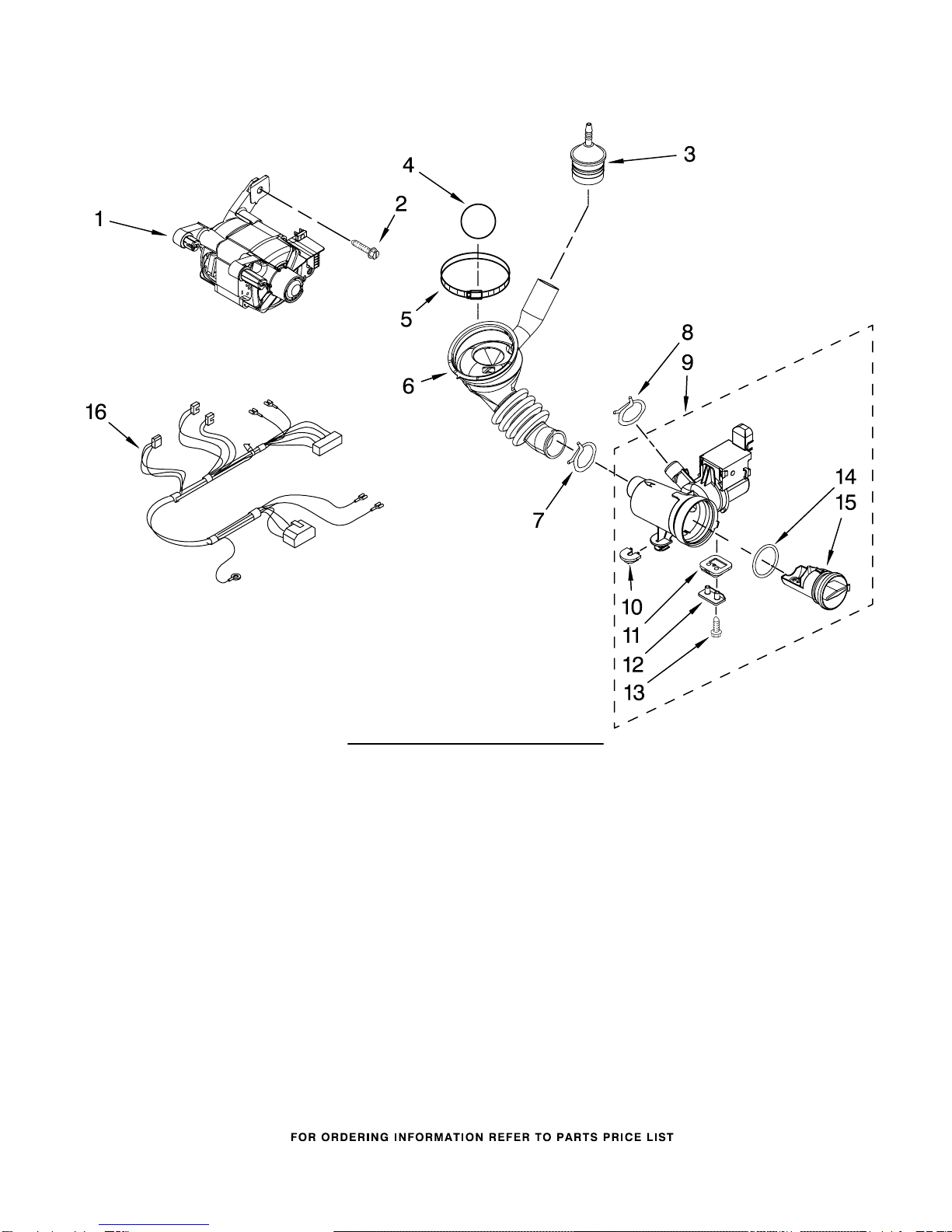

PUMP AND MOTOR PARTS

For Models: MHWZ400TQ01, MHWZ400TB01

(White) (Black)

W10205312

Illus. Part

No. No. DESCRIPTION

W10140582

Motor, Drive

2 8540134 Bolt, Motor

3 8540180 Air Trap

4 8540013 Ball

5 8540008 Clamp

6 8540012 Hose,

Tub to Pump

7 370448 Clamp, Hose

8 356138 Clamp, Drain Hose

W10130913

Pump (Complete)

W10034820

Foot, Rubber

(Slider)

W10034830

Foot, Rubber

(Lock)

12 8540033 Cap, Lock Foot

13 8533964 Screw,

10−16 x 1.25 (2)

14 8540025 Seal, Filter Cap

15 8540996 Filter Assembly

(Includes Item 14)

W10166993

Harness, Motor

TUB AND BASKET PARTS

For Models: MHWZ400TQ01, MHWZ400TB01

(White) (Black)

W10205312

TUB AND BASKET PARTS

For Models: MHWZ400TQ01, MHWZ400TB01

(White) (Black)

W10205312

Illus. Part

No. No. DESCRIPTION

1 8533999 Nut, Pulley

2 8540088C Pulley

W10116215

Belt, Drive

W10151304

Counterweight,

Front Lower

W10112169

Pipe, Ventilation

6 8540010 Clamp, Vent Hose

7 8540019 Hose, Exhaust

W10112660

Tub, Rear

(Includes Items

10, 21 & 22)

9 8540604 Counterweight,

Rear

10 8540090 Gasket, Tub

W10112984

Basket, Complete

W10112972

Baffle, Tub

W10094780

Bolt,

Counterweight Mtg.

W10174473

Bolt Assembly,

Counterweight

Center Hole

W10151303

Counterweight,

Front Upper

W10010360

Spring,

Suspension

W10159465

Shock Absorber (4)

18 3363365 Clamp, Hose

19 8540015 Hose, Exhaust

20 8540092 Clamp, Tub

W10112661

Tub, Front

(Includes Items

8, 10 & 22)

22 8540072 Nut, Push−In

23 8540226 Negative

Thermistor Control

24 8540766 Seal, Rubber

25 8540382 Screw

26 8540342 Crosspiece

Assembly

OPTIONAL PARTS (NOT INCLUDED)

For Models: MHWZ400TQ01, MHWZ400TB01

(White) (Black)

W10205312

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

72032 Black

PAINT, PRESSURIZED SPRAY

(12 oz.)

350938 Primer, Gray

350930 White

285006 Black

PAINT, BULK (1 qt.)

799344 White (Uncut)

786032 Black (Uncut)

ACCESSORY PARTS

285863 Drain Extension

W10135699

Affresh

Odor Remover
