Maytag MTW6600TB1 Bedienungsanleitung

TOP AND CABINET PARTS

For Models: MTW6600TQ1, MTW6600TB1

(White) (Black)

1−08 Printed In U.S.A. (drd) Part No. W10172452 Rev. A

AUTOMATIC WASHER

TOP AND CABINET PARTS

For Models: MTW6600TQ1, MTW6600TB1

(White) (Black)

W10172452

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10092685

Use & Care Guide

W10092700

Tech Sheet

W10092751

Quick Start Guide

8577781 Wiring Diagram

W10092763

Energy Guide

2 Top

8565314 White

W10053420

Black

W10162416

Frame Assembly,

Cabinet Top

(Includes

Items 31 & 38)

4 8576784 Sound Absorber,

Cabinet

5 Cabinet

8566156 White

W10050330

Black

6 8566090 Panel, Rear

W10160572

Retainer, Drain

Hose Storage

W10167599

Bushing,

Suspension (Set of

4−Includes Item 9)

W10111536

Ball, Suspension

(Set of 4 −

Includes Item 8)

10 8566146 Damper Assembly,

Tub Suspension

(Set Of 4−Includes

Items 8,9,48 & 49)

11 1157158 Screw, 8−18 x 3/8

W10042120

Locator, Top (2)

W10078270

Screw, Lid

Hinge Mounting (4)

14 Hinge Wire (2)

8563965 (L.H.)

8572974 (R.H.)

15 Hinge, Spring

Assembly

(Glass Lid)

8563962 (Left)

8563963 (Right)

16 8565184 Absorber, Sound

(Bottom)

W10052730

Bearing, Lid

Hinge (2)

18 3390647 Screw, 8−18 x 1/2

19 Lid, Glass

Assembly

W10131142

White

W10131143

Black

20 8578826 Foot Assembly,

Leveling (4)

W10059150

Dispenser,

Fabric Softener

22 Bezel, Fabric

Softener Dispenser

8566210 White

8580017 Elephant

W10161865

Dispenser, Stain

Remover

24 Bezel, Stain

Remover Dispenser

8566211 White

8580019 Elephant

25 Dispenser,

Detergent

8564976 White

W10059180

Elephant

26 Bezel, Detergent

Dispenser

8564979 White

W10045210

Elephant

W10106990

Nozzle Assembly,

Fresh Water

28 371503 Clamp, Hose

W10059230

Lock Assembly, Lid

30 Bezel, Lid Lock

8572019 White

W10052520

Black

31 8564458 Absorber, Impact

32 8564456 Hinge, Top (2)

33 18849 Pad, Top Hinge (2)

34 343641 Screw,

10−16 x 1/2 (2)

35 8563941 Cover, Harness

36 693995 Screw, 8−18 x 3/8

37 8543784 Bracket,

Drain Hose

38 8578386 Shield, Wire

Harness

39 8281136 Screw, 10−16 x 3/4

40 8576476 Spacer, Rear

(Cabinet/Top)

41 370451 Clamp, Hose

42 371503 Clamp, Hose

43 3400061 Screw,

10−16 x 9/16

44 90016 Clip, Harness (5)

45 8281736 Wire,

Ground Jumper

46 3400076 Screw, 10−32 x 5/8

47 8563785 Lock, Top−

Front (2)

48 8577896 Washer, Suspension

Umbrella (4)

49 8564017 Cup,

Suspension (4)

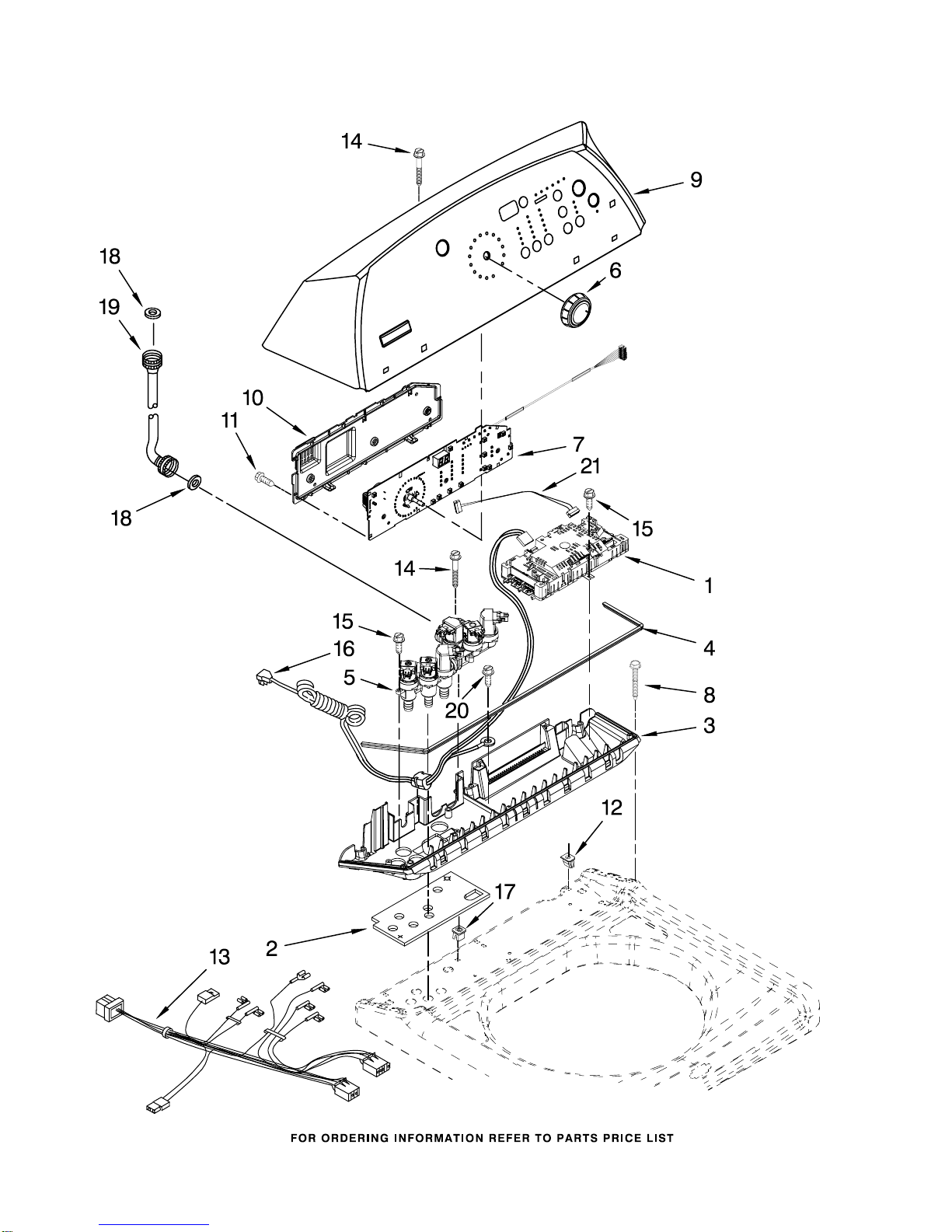

CONTROL PANEL PARTS

For Models: MTW6600TQ1, MTW6600TB1

(White) (Black)

W10172452

CONTROL PANEL PARTS

For Models: MTW6600TQ1, MTW6600TB1

(White) (Black)

W10172452

Illus. Part

No. No. DESCRIPTION

W10155109

Control Unit

Assembly,

Machine & Motor

W10130502

Gasket, Valve Tray

3 Tray Assembly,

Console (Includes

Items 2 & 4)

8565304 White

8565305 Black

4 8565259 Gasket,

Console/Tray

W10128457

Valve, Log

Assembly

W10110196

Knob, Control

W10051092

User Interface

W10004990

Screw, 6−20 x 1.2

9 Console

W10090708

White

W10090709

Black

10 8564265 Cover, Rear−

User Interface

W10003770

Screw,

6−19 x 1/2 (3)

W10022060

Nut, Push−In (3)

W10128687

Harness, Upper

(Includes Item 21)

14 8565324 Screw,

10−16 x 1.75

15 8281136 Screw, 8−18 x 3/4

16 3407203 Cord Assembly,

Power

17 98460 Nut, Push−In (2)

18 3976300 Washer, Water

Inlet Hose

(1−1/16 x 5/8)(4)

19 Hose, Water Inlet

8571377 Blue Coupler

8571378 Red Coupler

20 3351614 Screw, Power

Cord Ground

21 3407187 Harness,

Thermistor

MOTOR, BASKET AND TUB PARTS

For Models: MTW6600TQ1, MTW6600TB1

(White) (Black)

W10172452

MOTOR, BASKET AND TUB PARTS

For Models: MTW6600TQ1, MTW6600TB1

(White) (Black)

W10172452

Illus. Part

No. No. DESCRIPTION

W10106600

Cap, Impeller

W10076270

Screw & Washer

Assembly

W10076260

Washer

W10130807

Tub Ring

5 8572540 Hose Pressure

Switch

W10141017

Impeller

(Washplate)

7 8533953 Screw,

8−16 x 1.000 (6)

W10118114

Hub, Basket−Driven

(Includes Item 9)

9 8545953 Hub, Basket−Driver

(Includes Item 8)

W10118182

Basket Assembly

(Includes Items

7, 8, & 9)

W10128830

Tub & Drive Shaft

Assembly

W10137697

Harness, Lower

(Includes Item 5)

W10005430

Clamp, Pressure

Hose Retainer

14 8533957 Screw, 10−16 x 1/2

W10137698

Shield,

Drive Motor

(Includes Item 16)

16 8565172 Tube, Buffer

(Set Of 4)

17 8565170 Stator, Motor

(Includes Item 18)

18 8557836 Plate, Stator

(Set Of 2)

19 8534042 Screw,

1/4−20 x .968 (4)

W10137685

RPS Assembly

21 8565177 Rotor, Main Drive

Motor (Includes

Item 22)

22 Bolt, Rotor

Assembly

Non−Serviceable

(Supplied W/Rotor)

23 8533928 Screw,

8−18 x 3/4 (2)

24 8566197 Filter, Dual

Pump Hood

PUMP PARTS

For Models: MTW6600TQ1, MTW6600TB1

(White) (Black)

W10172452

Illus. Part

No. No. DESCRIPTION

W10049390

Pump Assembly,

Drain

W10128765

Hose, Drain

3 8543774 Hose, Recirc

W10049400

Pump Assembly,

Recirc

W10004910

Screw,

12−16 x 1.125

6 370449 Clamp, Hose

7 8269146 Clamp, Hose

8 8317496 Clamp, Hose

9 8182771 Grommet, Pump

Mounting (4)

10 8534021 Clamp, Recirc

Hose Retainer

11 8533943 Screw, 10−16 x 3/4

12 8182768 Clamp,

Drain Pump Hose

13 8576642 Retainer,

Drain Hose

14 3347868 Cable Tie

15 8182769 Hose, Recirc Pump

16 8182770 Clamp,

Recirc Pump Hose

17 8182767 Hose, Drain Pump

OPTIONAL PARTS (NOT INCLUDED)

For Models: MTW6600TQ1, MTW6600TB1

(White) (Black)

W10172452

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

72032 Black

PAINT, PRESSURIZED SPRAY

(12 oz.)

350938 Primer, Gray

350930 White

285006 Black

PAINT, BULK (1 qt.)

799344 White (Uncut)

786032 Black (Uncut)

WATER SYSTEM PARTS

285442 Connector Kit,

Plastic Drain

Hose

285321 Sleeve Kit,

(Contains 2

Sleeves)

285320 Siphon Break Kit

367031 Drain Protector

SEALER

285195 Sealer, Gasket

(.20 Fl. Oz.) (6 ml)

COUPLING

384496 Coupling, Hose
