Maytag Neptune MAH9700 Bedienungsanleitung

Maytag Neptune

27” Front Load Washer

L2005-004

Miami Lakes

Education Center

5780 NW 158

Miami, FL 33014

305-557-1100 EXT 2332

Center for Manufacturing Excellence

3000 Log City Trail

Galesburg, IL 61401

309-345-3501

Los Mendanos College

2700 East Leland Rd

Pittsburg, CA 94565

925-439-2181

Tulsa Technology Center

3850 North Peoria

Tulsa, OK 74147-7200

918-828-2038

Louisiana Technical College

111 Pride Dr

Hammond, LA 70404-0489

985-543-4123

Appliance Repair Institute

275 South G St

San Bernadino, CA 92410

909-888-3600

Elizabethtown Technical College

610 College St Rd

Elizabethtown KY 42701

270-769-2371

Kwantlen University

College

12666 72

Ave

Surrey, BC

Canada V3W2M8

604-599-2962 Bay State School of Technology

225 Turnpike St

Canton, MA. 02021

888-828-3434

Hibbing Community College

1515 East 25

Hibbing, MN. 55746

218-262-7231

Maytag Authorized Training Centers

Slide 1

Maytag Neptune 27” Front Load Washers

Premium II – MAH9700 - (Direct Drive Motor – Slope Console)

Premium I – MAH8700 – (Belt Drive Motor – Slope Console)

Entry Level– MAH6700 - (Belt Drive Motor - Flat Front Console- Stackable)

Slide 2

Major Differences

Top Spin Speed;

9700–1200RPM

8700–1100 RPM

6700–1000 RPM

Noise Reduction

9700 Direct drive motor, 2 tuned absorbers

8700 2 tuned absorbers

6700 1 tuned absorber

Weights

9700 uses two weights attached to the front of outer tub

6700 & 8700 use four weights. Two attached to the front of outer tub, one behind the spinner pulley

and one mounted to the right rear side of the outer tub

Slide 3

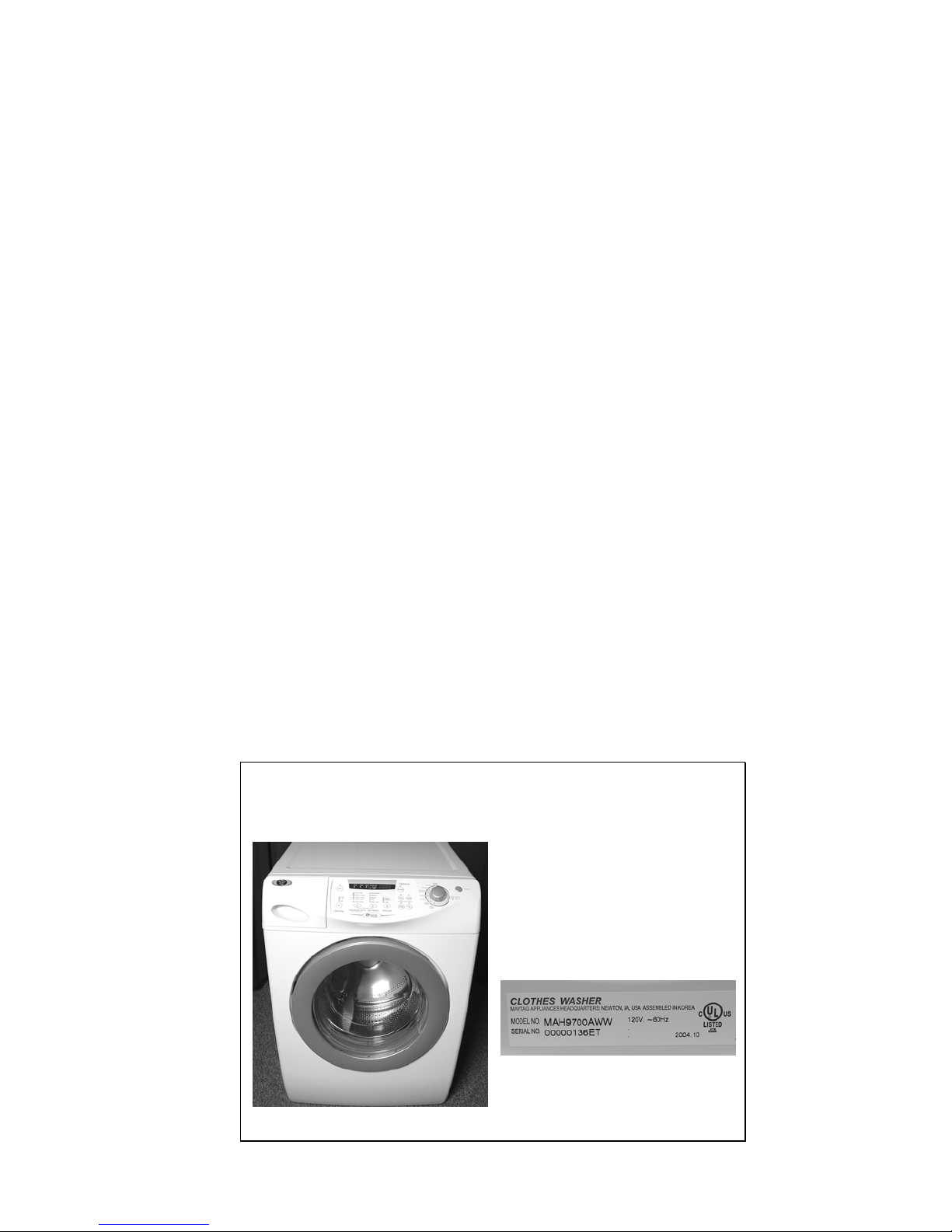

Maytag Neptune 27” Front Load Washer MAH9700

This training presentation is

based on the MAH9700.

Differences between the

9700 and 8700 machines

will be highlighted

Tub is tilted 10 degrees

to ease unloading

Slide 4

Maytag Neptune Washer MAH9700

Dimensions Base Cycles

Washer Width 27” Sanitary 151 Degrees F

Washer Depth 30.75” Super Wash

Washer Height 38” Normal

Washer Weight 191 LBS Whites

Pedestal/Riser (MAL1800AX*) 13” Wrinkle Control

Features Colors

Capacity (cu.ft) 3.81 Delicates

Controls LED Hand Wash

Motor Type Direct Drive Quick Wash

Spin Speeds 6 Enviro Plus

Water level Control IntelliFill Options

Water Temp Combinations 6 Prewash

ATC Control Stain Treat

Soil Level Selections Heavy, Med., Light Extra Rinse

Spinner Stainless Extended Spin

Self Clean Lint System Rinse & Spin

Internal Heater 900 Watts Spin Only

End of Cycle Chime High, Med., Off Spin Speeds Approximate RPM

Delay Wash Up to 19 Hr. Max Extract Plus 1200 RPM

Dispensers High 1000 RPM

Detergent Dispenser Pre and Main Medium 800 RPM

Bleach Dispenser 100ml Gentle 600 RPM

Fabric Softener Dispenser Low 400 RPM

Child Lock Out Control Lock Drain only 0 RPM

Tumble Pattern

Normal 35 Times per Minute 15” pedestal and Drawer MAL1800AXW/M

Hand Wash 5 Times per Minute

Energy Consumption 266 Kw/H per year Colors White, Platinum

Water Consumption 9.9 to 15.9 Gallons

Slide 5

Note: The Power Point Presentation and Participant’s Guide for this training session were developed

using prototype machines. There might be slight cosmetic differences between the product pictured and

the current production units. Always refer to the Technical Data Sheet for detailed information for the

product you are servicing.

Slide 6

Always follow all safety

and caution warnings

found on the machine and

in the installation and

customer use manuals!

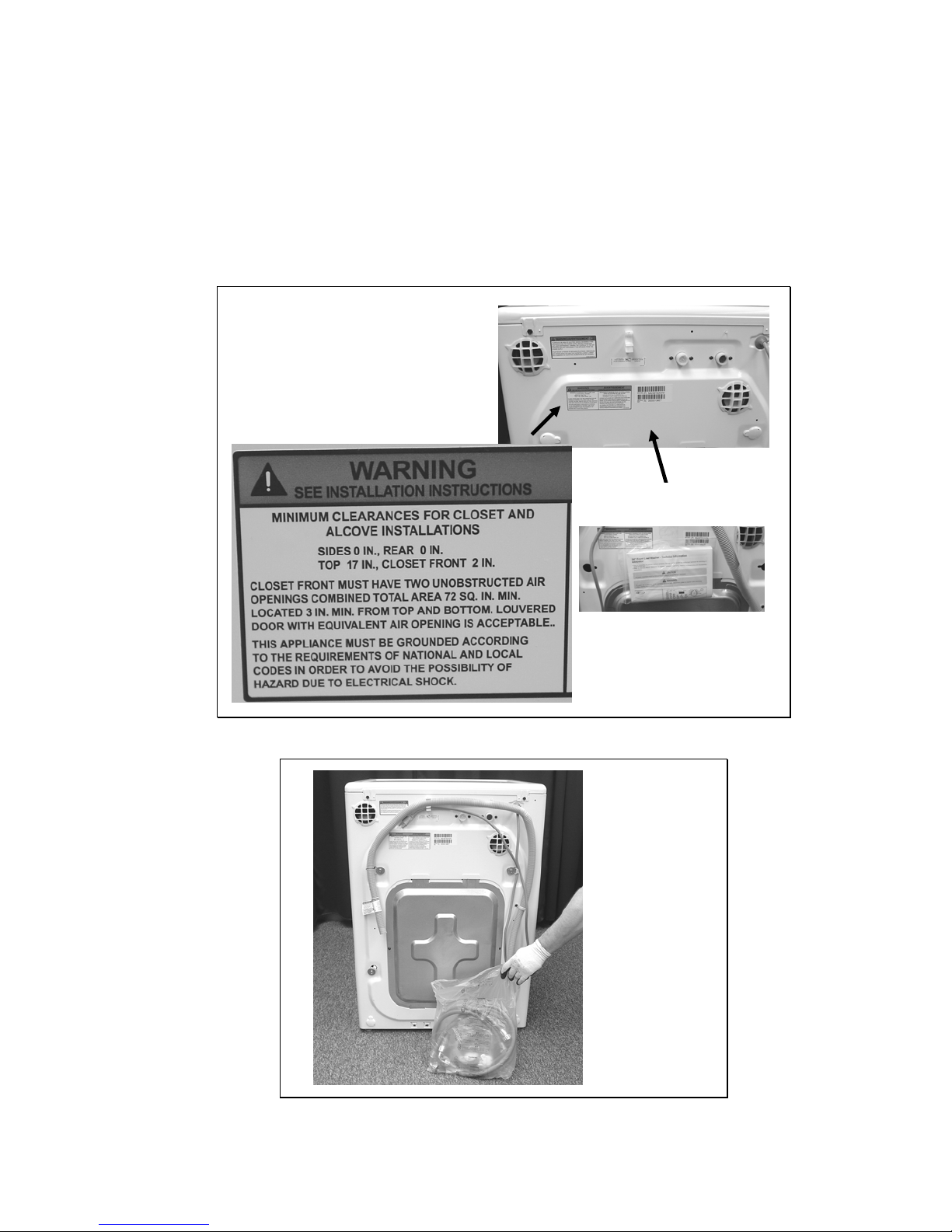

Location for the Technical

Data Sheet

Slide 7

The installation

process for the

27” is similar to

the 24” product

that preceded it.

Slide 8

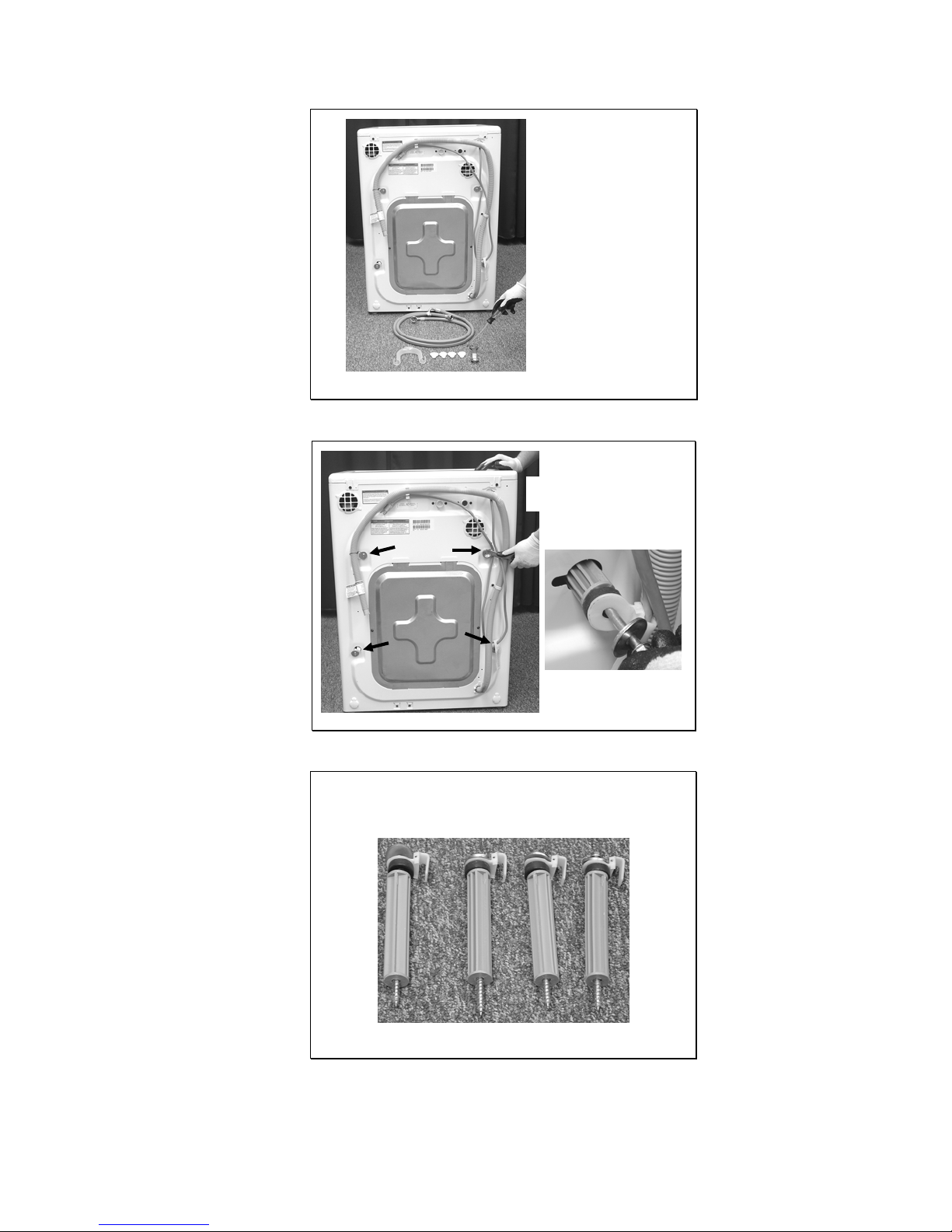

The installation package

contains the fill hoses, a

combination wrench for

removing the shipping

bolts and adjusting the

leveling legs, filler plugs

and a drain hose bracket.

Slide 9

Remove the four 10mm

shipping bolts and spacers

Slide 10

Save the shipping bolts and spacers and

installation instruction in case of a future move.

Slide 11

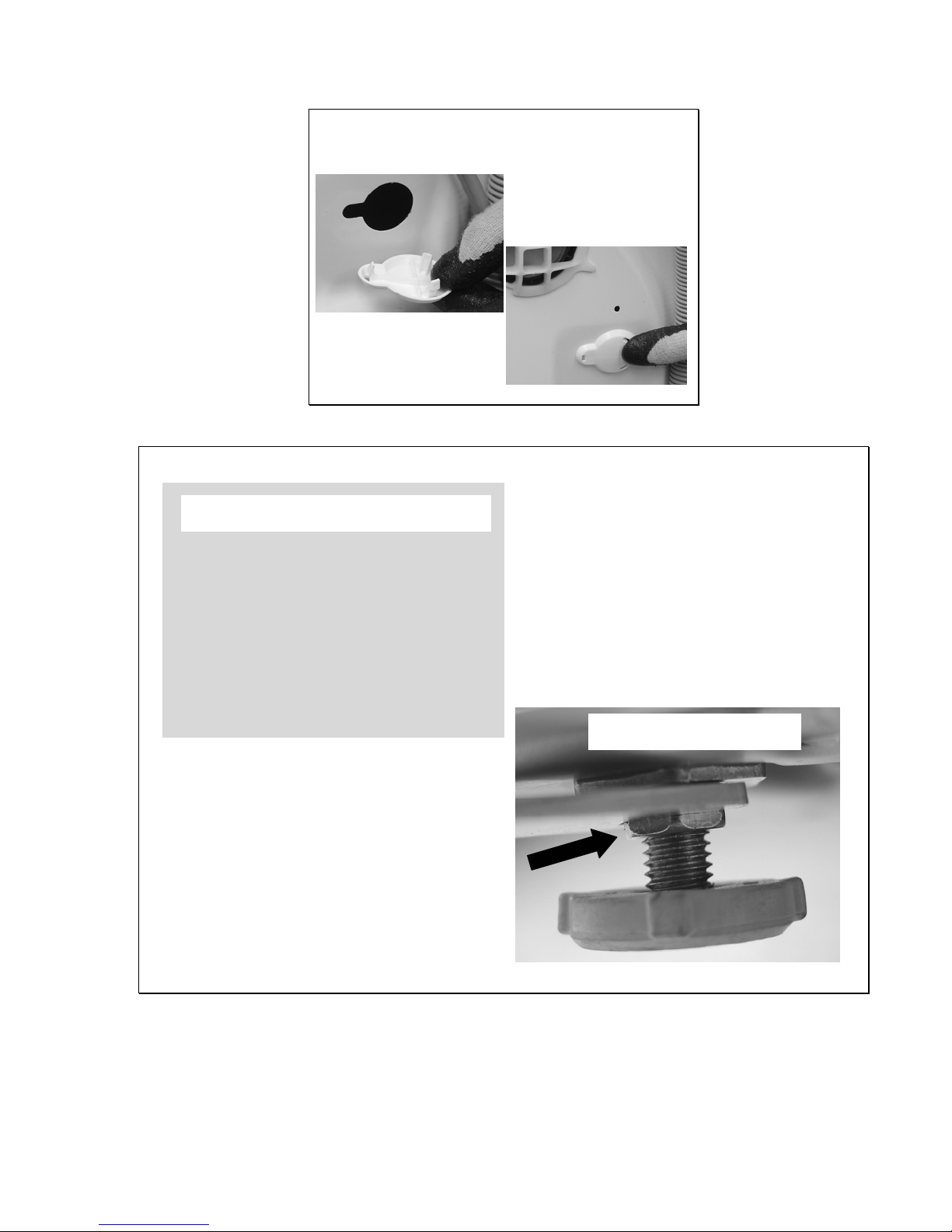

Install the filler plugs supplied in the installation kit.

Slide 12

Leg in Shipping Position

After leveling, make sure to

tighten the locking nut against

the base. Failure to do so will

cause excessive vibration

Tighten Nut

Level the machine side

to side and front to back

The washer must be installed on a sturdy floor and leveled.

Make sure the locking nuts are tightened against base

Slide 13

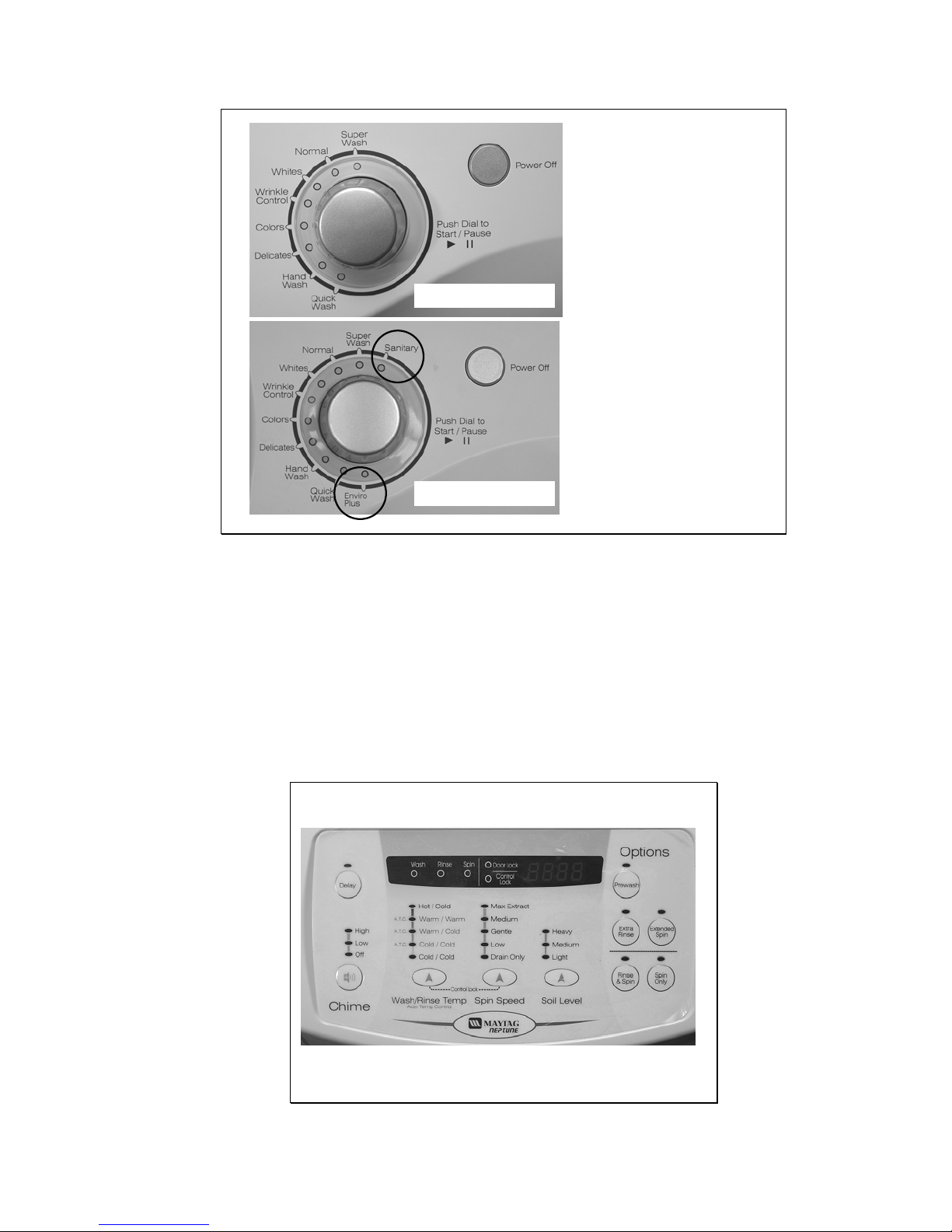

MAH 8700 Timer

MAH 9700 Timer

The 9700 washer

timer features two

additional cycles

not found on the

8700; Sanitary and

Enviro Plus

The Sanitary cycle delays during the first wash to heat the wash water. A 900 Watt heating

element located in the bottom of the outer tub is used to raise the water temperature to 151 degrees F.

As soon as a 151 degree F. temperature is reached the cycle resumes. The machine will delay up to 69

minutes if necessary to achieve SaniTemperature. The purpose of the 151 Degree water temperature is

to help eliminate bacteria and improve cleaning performance.

The Enviro Plus cycle uses less energy and less water than the Normal Cycle.

Slide 14

MAH 8700
