MB QUART PREMIUM PVM116 Bedienungsanleitung

Thank you for choosing MB Quart Premium speakers for your car audio

sound system. With proper installation, you are on the path to

experiencing your music in a way you only imagined possible. Here at

MB Quart, we call this “Music. Defined.”

The Premium series speakers have been designed for sound quality

enthusiasts. Borrowing features from Q and providing a step up from

Reference, the PVM series is serious about sound and performance!

These speakers feature the following:

- Spring Loaded Speaker Terminals

- 40mm Titanium WideSphere Tweeter

- Phase Plug With Voice Coil Collar

- Low Resonant ABS Composite Basket

- Composite Grill w/Mesh

- High Energy Magnet

- Composite Cone

- Butyl Rubber Surround

PVM116 / PVM216

PREMIUM

As with all high quality car audio products, we recommend professional

installation by an authorized MB Quart dealer. Your dealers knowledge

and experience can ensure a problem free and cosmetically integrated

installation.

If you choose to install the speakers yourself, please read the entire

manual very carefully.

SPEAKER LOCATION AND MOUNTING TIPS

THE FIRST STEP IS THOROUGH PLANNING BEFORE THE

INSTALLATION BEGINS. THE SPEAKER SCREW HOLE

CONFIGURATION WILL WORK WITH MOST DOMESTIC AND

FOREIGN VEHICLES. FOLLOW THESE INSTRUCTIONS

CAREFULLY TO ENSURE PROPER IMAGING AND MAXXIMUM

PERFORMANCE.

Factory Speaker Replacement Location and Installation

1. Before you alter the vehicles interior materials, be sure there is

adequate room and clearance for the speaker depth to clear the

windows and other moving parts. (See speaker measurement page).

2. If you are using the speaker wires provided in this kit, be sure to

route wires through the factory door grommet as shown in the speaker

mounting diagram.

3. After securing the speaker and checking clearances, connect the

red/black speaker audio wires to the correct speaker + and - spade

terminals.

Custom Speaker Location and Installation

1. Follow steps 1-3 above.

2. Use the speaker mounting diagrams and speaker hole cut-out

dimensions on the following pages.

3. Always mount the left and right side speakers on the same plane.

This means that each speaker should be the same height from the

floor and same distance from the firewall. Do not mount one speaker

higher, lower, further forward or further behind the other.

PVM116 / PVM216

PREMIUM

IN OUT

T- T+ W- W+

PREMIUM

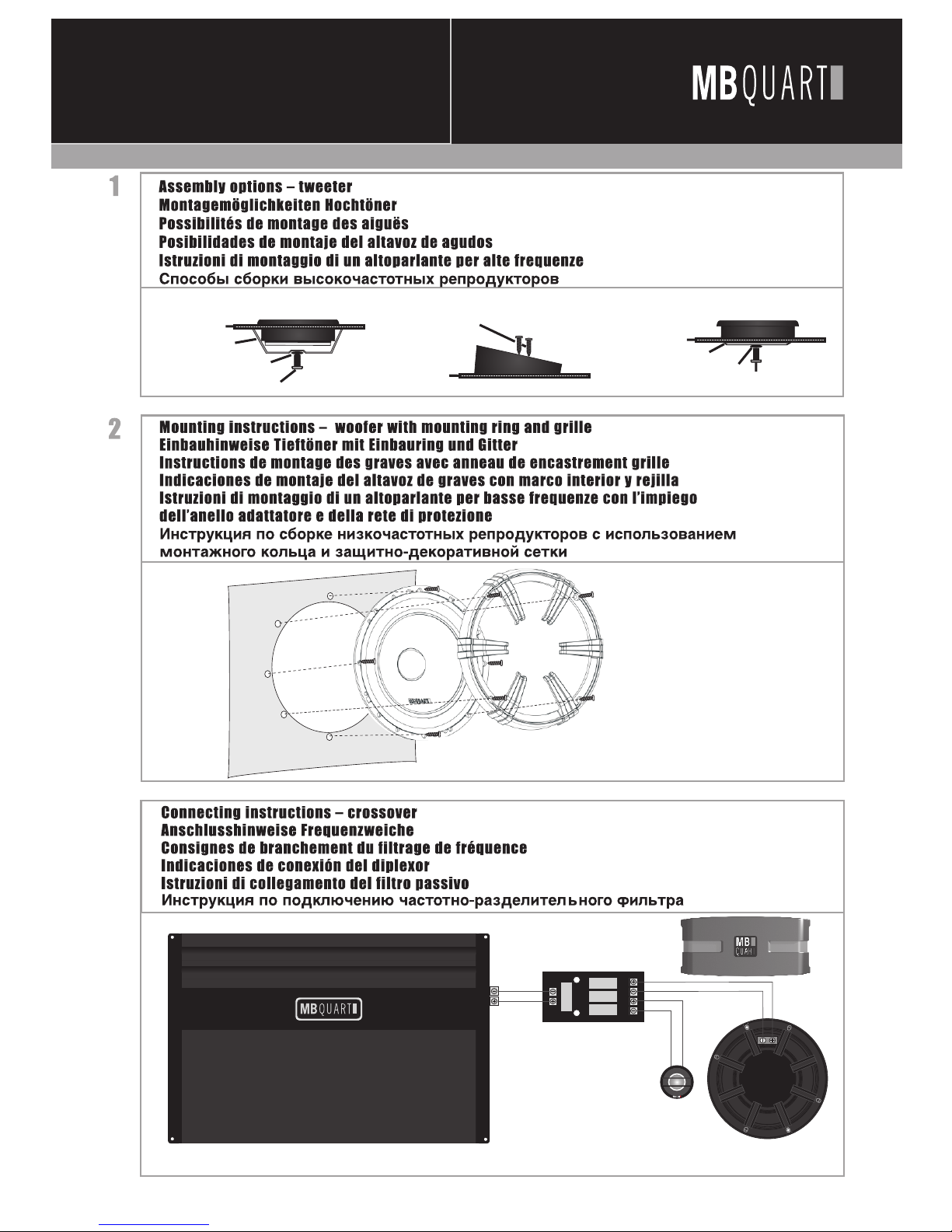

Flush Mount Method

Mounting Brackets

Mounting Bracket Screws Mounting Bracket Screws

Mounting Bracket Washers Mounting Bracket Washers

Surface Angle Mount Method

Cup Mounting Screws

Mounting Surface

Top Mounted Method

Mounting Surface

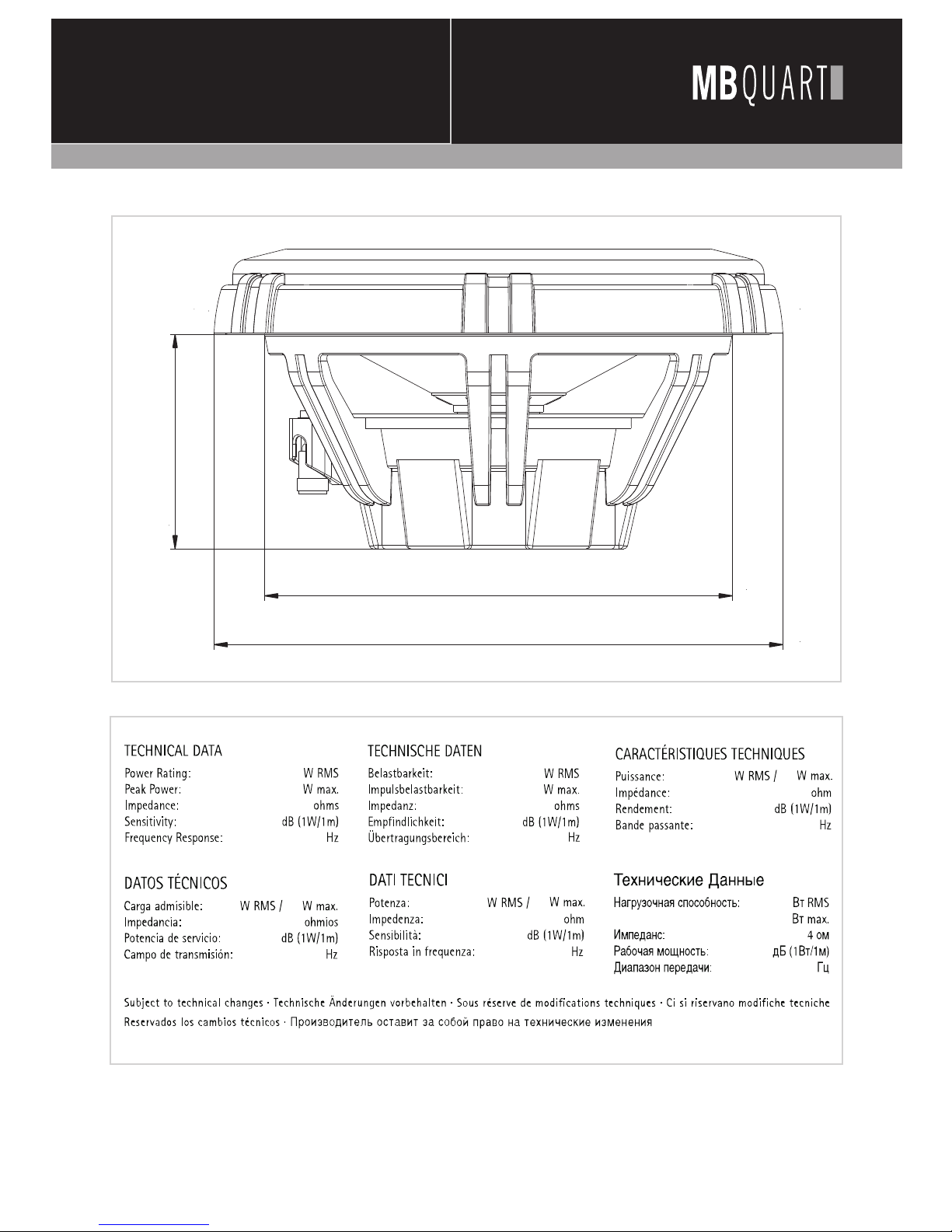

PVM116 / PVM216

75 75

150

150 150

150

89 89

38 - 32,000

38 - 32,000 38 - 32,000

38 - 32,000

66.8mm / 2.63”

142mm / 5.59”

172.7mm / 6.78”

MBQUART SPEAKERS SPEAKER SYSTEM
