MB QUART NAUTIC NT1-116 Bedienungsanleitung

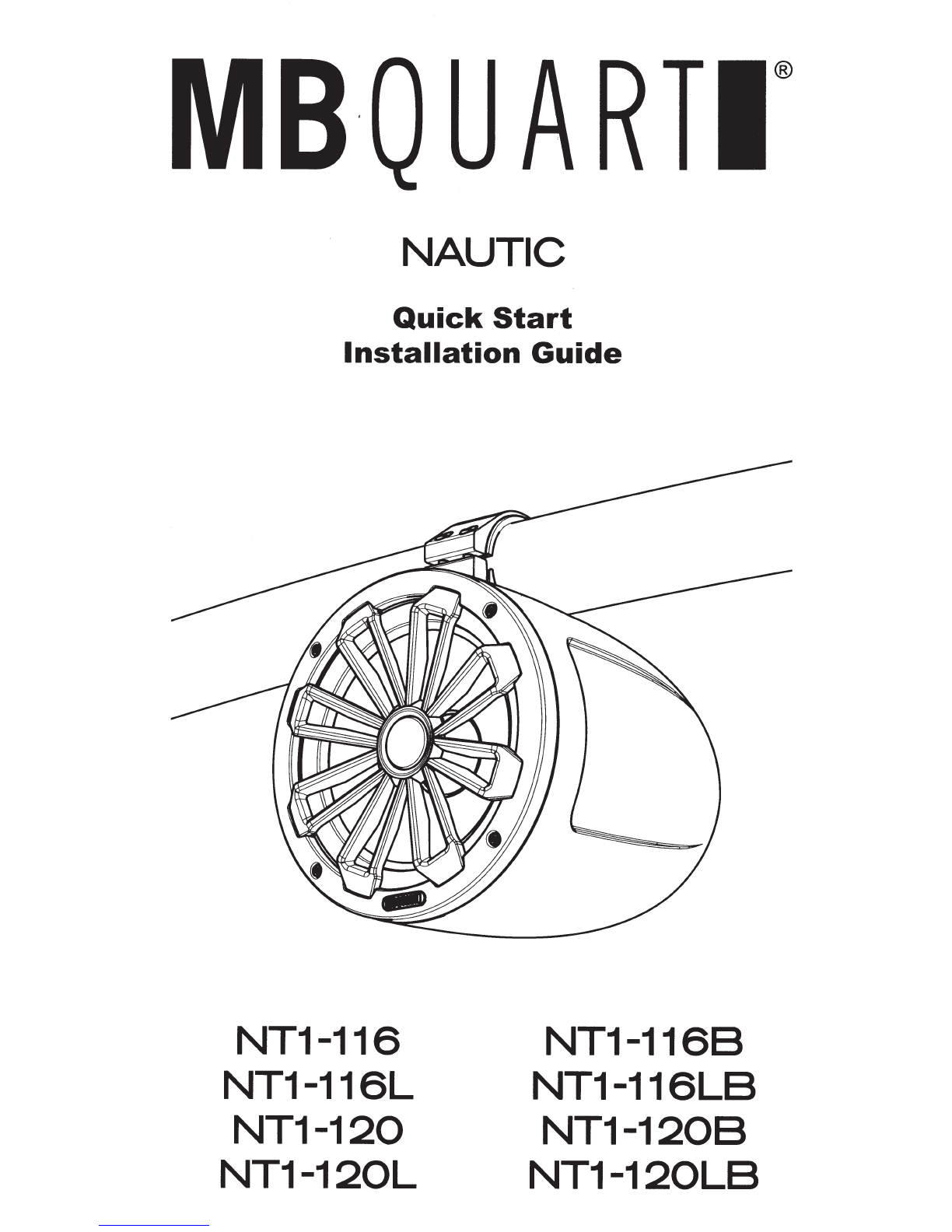

NAUTIC

Quick

Start

Installation

Guide

NT1-116

NT1-116L

NT1-120

NT1-120L

NT1-116B

NT1-116LB

NT1-120B

NT1-120LB

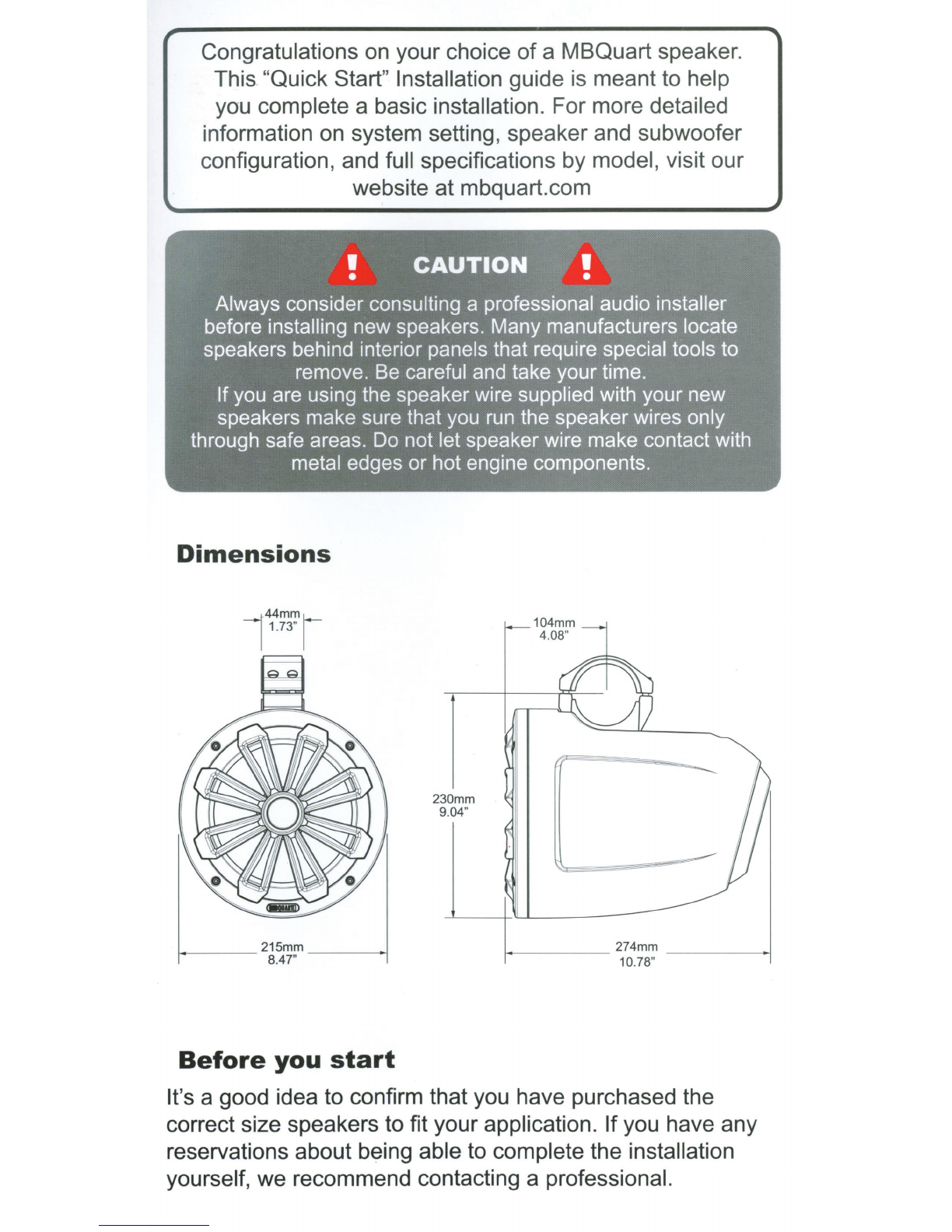

Congratulations on your choice

a MBQuart speaker.

This."Quick Start" Installation guide

meant to help

you complete a basic installation. For more detailed

information on system setting, speaker and subwoofer

configuration, and full specifications by model, visit our

website at mbquart.com

•

CAUTION

•

Always consider consulting a professional audio installer

before installing new speakers. Many manufacturers locate

speakers behind interior panels that require special tools to

remove. Be careful and take your time.

If you are using the speaker wire supplied with your new

speakers make sure that you run the speaker wires only

through safe areas. Do not let speaker wire make contact with

metal edges or hot engine components.

Dimensions

-i44mm

1.73" I

.___

215mm

----1

8.47"

Before

you

start

230mm

9.04"

274mm

1--------

10.78"

------1

It's a good idea to confirm that you have purchased the

correct size speakers to fit your application. If you have any

reservations about being able to complete the installation

yourself, we recommend contacting a professional.

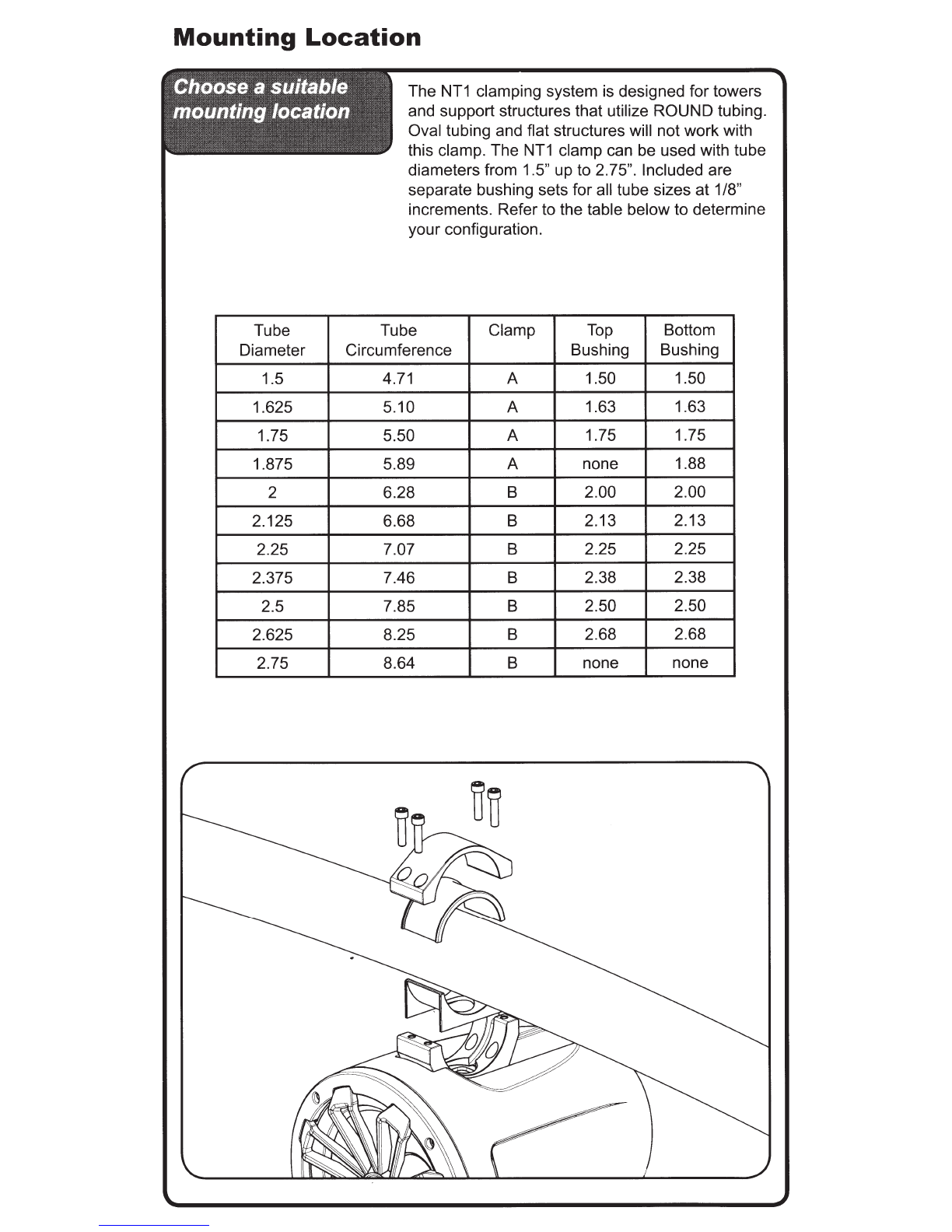

Mounting

Location

Choasa

suilabla

moanting f:asalion ·

Tube

The NT1 clamping system is designed for towers

and support structures that utilize

ROUND

tubing.

Oval tubing and flat structures will not work with

this clamp. The

NT1

clamp can be used with tube

diameters from 1.5" up to

75". Included are

separate bushing sets for all tube sizes

/8"

increments. Refer to the table below to determine

your

configuration.

Tube Clamp Top Bottom

Diameter Circumference Bushing Bushing

1.5 4.71 A 1.50 1.50

1.625 5.10 A 1.63 1.63

1.75 5.50 A 1.75 1.75

1.875 5.89 A none 1.88

2 6.28 B 2.00 2.00

2.125 6.68 B 2.13 2.13

2.25 7.07 B 2.25 2.25

2.375 7.46 B 2.38 2.38

2.5 7.85 B 2.50 2.50

2.625 8.25 B 2.68 2.68

2.75 8.64 B none none

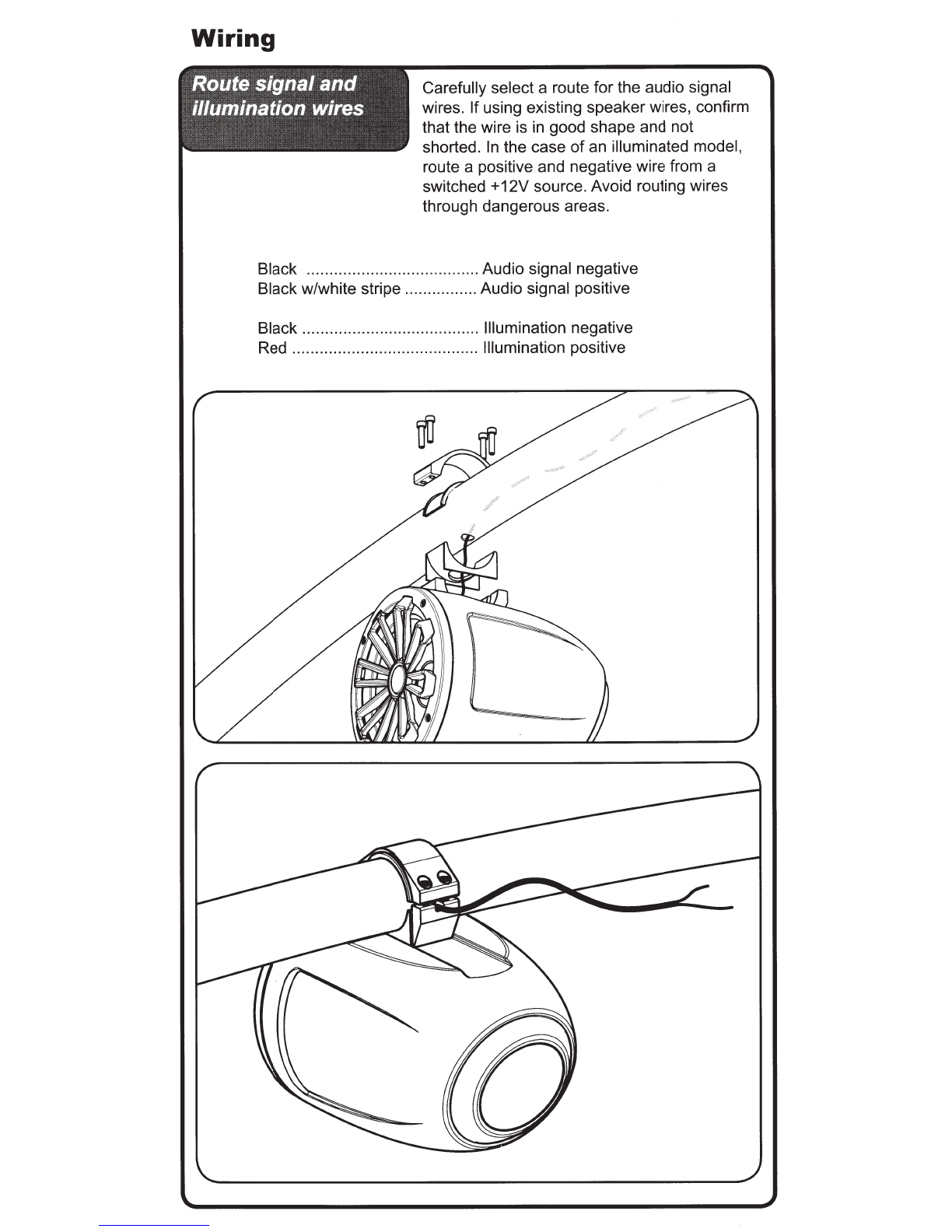

Wiring

Raulssignal

and

illllmfnallon wires Carefully select a route for the audio signal

wires. If using existing speaker wires, confirm

that the wire is

good shape and not

shorted.

the case of an illuminated model,

route a positive and negative wire from a

switched +12V source. Avoid routing wires

through dangerous areas.

Black ...................................... Audio signal negative

Black w/white stripe ................ Audio signal positive

Black ....................................... Illumination negative

Red ......................................... Illumination positive

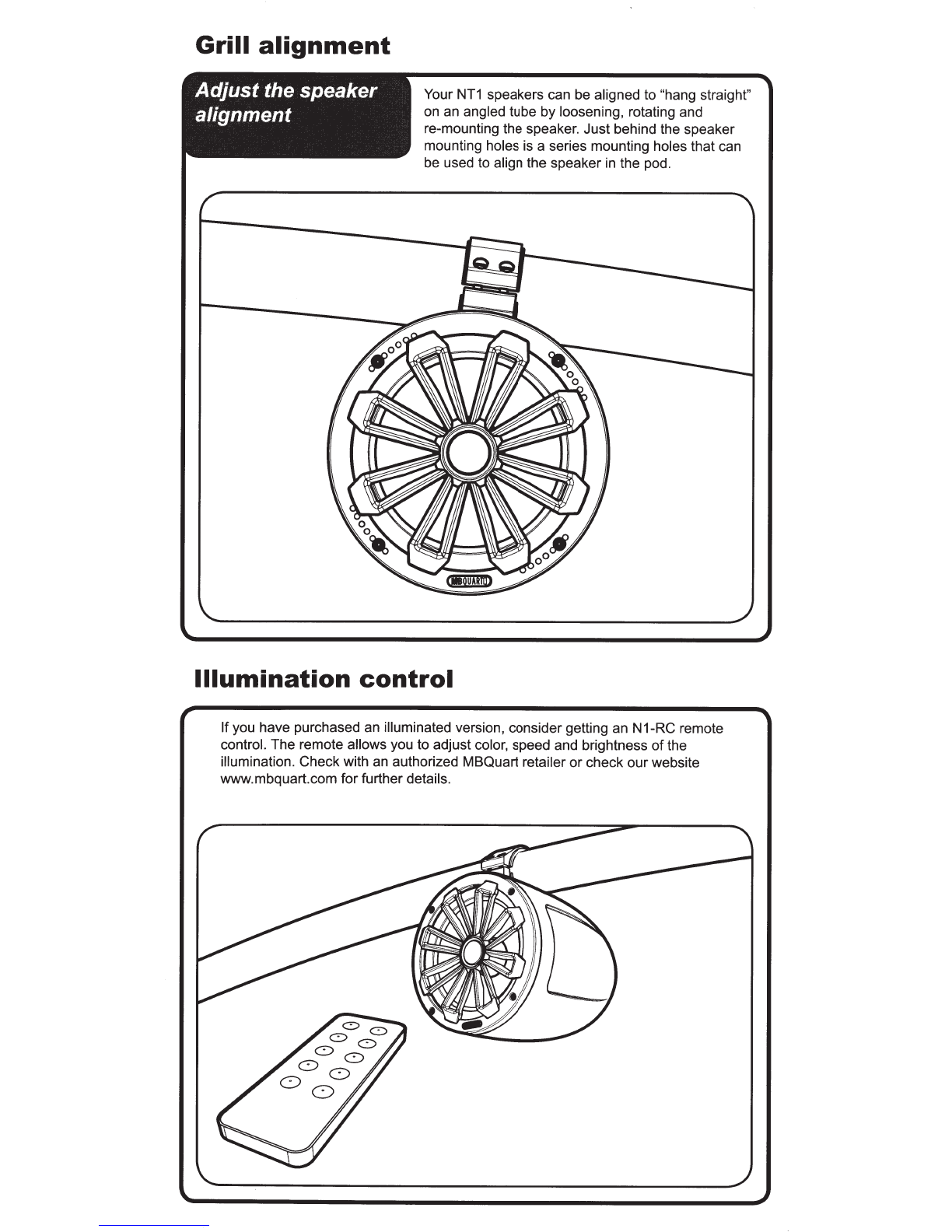

Grill

alignment

Adjust the speaker

alignment

Your

NT1

speakers can be aligned to "hang straight"

on an angled tube by loosening, rotating and

re-mounting the speaker. Just behind the speaker

mounting holes

a series mounting holes that can

be used to align the speaker

the pod.

Illumination

control

If you have purchased an illuminated version, consider getting an N1-RC remote

control. The remote allows you to adjust color, speed and brightness

the

illumination. Check with

authorized MBQuart retailer or check our website

www.mbquart.com for further details.

BOuart.corn

#MUSIC

DEFINED

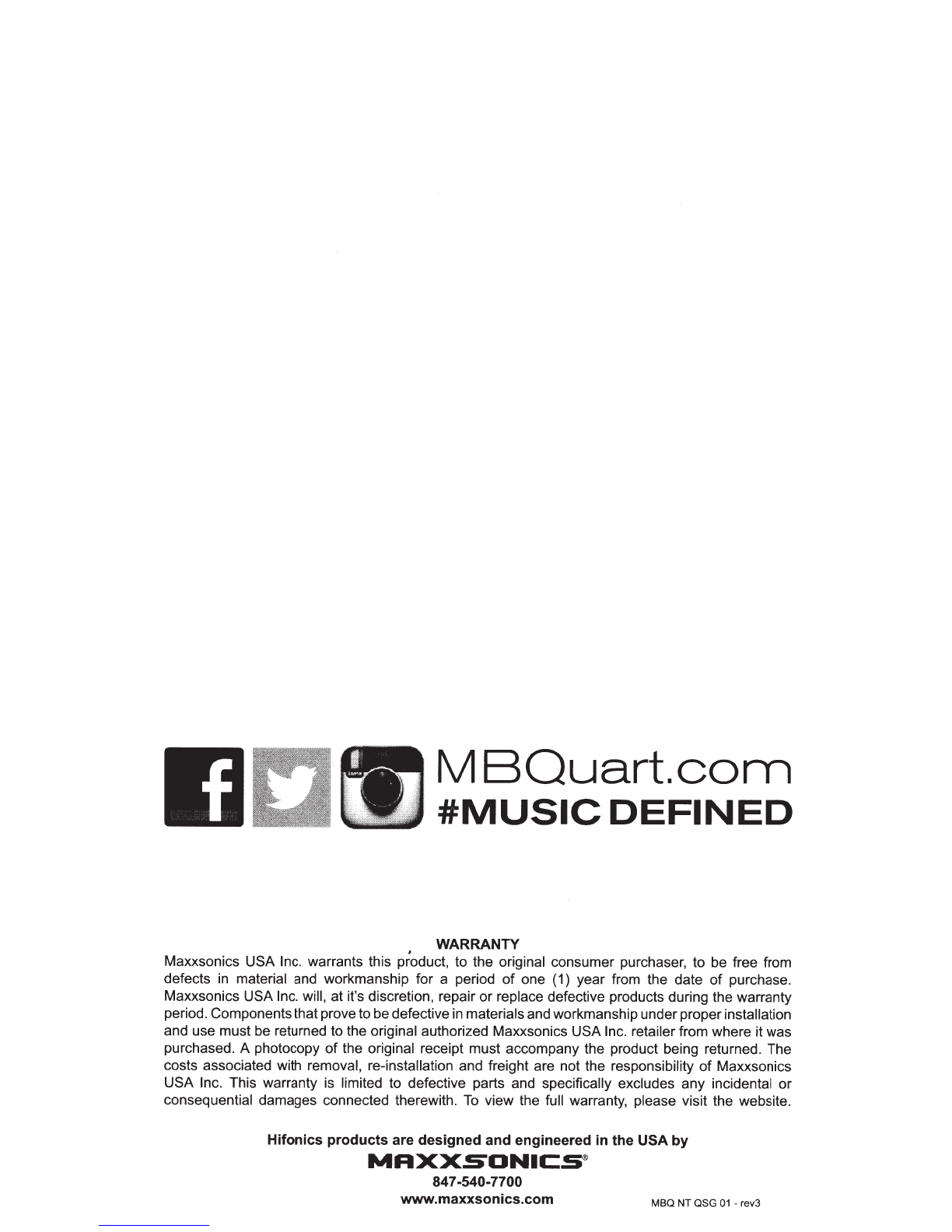

WARRANTY

Maxxsonics USA Inc. warrants this product, to the original consumer purchaser, to

free from

defects

material and workmanship for a period

one (1) year from the date of purchase.

Maxxsonics USA Inc. will, at it's discretion, repair or replace defective products during the warranty

period. Componentsthat prove to

defective

materialsand workmanship underproperinstallation

and use must

returned to the original authorized Maxxsonics USA Inc. retailer from where it was

purchased. A photocopy of the original receipt must accompany the product being returned. The

costs associated with removal, re-installation and freight are not the responsibility of Maxxsonics

USA Inc. This warranty is limited to defective parts and specifically excludes any incidental or

consequential damages connected therewith.

view the full warranty, please visit the website.

Hifonics

products

are

designed

and engineered

the USA

IMIAXX.S"DNIC:S®

847-540-7700

www.maxxsonics.com

MBQ NT QSG

-rev3

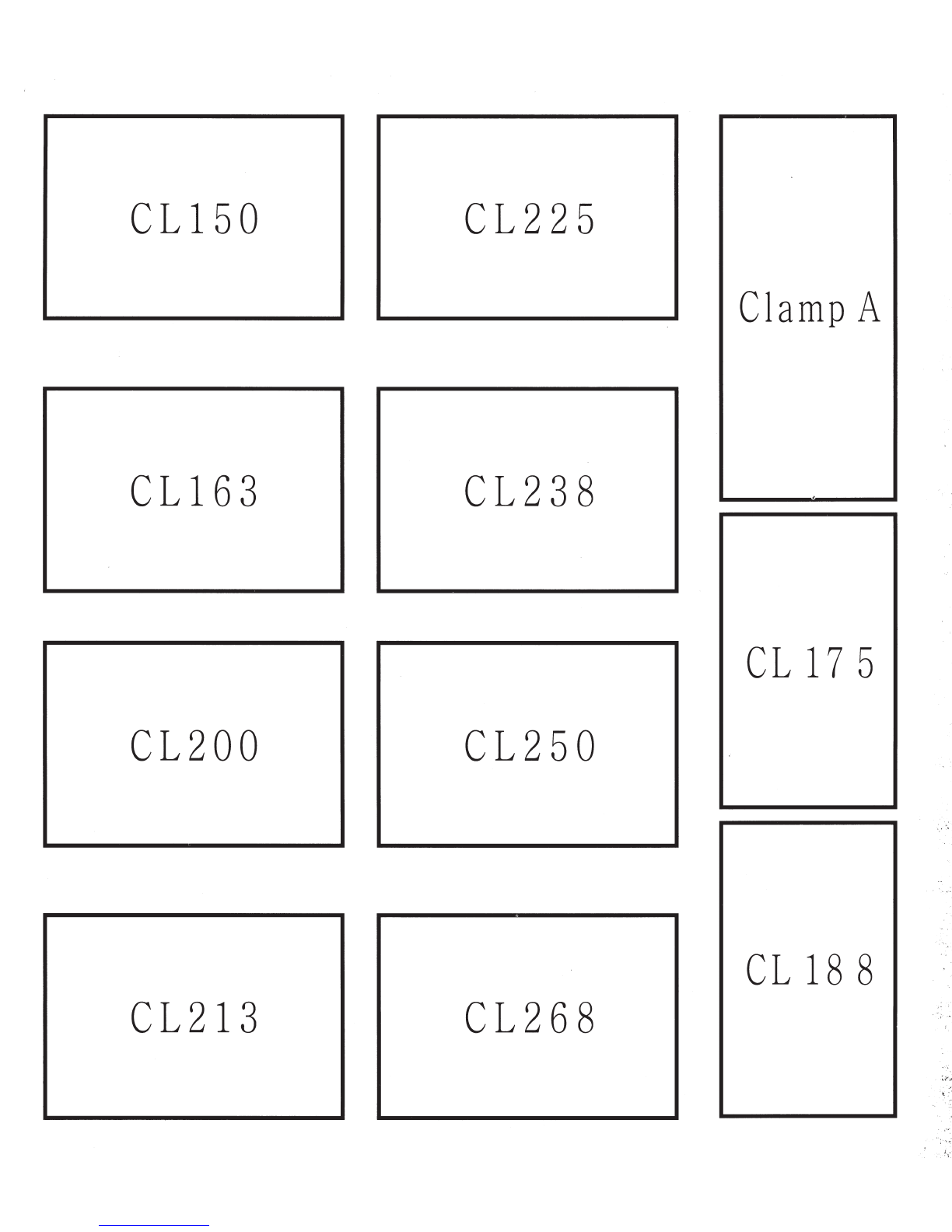

CL150 CL225

Clamp

CL163

CL238

CL200 CL250

CL213

CL268

;.;.-.Y

t_•'

' 1•.
