McAfee 1650 Montageanleitung
Hardware Guide
Revision B
McAfee Data Loss Prevention
1650, 3650, 4400, 5500
This guide describes the features and capabilities of McAfee® Data Loss Prevention (McAfee DLP)
appliances to help you to manage and maintain them.
For information on running and installing McAfee DLP in a virtual environment, see the McAfee Data
Loss Prevention Virtual Installation Guide.
About the appliances
McAfee DLP software runs on these appliance models.
• 1650
• 3650
• 4400
• 5500
Supported software versions
McAfee DLP appliances support these software versions.
• 9.0.x
• 9.2.x
• 9.3.x
1
Models and features
The table shows the McAfee DLP models and features.
Table 1 Model features
Model Number of hard
drives
Capture database
capacity
RAM Remote Management
Module (RMM)
Rack height
1650 4 500 GB 16 GB No 1U
3650 16 4 TB 16 GB No 3U
4400 12 7.2 TB 24 GB Yes 2U
5500 8 9 TB 32 GB Yes 2U
Model 1650
The model 1650 appliance ships on a Supermicro X7DBU system board.

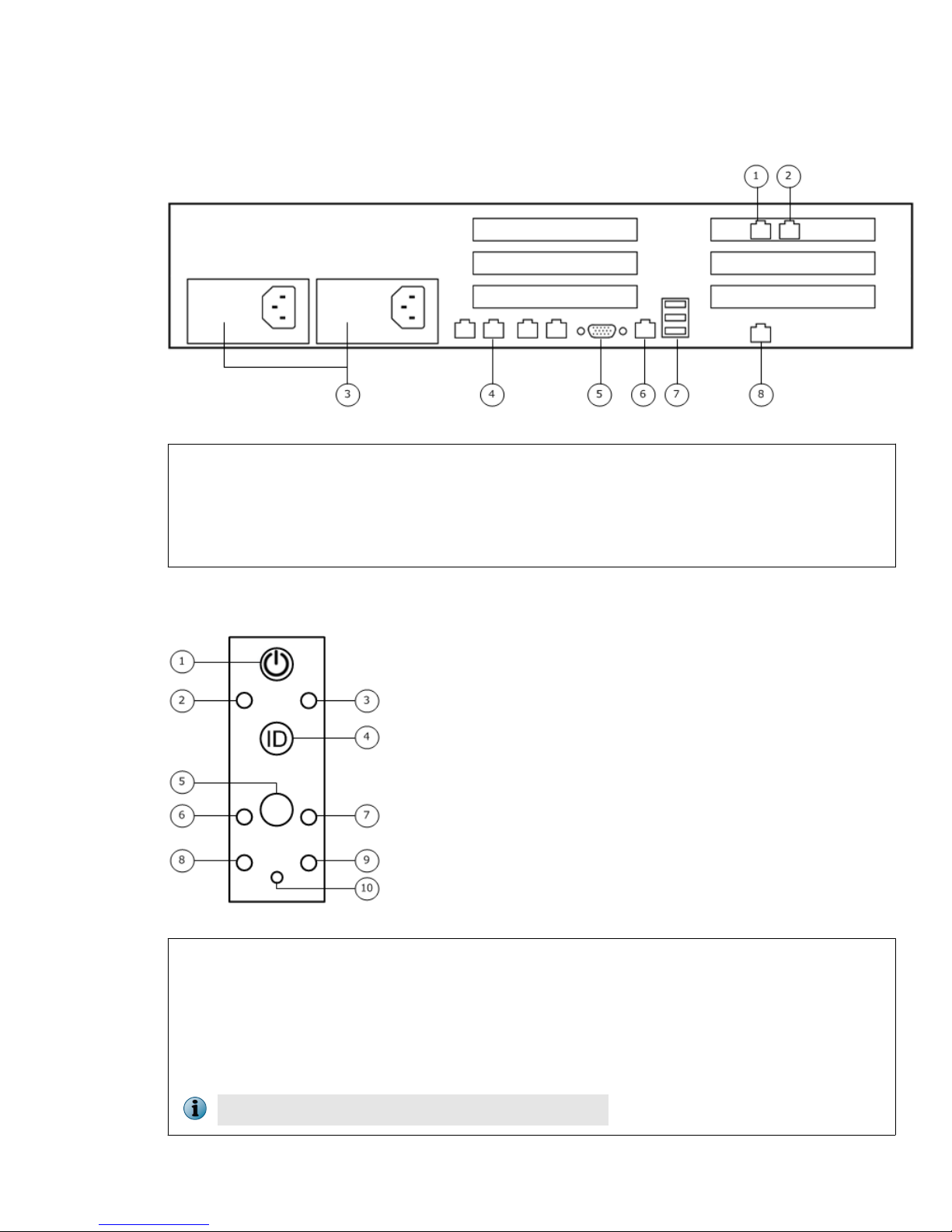

Back panel hardware components
The illustration identifies the hardware components on the back panel of the appliance.
Figure 1 1650 back panel
1Power supplies 5VGA port
2PS2 ports 6Management port
3USB ports 7Capture port 0
4Serial port 8Capture port 1
Front control panel
The control panel is on the front of the chassis.
Figure 2 1650 front control panel
1System ID button 5Hard drive activity
2System overheat/fan failure 6System power
3NIC 2 activity 7Reset button
4NIC 1 activity 8Power button
2
Model 3650
The model 3650 appliance ships on a Supermicro X7DBU system board.
Back panel hardware components
The illustration identifies the hardware components on the back panel of the appliance.
Figure 3 3650 back panel
1Power supplies 5VGA port
2PS2 ports 6Management port
3USB ports 7Capture port 0
4Serial port 8Capture port 1
Front control panel
The control panel is on the front of the chassis.
Figure 4 3650 front control panel
1System power failure 5Hard drive activity
2System overheat/fan failure 6System power
3NIC 2 activity 7Reset button
4NIC 1 activity 8Power button
3
Model 4400
The model 4400 appliance ships on an Intel Server System SR2612UR.
For more information on the Intel Server System SR2612UR, see the Intel documentation.
•Intel® Server System SR2612UR Technical Product Specification:
http://download.intel.com/support/motherboards/server/s5520ur/sb/sr2612ur_tps_13.pdf
•Intel® Server System SR2612UR Service Guide:
http://download.intel.com/support/motherboards/server/s5520ur/sb/
r2612ur_service_guide_14.pdf
Back panel hardware components
The illustration identifies the hardware components on the back panel of the appliance.
Figure 5 4400 back panel
1VGA port 5Capture port 0
2USB ports 6Capture port 1
3Management port 7Power supplies
4Remote access port (RMM)
On some 4400 models, the capture ports might be on a slotted NIC instead of on the motherboard. In
this case, the capture port numbers are swapped.
Front control panel
The control panel is on the front of the chassis.
Figure 6 4400 front control panel
1Power supply + 12V OK
2Enclosure services subsystem fault
3System status
4System identify
4
Table 2 4400 indicator light states
Indicator light Description
Power supply + 12V OK •Off — Initial state
•Green — +12V output is enabled for a power supply
Enclosure services subsystem
fault •Off — Initial state
•Amber — Enclosure Service Processor on the midplane detects a
failure condition
System identify •Off — Initial state
•Blue — System identify is enabled by server system management
software
Table 3 4400 system status indicator light states
Color State Status
Green Solid System booted and ready
Blink System degraded:
• Non-critical threshold crossed:
• Temperature
• Voltage
• Fan redundancy lost, sufficient system cooling maintained
• Power supply redundancy lost
• Unable to use all of the installed memory — one or more DIMMS failed or disabled,
but functional memory remains available
• Correctable errors over a threshold of 10 and migrating to a spare DIMM (memory
sparing)
• Memory mirroring takes place and the system loses memory redundancy
• PCI Express link errors
• CPU failed or disabled
Amber Solid Fatal alarm — System has failed or shut down:
• CPU 1 missing
• CPU configuration error
• IERR signal asserted
• Power fault
• DIMM failure when only one DIMM is present
• Runtime memory uncorrectable error in non-redundant mode
• Critical temperature threshold crossed
5
Table 3 4400 system status indicator light states (continued)
Color State Status
Blink Non-fatal alarm — System is likely to fail:
• Critical voltage threshold crossed
• VRD hot asserted
• Minimum number of fans to cool the system not present or failed
• Memory threshold of ten correctable errors crossed within the window in
non-sparing and non-mirroring mode
Off Off System powered off
Power supply indicator lights
Each installed power supply module has a single indicator light to show the power supply status.
Table 4 4400 power supply indicator light states
Color State Status
Green Solid Output ON and OK
Blink AC present / Only 5 VSB on (Power supply off)
Amber Solid • No AC power to this power supply unit only (for 1+1 configuration)
• Power supply critical event causing a shutdown:
• Failure • OVP
• Fuse blown (for 1+1 configuration) • Fan failed
• OCP
Blink Power supply warning events where the power supply continues to operate:
• High temperature
• High power
• High current
• Slow fan
Off Off No AC power to all power supplies
Model 5500
The model 5500 appliance ships on an Intel Server System R2312GZ.
For more information on the Intel Server System R2312GZ, see the Intel documentation.
•Intel® Server System R2000GZ/GL Product Family Technical Product Specification:
http://download.intel.com/support/motherboards/server/sb/r2000gzgl_tps_r2_2.pdf
•Intel® Server System R2000GZ/GL Family Service Guide:
http://download.intel.com/support/motherboards/server/sb/r2000gzgl_serviceguide.pdf
•Intel® Server System R2000GZ/GL Product Family Quick Installation User's Guide:
http://download.intel.com/support/motherboards/server/r2000gz-gl/sb/R2000GZ_GL_QIG.pdf
6
Back panel hardware components
The illustration identifies the hardware components on the back panel of the appliance.
Figure 7 5500 back panel
1Capture port 1 5VGA port
2Capture port 0 6Serial port
3Power supplies 7USB ports
4Management port 8Remote access port (RMM)
Front control panel
The control panel is on the front of the chassis.
Figure 8 5500 front control panel
1Power button 6NIC 2 activity
2System status 7NIC 4 activity
3Hard drive activity 8NIC 1 activity
4System ID button 9NIC 3 activity
5System cold reset button 10NMI button (recessed)
NICs 1, 3, and 4 are not used by the McAfee DLP appliance.
7
Table 5 5500 system status indicator light states
Color State Status
Green Solid System booted and ready
Blink System degraded:
• Non-critical threshold crossed:
• Temperature
• Voltage
• Power supply input or output
• Fan redundancy lost, sufficient system cooling maintained
• Power supply redundancy lost
• Unable to use all of the installed memory — one or more DIMMS failed or disabled,
but functional memory remains available
• Correctable errors over a threshold and migrating to a spare DIMM (memory
sparing)
• Uncorrectable memory error in Mirroring Mode
• Correctable memory error threshold reached for failing DDR3 DIMM when the
system operates in RAS Mirroring Mode
• Battery failure
• Power unit sensor offset error asserted
• HDD HSC offline or degraded
• BMC executing uBoot
• BMC Watchdog has reset the BMC
8
Table 5 5500 system status indicator light states (continued)
Color State Status
Amber Solid Fatal alarm — System has failed or shut down:
• CPU CATERR signal asserted
• CPU 1 missing
• CPU Thermal Trip
• CPU ERR2 signal asserted
• MSID mismatch detected
• DIMM failure when only one DIMM is present
• Runtime memory uncorrectable error in non-redundant mode
• DIMM Thermal Trip or equivalent
• SSB Thermal Trip or equivalent
• BMC/Video memory test failed
• Both uBoot BMC FW images are bad
• 240VA fault
• Power fault
• Fatal error in processor initialization:
• Processor families not identical • Processor cache sizes not identical
• Processor models not identical • Unable to synchronize processor
frequency
• Processor core/thread counts not
identical
• Unable to synchronize QPI link
frequency
Blink Non-fatal alarm — System is likely to fail:
• Critical threshold crossed:
• Temperature
• Voltage
• Power supply input or output
• VRD hot asserted
• Minimum number of fans to cool the system not present or failed
• Hard drive fault
• Insufficient power supplies present
• Correctable memory error threshold crossed for a failing DDR3 DIMM when the
system operates in a non-redundant mode
Off Off System powered off
9
Power supply indicator lights
Each installed power supply module has a single indicator light to show the power supply status.
Table 6 5500 power supply indicator light states
Color State Status
Green Solid Output ON and OK
1 Hz Blink AC present / Only 12VSB on (power supply off) or power supply in cold redundant
state
2 Hz Blink Power supply FW updating
Amber Solid • AC cord unplugged or AC power lost when a second parallel power supply still
has AC input power
• Power supply critical event causing a shutdown:
• Failure
• OCP
• OVP
• Fan failed
Blink Power supply warning events where the power supply continues to operate:
• High temperature
• High power
• High current
• Slow fan
Off Off No AC power to all power supplies
Replacing hardware components
McAfee DLP appliances ship with replaceable hard drives and power supplies.
Replace the hard drive
Each McAfee DLP appliance uses hot-swappable hard drives connected to a RAID controller. The RAID
controller allows the system to continue operating if a single disk drive fails. A single failed hard drive
can be replaced while the system is still operational.
Before you begin
The replacement hard drive must be the same capacity as the failed hard drive.
Task
1Identify the failed hard drive.
A failed hard drive typically has an amber indicator light.
2Remove the failed hard drive from the appliance.
aPress the latch on the failed hard drive to release the spring-loaded handle.
bPull on the handle to remove the failed hard drive from the appliance.
10
Dieses Handbuch passt für folgende Modelle
3
Inhaltsverzeichnis
Andere McAfee Firewall Handbücher
McAfee
McAfee MSA-3400-SWGI - Web Security Appliance 3400 Bedienungsanleitung
McAfee
McAfee M-1250 - Network Security Platform Installations- und Betriebshandbuch
McAfee
McAfee NS5100 Bedienungsanleitung
McAfee
McAfee NS3500 Bedienungsanleitung
McAfee
McAfee M-1250 - Network Security Platform Kurzanleitung
McAfee
McAfee M-1250 - Network Security Platform Bedienungsanleitung
McAfee
McAfee IIP-M65K-ISAA - Network Security Platform... Bedienungsanleitung
McAfee
McAfee NS Series Bedienungsanleitung
McAfee
McAfee M-3050 Bedienungsanleitung
McAfee
McAfee MAP-3300-SWG - Web Security Appliance 3300 Bedienungsanleitung
McAfee
McAfee M-1250 - Network Security Platform Bedienungsanleitung
McAfee
McAfee Manager Appliance Bedienungsanleitung
McAfee
McAfee MFO-3400-SWGA - Web Security Appliance 3400... Bedienungsanleitung
McAfee
McAfee M4050 - Network Security Platform Bedienungsanleitung
McAfee
McAfee ATD-3000 Montageanleitung
McAfee
McAfee Data Loss Prevention Prevent Bedienungsanleitung
McAfee
McAfee NS9100 Bedienungsanleitung
McAfee
McAfee NS7200 Bedienungsanleitung
McAfee
McAfee IIP-M80K-ISAA - Network Security Platform... Bedienungsanleitung
McAfee
McAfee SG310 Bedienungsanleitung
Beliebte Firewall Handbücher anderer Marken
Lanner electronics
Lanner electronics FW-7650 Series Bedienungsanleitung
Swisscom
Swisscom Internet Backup Bedienungsanleitung
SonicWALL
SonicWALL NSa 5700 Bedienungsanleitung
DPtech
DPtech FW1000 SERIES Bedienungsanleitung
FEITIAN
FEITIAN MultiPass FIDO Bedienungsanleitung
EBLOCKER
EBLOCKER PRO Bedienungsanleitung
