MediaTech MT4160 Bedienungsanleitung

User Manual

CINEMA HQ

HD MULTIMEDIA PLAYER & DVB-T TUNER IN ONE

MT4160

EN Index

Index ................................................................................................2

Introduction ..................................................................................3

Front panel.....................................................................................3

Rear panel ......................................................................................3

Remote control ............................................................................4

Hardware conguration............................................................5

Connecting tuner to a TV .........................................................5

Software Conguration.............................................................6

Startup Menu................................................................................6

Installation .....................................................................................6

Watching TV ..................................................................................8

Changing channels.....................................................................8

Using Electronic Program Guide (EPG)................................8

Channel Manager........................................................................9

Preference ....................................................................................10

PVR File Format ..........................................................................15

Setting...........................................................................................16

AV menu .......................................................................................20

GAME .............................................................................................20

Using USB storage.....................................................................21

Recording.....................................................................................22

Using timeshift function.........................................................23

Exploring Media.........................................................................23

Playing Movies ...........................................................................24

Playing Music..............................................................................24

Photo Slideshow........................................................................25

Record Manager.........................................................................25

Audio mode.................................................................................26

INFO button.................................................................................26

Troubleshooting ........................................................................27

Technical Specication............................................................28

Introduction

Front panel

Rear panel

On/O Enter button Channel

down/up

Volume

down/up

CD ashcard

socket

USB Port

Open menu Display

TV Scart

for connection to the TV

Progressive Scan Video (Y Pb Pr)

Component Video (Y Cb Cr)

AC MainsHDMI

output

TV aerial

for an external TV aerial

RF Loop

through for an external device

Coaxial Digital

Audio

Down Mix Audio

2 Channel L/R

Composite

Video

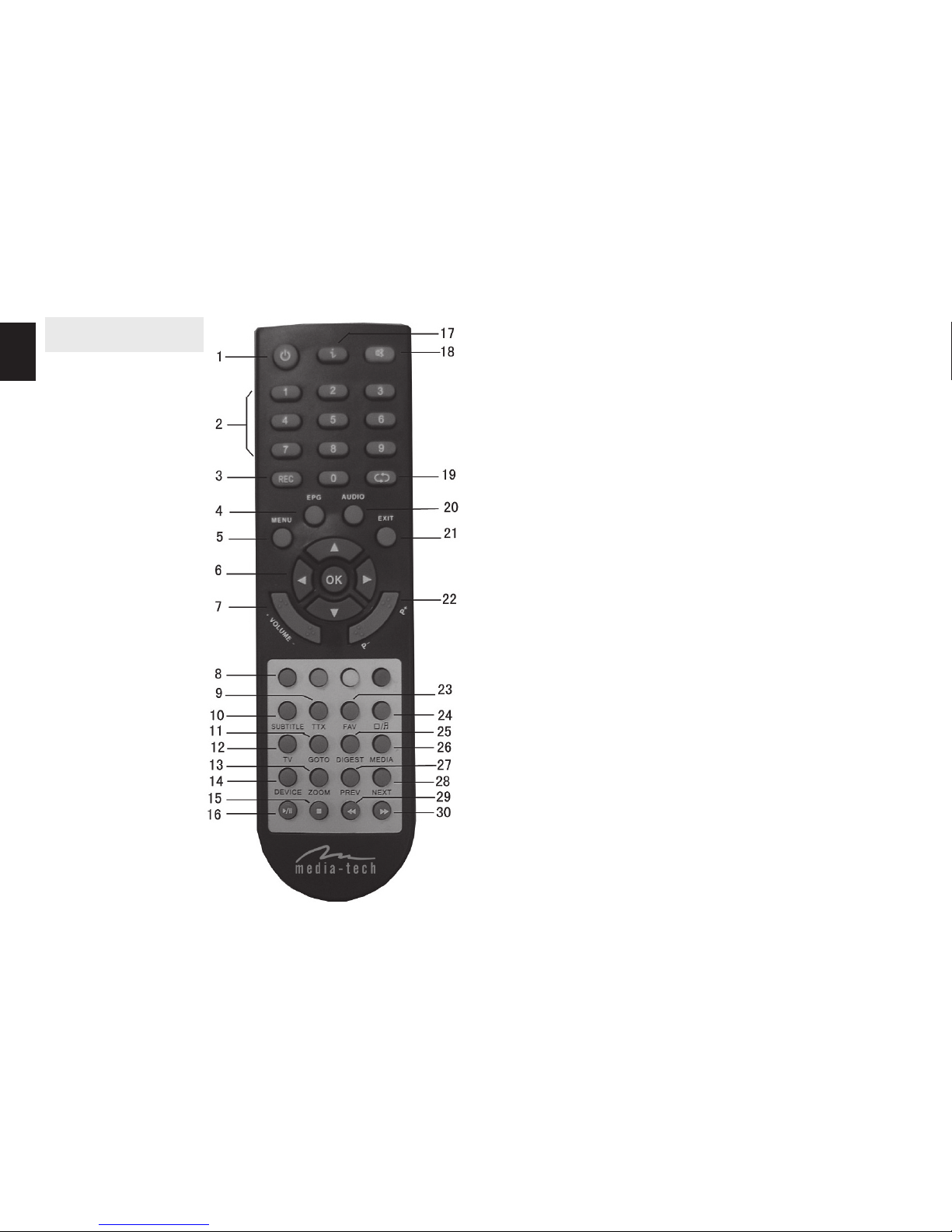

EN Remote control 1. STANDBY On/O

2. Number Key pad

3. RECORD

4. EPG (Electronic Programme Guide)

5. MENU

6. Navigation keys (left, right, up, down)

7. VOL- (Volume Down) / VOL+ (Volume Up)

8. RED/GREEN/YELLOW/BLUE – interactive buttons / sub-

menu / Teletext Navigation

9. TTX (Teletext)

10. SUBTITLE

11. GOTO (goto desired mark when playing)

12. TV (enter TV menu)

13. ZOOM (set zoom in full-screen display)

14. DEVICE (access plugged devices)

15. STOP (stop program or movie playing)

16. PLAY/PAUSE (play movie or enable/disable timeshift)

17. INFO (display program information)

18. MUTE (enable/disable mute)

19. RECALL (return to previous menu)

20. AUDIO (audio mode operation)

21. EXIT (exit to full-screen display)

22. P+/P- (next/previous channel)

23. FAV (show favorite channel list)

24. TV/RADIO (switch between TV and Radio mode)

25. DIGEST (channel preview)

26. MEDIA (media operation)

27. PREV (previous chapter)

28. NEXT (next chapter)

29. FR (Fast rewind)

30. FF (fast forward)

Hardware conguration

Connecting tuner to a TV

Connect tuner to your TV with SCART, HDMI, component or composite cable as shown below.

Note: Use only one type of connection!

AUDIO R

SPDIF SCART-TVANT IN LOOP UOT

AUDIO L CVBS

Pr Pb Y

HDMI

RED BLUE GREEN

AUDIO RIGHT

ANTENNA

HDMI CABLE SCART CABLE

AC MAINS

AUDIO LEFT

VIDEO CVBS

COMPOSITE CABLE

EN Software Conguration

Startup Menu

If you rst time turn on tuner there will be shown “Init

Install” menu. Then with navigation keys setup major

options: OSD LANGUAGE, COUNTRY, TIME ZONE, LCN

(select LCN ON if your antenna requires power sup-

ply), then select START SEARCH and press OK to enable

channel autoscanning procedure.

Wait until scanning is nished. Device now will auto-

matically show rst channel from the list. Now tuner is

ready to work.

Installation

1. Press MENU button on the remote.

2. With UP/DOWN keys choose „Installation” menu,

press RIGHT to accept.

3. Use UP/DOWN to select proper submenu and press

OK.

4. Press EXIT to leave menu.

Auto Channel Scanning (AutoSearch)

1. Select „Auto Search” option and press OK.

2. Using navigation keys to choose “Yes” option and

press OK to conrm.

Manual Channel Scanning

1. Choose „Manual Search” menu and press OK

2. Enter default password “0000” and press OK.

3. Select “Channel No.” to choose desired channel

number, next select “Frequency” – use key pad but-

tons to enter desired value. Next select “Bandwidth”

and then select “Start Search” and press OK to start

manual search.

EN Channel lter

Choose „Channel Filter” to scan for all channels or only

for FTA channels.

Country

Use navigation keys to select country where you are

receiving DVB-T signal.

LCN

Select option “ON” if your antenna requires power sup-

ply +5V provided via antenna cable. If your antenna is

already powered or does not require power supply set

this option to “OFF”.

Watching TV

Changing channels

You can select the channel you wish to watch in 3 ways:

1. By pressing CH- / CH+ buttons on remote.

2. Enter channel number manually using numeric keys

on remote.

3. Choose channel from channel list on the menu.

When in Full-screen mode press OK button, channel

list will pop up. Use LEFT/RIGHT navigation keys to

switch channel list and then use UP/DOWN naviga-

tion keys to select channel and then press OK again

to conrm.

Using Electronic Program Guide (EPG)

1. Press EPG button on remote.

2. Use UP/DOWN keys to explore list of available chan-

nels. Use LEFT/RIGHT keys to navigate program list.

3. Press GREEN button to start recording selected pro-

gram, when prompted choose “Yes”to conrm .

4. Press RED button to switch list between “daily”,

”weekly”, “now/next” mode.

5. Press INFO button to extend program description.

Press again to close info window.

Note! EPG information is available only for channels

that are broadcasted with EPG feature. Content and

available range of information may be dierent for

particular channels.

Note! Record option activated from EPG level is

available for current programs, for others you can

set “reminder” – when selected program begins a

message window will pop-up.

6. Press EXIT button to close EPG window.

Channel Manager

1. Press MENU button on remote to enter main menu.

2. Use UP/DOWN keys to highlight „Channel Manager”

option, next press RIGHT button to continue

3. Use UP/DOWN keys to select an item and press OK.

Now you can move up or down selected channel on

the list. Press OK again to put deselect channel.

EN 4. You can lock selected channel pressing RED button.

Enter password (default password is “0000”) and.

5. You can delete selected channel, press GREEN but-

ton. When exiting menu conrmation message will

appear – select YES and press OK.

6. You can tag selected channel to be skipped when

changing channels, press YELLOW button.

7. You can rename selected channel, press BLUE but-

ton.

8. Press EXIT to leave menu.

Favorite List

1. Press MENU button on remote to enter main menu.

2. Use UP/DOWN keys to highlight „Channel – Favorite

List” option, next press RIGHT button to continue

3. Use RED, GREEN, YELLOW and BLUE button to assign

selected channels into four dierent favorite chan-

nels list. Press EXIT when nished.

Preference

Properties will allow you to set general preferences.

1. Press MENU button on remote to enter main menu.

2. Use UP/DOWN keys to select „Preference” menu,

press RIGHT to continue.

3. Use UP/DOWN keys to select submenu and press OK.

4. To exit menu press EXIT button.

OSD Language

This option allows to change the on-screen display lan-
