MediaTech MT4161 Bedienungsanleitung
User Manual
NANO
DVB-T
STICK
Watch & record Digital TV
programs on Your PC!
MT4161
2
EN Index
Index ................................................................................................2
Introduction ..................................................................................2
Package content..........................................................................2
System Requirements................................................................2
Device installation.......................................................................3
Software installation ..................................................................3
Using the device..........................................................................5
Main TV window..........................................................................7
Remote control ............................................................................8
Using EPG (Electronic Program Guide)................................8
Favorites channels.......................................................................9
Recorded TV ..................................................................................9
Schedule recording ..................................................................10
Teletext..........................................................................................11
Timeshift feature........................................................................11
Record function .........................................................................11
Settings tab .................................................................................11
Editing channel list ..................................................................12
Introduction
Thank you for buying this cutting edge DVB-T tuner.
So many features in super small size device – timeshift,
schedule recording, and many more. Please take a mo-
ment and read this manual before using the device.
Package content
¯Nano DVB-T USB stick
¯Small antenna
¯Adapter for plugging external antenna
¯Remote control
¯Software disc
¯User manual
System Requirements
¯Windows XP/Vista/7
¯Processor Pentium 4 or higher
¯1GB RAM
¯Free USB 2.0 port
¯DirectX 9.0C or higher
¯CD-ROM
3
EN

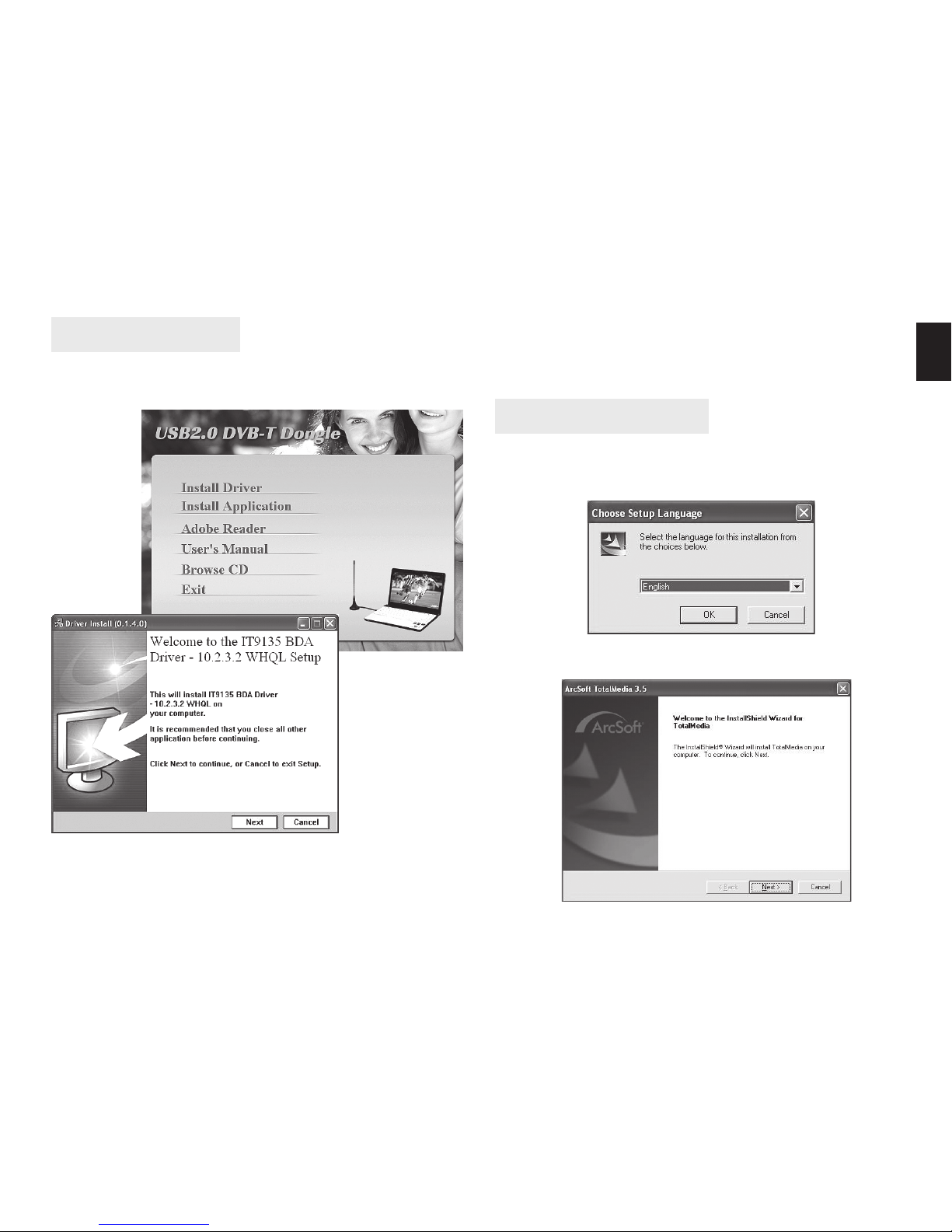

Device installation
Put software disc into CD-ROM drive, autorun function
will pop-up window as shown below:
Software installation
Select and click “Install Application”, when following
window appear select installation language and click
“OK”.
Now you can plug DVB-T stick into USB port of your PC
computer. Windows will recognize new hardware and
install it automatically.
When following window will appear click “Next”
Select and click “Install Driver”, when following window
appear click “Next”.
When driver is sucessfully installed click„Finish”.
4
EN When following window will appear click “Yes”
Now select destination folder or simply accept sug-
gested path and click “Next”.
When software is sucessfully installed click„Finish”.
Installation in progress...
When following window will appear enter user name
and software license key and click “Next”.
“sn.txt” in the root folder of software disc - use win-
dows notepad to read it.
Note! License key is on CD envelope or in the file
5
EN
Select and click “TV”. Click “Yes” to scan for channels.
Click “Start” to run scanning process.
Using the device
Plug antenna into DVB-T stick. It is rec-
ommended to expose antenna outside
or use external TV antenna. Next plug DVB-T stick into
USB port. Now start application, double click “TotalMe-
dia” icon on windows desktop. Following screen will be
shown:
Scanning in progress...
6
EN
Now click “Save” to save channel list.
Click “Yes “ to confirm.
Now you can watch TV. Following screen will appear:
When scanning is finished a message box will appear
(found channels depend on TV signal strength and
country). Click “OK”.
7
EN

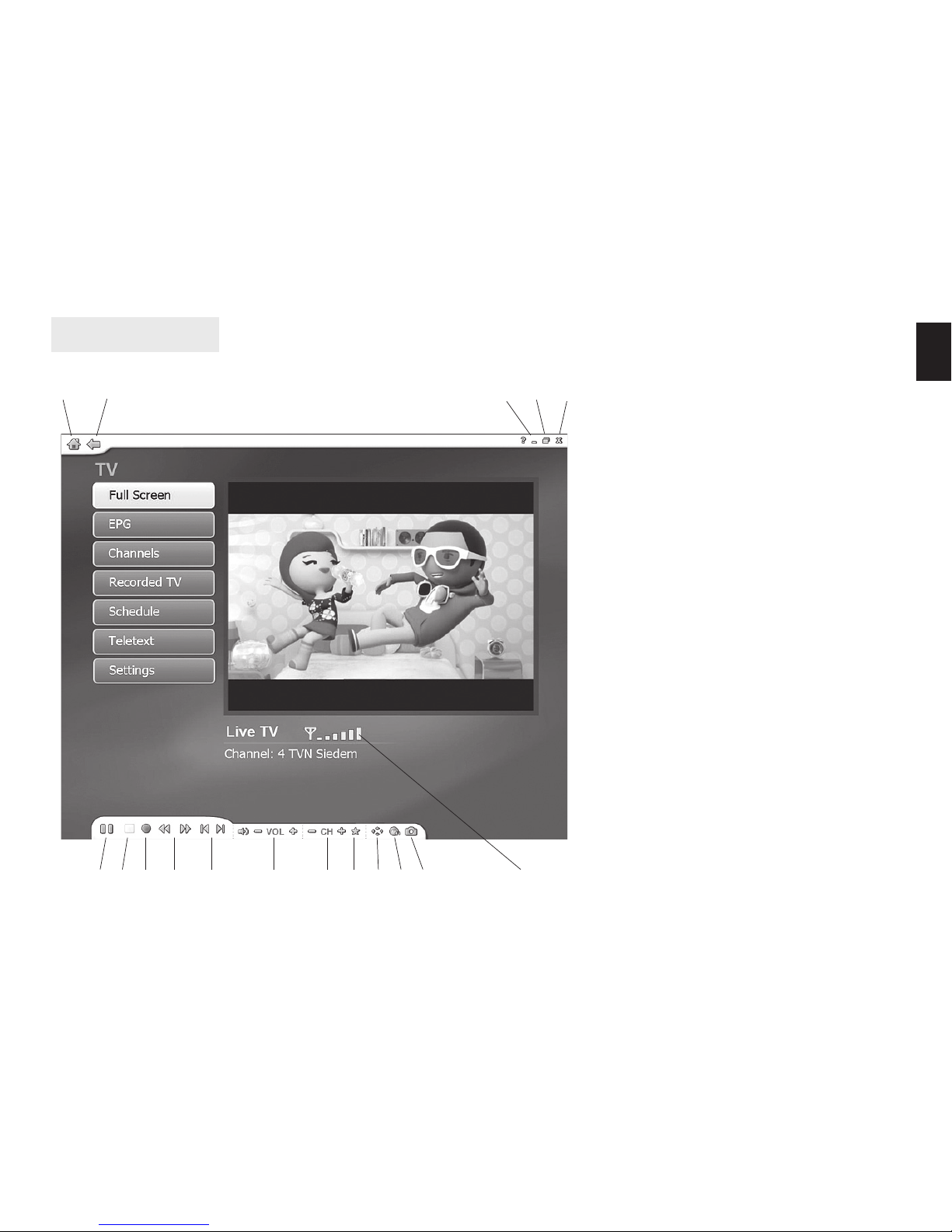

Main TV window
1. Back to main menu window
2. Back to previous window
3. Hide application to task bar
4. Switch between window/full
screen mode
5. Close application
6. Timeshift/pause button
7. Stop button
8. Record button
9. FastRewind/FastForward button
10. Previous/Next button
11. Volume control
12. Channel Up/Down button
13. Enable/disable favorite channels
14. Aspect ratio: choose between 4:3,
16:9 or auto
15. Audio: choose between available
audio soundtracks
16. Snapshot button: press to save
actual frame to JPEG or BMP file
17. Signal strength of current channel
1
687 9 10 11 12 13 14 15 16 17
2543
8

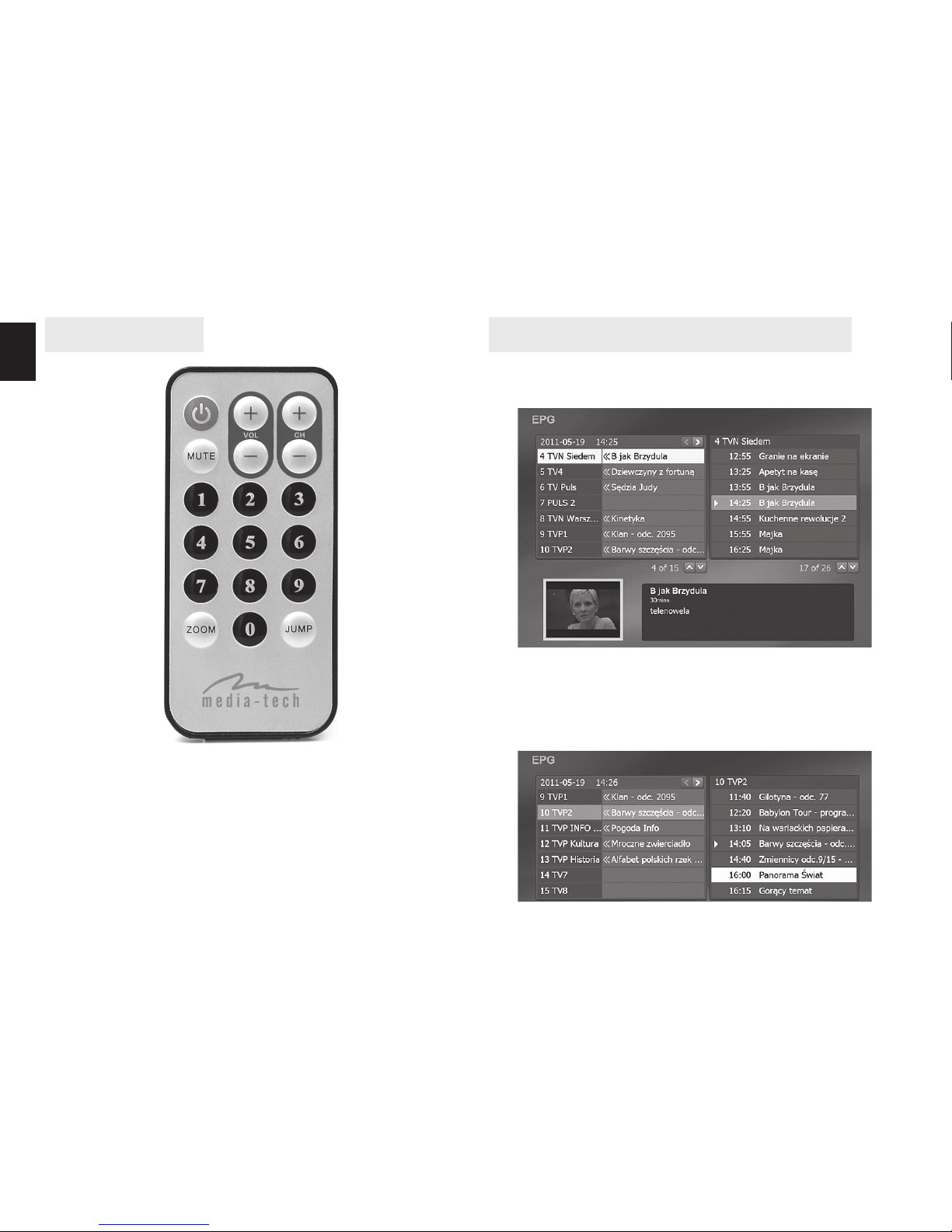

EN Remote control
POWER: start/close application.
MUTE: enable/disable mute function.
ZOOM: enable/disable full screen mode.
JUMP: jump to previous channel.
VOL: volume control.
CH: channel up/down control.
Numeric keypad: to enter channel number directly.
Using EPG (Electronic Program Guide)
Click “EPG” button on Main TV window, following
screen will appear:
Click <>buttons to navigate between days, use ∧∨
buttons to scroll up/down channel list. Click on se-
lected item to show detailed info. Following screen will
appear:
9
EN
You can click “Record” to add this program to schedule
recording list. To exit click“Cancel”button or“Back”but-
ton.
Click on selected item and then click “Add to Favorites”,
press again to deselect. When finished click“OK”to save
changes.
Recorded TV
Click “Recorded TV” button on Main TV window to ac-
cess previously recorded programs.
Favorites channels
Click “Channels” button on Main TV window, following
screen will appear:
Scheduled program is marked with red dot as shown
below:
10
EN Click on item to select it. Click “Burn to Disc” button to
save selected item on CD/DVD disc. Double click on se-
lected item to watch it in full screen mode.
Enter starting date and hour of task, enter stop time.
Mark “Shut down the computer” if you want to enable
automatic shutdown procedure. Click“Save”to confirm
task, click “Cancel” or “Back” button to exit.
When you watching another channel and schedule re-
cording is about to start a message box will pop-up to
allow switching to schedule program and start record
process. Click “Yes” to allow.
Use ∧∨ scroll buttons to enter channel number and fre-
quency of task (once, weekly, monthly).

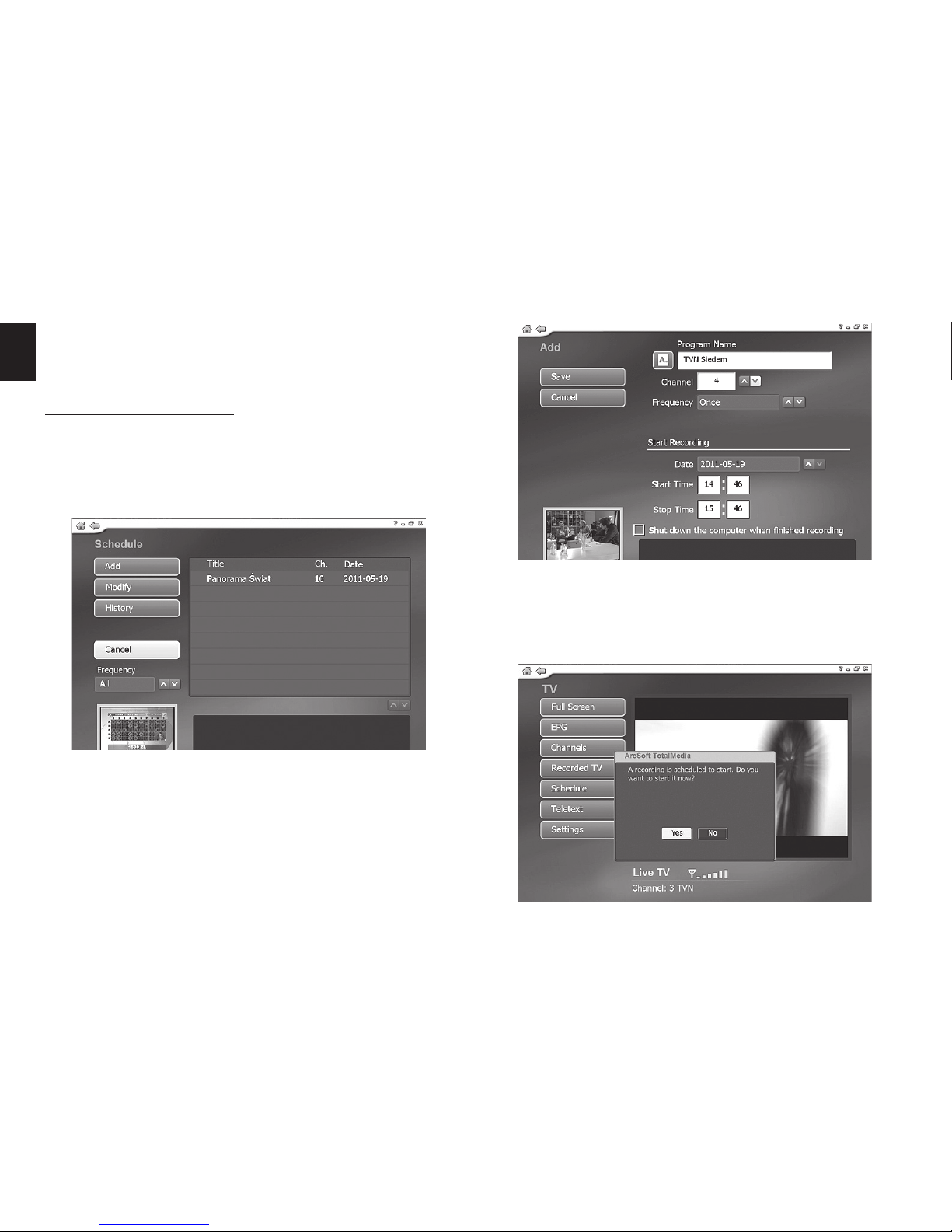

Schedule recording
Click “Schedule” button on Main TV window to access
schedule recording feature. To modify existing entry
select item and click “Modify” button. To enter new re-
cording task click“Add” button.
