MegaLite EW1 Bedienungsanleitung

USER MANUAL

Table of Contents

Safety Information 2

What’s Included 2

Specifications 3

Main Power Connection 4

DMX Connection 4

Display Settings 5

DMX Profile 8

Size And Weight 11

Segment 12

Installation 12

Warranty 13

Customer Service 14

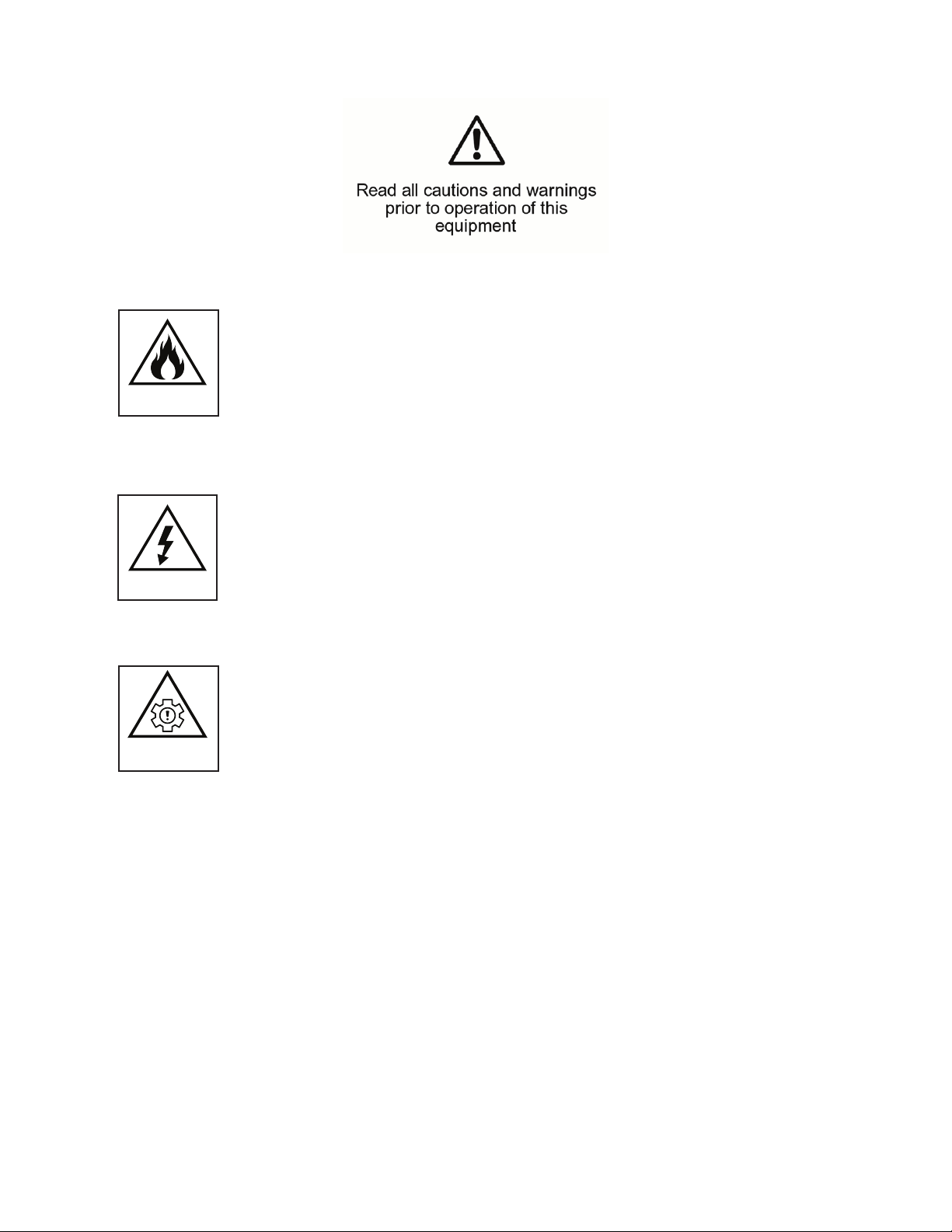

Protection Against Fire

Protection Against Electrical Fire

Protection Against Mechanical Hazards

1. Maintain a minimum of 1 foot distance from any type of flame.

2. Fixture is designed for temporary outdoor use.

3. Do not install the unit too close to a heat source.

4. Make sure cables are properly secured.

5. Maximum surface operating temperature: 130º.

6. Make sure fixture lens are not pointing towards the sun or direct light input.

1. Disconnect power before servicing.

2. For connection to main power supply, proceed to page 4.

3. The power supply must be earthed (electronically grounded).

4. This fixture must not be left on for long periods of time.

1. Use secondary safety chain when hanging unit.

2. Use quality clamps or bolts when positioning unit.

3. Do not open unit while it is on. Risk of electrical shock.

Check that the unit has not been damaged during transport.

Fire

Electrical

Mechanical

What is Included

1pc EW1 fixture

1pc Power Cable

2pc Quick Release Clamp Mount

1pc 1pc User Manual

Part Numbers

Mechanical Specifications

Electrical Specifications

Fixture ID

1235-EW1

Housing: High Temp, Low flammability, Plastic

Mounting System: 2 Quick Release Clamp Mounts

Power Connection: Input Seetronics SAC3MPA Panel Mount

Output Seetronics SAC3MPB Panel Mount

Cable Seetronics SAC3FCA plug to Nema 5/15

Signal Connection: 3 and 5 Pin XLR In and Out (IP Rated)

Zoom: 4°to 36° Electronic Zoom

Lens: Infinity Lens Rotation

Weight: 32lb

Size: 15” X 9.37” X 19.37”

Light Source: 7 X 60W RGBW Osram

62 X .5W RGB

Lumen @ Full: 7625Lm

Color Temp White: 7562K

CRI: 72 @ full

Signal Support: DMX 512, RDM

Power: Electronic 90-250V AC 50/60

Power Consumption: 382Watts

3.25 Amps @110V

Power Factor: 0.99

Control & Programming

Protocol: DMX 512

RDM: Yes, Address, Channel Mode, Pan Invert, Tilt Invert, Pan and Tilt Swap

DMX 2 Modes: 27 Channel Mode

103 Channel Mode

Operating Mode: Manual Settings Via Display .

Specifications

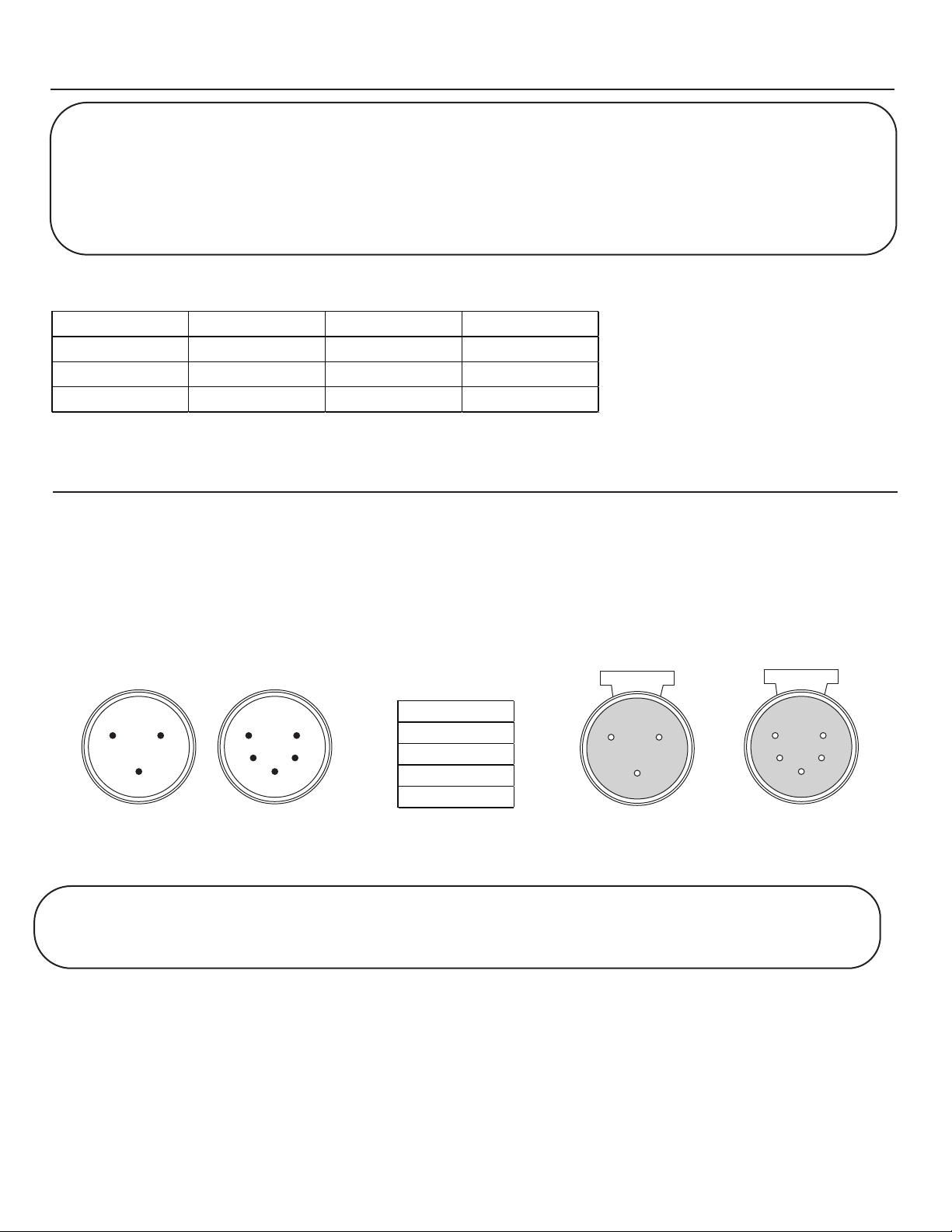

Main Power Connection

Caution!

1. Do not connect fixture to a dimmer system.

2. This unit must be earthed. (Electronically grounded)

3. Replace fuse only with the specified type and rating. (F6AL250V)

4. This device is equipped with auto switching power supply that will allow the fixture to work from

90-250V AC 50/60Hz

DMX-512 Connection

The fixture is equipped with 3 and 5 pin XLR Sockets for DMX input and output connection. The sockets are wired in

parallel. Only use a shielded twisted pair cable designed for RS-485 and 3 or 5 pin XLR plugs and connectors in order to

connect the controller with the fixture or the fixture with another.

Cable USA Cable EU 110V 220V

Black Brown Live Live

White Light Blue Neutral Live

Green Yellow / Green Ground Ground

DMX - Input

1 2

DMX - Output

1.Shield (Grd)

2. Signal (-)

3. Signal (+)

N/A

Caution!

On the last fixture the DMX signal needs to be terminated with a terminator. Pre-manufactured terminator

are available for purchase from your Mega-Lite dealer item #P-DMX-T.

Display Control

The control board on the fixture base is your interface

to access and control all the functions on the unit.

It’s LCD display gives you a code view of the options

and functions. The following will explain each function.

Main Menu ADDRESS: Press OK to view the fixture start channel. Press OK again to

make adjustment to the fixture address from 001 to 512 using the up/down

buttons. By pressing left or right fixture will increments start channel by

channel mode setting. Press OK to confirm or Back to go back. The fixtures

start address will need to match the DMX Controllers assigned DMX start

channel.

DMX Address

Settings

Manual

Information

Calibration

Reset

001

22>

Main Menu

DMX Address

Settings

Manual

Information

Factory

Reset

001

Channel Mode: Press OK to enter Channel mode selection. This function

sets the fixtures DMX Profile for operational mode.

Channel 27 Mode: Pan, Pan Fine, Tilt, Tilt Fine, Pan And Tilt Speed,

Dimmer, Dimmer Fine, Red, Green, Blue, White, Strobe, Shutter Macro,

Macro Speed, Color Effect, Effect Speed, CTO, Ring Red, Ring Green, Ring

Blue, Ring Shutter Macro, Macro Speed, Ring Color Effect, Effect Speed,

Zoom, Lens Rotation, Control

Channel 103 Mode:Pan, Pan Fine, Tilt, Tilt Fine, Pan And Tilt Speed,

Dimmer, Dimmer Fine, Red, Green, Blue, White, Strobe, Shutter Macro,

Macro Speed, Color Effect, Effect Speed, CTO, Ring Red, Ring Green, Ring

Blue, Ring Shutter Macro, Macro Speed, Ring Color Effect, Effect Speed,

Zoom, Lens Rotation, Control, Main LED RGBW X 7, Ring LED RGB X16

Settings: Allows user to personalize fixture operational settings

Settings

Channel Mode

Run Mode

Pan Invert

Tilt Invert

Fan Control

Dim Curve

Dim Fast Close

No DMX State

27CH

DMX

Per

Line

Keep

Settings

Channel Mode

Run Mode

Pan Invert

Tilt Invert

Fan Control

Dim Curve

27CH

DMX

Per

Line

DMX Fail Mode 27CH

001

DOWN

Invert

Display

Back

Run Mode:

DMX: Fixture will operate on DMX Mode

Auto: Fixture will run internal Pre-Programs

Settings

Channel Mode

Run Mode

Pan Invert

Tilt Invert

Fan Control

Dim Curve

27CH

DMX

Per

Line

Pan Invert: Fixtures Pan Movement will be inverted to run opposite direc

tion

Settings

Channel Mode

Run Mode

Pan Invert

Tilt Invert

Fan Control

Dim Curve

27CH

DMX

Per

Line

Tilt Invert: Fixtures Tilt Movement will be inverted to run opposite direc

tion

Settings

Channel Mode

Run Mode

Pan Invert

Tilt Invert

Fan Control

Dim Curve

27CH

DMX

Per

Line

Fan Control:

Performance: Will run at Full Speed no variation

Sensor: Fans speed will adjust to heat sensor from off to full (default)

Quiet: Fan will run on low speed lamp will dim in response to heat

sensor

Settings

Channel Mode

Run Mode

Pan Invert

Tilt Invert

Fan Control

Dim Curve

27CH

DMX

Per

Line

Dim Curve: The fixture has the ability to select different dimming

curve

Options:

Line= Linear Dimming

Curve= Square Law

S-Curve= S Curve

Settings

Channel Mode

Run Mode

Pan Invert

Tilt Invert

Fan Control

Dim Curve

27CH

DMX

Per

Line

Dim Fast Close: Fixtures Dimming settings

Close: Snap Dimming

Open: Fade Dimming

Settings

Pan Invert

Tilt Invert

Fan Control

Dim Curve

Dim Fast Close

DMX Fail

Per

Line

Clear

DMX Fail: If DMX Signal Fail fixture will

Clear: Clear all DMX Channels to 0

Keep: Keep the last DMX Command received

Settings

Pan Invert

Tilt Invert

Fan Control

Dim Curve

Dim Fast Close

DMX Fail

Per

Line

Clear

Main Menu Manual: Gives you control of each function via display settings.

DMX Address

Settings

Manual

Information

Calibration

Reset

Main Menu Information:

Current Time: Manufactures Setting

Total Time: Fixtures power On Hour Count

Power Count: LED Hour Count

DMX Address

Settings

Manual

Information

Calibration

Reset

Main Menu Calibration:

Calibration Setting: This function will set fixtures calibration for each function

Password to access this function is 158

This function should only be used by a trained technician

DMX Address

Settings

Manual

Information

Calibration

Reset

Main Menu Reset:

Motor Reset: Resets motor function of the fixture to the home position.

Factory Reset: Returns all display setting to factory origanal settings

DMX Address

Settings

Manual

Information

Calibration

Reset

Main Menu Display:

Language: Choose between English or Chinese Display Language

Display Flip: Inverts Display

Display Mode: Show: Will leave display on

30S: Will turn display off after 30 Seconds

Settings

Manual

Information

Calibration

Reset

Display

DMX Profile

Channel

Mode

104

Channel

Mode

Function Description Value Init Value

1 1 Pan Pan 0-255 128

2 2 Pan Fine Pan Fine 0-255 128

3 3 Tilt Tilt 0-255 128

4 4 Tilt Fine Tilt Fine 0-255 128

5 5 P/T Speed Pan and Tilt Speed (fast to slow) 0-255 0

6 6 Dimmer Dimmer Off to Full (front leds) 0-255 255

7 7 Dimmer Fine Dimmer Fine (front leds) 0-255 255

8 8 LED Intensity Red 0-255 255

9 9 LED Intensity Green 0-255 255

10 10 LED Intensity Blue 0-255 255

11 11 LED Intensity White 0-255 255

No Function 0-9

Strobe (slow to fast) 10-99

12 12 Strobe Pulse Strobe (slow to fast) 100-149 0

Random Strobe All (slow to fast) 150-199

Random Strobe Each (slow to fast) 200-255

No Function 0-3

Macro 1 4-24

Macro 2 25-45

Macro 3 46-66

Macro 4 67-87

13 13 Shutter Macro Macro 5 88-108 0

(Requires Macro 6 109-129

LED Intensity) Macro 7 130-150

Macro 8 151-171

Macro 9 172-192

Macro 10 193-213

Macro 11 214-234

Macro 12 235-255

14 14 Macro Speed Macro Speed (slow to fast) 0-255 0

No Function 0-9

Color Fade All 10-49

Color Snap All 50-99

Color Effect 1 100-109

Color Effect 2 110-119

Color Effect 3 120-129

Color Effect 4 130-139

Color Effect 5 140-149

15 15 Color Effect Color Effect 6 150-159 0

Color Effect 7 160-169

Color Effect 8 170-179

Color Effect 9 180-189

Color Effect 10 190-199

Color Effect 11 200-209

Color Effect 12 210-219

Color Random Fade All 220-227

Color Random Snap All 228-255

EW1 DMX Profile

16 16 Effect Speed Effect Speed (slow to fast) 0-255 0

17 17 CTO 8000K to 2000K (front LEDs) 0-255 0

18 18 Ring LED Intensity Ring Red LED 0-255 0

19 19 Ring LED Intensity Ring Green LED 0-255 0

20 20 Ring LED Intensity Ring Blue LED 0-255 0

No Function 0

Ring Macro 1 1-8

Ring Macro 2 9-16

Ring Macro 3 17-24

Ring Macro 4 25-32

Ring Macro 5 33-40

Ring Macro 6 41-48

Ring Macro 7 49-56

21 21 Ring Shutter Macro Ring Macro 8 57-64 0

(Requires Ring Ring Macro 9 65-72

LED Intensity) Ring Macro 10 73-80

Ring Macro 11 81-88

Ring Macro 12 89-96

Ring Macro 13 97-104

Ring Macro 14 105-112

Ring Macro 15 113-120

Ring Macro 16 121-128

Ring Macro 17 129-136

Ring Macro 18 137-144

Ring Macro 19 145-152

Ring Macro 20 153-161

Strobe 162-193

Random Strobe All 194-225

Random Strobe Segment 226-255

22 22 Ring Macro Speed Macro Forward Speed (fast to slow) 0-127 0

Macro Reverse Speed (slow to fast) 128-255

No Function 0-1

Red Back Ground 2-21

Green Back Ground 22-41

Blue Back Ground 42-61

Yellow Back Ground 62-81

Cyan Back Ground 82-101

Magenta Back Ground 102-121

Lime Back Ground 122-141

Purple Back Ground 142-160

23 23 Ring Color Effect

White Back Ground 161 0

(Multiple Colors)

Multi Color Effect 1 162-168

Multi Color Effect 2 169-176

Multi Color Effect 3 177-192

Multi Color Effect 4 193-200

Multi Color Effect 5 201-208

Multi Color Effect 6 209-216

Multi Color Effect 7 217-224

Multi Color Effect 8 225-255

24 24 Ring Effect Speed Effect Forward Speed (fast to slow) 0-127 0

Effect Reverse Speed (slow to fast) 128-255

25 25 Zoom Zoom (wide to narrow) 0-255 255

No Function 0-5

Lens Rotation Clockwise (index) 6-47

Lens Infinite Rotation Clockwise (slow to fast) 48-81

26 26 Lens Rotation Lens Infinite Rotation Counter Clockwise (slow to fast) 82-123 0

Lens Rotation Clockwise (index) No Center LED 124-165

Lens Infinite Rotation Clockwise (slow to fast) No Center LED 166-207

Lens Infinite Rotation Counter Clockwise (slow to fast) No Center LED 208-255

No Function 0-49

Pan & Tilt Reset (Hold for 5 Seconds) 50-100

27 27 Control Lens and Zoom Reset (Hold for 5 Seconds) 101-230 0

All Function Reset (Hold for 5 Seconds) 231-245

No Function 246-255

n/a 28 LED 1 Red 1 0-255 0

n/a 29 LED 1 Green 1 0-255 0

n/a 30 LED 1 Blue 1 0-255 0

n/a 31 LED 1 White 1 0-255 0

n/a 32 LED 2 Red 2 0-255 0

n/a 33 LED 2 Green 2 0-255 0

n/a 34 LED 2 Blue 2 0-255 0

n/a 35 LED 2 White 2 0-255 0

n/a 36 LED 3 Red 3 0-255 0

n/a 37 LED 3 Green 3 0-255 0

n/a 38 LED 3 Blue 3 0-255 0

n/a 39 LED 3 White 3 0-255 0

n/a 40 LED 4 Red 4 0-255 0

n/a 41 LED 4 Green 4 0-255 0

n/a 42 LED 4 Blue 4 0-255 0

n/a 43 LED 4 White 4 0-255 0

n/a 44 LED 5 Red 5 0-255 0

n/a 45 LED 5 Green 5 0-255 0

n/a 46 LED 5 Blue 5 0-255 0

n/a 47 LED 5 White 5 0-255 0

n/a 48 LED 6 Red 6 0-255 0

n/a 49 LED 6 Green 6 0-255 0

n/a 50 LED 6 Blue 6 0-255 0

n/a 51 LED 6 White 6 0-255 0

n/a 52 LED 7 Red 7 0-255 0

n/a 53 LED 7 Green 7 0-255 0

n/a 54 LED 7 Blue 7 0-255 0

n/a 55 LED 7 White 7 0-255 0

n/a 56 Ring LED 1 Ring Red 1 0-255 0

n/a 57 Ring LED 1 Ring Green 1 0-255 0

n/a 58 RingLED 1 Ring Blue 1 0-255 0

" " " "

n/a 101 Ring LED 16 Ring Red 16 0-255 0

n/a 102 Ring LED 16 Ring Green 16 0-255 0

n/a 103 Ring LED 16 Ring Blue 16 0-255 0

Inhaltsverzeichnis

Andere MegaLite Leuchte Handbücher

MegaLite

MegaLite drama z fresnel 200 Bedienungsanleitung

MegaLite

MegaLite Halo 5R Bedienungsanleitung

MegaLite

MegaLite XBAR Bedienungsanleitung

MegaLite

MegaLite Bright Stripe Bedienungsanleitung

MegaLite

MegaLite AR Wash 1W Bedienungsanleitung

MegaLite

MegaLite MW1 Bedienungsanleitung

MegaLite

MegaLite outshine t54 Bedienungsanleitung

Beliebte Leuchte Handbücher anderer Marken

Emos

Emos CLASSIC ZY1431T Bedienungsanleitung

Westinghouse

Westinghouse Outdoor Lighting Fixture Bedienungsanleitung

Hedler

Hedler C 12 silent Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting Puck: CSI Bedienungsanleitung

Energetic Lighting

Energetic Lighting ELYSL-5004 Series Bedienungsanleitung

Lightmaxx

Lightmaxx Shaft 5R Bedienungsanleitung

Triarch

Triarch 31083 Bedienungsanleitung

Philips

Philips 32614 Series Bedienungsanleitung

IKEA

IKEA TIVED Bedienungsanleitung

Lightolier

Lightolier LP200 Bedienungsanleitung

Chauvet Professional

Chauvet Professional ROGUE R1 BEAM WASH Bedienungsanleitung

Martin

Martin MAC 250 Krypton Bedienungsanleitung

Cooper Lighting

Cooper Lighting Halo L3232E Bedienungsanleitung

Stageline

Stageline ODW-2410RGBW Bedienungsanleitung

Light Sky

Light Sky Tornado Series Bedienungsanleitung

Lightolier

Lightolier Paralyte 2424 PLA2G9LS26U Bedienungsanleitung

Lightolier

Lightolier Lytespan 83ED17S Bedienungsanleitung

Lightolier

Lightolier Calculite CS8226 Bedienungsanleitung
