MegaLite EB1 Bedienungsanleitung

USER MANUAL

Table of Contents

Safety Information.........................2

What’s Included.............................2

Specifications................................3

Gobos & Colors.............................4

Main Power Connection................5

DMX Connection...........................5

Display Settings............................6

DMX Profile ..................................8

Parts List.......................................10

Size & Weight................................11

Cleaning & Maintenance...............12

Warranty........................................13

Customer Service..........................14

Protection Against Fire

Protection Against Electrical Fire

Protection Against Mechanical Hazards

1. Maintain a minimum of 1 foot distance from any type of flame.

2. For indoor use only. Do not expose unit to rain or moisture.

3. Do not install the unit too close to a heat source.

4. Make sure cables are properly secured.

5. Maximum surface operating temperature: 130º.

1. Disconnect power before servicing.

2. For connection to main power supply, proceed to page 5.

3. The power supply must be earthed (electronically grounded).

4. This fixture must not be left on for long periods of time.

1. Use secondary safety chain when hanging unit.

2. Use quality clamps or bolts when positioning unit.

3. Do not open unit while it is on. Risk of electrical shock.

Check that the unit has not been damaged during transport.

What is Included

1pc EB1 fixture

1pc Power Cable

2pc Quick Release Clamp Mount

1pc User Manual

Fire

Electrical

Mechanical

Read Manual, Cautions, and Warnings

prior to operation of this equipment.

Specifications

Part Numbers

Mechanical Specifications

Electrical Specifications

Fixture ID

1230 - EB1

Housing: High Temperature Resistant Plastics

Fastening System: By Directional Quick Release Clamp Mount

Power Connection: Power Con type in & out (Nema 5-15 to Power Con type cable included)

Signal Connection: 3 & 5 Pin XLR In and Out

Pan Movement: 540° (16 bit, 3 Phase stepper Motor)

Tilt Movement: 270° (16 bit, 3 Phase stepper motor)

Weight: 35lb

Size: 15” X 9.5” X 21.75”

Light Source: 1 X Appotronics 200W LED

48 SMD 3535 LEDs (ring)

Lumens @ Full: 3963 Lm

Color Temp: 8313K

CRI: (Warm White) 71

Color Wheel: 14 Colors + Open, Bi direction

Static Gobo’s: 12 Fixed + Open

Prism: 8 Facet Indexing Prism

Frost: 1 Frost Filter

Focus: Linear Focus

Lens Angle: 1°

Strobe: 0.3-20 Per Second

RDM: Yes

Display: LCD

Power Supply: Electronic 100-240V AC 50/60

Power Consumption: 295 Watts

2.48 Amps @110V

Control & Programming

Protocol: DMX 512 (USITT Standard)

RDM: DMX Start Channel, Channel Mode

DMX Channels: Mode 22 Channel: Pan, Pan Fine, Tilt, Tilt Fine, Pan Tilt Speed, Shutter, Color, Gobo, Prism, Prism Rotation, Frost

Focus, Ring Dimmer, Ring red, Ring Green, Ring Blue, Ring Shutter Macro, Shutter Macro Speed

Ring Color Macro, Color Macro Speed, Control

Mode 70 Channel: Pan, Pan Fine, Tilt, Tilt Fine, Pan Tilt Speed, Shutter, Color, Gobo, Prism, Prism Rotation, Frost

Focus, Ring Dimmer, Ring red, Ring Green, Ring Blue, Ring Shutter Macro, Shutter Macro Speed

Ring Color Macro, Color Macro Speed, Control, 16 X R,G,B Ring Control

Operating Mode: DMX

Display Stand Alone 255 steps manual mode,

Recall Auto programs

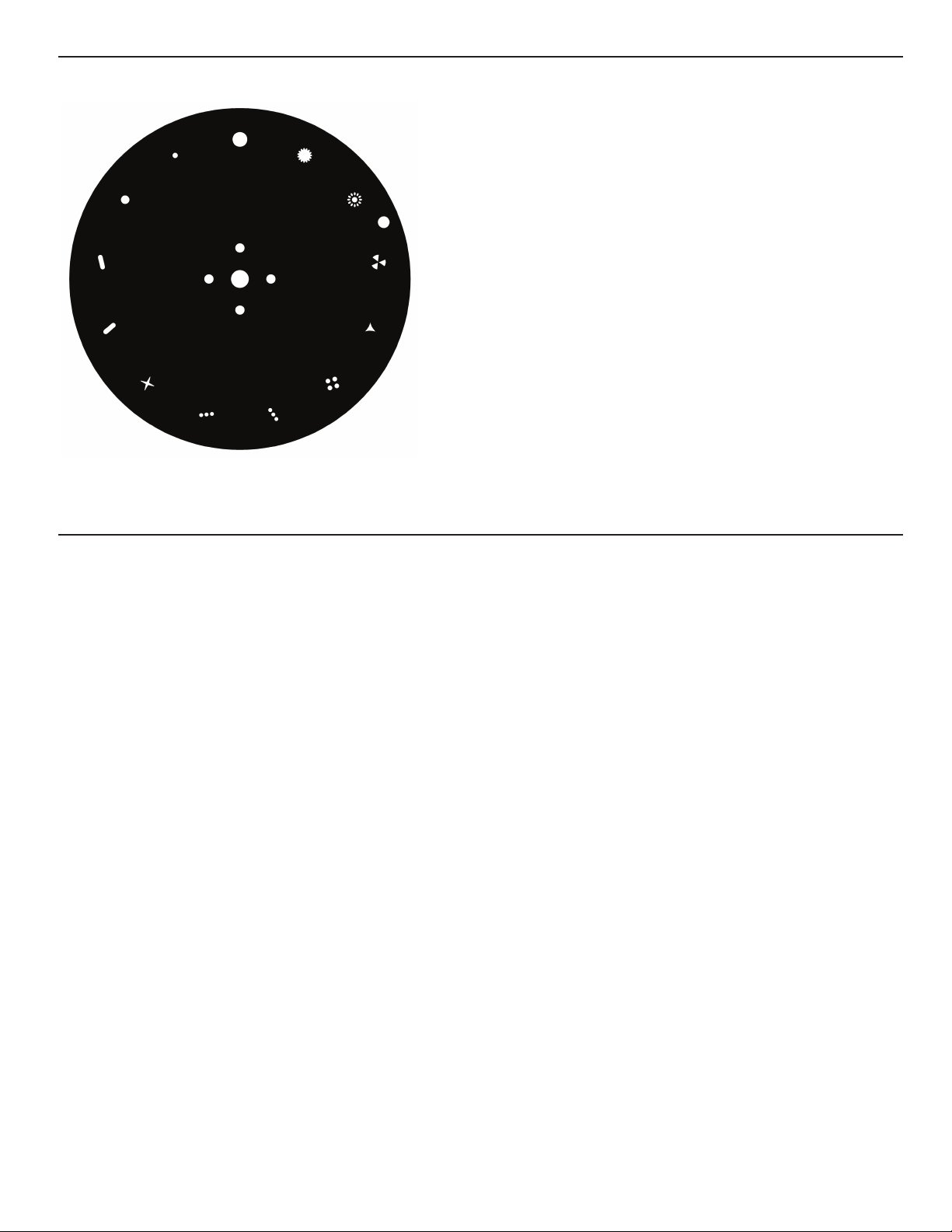

Static Gobos

Colors

Open

1- Red

2- Yellow

3- Blue

4- Green

5- Magenta

6- Orange

7- Light Blue

8- Lime

9- Pink

10- Candy Apple

11- Purple

12- Lilac

13- Blue

14- CTO

Main Power Connection

Caution!

1. Do not connect fixture to a dimmer system.

2. This unit must be earthed. (Electronically grounded)

3. Replace fuse only with the specified type and rating. (F5A 250V)

4. This device is equipped with auto switching power supply that will allow the fixture to work from

100-240V AC 50/60Hz

5. Power Link max 6 units at 110V and 12 units at 220V

DMX-512 Connection

The fixture is equipped with 3 and 5 pin XLR Sockets for DMX input and output connection. The sockets are wired in

parallel. Only use a shielded twisted pair cable designed for RS-485 and 3 or 5 pin XLR plugs and connectors in order to

connect the controller with the fixture or the fixture with another.

Cable USA Cable EU 110V 220V

Black Brown Live Live

White Light Blue Neutral Live

Green Yellow / Green Ground Ground

DMX - Input

1 2

DMX - Output

1.Shield (Grd)

2. Signal (-)

3. Signal (+)

N/A

Caution!

On the last fixture the DMX signal needs to be terminated with a terminator. Pre-manufactured terminator

are available for purchase from your Mega-Lite dealer item #P-DMX-T.

Display Control

DOWN

Back

DMX Fail Mode 22CH

The control board on the fixture base is your interface

to access and control all the functions on the unit.

It’s LCD display gives you a code view of the options

and functions. The following will explain each function.

Main Control

Main Menu ADDRESS: Press OK to view the fixture start channel. Press OK again to

make adjustment to the fixture address from 001 to 491 using the up/down

buttons. By pressing left or right fixture will increments start channel by

channel mode setting. Press OK to confirm or Back to go back. The fixtures

start address will need to match the DMX Controllers assigned DMX start

channel.

001 OK

DMX Address

Channel Mode

Led Temperature

Reset

Run

001

2222

022°C

DMX

Channel Mode: Press OK to enter Channel mode selection. This function

sets the fixtures DMX Profile for operational mode.

Channel 22 Mode: Pan, Pan Fine, Tilt, Tilt Fine, Pan And Tilt Speed,

Dimmer, Shutter, Color, Gobo, Prism, Prism Rotation, Frost, Focus, Ring

Dimmer, Ring Red, Ring Green, Ring Blue, Ring Shutter Macro, Shutter

Macro Speed, Ring Color Macro, Color Macro Speed, Control

Channel 70 Mode: Pan, Pan Fine, Tilt, Tilt Fine, Pan And Tilt Speed,

Dimmer, Shutter, Color, Gobo, Prism, Prism Rotation, Frost, Focus, Ring

Dimmer, Ring Red, Ring Green, Ring Blue, Ring Shutter Macro, Shutter

Macro Speed, Ring Color Macro, Color Macro Speed, Control, 16 X R,G,B

Ring Segment Control

Main Menu

DMX Address

Channel Mode

Led Temperature

Reset

Run

001

022°C

DMX

Main Menu Led Temperature: This information is on the fixtures operating led Tempera-

ture. Temperatures above 40°C will engage LED cooling fans.

DMX Address

Channel Mode

Led Temperature

Reset

Run

001

2222

022°C

DMX

Main Menu Reset: Reset function allows you to reset motor function to the original

factory setting. Motor functions that can be controlled include.

All Motors

Pan Tilt

Color

Gobo

Beam Path

DMX Address

Channel Mode

Led Temperature

Reset

Run

001

2222

022°C

DMX

Main Menu Run: Operational Mode

DMX: Fixture will be controlled via a DMX Controller

Auto: Internal preset programs can be recalled for fixture operation

User:

DMX Address

Channel Mode

Led Temperature

Reset

Run

001

2222

022°C

DMX

Main Menu Manual: Manual Settings allows the user to control fixture via display control.

Fixtures profile can be controlled via 0-255 step settings.

DMX

Run

Manual

Settings

Advance Settings

Info

Main Menu Settings: Operators preferred fixture settings

DMX

Run

Manual

Settings

Advance Settings

Info

M/R: Master / Remote: Fixture are required to be connected via XLR.

Only one master fixture can be connected, remainder fixtures need to be

set to remote. Select the auto program on the master unit. And the

remote units will function the same way.

X Invert: Inverts Pan Setting

Y Invert: Inverts Tilt Setting

Dim Curve: Allows for dimming curve to be adjusted options include:

Square, Linear, Log, S-Curve, Square Root

DMX Fail: If fixtures DMX signal is lost you have the following option

Keep: Will maintain the last DMX command receives

Off: Will bring all profile channels to 0 value

Main Menu Advance Settings: Manufactures Features (for manufacture use only)

DMX

Run

Manual

Settings

Advance Settings

Info

Update: Firmware update (requires hardware interface) do not connect

any device into the USB Connection in the Update slot.

Language: Select between English and Chinese

Error Settings: Error Messages

Factory Setting: Password Protected

Recovery: Manufacture Update

Main Menu Info: Fixture current setting information

DMX

Run

Manual

Settings

Advance Settings

Info

Main Menu Advance Settings: Manufactures Features (for manufacture use only)

DMX

Run

Manual

Settings

Advance Settings

Info

Update: Firmware update (requires hardware interface) do not connect

any device into the USB Connection in the Update slot.

Language: Select between English and Chinese

Error Settings: Error Messages

Factory Setting: Password Protected

Recovery: Manufacture Update

DMX Value: DMX value setting for all channels

Error: Fixture error warnings

LED: LED usage time

Test:

DMX Profile

EB1 DMX Profile

22 Ch Mode 70 Ch Mode Function Description Value Init

1 1 Pan Pan 0-255 127

2 2 Pan Fine Pan Fine 0-255 127

3 3 Tilt Tilt 0-255 127

4 4 Tilt Fine Tilt Fine 0-255 127

5 5 Pan Tilt Speed Pan & Tilt Speed (fast to slow) 0-255 0

6 6 Dimmer Dimmer (off to full) 0-255 255

Closed

Open

Beam Strobe (slow to fast)

Beam Pulse to Open (slow to fast)

7 7 Shutter Strobe Beam Pulse to Close (slow to fast) 255

Beam Random Strobe (slow to fast)

Random Strobe With Ring (slow to fast) (ring dimmer also must be active)

Random Strobe With Segment Ring (slow to fast)

Open 250-255

Open 0-4

Red 5-8

Yellow 9-12

Blue 13-17

Green 18-21

Magenta 22-25

Orange 26-29

Light Blue 30-34

Lime 35-38

Pink 39-42

Candy Apple 43-46

Purple 47-51

Lilac 52-55

Laser Green 56-59

8 8 Color CTO 60-63 0

Open / Red 64-68

Red / Yellow 69-72

Yellow / Blue 73-76

Blue / Green 77-81

Green / Magenta 82-85

Magenta / Orange 86-89

Orange / Light Blue 90-93

Light Blue / Lime 94-98

Lime / Pink 99-102

Pink / Candy Apple 103-106

Candy Apple / Purple 107-110

Purple / Lilac 111-115

Lilac / Laser Green 116-119

Laser Green / CTO 120-123

CTO / Open 124-127

Color Scroll Clockwise (slow to fast) 128-190

Color Scroll Counter Clockwise (fast to slow) 191-255

Open 0-4

Gobo 1 5-12

Gobo 2 13-20

Gobo 3 21-28

Gobo 4 29-36

Gobo 5 37-44

Gobo 6 45-52

9 9 Gobo Gobo 7 53-60

Gobo 8 61-68

Gobo 9 69-76

Gobo 10 77-84

Gobo 11 85-92

Gobo 12 93-102

Gobo Scroll Clockwise (slow to fast) 103-176

Gobo Scroll Counter Clockwise (fast to slow) 177-255

10 10 Prism Open 0-63 0

Prism 64-255

Prism Index 0-127

11 11 Prism Rotation Prism Rotation Clockwise (fast to slow) 128-191 0

Prism Rotation Counter Clockwise (slow to fast) 192-255

12 12 Frost Open 0-63 0

Frost 64-255

13 13 Focus Focus 0-255 127

14 14 Ring Dimmer Ring Dimmer 0-255 255

15 15 Ring Color Red 0-255 255

16 16 Ring Color Green 0-255 255

17 17 Ring Color Blue 0-255 255

No Function 0

Effect 1 1-8

Effect 2 9-16

Effect 3 17-24

Effect 4 25-32

Effect 5 33-40

Effect 6 41-48

Effect 7 49-56

Effect 8 57-64

Effect 9 65-72

18 18 Ring Shutter Effect Effect 10 73-80 0

(Ring Color Effect 11 81-88

Must be Activated) Effect 12 89-96

Effect 13 97-104

Effect 14 105-112

Effect 15 113-120

Effect 16 121-128

Effect 17 129-136

Effect 18 137-144

Effect 19 145-152

Effect 20 153-161

19 19 Ring Macro Speed Macro Forward Speed (fast to slow) 0-127 0

Macro Reverse Speed (slow to fast) 128-255

No Function 0-1

Red Back Ground 2-21

Green Back Ground 22-41

Blue Back Ground 42-61

Yellow Back Ground 62-81

Cyan Back Ground 82-101

Magenta Back Ground 102-121

Lime Back Ground 122-141

Purple Back Ground 142-160

20 20 Ring Effect White Back Gound 161 0

(Multiple Colors) Multi Color Effect 162-168

Multi Color Effect 169-176

Muity Color Effect 177-192

Muity Color Effect 193-200

Muity Color Effect 201-208

Muity Color Effect 209-216

Muity Color Effect 217-224

Muity Color Effect 225-255

21 21 Ring Effect Speed Macro Forward Speed (fast to slow) 0-127 0

Macro Reverse Speed (slow to fast) 128-255

No Function 0-49

22 22 Control Pan & Tilt Reset (Hold for 5 Seconds) 50-100 0

Head Reset (Hold for 5 Seconds) 101-200

All Motor Reset (Hold for 5 Seconds) 201-255

23 Ring Segment Red Segment 1 0-255 0

24 Ring Segment Green Segment 1 0-255 0

25 Ring Segment Blue Segment 1 0-255 0

26 Ring Segment Red Segment 2 0-255 0

27 Ring Segment Green Segment 2 0-255 0

28 Ring Segment Blue Segment 2 0-255 0

29 Ring Segment Red Segment 3 0-255 0

30 Ring Segment Green Segment 3 0-255 0

31 Ring Segment Blue Segment 3 0-255 0

32 Ring Segment Red Segment 4 0-255 0

33 Ring Segment Green Segment 4 0-255 0

34 Ring Segment Blue Segment 4 0-255 0

35 Ring Segment Red Segment 5 0-255 0

36 Ring Segment Green Segment 5 0-255 0

37 Ring Segment Blue Segment 5 0-255 0

38 Ring Segment Red Segment 6 0-255 0

39 Ring Segment Green Segment 6 0-255 0

40 Ring Segment Blue Segment 6 0-255 0

41 Ring Segment Red Segment 7 0-255 0

42 Ring Segment Green Segment 7 0-255 0

43 Ring Segment Blue Segment 7 0-255 0

44 Ring Segment Red Segment 8 0-255 0

45 Ring Segment Green Segment 8 0-255 0

46 Ring Segment Blue Segment 8 0-255 0

47 Ring Segment Red Segment 9 0-255 0

48 Ring Segment Green Segment 9 0-255 0

49 Ring Segment Blue Segment 9 0-255 0

50 Ring Segment Red Segment 10 0-255 0

51 Ring Segment Green Segment 10 0-255 0

52 Ring Segment Blue Segment 10 0-255 0

53 Ring Segment Red Segment 11 0-255 0

54 Ring Segment Green Segment 11 0-255 0

55 Ring Segment Blue Segment 11 0-255 0

56 Ring Segment Red Segment 12 0-255 0

57 Ring Segment Green Segment 12 0-255 0

58 Ring Segment Blue Segment 12 0-255 0

59 Ring Segment Red Segment 13 0-255 0

60 Ring Segment Green Segment 13 0-255 0

61 Ring Segment Blue Segment 13 0-255 0

62 Ring Segment Red Segment 14 0-255 0

63 Ring Segment Green Segment 14 0-255 0

64 Ring Segment Blue Segment 14 0-255 0

65 Ring Segment Red Segment 15 0-255 0

66 Ring Segment Green Segment 15 0-255 0

67 Ring Segment Blue Segment 15 0-255 0

68 Ring Segment Red Segment 16 0-255 0

69 Ring Segment Green Segment 16 0-255 0

70 Ring Segment Blue Segment 16 0-255 0

PART #

DESCRIPTION

1230-BEZ-LEN LENS BEZZEL

1230-BEZ-ARM ARM BEZZEL

1230-BEZ-HEA HEAD BEZZEL

1230-FAN-90 DENGFENG DC12 .35A 90

1230-LED APPOTRONICS 200W

1230-PCB-MOT PCB MOTOR DRIVER

1230-PCB-RIN PCB RING DRIVER

1230-SEN-FOC FOCUS SENSOR

1230-BEZ-SID BASE SIDE BEZZEL

1230-BEZ-FRO BASE FRONT BEZZEL

1230-BEZ-HAN HANDLE

1230-PCB-DIS DISPLAY PCB

1230-PCB-BUT BUTTON PCB

1230-PCB-DRI LED DRIVER PCB

1230-CON-3 3PIN IN AND OUT CONNECTION

1230-CON-5 5PIN IN AND OUT CONNECTION

1230-MOT-PAN PAN MOTOR

1230-MOT-TIL TILT MOTOR

1230-SEN-PAN PAN SENSOR

1230-SEN-TIL TILT SENSOR

1230-SEN-COL COLOR WHEEL SENSOR

1230-LED-RIN COMPLETE RING RIBBON WITH CONNECTION

1230-POW POWER SUPPLY

1230-HOU-QUI QUICK RELEASE CLAMP MOUNT

1230-SEN-GOB GOBO WHEEL SENSOR

1230-MOT-FOC FOCUS MOTOR

1230-MOT-PRI PRISM ENGAGE MOTOR

1230-MOT-PRI-ROT PRISM ROTATE MOTOR

1230-LEN-PRI PRIMARY LENS

1230-LEN-FOC FOCUS LENS

CAS-1181-2

4 UNIT ROAD CASE

Parts List

Inhaltsverzeichnis

Andere MegaLite Beleuchtungsausrüstung Handbücher

MegaLite

MegaLite LEDiLINE M485 Series Leitfaden

MegaLite

MegaLite AXIS 500 Bedienungsanleitung

MegaLite

MegaLite PARAMOUNT PENDANT Q350 Bedienungsanleitung

MegaLite

MegaLite ARFlood Bedienungsanleitung

MegaLite

MegaLite LIGHT PIPE 5049-03 Bedienungsanleitung

MegaLite

MegaLite Drama Profile VW2 Bedienungsanleitung

MegaLite

MegaLite Drama LED Q170 Bedienungsanleitung

MegaLite

MegaLite Pro Color Cannon 3000 Bedienungsanleitung

MegaLite

MegaLite DECO TENTACLE Bedienungsanleitung

MegaLite

MegaLite LUPA-7 Bedienungsanleitung

MegaLite

MegaLite N-E COLOR Cannon Bedienungsanleitung

MegaLite

MegaLite 44010- Vazt UV50 Bedienungsanleitung

MegaLite

MegaLite Framebot 600 Bedienungsanleitung

MegaLite

MegaLite DECO Cove Q18 Bedienungsanleitung

MegaLite

MegaLite IDOL-LITE P24 Bedienungsanleitung

MegaLite

MegaLite Linebot Q480 Bedienungsanleitung

MegaLite

MegaLite cobra 1500 Bedienungsanleitung

MegaLite

MegaLite Deco Vintage Scoop Q32 Bedienungsanleitung

MegaLite

MegaLite AXIS 250 Bedienungsanleitung

MegaLite

MegaLite N-E Color Strip Bedienungsanleitung

MegaLite

MegaLite Axis LED Bedienungsanleitung

MegaLite

MegaLite N-E PIXSTRIP H216 Bedienungsanleitung

MegaLite

MegaLite Followbot 1000W LED Bedienungsanleitung

MegaLite

MegaLite XWITCH Bedienungsanleitung

Beliebte Beleuchtungsausrüstung Handbücher anderer Marken

Brizo

Brizo 8SP-MU-4 Bedienungsanleitung

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Bedienungsanleitung

IKEA

IKEA BJÖRKSPIREA Bedienungsanleitung

Laserworld

Laserworld Evolution Series ES-400RGB Bedienungsanleitung

Alien

Alien RG STAR Bedienungsanleitung

EuroLite

EuroLite LED B-40 Bedienungsanleitung

Qazqa

Qazqa Suplux SL 3 Black 103062 Bedienungsanleitung

Commercial Electric

Commercial Electric 54568141 Bedienungsanleitung

CREE LIGHTING

CREE LIGHTING 304 Series Bedienungsanleitung

Goobay

Goobay 49867 Bedienungsanleitung

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Bedienungsanleitung

Alkalite

Alkalite Krypton KT-81 Bedienungsanleitung

Clas Ohlson

Clas Ohlson GU10 Bedienungsanleitung

DTS

DTS DELTA 10 F Bedienungsanleitung

ring

ring Solar Steplight Bedienungsanleitung

One Stop Gardens

One Stop Gardens 57696 Montageanleitung

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Bedienungsanleitung

SIREM

SIREM Swimeo A2 Bedienungsanleitung
