INTRODUCTION
Congratulations for choosing this high-quality MEGANEX product! We hope it will
be of great help to you. Remember to read the instruction manual before using
the appliance for the first time in order to ensure safe usage. If you have any
doubt or problems, please contact your dealer or the importer. We wish you safe
and pleasant work with this appliance!
SAFETY INSTRUCTIONS
READ THESE INSTRUCTIONS CAREFULLY AND NOTE THE SAFETY INSTRUCTIONS
AND WARNINGS. USE THE APPLIANCE CORRECTLY AND WITH CARE FOR THE
PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE
TO PROPERTY AND/OR SERIOUS PERSONAL INJURY. KEEP THIS INSTRUCTION
MANUAL SAFE FOR FUTURE USE.
-This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
-Do not cover the appliance.
-Use the appliance only in a dry place.
-Do not place the appliance directly under a socket.
-Only a qualified electrician is allowed to repair/replace a damaged cord.
-Only an authorized service center is allowed to repair the appliance.
TECHNICAL DATA
Voltage 230 V ~50 Hz
Power 200 W
Protection class IP20
OPERATION

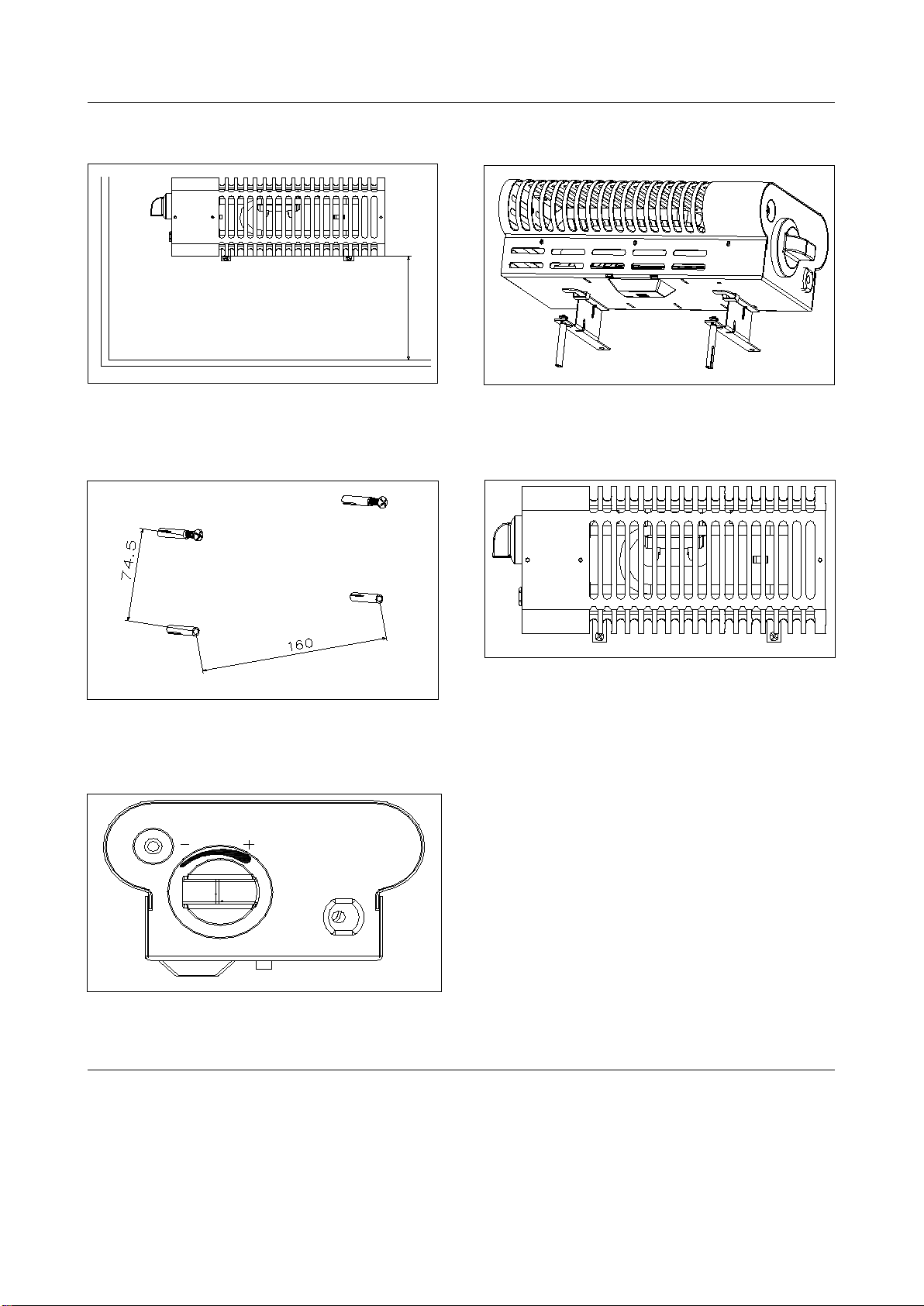

-Due to risk of burns and fire, the appliance must be mounted on the wall to a height of at
least 1,8 meters (Fig. 1). However, if it is absolutely necessary to mount the appliance
lower than allowed, then in such case it is extremely important to make sure there are no
flammable objects or substances below or near the appliance, and that nobody (e.g. chil-
dren or animals) can touch the appliance as it becomes very hot during use. Also, ade-
quate air circulation must be ensured as well.
-Make sure the appliance is not connected to power supply.
-Insert the wall brackets in their places on the backside of the appliance. (Fig. 2)
-Mark hole positions for the brackets onto the wall, then drill holes to the marked positions
and insert the provided wall plugs. (Fig. 3)
-Fasten the appliance on the wall with provided screws. (Fig. 4)
-Operating range of the thermostat is approximately +5°C … +50°C. The temperature is
increased by turning the thermostat switch to the right and decreased by turning the
thermostat switch to the left. When the temperature decreases below the set tempera-
ture, the appliance will turn on. (Fig. 5)
EN
4
