Brief Instructions

Thank you for choosing the new Sprinter.

Before your first journey, please familiarize

yourself with your vehicle and how it

operates, as well as its driving, control and

convenience functions.

Before you drive off, read this Operator’s

Manual. This will help you to obtain the

maximum pleasure from your vehicle and to

avoid endangering yourself and others.

The equipment or product name for your

vehicle may vary, depending on:

Rmodel

Rorder

Rcountry specification

Ravailability

Your vehicle's equipment may differ from

some descriptions and illustrations. Items of

optional equipment are also described in this

manual, should you require a description of

the way they work.

The manufacturer continuously updates its

vehicles and equipment. We therefore

reserve the right to make changes with regard

to:

Rdesign

Requipment

Rtechnical features

Your nearest authorized Sprinter Dealer will

be happy to assist you further if you have any

other questions.

The Operator’s Manual, Brief Instructions,

Service and Warranty Information Booklet,

Maintenance Booklet and equipment-related

supplementary operator’s manuals are

integral parts of the vehicle.

Always keep these manuals in the vehicle.

Pass them on to the new owner if you sell the

vehicle.

We extend our best wishes for many miles of

safe, pleasurable driving.

At a glance ............................................. 2

Cockpit .................................................... 2

Instrument cluster variants ...................... 4

Steering wheel with buttons .................... 6

Center console ........................................ 6

Switch units ............................................. 7

Center console ................................... 7

Roof ................................................... 7

Driver's door ...................................... 8

Additional switch units ....................... 8

Controls ............................................... 10

Opening and closing .............................. 10

Remote control with an integrated

folding key ....................................... 10

Adjusting ............................................... 10

Ignition lock ..................................... 10

Seats ............................................... 11

Steering wheel ................................. 11

Seat belts ........................................ 12

Lighting .................................................. 12

Light switch ..................................... 12

Turn signals ..................................... 12

Good visibility ........................................ 13

Windshield wipers ............................ 13

Rear window wiper .......................... 13

Climate control ...................................... 14

Overview of climate control

systems ........................................... 14

Overview of the functions of the

climate control system .................... 15

Driving ................................................... 16

Automatic transmission ................... 16

Parking brake ................................... 17

Operation ............................................. 18

Refueling ............................................... 18

Diesel Exhaust Fluid (DEF) ............... 18

Practical advice ................................... 20

Where will I find...? ................................ 20

Vehicle tool kit and emergency

equipment ....................................... 20

Warning triangle ............................... 20

Warning lamp ................................... 20

First-aid kit ....................................... 21

Spare wheel ..................................... 21

Tire sealant ...................................... 22

9065845771 É90658457717ËÍ

Contents 1

Cockpit

iThis Operator's Manual describes all the

standard and optional equipment available

for your vehicle at the time of purchase.

Country specific differences are possible.

Please note that your vehicle might not be

equipped with all the functions described

here. This also includes safety relevant

systems and functions.

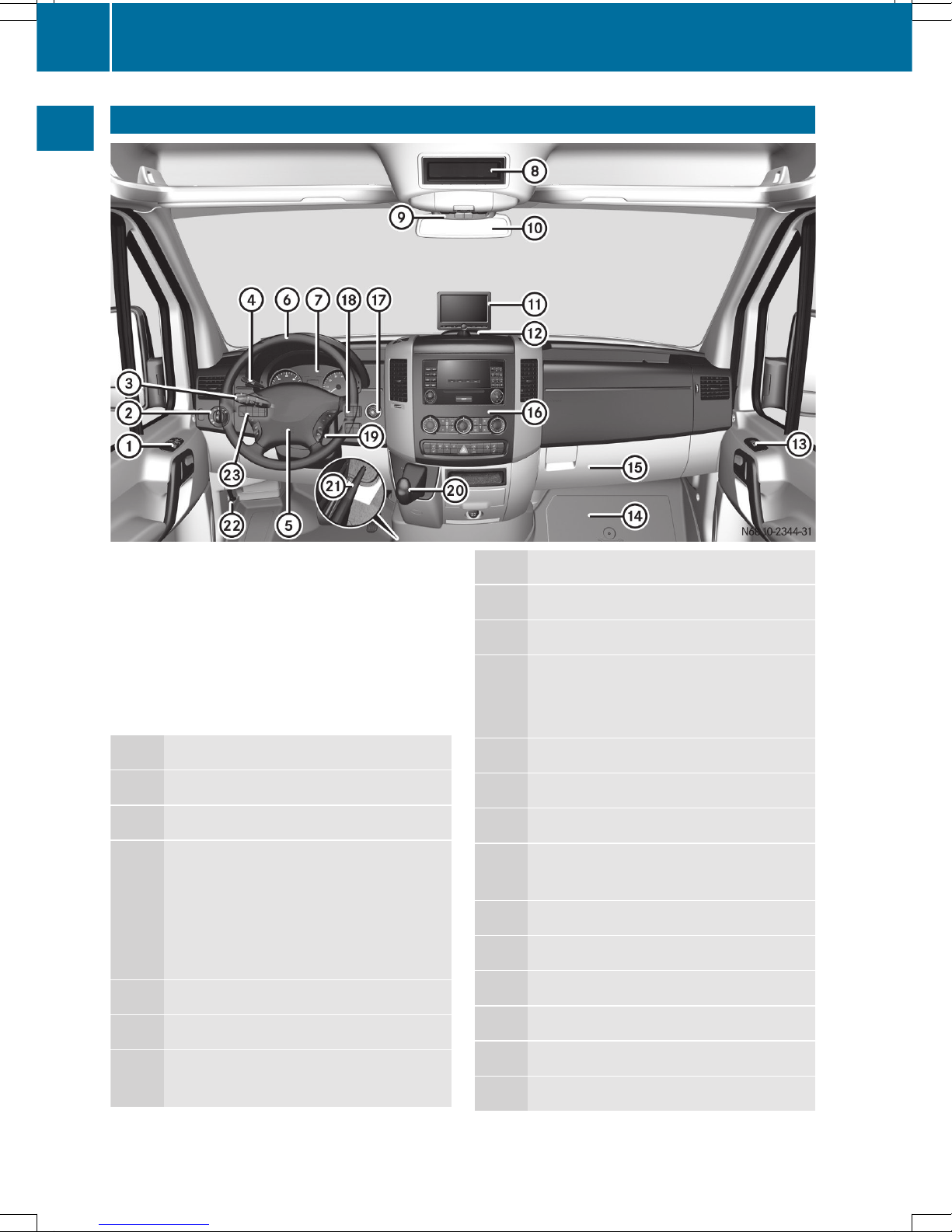

Function

:Door control panel

;Light switch

=Combination switch:

• turn signals

• high-beam headlamps

• windshield wipers

• rear window wiper

?Cruise control lever

AHorn

BSteering wheel without/with

buttons

Function

CInstrument cluster

DStowage compartment

E• Stowage compartment with

interior light

• Overhead control panel

FRear-view mirror

GRear-view camera monitor

HPARKTRONIC warning display

IOpens/closes the right-hand side

window

JJack and vehicle tool kit

KGlove box

LCenter console

MIgnition lock

NAdditional switch unit

OSteering wheel adjustment

2Cockpit

At a glance

GWarning! Make sure that you read the Operator’s Manual. You may

otherwise fail to recognize hazards.

Function

PSelector lever (automatic

transmission)

QParking brake

Function

ROpens the hood

SAdditional switch unit

Cockpit 3

At a glance

GWarning! Make sure that you read the Operator’s Manual. You may

otherwise fail to recognize hazards.

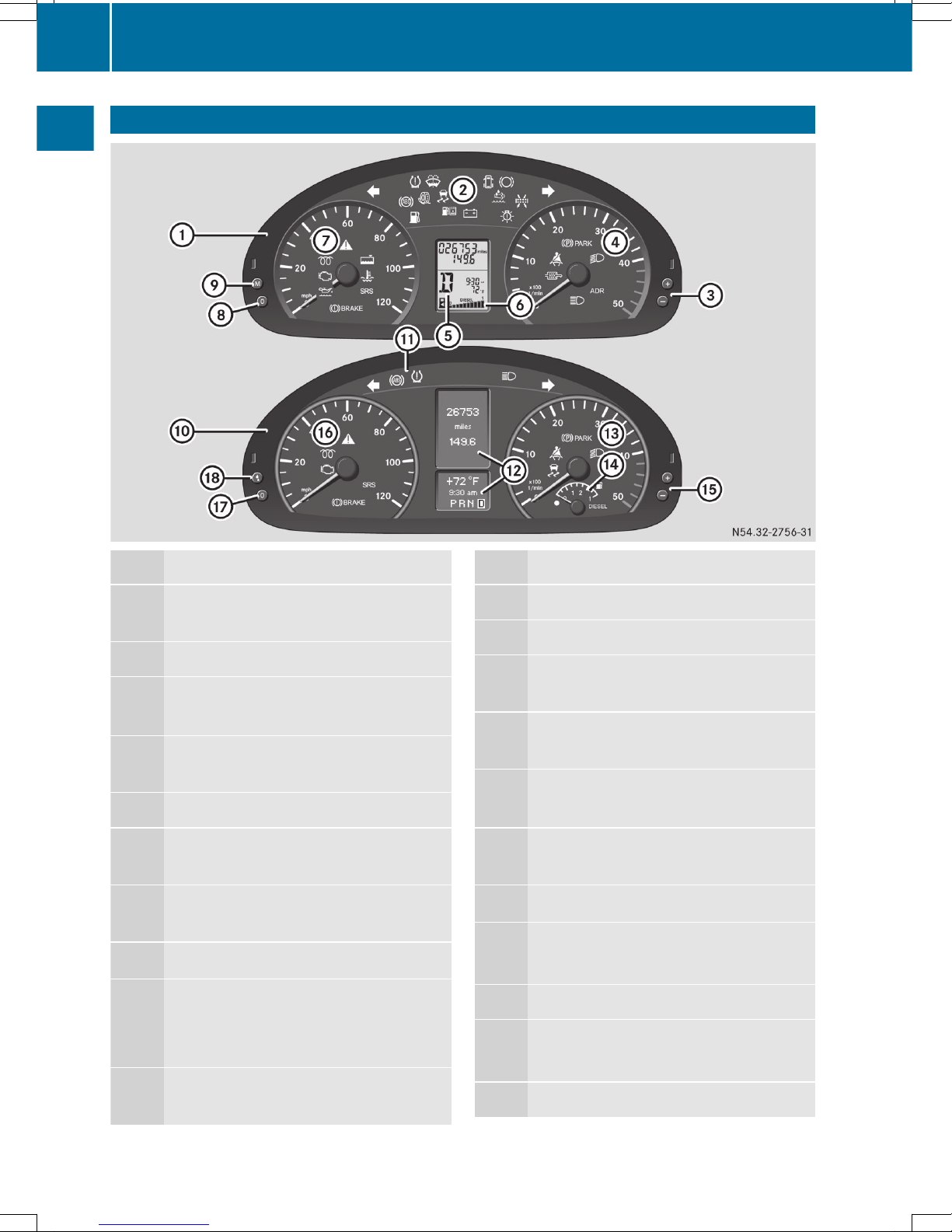

Instrument cluster variants

Function

:Instrument cluster on vehicles

without steering-wheel buttons

;Indicator and warning lamps

=f, g Brightens/dims the

instrument cluster lighting

?Tachometer with indicator and

warning lamps

ADisplay

BFuel gauge with fuel filler flap

location indicator

CSpeedometer with indicator and

warning lamps

DReset button 9

E4 Menu button:

• changes standard display

• selects menus

FInstrument cluster on vehicles

with steering-wheel buttons

Function

GIndicator and warning lamps

HDisplay

ITachometer with indicator and

warning lamps

JFuel gauge with fuel filler flap

location indicator

Kf, g Brightens/dims the

instrument cluster lighting

LSpeedometer with indicator and

warning lamps

MReset button 9

NË Service button

Checks the engine oil level

Indicator and warning lamps

dESP® warning lamp

ASR warning lamp

%Coolant level too low

4Instrument cluster variants

At a glance

GWarning! Make sure that you read the Operator’s Manual. You may

otherwise fail to recognize hazards.

Function

?Coolant temperature too high

+Restraint systems malfunction

bBrake fluid level too low

EBD malfunction

Trailer brake force booster

malfunction

4Engine oil level warning

;Check engine indicator lamp

Exhaust gas aftertreatment

malfunction

%Preglow system

GLeft-hand turn signal

hTire pressure loss or the tire

pressure monitor is malfunctioning

(USA only)

Tire pressure loss (Canada only)

¦Fluid level too low in windshield

washer/headlamp cleaning system

1Door open

#Brake pads/linings worn

JRight-hand turn signal

!ABS malfunction

:ASR malfunction

BAS malfunction

hESP® malfunction

åDEF supply low or contaminated/

thinned

Exhaust gas aftertreatment

malfunction

ÈDirt accumulation in air filter

6Reserve fuel

Fuel filler cap open

Function

:Water in the fuel

#Battery charging malfunction

bBulb defective

cParking brake applied

LLow-beam headlamps on

KWorking speed governor (ADR) on

KHigh-beam headlamps on

|Reserve fuel

Fuel filler cap open

7Fasten seat belt

iVehicles with steering-wheel buttons:

Corresponding messages may also be

shown in display H.

Instrument cluster variants 5

At a glance

GWarning! Make sure that you read the Operator’s Manual. You may

otherwise fail to recognize hazards.

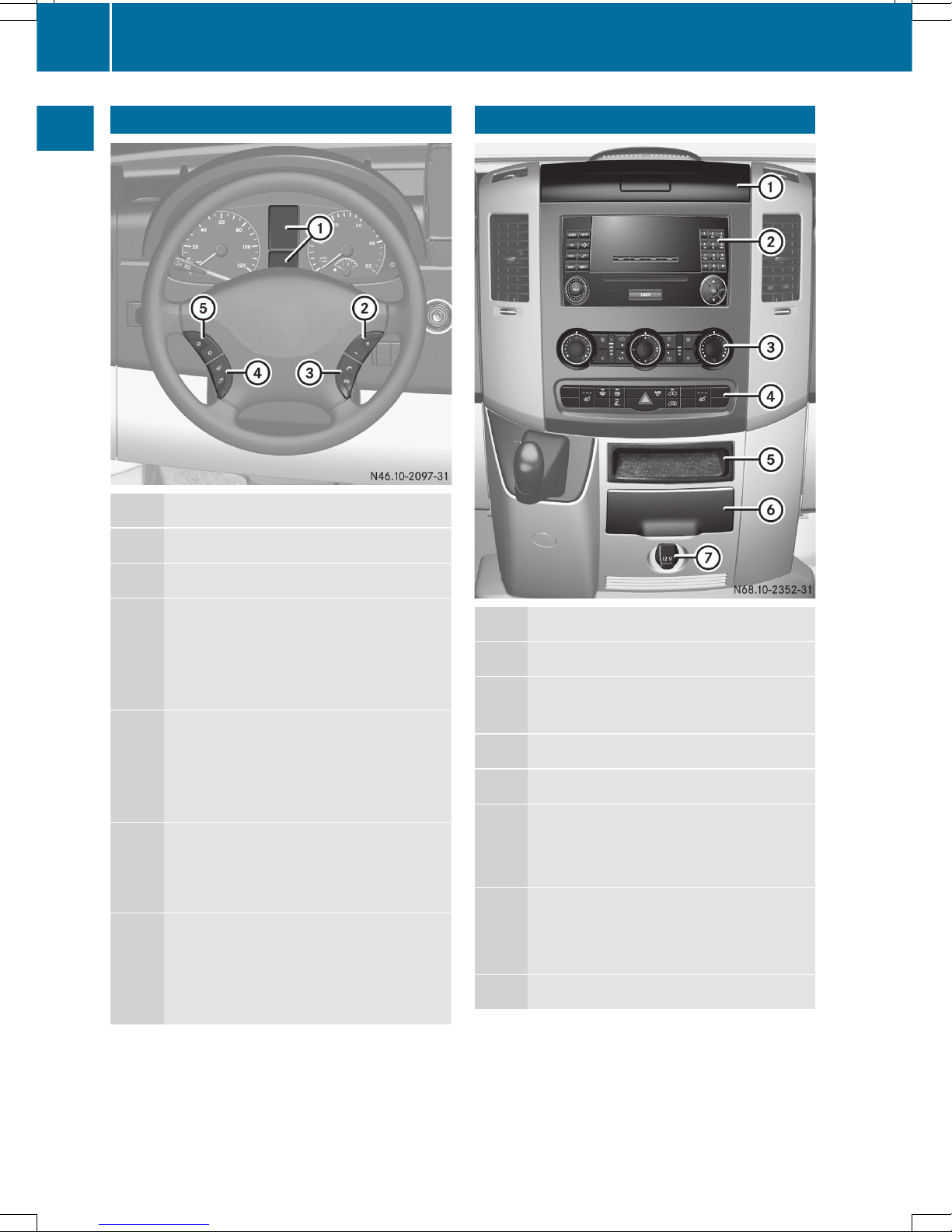

Steering wheel with buttons

Function

:Display

Controls the on-board computer

;Selects a submenu or adjusts the

volume

W Up/increases the volume

X Down/reduces the volume

=Using the telephone

6 Accepts a call/starts dialing

~ Ends a call/rejects an

incoming call

?Scrolling from one menu to another

V Forwards

U Back

AScrolling from one submenu to

another

& Forwards

* Back

Center console

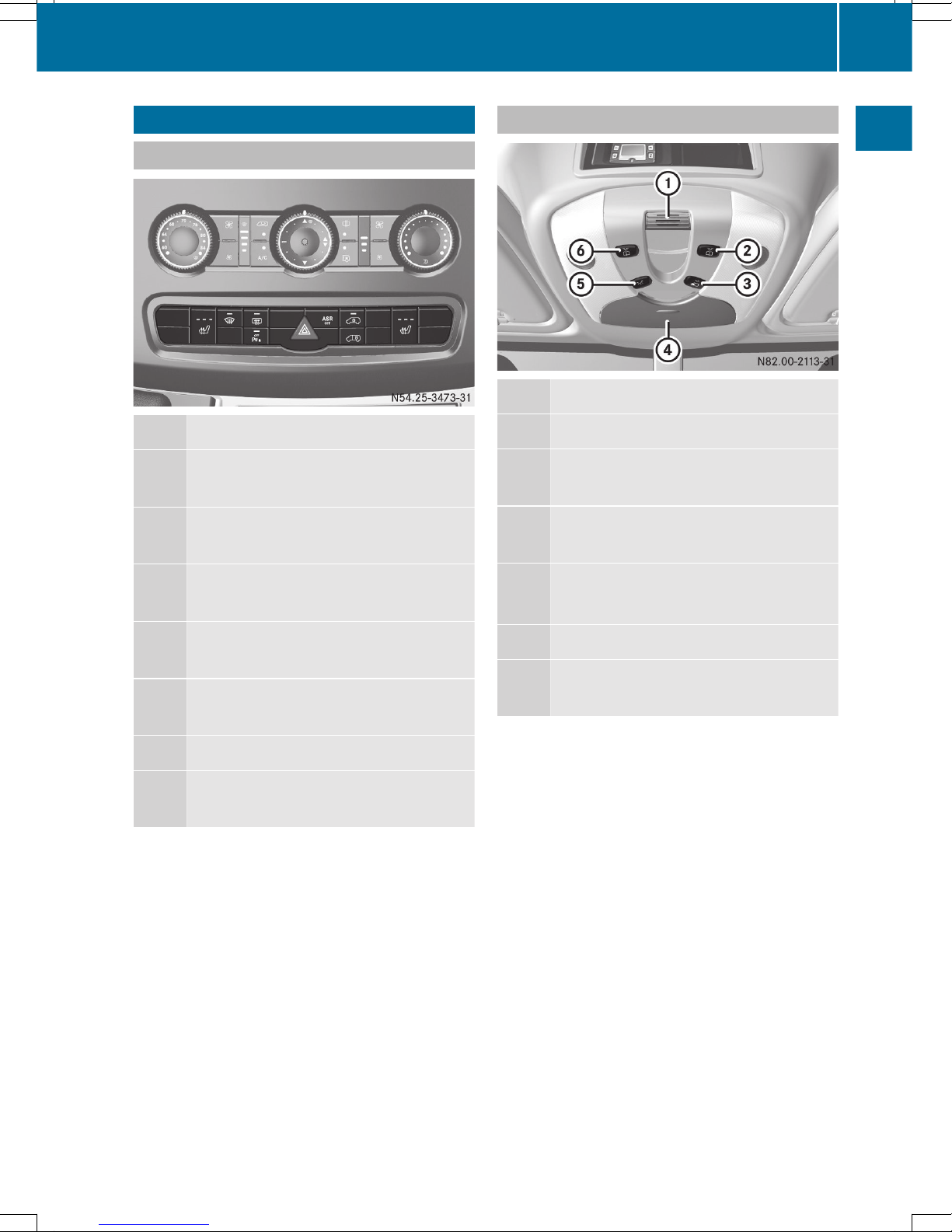

Function

:Stowage compartment

;Radio; see the separate operating

instructions

=Air-conditioning control panel

?Center console switch unit

A• Stowage compartment or

• CD changer; see the separate

operating instructions

BCup holder with:

• ashtray

• cigarette lighter

C12 V socket

6Center console

At a glance

GWarning! Make sure that you read the Operator’s Manual. You may

otherwise fail to recognize hazards.

Switch units

Center console

Function

cSwitches the left/right-hand seat

heating on/off

zSwitches the windshield heating

on/off

|Switches the rear window defroster

on/off

fActivates/deactivates

PARKTRONIC

£Switches the hazard warning lamps

on/off

àActivates/deactivates ASR

Central locking, interior/rear

compartment

Roof

Function

:Microphone for the telephone

;Switches the right-hand reading

lamp on/off

=Switches the automatic interior

lighting on/off

?• Eyeglasses compartment or

• Anti-theft alarm system (ATA)

ASwitches the interior lighting on/off

BSwitches the left-hand reading lamp

on/off

Switch units 7

At a glance

GWarning! Make sure that you read the Operator’s Manual. You may

otherwise fail to recognize hazards.

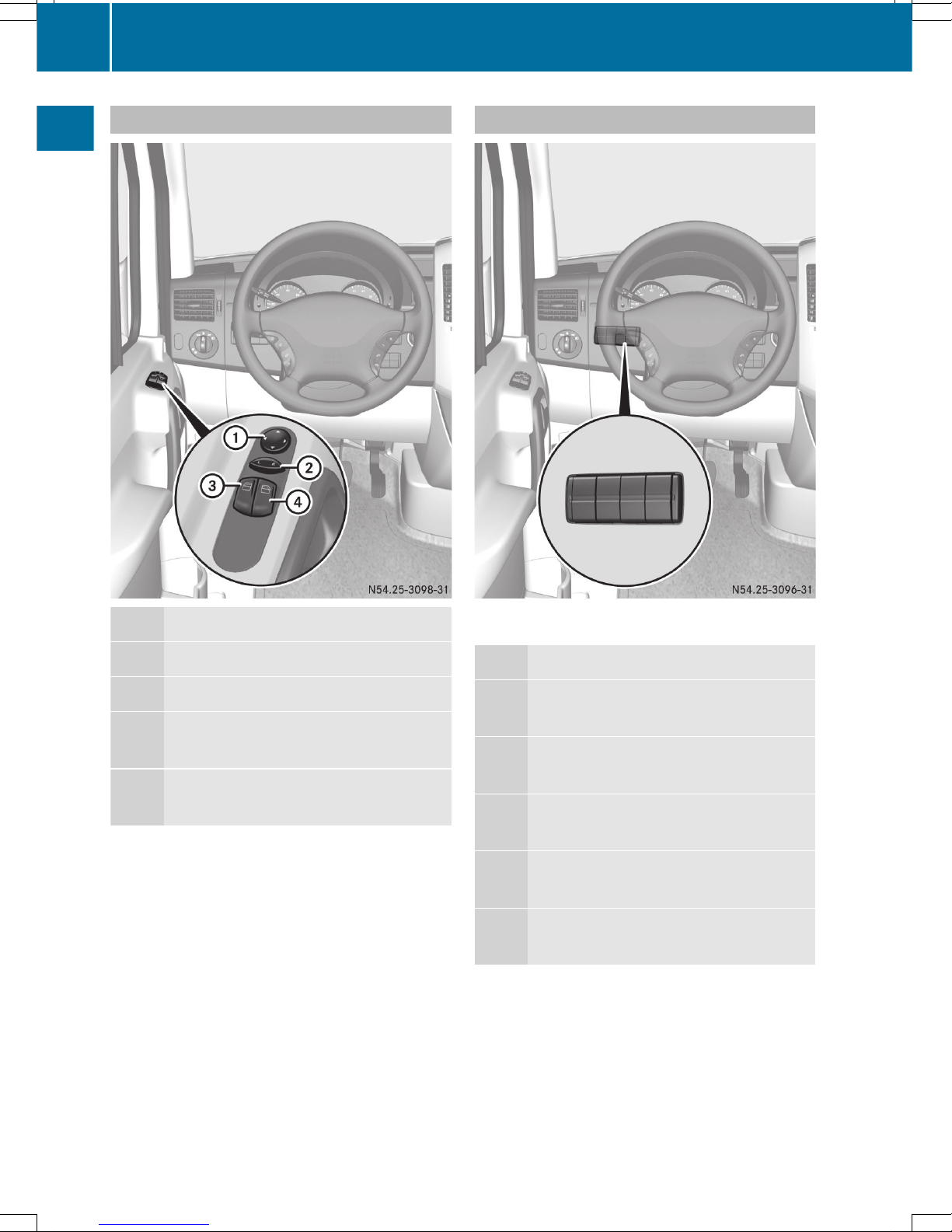

Driver's door

Function

:Adjusts the exterior mirrors

;Selects an exterior mirror

=Opens/closes the left-hand side

window

?Opens/closes the right-hand side

window

Additional switch units

Switch unit between the light switch and the

steering wheel

Function

ySwitches the auxiliary heating on/

off

±Switches the heater booster

function on/off

Sets the working speed

ESwitches the working speed

governor (ADR) on/off

Ventilates the cargo compartment

8Switch units

At a glance

GWarning! Make sure that you read the Operator’s Manual. You may

otherwise fail to recognize hazards.

Andere Handbücher für Sprinter

Inhaltsverzeichnis

Andere Mercedes-Benz Automobil Handbücher

Mercedes-Benz

Mercedes-Benz G-Class Bedienungsanleitung

Mercedes-Benz

Mercedes-Benz 2002 C 240 Bedienungsanleitung

Mercedes-Benz

Mercedes-Benz Vito Taxi 2011 Bedienungsanleitung

Mercedes-Benz

Mercedes-Benz 2011 SL-Class Bedienungsanleitung

Mercedes-Benz

Mercedes-Benz V-Class Bedienungsanleitung

Mercedes-Benz

Mercedes-Benz 2000 CLK 430 Bedienungsanleitung

Mercedes-Benz

Mercedes-Benz 2001 E 320 Bedienungsanleitung

Mercedes-Benz

Mercedes-Benz B-Class Installations- und Betriebshandbuch

Mercedes-Benz

Mercedes-Benz 2012 E-Class Sedan Bedienungsanleitung

Mercedes-Benz

Mercedes-Benz 2004 C-Class Coupe Bedienungsanleitung

Mercedes-Benz

Mercedes-Benz 2013 GL X166 Bedienungsanleitung

Mercedes-Benz

Mercedes-Benz E-Class 2010 Bedienungsanleitung

Mercedes-Benz

Mercedes-Benz 2009 GL-Class Bedienungsanleitung

Mercedes-Benz

Mercedes-Benz Series 218 Coupe Referenzhandbuch

Mercedes-Benz

Mercedes-Benz C-Class Bedienungsanleitung

Mercedes-Benz

Mercedes-Benz 2007 GL 320 CDI Bedienungsanleitung

Mercedes-Benz

Mercedes-Benz 2001 SLK 320 Bedienungsanleitung

Mercedes-Benz

Mercedes-Benz 2010 E-Class Sedan Bedienungsanleitung

Mercedes-Benz

Mercedes-Benz 2009 E-Class Bedienungsanleitung

Mercedes-Benz

Mercedes-Benz S-Class Maybach Bedienungsanleitung

Mercedes-Benz

Mercedes-Benz GLC 2020 Bedienungsanleitung

Mercedes-Benz

Mercedes-Benz AMG E-Class Betriebsanleitung

Mercedes-Benz

Mercedes-Benz 2013 SLK 55 AMG Bedienungsanleitung

Mercedes-Benz

Mercedes-Benz C-Class Coupe Bedienungsanleitung

Beliebte Automobil Handbücher anderer Marken

Toyota

Toyota 2000 Tundra Bedienungsanleitung

CITROËN

CITROËN DS4 DSign Bedienungsanleitung

Lexus

Lexus 2015 CT 200h Bedienungsanleitung

Cadillac

Cadillac CTS 2008 Bedienungsanleitung

Porsche

Porsche Boxster S Bedienungsanleitung

GMC

GMC 2010 Savana 1500 Cargo Bedienungsanleitung

KIAM

KIAM SPORTAGE 2014 Stücklistenhandbuch

GMC

GMC 2013 Terrain Montageanleitung

GMC

GMC T-Series 1999 Bedienungsanleitung

Mercury

Mercury 1998 Mystique Bedienungsanleitung

Mercury

Mercury 2007 Mariner Bedienungsanleitung

Mazda

Mazda 2007 Mazdaspeed 3 Leitfaden

Mazda

Mazda 2014 CX-5 Bedienungsanleitung

GMC

GMC Chevrolet Express 2022 Bedienungsanleitung

GMC

GMC 1997 Jimmy Bedienungsanleitung

Chevrolet

Chevrolet 2012 Malibu Bedienungsanleitung

Cadillac

Cadillac 2010 Escalade Bedienungsanleitung

Skoda

Skoda FABIA RS - ANNEXE 118 Bedienungsanleitung
