This publication, including all photographs, illustrations and

software, is protected under international copyright laws, with all

rights reserved. Neither this manual, nor any of the material

contained herein, may be reproduced without written consent of the

author.

The information in this document is subject to change without

notice. The manufacturer makes no representations or warranties

with respect to the contents hereof and specifically disclaims any

implied warranties of merchantability or fitness for any particular

purpose. Further, the manufacturer reserves the right to revise this

publication and to make changes from time to time in the content

hereof without obligation of the manufacturer to notify any person

of such revision or changes.

Trademarks

IBM, VGA, and PS/2 are registered trademarks of International

Business Machines.

Intel, Pentium/II/III, Pentium 4, Celeron and MMX are registered

trademarks of Intel Corporation.

Microsoft, MS-DOS and Windows 98/ME/NT/2000/XP are

registered trademarks of Microsoft Corporation.

PC-cillin is a registered trademark of Trend Micro Inc.

AMI is a registered trademark of American Megatrends Inc.

SiS is a trademark of Silicon Integrated System Corporation.

Other brands or product names in this manual are trademarks or the

properties of their respective owners and are acknowledged.

KVM400M-L Series, V1.3A

KM400/January 2004

Table of Contents

Trademarks....................................................................................I

Chapter 1: Introduction................................................................1

Key Features............................................................................2

Package Contents.....................................................................5

Static Electricity Precautions...................................................6

Pre-Installation Inspection.......................................................6

Chapter 2: Mainboard Installation..............................................7

Mainboard Components ..........................................................8

I/O Ports...................................................................................9

Installing the Porcessor..........................................................10

Installing Memory Modules ..................................................11

Jumper Settings......................................................................12

Install the Mainboard.............................................................13

Connecting Optional Devices................................................14

Install Other Devices .............................................................16

Expansion Slots ....................................................................19

Chapter 3: BIOS Setup Utility ...................................................20

Introduction ...........................................................................20

Running the Setup Utility...........…………………………...21

Standard CMOS Setup Page..................................................22

Advanced Setup Page............................................................23

Power Management Setup Page ............................................25

PCI/Plug and Play Setup Page...............................................27

Load Optimal Settings...........................................................28

Load Best Performance Settings............................................28

Features Setup Page...............................................................28

CPU PnP Setup Page.............................................................30

Hardware Monitor Page.........................................................31

Change Password...................................................................31

Exit ........................................................................................32

Chapter 4: Software & Applications..........................................33

Introduction ...........................................................................33

Installing Support Software...................................................34

Bundled Software Installation...............................................36

Notice:

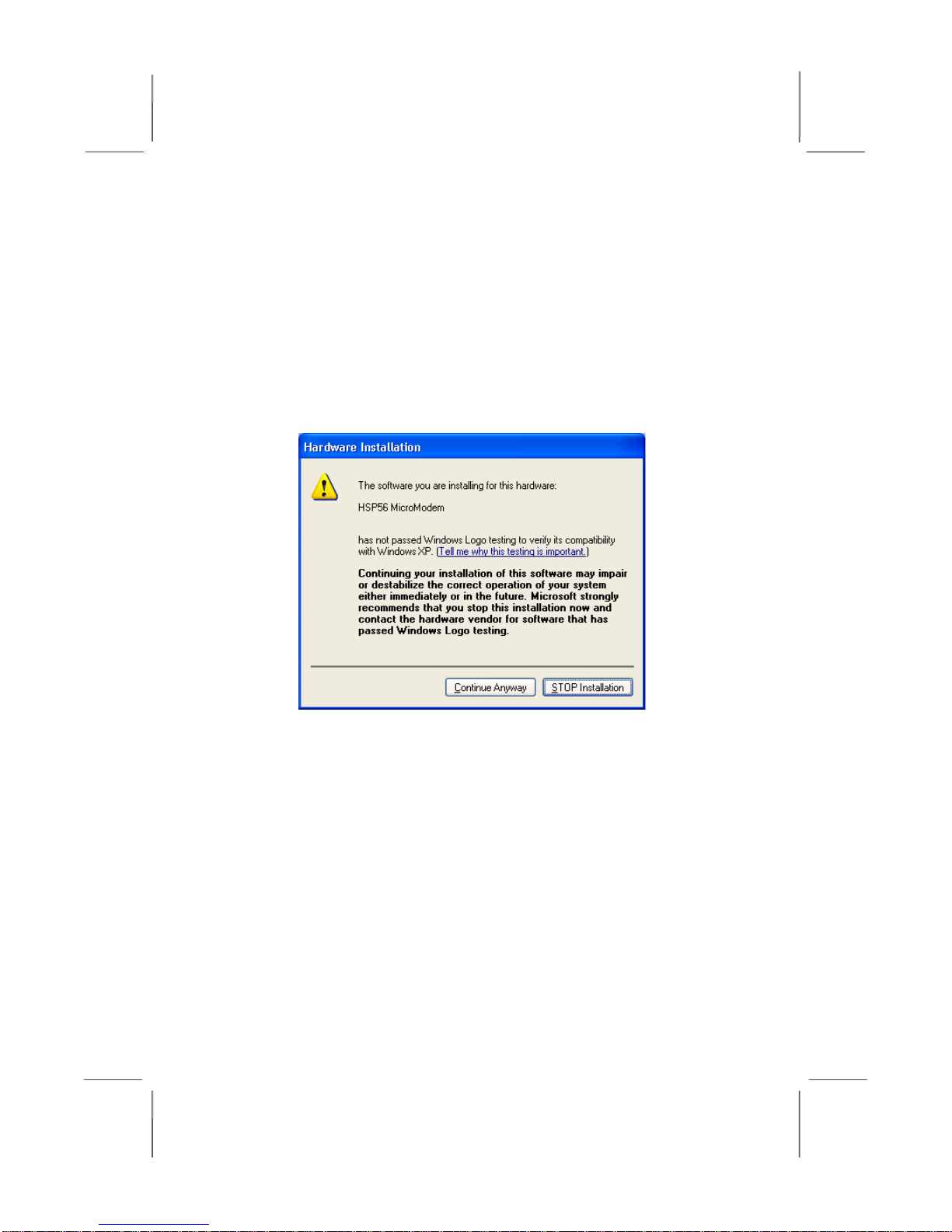

1. Owing to Microsoft’s certifying schedule is various to every

supplier, we might have some drivers not certified yet by

Microsoft. Therefore, it might happen under Windows XP that

a dialogue box (shown as below) pop out warning you this

software has not passed Windows Logo testing to verify its

compatibility with Windows XP. Please rest assured that our

RD department has already tested and verified these drivers.

Just click the “Continue Anyway” button and go ahead the

installation.

2. USB 2.0 Driver Limitations:

2-1.The USB 2.0 driver only supports Windows XP and

Windows 2000.

2-2.If you connect a USB 2.0 hub to the root hub, plugging

USB devices into this hub, the system might not successfully

execute certain USB devices’ connection because it could not

recognize these devices.

III

Chapter 1

Introduction

This mainboard has a Socket-462 processor socket for the AMD

K7 type of processors. You can install any of these processors on

this mainboard. This mainboard supports front-side bus speed of

200/166 MHz.

This mainboard integrates the VIA KM400A/400 Northbridge

along with VT8237/8235CE Southbridge chipsets that supports

built-in AC97 Codec, 2DDR400/333 modules up to 2GB system

memory. This mainboard has one CNR (Communications and

Networking Riser) slot to support Audio and Modem application,

two PCI slots and the built-in 10BaseT/100BaseTX Network

Interface (optional).

There is a full set of I/O ports including two PS/2 ports for mouse

and keyboard, one serial port, one VGA port, one parallel port and

maximum eight USB2.0 ports with SB VT8237, or maximum six

ports with SB VT8235CE (four back-panel USB ports and two

onboard connectors USB2/USB3 making four/two extra USB

ports by connecting the Extended Module to the mainboard).

This mainboard is a FLEX ATX size (230 x 200 mm) mainboard

that has power connectors for an ATX power supply.

Key Features

This mainboard has the following key features:

Socket-462 Processor Support

♦Supports AMD Athlon XP/Athlon/Duron processors

♦Supports 200 MHz Front-Side Bus (with NB KM400A)

or 166 MHz Front-Side Bus (with NB KM400)

Chipset

There are VIA KM400A/400 Northbridge and VT8237/8235CE

Southbridge in this chipset in accordance with an innovative and

scalable architecture with proven reliability and performance.

Northbridge Front-Side Bus DDR

KM400A200 MHz 200 MHz

KM400 166 MHz 166 MHz

Note: There will be two extra USB connectors (USB2 & USB3) and two

Serial ATA connectors (J4 & J5) when SB is VT8237; only one

extra USB connector (USB2) when SB is VT8235CE.

Memory Support

♦Two 184-pin DIMM sockets for DDR memory modules

♦Support DDR 400/333 memory

♦Maximum installed memory is 2GB

Expansion Slots

♦One 8xAGP slot for AGP 2.0-compliant interface

♦One CNR (Communications and Networking Riser) slot to

insert special riser cards with Audio/Modem functionality

♦Two 32-bit PCI slots for PCI 2.2-compliant bus interface

Onboard IDE channels

♦Primary and Secondary PCI IDE channels

♦Support for PIO (programmable input/output) modes

♦Support for Multiword DMA modes

♦Support for Bus Mastering and Ultra DMA ATA 100/133

modes

Power Supply and Power Management

♦ATX power supply connector

♦Meets ACPI 1.0b and APM 1.2 requirements, keyboard

power on/off

♦Supports RTC Alarm, Wake On Modem, AC97 Wake-Up

and USB Wake-Up

AC97 Audio Codec

♦Compliant with AC’97 2.1 specification

♦Three Audio Jacks – Line-Out, Line-In and Microphone-In

♦Sound Blaster, Sound Blaster Pro Compatible

♦Digital I/O compatible with consumer mode S/PDIF

♦Advanced power management support

Onboard I/O Ports

The mainboard has a full set of I/O ports and connectors:

♦Two PS/2 ports for mouse and keyboard

♦One serial port

♦One parallel port

♦One VGA port

♦Eight USB2.0 ports with SB VT8237, or six ports with SB

VT8235CE (four back-panel USB ports and onboard USB

connectors making four/two extra USB ports

♦Audio jacks for microphone, line-in and line-out

Hardware Monitoring

♦Built-in hardware monitoring for CPU & System

temperatures, fan speeds and mainboard voltages.

Onboard Flash ROM

♦Supports Plug and Play configuration of peripheral devices

and expansion cards

Built-in Ethernet LAN (optional)

♦10Base-TX/100Base-T Physical Layer Solution

♦Dual Speed – 100/10 Mbps

♦MII Interface to Ethernet Controller/Configuration & Status

♦Auto Negotiation: 10/100, Full/Half Duplex

♦Meet All Applicable IEEE802.3, 10Base-T and 100Base-

TX Standards

USB 2.0

♦Compliant with Universal Serial Bus Specification

Revision 2.0

♦Compliant with Intel’s Enhanced Host Controller

Interface Specification Revision 0.95

♦Compliant with Universal Host Controller Interface

Specification Revision 1.1

♦PCI multi-function device consists of two UHCI Host

Controller cores for full-/low-speed signaling and one

EHCI Host Controller core for high-speed signaling

♦Root hub consists 4 downstream facing ports with

integrated physical layer transceivers shared by UHCI and

EHCI Host Controller

♦Support PCI-Bus Power Management Interface

Specification release 1.1

♦Legacy support for all downstream facing ports

Bundled Software

♦PC-Cillin2002 provides automatic virus protection under

Windows 98/ME/NT/2000/XP

♦Adobe Acrobat Reader V5.0 is the software to help users

read .PDF files.

Dimensions

♦FLEX ATX form factor 230 x 200 mm

Note: Hardware specifications and software items

are subject to change without notification.

Package Contents

Your mainboard package contains the following items:

The mainboard

The User’s Manual

One diskette drive ribbon cable (optional)

One IDE drive ribbon cable

Software support CD

Optional Accessories

You can purchase the following optional accessories for this

mainboard.

Extended USB module

CNR v.90 56K Fax/Modem card

Card Reader (You can buy your own Card Reader from the

third party, but please contact your local Card Reader vendor

on any issues of the specification and compatibility.)

Static Electricity Precautions

Static electricity could damage components on this mainboard.

Take the following precautions while unpacking this mainboard

and installing it in a system.

1. Don’t take this mainboard and components out of their original

static-proof package until you are ready to install them.

2. While installing, please wear a grounded wrist strap if possible.

If you don’t have a wrist strap, discharge static electricity by

touching the bare metal of the system chassis.

3. Carefully hold this mainboard by its edges. Do not touch those

components unless it is absolutely necessary. Put this

mainboard on the top of static-protection package with

component side facing up while installing.

Pre-Installation Inspection

1. Inspect this mainboard whether there are any damages to

components and connectors on the board.

2. If you suspect this mainboard has been damaged, do not

connect power to the system. Contact your mainboard vendor

about those damages.

Inhaltsverzeichnis

Andere Mercury Hauptplatine Handbücher

Mercury

Mercury PI865GVM7 Series Bedienungsanleitung

Mercury

Mercury KVM266PM-U Series Bedienungsanleitung

Mercury

Mercury PI845GVM-P Bedienungsanleitung

Mercury

Mercury P4VM800M7 Series Bedienungsanleitung

Mercury

Mercury kob 630e fst Bedienungsanleitung

Mercury

Mercury PI915GVM Series Bedienungsanleitung

Mercury

Mercury KOB KM266 FDSMx Bedienungsanleitung

Mercury

Mercury KOB 630e CFSF Bedienungsanleitung

Mercury

Mercury PVCLE266M-L Series Bedienungsanleitung

Mercury

Mercury KN6100M Bedienungsanleitung

Mercury

Mercury KOB KT266A FDSX Bedienungsanleitung

Mercury

Mercury KOB 694X TFSX Bedienungsanleitung

Mercury

Mercury KVM266PM Bedienungsanleitung

Mercury

Mercury PI845GVM-AGP Bedienungsanleitung

Mercury

Mercury RACE++ PowerPC 7410 Bedienungsanleitung

Mercury

Mercury KVM800M Series Bedienungsanleitung

Mercury

Mercury KOB 810e FST Bedienungsanleitung

Mercury

Mercury KOB 845 NDFSX Bedienungsanleitung

Mercury

Mercury KOB 694X FSX Bedienungsanleitung

Mercury

Mercury PVT800X7 Series Bedienungsanleitung

Mercury

Mercury KOB 845GL Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
