METREL DELTAPAT Series Montageanleitung

www.portableappliancetesters.com.au/support

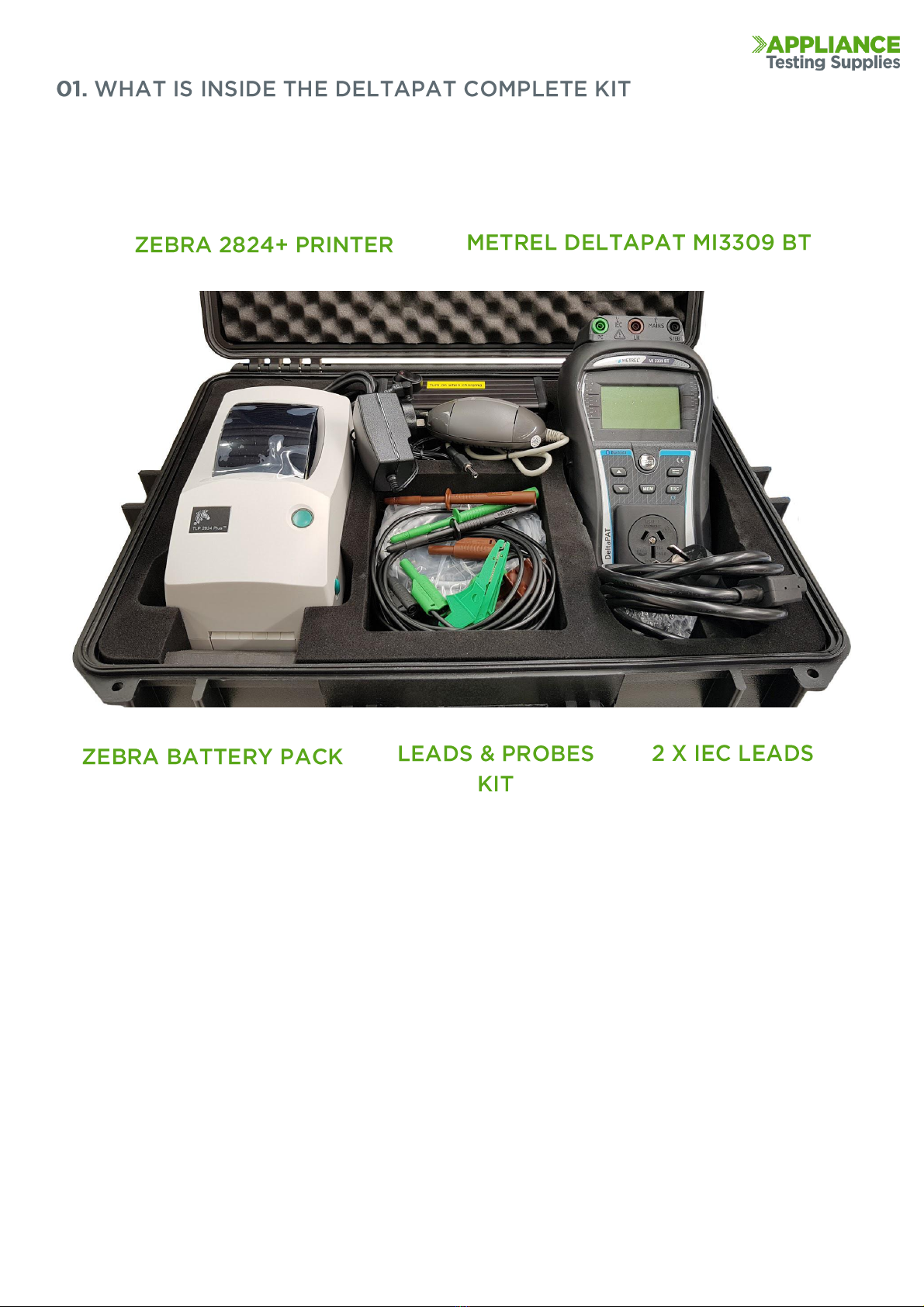

Also Included with the kit:

AC Power Supply for the Zebra Printer

Thermal Ribbon installed in Printer

Roll of 500 Tags

Heavy Duty Case

Zebra Bluetooth Adapter

Bluetooth Initialisation Cable

www.portableappliancetesters.com.au/support

Firstly you will need to download the Patlink software from the Google Play Store. This can be accessed

on your Android Device through the Google Play Store. The software is free to download, but requires

an activation code to register the full version. This activation code is supplied when you purchase the

Metrel Deltapat Complete Kit, additional licences can be purchase individually.

You will need to search for and install Patlink on your device from the Google Play store, it will display

an icon that looks like this. You can download the app from here:

https://play.google.com/store/apps/details?id=si.metrel.patlink

Once the app has downloaded to your device, open it and you will get the main home screen

This the main screen to connect to with devices, from this screen you will need to go into Settings to:

Activate the software

Select your Printer

This screen also allows you to connect to your Metrel Delta appliance

tester, scan previously printed tags, and change settings.

The current connection status of the Tester is located in the top left

corner. This will default to Disconnected unless you have manually

connected.

It is worth checking the Google Play Store for updates to the app as

they are released periodically to fix bugs and improve the application

www.portableappliancetesters.com.au/support

You will need to activate the software with the supplied code, this is usually located inside the quick start guide or

under the foam in the lid of the case. This activation provides the full functionality of the software.

From the main home screen, go to Settings

Then Device Activation

Select the Key with a Plus in the bottom left corner to add a new tester

Make sure the DeltaGT is turned on, it should appear in blue, the last series of numbers will be the same as the serial

number located on the back of your tester.

www.portableappliancetesters.com.au/support

Choose the MI 3309BT and it will prompt you to enter the activation

code supplied. Enter it and then press OK

The Device should appear as an Activated Device and the process is complete.

The printer only needs to be setup once within the software, you don’t need to connect to the printer each time, the

connection is between the Android device and the Metrel Tester, THe printer only comes into play when you press

the print button after a test has been performed and saved.

To setup the printer, go to Settings

Then Select BT Printer

A list of available Bluetooth devices will appear, ZebraPRN should appear in green.

www.portableappliancetesters.com.au/support

Select it and then you should see the ZebraPRN as your default

printer. This will now be the default printer when you press the

print button after a completed test.

The Metrel Tester also needs to be setup to the correct printer, this should be set when purchased but if the unit is

wiped or deleted, you may need to set this up again.

On the Delta, use the UP / DOWN keys until the menu shows SETUP.

Press Test and then scroll down to Communication and press the Test button again

Scroll through the Printer options until Zebra BT is selected

Scroll down to PRN Name and press Test, the unit should scan and find ZebraPRN

www.portableappliancetesters.com.au/support

Select ZebraPRN and then it should return you to the communiations screen with PRN NAME: ZebraPRN chosen

You can now escape back to the main screen

www.portableappliancetesters.com.au/support

To start performing tests, from the main home screen you go to scan for devices and select your Metrel Tester, it will

then take you to the main data screen.

From here you enter the 4 Key pieces of

information.

Appliance ID - The unique Identification number

for the appliance

Appliance name - The description of the appliance

being tested

Retest Period (in months) - When the appliance is

next due for retesting.

Location - Where the appliance is stored, this is

how it will be grouped and reported when

downloaded to the computer.

We do not use the SHORTCODE function in

Australia

The 6 buttons on the bottom left are the same 6 buttons located on the front of your Metrel Appliance Tester and

allow you to navigate and control the machine.

The First step is to enter the four pieces of information on the appliance you are about to test.

Once that is entered, you press the Up, Down and OK/Test Buttons to navigate to the Simple Test menu on the

Delta, and then select the correct test for the appliance you are checking. Press Test to start the test process.

Once the test is completed and you are on the Overall Results screen of your Delta tester, you can press Save and

the Delta will beep, then press Print and a tag should come out.

You can then change whatever details you need to for the next test, then repeat the process.

www.portableappliancetesters.com.au/support

Plug the transformer into the battery and the wall adaptor into the wall power outlet; ensure that the battery

is turned on while charging. There should be an LED illuminated on both the transformer and

wall adaptor.

The transformer will glow orange during charging and then green when fully charged. This can take upto 6 hours to

fully charge from flat.

To run the printer off mains power, you will need to lift

the printer out of the foam casing, disconnect the lead

from the printer to battery and replace it with the mains

power lead as seen above.

Then connect the 240v power plug to mains power and

the printer should turn on with a green light.

www.portableappliancetesters.com.au/support

To have the Tester details appear on the tag, you need to specify a user on the Delta Pat.

From the Main menu select Setup and then scroll to User Data. You will be provided with Users 1 - 5, press the Tab

(the left and right arrow buttons) and you can enter the user details you wish to appear on the tag.

There is a maximum of 12 usable characters, you press the up and down buttons to scroll through the letters and

numbers and the press Test to select the character you wish.

Once the correct details are entered, press the Mem button to save the details, then press Test to select that user.

That user will then appear on all future tags, to change the user just go into Setup then User Data and either create

another user, or select a previous one and press Test.

This is a quick guide on retrieving results with the PATLink Pro software from a MI

3309 Delta tester, and creating a report.

Open Metrel PATLink Pro on your computer.

Press on the Instrument menu, then press “Get Results”

You will be prompted to enter the serial information to connect to the device.

You will need to determine what COM port your computer has assigned to the

cable, otherwise you can tick Auto-detect (COM port, Baud rate) and it will

scan through each of the COM ports and baud rates.
