OPERATING INSTRUCTIONS ADDENDUM ULTRASERIES

UMS-SM SINGLE MOUNT SUBWOOFER

The UMS-SM subwoofer is a version of the UMS-1P sub-

woofer with threaded end plates for single-mount configura-

tions with the UMS-SM U-bracket. The UMS-SM end plates

are factory-installed (with the U-bracket) and not available

as an upgrade option for the UMS-1P. The UMS-SM retains

the same acoustical and electrical characteristics of the

UMS-1P.

NOTE: The UMS-SM mounting plates come

standard with the unit and are factory-installed

the U-bracket. The end plates are not available as an

upgrade option for UMS-1P subwoofers.

NOTE: For complete information on the electri-

cal and acoustical characteristics of the

UMS-SM, refer to the UMS-1P Operating Instruc-

tions.

Important Safety Considerations for Rigging!

When installing Meyer Sound loudspeakers, the following

precautions should always be observed:

■All Meyer Sound products must be used in accordance

with local, state, federal, and industry regulations. It is

the owner’s and user’s responsibility to evaluate the reli-

ability of any rigging method for their application. Rigging

should only be carried out by experienced professionals.

■Use mounting and rigging hardware that has been rated

to meet or exceed the weight being hung.

■Make sure to attach mounting hardware to the building's

structural components (studs or joists), and not just to

the wall surface. Verify that the building's structure and

the anchors used for the installation will safely support

the total weight of the mounted loudspeakers.

■Use mounting hardware appropriate for the surface

where the loudspeaker will be installed.

■Make sure bolts and eyebolts are tightened securely.

Meyer Sound recommends using Loctite®on eyebolt

threads and safety cables.

■Inspect mounting and rigging hardware regularly. Imme-

diately replace any worn or damaged components.

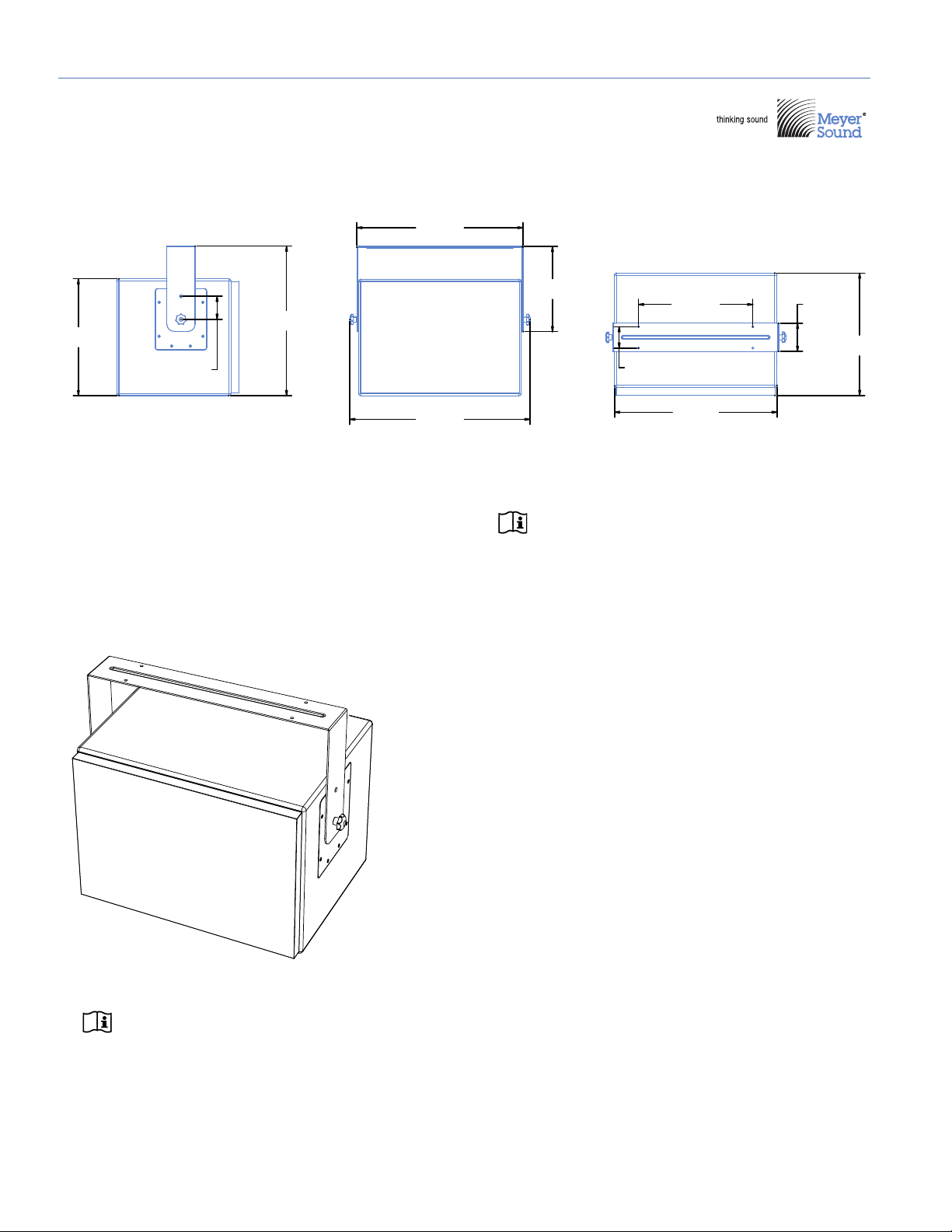

UMS-SM Dimensions with U-Bracket

25.24

[641.00mm]

23.27

[591.00mm]

11.93

[303.00mm]

20.92

[531.34mm]

16.34

[415.16mm]

3.22

[81.68mm]

22.75

[577.85mm]

17.13

[435.10m

3.94

[100.00mm]

16.00

[406.40mm]

2.99

[76.00mm]

UMS-SM Subwoofer with U-Bracket

Meyer Sound Laboratories Inc.

2832 San Pablo Avenue

Berkeley, CA 94702

Meyer Sound Laboratories Inc.

05.086.005.01 A

www.meyersound.com

Tel: +1 510 486.1166

Fax: +1 510 486.8356

THE UMS-SM U-BRACKET

The UMS-SM U-bracket mounts a single UMS-SM sub-

woofer on walls and ceilings. The U-bracket has two sets of

attachment points that determine how closely the UMS-SM

is mounted to the surface. The subwoofer can also be tilted

as necessary to affect coverage.

The U-bracket is factory installed with the UMS-SM and

attached to its end plates with two M10, 25 mm knobs and

two neoprene washers (placed between the subwoofer’s

end plates and the U-bracket).

UMS-SM U-Bracket Load Ratings

The UMS-SM U-bracket has four 1/4” corner mounting

holes for attaching the bracket to mounting surfaces.

The load rating for the U-bracket’s mounting holes, when

suspending a single UMS-SM subwoofer, is as follows:

■1 UMS-SM (load evenly distributed) at a 7:1 safety rating

ABOUT THIS ADDENDUM

Information and specifications are subject to change.

Updates and supplementary information are available on the

Meyer Sound website:

http://www.meyersound.com

Meyer Sound Technical Support is available at:

■Tel: +1 510 486.1166

■Fax: +1 510 486.8356

■Email: [email protected]

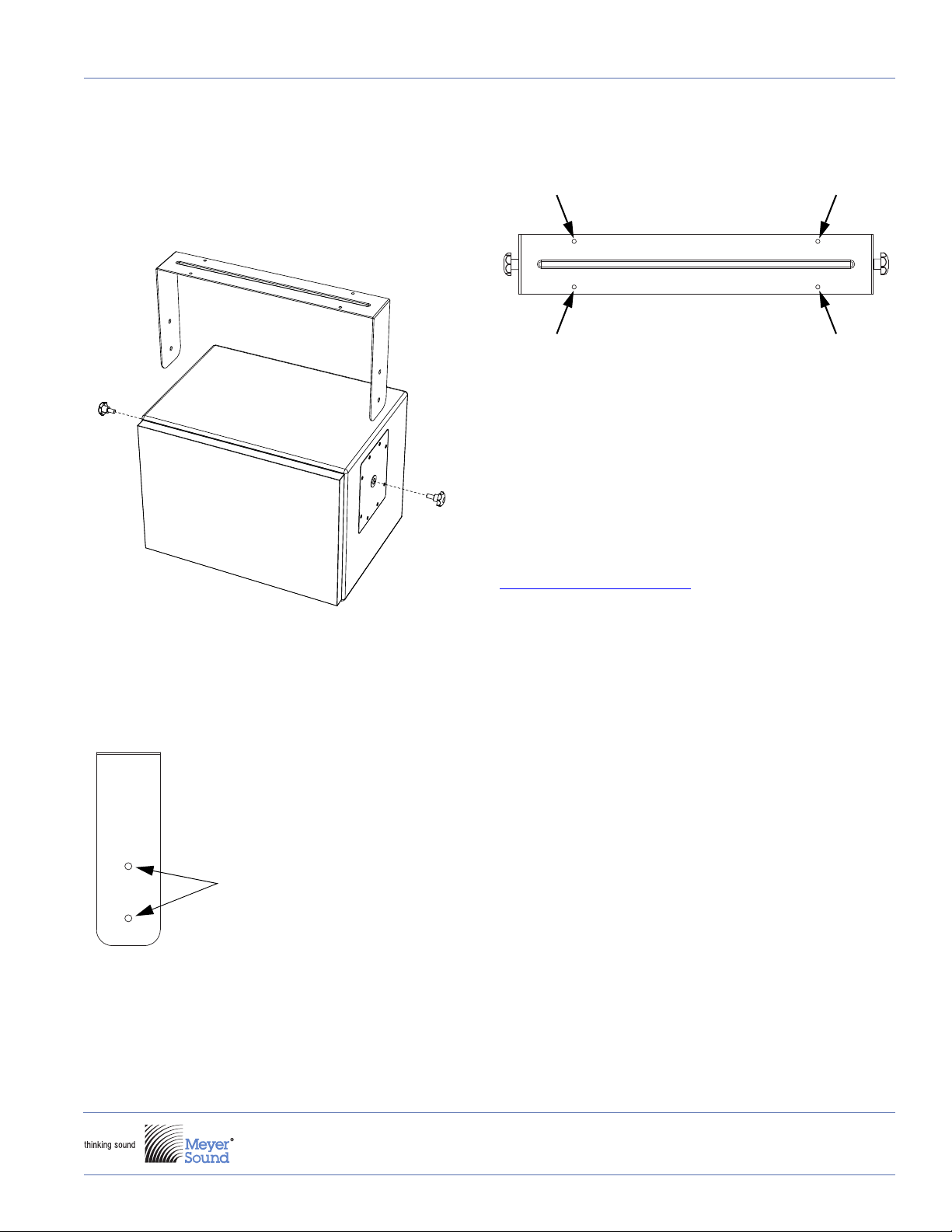

UMS-SM U-Bracket Exploded View

UMS-SM U-Bracket Side Attachment Points

Attach UMS-SM to either

of these two points

UMS-SM U-Bracket Mounting Holes
