User Guide
1
User Guide
AC1200 Gigabit Dual Band Wi-Fi Router
T18 Pro
User Guide
2
Contents
About this Guide
Chapter 1. Get to Know About Your Router
Chapter 2. Connect to the Internet
Chapter 3. Revise Wi-Fi Password
Chapter 4. Configure EasyMesh
Chapter 5. Other Information
User Guide
3
About this Guide
This user guide shows you the way to configure the router appropriate to your needs.
Chapter 1. Get to Know About Your Router
This chapter introduces the main features and shows its appearance.
It chapter contains the following sections:
Main Features
Appearance
1.1. Main Features
①: Superfast dual band Wi-Fi, up to 1.2Gbps Wi-Fi speed, 300Mbps 2.4GHz, 867Mbps
5GHz.
②: All gigabit ports, support 1000Mbps WAN port and three 1000Mbps LAN port, for fast
data transfer speed.
③: 4 external antennas provide stable wireless connections and optimal coverage.
④: Beamforming technology boosts the Wi-Fi coverage.

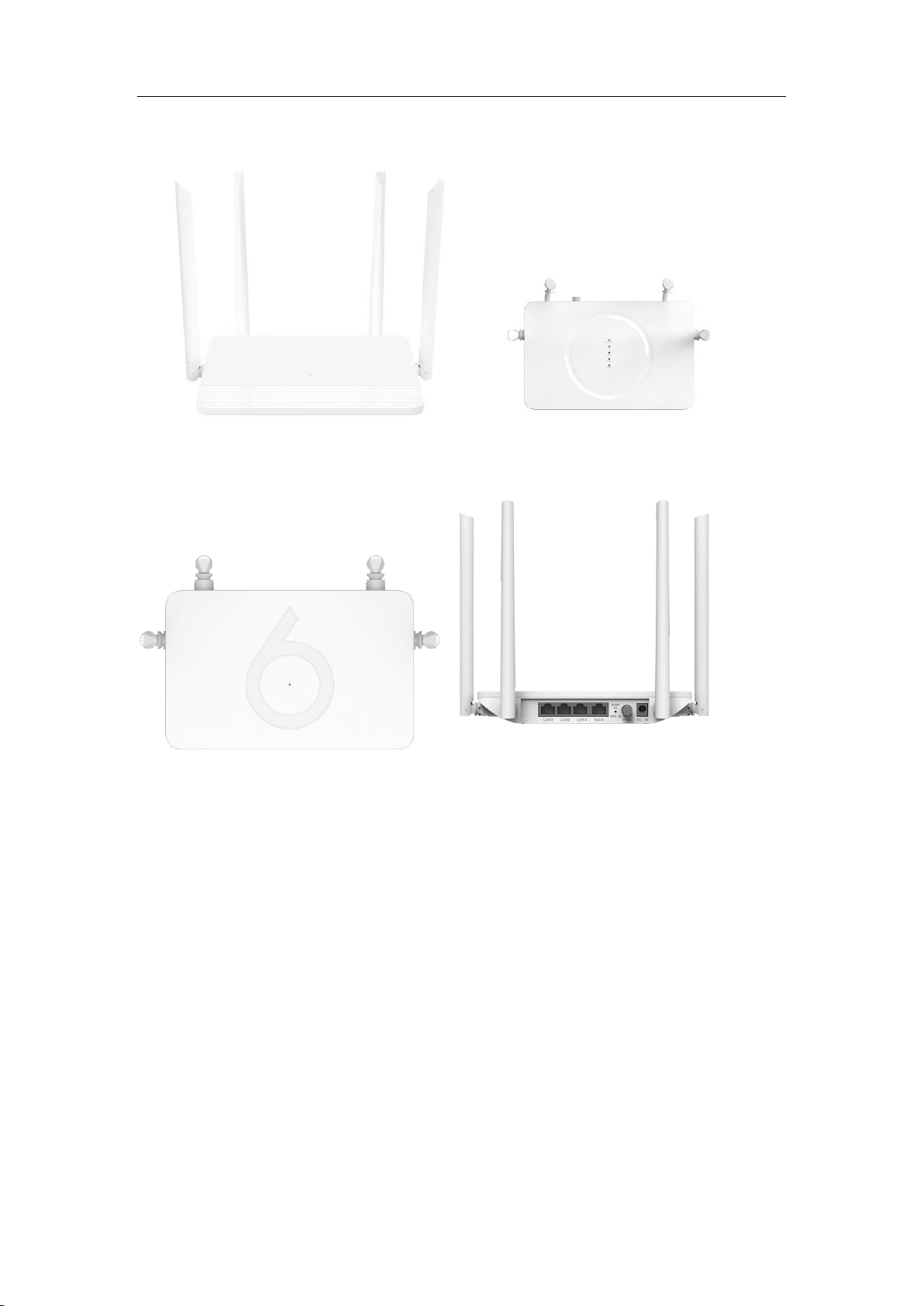

1.2. Appearances
User Guide
4
Chapter 2. Connect to the Internet
This chapter introduces how the router connects to the Internet.
It chapter contains the following sections:
Schematic Diagram of Router Connection
Configure the Internet

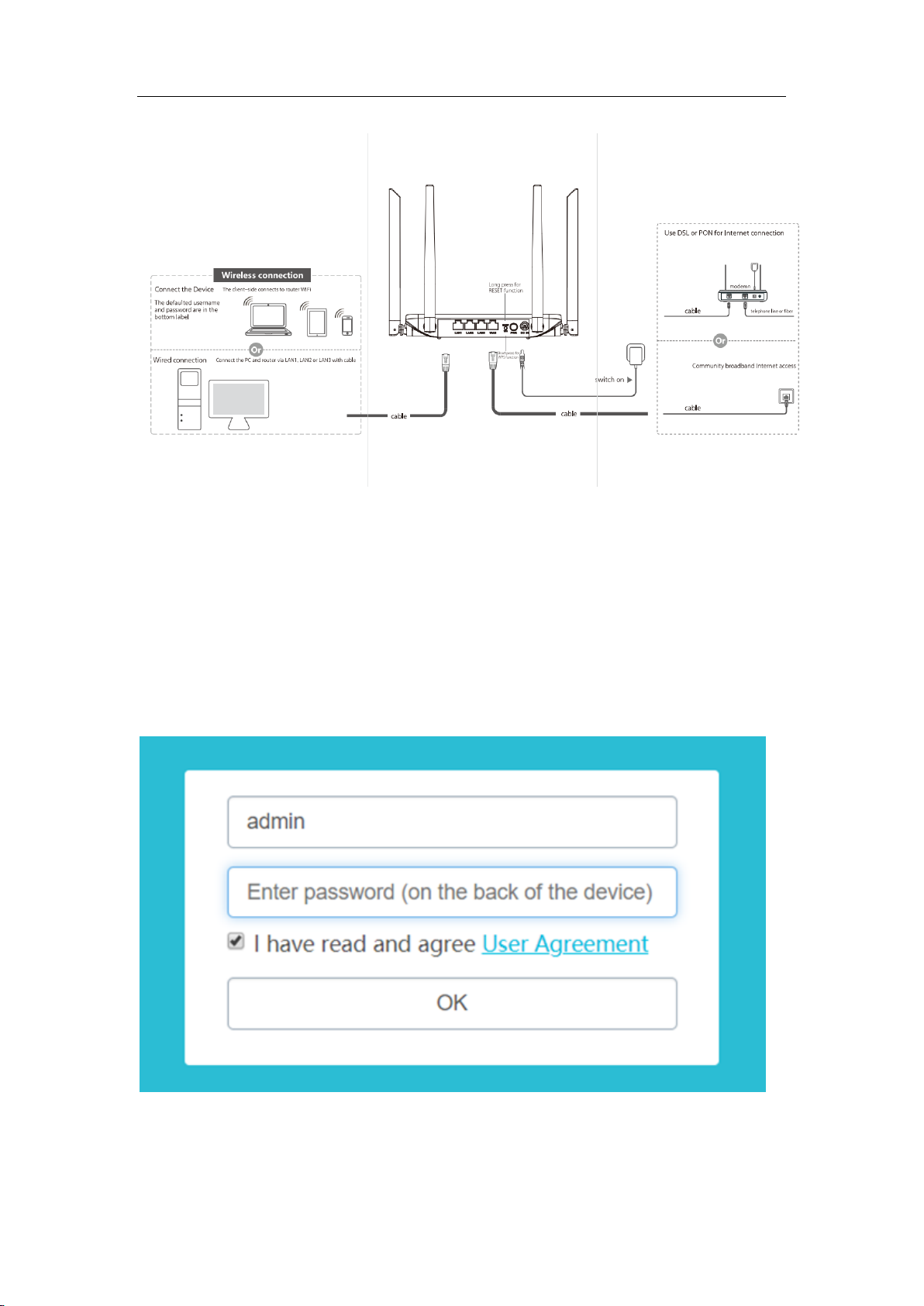

2.1 Schematic Diagram of Router Connection
User Guide
5
2.2 Configure the Internet
2.2.1 Configure the Router in Gateway Mode
2.2.1.1 Dial-up for Internet Access
After the connection is completed, use a mobile phone or computer to search for the Wi-Fi
name "2.4G SSID or 5G SSID" on the label on the back of the device and enter the
corresponding password to connect to Wi-Fi. Open the mobile phone or computer browser,
visit the 192.168.10.1 page, enter the default account and default password on the label on
the back of the device, and enter the router management interface.
Enter the router management interface and select the network-mode. Change the mode to
gateway mode.
User Guide
6
In the router management interface, click "Install-Install Settings" and select "PPPoE". Fill in
the User Name and Password, click "Save". Wait for the device to be saved and Internet
access is available. The Wi-Fi name is the default name (in the label at the bottom of the
device).

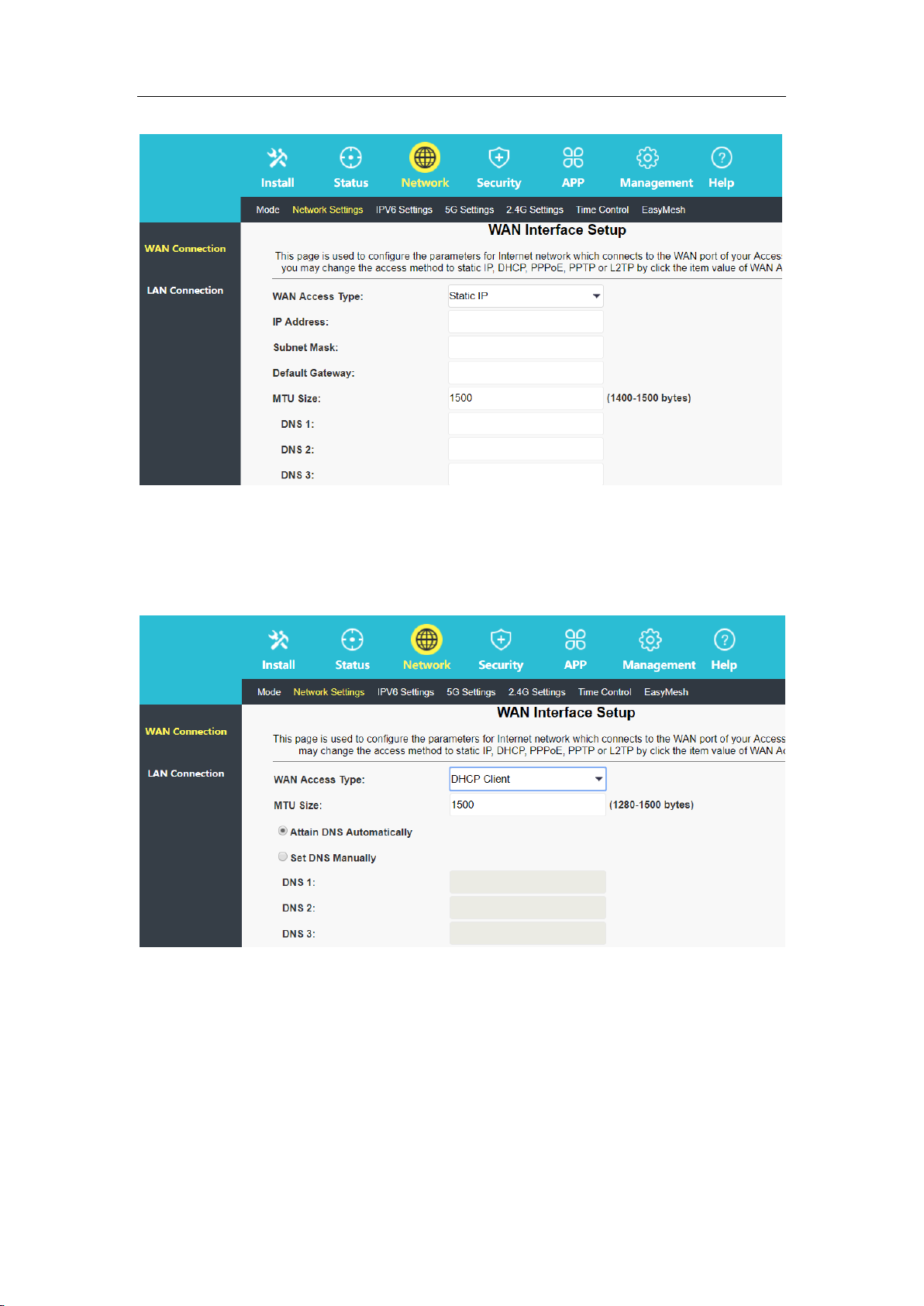

2.2.1.2 Static IP for Internet Access
In the router management interface, click "Network-Network Settings-WAN Connection" to
select a static IP address, fill in the IP address, default gateway and DNS1 (DNS2 and DNS3
are optional) and click "Save/Apply", wait for the device to save the settings and then surf the
Internet. The Wi-Fi name is the default name (in the label at the bottom of the device).
User Guide
7
2.2.1.3 Dynamic IP for Internet Access
The router is defaulted to dynamic IP (DHCP Client) for Internet access. The Wi-Fi name is
the default name (in the label at the bottom of the device).
2.2.2 Configure the Router in Bridge Mode
After the connection is completed, use a mobile phone or computer to search for the Wi-Fi
name "2.4G SSID or 5G SSID" in the label at the bottom of the device, enter the password,
connect to the Wi-Fi, and then you can surf the Internet.
2.2.3 Configure the Router in Repeater Mode
In the router management interface, select the “Network-Mode”, change the mode to
repeater mode.
User Guide
8
In the router management interface, select "Network—5G Configuration Settings—Network
Scan", click Scan, select the uplink signal, fill in the upper-level Wi-Fi key, and click Connect.
Chapter 3. Revise Wi-Fi Password
This chapter introduces how to revise Wi-Fi Password.
Revise Wi-Fi Password
In the router management interface of 192.168.10.1, click the "Install-Install Settings", you
can customize the 2.4G and 5G "wireless name and wireless password".
User Guide
9
Chapter 4. Configure EasyMesh
This chapter introduces how to configure EasyMesh.
It chapter contains the following sections:
The Steps to Configure EasyMesh
How to Check the Device Information in Topology
4.1 The Steps to Configure EasyMesh
Step 1: set up the Controller
In the router management interface connected to the upper-level gateway (optical modem),
select "Network—EasyMesh—General", in the general settings page:
Fill in “Mesh Controller”in “Device Name”.
Select “Controller”in "Role".
Click "Save & Apply" interface button.
User Guide
10
Step 2: set up the Agent
The Agent needs in the Bridge mode as in in 2.2.2.
In the router management interface of other routers (except the router set in the first step),
select "Network—EasyMesh—General", in the general setting page:
Fill in "Mesh Agent”in “Device Name".
Select "Agent" in "Role".
Click the "Save & Apply" interface button.
Step 3: Two devices’EasyMesh networking
After the two devices complete step 1 and step 2, the "General" interface will refresh, and the
"start PBC" button will appear.
In the "General" interface of one of the devices, click the "Start PBC" button or short press
the device's WPS button, and within two minutes enter the "General" interface of the other
device, click "Start PBC" button or short press the WPS button of the device to trigger
automatic network pairing. (Note that long pressing the WPS key is rest)
