Midcontinent MD302-3 Technisches Dokument
ManualNumber
9018233
RevisionC
February 21, 2022
Manual Number 9018233 Revision C, February 21, 2022
1
FOREWORD
This manual provides information intended for use by persons who, in accordance with
current regulatory requirements, are qualified to install this equipment. If further information is
required, please contact:
Mid-Continent Instruments and Avionics
Attn: Customer Service Dept.
9400 E. 34th Street N.
Wichita, KS 67226 USA
PH (316) 630-0101
FX (316) 630-0723
www.mcico.com
We welcome your comments concerning this manual. Although every effort has been made
to keep it free of errors, some may occur. When reporting a specific problem, please describe
it briefly and include the manual part number, the paragraph/figure/table reference and the
page number. Send your comments to:
Mid-Continent Instruments and Avionics
Attn: Technical Publications
9400 E. 34th Street N.
Wichita, KS 67226 USA
PH (316) 630-0101
FX (316) 630-0723
All products produced by Mid-Continent Instrument Co., Inc., including those identified as
Mid-Continent Instruments and Avionics or True Blue Power, are designed and manufactured
in Wichita, KS, USA.
© Copyright 2019
Mid-Continent Instrument Co., Inc.
Download the current
version of this
installation manual
using your
smartphone or tablet.
Manual Number 9018233 Revision C, February 21, 2022 2
TABLE OF CONTENTS
SECTION 1GENERAL DESCRIPTION 4
1.1INTRODUCTION 4
1.2TECHNICAL SPECIFICATIONS 5
1.3ARINC DATA LABELS 6
1.4IMPORTANT SAFETY INFORMATION 7
SECTION 2PRE-INSTALLATION CONSIDERATIONS 8
2.1EQUIPMENT LOCATION 8
2.2LIMITATIONS 9
2.3MODIFICATION 10
SECTION 3INSTALLATION 11
3.1GENERAL INFORMATION 11
3.2PARTS LIST 11
3.3CABLE HARNESS 11
3.4PITOT / STATIC CONNECTIONS 14
3.5INSTALLATION COMPLETION 16
SECTION 4OPERATION 18
4.1CONFIGURATION 18
4.2CALIBRATION 19
SECTION 5CONFORMANCE 23
5.1INSTRUCTIONS FOR CONTINUED AIRWORTHINESS 23
5.2ENVIRONMENTAL QUALIFICATION STATEMENT 25
Manual Number 9018233 Revision C, February 21, 2022 3
REVISION HISTORY
Rev Date Detail Approved
A
12/22/2014 Production release. BMC
B 05/11/2018 Added TSO C6e and support information for use of MD32
Magnetometer. ARINC pass-through feature. Updated
pinout. Add patent reference.
BAW
C 02/21/2022 Updated style and brand to meet Marketing and
Engineering guidelines. Updated Section 3.2 and 3.4 with
o-ring replacement information.
DLR
Manual Number 9018233 Revision C, February 21, 2022 4
SECTION 1 GENERAL DESCRIPTION
1.1 INTRODUCTION
The model MD302 series SAM® Standby Attitude Module is a self-contained situational awareness
instrument that provides aircraft attitude, altitude, airspeed, and slip indication, plus available
heading data with the optionally installed MD32 Magnetometer. The remote version of the MD302,
part number 6420302-3, is specifically designed as a compact and innovative solution for maximum
flexibility, providing the needed positional awareness for navigation, autopilot function, or related
applications. Its size and remote capability allow it to be installed almost anywhere convenient and
provides critical information to the equipment that needs it.
The MD302 provides critical flight and situational data to the pilot and crew under any
circumstances you are likely to encounter. The design is built around a solid-state electronic sensor
array for high reliability and accuracy.
Regardless of the aircraft you are flying, the MD302 is a great fit. With a 10 to 32 volt DC input
range, the unit will work with 14 or 28V aircraft electrical buses. The operation and certification of
the MD302 make it well suited for Part 23 and 25 fixed-wing applications as well as Part 27 and 29
rotorcraft.
Manual Number 9018233 Revision C, February 21, 2022 5
1.2 TECHNICAL SPECIFICATIONS
Electrical Attributes
Input Voltage: 10-32 VDC
Input Power: 4 watts (0.12A @ 28VDC)
Output Power: Reserved for MD32 Remote Magnetometer (pin 11)
Lighting Input: n/a
Input Data: ARINC 429 (see Table 1.1)
Output Data: ARINC 429 (see Table 1.1);
discrete valid signal to ground; invalid signal is open (pin 2)
Physical Attributes
Weight: 1.3 pounds (0.59 kg)
Dimensions:
(without connectors, mates & knob)
Bezel: 2.30” x 5.20” x 0.125” (HxWxD)
Chassis: 2.31” x 3.16” x 4.84” (HxWxD)
Mating Connectors: 15-pin D-Sub with Configuration Module, MCIA p/n 9017275
Pneumatic fittings, MCIA p/n 9017642
Mounting: Mount from front; uses (4) #6-32 screws
Performance Limits
A
ttitude: Pitch Angle No limits (360°+)
Pitch Rate 300° per second max
Roll Angle No limits (360°+)
Roll Rate 300° per second max
A
ltitude: Range -1,500 to +55,000 feet (available in meters)
Baromete
r
28.00 to 31.00 inches of mercury (available in mbar)
A
irspeed: Range 20 to 500 knots (available in mph or kph)
Qualifications
Certifications: FAA TSO-C2d (Type B), C3e, C4c, C6e, C10b, C106, C113a,
C179a
EASA ETSO-C2d, C3d, C4c, C6e, C10b, C106, C113, C179a
Environmental Qualification: RTCA DO-160G (details listed in Section 5.2)
Software Qualification: RTCA DO-178B, Design Assurance Level
A
Complex Hardware Qualification: RTCA DO-254, Design Assurance Level
A
Rights
U.S. Patent No.: 9,739,611
Manual Number 9018233 Revision C, February 21, 2022 6
1.3 ARINC DATA LABELS
All labels are defined as Equipment ID 038 in BNR format. High and Low speed options for ARINC
outputs are configurable.
ARINC 429 Input Speed
Label Description High Low
014 magnetic heading x x
203 altitude (rel 29.92) x x
204 baro altitude x x
234 baro correction (mbar) x x
235 baro correction (inHg) x x
320 magnetic heading x x
ARINC 429 Output Speed
Label Description High Low
203 altitude (rel 29.92) x x
204 baro altitude x x
205 mach numbe
r
x x
206 computed airspeed x x
212 altitude rate x x
215 impact pressure x x
217 static pressure x x
234 baro correction (mbar) x x
235 baro correction (inHg) x x
320 magnetic heading x
324 pitch attitude x x
325 roll angle x x
326 body pitch rate x
327 body roll rate x
330 body yaw rate x
331 body longitudinal acceleration x
332 body lateral acceleration x
333 body normal acceleration x
336 inertial pitch rate x
337 inertial roll rate x
340 inertial yaw rate x
350 custom label for software version x
351 reserved custom label x
353 SSEC identification x
364 vertical acceleration x
377 specific equipment id x x
TABLE 1.1
Manual Number 9018233 Revision C, February 21, 2022
7
1.4 IMPORTANT SAFETY INFORMATION
Read this safety information BEFORE maintaining or servicing the unit.
Symbol Definition
This section describes the precautions necessary for safe operations. The following safety
symbols have been placed throughout the guide.
Warnings identify conditions or practices that could result in personal injury.
Cautions identify conditions or practices that could result in damage to the equipment.
W
ARNING
CAUTION
Manual Number 9018233 Revision C, February 21, 2022
8
SECTION 2 PRE-INSTALLATION CONSIDERATIONS
2.1 EQUIPMENT LOCATION
The MD302 SAM (-3) Standby Attitude Module is designed to be installed in the instrument panel or
equipment bay of the aircraft. However, within the limitations of the environmental qualifications,
other locations may be acceptable when considered within the context of the specific application
and with the appropriate installation certification.
Clearance for the unit as well as its electrical and pneumatic connections and routing must be
allowed. Be aware of routing cables near other electronics or with other wire bundles that may be
susceptible to high energy flow. Avoid sharp bends in cabling or hoses and routing near aircraft
control cables. Also, avoid proximity and contact with aircraft structures, avionics equipment, heat
sources or other obstructions that could chafe or damage wires or hoses during flight and cause
undesirable effects.

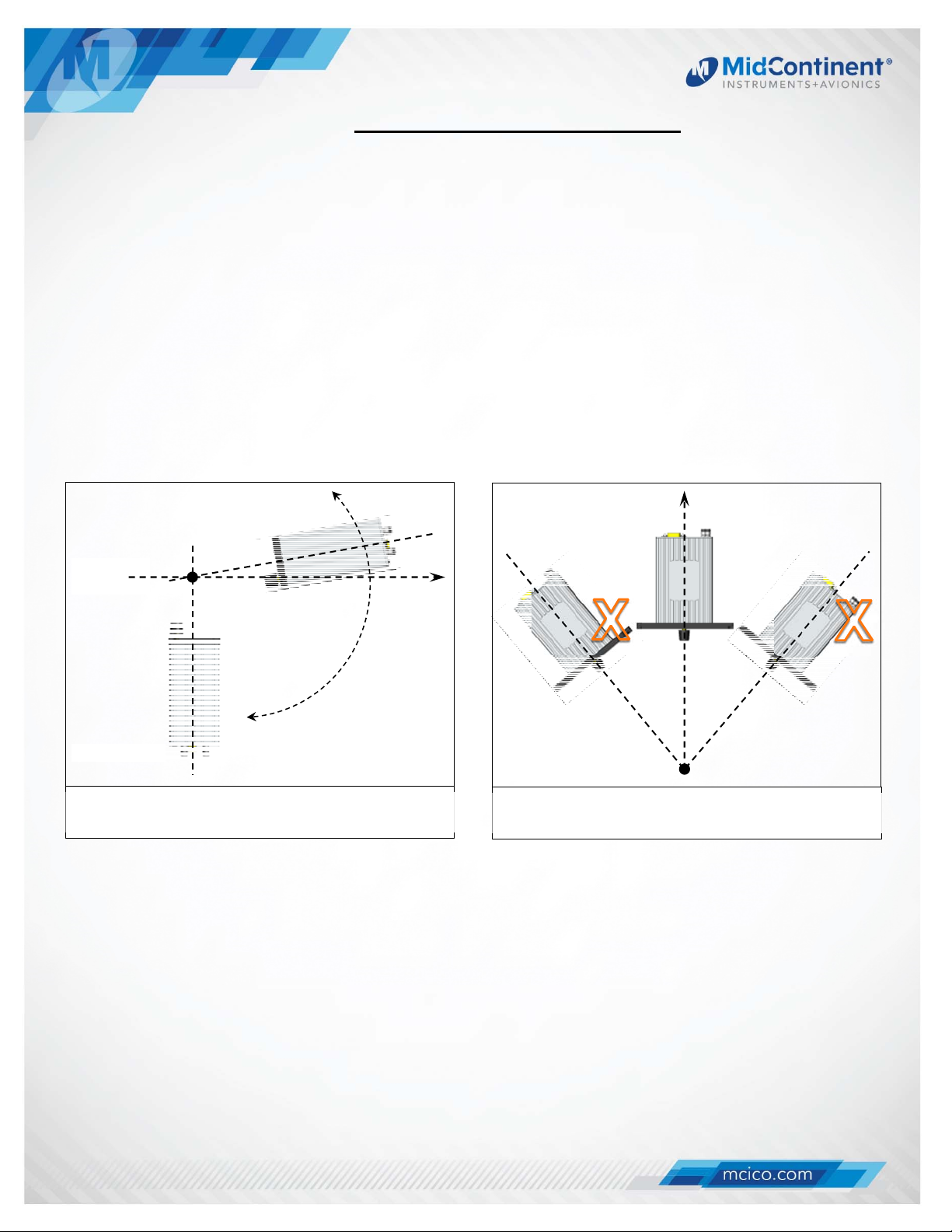

FIGURE 2.1
INSTALLATION ORIENTATION OPTIONS
top
MUST BE INSTALLED IN THE
DIRECTION OF FLIGHT
dir
ect
i
Panel tilt: -90° to +90°
(horizontal shown; also applicable for
strai
ght
sid
Manual Number 9018233 Revision C, February 21, 2022 9
2.2 LIMITATIONS
The conditions and tests for TSO approval of this article are minimum performance standards.
Those installing this article on or in a specific type or class of aircraft must determine that the
aircraft installation conditions are within the TSO standards, specification of the article, and
deviations listed below. TSO articles must have separate approval for installation in an aircraft. The
article may be installed only according to 14 CFR part 43 or the applicable airworthiness
requirements.
There are some portions of the approved TSOs which represent outdated requirements or do not
apply to the product. These items are highlighted below and have been submitted to and approved
by the FAA as deviations to the TSO certifications of the product. In the case of FAA TSO and
EASA ETSO-C3e, the MD302 has been approved as an ‘incomplete TSO’. The MD302 meets all
TSO requirements for applicable functions (slip) but does not meet requirements associated with
functionality that is not present in the unit (rate of turn). A note below describes further details
regarding the temperature requirements of FAA TSO-C113a, but does not represent a deviation.
FAA TSO-C2d: Airspeed Instruments
instrument is not labeled with “Airspeed” or “IAS”
FAA TSO-C3e: Turn and Slip Instrument
instrument does not provide rate-of-turn functionality
FAA TSO-C4c: Bank and Pitch Instruments
dielectric strength/insulation resistance does not apply due to electronic components between
chassis and connector pins
FAA TSO-C10b: Altimeter, Pressure Actuated, Sensitive Type
instrument is not labeled with “Altitude” or “ALT”
graduation increments are every 25 feet instead of 20 feet
FAA TSO-C113a: Airborne Multipurpose Electronic Displays
display is operable but marginally usable at -30°C. Display is fully functional at
temperatures higher than -30°C.
Heading Display Function
Does not provide independent heading data, the ARINC data is displayed without
reprocessing; if ARINC data is lost the display will read “---“.
